Heavy stone marble granite engraving cnc router 5.5kw spindle CA 1325 3d carving router machine for stone
- Category: >>>
- Supplier: Jinan Camel CNC Machinery Co. Ltd.
Share on (1600403222250):
Product Overview
Description
Heavy stone marble granite engraving cnc router 5.5kw spindle CA-1325 3d carving router machine for stone
Product Description
Machine configurations:
♦ 1300x2500x500mm working size
♦ NC Studio Control system
♦ Heavy machine frame special for stone machine
♦ 5.5kw water cooling spindle special for stone working
♦ Artcam software
♦ Taiwan Hiwin linear guide
♦ TBI high precision ball screw
Machine specifications:
♦Profiled steel welded lathe bed, stabilizing treated under high temperature ensures minimum distortion, excellent rigidity and vigorous strength.
♦High precision ball screw transmission ensures high accuracy, fast speed and strong power.
♦Imported square linear guide rail ensures high accuracy, maximum work load and long service time.
♦Best mechanical and electrical design with well selected brand parts minimize breakdown rate.
♦Configured with water tank and automatic cooling water supply system.
♦Overall dust-proof and water-proof design protects all moving parts of machine.
Review
Machine Pictures:

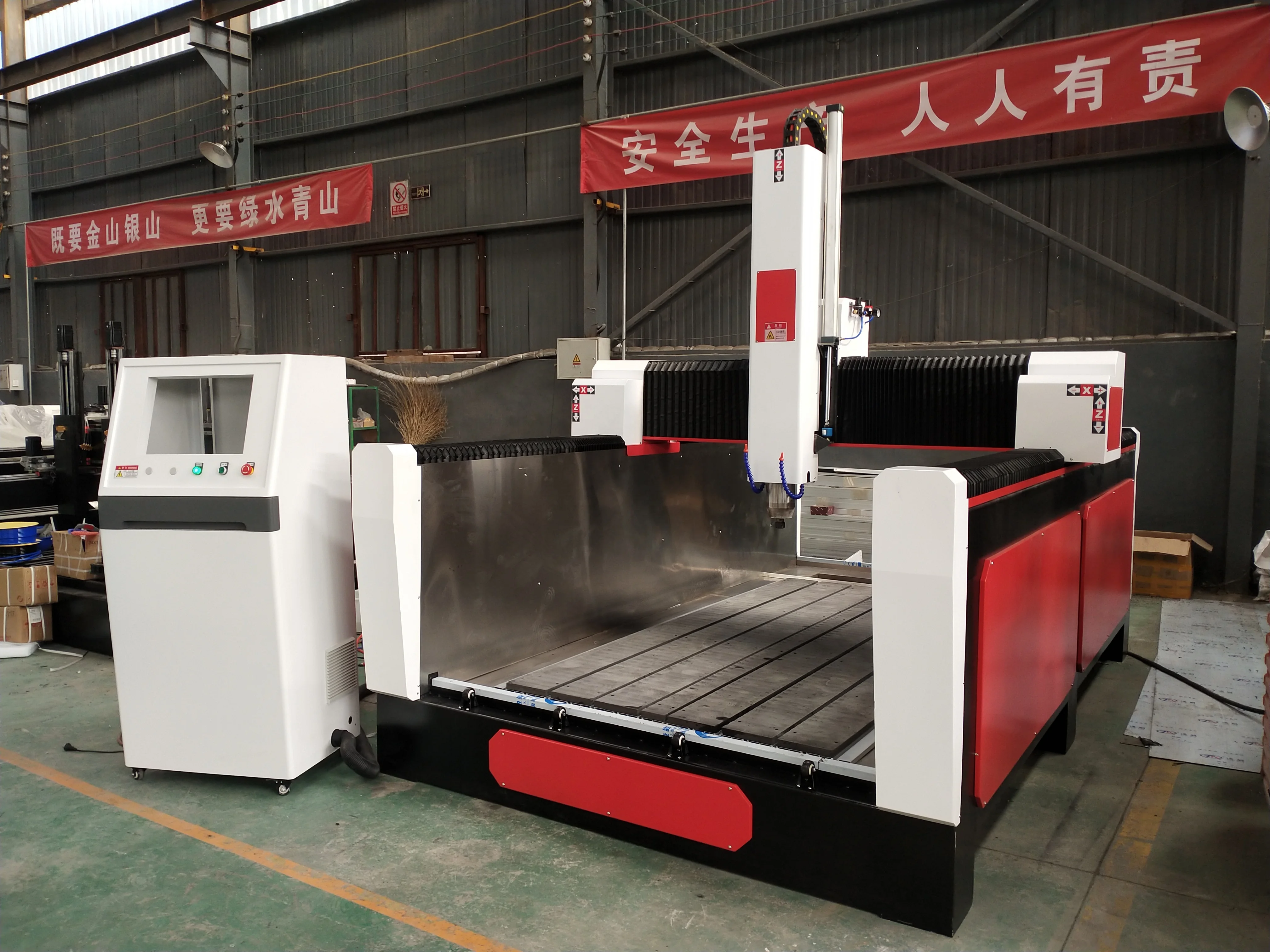

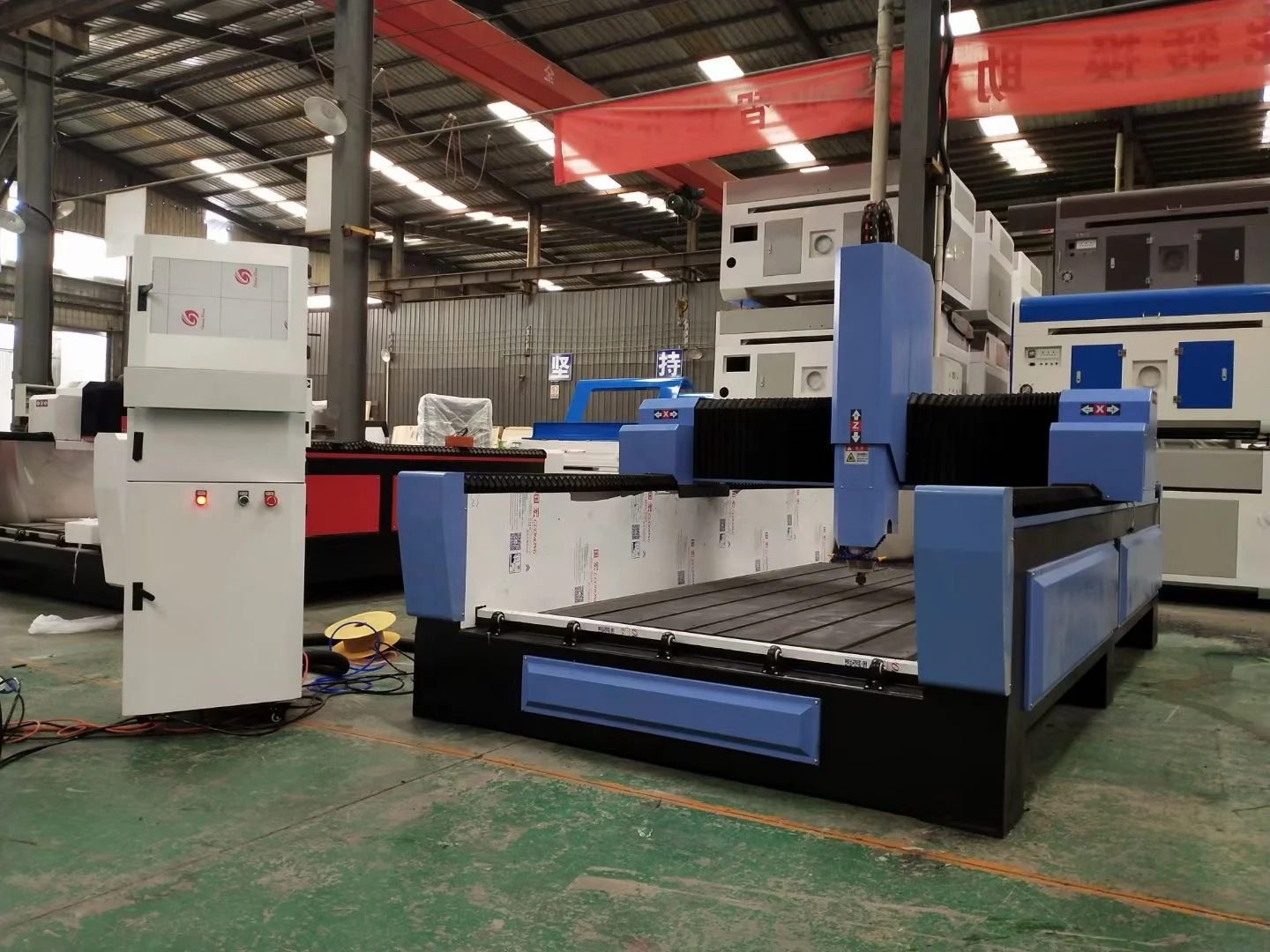

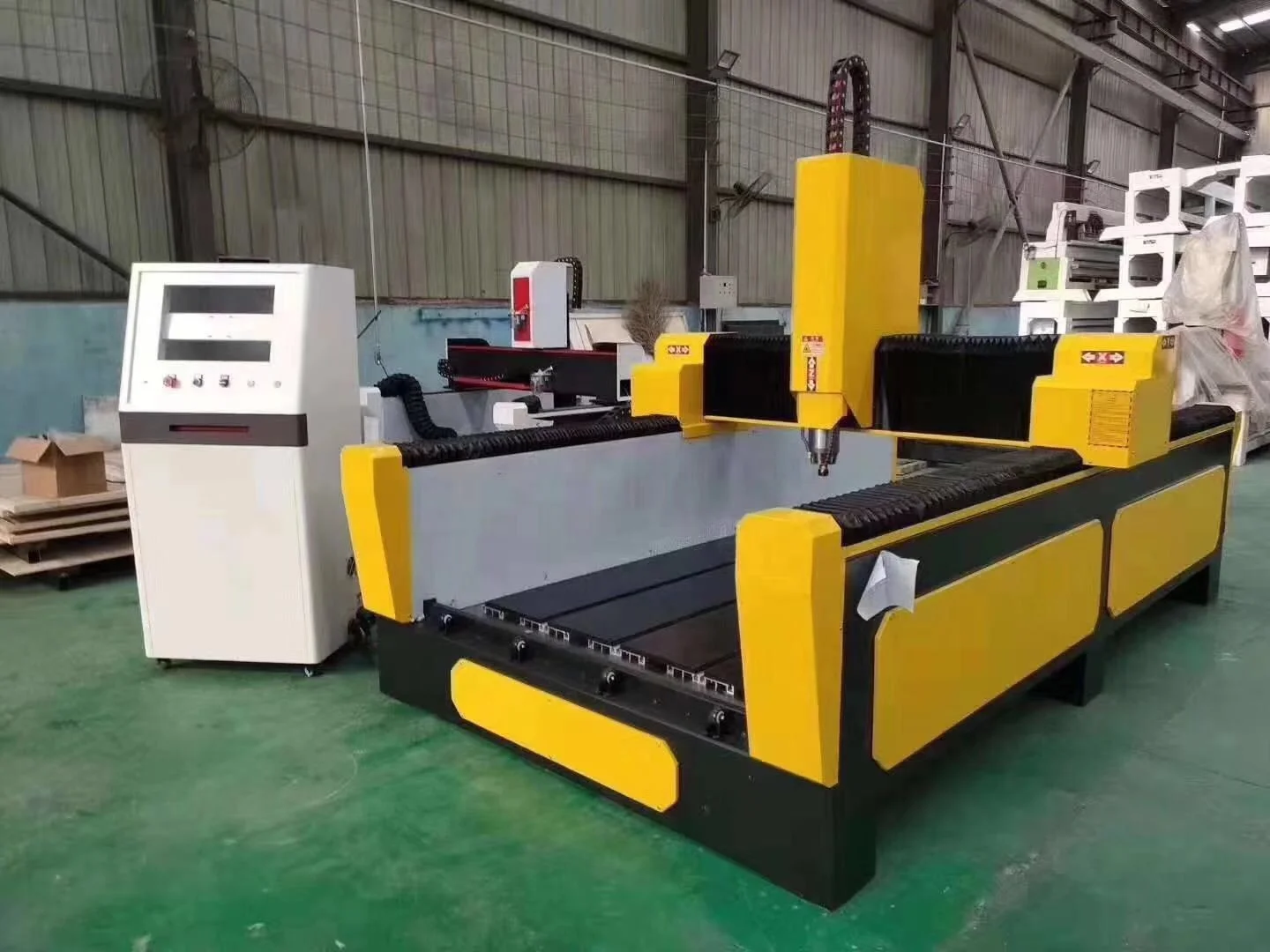

Single spindle stone cnc router machine:

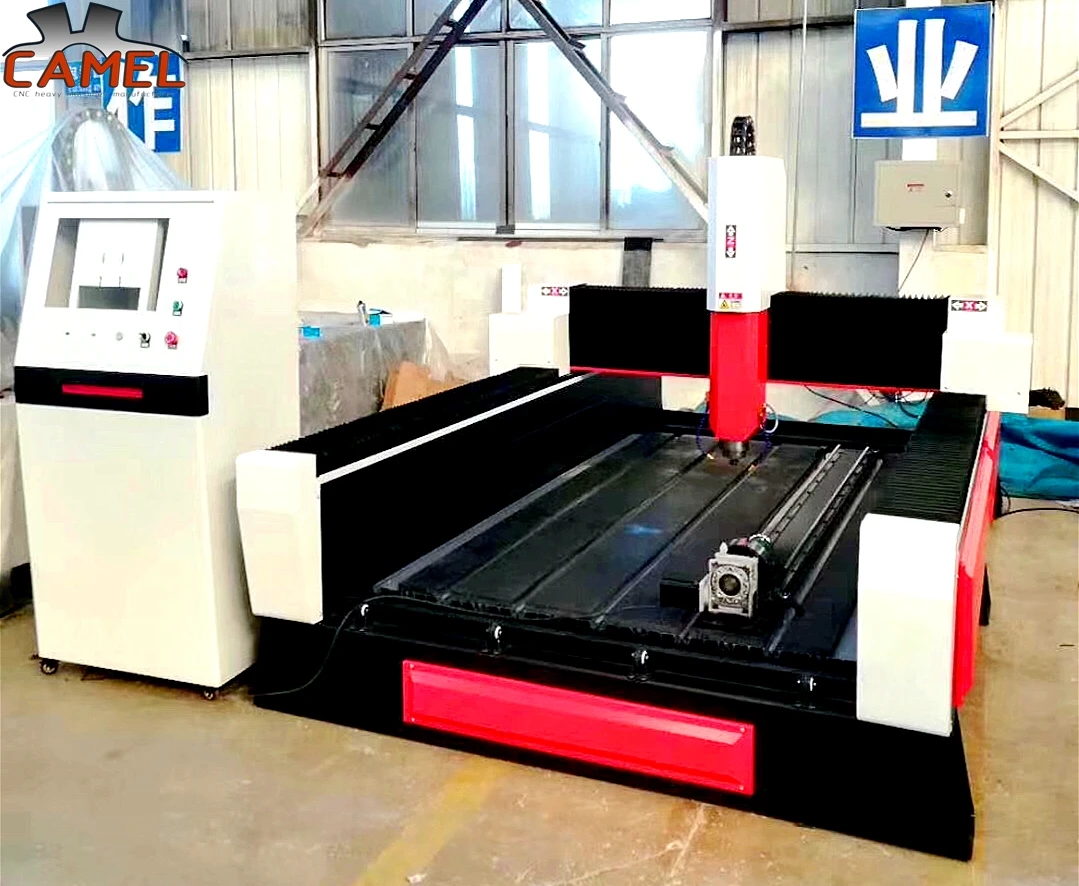

Stone cnc router machine with rotary axis device:

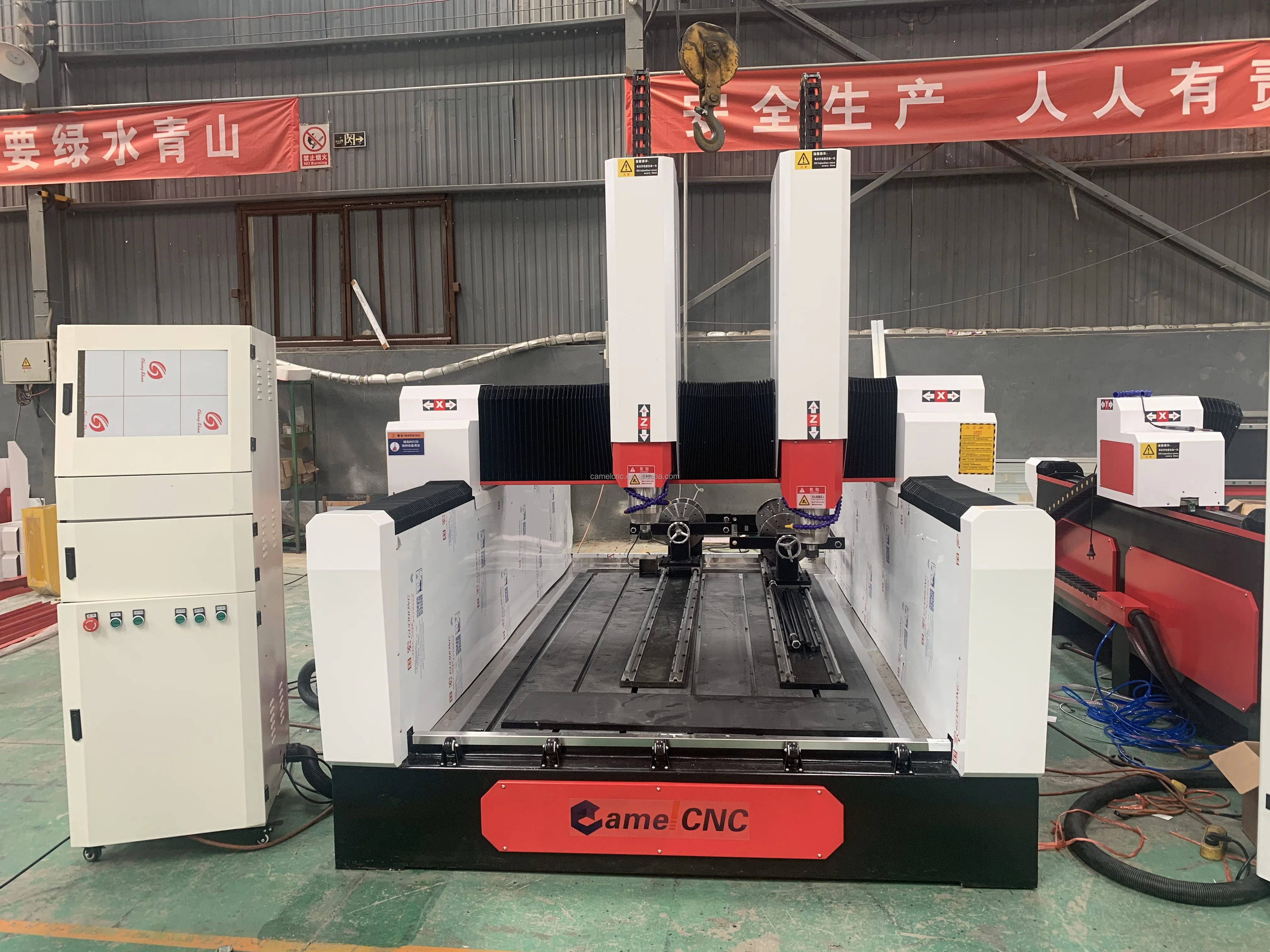

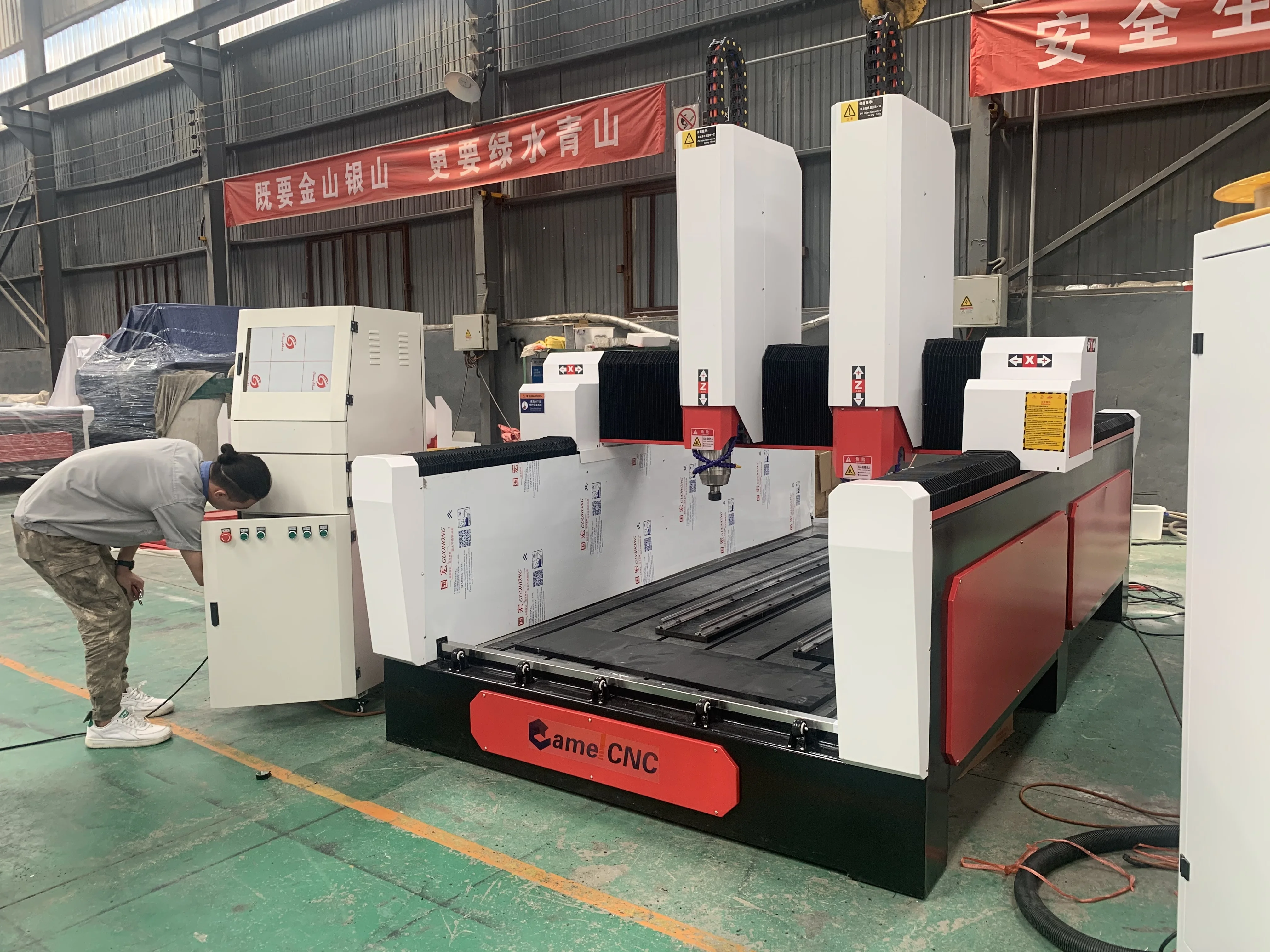

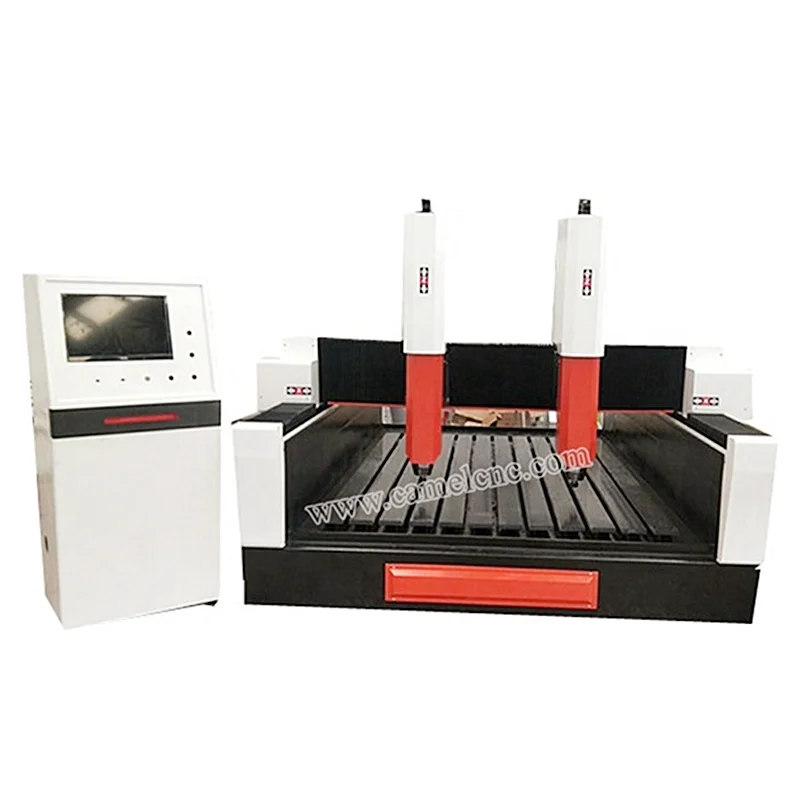

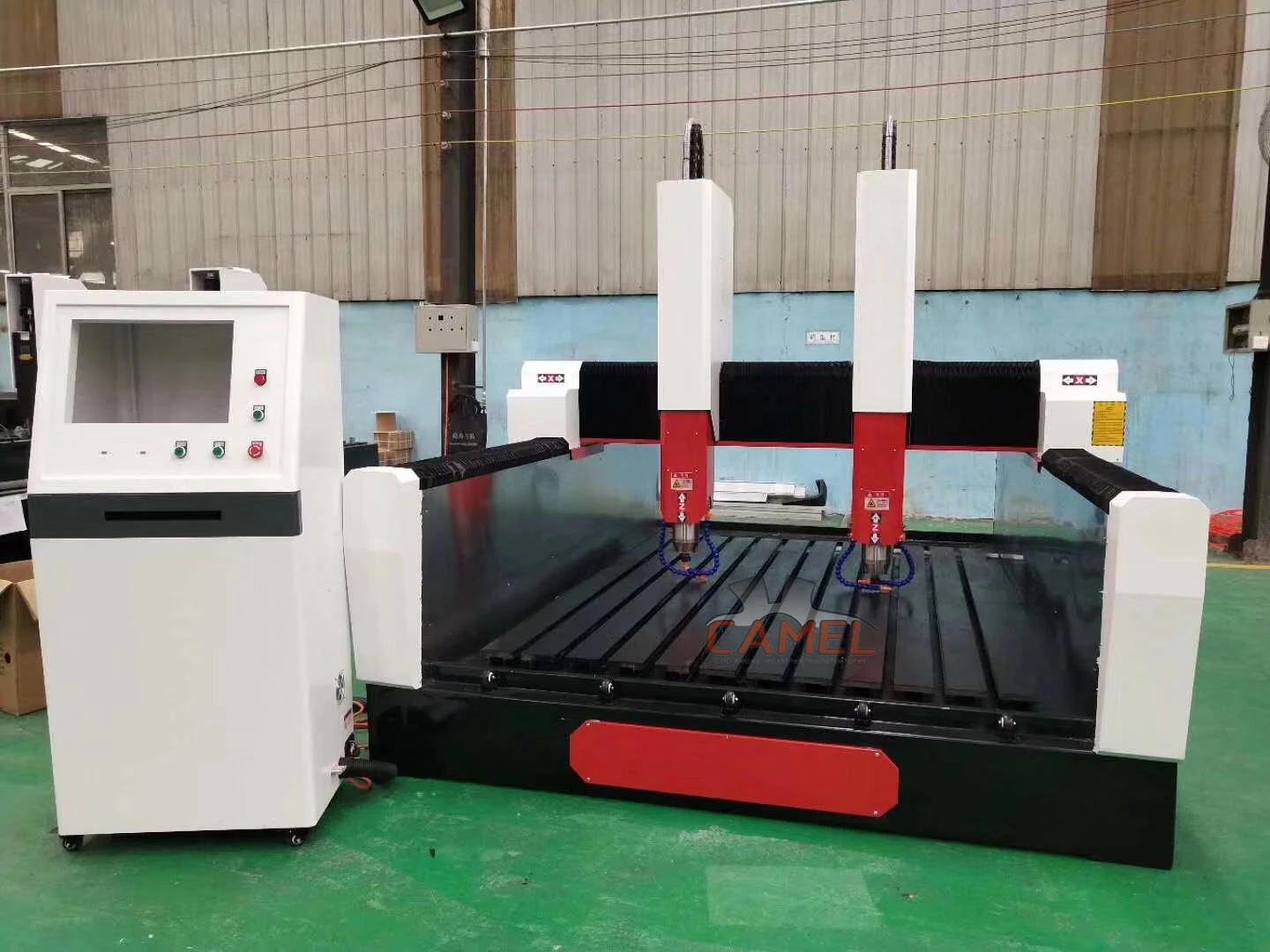

Double head stone cnc router machine:
Technical Parameter:
Model | CA-6090 | CA-0915 | CA-1318 | CA-1325 |
Working Area(xyz) | 600*900*200mm | 900*1500*300mm | 1300*1800*400mm | 1300*2500*500mm |
MaxEngraving Speed | 12000mm/min | 15000mm/min | 15000mm/min | 15000mm/min |
Reposition Accuracy | <0.05/300mm | <0.05/300mm | <0.05/300mm | <0.05/300mm |
Working Dictate | G code | G code | G code | G code |
Spindle | 1.5/2.2 kw/3.0kw | 3.0 kw/5.5KW | 3.0 kw/5.5KW | 5.5KW |
Tool Diameter | 3.175,6,12.7 | 3.175,6,12.7 | 3.175,6,12.7 | 3.175,6,12.7 |
X,Y,ZGuideRail | Square Linear Rail | Square Linear Rail | Square Linear Rail | Square Linear Rail |
Transmission | XYPrecise ball screw | XYPrecise Rack Gear | XYPrecise Rack Gear | XYPrecise Rack Gear |
| Z Ball Screw | Z Ball Screw | Z Ball Screw | Z Ball Screw |
Control System | NC-STUDIO/DSP | NC-STUDIO/DSP | NC-STUDIO/DSP | NC-STUDIO/DSP |
Advantage
Advantage:
CAMEL CNC machine compare with others' cnc:
Sample

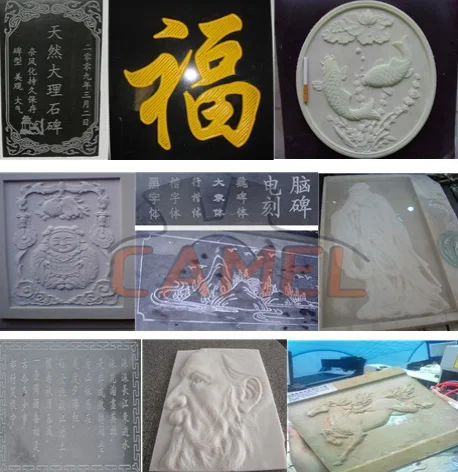

Finished sample pictures:
Packaging & Shipping
Package&Delivery:
Company Information
Warranty
