TUV Certified Solar Panel Junction Box IP68 Waterproof Solar PV Junction Box
TUV Certified Solar Panel Junction Box IP68 Waterproof Solar PV Junction Box
TUV Certified Solar Panel Junction Box IP68 Waterproof Solar PV Junction Box

TUV Certified Solar Panel Junction Box IP68 Waterproof Solar PV Junction Box

Share on (1600403232207):


Price:$2.50 - $3.50

Quantity:


Product Overview

Description





Specification


Certified
TUV
Rated Voltage
1500VDC
Safety Class
Class II
Working Temperature Range
-40℃～+85℃

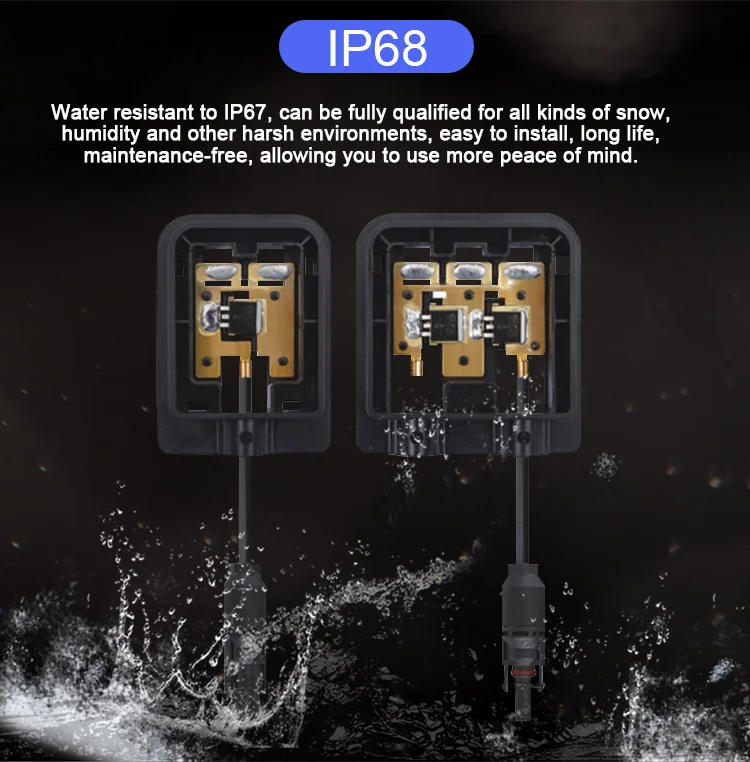

IP Grade
IP68
Cable Size Range
4mm²
Flame Resistance
5VA
Waterproof Structure
Potting sealant
Volume of Potting Glue
Appr.29ml
Width of Ribbons
Up to 8mm

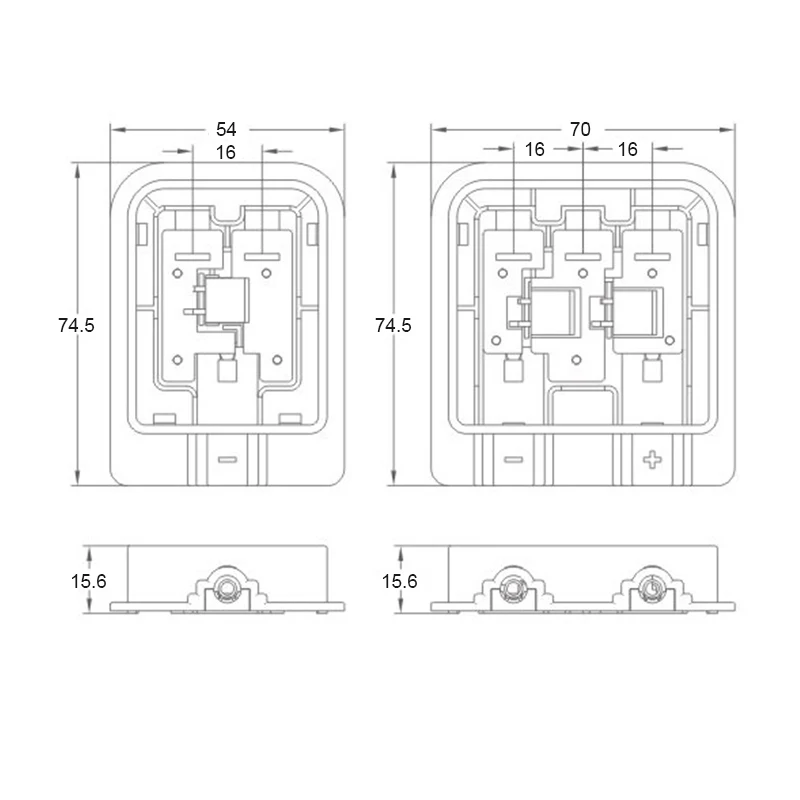

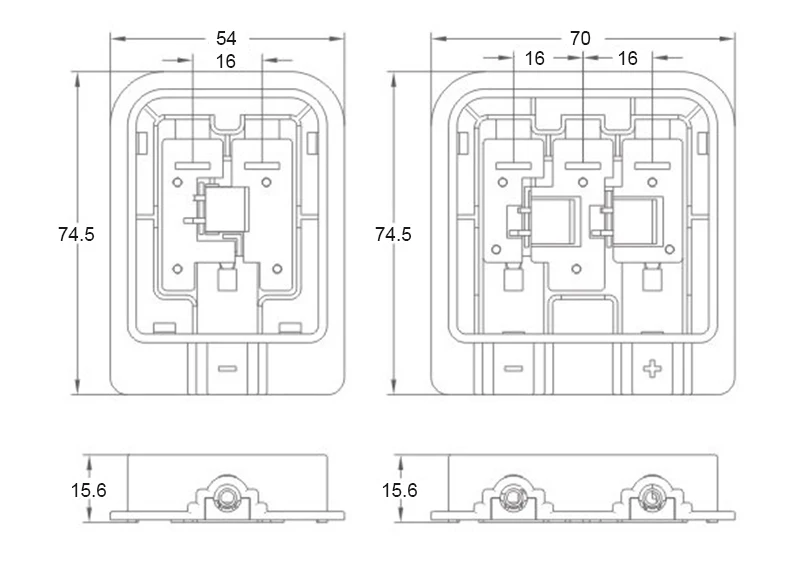

Centerline Spacing Between Terminals
16mm
Connection Method of Ribbon
Soldering
Contact Material
Copper, Tin-plated
Insulation Material
PPO
Optional Connector
GZX1500/EVO2/MC4




Products Description






More Products












Certifications




Company Information






Exhibition




Packaging&Shipping




FAQ


1) Are you a factory or trading company?
We have our own factories.

2) What is your FOB port?
FOB Shanghai, and we can according to customer requirements.

3) What is your delivery time?
3-7 days for samples, 10-30 days for large quantities, according to your order.

4) How about your after-sale service?
We can offer you timely and best after-sales service. Now we have built our relationship in many overseas countries like Brazil, Pakistan, Japan and German. It makes our after-sale service very easy and effective to reach you. Also our 24 hours online inquiry service is available.

5) Can I have my own logo on your products?
Yes, OEM&ODM service is available.

6) How to guarantee the quality of your products?
Our products have U L, TUV, IEC, RoHs, SGS and other certifications.
