Пружинная дисковая шайба Din 2093 из нержавеющей стали
- Category: Washers >>>
- Supplier: Tianjin Simflex Company Ltd.
Share on (1600404346183):
Product Overview
Description
Product Description
Disc springs & Belleville washers
Din 2093 stainless steel spring disc washer
in stock from 5mm up to 70mm outside diameter
The disc spring is a spring washer with a conical shape. It can be subjected to large loads or impacts with minor deflection, and its characteristics can be changed by itself or by stacking.
Material Data
Spring steel 60Si2Mn、50CrVA
We also manufacture from special materials.
We also manufacture from special materials.
Material | Standard | ||||||
GB | DIN | JIS | ASTM | ||||
Carbon steel and carbon alloy steel | 65Mn | C67S | SWRH67A/WRH67B | 1566 | |||
T8Mn | C85W | SK85（SK5） | SAE1085 | ||||
T7A | C70W2 | SK7 | SAE1070 | ||||
50CrVA | 51CrV4/50CrV4 | SUP10 | G6150 | ||||
60Si2MnA | 60SiCr7 | SUP7 | ASTM9260 | ||||
Material | Standard | ||||||
GB | DIN | JIS | ASTM | ||||
Corrosion resistant Stainless steel | 17Cr-7Ni | X12CrNi177 | SUS301 | 301 | |||
0Cr18Ni9 | X5CrNi1810 | SUS304 | 304 | ||||
0Cr17Ni12Mo2 | X5CrNiMo1712 | SUS316 | 316 | ||||
0Cr17Ni7Al | X7CrNiAl17-7 | SUS631 | 17-7PH | ||||
GH4145 | NiCr15Fe7TiAl | NCF750 | Inconel X-750 | ||||

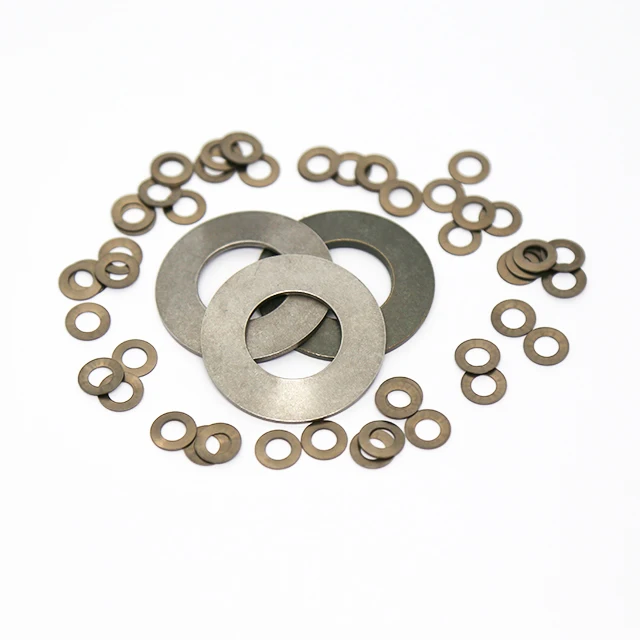

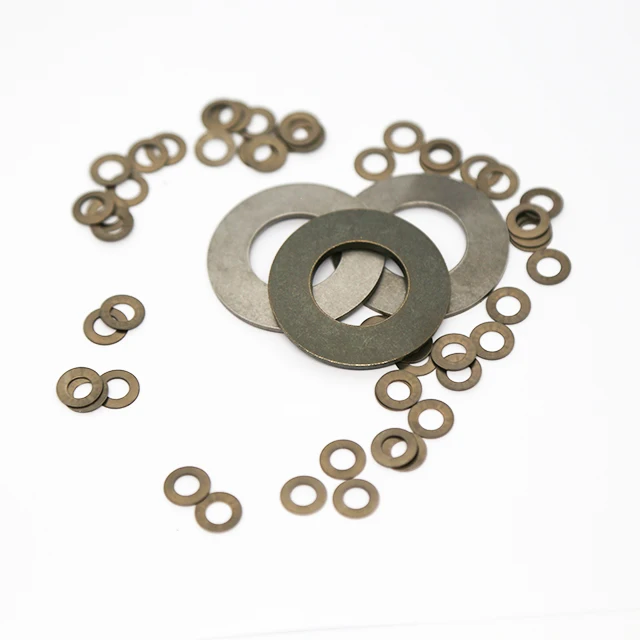

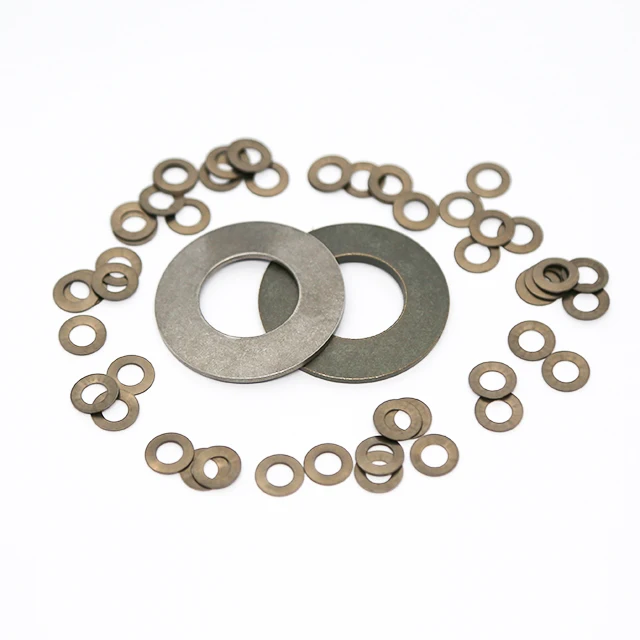

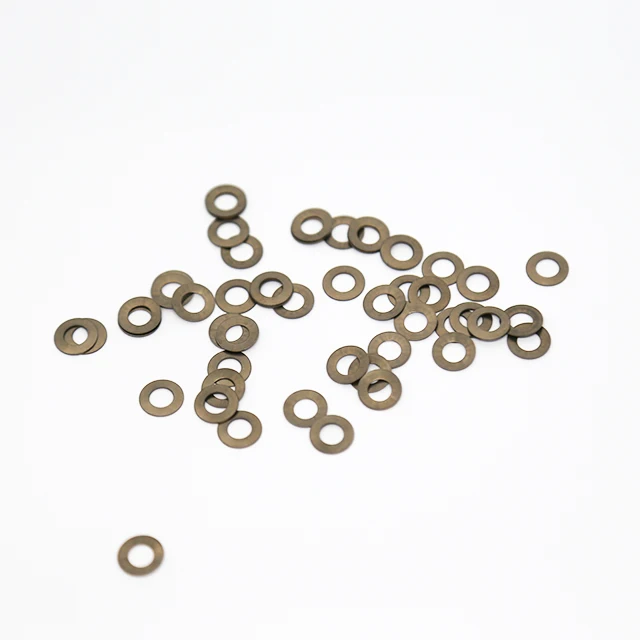

Detailed Images
Din 2093 stainless steel spring disc washer
Spring steel, stainless steel
We also manufacture from special materials.
We also manufacture from special materials.
Other coatings like Mechanical Zinc Plating, Chemical Nickel Plating,
Docromet / Geomet Coating are available.
Docromet / Geomet Coating are available.

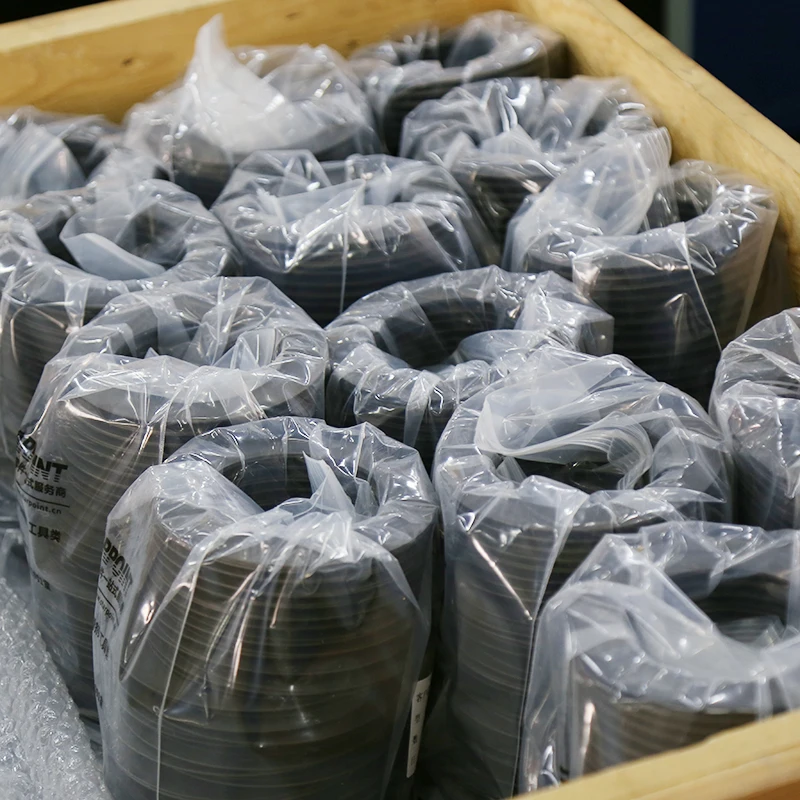

Packing&Shipping
The springs are normally packed by cartons. We also use a pallet as the base for the cartons. After placing the carton on the pallet correctly. The entire pallet body will be covered by a film in order to block the sea air and avoid the corrosion of the spring. This packaging method is simple and fast. We can also offer the wood carton according the weight and the volume of the springs.
Din 2093 stainless steel spring disc washer
Application
Vlaves
Motor
Auto Steering system and Axles system
High-Voltage Switch Gear
Hydraulic lock Device
Brake Device

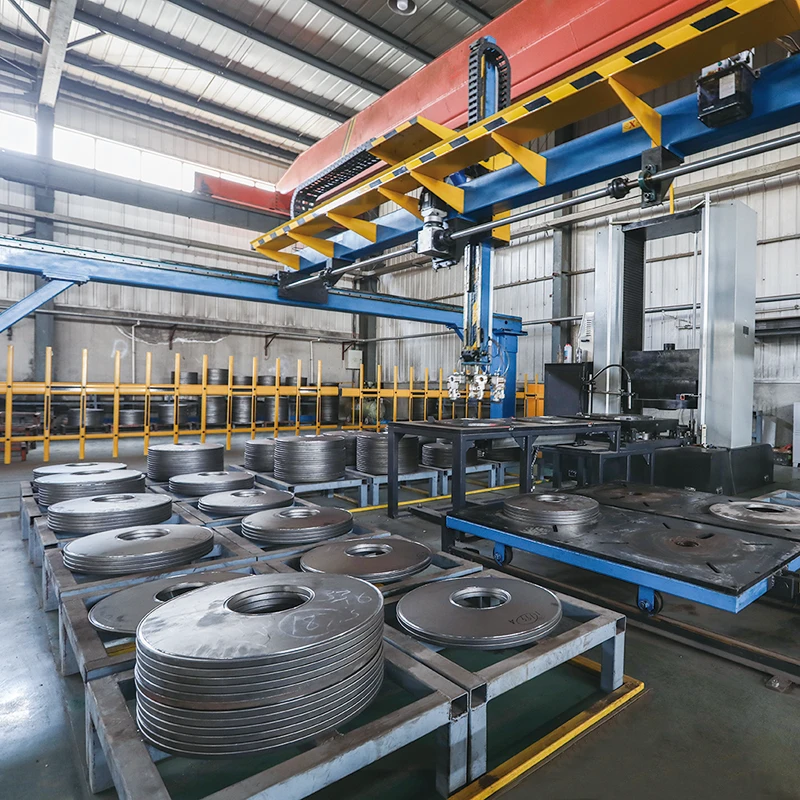

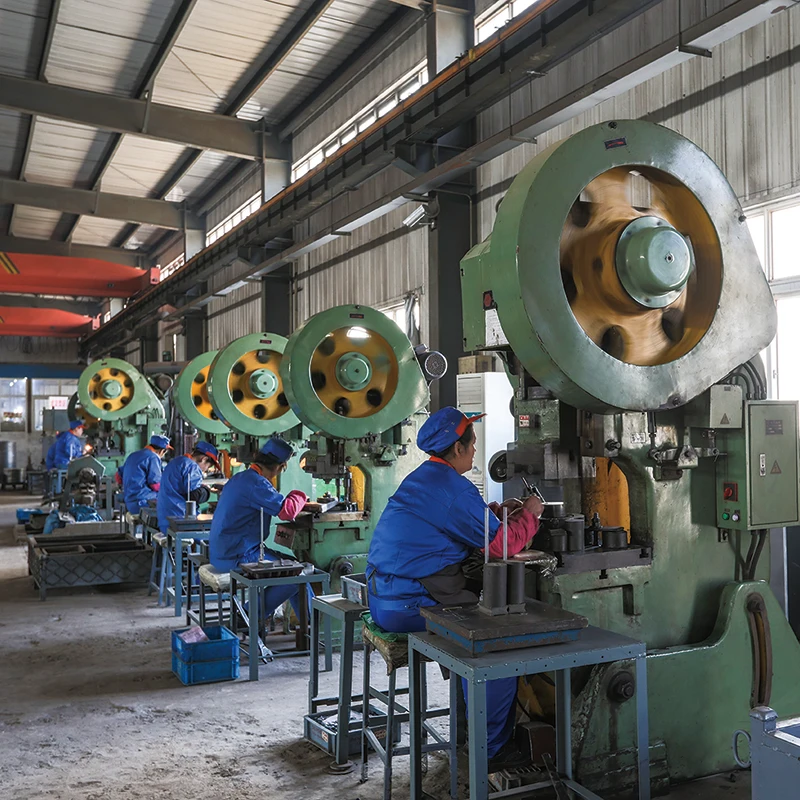

Company Introduction
Tianjin SIMFLEX Company LTD. was established in 2003. We export different types of springs, lock washer, bearings, fasteners etc.We always been focusing on providing professional and personalized services to customers by our R&D, manufacturing and sales departments.
Our products are strictly according to the standards and requirements of Chinese standard, Germany standard, American standard,JIS standard, international standard. We also accept customization according to the samples or drawings provided by customers.
Our products are strictly according to the standards and requirements of Chinese standard, Germany standard, American standard,JIS standard, international standard. We also accept customization according to the samples or drawings provided by customers.
Din 2093 stainless steel spring disc washer
Our Services & Strength
We use SAP system to manage our logistic chain. We promise to provide customers with reliable and high quality products and quick response services to assist our customer to improve the competitiveness in the market.
Our products are widely used in the industry of railways, mechanical equipment. Elevators, motors, automobiles, wind power, photovoltaic etc. Besides the domestic market, our products are well received by overseas customers in America, South East Asia and Middle East, European market.
Tianjin SIMFLEX Company Ltd sincerely looks forward to working together with more customer worldwide. Any interest you can contact us through email or phone or whatapp/wechat etc.
Our products are widely used in the industry of railways, mechanical equipment. Elevators, motors, automobiles, wind power, photovoltaic etc. Besides the domestic market, our products are well received by overseas customers in America, South East Asia and Middle East, European market.
Tianjin SIMFLEX Company Ltd sincerely looks forward to working together with more customer worldwide. Any interest you can contact us through email or phone or whatapp/wechat etc.
Din 2093 stainless steel spring disc washer
