Z type vertical grain belt gravel bucket elevator conveyor parts

Share on (1600407709352):


Price:$2,800.00 - $4,500.00

Quantity:


Product Overview

Description



Product Description

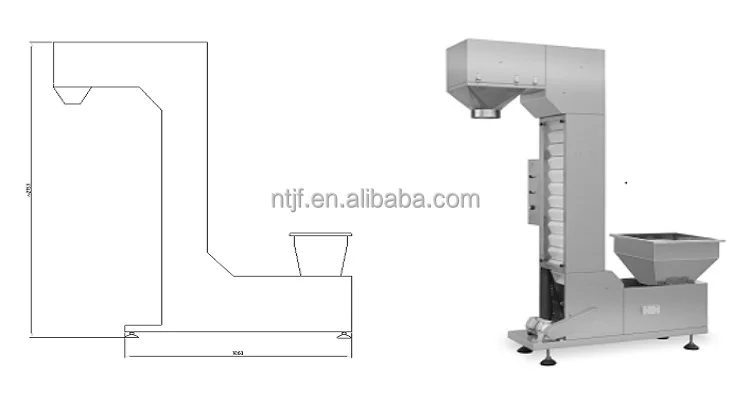

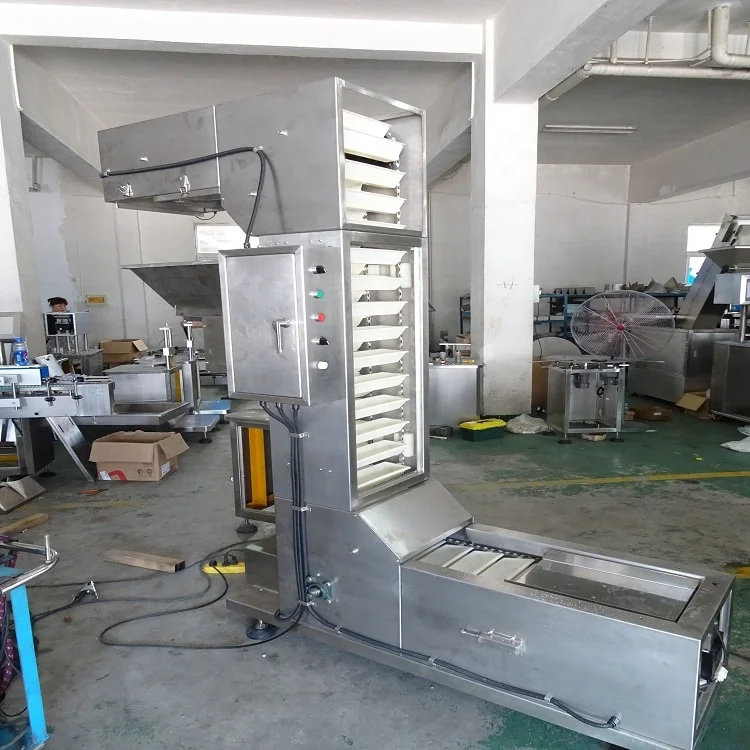

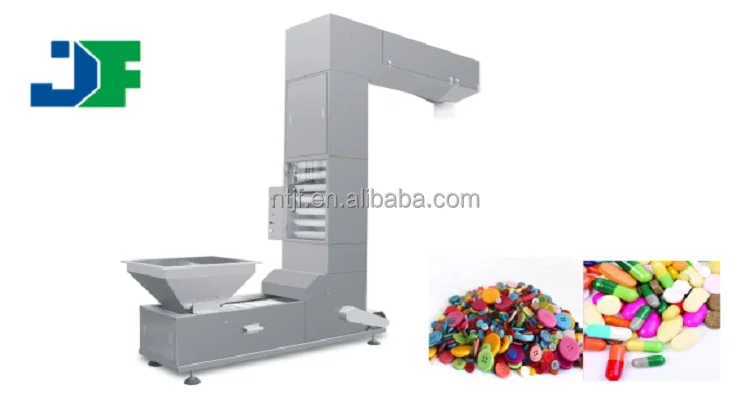

JF-L2 Z Type Bucket Elevator
Bucket Conveyor is suitable for vertical lifting different granule material ,such as grain,candy,biscuit,frozen food,puffed snacketc;The elevator is used together with packing maching usually.Length and height of machine according to your choice, flexible layout and less area space, the machine is reliable , safe , stable, without noise ,spillage, easy to maintain. That is the ideal model of material conveying device.
We have various types of capsule counter, please tell us your needs, and we will recommend a suitable machine for you!




Main features
1.Simple operation:With intelligent design, easily to operate
2.Easy maintenance:The operator only requires simple training as the disassemble, cleaning and replacement of parts are easy to carry out with little of tools.
3. Grain bucket elevator is closed environment , conveying material through the hopper inside
4. Horizontal-vertical-horizontal combination conveying
5. Totally enclosed, no leakage, no pollution. It is suitable for conveying all kinds of powdery materials and granular
materials,betterto transport non-viscous materials.
6. Biggest advantage is that the combinationis flexible, largelifting volume , low damage rate of the material, prevent the defective products.


Details Images




Material storage
Large storage hopper is used to store materials, with large capacity and more materials
Transfer hopper
The material is transferred from the big bucket to the small bucket, and then lifted and transported


Control part
To start and control the speed ,adjust the whole machine working state
Filling part
Finally lifted to position, and then unloaded


Parameters


Model
JF-L2
Applicable
Various solid particles,podwer
Production capacity
1-1.5 t/h (adjustable)
Conveying high level
According to customers’ requirement
Power supply
AC220V50/60Hz
Overall dimension(L*W*H)
3500mm*600mm*3500mm
Machine weight
About 280 Kg




Related Products


Let the machine work for you!
Dear customer, Maybe you have only bought one of our machines, but you shall know about our company’s complete production line,which will definitely satisfy you.

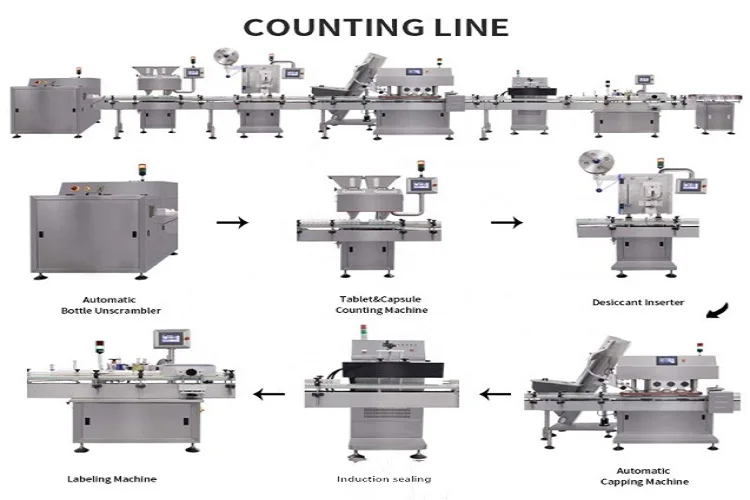

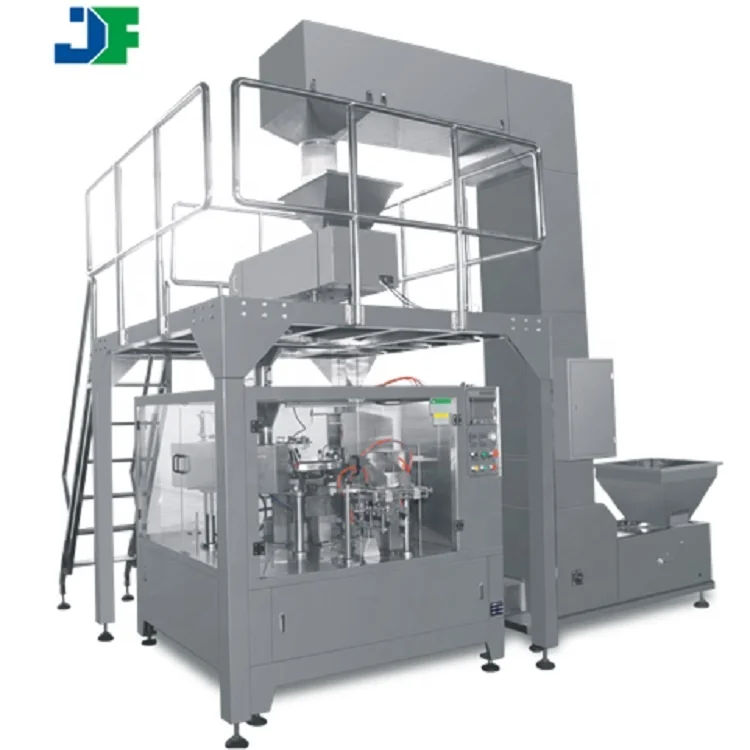

Eleven machines cooperate perfectly
* You can choose the complete line or just several machines of it, which is based on your own needs.
* As each machine cooperates perfectly in order, it greatly improves not only the efficiency but also the quality and grade of
product packaging.

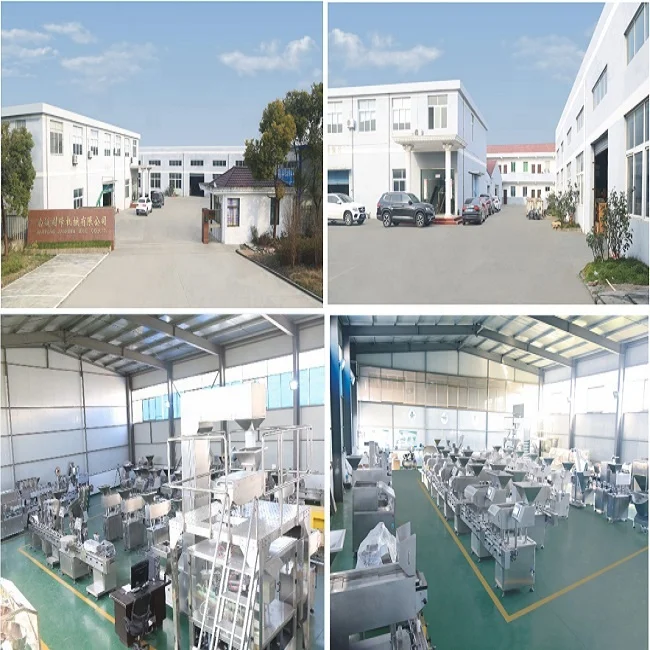

Company Profile
