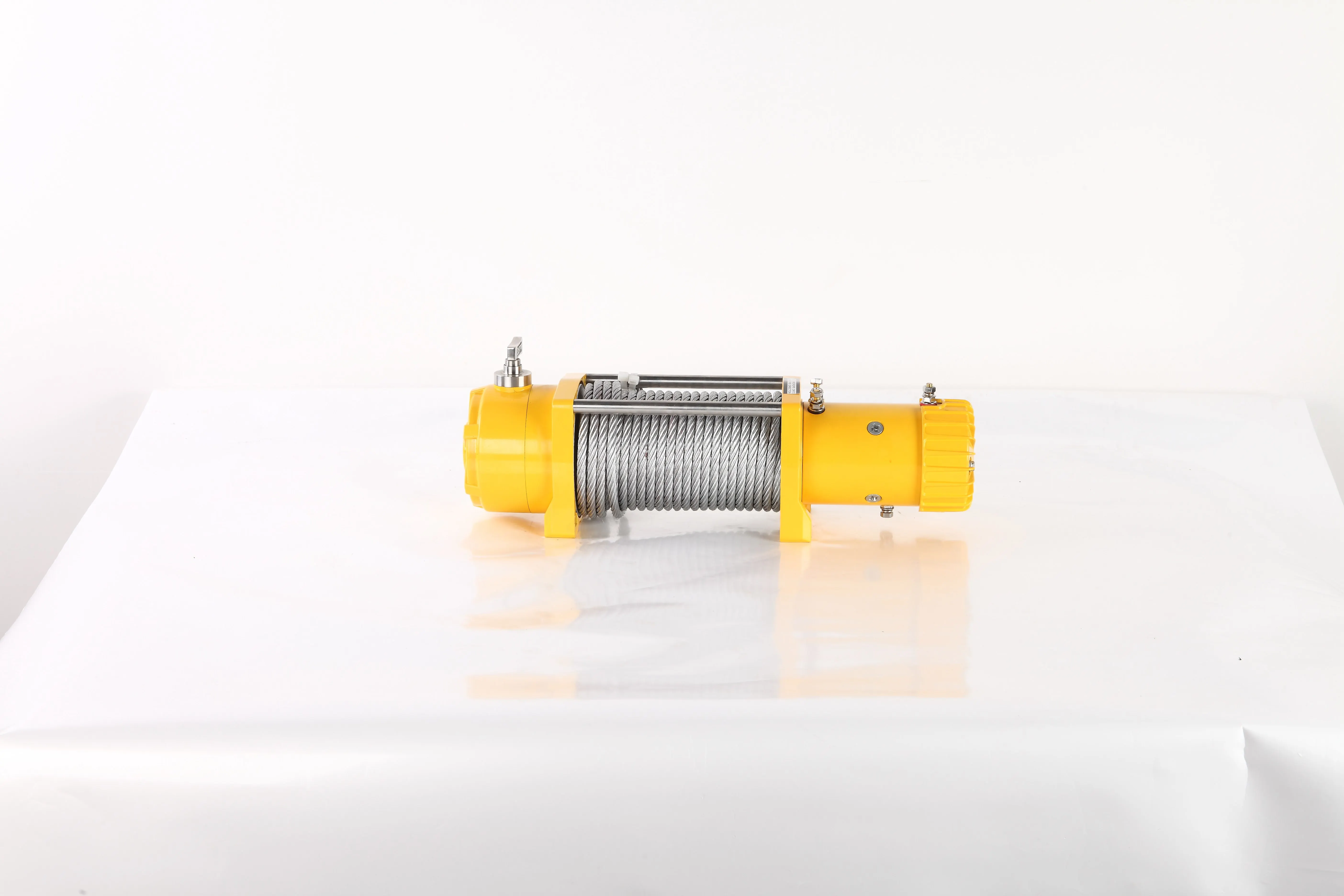

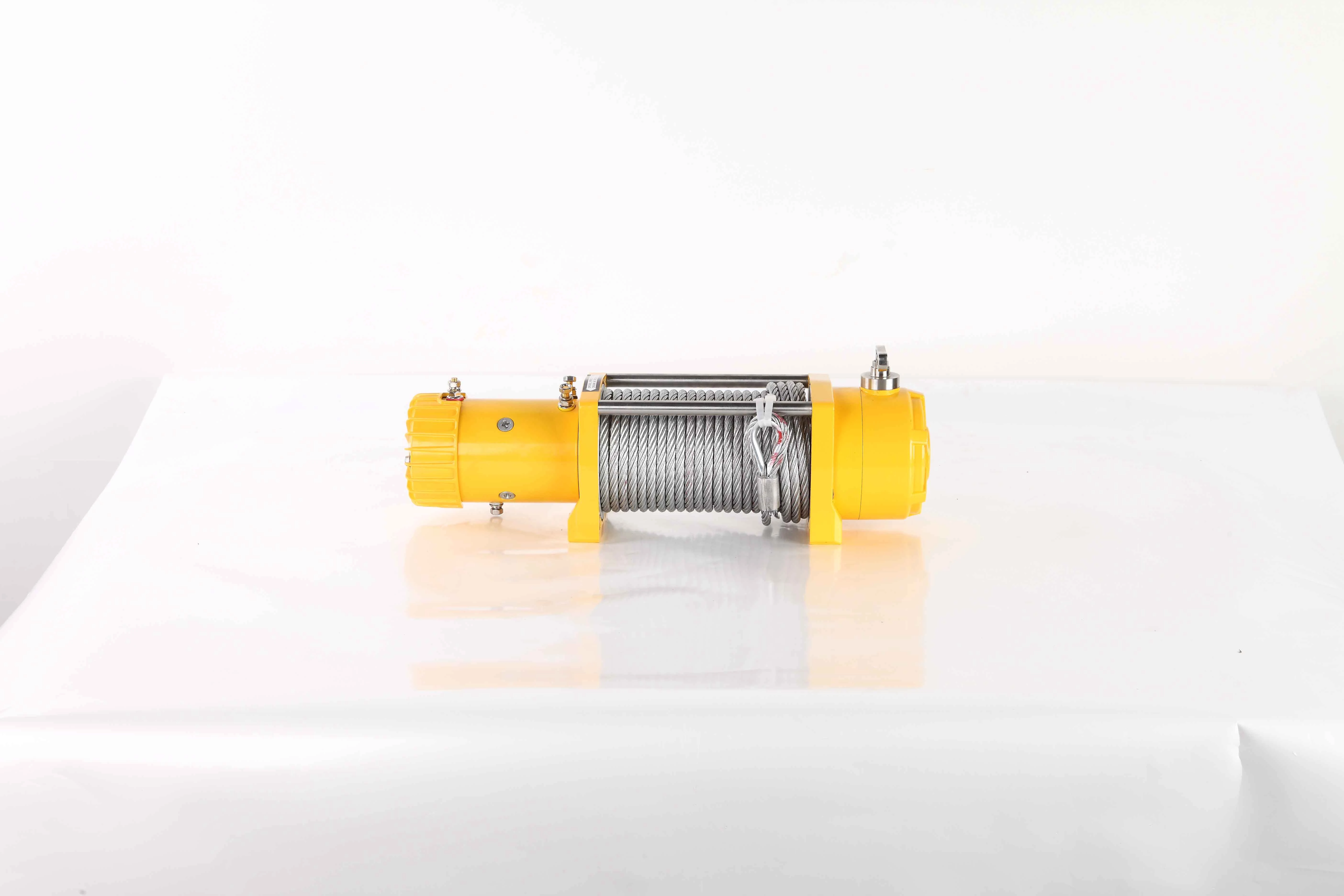

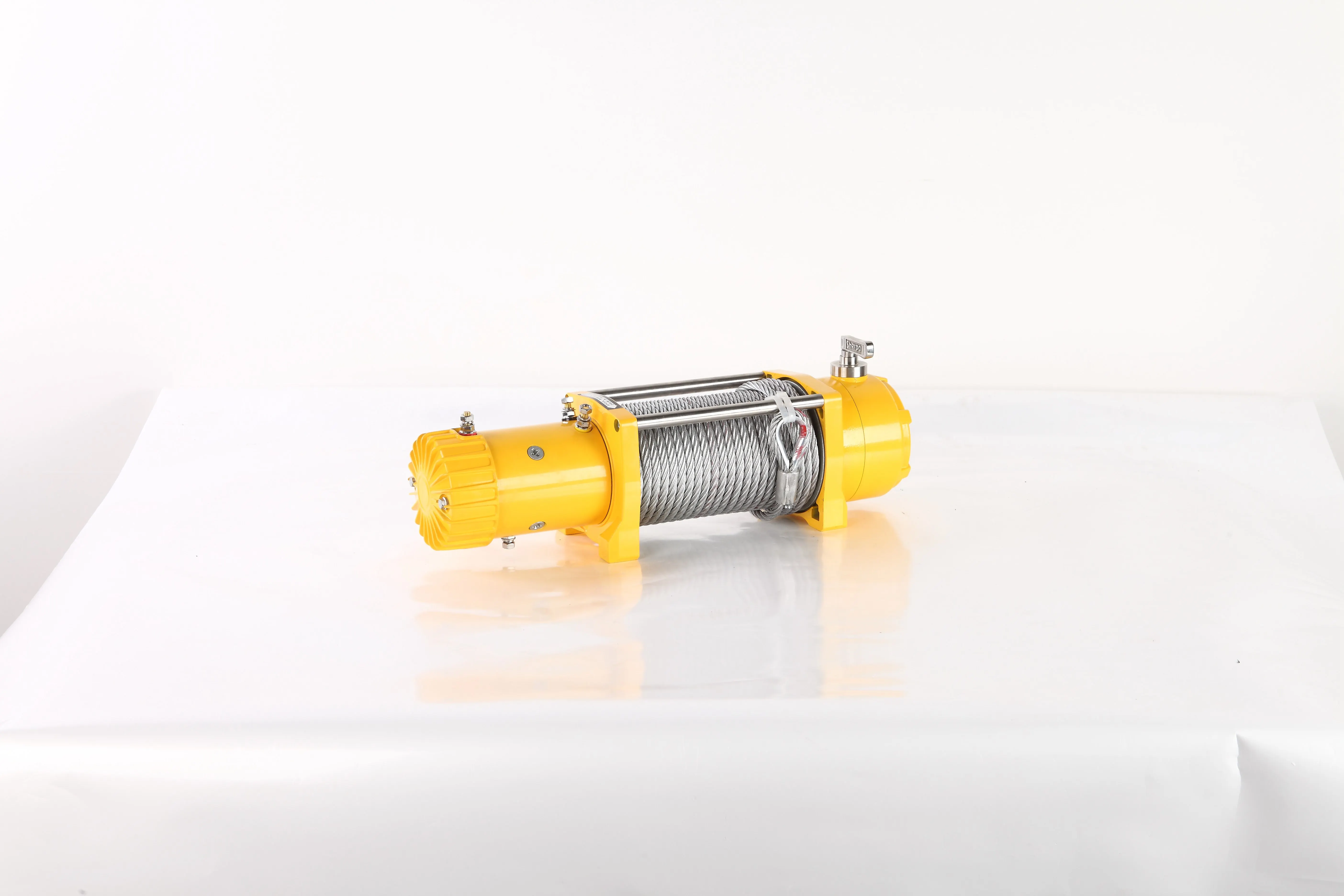

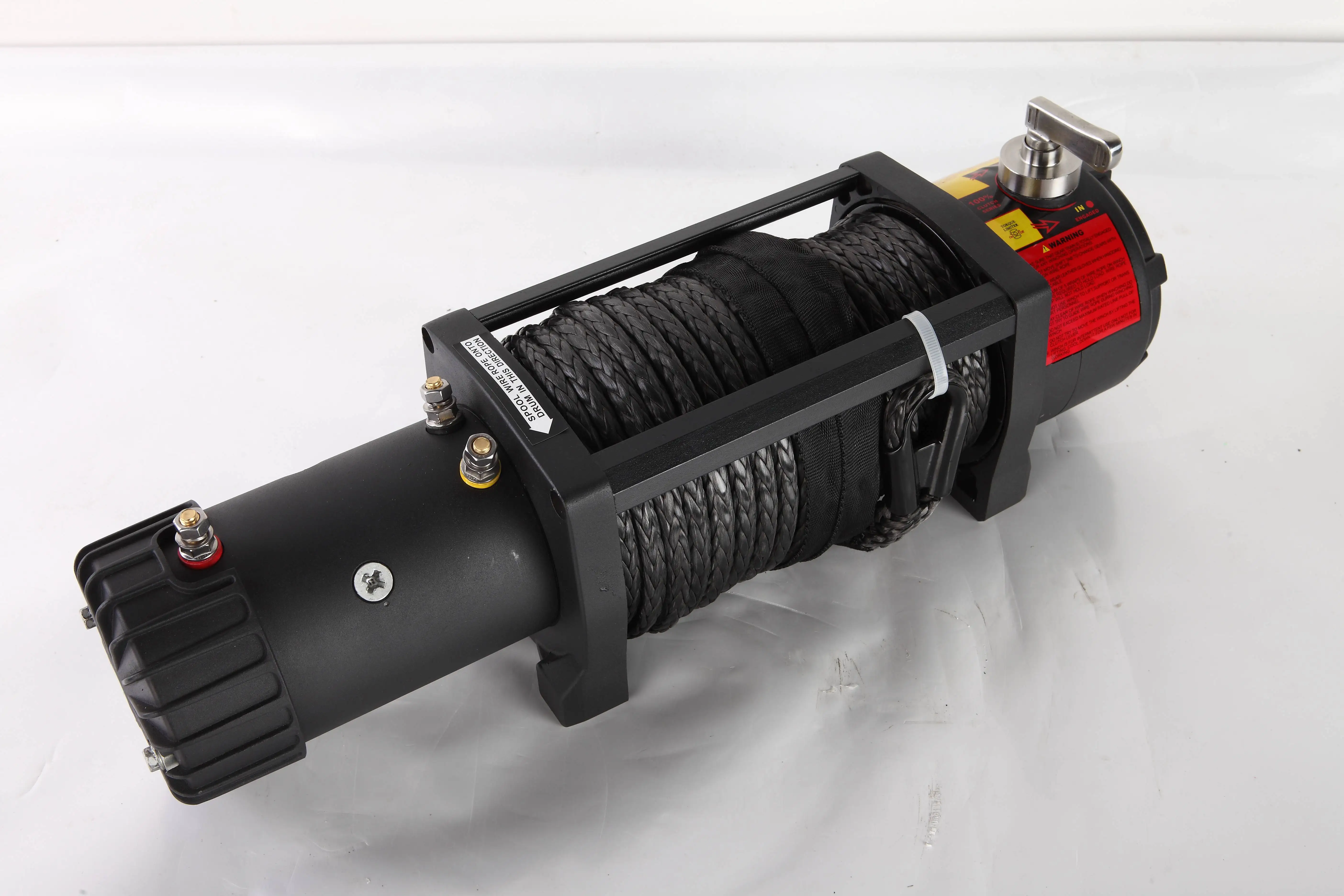

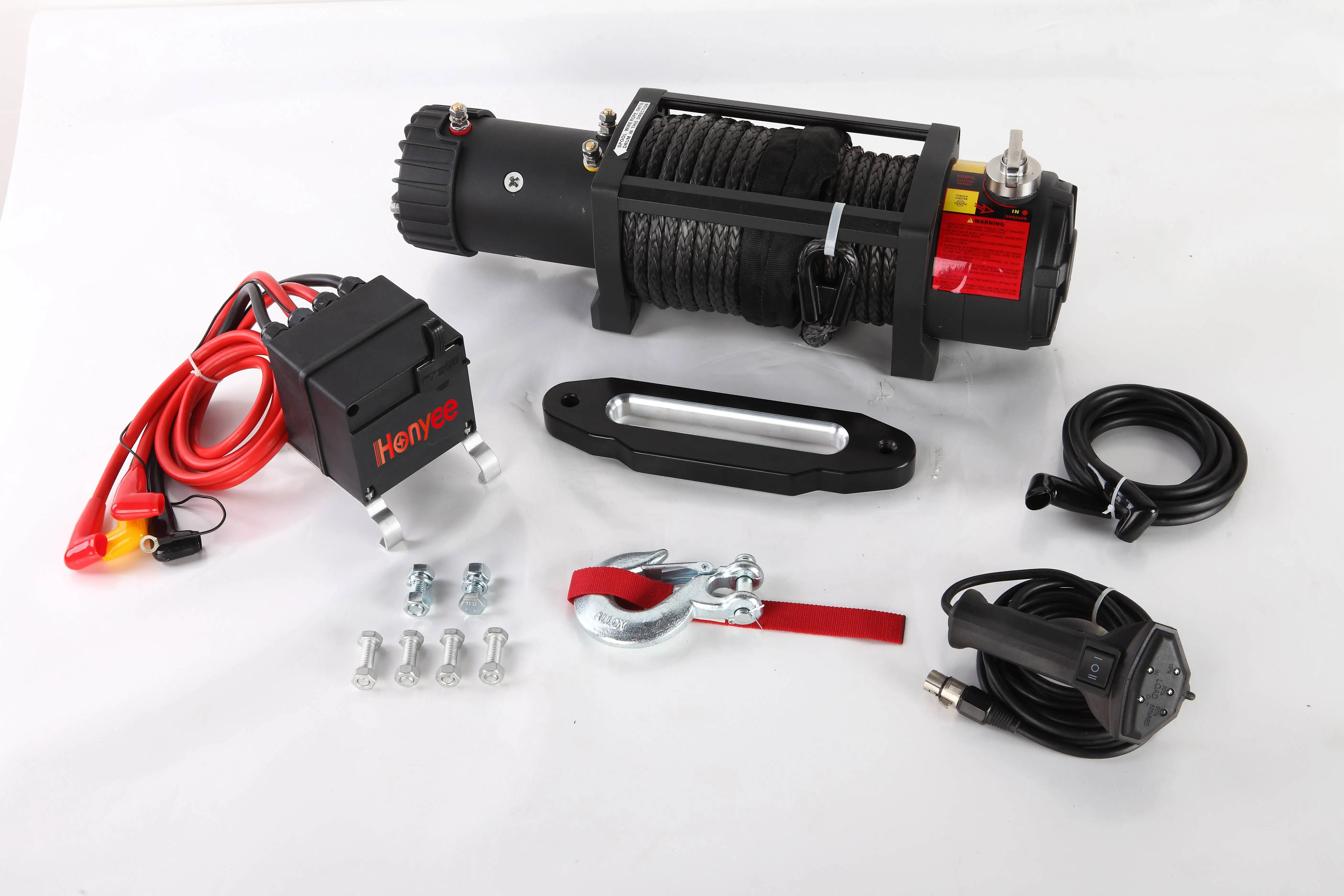

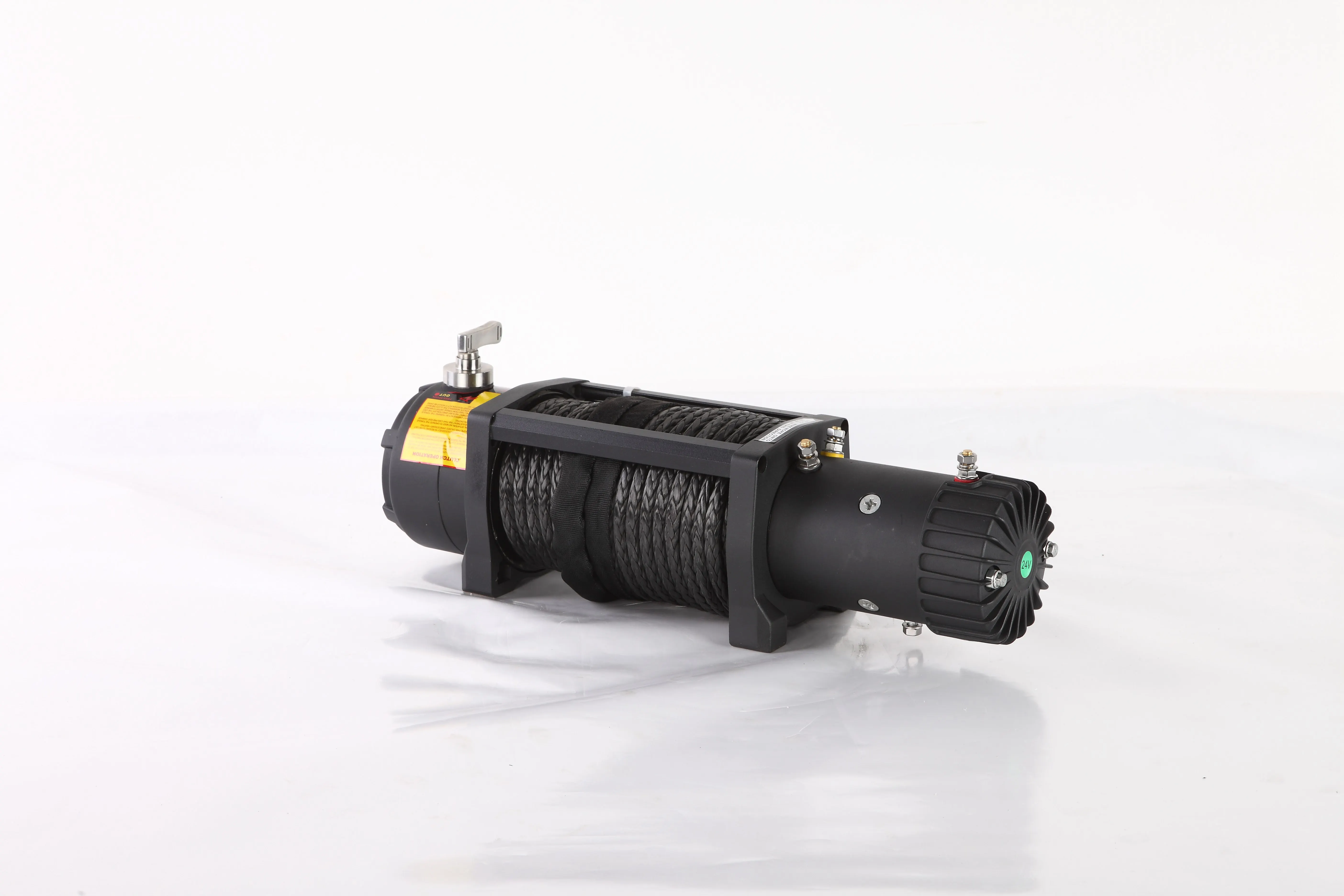

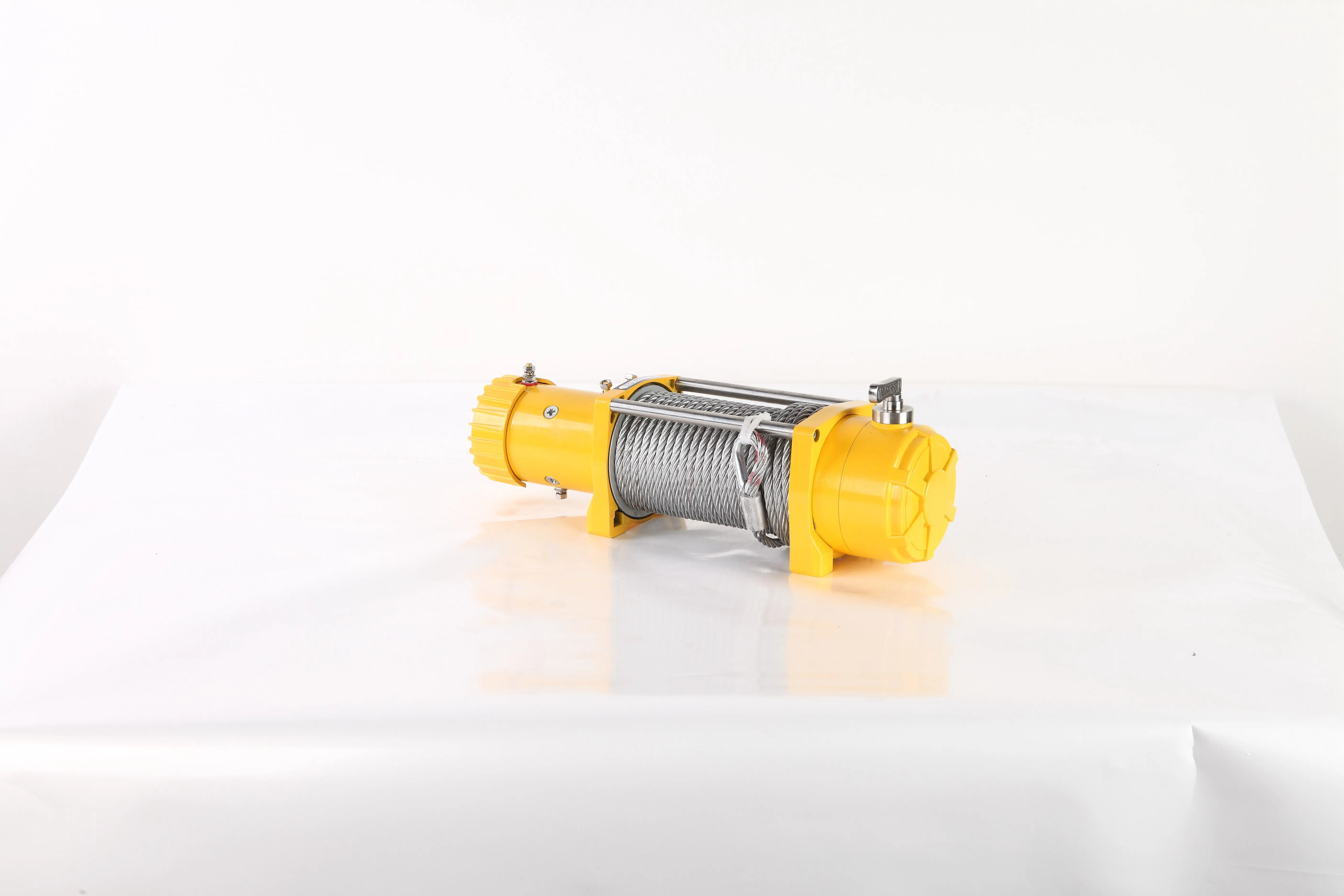

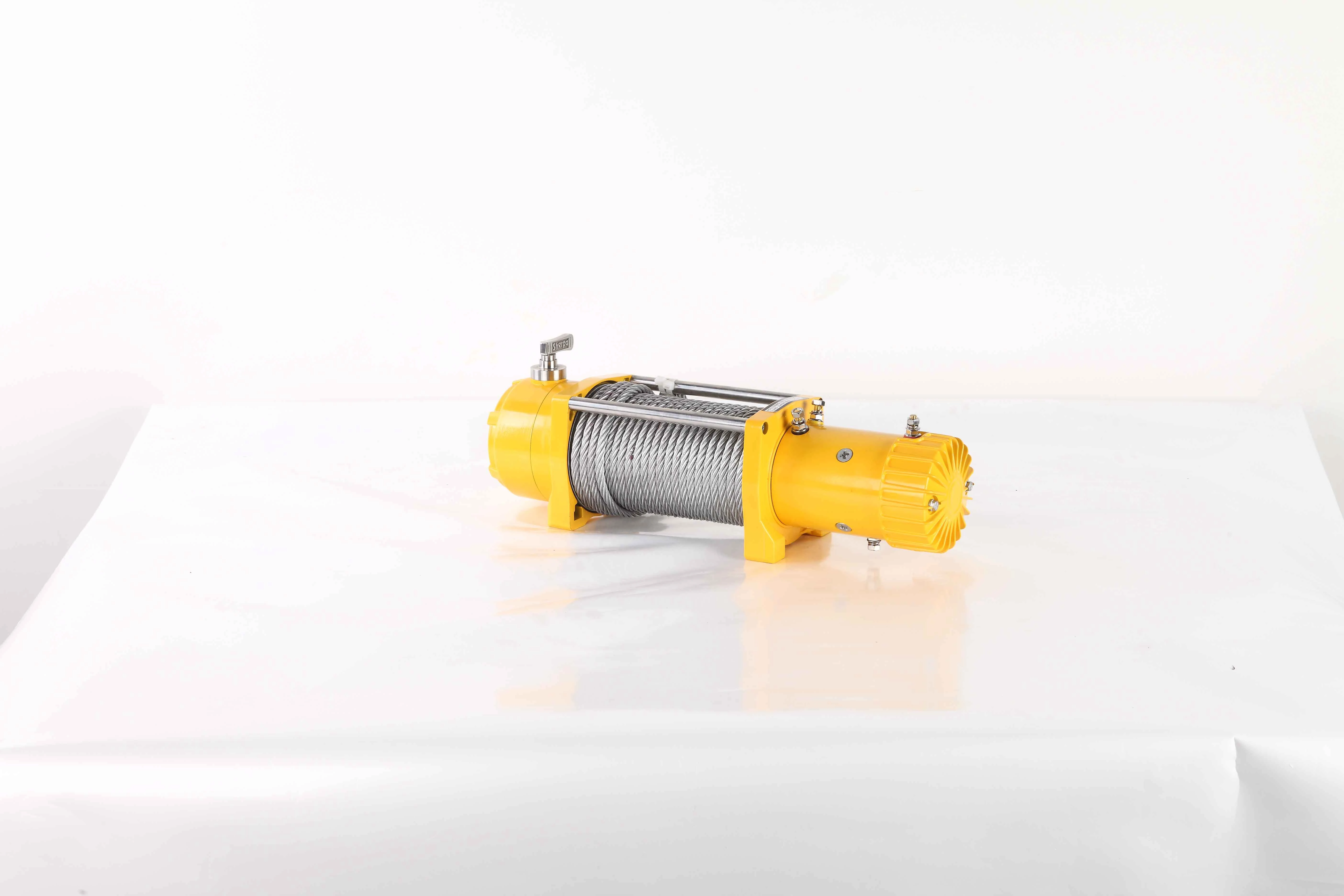

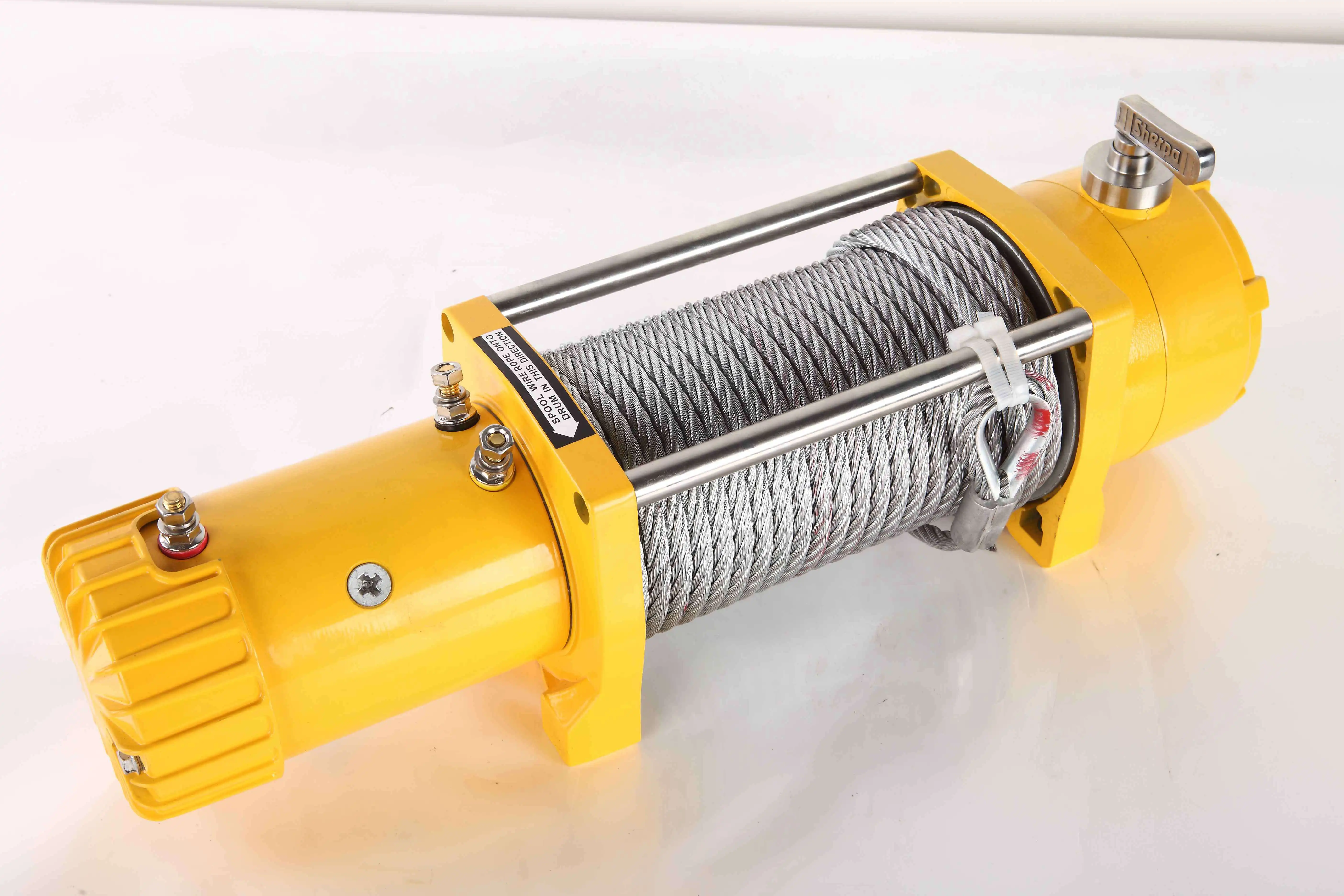

Cheap Custom Industrial 17000lbs Electric Power Hydraulic Mini Truck Winch

Product Overview

Description



Rated Line Pull	17000 lbs (7700kgs) Single-line

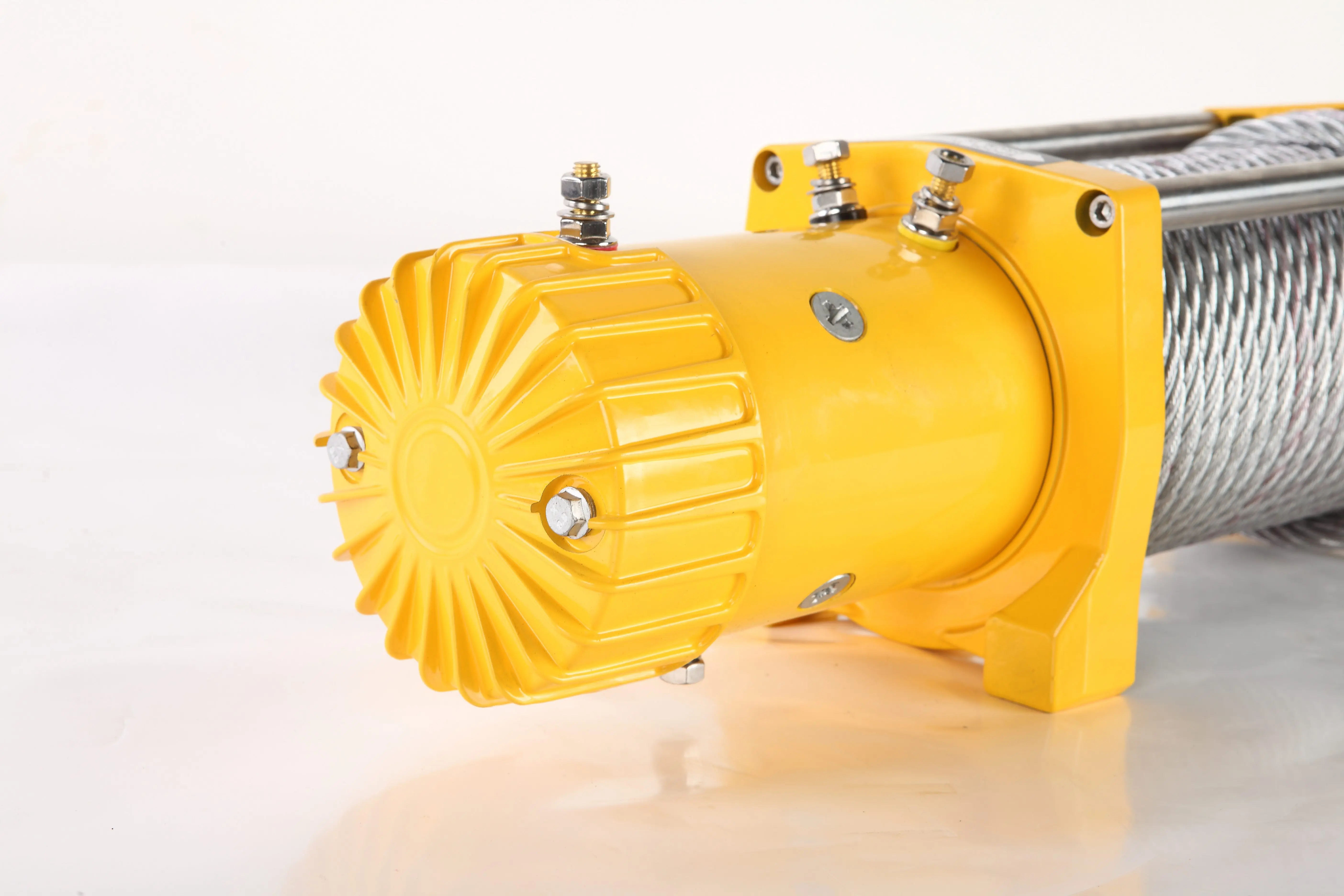

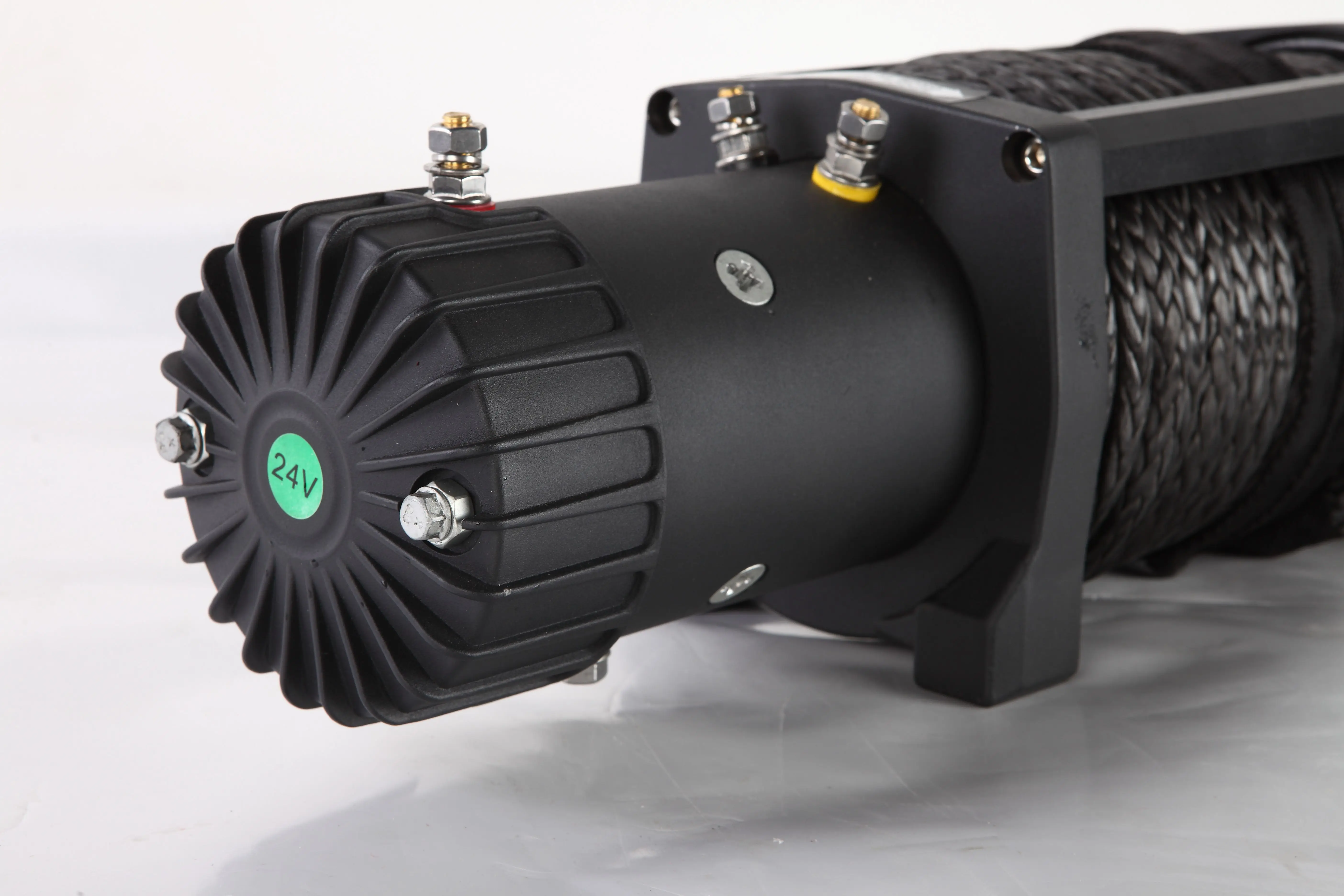

Motor	12V 6.6hp, 24V6.6hp, Series Wound
Carbon Brush Ass’y	Permanent Pressure Carbon Brush Structure (PPCB)
Control	Intelligent Handheld Controller-showing load Remote switch, 12’ (3.7m) lead
Gear Train and Reduction Ratio	3 stage planetary stronger gears 3-m=2 246.8:1

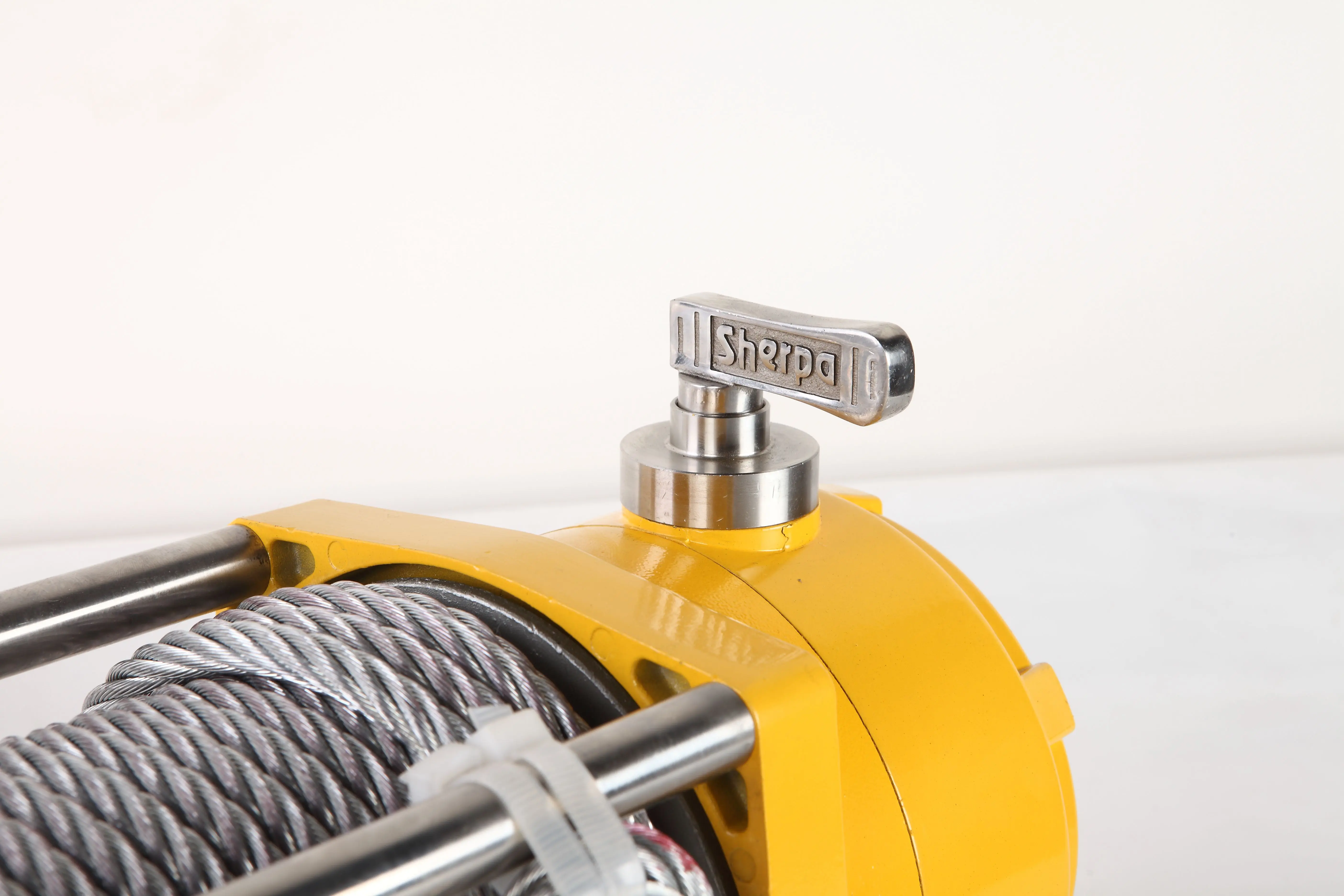

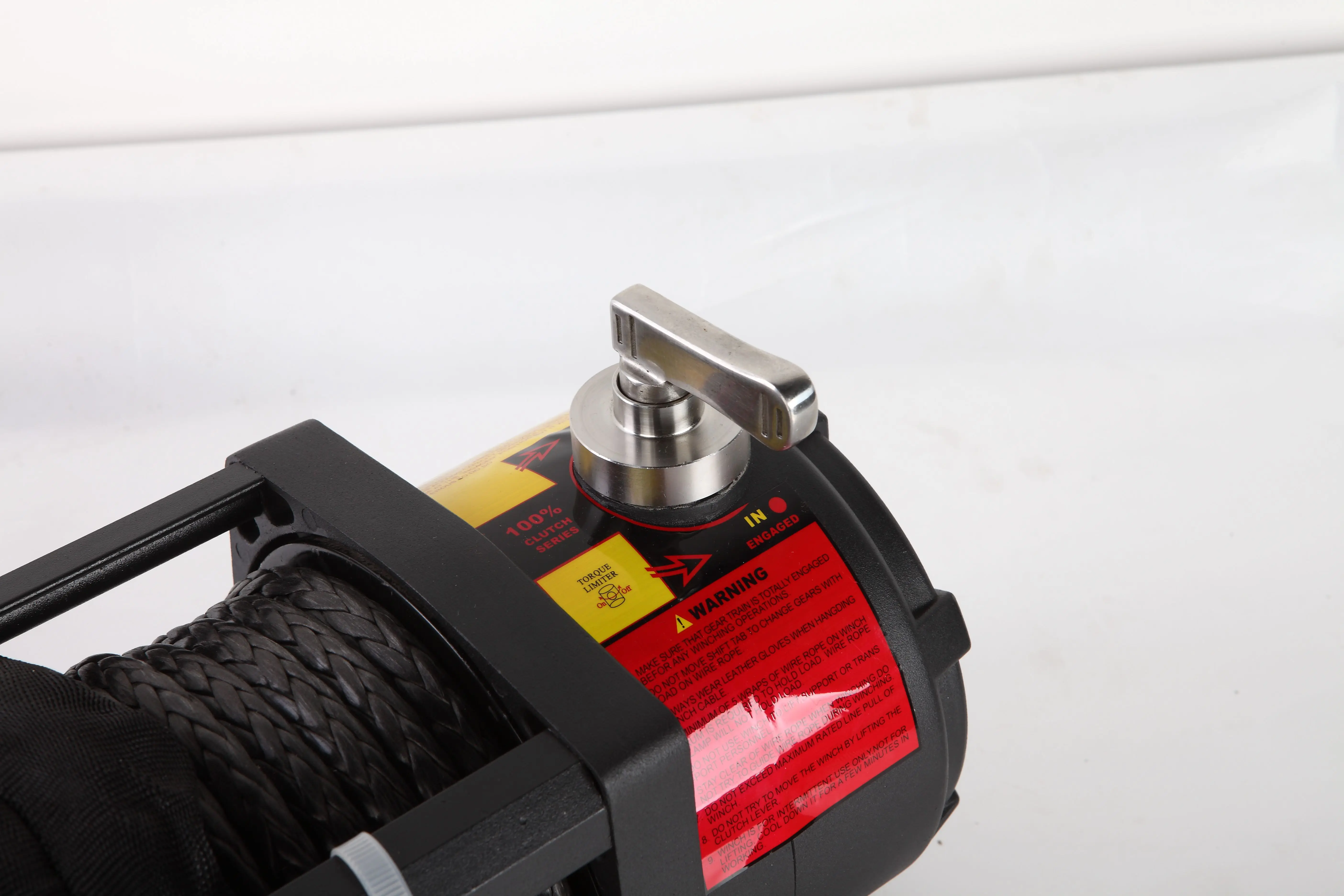

Clutch	100% engaged Clutch System
Torque Limiter	Included, Adjustable Torque Limiter(ATL)
Braking	Machine Braker in gear box
Drum Size and bearing	Diameter φ2.5”(φ63.5mm) Length 8.82”(224mm)

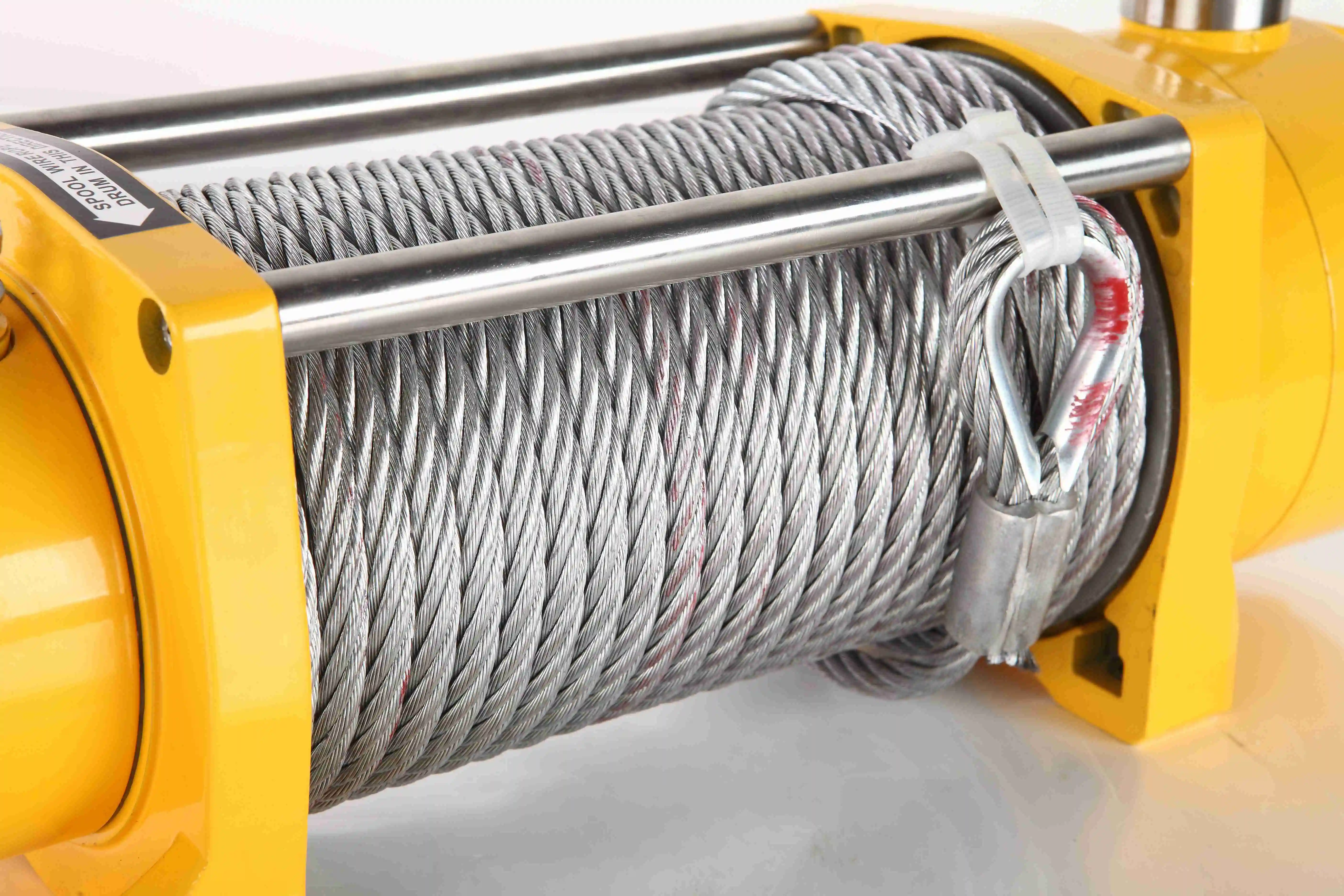

Wire cable	Diameter φ3/8”(φ 10.0mm-98KN) Length 91.8’(28m)
Fairlead	4-way heavy duty roller fairlead
Recommended Battery	650CCA minimum for winching
Battery Leads	Diameter 12V- 25mm2 24V- 25mm2 Length 72”(1.83mm)
control Box	waterproof control box
Finish	Dark Grey / Customized
weight	91.6lbs (41.5kgs)
Overall Dimensions	(LXWXH)22”X6.4”X8.5” (558mmX162mmX216mm
Mounting Bolt Pattern	4-M10 10±0.015IN×4.5±0.01IN(254±0.4 mm×114.3±0.2mm)

Q: What's your sample policy?

A: Yes, We can supply sample if we have parts in stock.But customer afford the sample costand courier cost.

Q: Do you test all products before delivery?

A: Yes, we have 100% test before delivery.

Q: Whether you could make your products by our color?

A: Yes, The color of products ca be customized if you can meet our MOQ.

Q: Whether you could make our brand on your products?

A: Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.

Q: How long is the production lead time?

A: Usually, It will take 30-60days after receiving your advance payment. The specific deliverytime is depend on items and quality of your order.

Q: What is your payment term?

A: Normal is T/T 30% deposit and 70% balance against the copy of BL. LC at sight is alsoaccepted.And we can do credit insurance order on Alibaba.
