Nc Controlled 200mm Diameter Pneumatic Brake Cnc Rotary Table Fanuc System Use Rotary Index Table
- Category: Machine Tools Accessories >>>
- Supplier: Dongguan Mihong Mechanical Hardware Co. Ltd.
Share on (1600410667661):
Product Overview
Description
Product Description
Nc Controlled 200mm Diameter Pneumatic Brake Cnc Rotary Table Fanuc System Use Rotary Index Table
Feature:
1. This 4 Axis CNC rotary table use imported precision dual-lead worm, turbine,
turbine with aluminum bronze alloy,ensure the transmission positioning in high
precision accuracy.
2. Three-piece clutch gear for precise positioning accuracy,ensure the work
table’s stability.
3.The vertical and horizontal can interchangeable.
MD-200A nc 4th axis rotary table
The Disc diameter | 200mm |
The disc spindle center hole | 50H7mm |
The disc spindle center through hole | 45mm |
Level placement height | 178mm |
Level placement center height | 160mm |
T-slot width of the rotary shaft disc | 12H7 |
Guide block width | 18H7 |
Working applicable environment temperature | 18~40 degree |
Pressure of the locking device | 5(pneumatic) 25(hydraulic) kg/cm2 |
The mini angle of equal division | 0.001degree |
Total gears rate | 1/72 |
Max speed of the rotary disc | 3000 RPM 11.1 |
4000 rpm X | |
Division precision | ±2” |
G.W weight | 65kg |

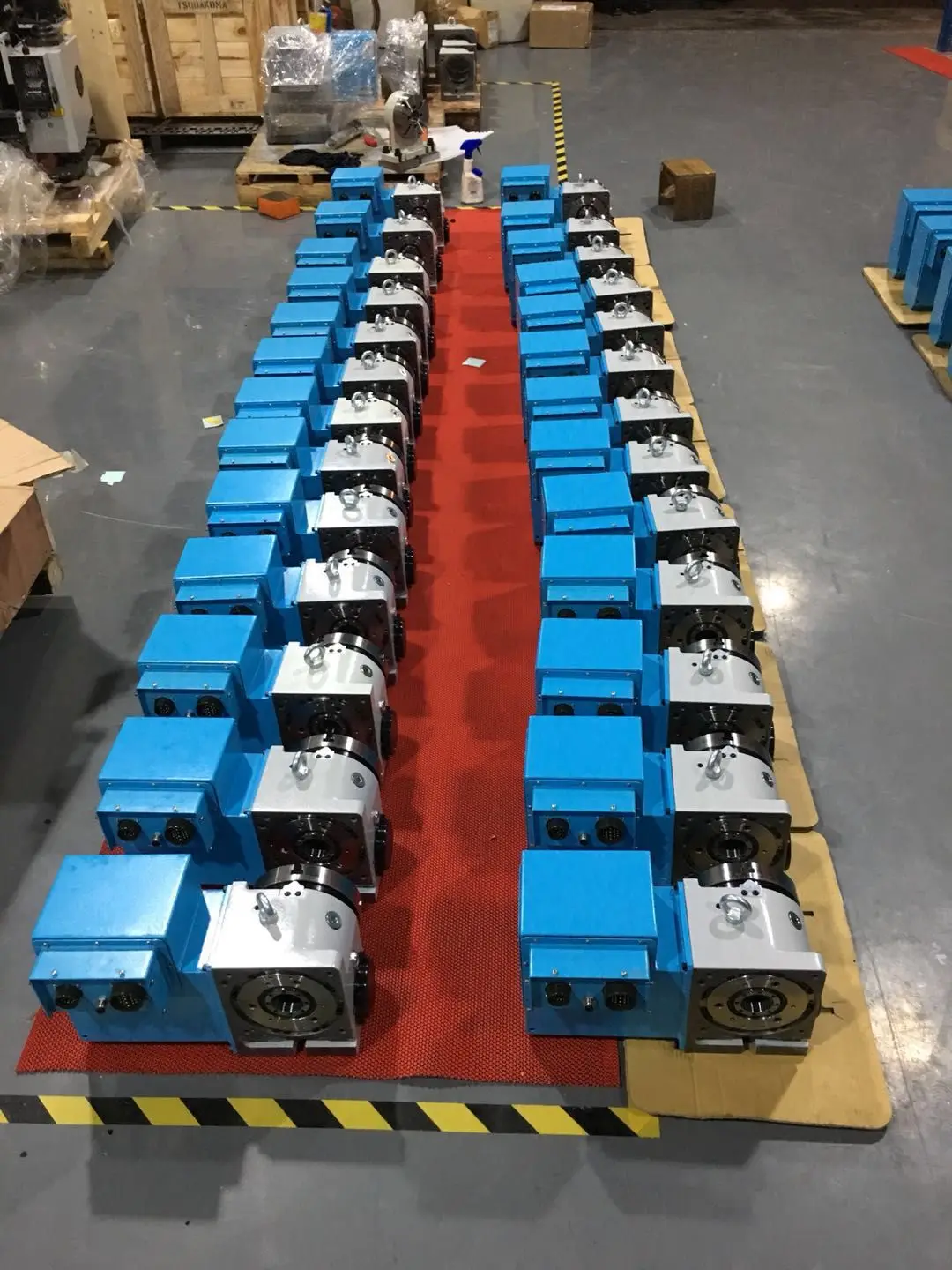

Product Overviews
Our Services
Packaging & Shipping
Exhibition
FAQ
Q: Are You Trading Company Or Manufacturer ?
A: SHIN CHENG is a professional manufacturer,have more than 30 years experience in tool holder and NC rotary table.
Q: Is Free Shipping Possible?
A: We don't offer free shipping service,but we will give you some discount if you buy large quantity products.
And we have cooperation Express Companies,can offer you the best price of shipping cost.
Q: Can You Send Products To Our Forwarder In China?
A: Yes,if you have Forwarder in China,we will glad to send products to him/her.
Q: What's The Warranty Of The Goods?
A: All products from us wanrranty is 12 months .
Q: What's The System Of Your NC Rotary Table Use ?
A:Our NC rotary table support :FANUC , Mitsubishi,GSK etc.
