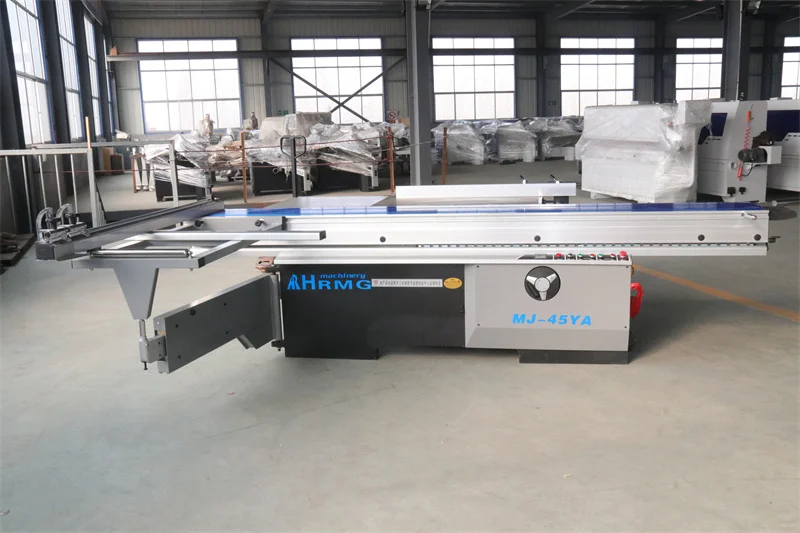

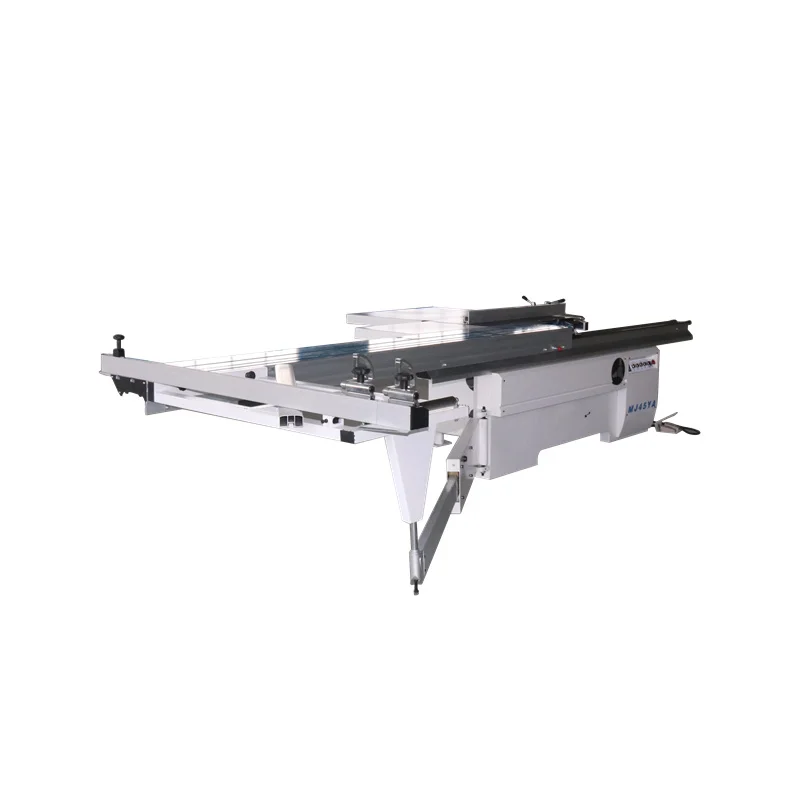

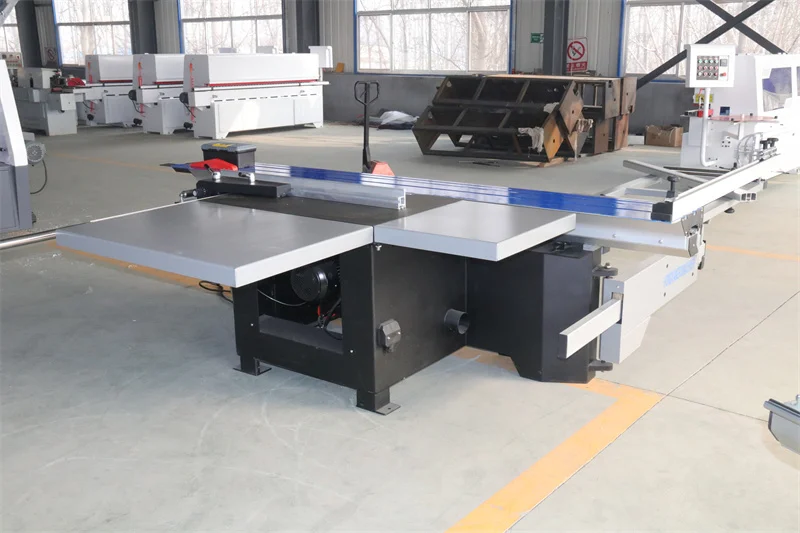

Automatic high precision and configuration 45 degree 90 degree long life table saw for woodworking machine

Product Overview

Description

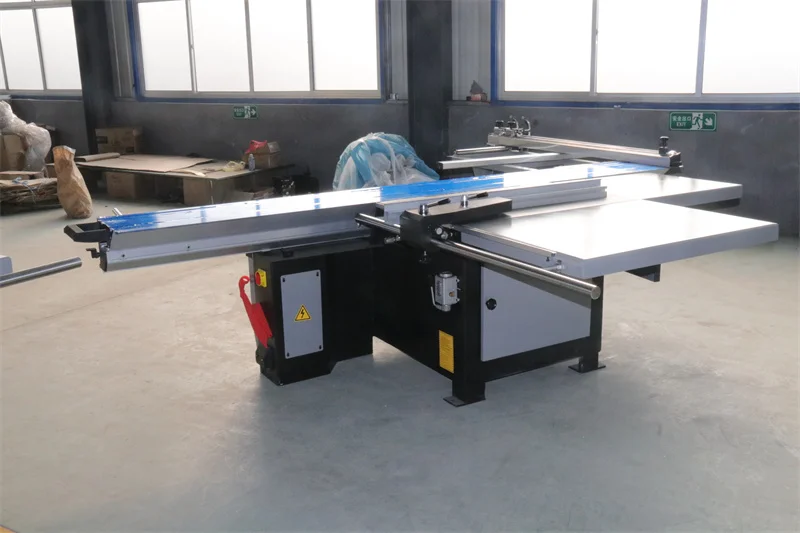

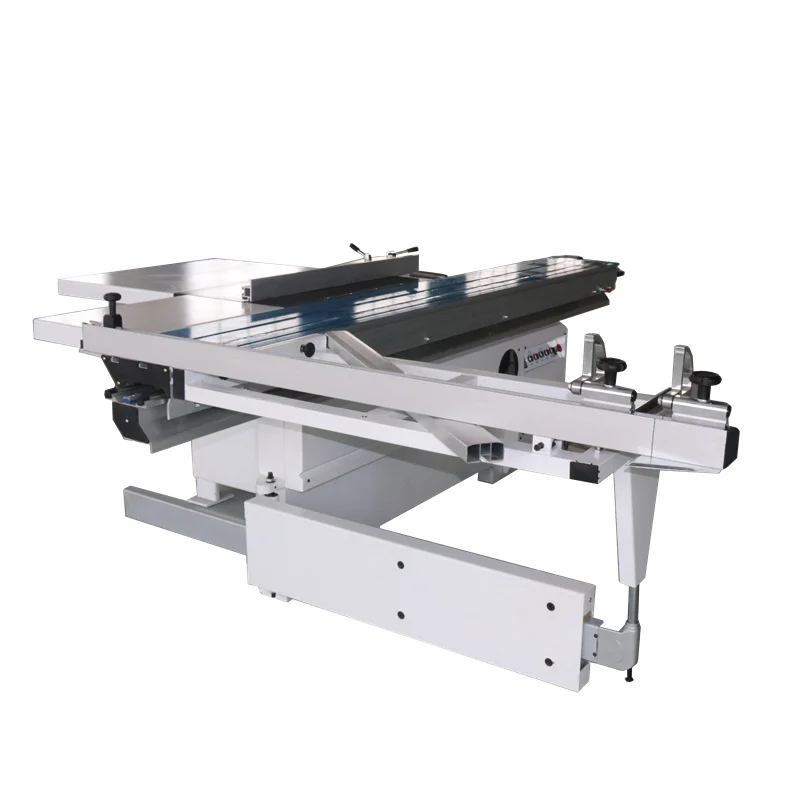

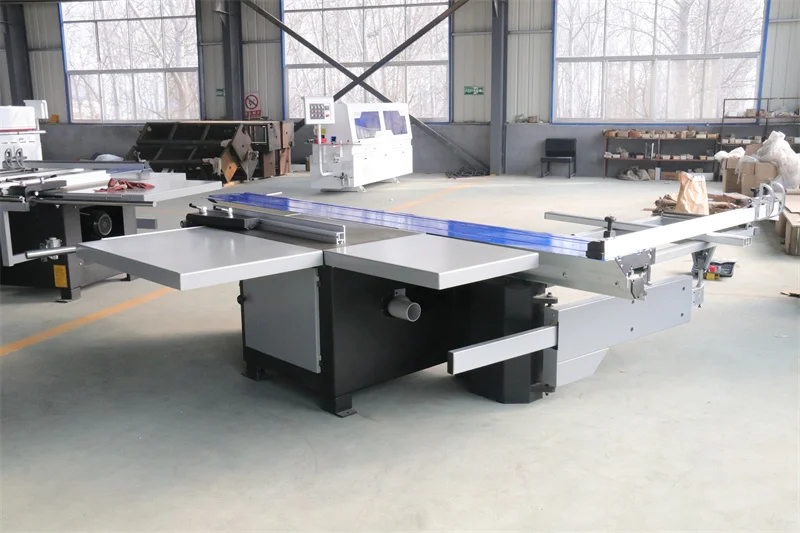

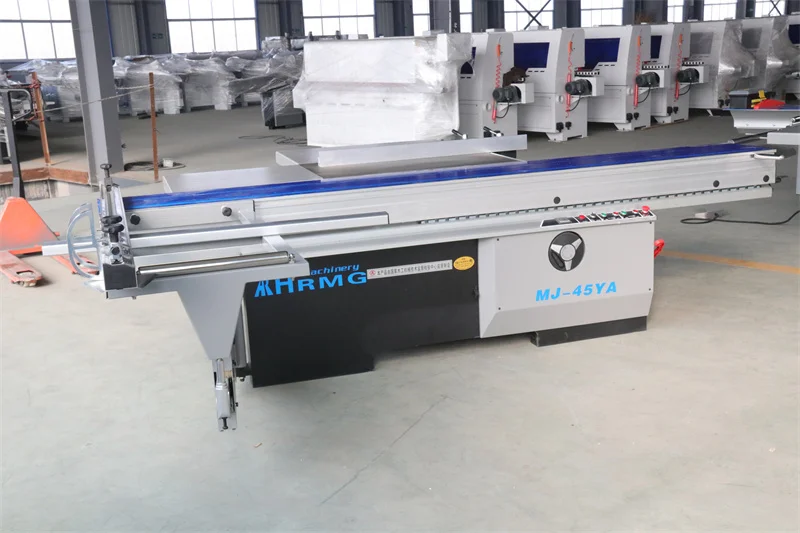

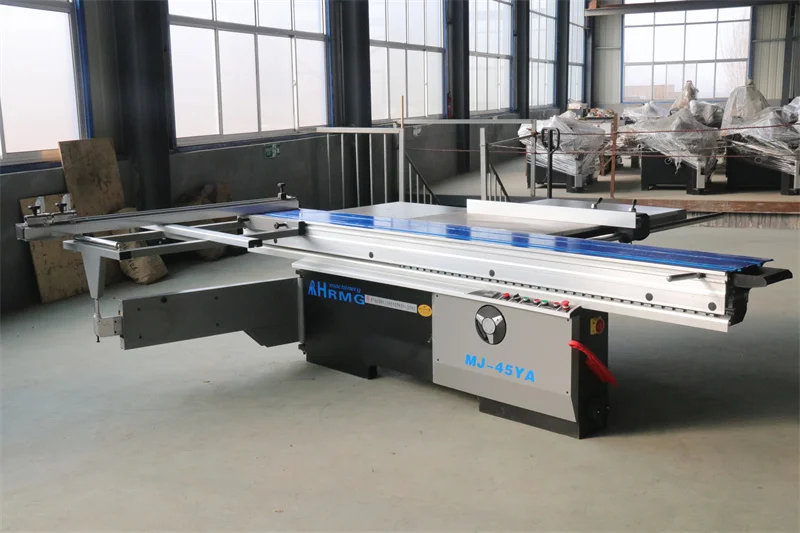

Automatic high precision and configuration 45 degree 90 degree long life table saw for woodworking machine

























Technical Parameter

Produce name	45 degree table saw	90 degree table saw
table size	2800/3000/3200*375mm	2800/3000/3200*320mm
max cutting length	2700/2900/3100mm	2700/2900/3100mm
max cutting width	1250mm	1250mm
max cutting thickness	75mm	75mm
saw blade dia	300mm(250mm-400mm)	300mm(250mm-400mm)
Spindle speed	4500/6000r/min	4500/6000r/min
Spindle dia	30mm	30mm
Saw blade angle	0-45	0-90
Main motor power	4/5.5kw	4/5.5kw
scoring saw dia	120mm	120mm
scoring saw speed	7000-8000r/min	7000-8000r/min
Countershaft dia	20mm	20mm
Auxiliary motor power	0.75/1.1kw	0.75/1.1kw
Weight	800kg	800kg
Size	3220*2500*900mm	3200*2500*900mm





Detail Description



1 Main saw motor power 4kw, scoring saw motor power 0.75kw, can be customized main saw motor 5kw, scoring saw motor power 1.1kw

Chinese woodworking machinery factory high quality sustainable wood cutting machine sliding table saw

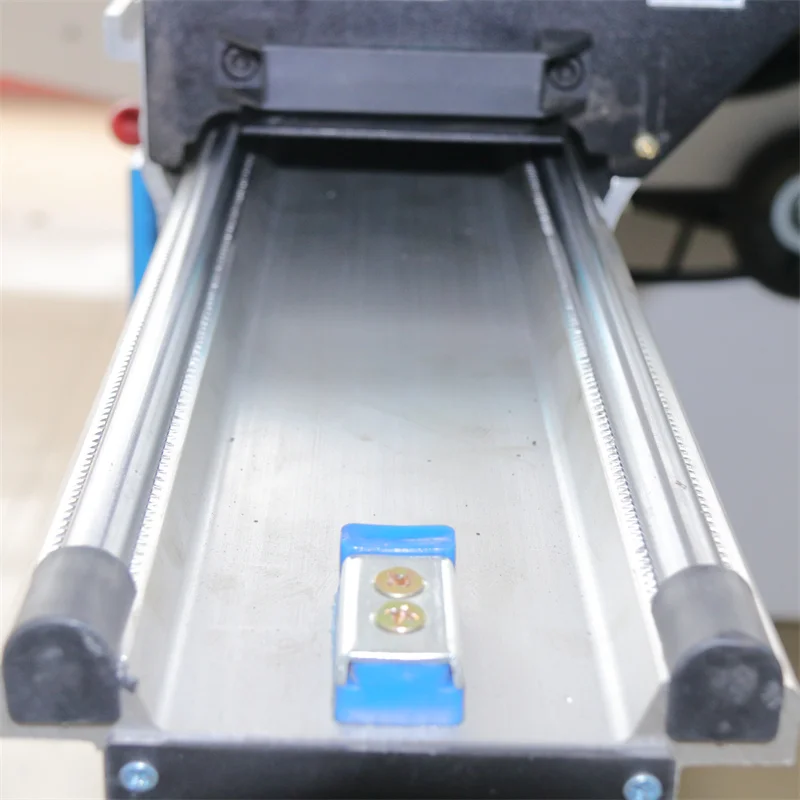

2 Chrome-plated round rod guide rail, smooth and smooth, no rust, no need for frequent oiling and lubrication, good dust-proof effect





3 Pushing table, medium and high configuration adopts European seat sliding table, the table is made of aviation-grade high-strength extruded aluminum alloy, which has strong compression resistance, smooth and flat table, and high precision

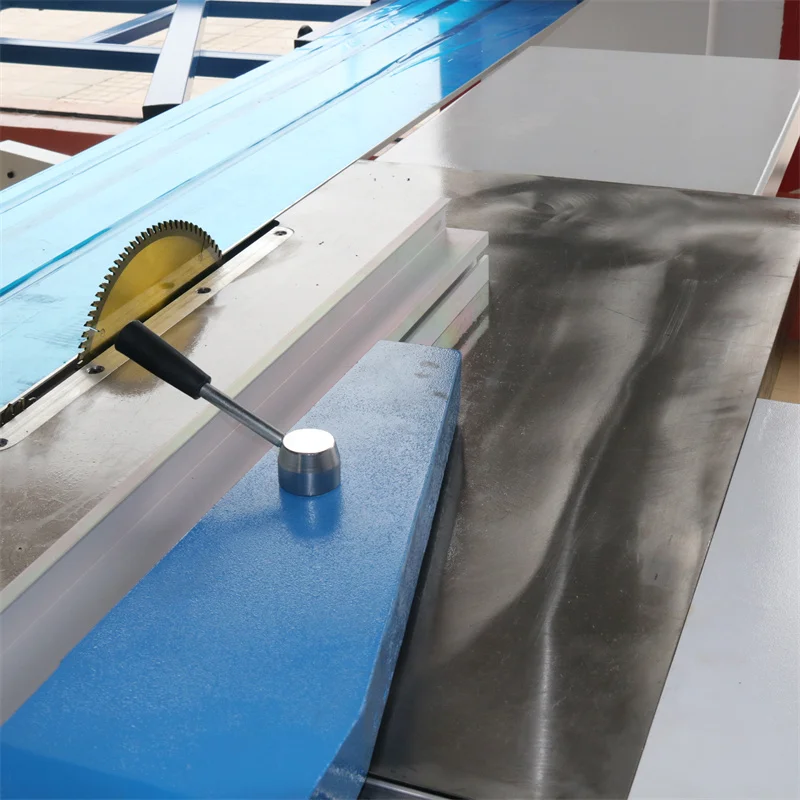

4 Lean ruler, European-style large lean ruler structure, 4cm aluminum alloy stretch rod, high strength, not easy to deform, accurate scale reading

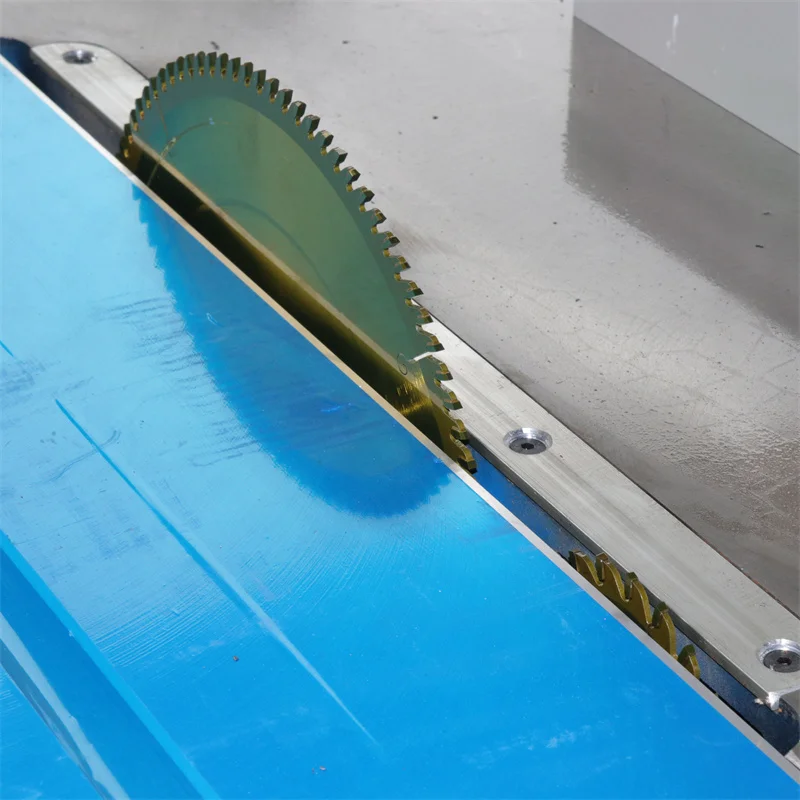

5 Saw blade electric lift

Advantage:

1 Double-layer thickened chrome-plated round rod sliding table, the test accuracy of the dial indicator of each device is within 20 wires
2 The bearing adopts the world's top brand, nachi high-speed bearing, with low vibration noise, stable work and low vibration noise.
3 The machine comes standard with tool kit, angle ruler and pusher knife.
4 Add high-end saw blades with German technology
5 The profile column is made of chrome-plated material, which is resistant to oxidation and does not rust
6 Saw blade vibration test is strictly controlled within 5 wires



Configuration

45 degree table saw

	high configuration	middle configuration	low configuration
Electric lift of main saw blade	yes	hand lift	hand lift
Digital display	yes	Scale display	Scale display
Fine-tuning of the profiling seat	yes	yes	no
Auxiliary roller	yes	yes	no
Built-in vacuum cleaner	yes	yes	no
Oil injector	yes	yes	no
European seat sliding table	yes	yes	Flat seat sliding table
Sliding table length	3.2m	3m	3m
Auxiliary workbench	2 big workbench	1 big workbench  1 small workbench	1 big workbench  1 small workbench
Aluminum sliding table	yes	yes	yes
Chrome-plated round rod guide	yes	yes	yes
Pure copper motor	yes	yes	yes
Main saw power	5.5kw	5.5kw	4kw
Scribing saw power	0.75kw	0.75kw	0.75kw
Width of sliding table	390mm customizable 410mm	375mm customizable 410mm	375mm customizable 410mm

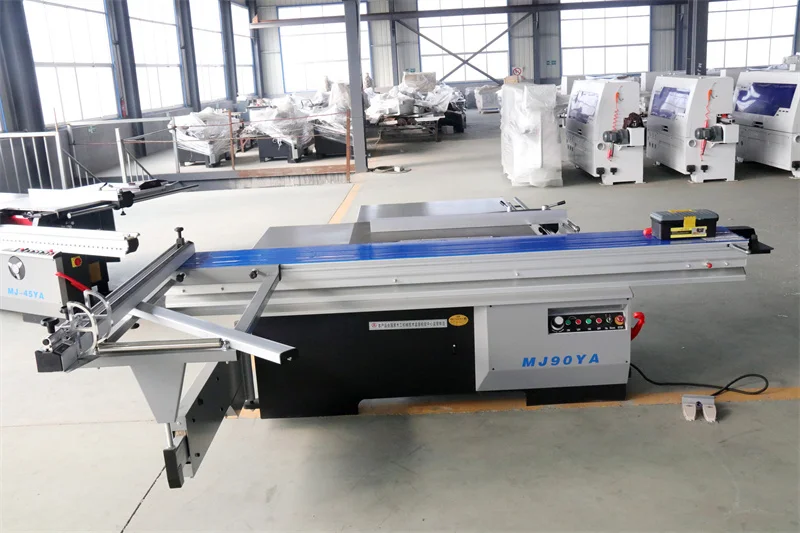

90 degree table saw

	high configuration	middle configuration	low configuration
Electric lift of main saw blade	yes	hand lift	hand lift
Fine-tuning of the profiling seat	yes	yes	no
Auxiliary roller	yes	yes	no
Built-in vacuum cleaner	yes	yes	no
Oil injector	yes	yes	no
European seat sliding table	yes	yes	Flat seat sliding table
Sliding table length	3m	2.8m	2.8m
Auxiliary workbench	2 workbench	1 small workbench	1 small workbench
Aluminum sliding table	yes	yes	yes
Chrome-plated round rod guide	yes	yes	yes
Pure copper motor	yes	yes	yes
Main saw power	5.5kw	5.5kw	4kw
Scribing saw power	0.75kw	0.75kw	0.75kw
Width of sliding table	390mm customizable 410mm	320mm customizable 410mm	320mm customizable 410mm

Related Products

FAQ

1,Can you offer good price with fine quality also?



Surely,if without quality,we cannot win long market.we will loose long-terms customers.Quality is our responsibility.we must produce and test machine well.Becasue we are always expecing long term business.Regarding the price.

we are not sure if it is lowest or highest,But we will be offering reasonble.We don’t want heavy profits,we want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines



2,We will be protetcted if we are paying for orders?



Surely yes,we have been exported 1000000$ different wood machine every year,We received the payment,we should produce for you and ship to you without delay. It is honesty and reputy.We could understand that you paid,you want to see machines soon and use soon. and these years alibaba trade assurance you could rely on,you will be protected very well.





3,What's your warranty? can you do more service for us? we wish woud be protected after purchasing machine.

We are pleased to give life continious aftersales service. within 12 months, if spareparts broken,we will send you new for change. we would like to help to solve any troubles when you use machine at any time.and don’t be worried,we will keep opening 24 hours for all customers problem or difficilaty. we must help to make solutions within 48 hours .



4,What's your production time? we want faster shipping time also.



mostly machine we have in stock, some machine we produce need about 7-10days. make fast shipment always. shipping time depends on shipping company.
