Luckimage classroom online meeting live streaming recorder video conference system conference camera with microphone and speaker
- Category: Office Equipment >>>
- Supplier: Shenzhen Anywii Electronics Technology Co. Ltd.
Share on (1600413842340):
Product Overview
Description
Product Introduction
Main Feature | ||||
30X optical zoom Autofocus lens | Full HD 1080P@60FPS | Low light and backlight compensation | ||
pan:±170° tilt: -30°~+90° | NDI | HX is optional | up to 255 presets via RS232 | ||
RS232 IN/OUT, RS484 | SDI/HD-MI/LAN(poe optional)multiple interface | Network Protocols: RTSP, RTMP, ONVIF, GB/T28181 | ||
SDI HD-MI LAN NDI 30X PTZ camera video conference
* Backlight and dark light compensation
* 1080p@60fps smooth videos
* 1080p@60fps smooth videos

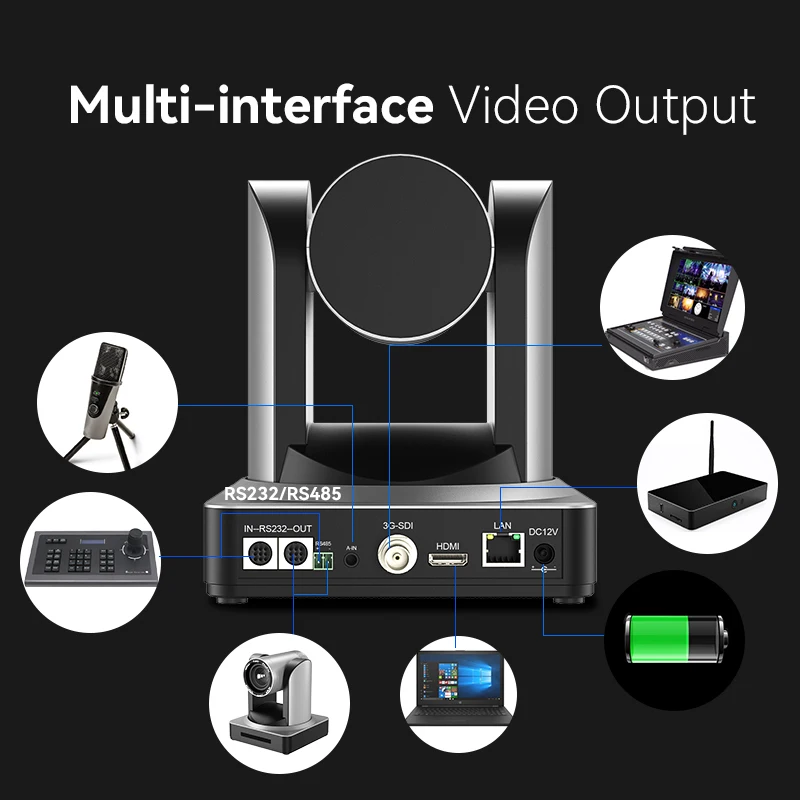

* SDI/HD-MI/LAN video output
* NDI | HX is optional
* 30x lossless optical zoom lens supports framing adjustment
* Support H.265/H.264 encoding, making the picture smoother and clearer under low bandwidth.
* Various nertwork protocols: support ONVIF, GB/T28181, RTSP, RTMP protocols

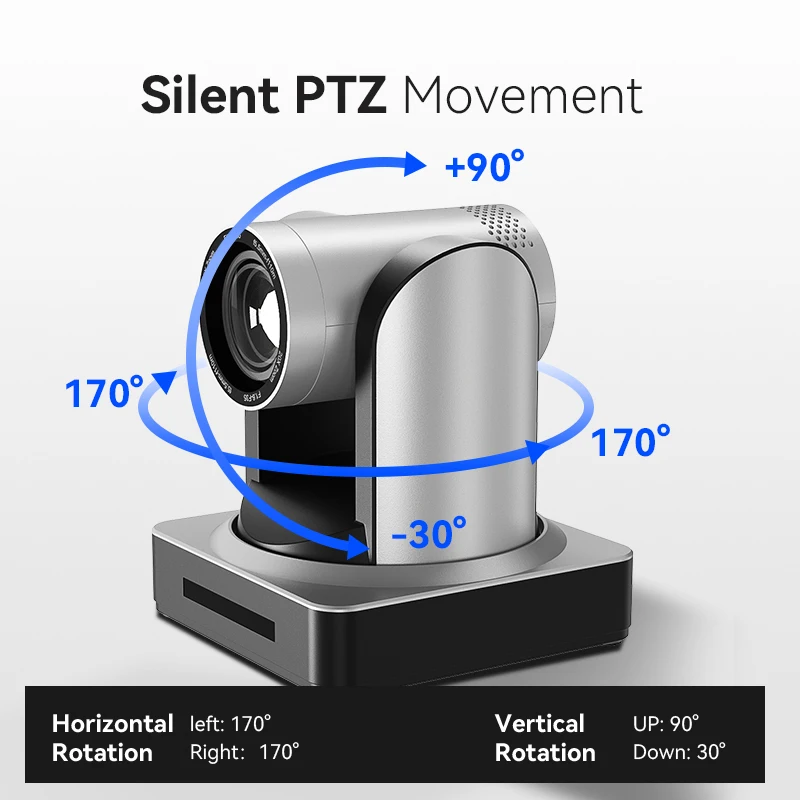

* Pan ±170°, tilt -30°~+90°; achieve fast, quiet and precise pan-tilt movement
* Multiple presets setting, 10 via infrared remote control, 255 via RS232

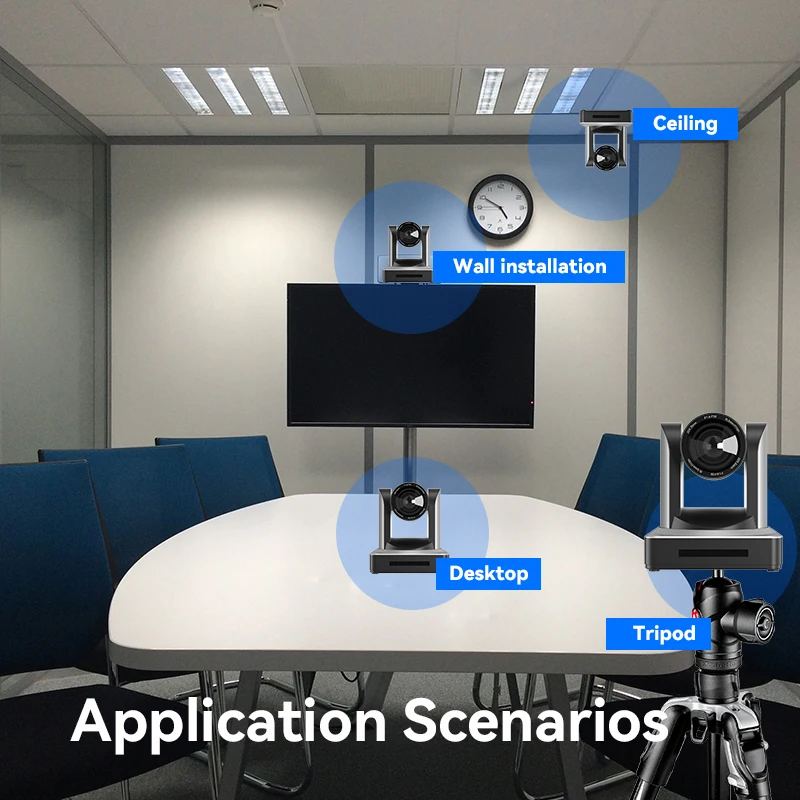

* Various Installtaion method, Desktop,tripod,wall mount, ceiling mount(inversion installation)
* Compatible with Various major system and video conferencing platforms
* The power adapter specifications include international, American, British, European specifications, You can directly contact us to help you choose which one
Supply all in one video conferencing system equipment , If you need additional speakerphone or keyboard controller or more, pls contact us to get product catalog for more informations!
* 30x lossless optical zoom lens supports framing adjustment
* Support H.265/H.264 encoding, making the picture smoother and clearer under low bandwidth.
* Various nertwork protocols: support ONVIF, GB/T28181, RTSP, RTMP protocols
* Pan ±170°, tilt -30°~+90°; achieve fast, quiet and precise pan-tilt movement
* Multiple presets setting, 10 via infrared remote control, 255 via RS232
* Various Installtaion method, Desktop,tripod,wall mount, ceiling mount(inversion installation)
* Compatible with Various major system and video conferencing platforms
* The power adapter specifications include international, American, British, European specifications, You can directly contact us to help you choose which one
Supply all in one video conferencing system equipment , If you need additional speakerphone or keyboard controller or more, pls contact us to get product catalog for more informations!
Product Paramenters
Model | HC730-20 | |
Camera lens | ||
Image Sensor | 1/2.8-inch high-quality CMOS sensor | |
Resolution | Full HD 1080p | |
Effective Pixels | 2.07 million, 16:9 | |
Lens optical zoom | 30x optical zoom | |
Lens focal length | f=4.3~129mm | |
FOV-H | 2.34° (narrow angle) - 65.1° (wide angle) | |
Aperture | F1.6 ~ F4.7 | |
White Balance | Auto/Manual/One Touch White Balance | |
Aperture | Automatic/Manual | |
Backlight compensation | On/Off | |
Dynamic Range | Off/Dynamic level adjustment | |
Digital Noise Reduction | 2D and 3D digital noise reduction | |
Signal-to-noise ratio | >55dB | |
Video and Audio | ||
Video Signal | 1080P@60/50/30/25/59.94/29.97fps 1080i@60/50/59.94fps | |
Video Adjustment | Brightness, chromaticity, saturation, contrast, sharpness, black and white mode, gamma curve | |
Video compression formats | H.265, H.264 | |
Audio Sampling frequency | 8K/16/32/44.1/48kHZ | |
Audio Compression Format | AAC, MP3, G.711A | |
Interface Function Performance | ||
Video output | SDI/HD-MI/LAN | |
Audio input interface | A-IN: Dual 3.5mm linear inputs(supports expansion microphone) | |
Network Protocols | RTSP, RTMP, ONVIF, GB/T28181; support for network VISCA control protocols. Support remote upgrade, remote reboot, remote reset | |
Control Interface | RS232 in/out, RS485 | |
Control protocols | VISCA/Pelco-D/Pelco-P; Baud rate: 115200/9600/4800/2400 | |
PTZ Parameters | ||
Horizontal rotation | -170°～+170° | |
Tilt rotation | -30°～+90° | |
Horizontal control speed | 0.1 ~ 60°/sec | |
Pitch control speed | 0.1~30°/sec | |
Preset Bit Speed | Horizontal: 60°/sec, Pitch: 30°/sec | |
Number of preset bits | User can set up to 255 preset positions (10 for remote control) | |
Other parameters | ||
Storage temperature | -10℃～+60℃ | |
Operating temperature | -10℃～+50℃ | |
Power adapter | Input AC110V-AC220VOutput DC12V/1.5A | |
Input Voltage | DC12V±10% | |
Input Current | 1A (maximum) | |
Power consumption | 12W(max) | |
Power adaptor | National Standard, American Standard, British Standard, European Standard | |
Accessories | ||
Random Accessories | 12V/1.5A power supply, RS232 control cable, remote control, manual, warranty card | |
Optional Accessories | Keyboard controller, conference microphone, speakerphone | |
Delivery&Package
Hot Sale Products
Company Profile
Shenzhen Anywii Electronic Technology Co., Ltd.
with more than 10 years of digital camera research and development experience, such as usb webcams, conference cameras.
We have our own R&D center, ID design team, production and processing base. All products are original designs, protected by patents, and passed CE RoHS FCC certification.
Our annual R&D investment is more than 10 million yuan, providing strong technical support, so that we can receive many OEM, ODM projects.
Our workshop covers an area of about 5000 square meters, including 6 SMT lines, 6 assembly lines and 2 packaging lines, which can meet your purchasing needs in time. No matter what
problems you encounter, we will provide in-depth technical support.
problems you encounter, we will provide in-depth technical support.
Our factory is equipped with advanced production equipment and has always followed the ISO 9001 quality management system model. The quality control from the expected to the finished product has successfully passed the SGS factory audit. Welcome to contact us
Our service & Strength
■ Patented private models and certified CE FCC RoHS
■ ISO9001 direct factory
■ 13 years OEM ODM, we has our own R&D team, design team
■ ISO9001 direct factory
■ 13 years OEM ODM, we has our own R&D team, design team
■ Rich experience in various customized projects such as logo/packaging/mold/specification/application software
■ Offer 1 year warranty or spare parts
■ 24 hours online, fast response, any views are welcome!
■ Offer 1 year warranty or spare parts
■ 24 hours online, fast response, any views are welcome!
FAQ
Does the factory have any management system certification?
How long about the lead time and Shipping time?
Our factory has passed the ISO9001 international management system certification
Can we place order by OEM/ODM?
Of course you can.Welcome to do OEM/ODM. including logo/packaging/mold/specification/application software, etc.
Of course you can.Welcome to do OEM/ODM. including logo/packaging/mold/specification/application software, etc.
I can get product catalogs and certificates?
Of course, just contact us
About the sample: How could I get the sample?
Pls click 'contact supplier' to contact us. Once received your sample payment. We will send it by express. Delivery time is about 5 to 7 days
How to order in alibaba?
Tell me the product and quantity you want to buy, and your delivery address, phone number, zip code. I will draft an Alibaba payment link to you by email, you just need to click the link to pay.
Which payment term can be accepted?
We accept TT/ Visa/Paypal/Westem Union/Alipay/Wechat.
About shipment: what type of shipment will you use?
Usually by express. If the order quantity is large,we may ship by logistic forwarder.
How long about the lead time and Shipping time?
The general delivery time is about 4-7 days.Shipping time depends on the shipping way you choose.
How long is the warranty?
You can choose 0.3% of order quantity as free spares to replace the warranty or send faulty back by yourselves within 1 year
