surgical lamp with integrated full hd camera double dome led theatre operating light ot light led surgical
- Category: Professional Medical Devices >>>
- Supplier: Shanghai Qinli Medical Equipment Sales Center(limited Partnership)
Share on (1600414944658):
Product Overview
Description
surgical lamp with integrated full hd camera double dome led theatre operating light ot light led surgical
Features:
1. Ultra-long service life, the lamp beads can be used for more than 60,000 hours.
2. No temperature rise, no radiation, no flicker
3. Perfect shadowless lamp effect, scientific arc focus design.
4. Two lamp beads with similar color temperature are used to avoid the dizziness of the surgeon.
5. Both R9 and R13 are greater than 90, which helps to clearly distinguish blood vessels and tissues.
Specifications: | ||||
YXTJ-LED-500 | YXTJ-LED-700 | |||
Diameter Of Lamp Cap | 500mm | 700mm | ||
Illumination Intensity | 140,000 Lux | 180,000 Lux | ||
Color Temperature | 4300±500 K | 4300±500 K | ||
Light Spot Diameter | 100-300 mm | 100-300 mm | ||
Depth of Focus | ≥1200 mm | ≥1200 mm | ||
Brightness Adjustment (Stepless) | 1-100 | 1-100 | ||
Color rendering index | ≥97Ra | ≥97Ra | ||
Temperature increase at operation area | <2℃ | <2℃ | ||
Temperature increase over surgeon’s head | <1℃ | <1℃ | ||
Radius of operation | ≥2200mm | ≥2200mm | ||
Radius of working | 600-1800mm | 600-1800mm | ||
Power Supply | AC100-240V 50/60Hz | AC100-240V 50/60Hz | ||
Input Power | 400VA | 400VA | ||
LED Services Life | ≥60,000 hours | ≥60,000 hours | ||
Lamp Power | 1W/3V | 1W/3V | ||
Best Install Height | 2800-3000mm | 2800-3000mm | ||
Options

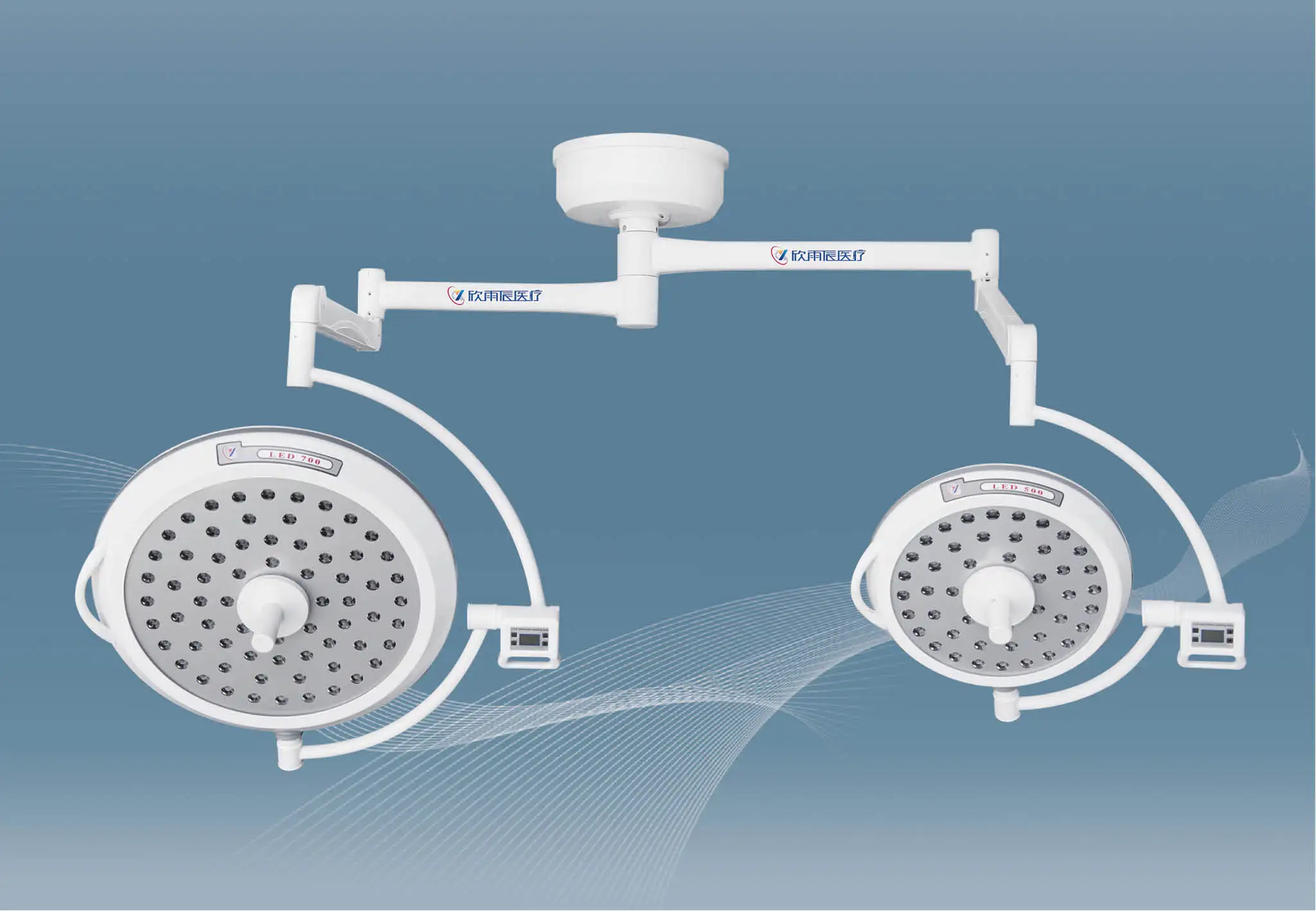

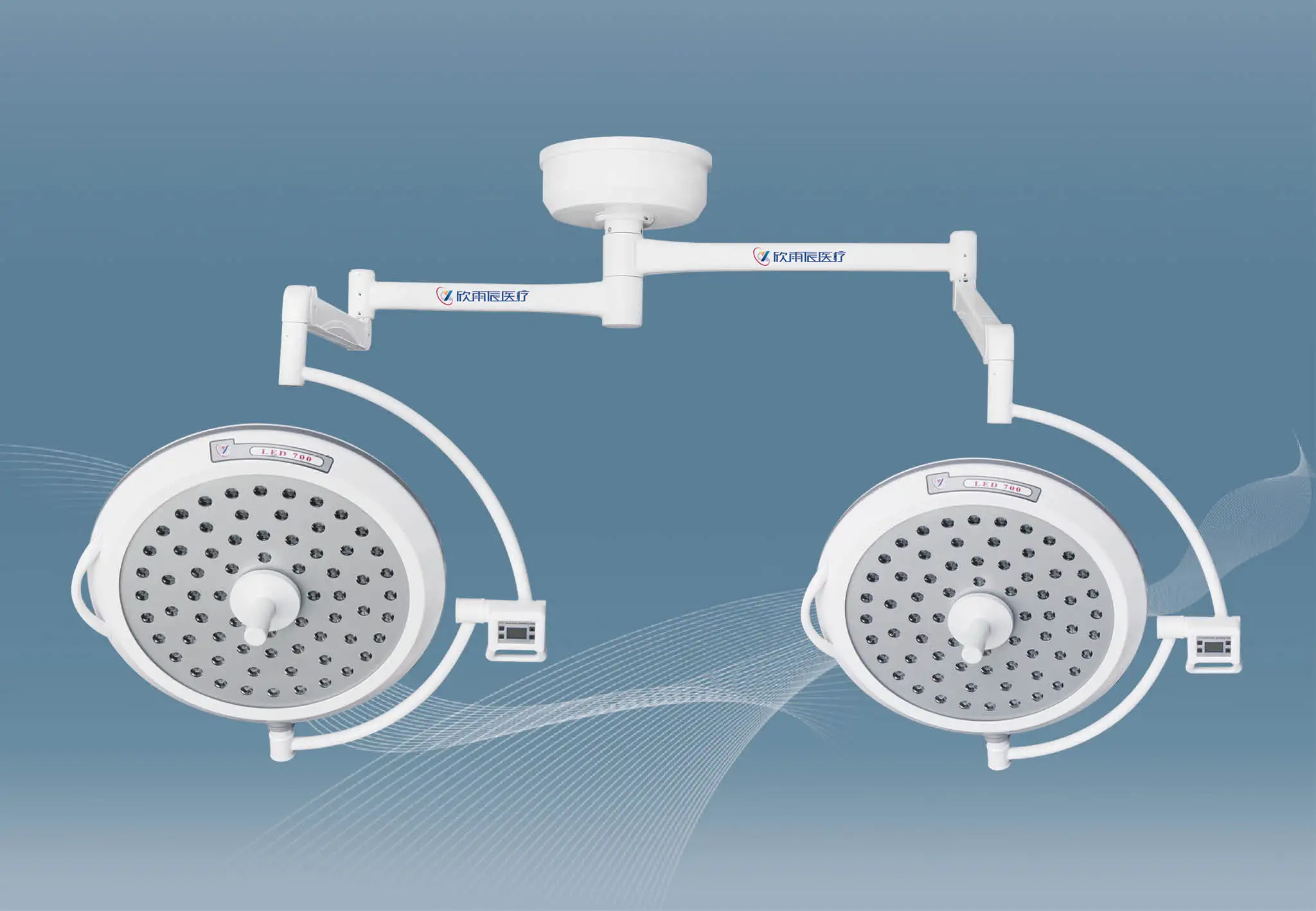

Double 500/700 heads
Model: YXDJ-LED-700/700
Model: YXDJ-LED-500/500
700 head+500 head
Model: YXDJ-LED-700/500
700/500 head

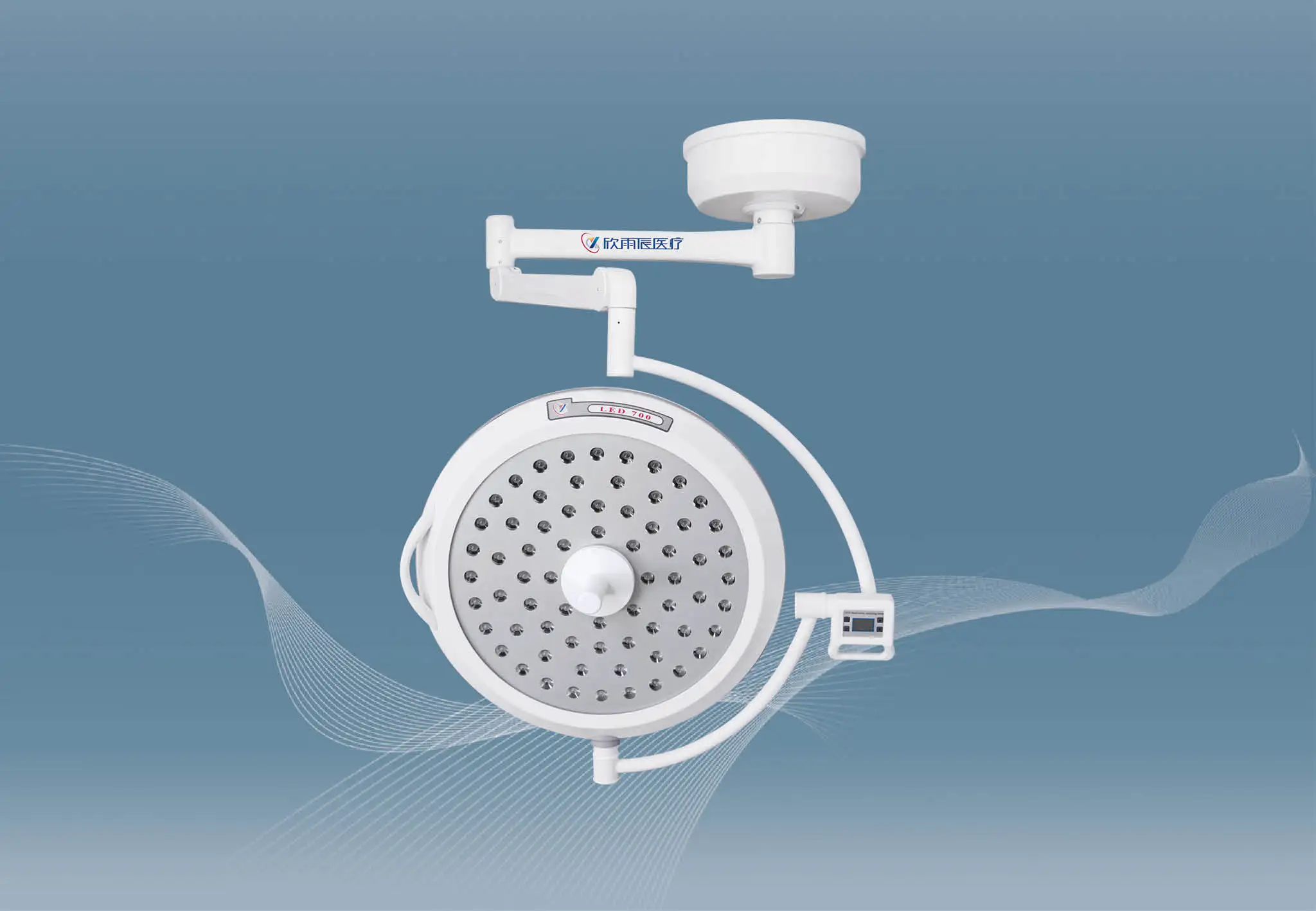

Model: YXDJ-LED-700
Model: YXDJ-LED-500

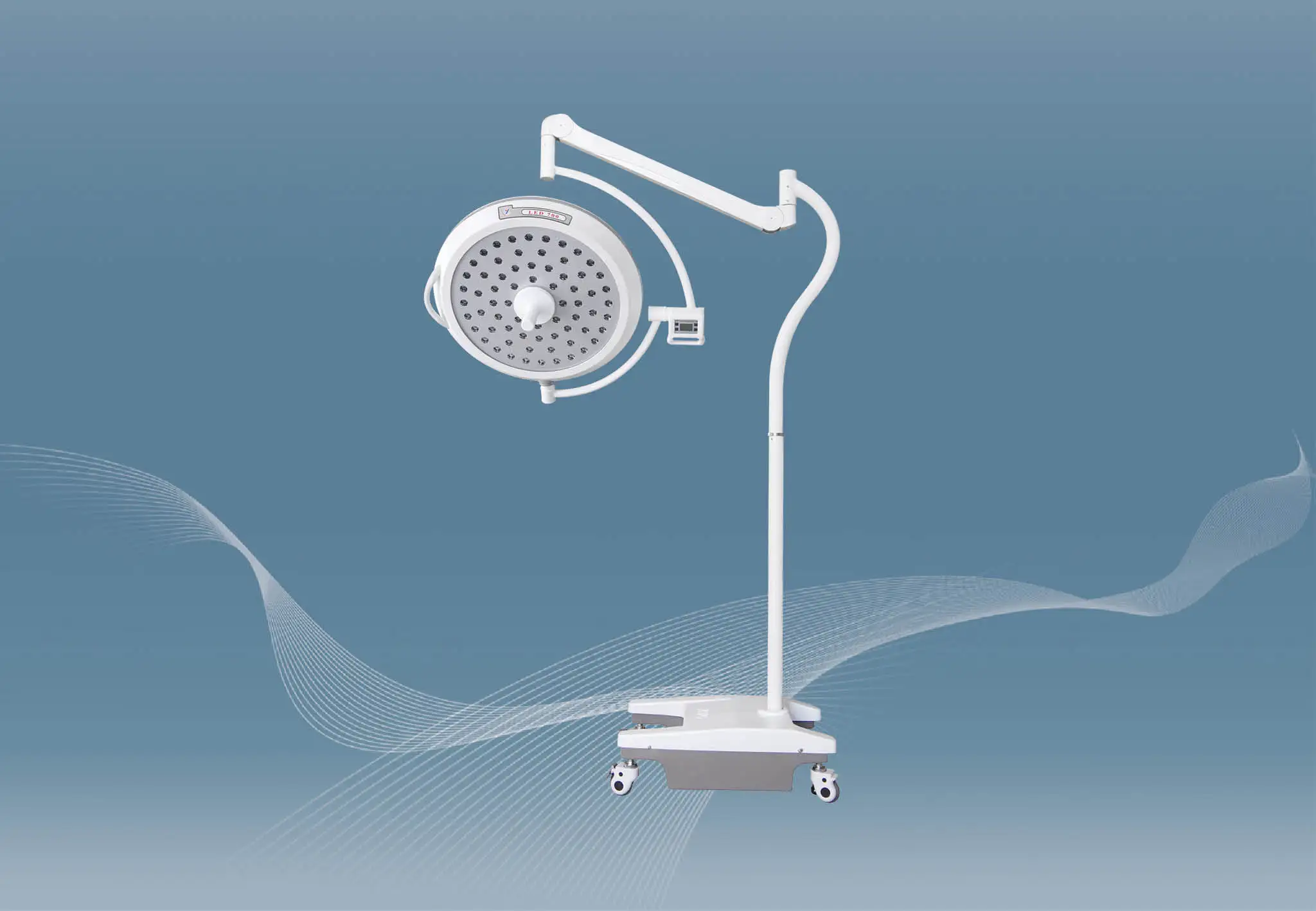

Mobile 700 Mobile 500
Model: YXDJ-LED-M700
Model: YXDJ-LED-M500

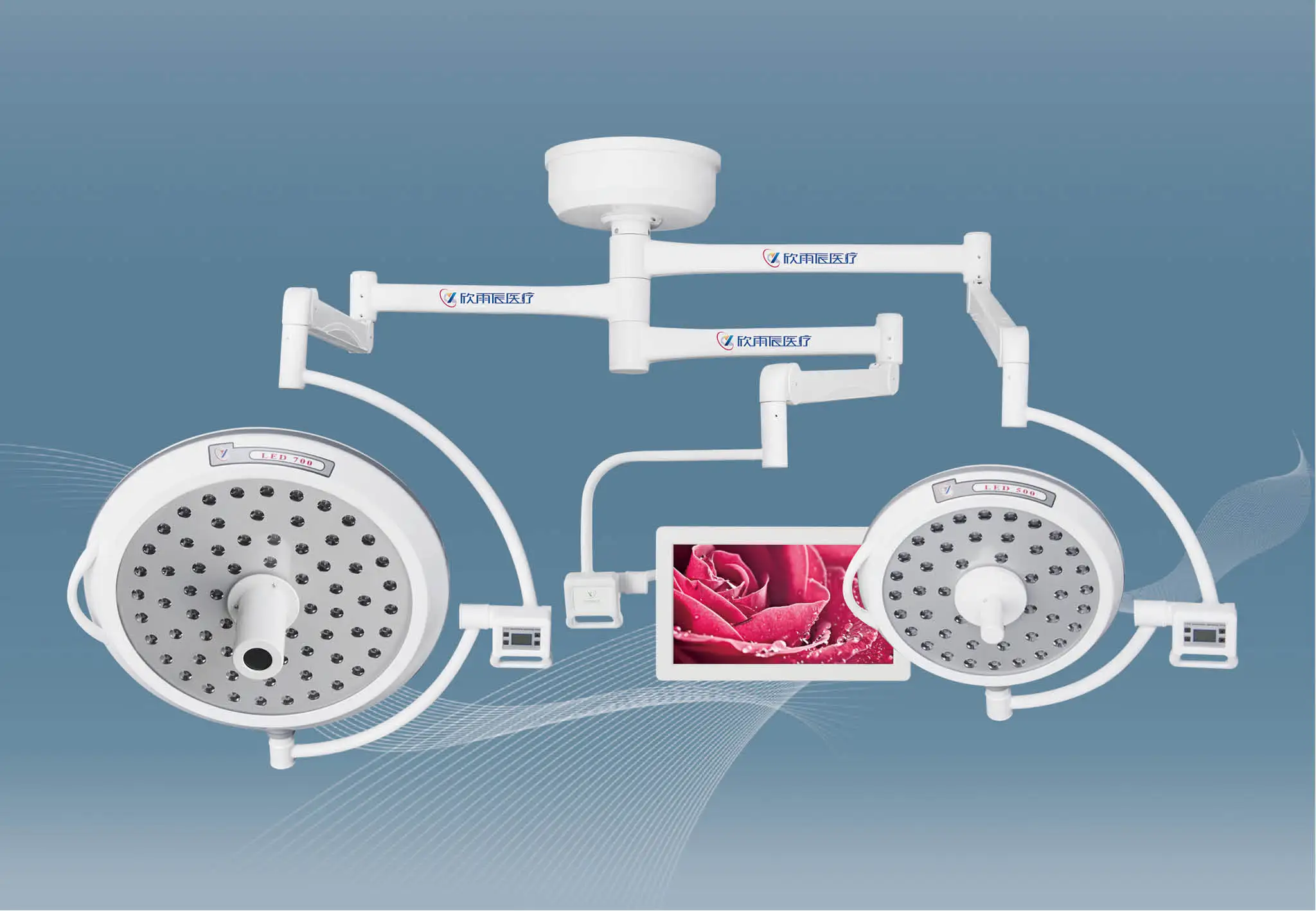

Double head with camera
The Effect
About the factory
Xinyuchen Medical Group has nearly 400 employees, including R&D department, production department, sales department, foreign trade department, quality inspection department, after-sales department and other departments. The company has a group of R&D personnel with many years of professional technology and experience, as well as production and processing. It also has a set of superb, complete and skilled production processes in machining, stamping, welding, plastic spraying, assembly to inspection, and has relatively advanced processing and manufacturing capabilities in the country.
The company's main products include: surgical shadowless lamp series, electric operating table series, medical pendant bridge series, medical bed series, medical carts and stainless steel series, etc., more than 200 specifications.
All products of Shandong Xinyuchen Medical Equipment Group Co., Ltd. have passed the EU CE safety certification, ISO9001 quality assurance system, ISO13485 medical device quality management system, ISO14001 environmental management system, ISO18001 occupational health and safety management system certification and other honorary qualification certificates, and established The comprehensive, standard and standardized management system effectively guarantees the operation of the quality management system.
The company's main products include: surgical shadowless lamp series, electric operating table series, medical pendant bridge series, medical bed series, medical carts and stainless steel series, etc., more than 200 specifications.
All products of Shandong Xinyuchen Medical Equipment Group Co., Ltd. have passed the EU CE safety certification, ISO9001 quality assurance system, ISO13485 medical device quality management system, ISO14001 environmental management system, ISO18001 occupational health and safety management system certification and other honorary qualification certificates, and established The comprehensive, standard and standardized management system effectively guarantees the operation of the quality management system.
