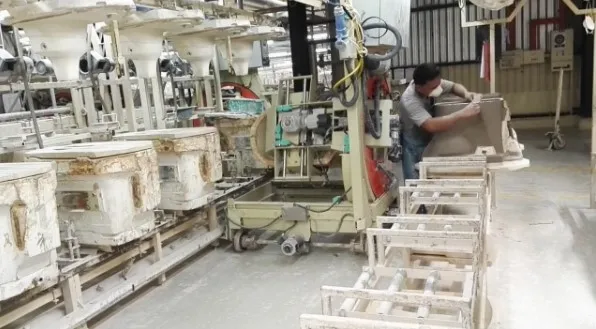

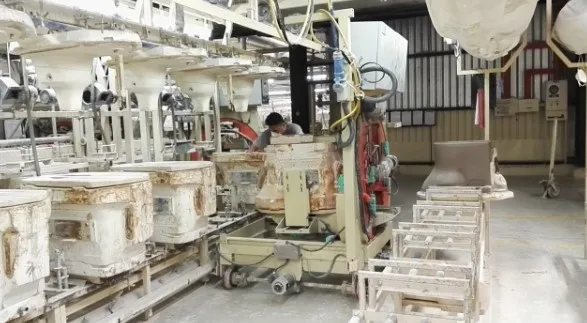

Sanitary Ware Ceramic Toilet Automatic Low Pressure Casting Plants
- Category: Other Construction Material Making Machinery >>>
- Supplier: Tangshan Hexiang Intelligent Technology Co. Ltd.
Share on (1600415712974):
Product Overview
Description
Product Description
The hydraulic lifting casting machine for one piece water closet is mainly divided into the main frame part, bottom mold lifting part, compressed air belt part, hydraulic lifting part, transmission shaft part, auto de-mold trolley part, powered roller conveyor line, infrared automatic monitoring and release system, micro pressure system, end control system and travel switch combination, automatic slurry supply and discharge system, fan hanger, lamp frame, air duct device, etc .
Detailed Pictures
It mainly includes:
Main frame Lifting frame of bottom mold Hydraulic lifting systems
Compressed air belt Hook rod Transmission shaft
Main bench Auto demolding base carrier Supply slip system
Powered roller conveyor line Lamps
Micro-pressure pipe system Control system Fans
Travel switch infrared automatic monitoring and release system

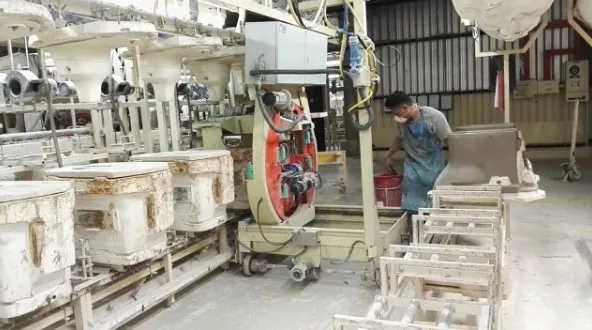

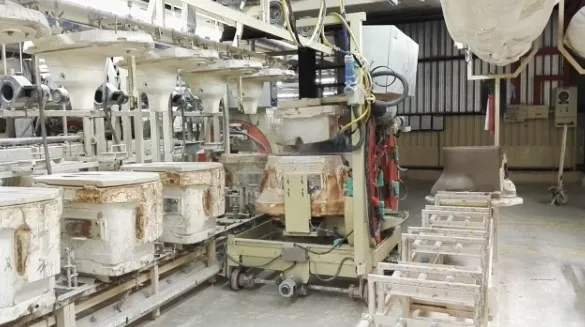

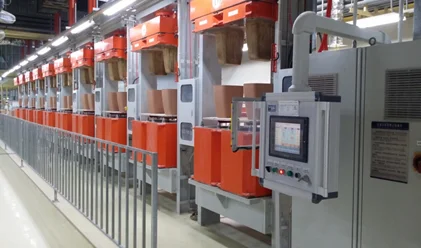

Machine picture-making
Product Parameter
Parameter | Unit |
|
|
Ground Line Length | M | 22 | Depends on customer capacity |
Top line Length | M | 5180/5920 |
|
Width | MM | 2670 |
|
Height | MM | 3016 | Maximum Height |
Length of Storage Platform | M | 21 |
|
Width of Storage Platform | MM | 650 |
|
Height of Storage Platform | MM | 520 |
|
Size of Whole Line | mm | 2200×4300×3400 | Line size only |
Molds Available | set | 8-30 | depends on the size of the molds and productivity needs |
Ground Incline Max. adjustable angle | ℃ | 25 |
|
Ground Incline adjustable angle | ℃ | 0-20 |
|
Power | kw | 2.2 | Power of Main Motor |
kw | 2.2, Ø400mm |
| |
kw | N/A | Power of Lights | |
kw | N/A | Power of Fans | |
Air Pressure | MPa | ≥0.6 |
|
Installation Ground Needed | Length(M) | Line quantity*3.6 | 3.6meter for each line |
Width(M) | 4.5 |
| |
Width(M) | 21+2 | Minimum width needed | |
Width(M) | 21+2+3 | Minimum width for casting line running |

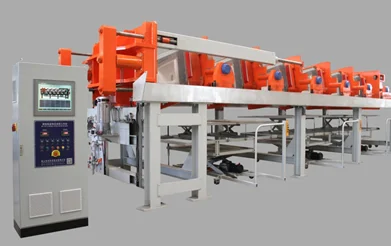

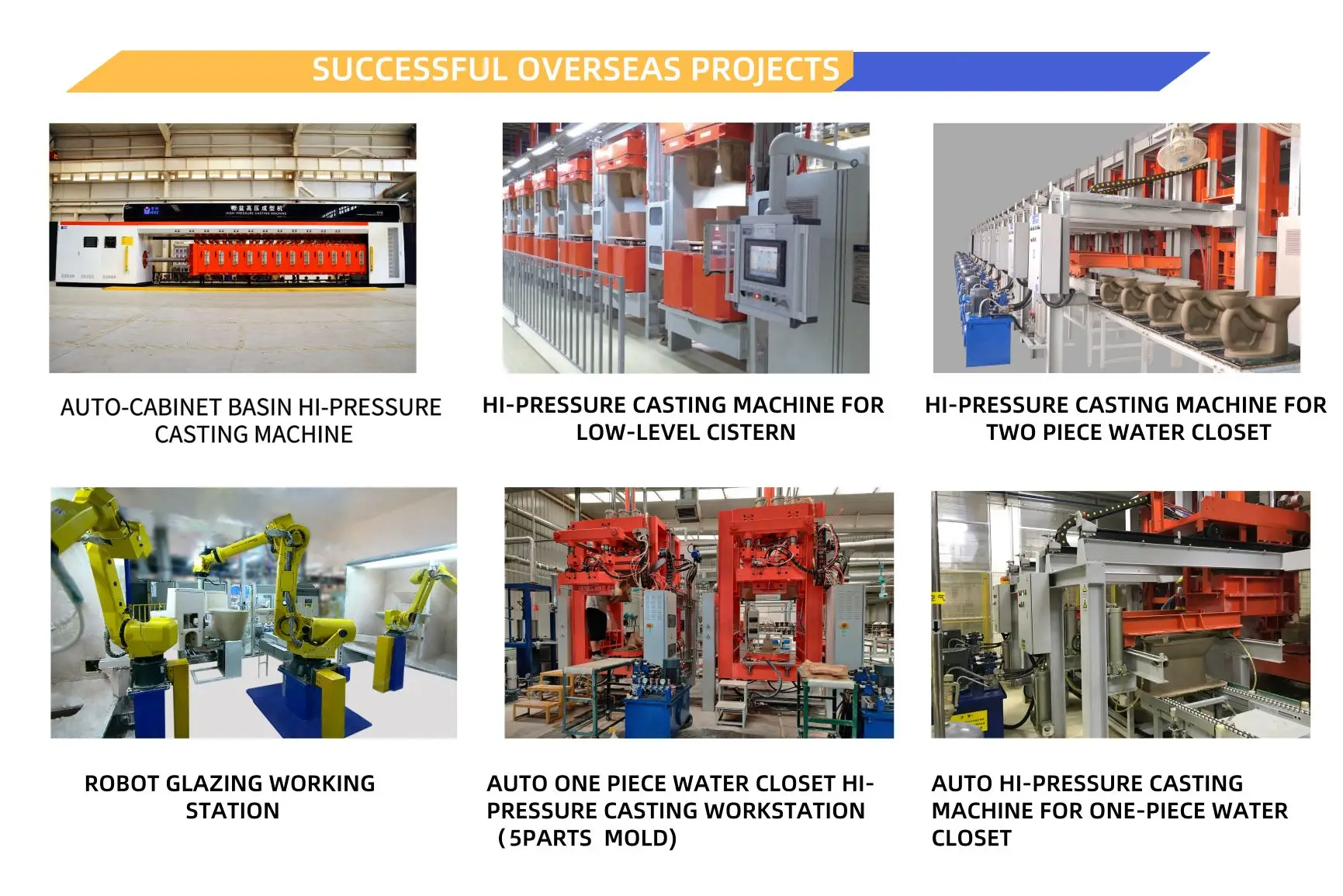

Others Machine -for sanitary ware
HPCM-ONE PIECE TOILET
HPCM-CISTERN
LOW PRESSRE CASTING-ONE PIECE TOILET

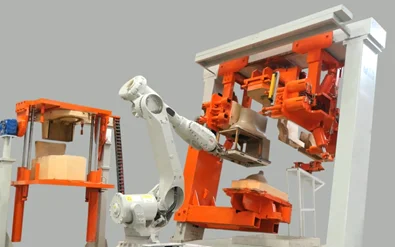

ROBOT GLAZING MACHINE
HPCM-BIG SIZE WASH BASIN
HPCM-TWO PIECE TOILET
Our Services
1 year quality warranty (except for easy broken parts)
24h service for any problem
Field installation and commissioning
Trial running before shipment.
Wooden case package

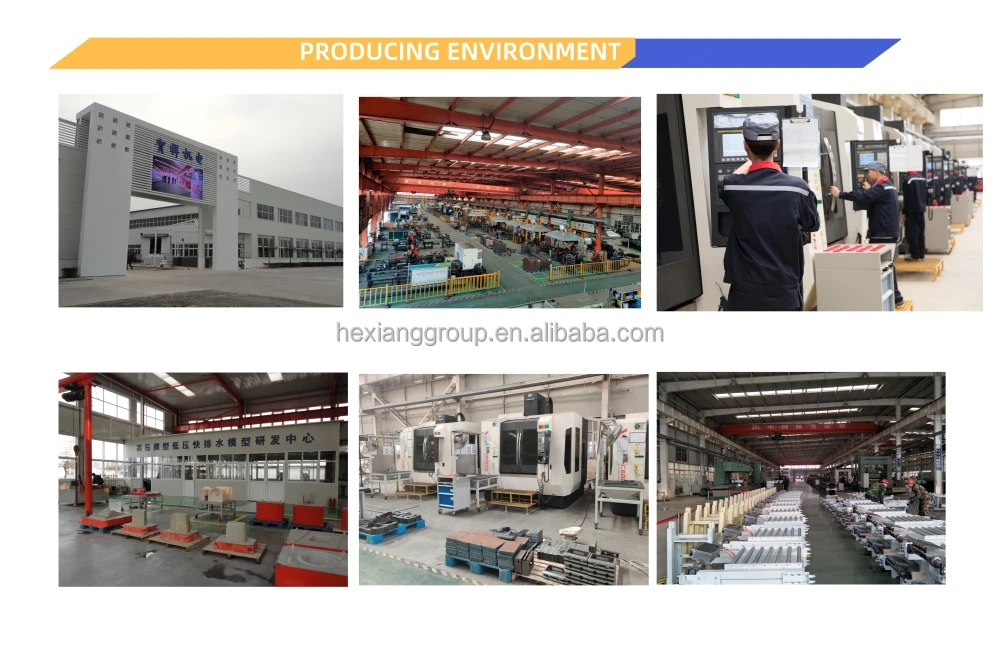

Company Information
