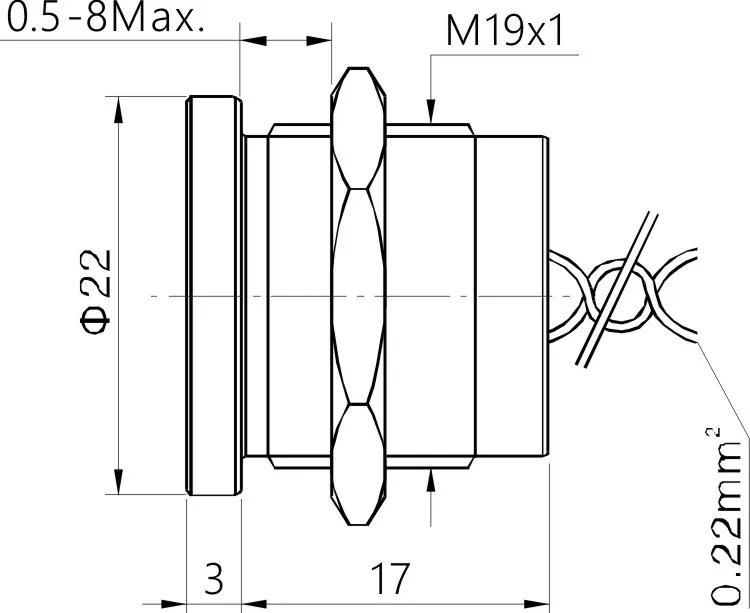

19mm IP68 Metal Piezoelectric Switch Momentary/Laching LED illuminated replace micro travel push button switch









Products Description

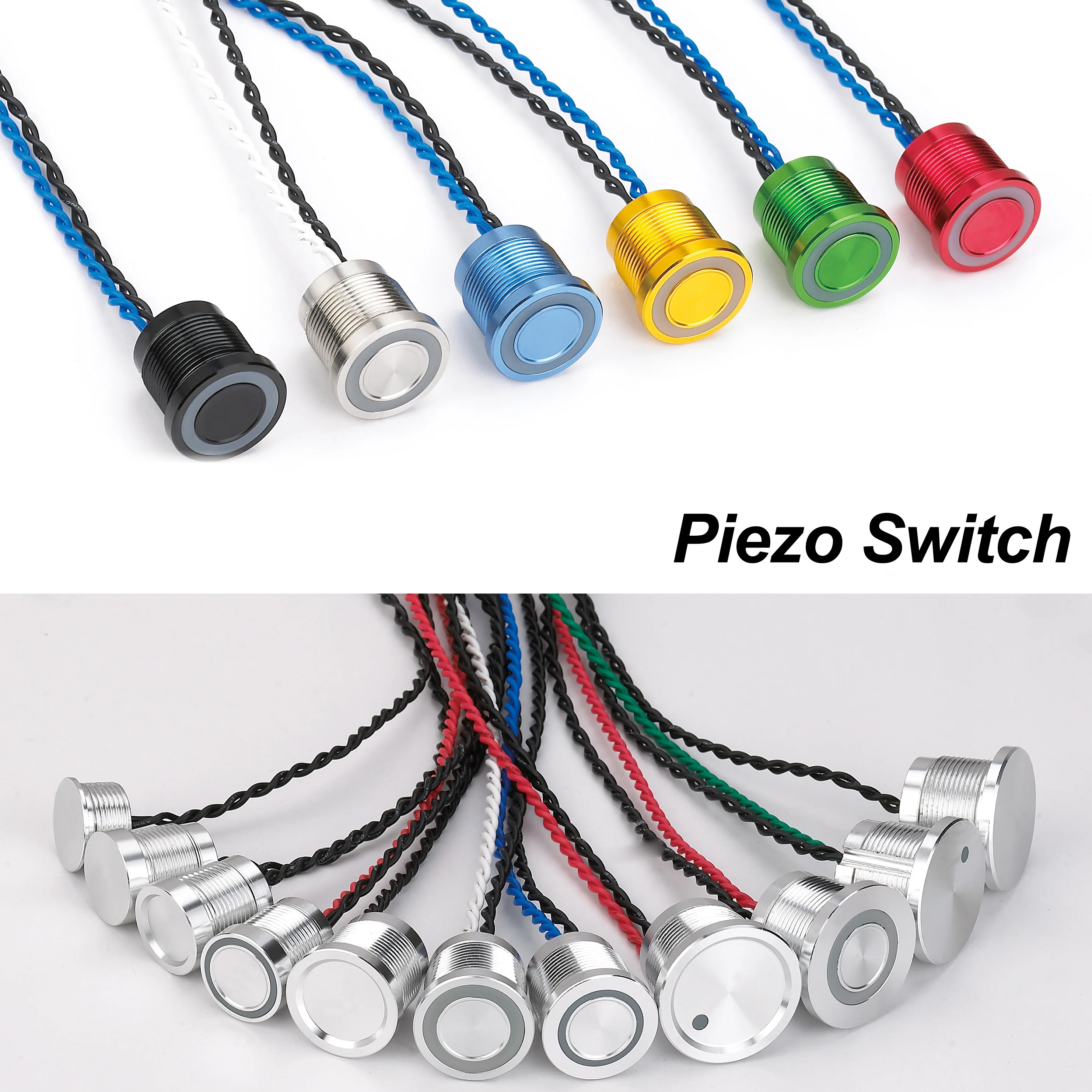

Piezo Switch

Piezoelectric switch is a kind of switch triggered by pressure.(5-10N)
It can use in a variety of harsh environments: Water proof IP68

Ultra long life : Over 50 million circles electric life

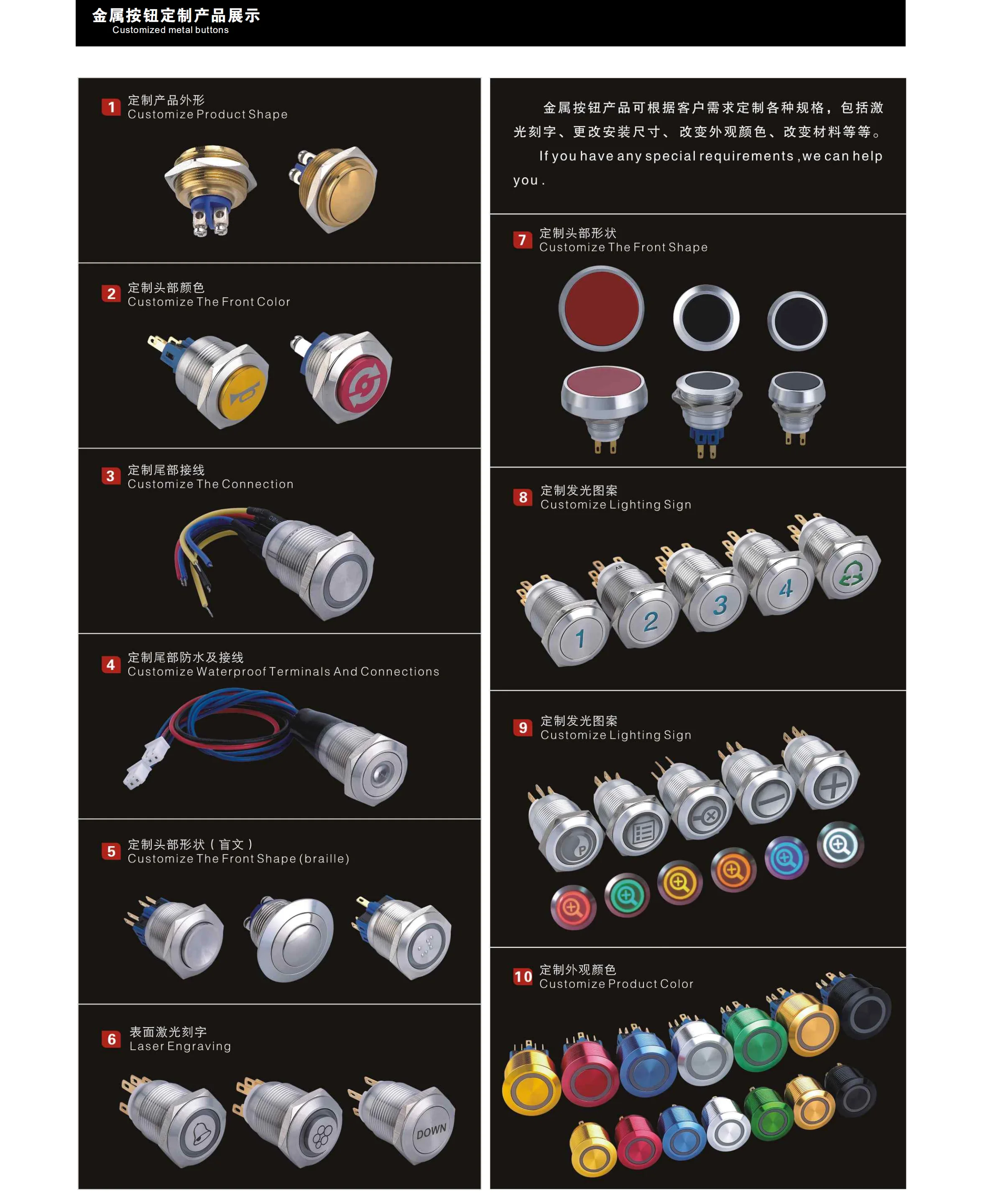

Beautiful appearance, can be customized according to needs of appearance.






















Product Paramenters

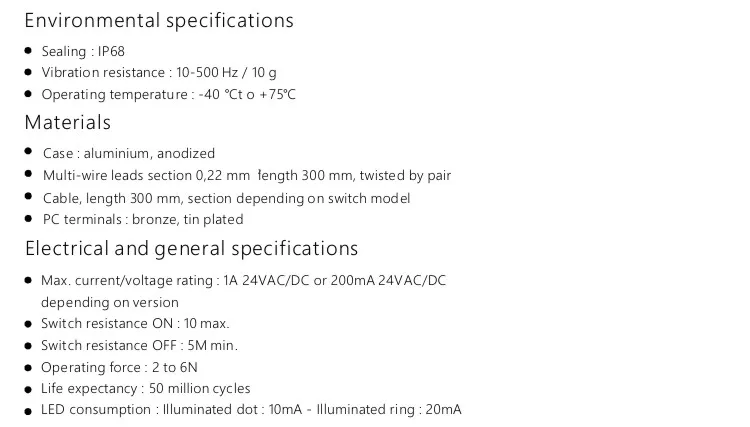

Electrical and general specification














Max.current/voltage rating





 200mA 24VAC/DC








Switch resistance ON





10Ω max.








Switch resistance OFF





5MΩ max.








Operating force





5-10N








Life expectancy





50 million cycles








LED consumption





Illuminated dot:10mA - illuminated ring:20mA












































Environmental specification














Sealing





 IP68/IP69K








Vibration resistance





10-500 Hz/10 g








Operating temperature





-40℃ ~ 75℃












































Material














Case





Aluminium Alloy, stainless steel








Wire





section 0.22 mm²      length 300 mm








PC terminal





bronze, tin plated
