polyester fiber filling machine/pillow stuffing machine
US $2500-$2800
micro fiber opener hollow polyester ball fiber opening machine for pillow pet cushion filling machine
- Category: Other Home Textile Product Machines >>>
- Supplier: Henan Joconn Machinery Co. Ltd.
Share on (1600417655942):
Product Overview
Description
micro fiber opener hollow polyester ball fiber opening machine for pillow pet cushion filling machine
wechat /whatsapp +86 150-9322-8930
Introduction
| 1 | Fiber opening and pillow filling machine Suitable for filling products of toy factory, sofa factory, pillow etc.. |
| 2 | Filling materials include: PP cotton, down, cloth broken cotton, wool, fiber cotton, foam particles, crushed sponge and poultry hair and other soft items, and can be evenly mixed with the above items as you require, to play the role of cotton mixer; |
| 3 | Fiber opening and pillow filling stuffing machine Can bring its own electronic scale, side fill side weighing, very convenient to control the fill amount. |
Features
| 1 | moderate cotton horn height(from the ground 650mm), easier and more convenient operation; |
| 2 | Mobile electronic micropedal switches are more flexible and more effortless than traditional fixed pedals, greatly reducing the fatigue of operators and maximizing their working efficiency. |
| 3 | thickened storage tanks, equipped with multiple models can adjust the jet nozzle, the impact size is arbitrarily adjusted, ensure that the machine has enough working pressure for the filling of various types of objects, compared with the same product more gas saving up to 25 %. |
| 4 | detachable multi-model cotton pipe(direct 50-10mm), to meet the needs of toys of different sizes. |
Working Principle
| 1 | Fiber opening and pillow filling machine to rotate and pull the cotton teeth through the middle axis, evenly send the cotton to the cotton Hopper, and use the pressure to blow the cotton into the filled objects. |
| 2 | The cotton of the filled product is uniform and more tactile. The working efficiency is more than 15-20 times that of hand-made cotton. |
Parameters
Fiber opening machine
Model | JCSM-1(small) | JCSM-2(middle) | JCSM-3(big) |
Capacity | 60-90 Kg/h | 120-150 Kg/h | 250-300 Kg/h |
Power | 3.2 Kw | 4.75 Kw | 8.25 Kw |
Dimension | 1800*680*880 mm | 2200*880*920 mm | 2200*1300*1080mm |
Weight | 250 Kg | 350 Kg | 550 Kg |
fiber filling machine after opening
Model | JCM-1 | JCM-2 |
dimension | 1000*800*800mm | 1000*800*1000mm |
voltage | 380V 50Hz | 380V 50Hz |
power | 2.2kw | 4kw |
Capacity | 100-200kg/H | 150-200kg/H |
Weight | 70kg | 80kg |
Detailed Images

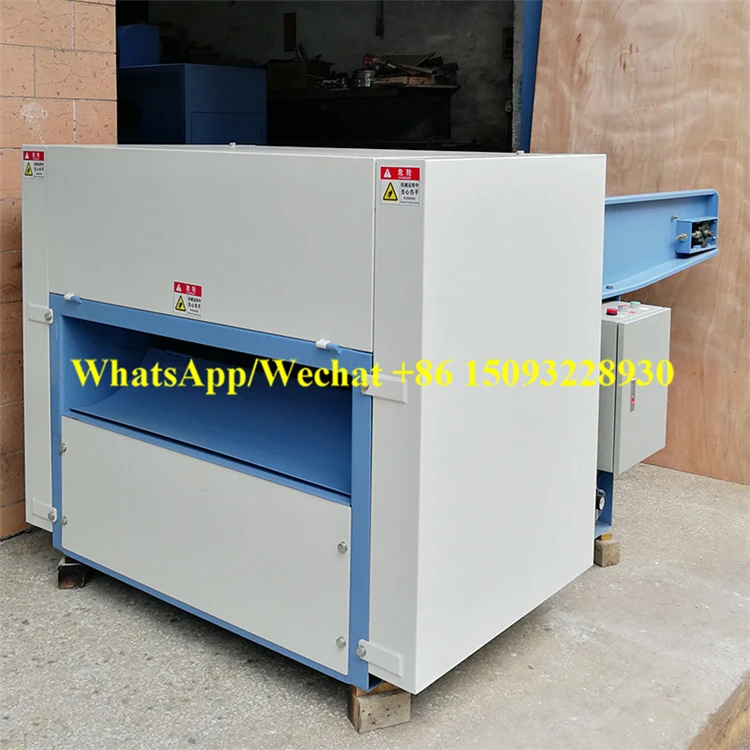

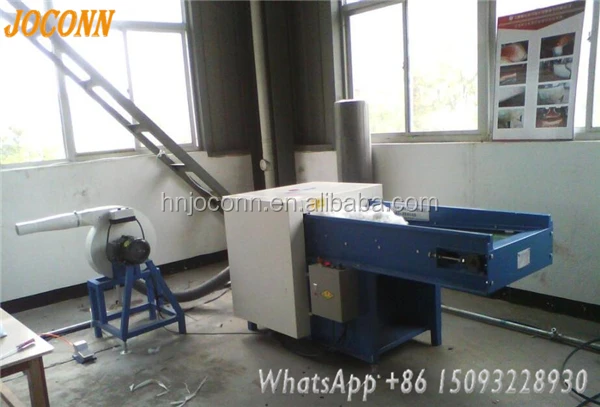

fiber cotton opening machine

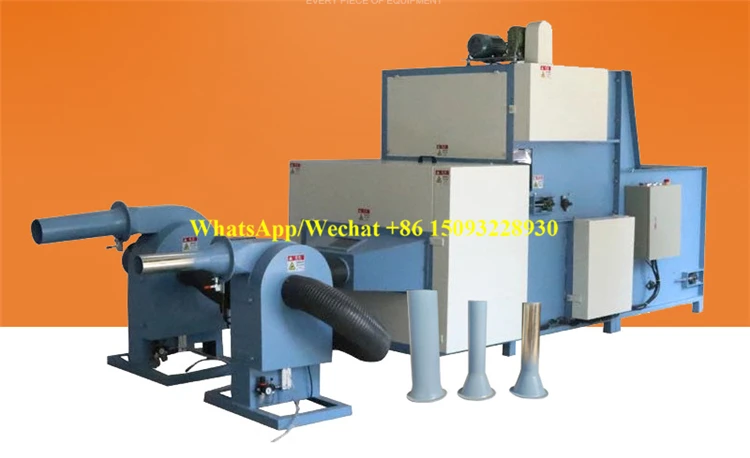

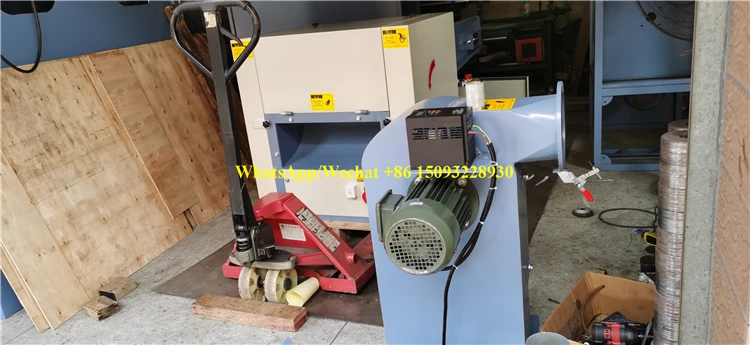

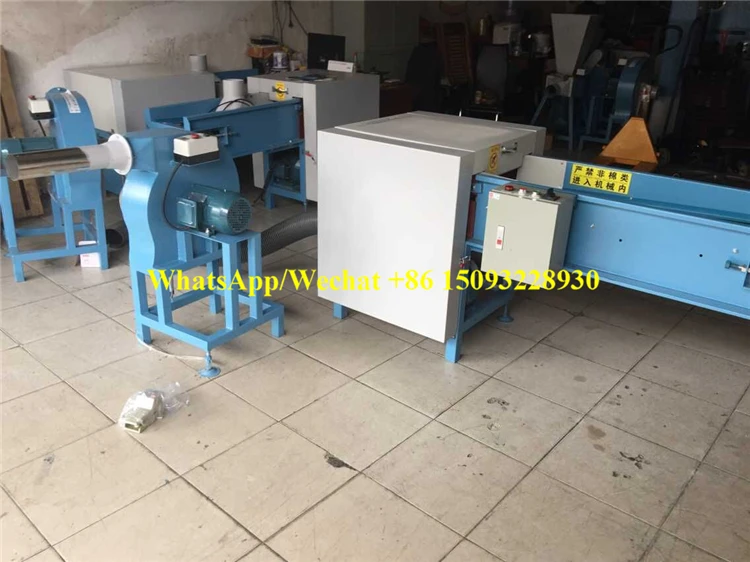

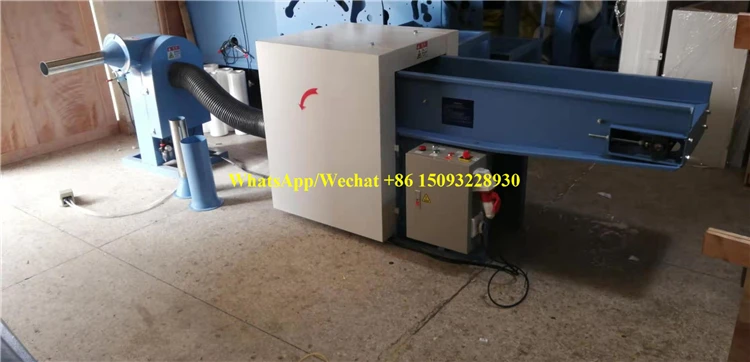

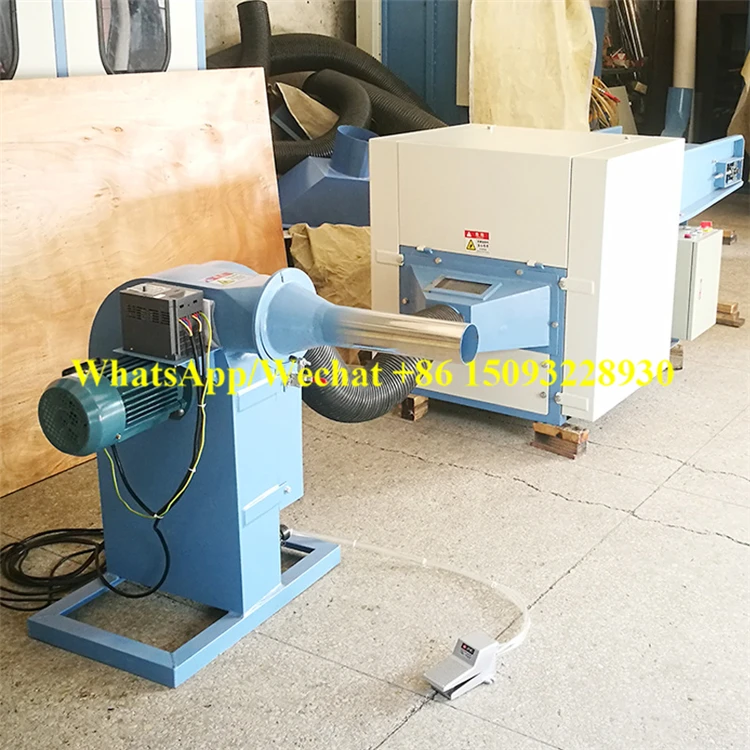

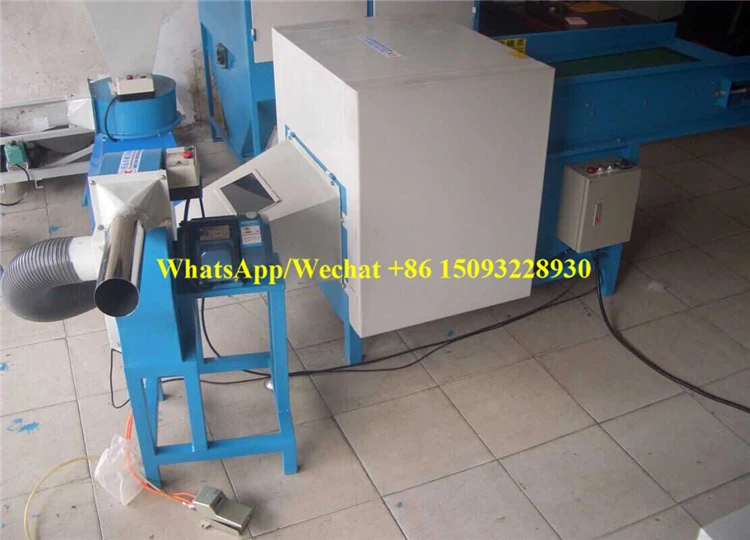

cotton fiber opening and filling combined

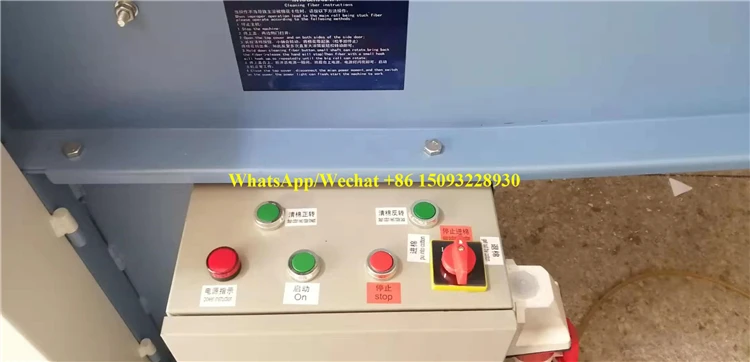

operation pannel

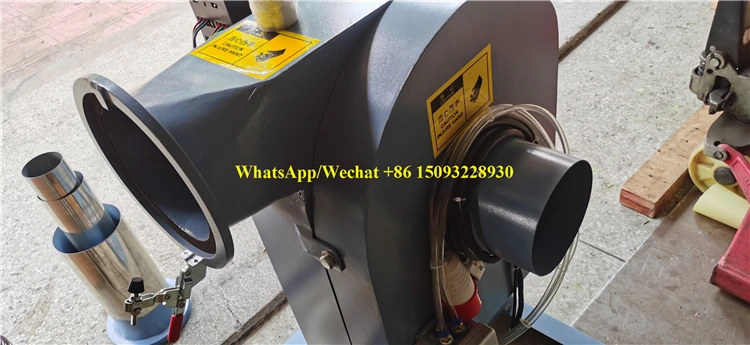

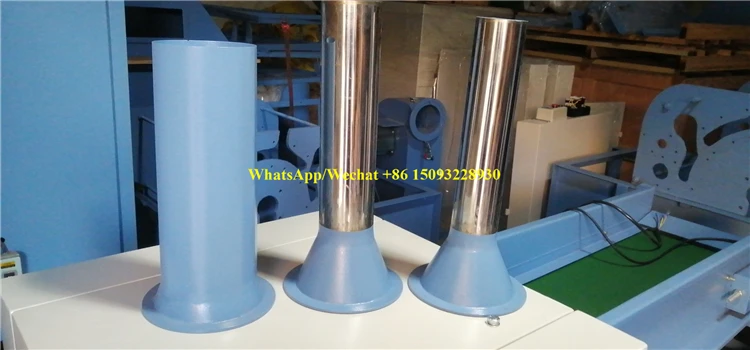

filling pipes
can also equip with weighting table

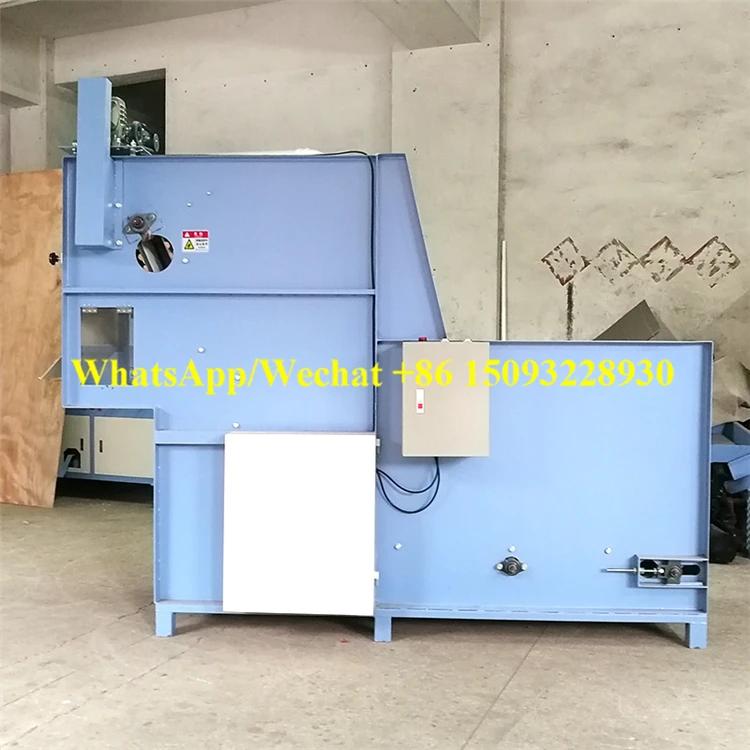

fiber cotton storage automatic feeding cabin saving labor

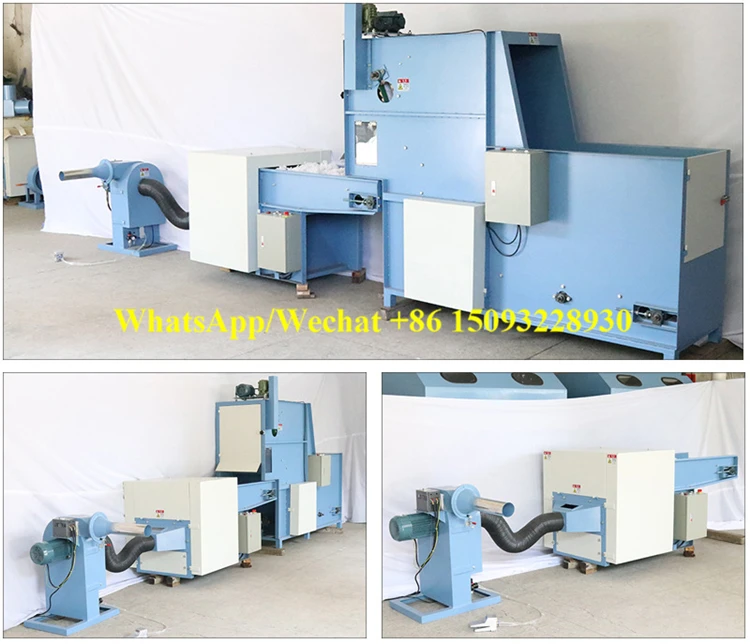

equipped with 2 units filling machines and 1 cotton feeding storage cabin
Finished Products
Contact
If you are interested or have any questions , please feel free to contact me by namecard below , or scan the QR code for quick talk on wechat .we are on service 24hrs .
