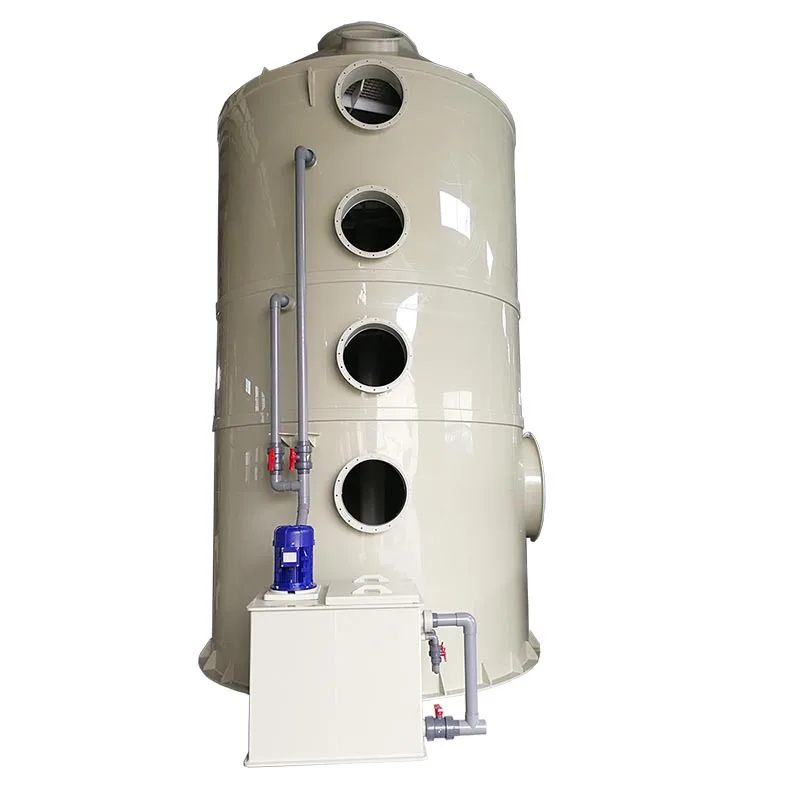

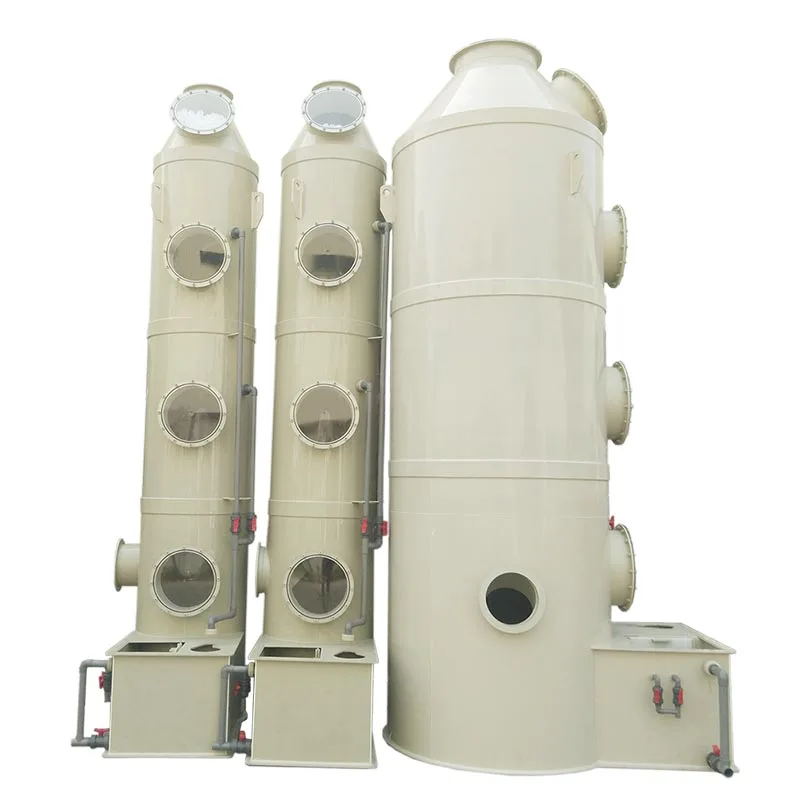

large scale Ventilate waste gas treatment air industrial cleaning machine spray scrubber tower
- Category: Gas Disposal Machinery >>>
- Supplier: Shenzhen Xicheng Plastic Co. Ltd.
Share on (1600423692094):
Product Overview
Description
Product Description

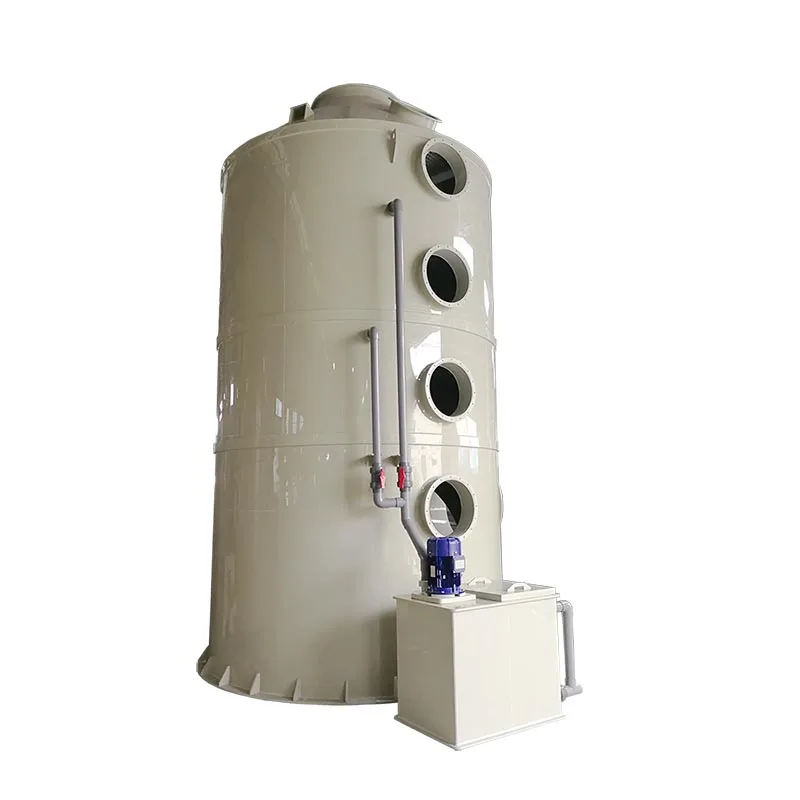

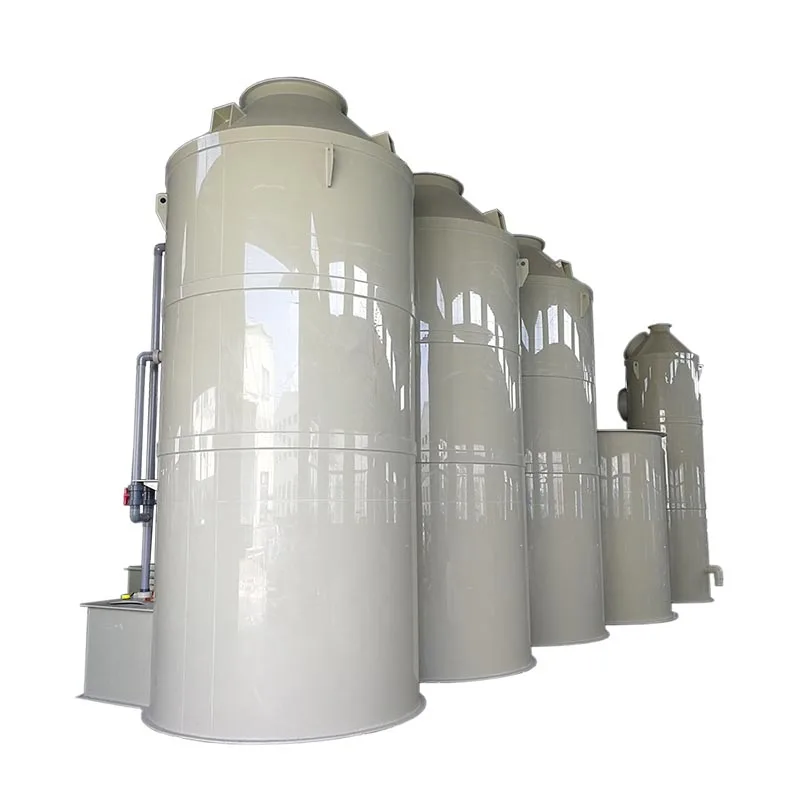

waste gas treatment equipment - purifying towers
Purification tower is a new kind of industrial waste gas treatment equipment, which adopts new PP material (polypropylene). It is improved on the basis of floating packing layer and industrial waste gas purifier. It is widely used in the pretreatment of industrial waste gas treatment and dust removal,The purification effect is very good. It is the most common and practical treatment equipment in the treatment of acid and alkali waste gas . Also known as PP washing tower, the utility model has the advantages of simple structure, low energy consumption and high purification efficiency. Can effectively remove HCL, HF, NH3, H2SO4, CrO3, HCN, NAOH, H2S, HCHO and other water-soluble gas
Waste gas treatment equipment - cyclone tower
The swirl tower is the most important characteristic of the new generation dust collector. The tangential air enters and the gas rotates through the equipment. This is more effective in dealing with dust, leading to dust deposition. It has the advantages of small volume, light weight, compact structure, simple maintenance, dust remover with axial fan or a centrifugal fan can, air duct and wet cyclone dust, dehydration device is designed as a organic whole, the size of the whole machine is reduced greatly,The sound absorption structure designed inside and outside of the utility model effectively eliminates the noise generated in the work of the dust collector and can meet the needs of the field. Can also be used in conjunction with activated carbon adsorption tower or UV photolysis equipment in series, usually used to purify dust containing particles, particles of gas

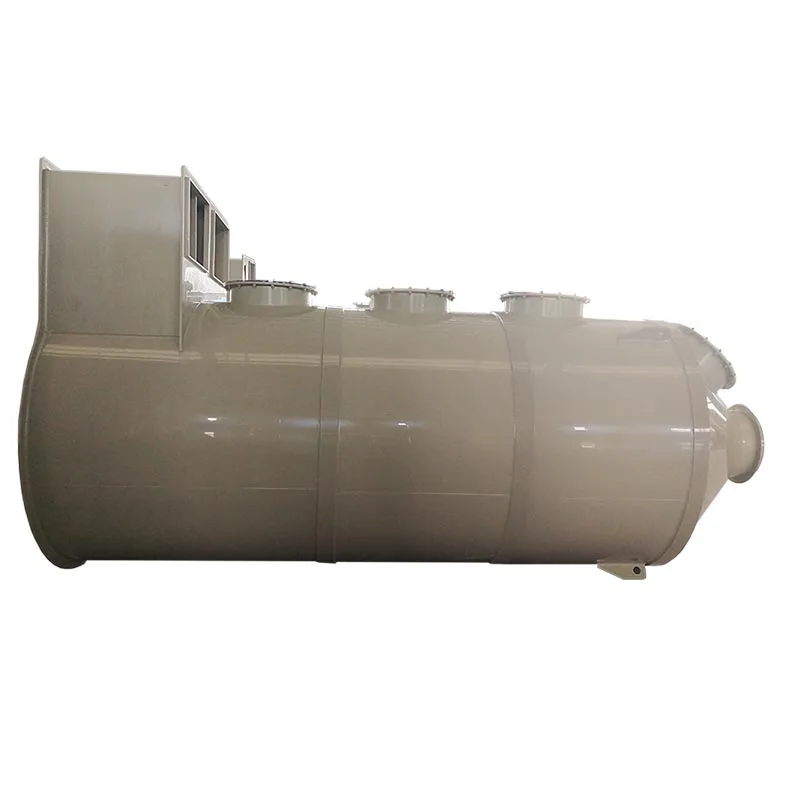

Waste gas treatment equipment - Horizontal towers
Horizontal spray tower purification system and vertical spray tower is the same, the design is to take two layers of spray and a fog removal of the internal purification system. Horizontal washing towers are horizontally laid out for use in projects or companies that are highly restricted and spacious.In addition, the volume of the water tank and the general volume of horizontal washing tower tower length is equal, because it is placed horizontally and laterally to spray water pump power generally is slightly larger than the vertical spray tower is a little bit more reasonable（Of course, the tower is not very large, the case can also be selected with vertical spray tower, the same power pump is also possible, must not be less than the original standard power, otherwise it will have an impact on the purification effect）。Can handle the types of waste gas: acid mist, dust, industrial waste gas treatment covers more than 90%.
Specification
item | value |
Condition | New |
Applicable Industries | Garment Shops, Building Material Shops, Manufacturing Plant |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2021 |
Warranty of core components | 1 Year |
Core Components | Pump |
Place of Origin | China |
Guangdong | |
Brand Name | XICHENG |
Warranty | 1 Year |
Weight (KG) | 50kg |
Function | Alkaline Gas Treatment |
Usage | Ventilation, waste gas treatment |
Material | PP |
Type | Single Desulphurization Wet Scrubber |
Application field | Industrial, laboratory ventilation |
Structure | Pipe connection structure |
Keyword | scrubbers system |
Color | Grey,Yellow |
Size | Custom |
Purify Efficiency | 98% |

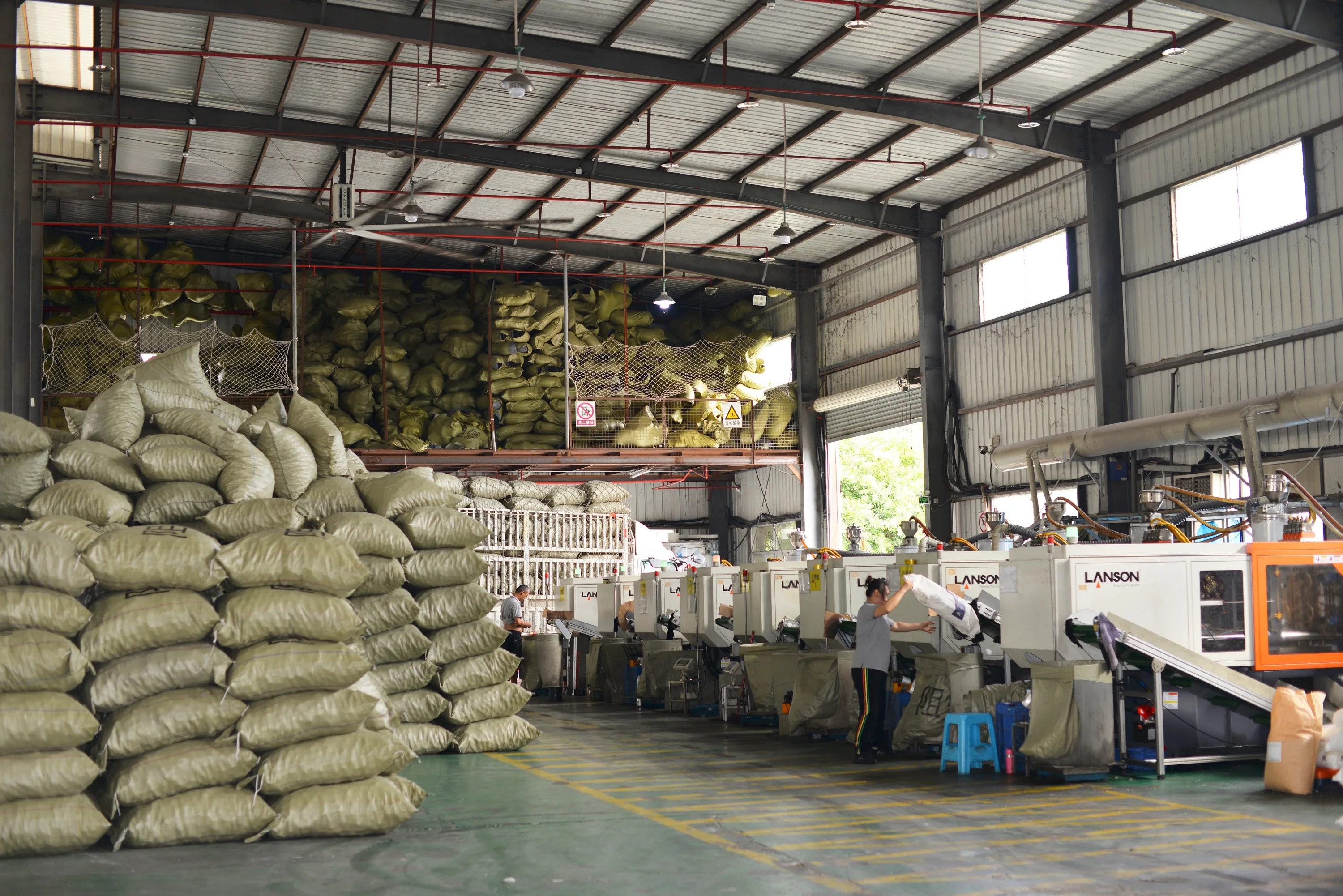

Company Profile
Our company is located in shenzhen shajing whampoa, is the collection of PP sheet, PP molding duct, PP unibody elbow, PP air valve, PP a integrated to strengthen the flange and various kinds of PP ventilation accessories production, sales for the integration of enterprises, and for ventilation environmental protection engineering provide PP exhaust tower, activated carbon adsorption tower, PP large diameter pipe and the production of various non-standard PP ventilation equipment or to map, processing business.Our company have professional ventilation accessories and auxiliary equipment, can largely save production cost and production time for the customer, and shorten the construction period.This product is mainly suitable for industry, agriculture, chemical industry, environmental pollution such as acid proof, anticorrosive engineering enterprise, use plastic manufactured goods with low cost, light weight, convenient installation, long life and other advantages, widely used in many developed countries in the world to early, with plastic instead of steel also has been widely used in our country.I companies adhering to the "quality first, scientific management, pay attention to credibility" for the purpose of constantly absorb the introduction, the independent development of new products.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2013,sell to Southeast Asia(40.00%),Domestic Market(30.00%),South America(10.00%),South Asia(10.00%),North America(10.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
waste gas treatment equipment,Activated carbon adsorption equipment,PP pipe,Air valve,PP Sheet
4. why should you buy from us not from other suppliers?
I company of PP sheet, PP molding duct, PP unibody elbow, PP wind valve, flange and various PP a integrated to strengthen PP ventilation accessories production, the sale is a body, ventilation environmental protection engineering and in providing PP exhaus
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,FAS,CPT,DDP,DAF；
Accepted Payment Currency:USD,HKD,GBP;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Russian
We are based in Guangdong, China, start from 2013,sell to Southeast Asia(40.00%),Domestic Market(30.00%),South America(10.00%),South Asia(10.00%),North America(10.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
waste gas treatment equipment,Activated carbon adsorption equipment,PP pipe,Air valve,PP Sheet
4. why should you buy from us not from other suppliers?
I company of PP sheet, PP molding duct, PP unibody elbow, PP wind valve, flange and various PP a integrated to strengthen PP ventilation accessories production, the sale is a body, ventilation environmental protection engineering and in providing PP exhaus
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,FAS,CPT,DDP,DAF；
Accepted Payment Currency:USD,HKD,GBP;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Russian
Product Description
Air volume(M3/H) | Size（mm） | THK(mm) | Drain outlet (mm) | Water tank size(mm) | Inlet and outlet size(mm) | Pump(kw) | Wind resistance(Pa) |
3000 | 800 | 8 | DN32 | 600*700*H700 | 315 | 0.75 | 500 |
5000 | 1000 | 8 | DN40 | 600*800*H700 | 400 | 1.5 | 500 |
8000 | 1200 | 8 | DN40 | 600*1000*H700 | 500 | 2.2 | 500 |
10000 | 1500 | 10 | DN40 | 700*1000*H700 | 550 | 2.2 | 500 |
12000 | 1600 | 10 | DN50 | 700*1000*H700 | 600 | 3.75 | 500 |
15000 | 1800 | 10 | DN50 | 700*1200*H700 | 650 | 3.75 | 500 |
20000 | 2000 | 10 | DN50 | 700*1200*H700 | 750 | 5.5 | 500 |
25000 | 2200 | 10 | DN50 | 700*1200*H700 | 950 | 5.5 | 600 |
30000 | 2500 | 12 | DN65 | 700*1200*H700 | 1000 | 5.5 | 600 |
35000 | 2700 | 12 | DN65 | 1000*700*H700 | 1100 | 7.5 | 600 |
40000 | 2900 | 12 | DN65 | 1000*700*H700 | 1200 | 7.5 | 600 |
45000 | 3000 | 12 | DN65 | 1000*700*H700 | 1250 | 7.5 | 600 |
Technical Parameter
Chemical absorbents commonly used in Gas Absorption Column include the following:
Alkaline solution:
Acid solution:
Alkaline absorption liquid normally contains 1%-10% sodium hydroxide solution, which has great effect in eliminating hydrogen sulfide gas and other stink which produced in waste water processing station.
Acid solution:
Acid solution normally contains 0.5% -5% H2SO4 as washing liquid.
It is mainly used to eliminated the odor resulted from ammonia, trimethylamine gas alkaline.
Sodium hypochlorite solution:
Sodium hypochlorite solution:
Sodium hypochlorite solution is usually used together with alkaline absorption.
It is widely used for high concentration and low concentration stink.
It is widely used for high concentration and low concentration stink.
Gas Purification Rate
The name of gas | Molecular formula | The kind of cleaning mixture | Removal rate |
Hydrochloric acid | HCl | H2O NaOH | 90~95% 95~99% |
Hydrofluoric acid | HF | H2O NaOH | 90~95% 95~99% |
Annonia gas | NH3 | H2O NaOH | 90~95% >99% |
Cyanic acid | HCN | NaOH | 90~98% |
Sulfur dioxide | SO2 | NaOH | >95~99% |
Chlorine | Cl2 | NaOH | >95~99% |
Hydrogen sulfide | H2S | NaOH | 95~99% |
Sulfuric acid | H2SO4 | H2O | >95~99% |
Chromic acid | CrO3 | H2O | 95~99% |
Sodium hydroxide | NaOH | H2O | 95~99% |
Nitric acid | HNO3 | H2O | 95~99% |
Specification
item | value |
Condition | New |
Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2021 |
Warranty of core components | 1 Year |
Core Components | Pump, Gear, Engine |
Place of Origin | China |
Guangdong | |
Brand Name | XICHENG |
Purify Efficiency | 90%-96% |
Warranty | 1 Year |
Weight (KG) | 100kg |
Product Name | scrubber tower |
Color | White Grey |
White Grey | Customized Size |
Size | Customized Size |
Material | PP |
Air volume | 6000-60000M3/H |
Certification | CE Certification |
Weight | Depend on size |
Function | air purification |
Product advantages | Organic gas purification |
Company Profile
XICHENG EP LTD. is located in Baoan District, Shenzhen. It is an environmental protection equipment manufacturer integrating technology research and development, equipment manufacturing, product sales and after-sales service. Our company which has been focusing on the environmental protection industry for many years and specializing in the production and sales of environmental protection equipment and various accessories. Our company has an excellent team with advanced service concept. We are committed to provide quality products and services to our customers in scientific management mode.
Exhibition

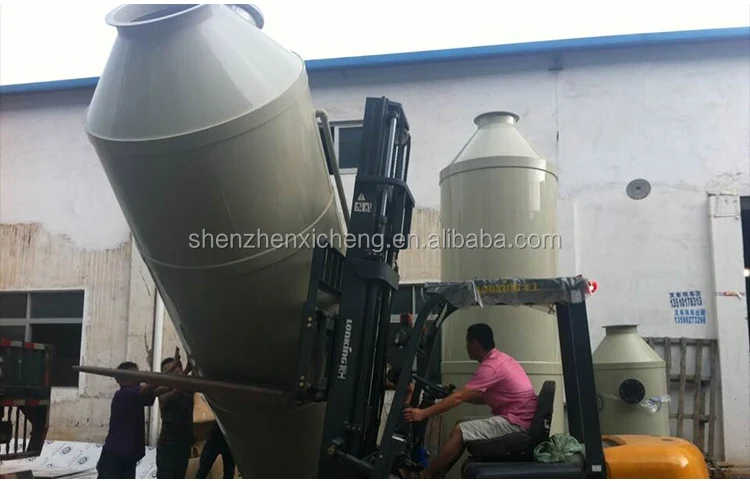

Packing ＆Delivery

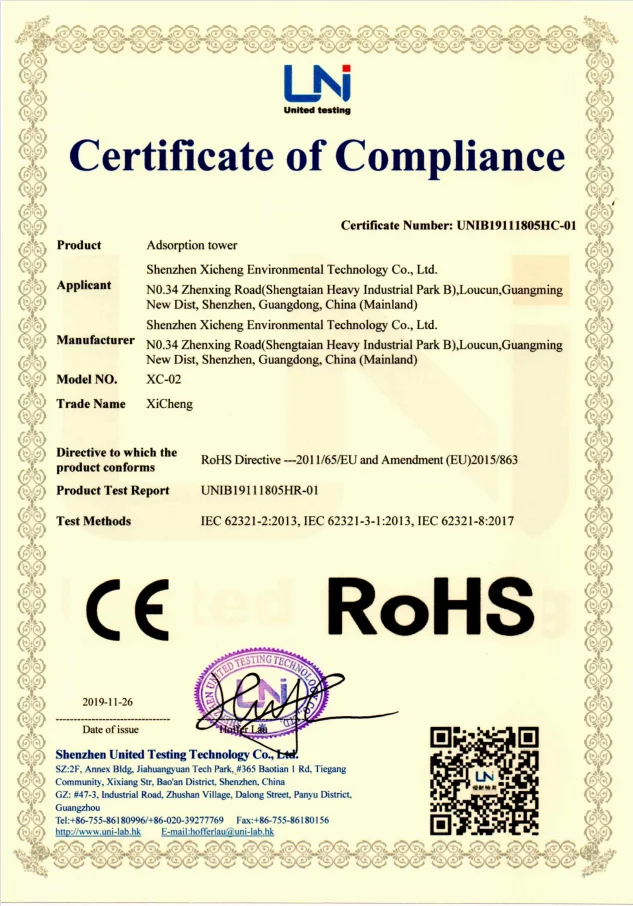

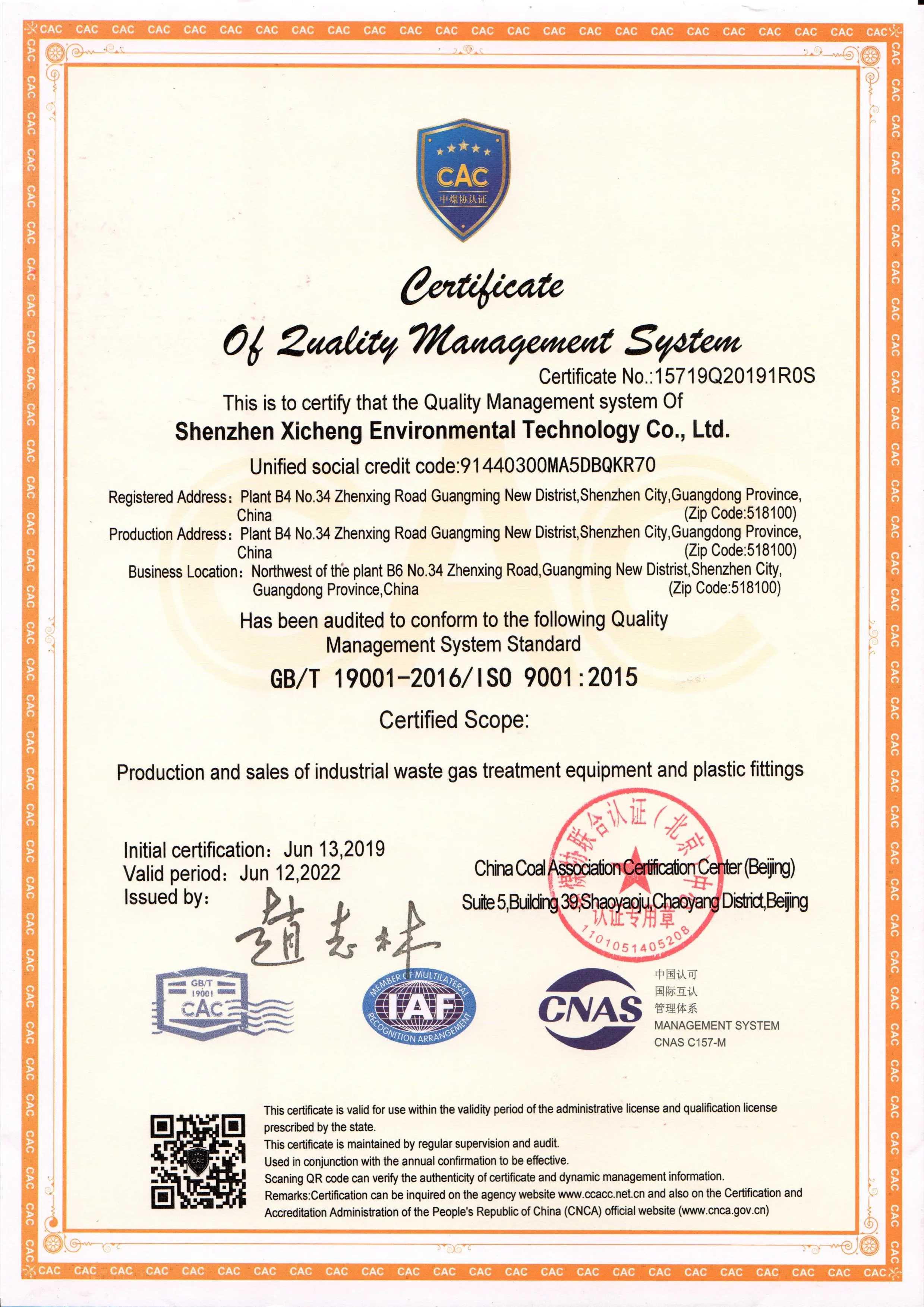

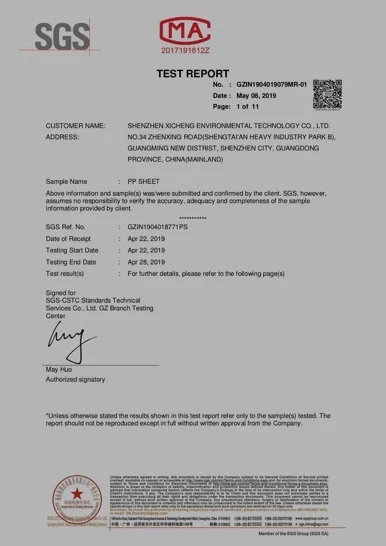

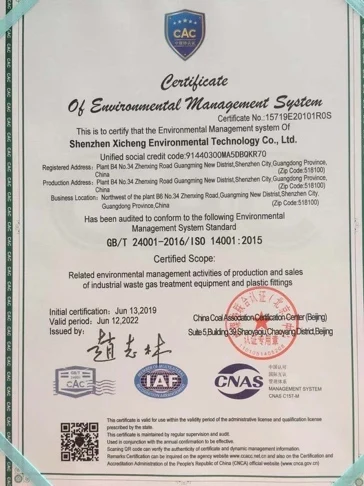

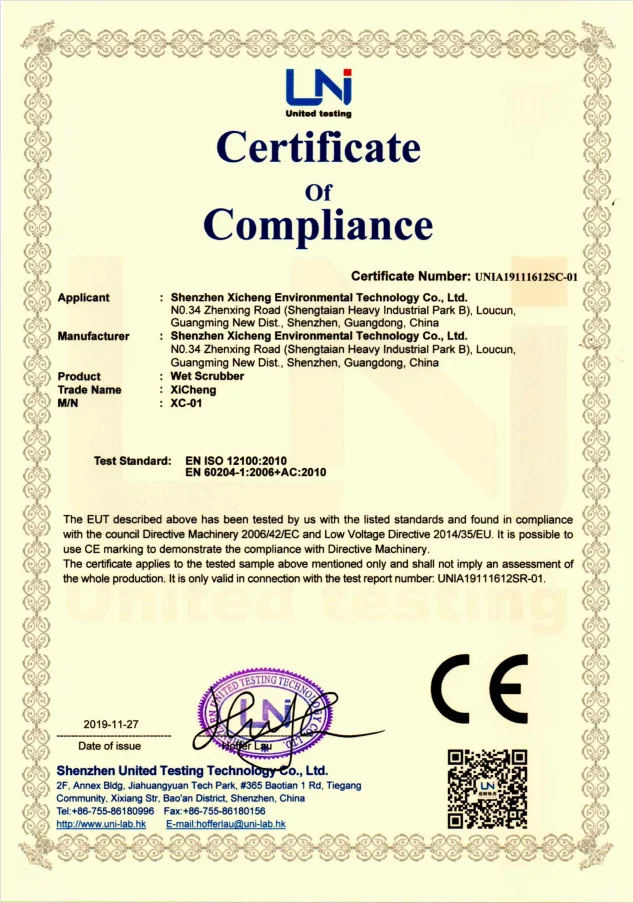

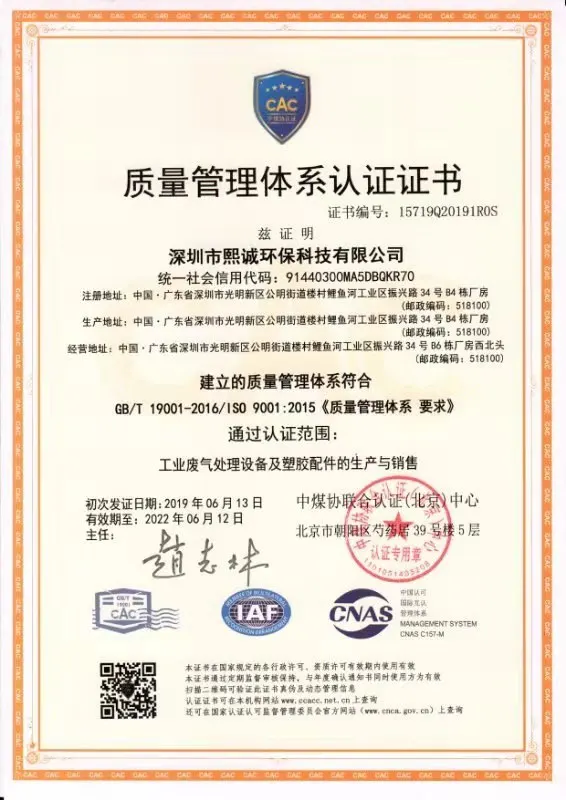

Certificate and test report
FAQ
1.how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.what can you buy from us?
Wet Scrubber,Activated Carbon Air Filter,Air Damper Valve,PP Pipe,PP Tank
3. why should you buy from us not from other suppliers?
Our company has been focusing on the environmental protection industry for many years and specializing in the production and sales
of environmental protection equipment and accessories. Our company has an excellent team with advanced service concept.
4. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,HKD;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.what can you buy from us?
Wet Scrubber,Activated Carbon Air Filter,Air Damper Valve,PP Pipe,PP Tank
3. why should you buy from us not from other suppliers?
Our company has been focusing on the environmental protection industry for many years and specializing in the production and sales
of environmental protection equipment and accessories. Our company has an excellent team with advanced service concept.
4. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,HKD;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
