The Most Popular Hvls Big Industrial Ceiling Fans
- Category: Other Animal Husbandry Equipment >>>
- Supplier: Shanghai Terrui International Trade Co. Ltd.
Share on (1600423731076):
Product Overview
Description
Feature
The ceiling fan motor adopts an advanced external rotor permanent magnet synchronous motor, which is efficient, energy-saving, quiet, stable, and maintenance-free for life, and the operating efficiency is more than 80%.
Large-scale fluid mechanics simulation design of the blade surface, increased wall thickness, 4 stiffeners in the inner cavity, high-performance aluminum alloy, electrostatic spray treatment on the surface, wear-resistant and easy to clean.
Cooperate with the control system to make the fan control more intelligent.
Large-scale fluid mechanics simulation design of the blade surface, increased wall thickness, 4 stiffeners in the inner cavity, high-performance aluminum alloy, electrostatic spray treatment on the surface, wear-resistant and easy to clean.
Cooperate with the control system to make the fan control more intelligent.
Advanced permanent magnet motor
Ceiling fan motor adopts advanced external rotor permanent magnet synchronous motor, all copper core winding, good heat resistance, moisture resistance, impact resistance, high efficiency, energy saving, silent, stable operation, lifelong maintenance-free.
High-performance aluminum alloy fan blades
Large-scale fluid mechanics simulation design fan blade curved surface, the best air supply effect; increased wall thickness, 4 stiffeners added to the inner cavity, greatly improved anti-bending and breaking performance; high-performance aluminum alloy; surface electrostatic spray treatment, easy to wear clean.
Professional controller
Professional industrial large fan controller, multiple protections such as electronics and logic operation, super heat dissipation device, provide the most perfect guarantee for the safe, stable and efficient operation of the fan.
Rugged chassis
The chassis is made of high-performance structural steel; the upper and lower double chassis are clamped by 12 high-strength bolts, so that all the fan blades are connected as a whole to prevent looseness and noise.
High-strength bolts
All 12.9/8.8 grade high-strength bolts are used to ensure quality; mechanical locking nuts are used to prevent loosening; with glue, permanent locking without hidden dangers.

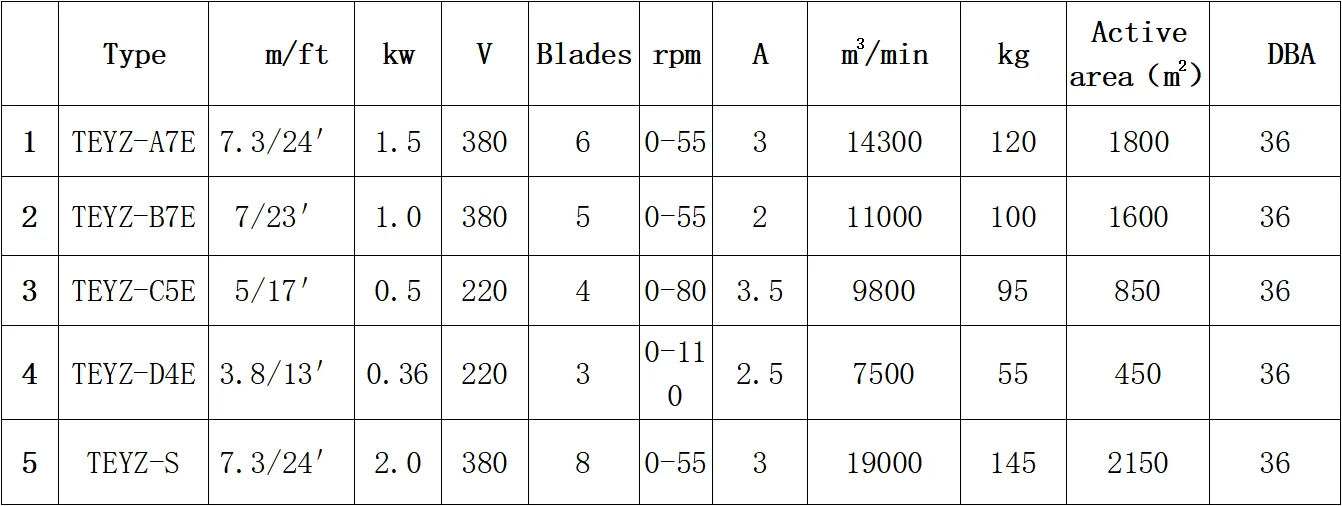

Blade Diacm | 7m/23 FT |
RPM | 0-55/min |
Air Flow | 11000 m³/min |
Rated Power | 1.0Kw |
Number of blade | 5 |
Voltage | 380V |
Weight | 100kg |
Decibel | 36 |
Type | Direct Self-Control |
Brand | Terrui |
Six-fold safety protection:
1. The flanges on both sides of the connecting plate between the fan and the installation beam are formed into a [shape to prevent deformation and bending;
2. The connecting splint and the beam mounting plate are locked with a deep sawtooth structure to prevent falling off;
3. The connection of each part of the fan is L hook connection or tenon and tenon connection with full welding, double protection;
4. After the installation of the fan is completed, use 4 steel wire ropes to tighten and fix it on the building to prevent shaking;
5. A wire rope connection is added between the motor shaft and the building beam for multiple protection;
6.The control system has complete overload, overcurrent, and overheat protection.
2. The connecting splint and the beam mounting plate are locked with a deep sawtooth structure to prevent falling off;
3. The connection of each part of the fan is L hook connection or tenon and tenon connection with full welding, double protection;
4. After the installation of the fan is completed, use 4 steel wire ropes to tighten and fix it on the building to prevent shaking;
5. A wire rope connection is added between the motor shaft and the building beam for multiple protection;
6.The control system has complete overload, overcurrent, and overheat protection.
