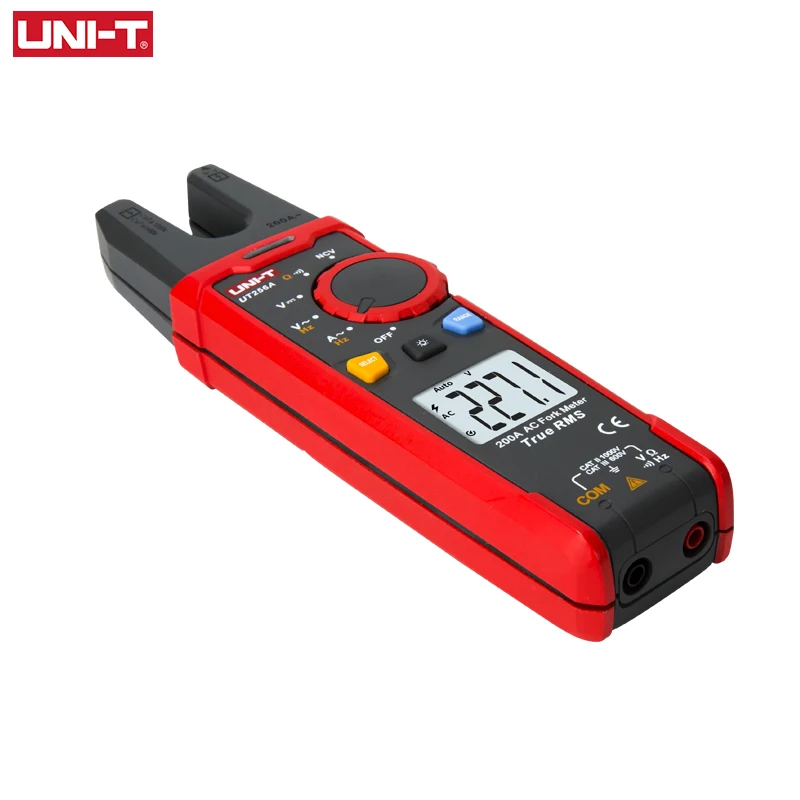

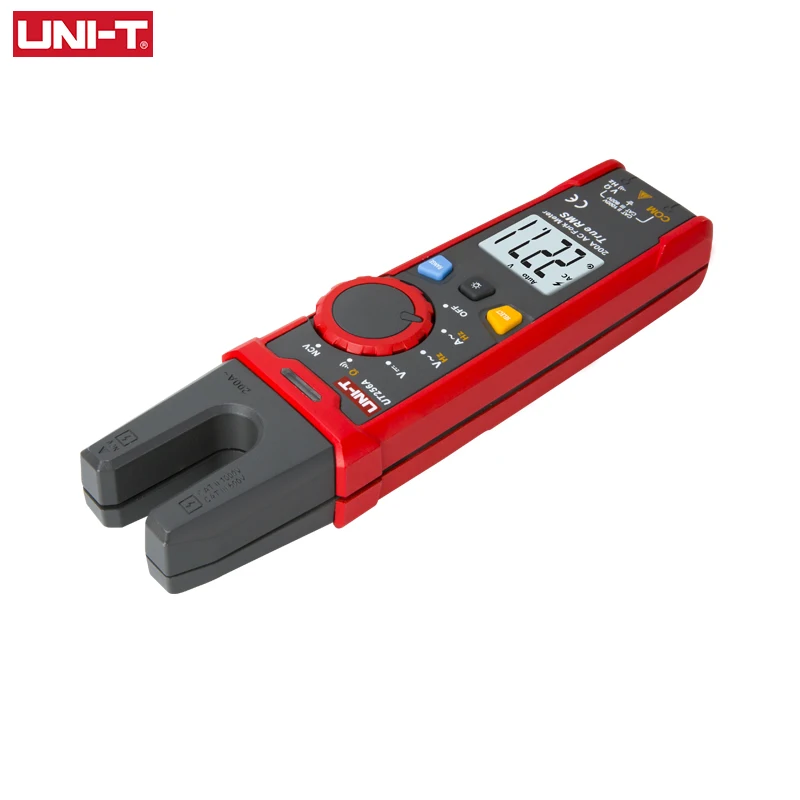

UNI T Digital Clamp Meter UT256A 200A 1000V AC Pliers Ammeter True RMS Amperometric Clamp Voltage Frequency Tester
UNI-T Digital Clamp Meter UT256A 200A 1000V AC Pliers Ammeter True RMS Amperometric Clamp Voltage Frequency Tester
UNI-T Digital Clamp Meter UT256A 200A 1000V AC Pliers Ammeter True RMS Amperometric Clamp Voltage Frequency Tester
UNI-T Digital Clamp Meter UT256A 200A 1000V AC Pliers Ammeter True RMS Amperometric Clamp Voltage Frequency Tester
UNI-T Digital Clamp Meter UT256A 200A 1000V AC Pliers Ammeter True RMS Amperometric Clamp Voltage Frequency Tester
UNI-T Digital Clamp Meter UT256A 200A 1000V AC Pliers Ammeter True RMS Amperometric Clamp Voltage Frequency Tester
UNI-T Digital Clamp Meter UT256A 200A 1000V AC Pliers Ammeter True RMS Amperometric Clamp Voltage Frequency Tester

UNI T Digital Clamp Meter UT256A 200A 1000V AC Pliers Ammeter True RMS Amperometric Clamp Voltage Frequency Tester

Share on (1600423807995):


Price:$47.46 - $47.49

Quantity:


Product Overview

Description



Product Paramenters

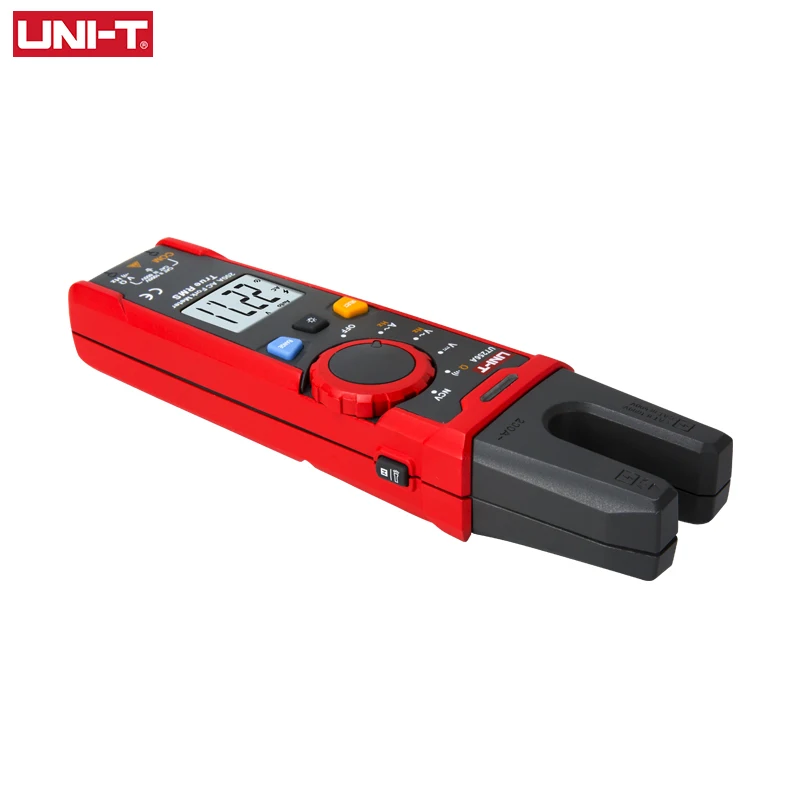

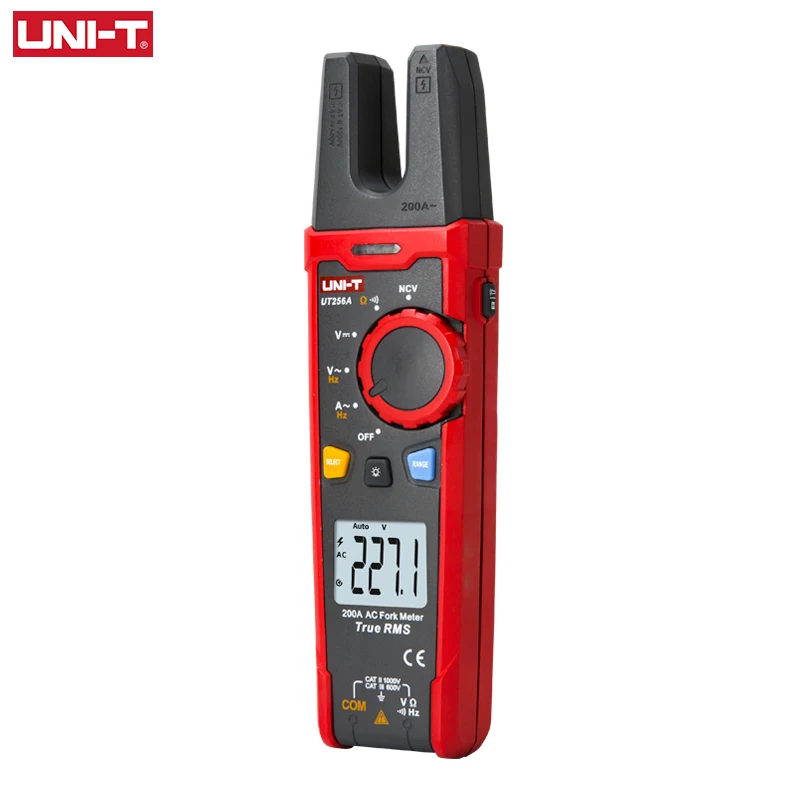

UT256A 200A True RMS Fork Meter
UT256 series are high reliable, true RMS fork meters. Its unique design allows users to measure current by simply moving the wire ofinterest inside the opening of the ‘fork’ past the labeled mark. With no mechanical parts, this meter bares no risk from any type ofmechanical failure.




Specifications
Model
Range
UT256A
AC current (A)
200A
±(1.8%+2)
AC voltage (V)
1000V
±(1.2%+3)
DC voltage (V)
1000V
±(0.8%+3)
Resistance (Ω)
60MΩ
±(1%+2)
Frequency (Hz)
10~10kHz
±(0.1%+5)
Features
Display count
6000
Auto range
√
True RMS
√
NCV
Tricolor
Data hold
√
LCD backlight
√
Auto power off
About 15 minutes
√
Continuity buzzer
√
Low battery indication
≤2.4V
√
Input protection
√
Input impedance
≥10MΩ
√
General Characteristics
Power
1.5V battery (LR6) x 2
Display
35mm x 26mm
Product color
Red and grey
Product net weight
251g; UT256B: 163.7g
Product size
217mm x 58.8mm x 38.5mm
Standard accessories
Batteries, test leads
Standard individual packing
Gift box, carrying bag, English manual
Standard quantity per carton
20pcs
Standard carton measurement
485mm x 310mm x 205mm
Standard carton gross weight
9.5kg

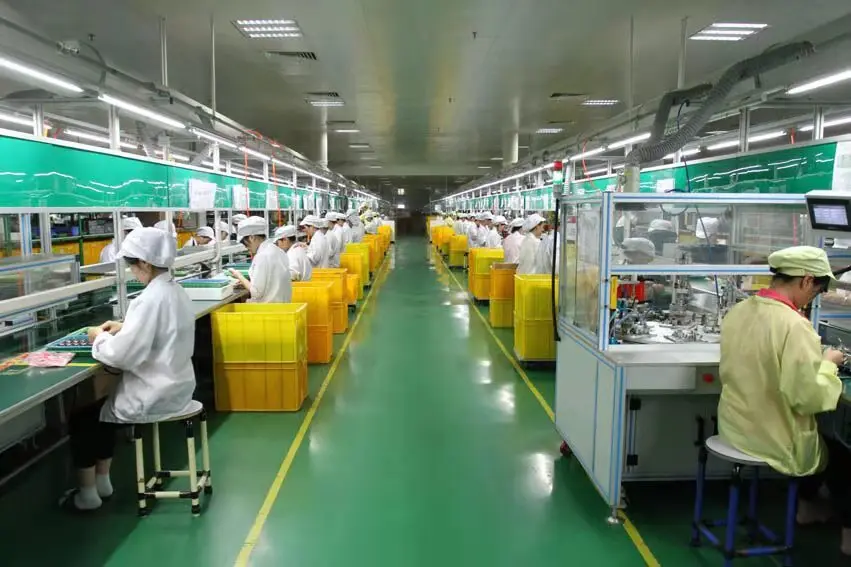

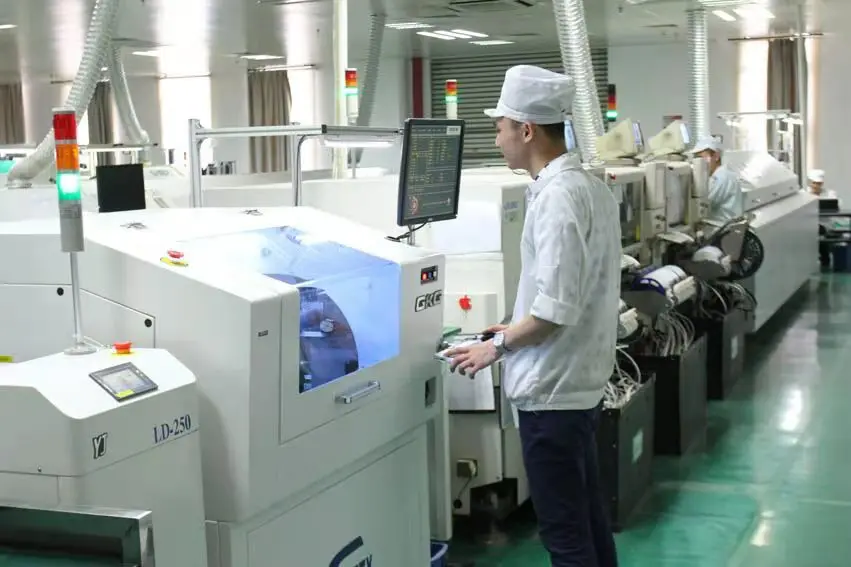

Company Profile
















FAQ
Q1：Are you trading company or manufacturer ?
A1: We are the manufacturer.

Q2: How long is your delivery time?
A2:Usually estimated arrival time is 7-9 working days.Different channels and Countries, the transportation time limit is different, please contact us for separate inquiries.

Q3：Do you provide samples and how much is it?
A3：Yes, samples are available. Samples need to be paid first, it will be refunded extra price after test and confirm the order for mass production.

Q4：Can we pay via Paypal? What other payment methods are also available?
A4：Yes, PayPal payment is available. We can also accept T/T and Western Union payment whichever is easier for you.

Q5：Can we brand with our logo and do our own packaging?
A5：Yes,we support OEM,we can print your logo and do your packaging based on quantity of 1000pcs.

Q6:What is your MOQ?
A6:We do not have moq for our standard items, one piece is acceptable,but for OEM items(logo printing or customized packaging), our moq is 1000pcs each item.
