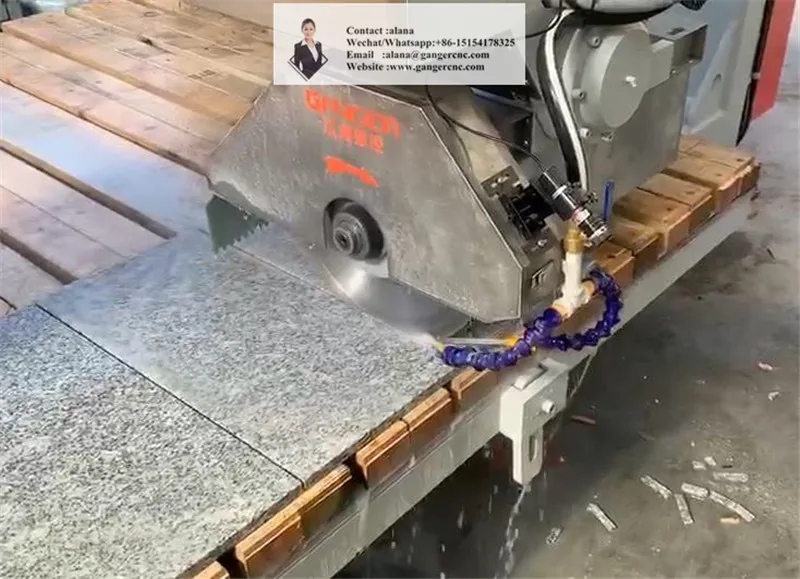

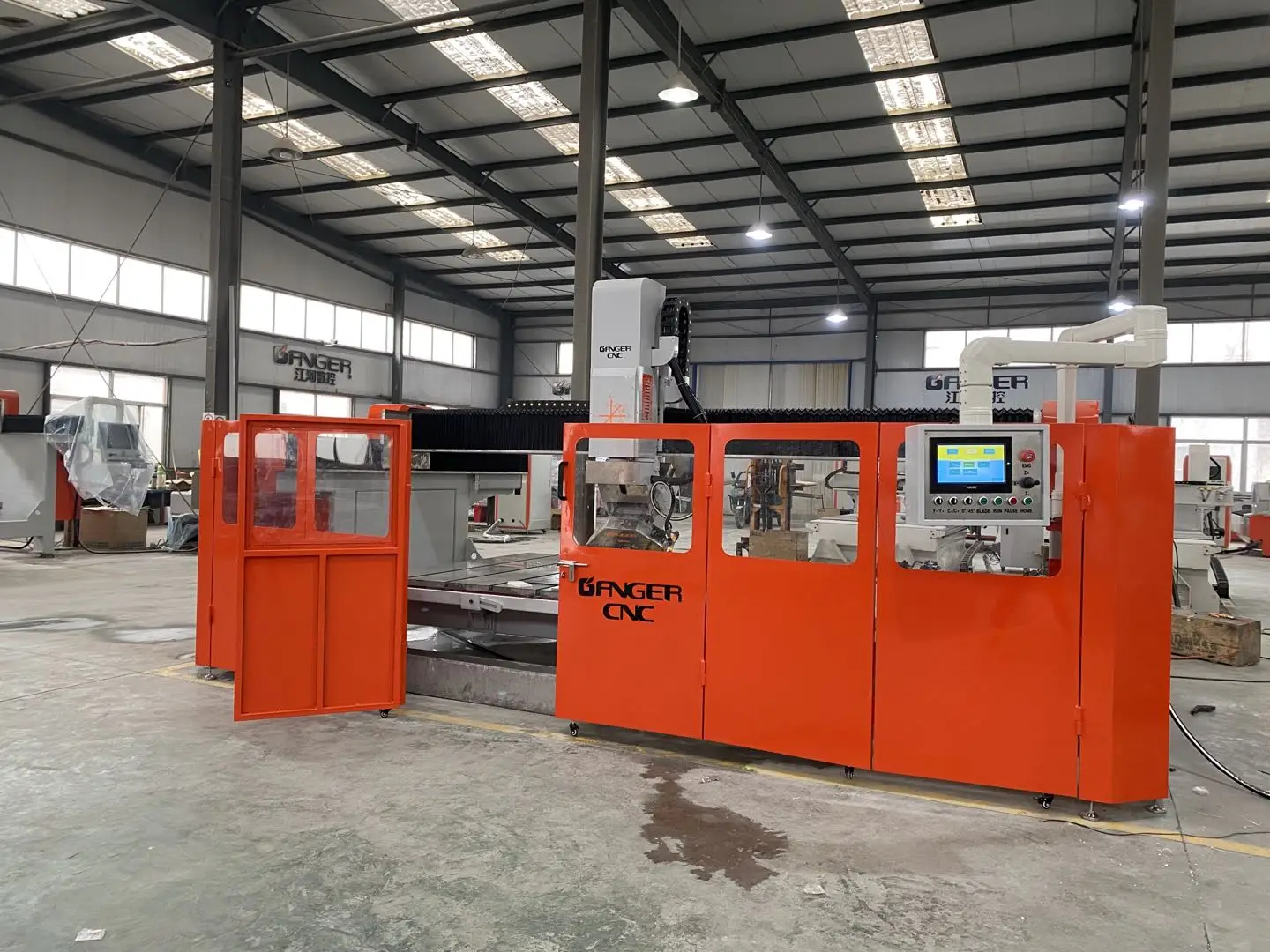

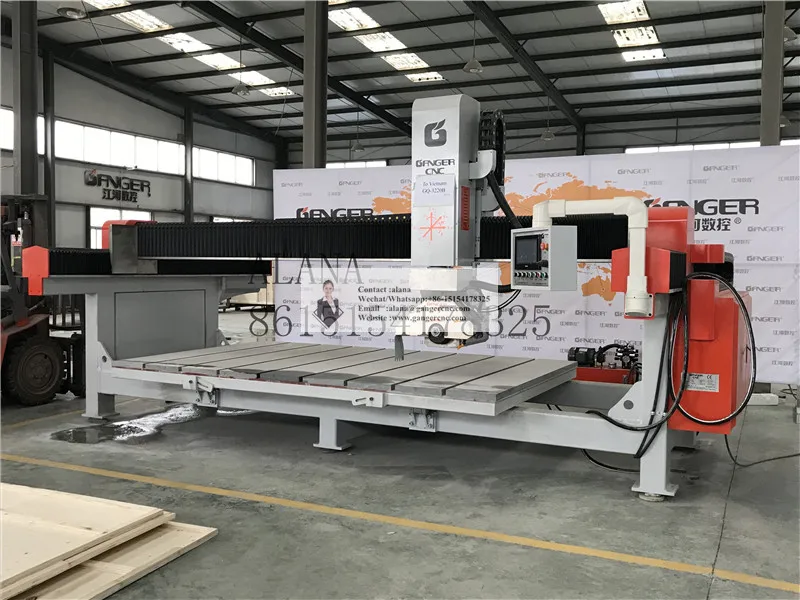

GANGER CNC 4 Axis CNC Bridge Cutting Machine GQ-3220B Tile cutting machine Bridge cutters
1.Product Highlights
Advantage 1: 16 years experience in stone machinery industry.
Advantage 2: Perfect and timely after-sales service.
Advantage 3: Humanized PLC control.
Advantage 4: Servo motor with smooth cutting, no chipping.
Advantage 5: Laser ray calibration.
Advantage 6: C axis rotates 0-135 degree.
Advantage 7: Adding function Miter (chamfer) 45 degree.
Advantage 8: Miter 45 degree/horizontal/vertical/diagonal cut.
Advantage 9: Table 85 degree titling easy loading and unloading slabs.
Advantage 10: Simple installation,delivery by mono-bloc (98%).
Advantage 11: No foundation,it is simply secured to the floor.
2. Applicable materials

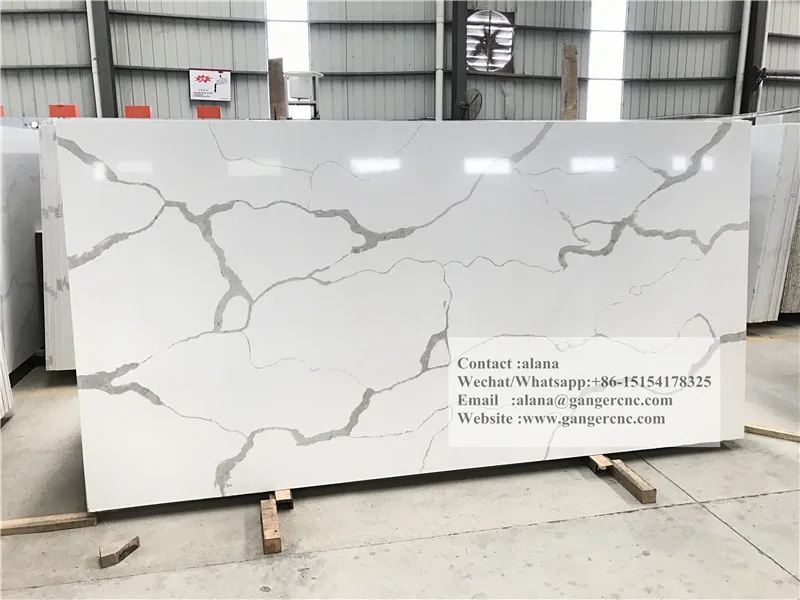

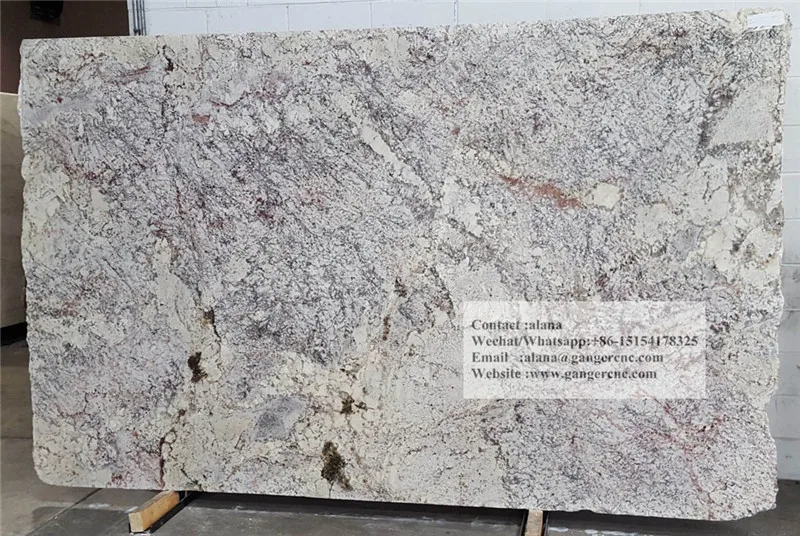

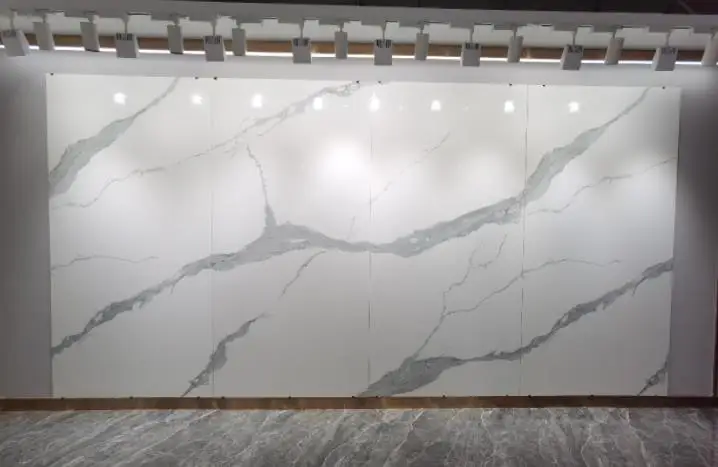

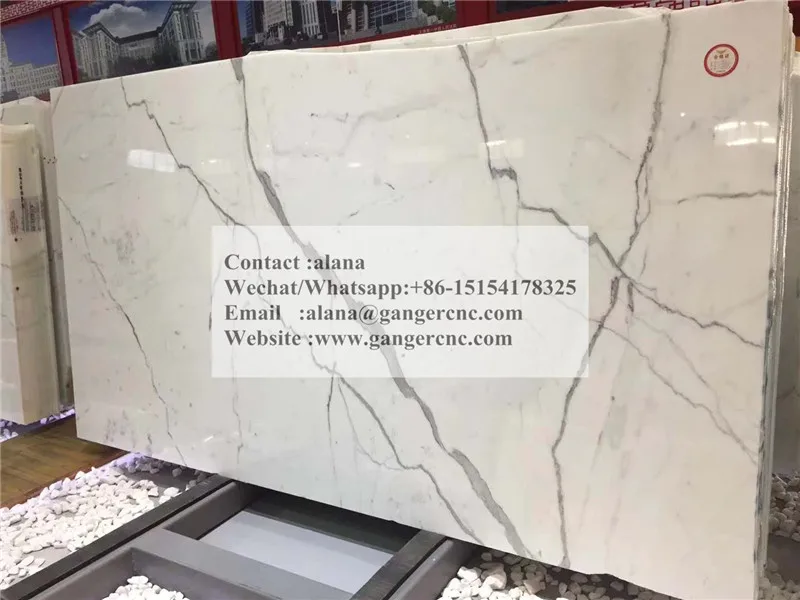

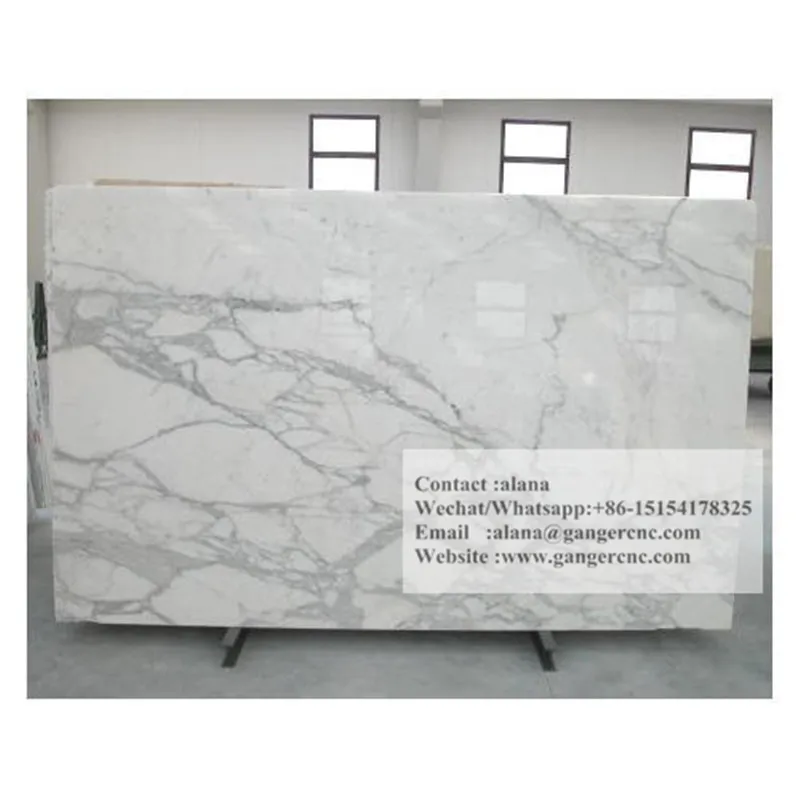

Sintered stone/Quartz stone/Marble/Artificial marble/Granite/Porcelain tile
| Sintered stone | Quartz stone | Marble |
 |  |  |

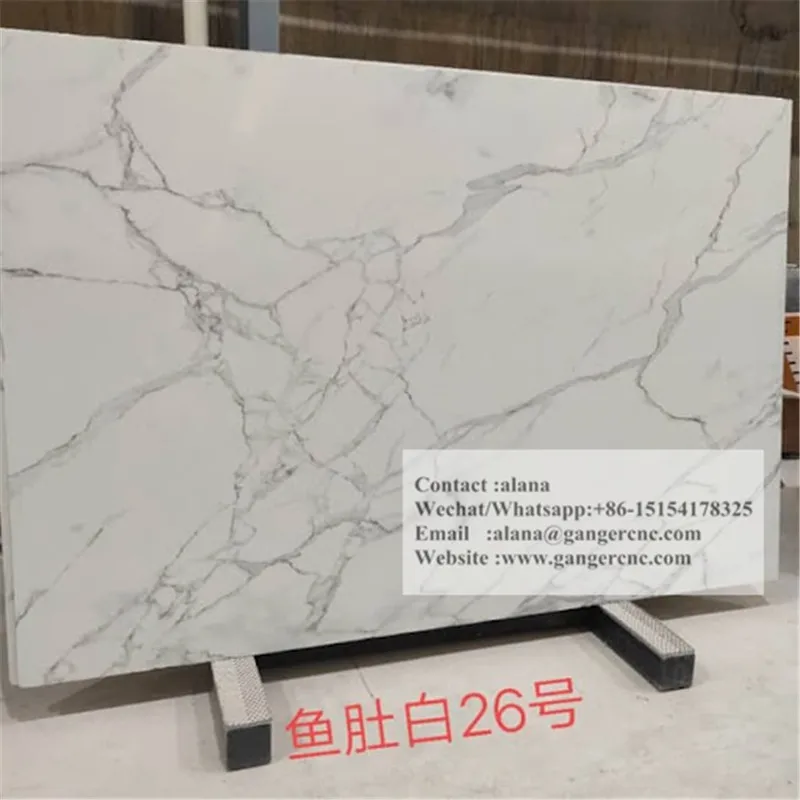

| Artificial marble | Granite | Porcelain tile |
 |  |  |
3. Saw cutting function display

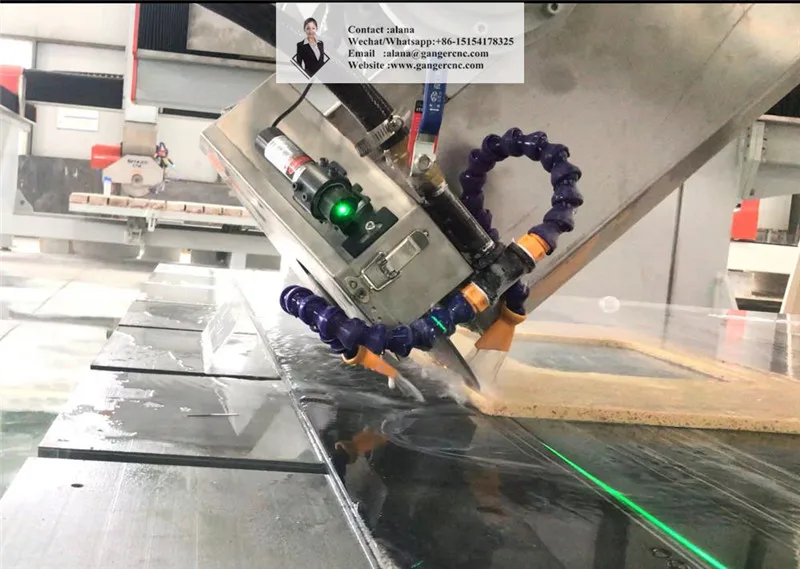

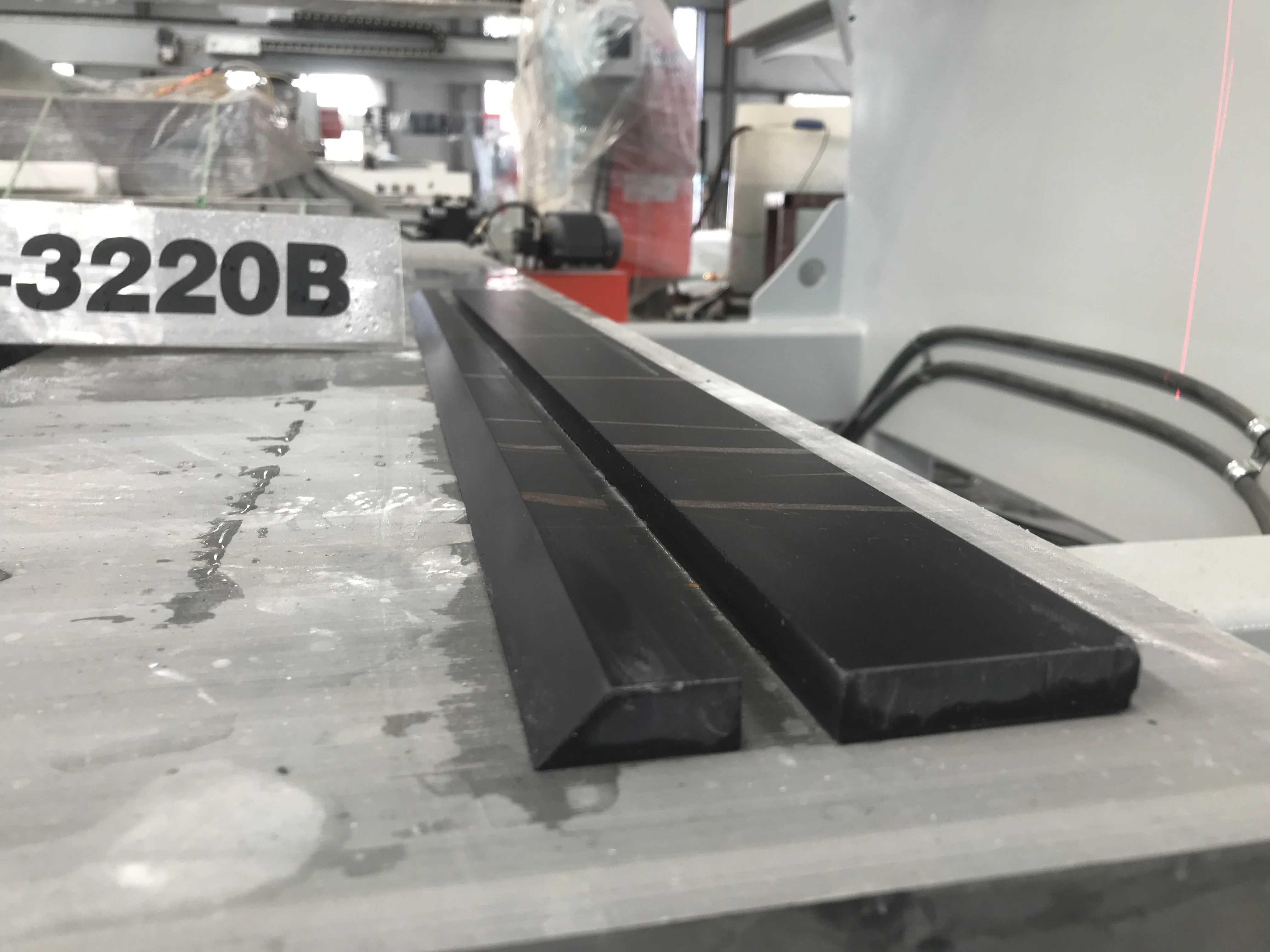

1) Chamfer 45 degree (X left side+Y front side)

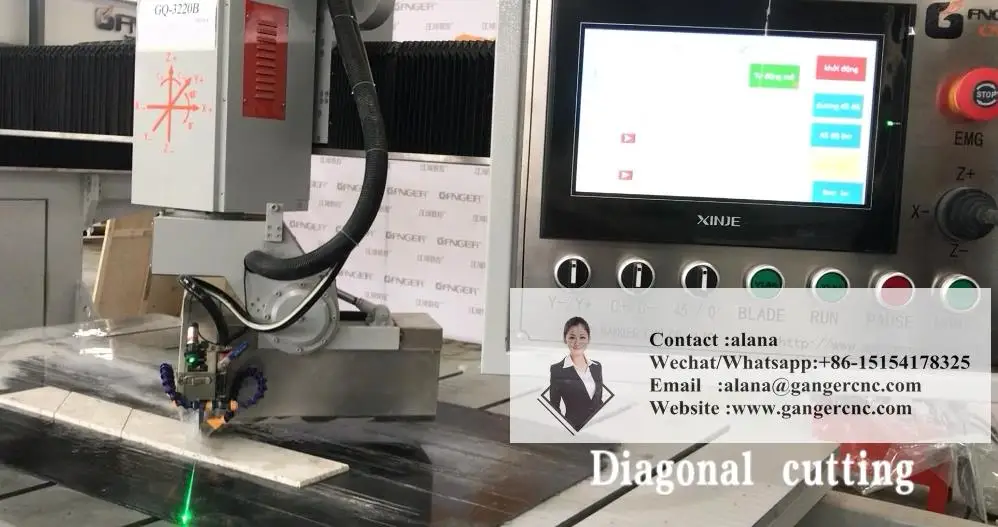

2) Diagonal cut 45 degree/ 135 degree
3) Straight line cut X+Y axis

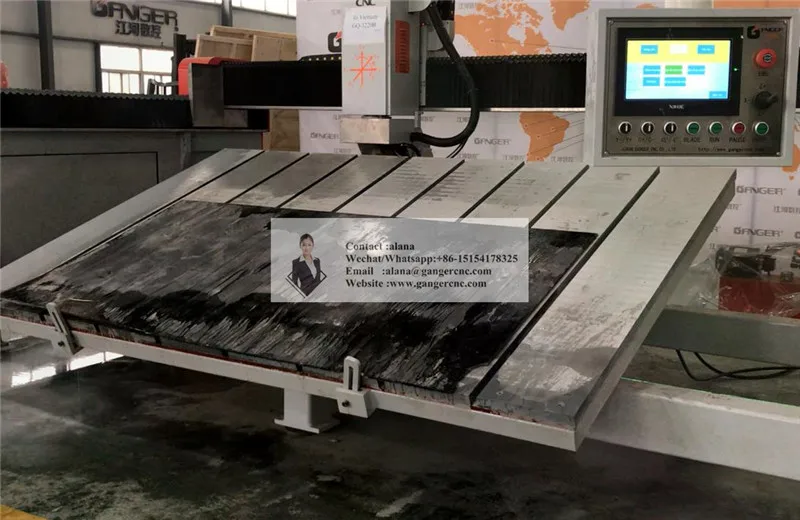

4) Table 85 degree titl, easy loading/unloading slabs

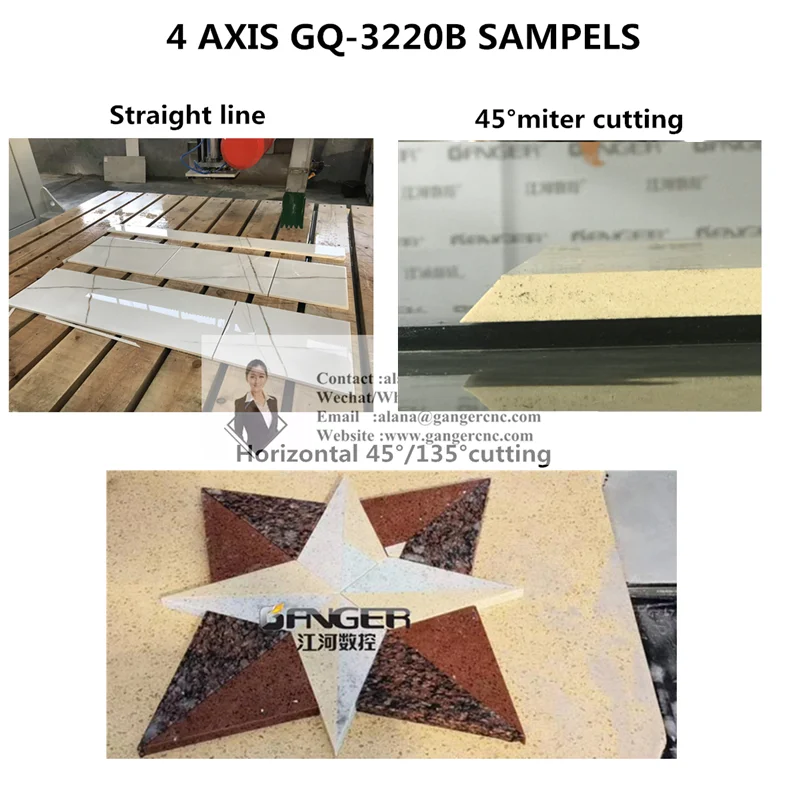

4. Cutting samples
Machine features
1. XYZC four axis, C axis rotation angle 00 and 1350 , cutting in the direction of X and Y axis.

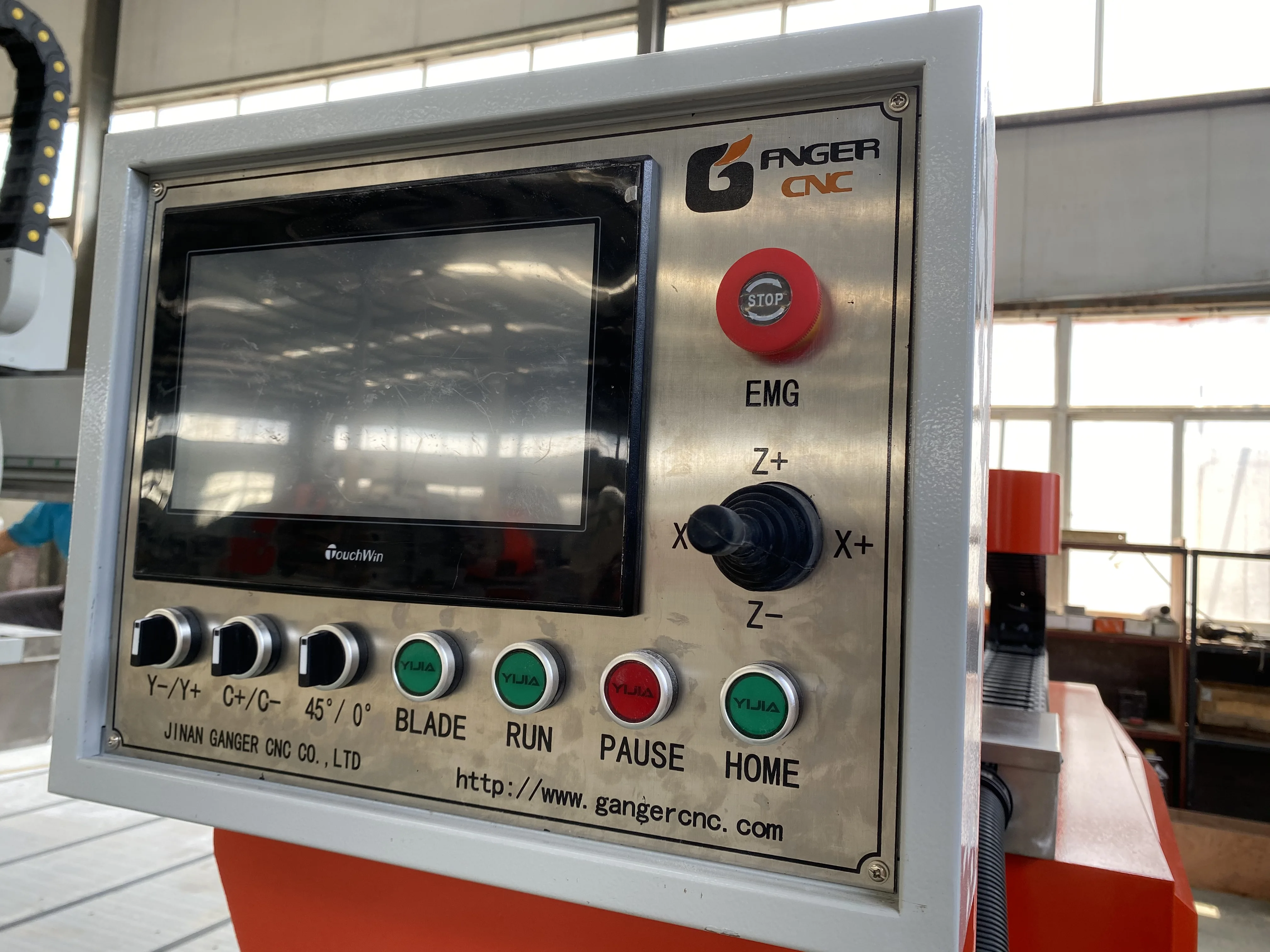

2. PLC control system, input operating parameters on the control panel, and the cutting process is automated and programmed.
3. By infrared ray to confirm the position of the workpiece.
4. whole steel structure machine body ensuring high stability.
5. Running stability, high precision, high speed.
6. Compact and rational design, small size machine, convenient to handle and move.
Technical parameters | |
Model | GQ-3220B |
Z Axis working size | 3200*2000*200mm |
Diameter of blade | 350mm |
Working table size | 3200x2000mm |
Max spindle speed | 3000/6000rpm(Optional, adjustable) |
C axis rotation angle | 00, 1350 |
Control system | GANGER CNC |
Gross weight | 4000KGS |

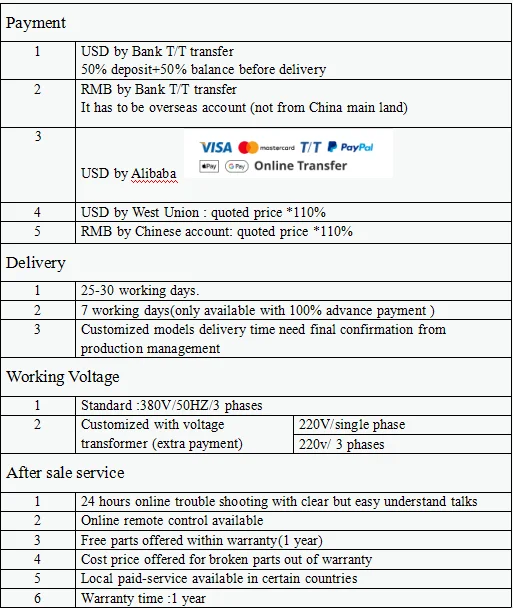

Packaging & Shipping
Machine test before dilivery

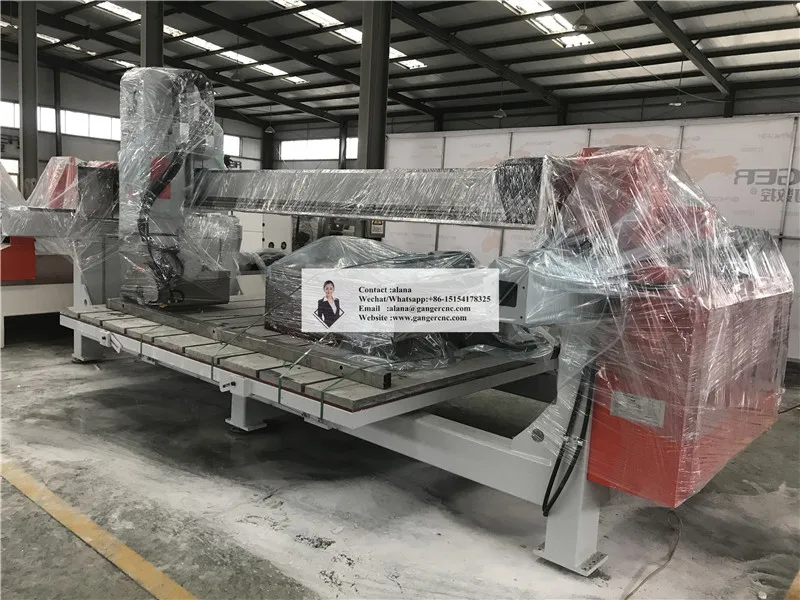

Packing and delivery

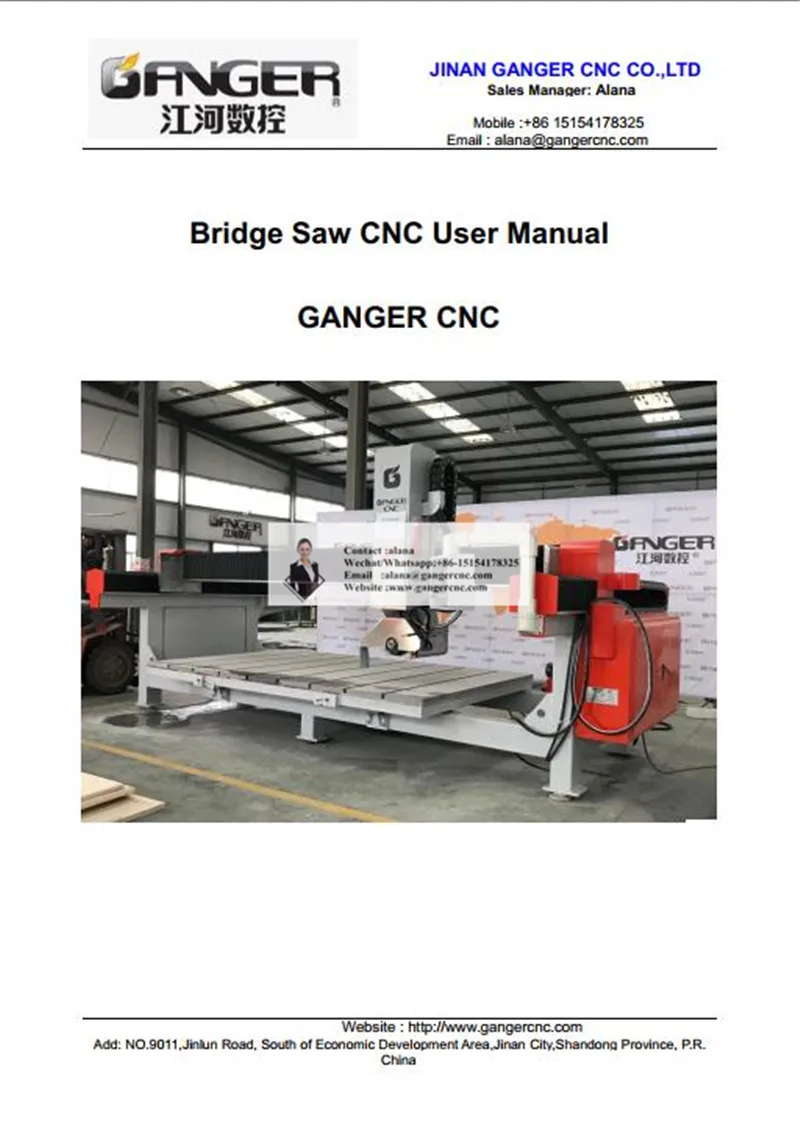

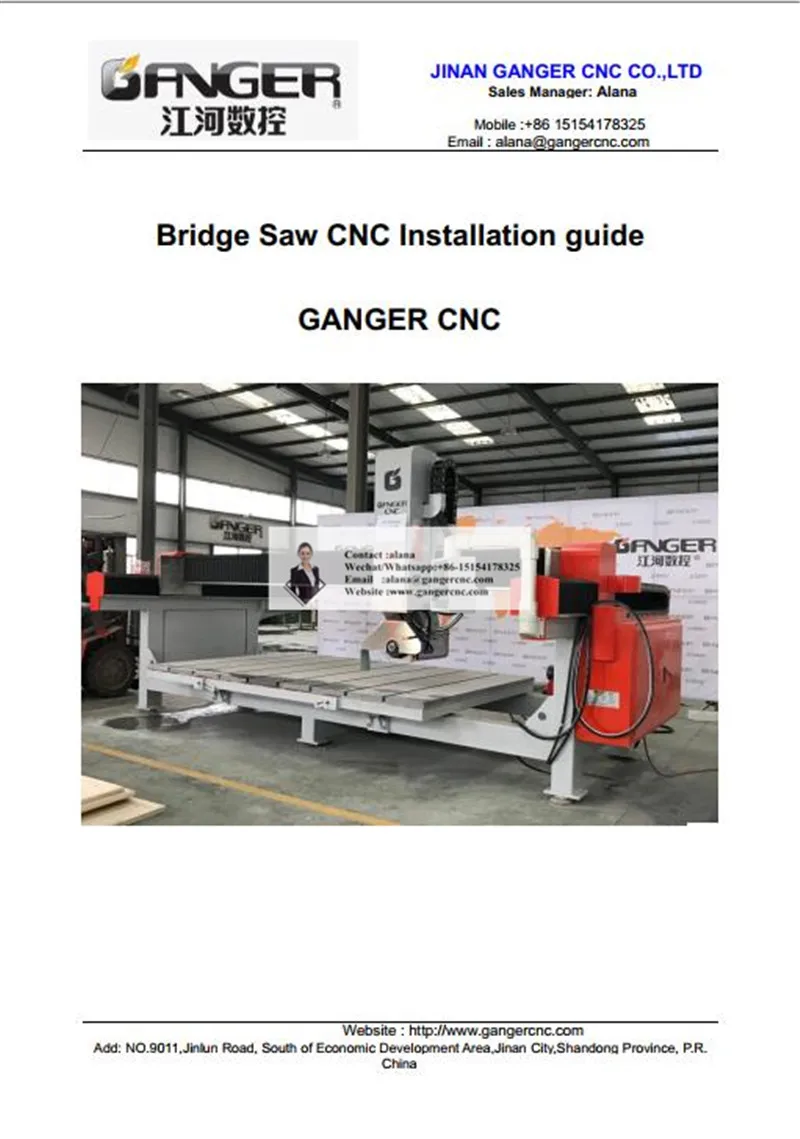

Installation guide and User guide
FAQ

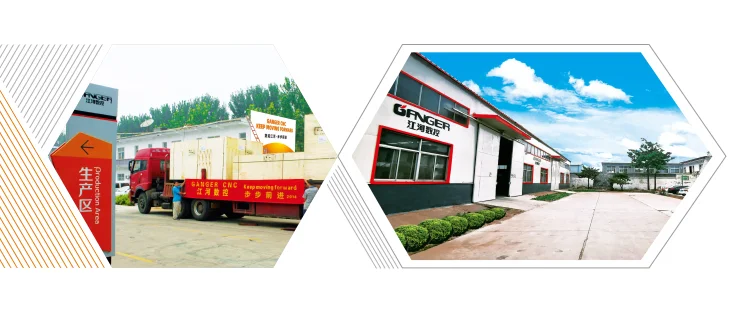

Company Information
Main exhibition: China Canton Fair
Exhibiting as scheduled every year
Main markets: Europe/North America/South America/Asia/Africa
Please kindly contact with Sales Manager: Alana for prompt recommendations

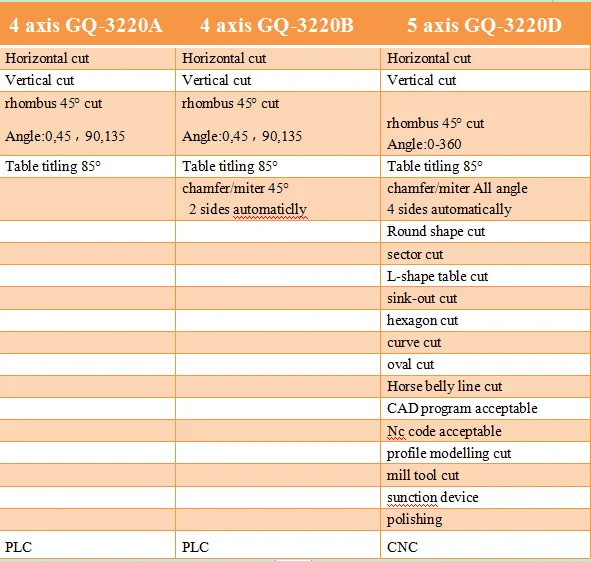

Other Models
Welcome to check more details from below link
CNC Bridge-saw-Cutting-GQ-3220A
CNC Bridge saw cutting machine GQ-3220C
CNC bridge saw stone machinery GQ-3220D
Countertop making machine for
Fast cut +shaping +polishing
sink cut out / drill faucet holes/polish back /mill drain trough

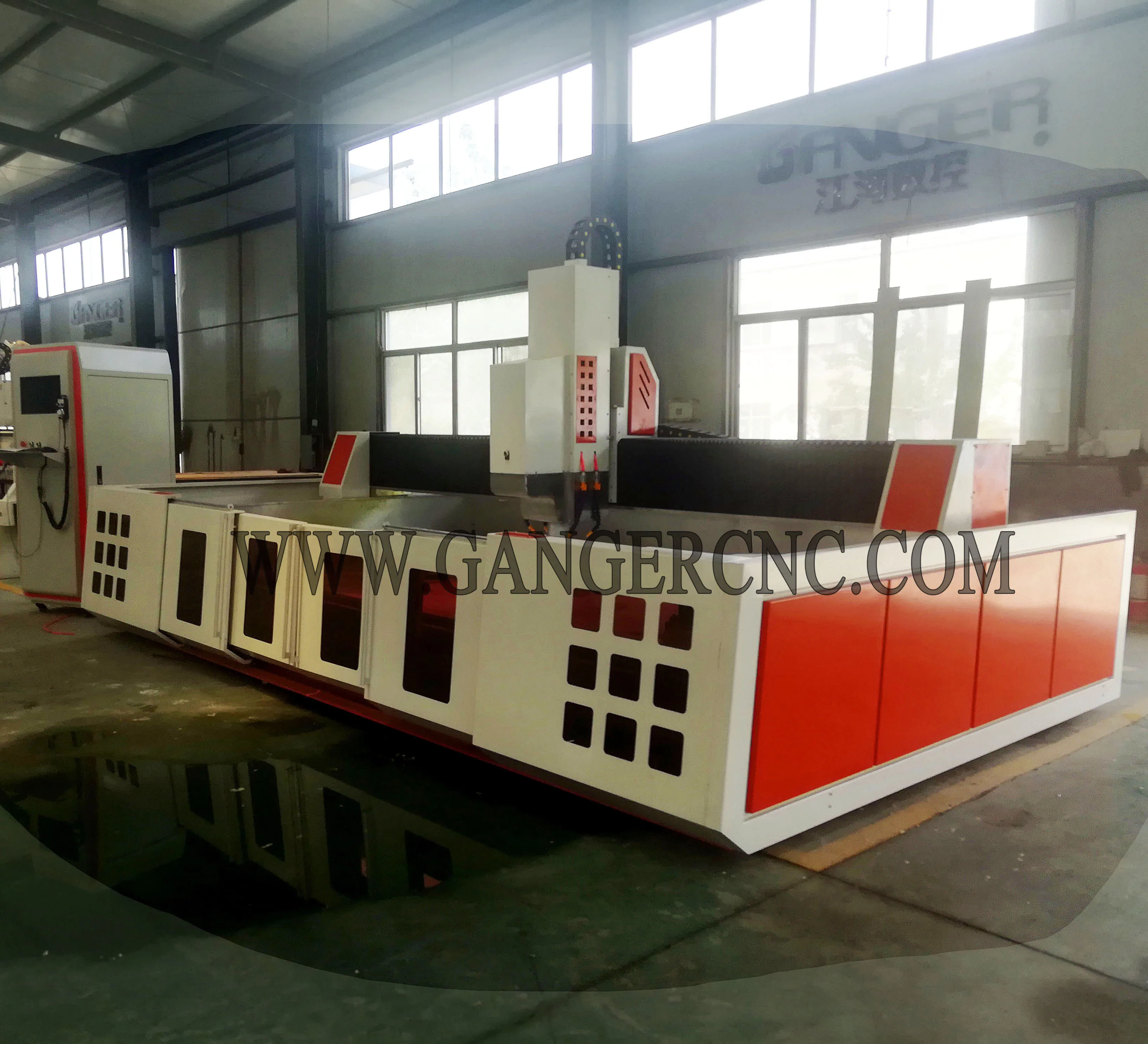

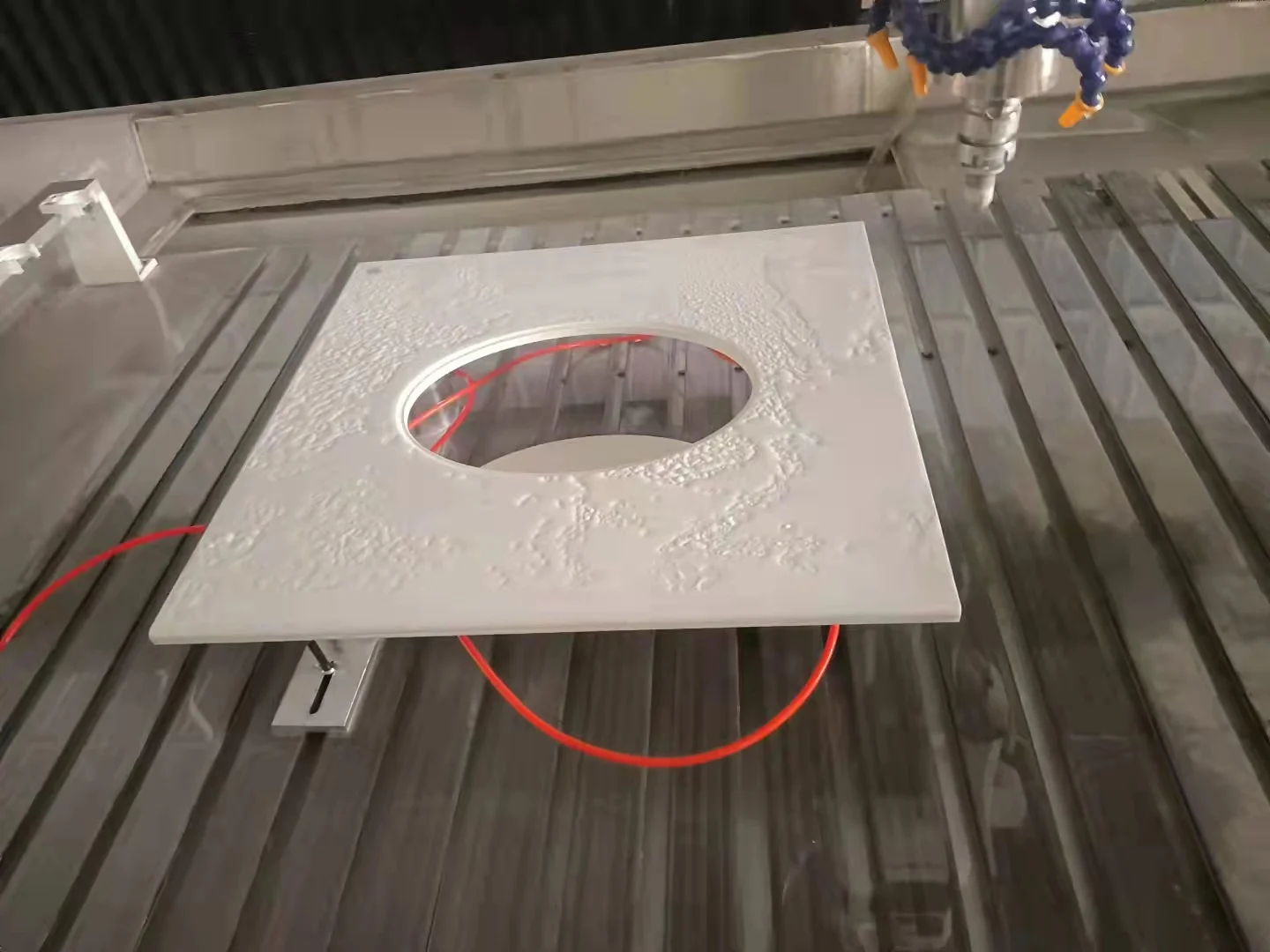

Counter top CNC center GSY-3015ATC
