Dry Animal Aquarium Floating Fish Feed Pellet Making Extruder Pet Dog Catfish Food Processing Machine
- Category: Agricultural Machinery & Equipment >>>
- Supplier: Shandong Benro Machinery Co. Ltd.
Share on (1600423863646):
Product Overview
Description
Product Description
Introduction of fish feed machine
1) Raw materials of dog/cat/fish food:
wheat/ corn flour, fish meal, born powder, animal oil,soya meal, mustard cake,
2) Final food : different shapes and sizes of dog food,cat food,shrimp feed,fish feed,poultry feed
3) Capacity: 150kg/h, 250kg/h, 500-600kg/h,800-1500kg/h,2-3t/h,4-6t/h
4) Consumption: Low electricity and labor consumption
5) Design: With flexible design based on the client's demands, we provide turn key project.
wheat/ corn flour, fish meal, born powder, animal oil,soya meal, mustard cake,
2) Final food : different shapes and sizes of dog food,cat food,shrimp feed,fish feed,poultry feed
3) Capacity: 150kg/h, 250kg/h, 500-600kg/h,800-1500kg/h,2-3t/h,4-6t/h
4) Consumption: Low electricity and labor consumption
5) Design: With flexible design based on the client's demands, we provide turn key project.
Specification
Model | SLG65-III | SLG70-II | SLG85-II | SLG95 | SLG120 |
Power | 95KW | 120KW | 140KW | 180KW | 230KW |
Output | 100-160kg/h | 200-260kg/h | 500-600kg/h | 1ton/h | 2ton/h |
Dimension | 22× 2× 4 | 24× 2× 4 | 28× 2× 5 | 32× 2× 5 | 35× 2× 5 |
Details Images

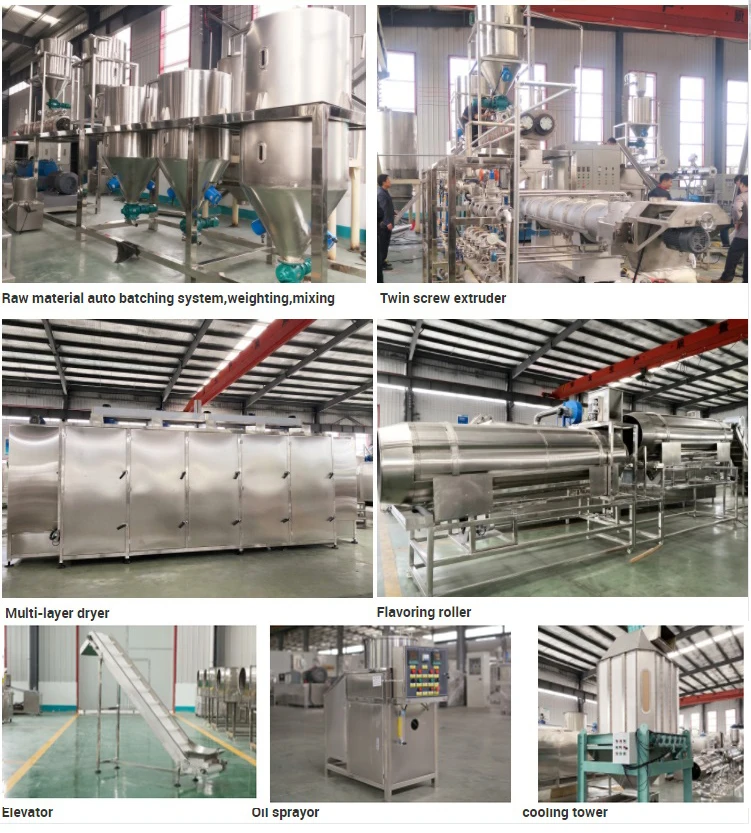

Component details:
Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries.
Machine materials: All the aquaculture fish feed machine production line are made by stainless steel, this line is with reasonable design and with high automation; The screws are made by alloy steel, with building block system structure and self-cleaning function.
Main Parts of Twin screw extruder with electricity heating system:
A. The screws are made by alloy steel (38CrMoAl) and special craft by nitriding process, The HRC hardness is around 60---62, it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials.
B. The extrusion barrel is constructed of carbon steel, is made by #45 steel, stainless steel coating.
C. The gearbox has automatic lubrication function, with extends gear life.
D. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
E. Siemens(China) brands electronic parts used in the controller box, make sure the extrusion process perfect.
F. Main Motor from Siemens(China), ensure its powerful extrusion and excellent performance.
Machine materials: All the aquaculture fish feed machine production line are made by stainless steel, this line is with reasonable design and with high automation; The screws are made by alloy steel, with building block system structure and self-cleaning function.
Main Parts of Twin screw extruder with electricity heating system:
A. The screws are made by alloy steel (38CrMoAl) and special craft by nitriding process, The HRC hardness is around 60---62, it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials.
B. The extrusion barrel is constructed of carbon steel, is made by #45 steel, stainless steel coating.
C. The gearbox has automatic lubrication function, with extends gear life.
D. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
E. Siemens(China) brands electronic parts used in the controller box, make sure the extrusion process perfect.
F. Main Motor from Siemens(China), ensure its powerful extrusion and excellent performance.
Packing & Delivery
Company Profile
Shandong Benro Machinery Co., Ltd. is located in Jinan, the provincial capital of Shandong Province.The company specializes in the design and manufacture of fish feed extruder machine, pet food extruder machine, textured soya protein(soya nuggets/soya chunks) processing machineryand other food equipment. There are a group of experts and professionals who devote themselves to the food processing equipment industry and equipment installation.
With close cooperation with many science and research institutes and universities and working together with well-known food processing machinery manufacturers around the world, we have established a complete technical support system to ensures the quality of our products.
The machine is using in United States, Canada, Argentina, Chile, Peru, Salvador, Spain, Italy, Germany, Russia, Australia, Japan,Malaysia, the Philippines, Korea, Thailand, Pakistan, India, Jordan, Kuwait, Nigeria, South Africa, Algeria, Uzbekistan, and so on
