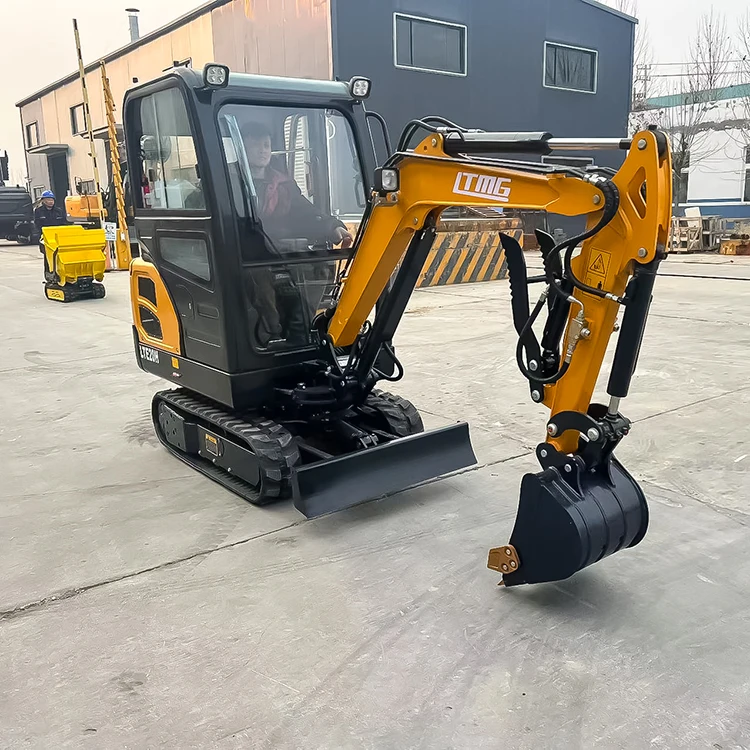

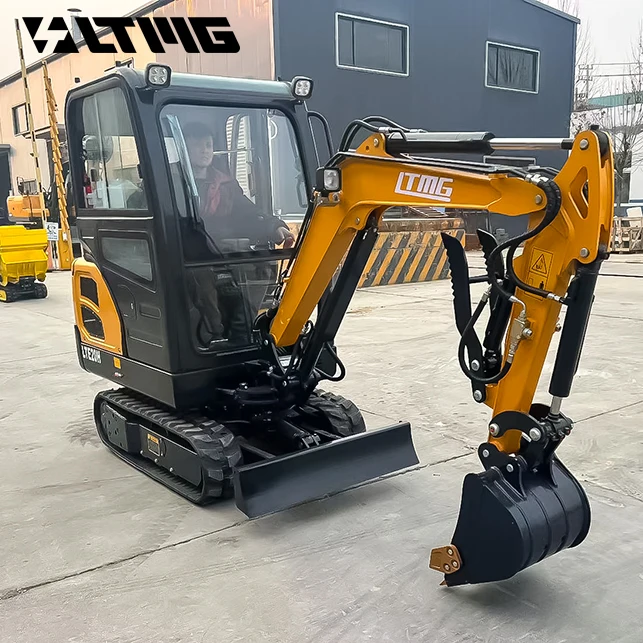

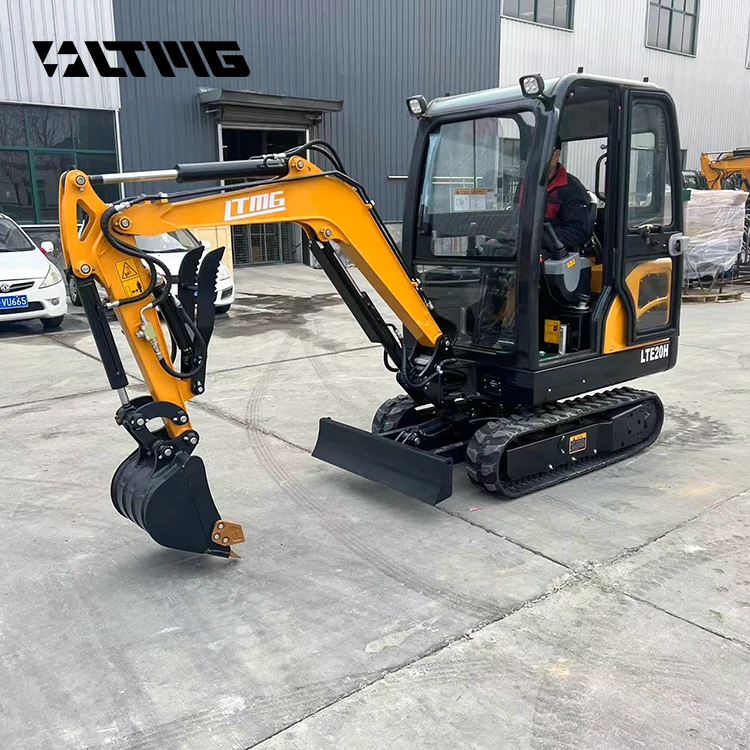

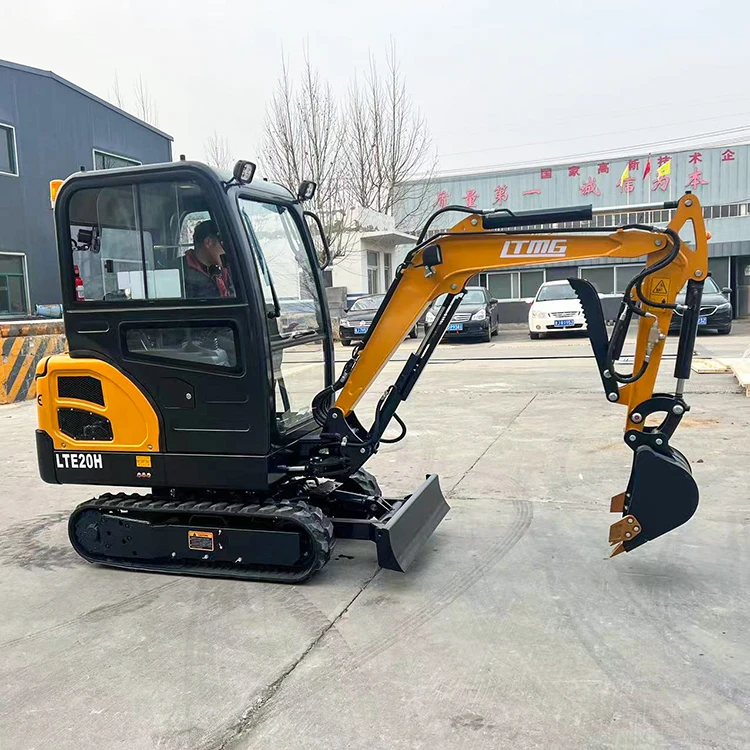

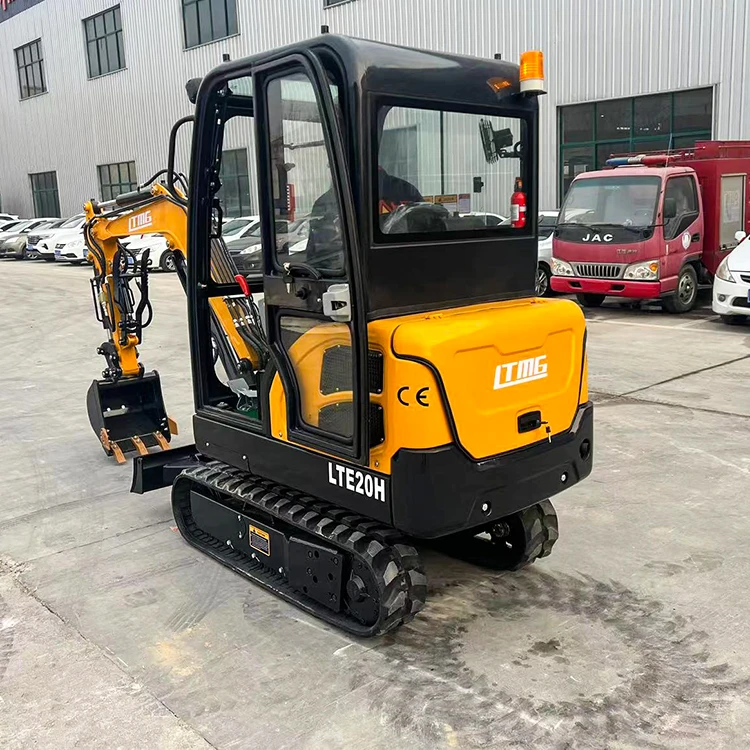

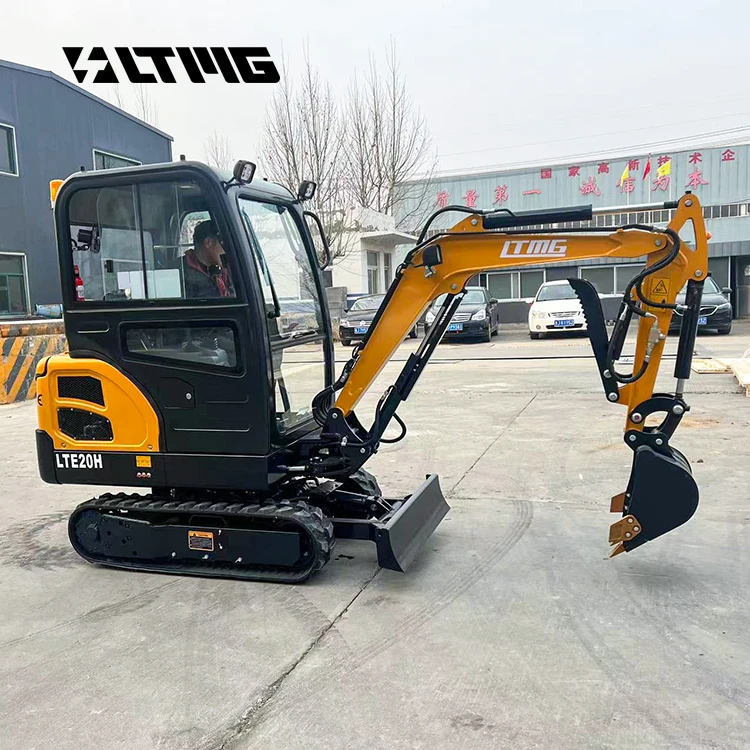

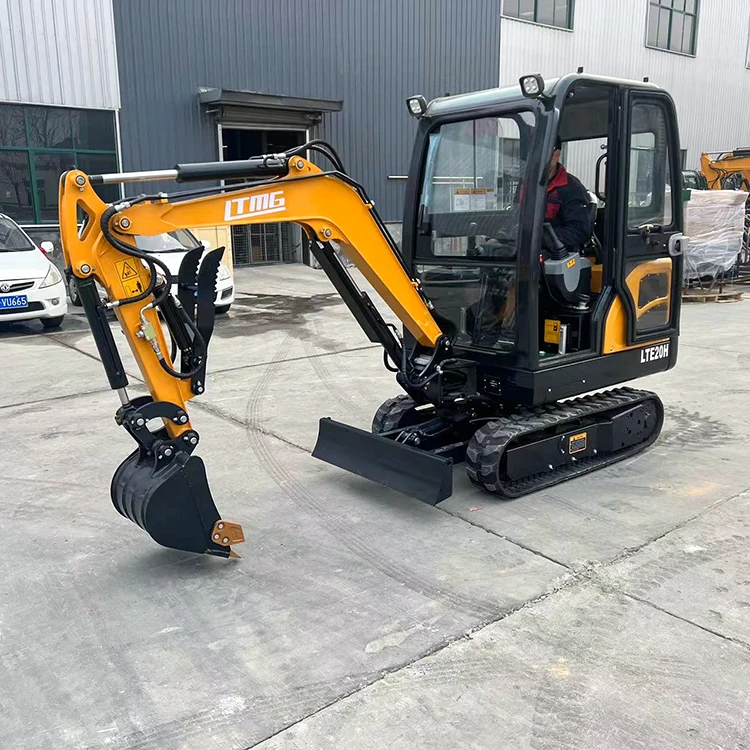

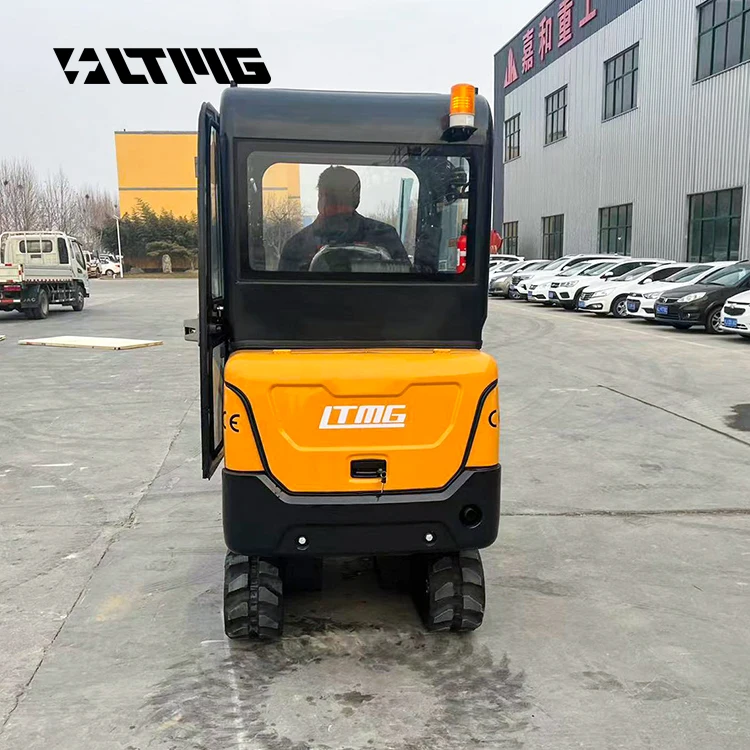

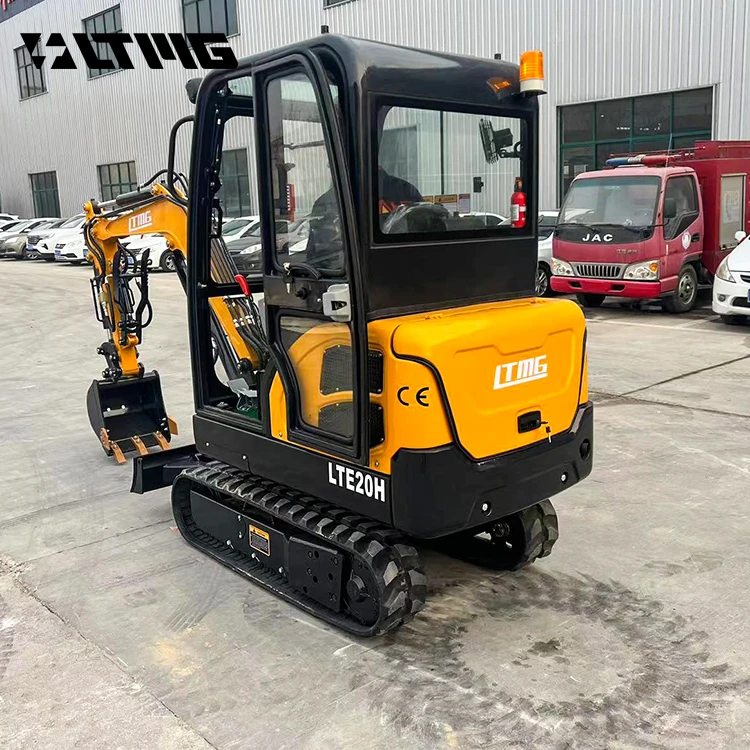

LTMG Hydraulic Mini Excavator Machine Kubota 1.5 1.8 2 2.5 Ton Small Crawler Construction Home Use Farms Competitive Priced
- Category: >>>
- Supplier: Xiamen LTMG Machinery Co. Ltd.
Share on (1600424676778):
Product Overview
Description
PRODUCT APPLICATION
It is used to restore the ground, break the concrete, and for cable casting, water pipe laying, planting, cleaning of river/ditch and construction project. It has several functions: excavation, breaking, ditch cleaning, drilling, bulldozing and ect.
Advantages
Engine | ||||
Model | Laidong 3TE25 18.1kW/2000rpm | |||
Type | Electronic injection, water cooled, natural intake | |||
Main Performance | ||||
Swing Speed | r/min | 45211 | ||
Traveling Speed | km/H | 2.8 | ||
Grade ability | % | 70(35°) | ||
Traveling Tracking Force | kN | 15 | ||
Bucket Digging Force | kN | 11.5 | ||
Arm Digging Force | kN | 9.3 | ||
Overall Dimensions | ||||
Overall Length | mm | 3800 | ||
Overall Width | mm | 1050 | ||
Overall Height | mm | 2280 | ||
Ground clearance | mm | 485 | ||
Track length | mm | 1630 | ||
Track width | mm | 230 | ||
Undercarriage width | mm | 1050 | ||
Undercarriage ground clearance | mm | 235 | ||
Dozer Blade | mm | 1050×240 | ||
Operation parameters | ||||
Operation Weight | KG | 1800 | ||
Bucket Capacity | m3 | 0.06 | ||
Max. Digging Radius | mm | 3860 | ||
Max. Digging Depth | mm | 2050 | ||
Max. Digging Height | mm | 3370 | ||
Max. Dumping Height | mm | 2390 | ||
Max. Dozer Cutting | mm | 270 | ||
Max. Dozer Lifting | mm | 235 | ||
Boom Deflexion (Left/Right) | ° | 75/45 | ||
Tail Swing Radius | mm | 1125 | ||
Front Min. Swing Radius | mm | 1720 | ||
ODM/OEM

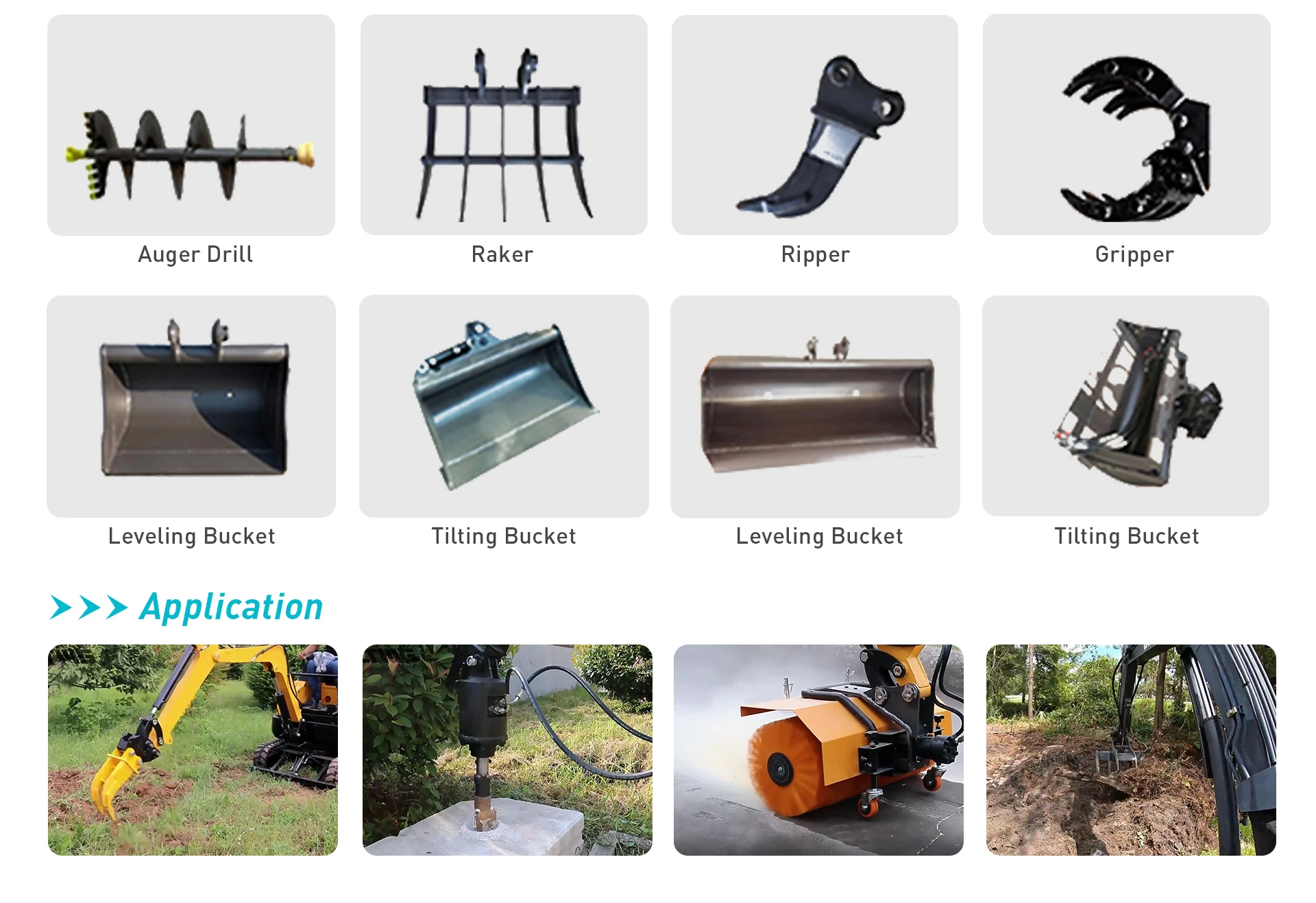

Optional Attachment
Packaging and Shipping

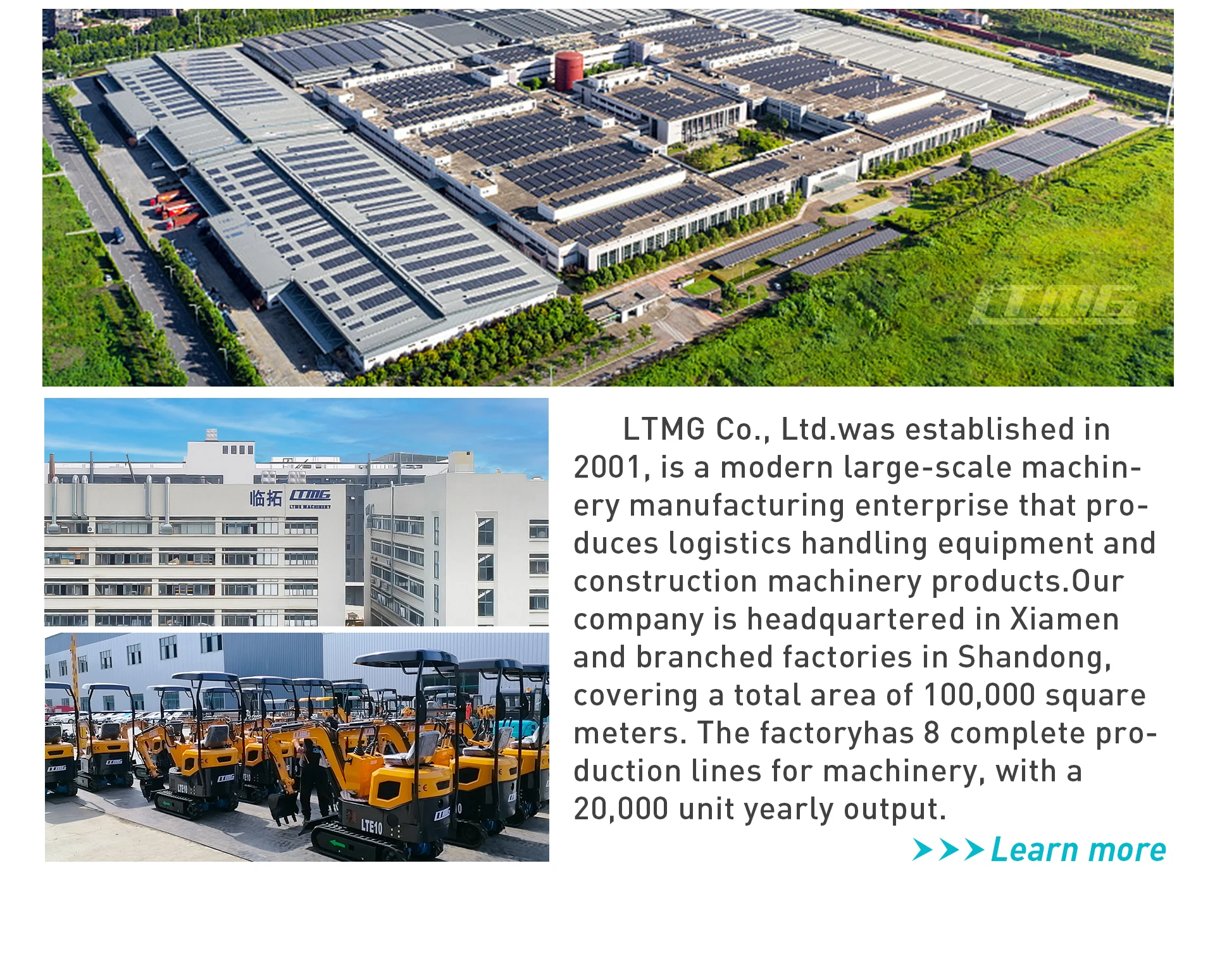

Company Profile
Certifications

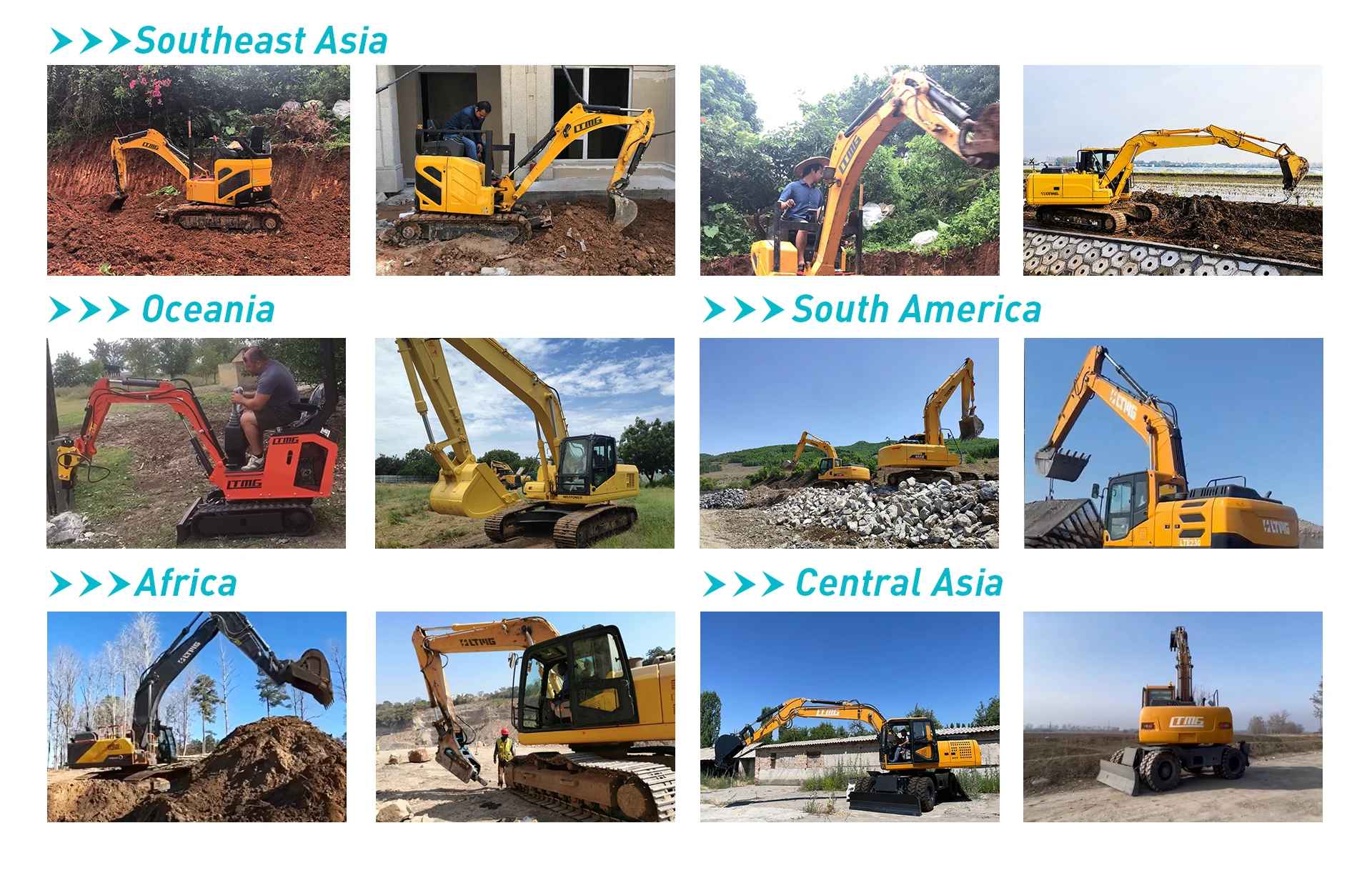

Customer Sharing
Recommend Products
FAQ
1. Why choose us?
As a manufacturer, LTMG industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory ?
LTMG industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders,forklift trucks,excavator and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
5.How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always
have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
LTMG industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
