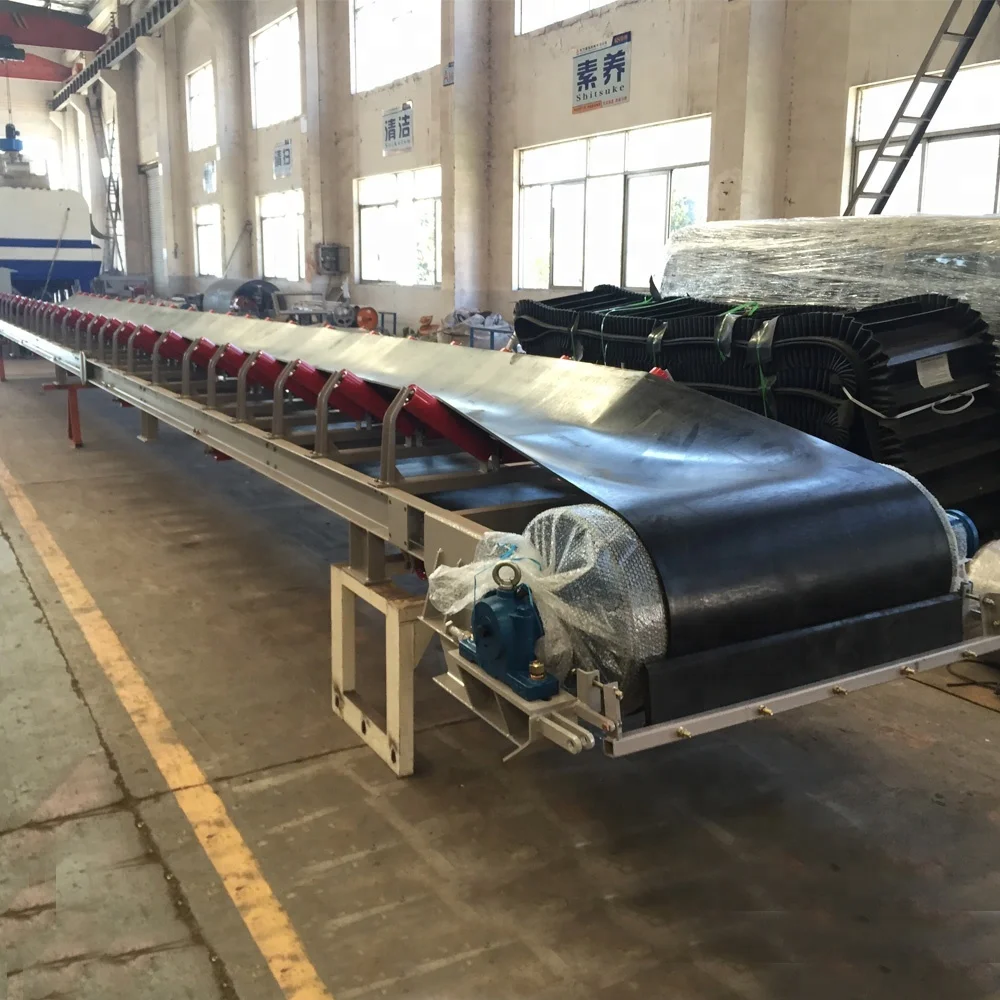

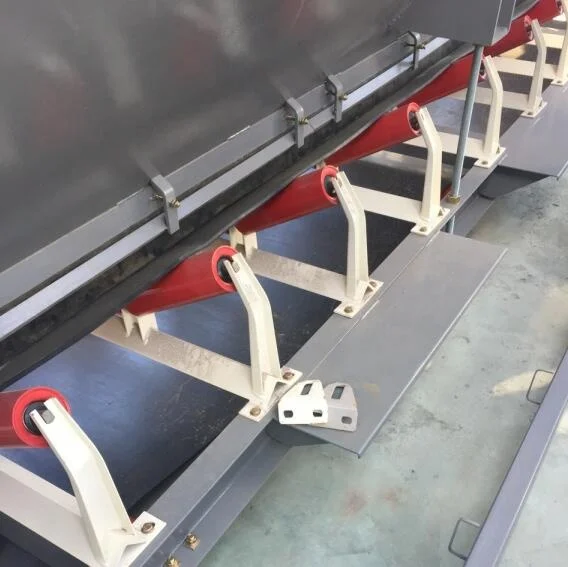

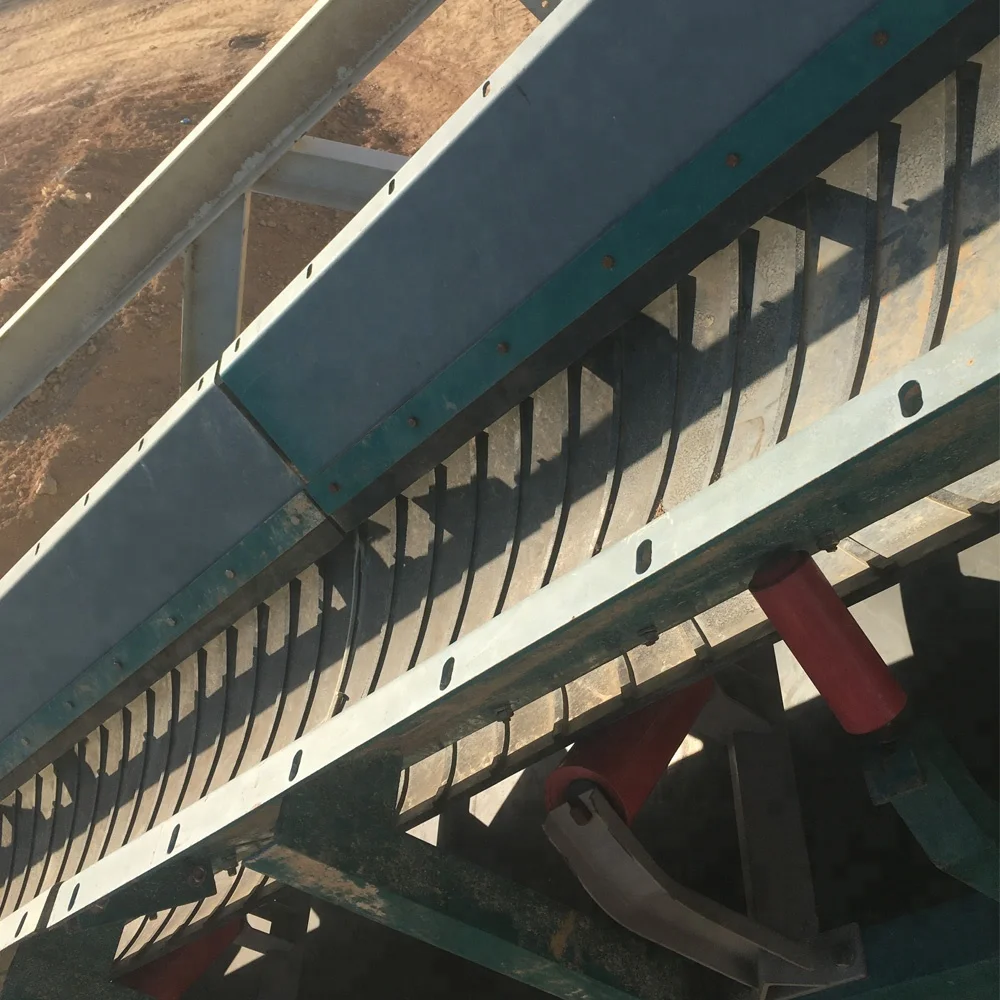

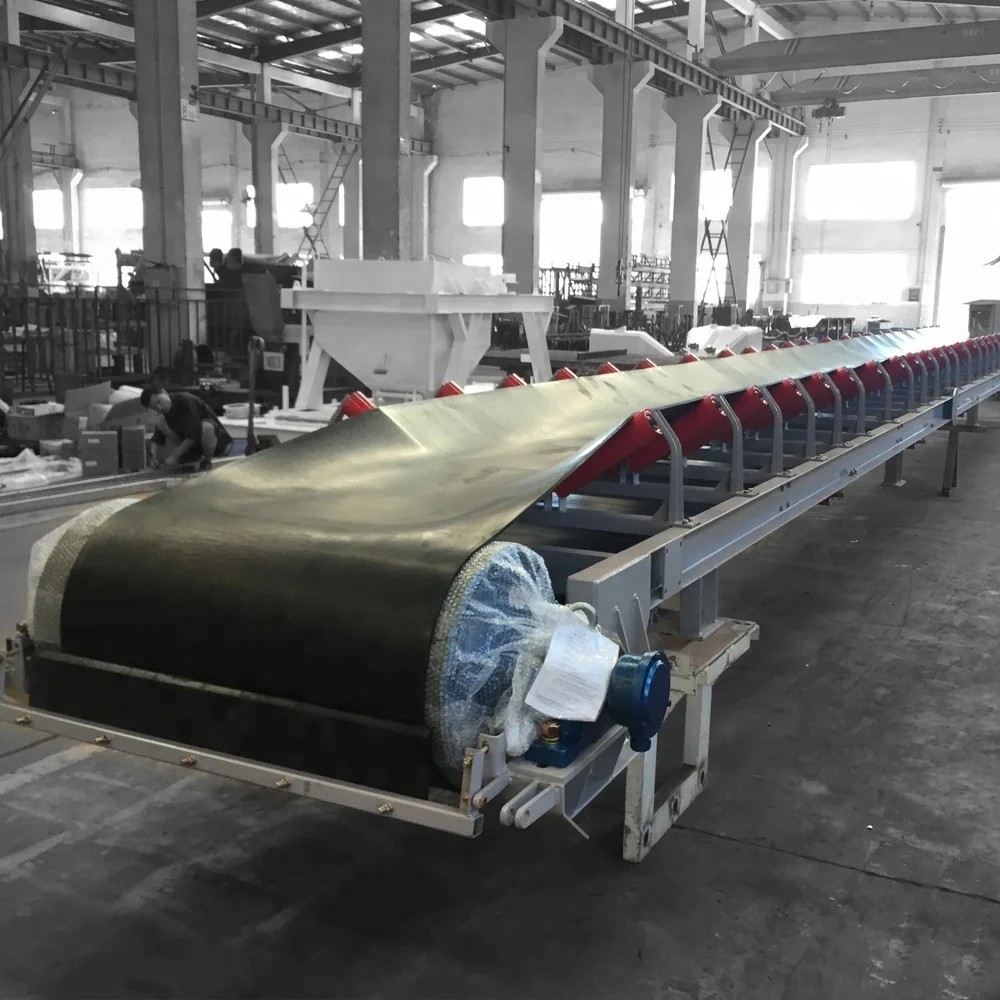

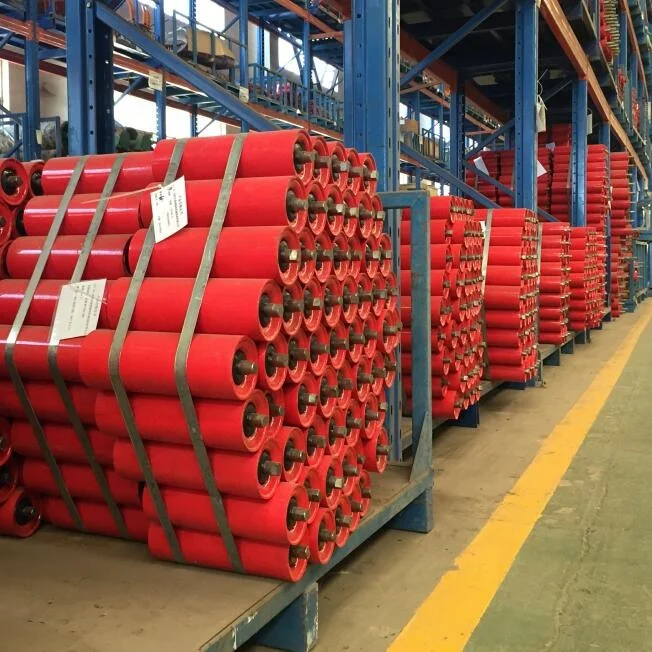

China Good Price Hopper Belt Conveyor for Coal Mine

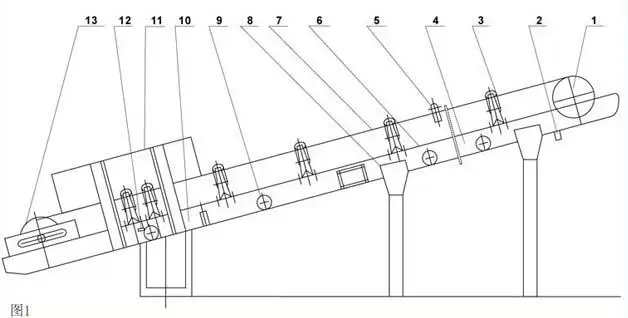

DKBC75 Belt Conveyor is widely used in metallurgy, coal, chemistry, water, electricity, and transportation department etc. It is applicable to transport capacity of 0.25-2.5 t /m ³ of lump, block, and other bulk materials, and can also transfer material in articles.

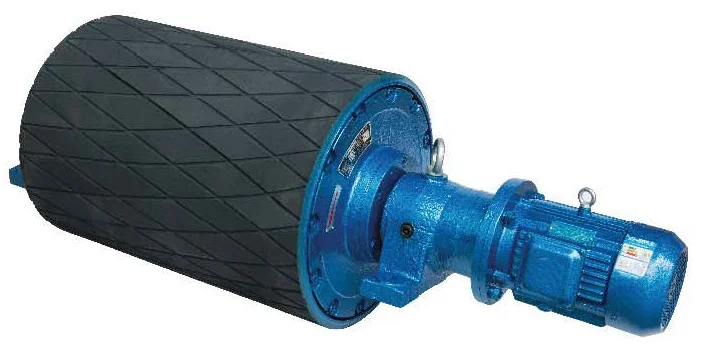

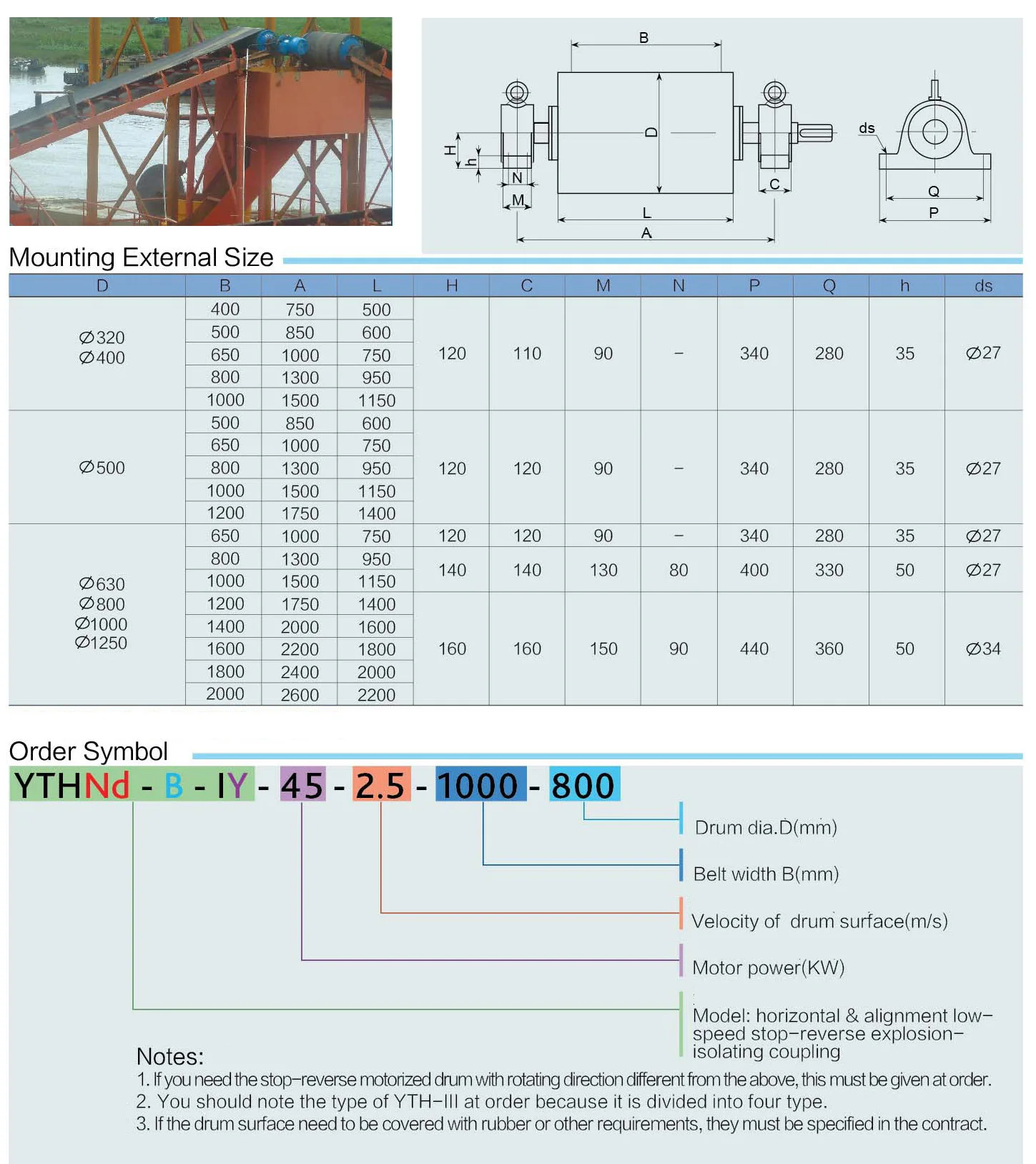

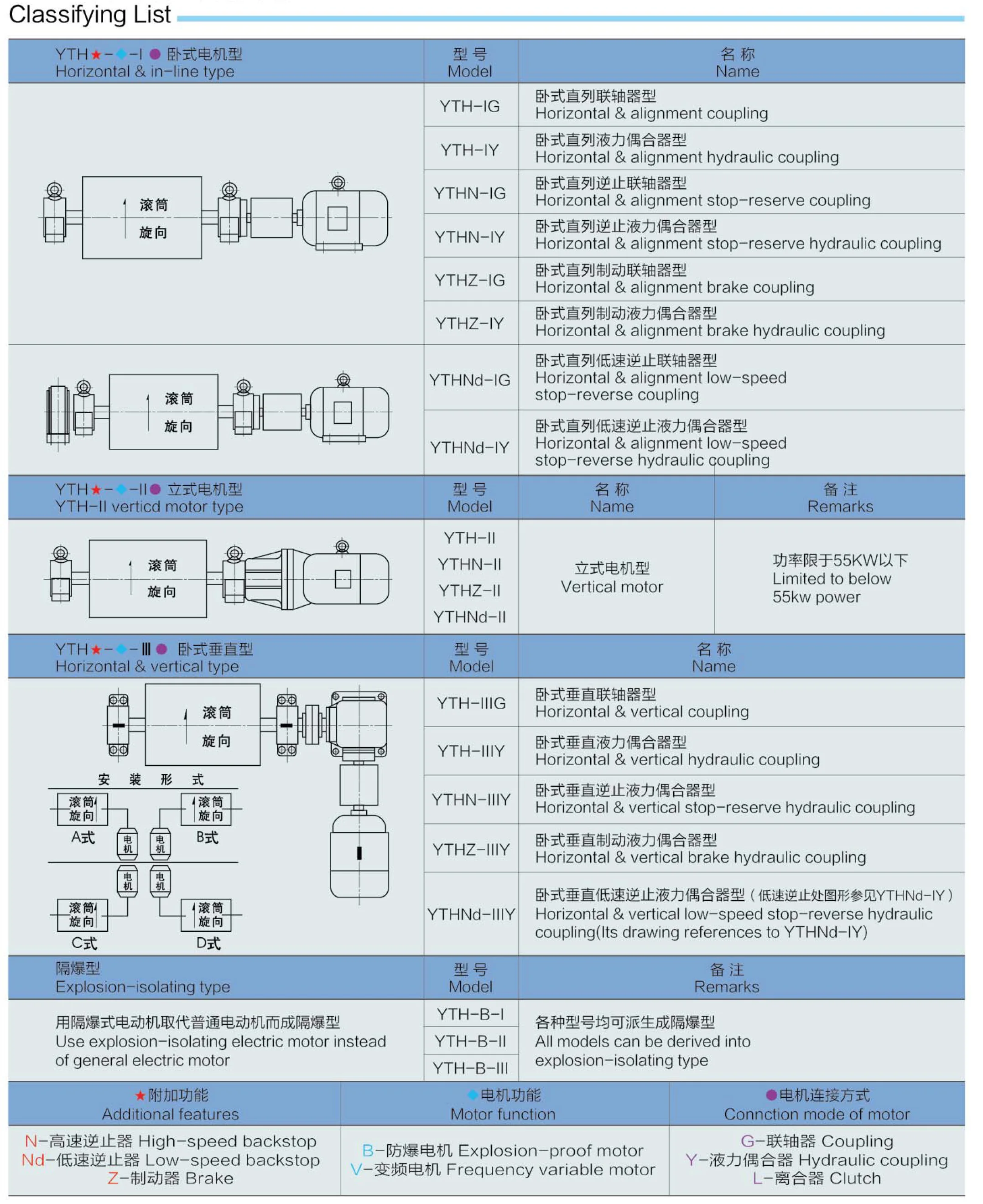

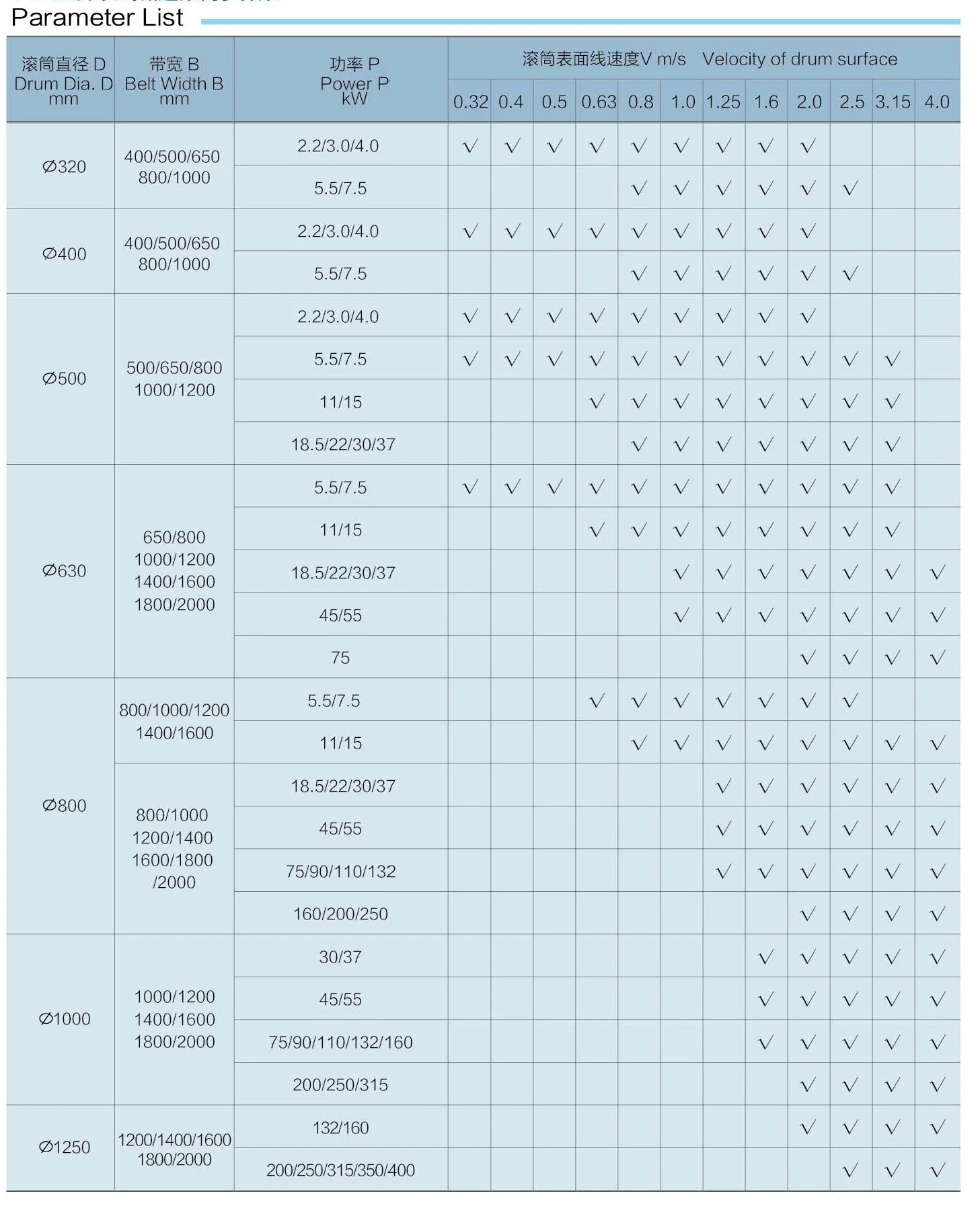

YTH Model Built-out Gear-reducing Motorized Drum

The motorized drum that work environment the temperature is-20C-+40C. The temperature that transport the material exceed 60C. The elevation high of work location not exceed 1000 meters.

Features & Applications
YTH model built-out gear-reducing motorized drum is produced according to technology imported from Germany.With advantages of hardened gear surface, planetary gear drive, steady rotation, low noise, big capacity with over-loadand large power range, it can equip with hydraulic coupling, stop-reverse unit, brake and explosion-proof electric motorand suitable to large and middle scale belt conveyer with awful environment and explosion-proof requirement.

Structure Descriptions
YTH model built-out gear-reducing drum consists of threeparts of drum body, drive and electric motor (lI model withoutmotor bracket). The drum body includes drum shell, bracketand gear reducer. The driver includes electric motor, couplerhydraulic coupler, stop-reverse unit and brakes etc. The bracketis welded by steel sheet and used for erecting electric motorand its cover, and also designed and made by customer.
