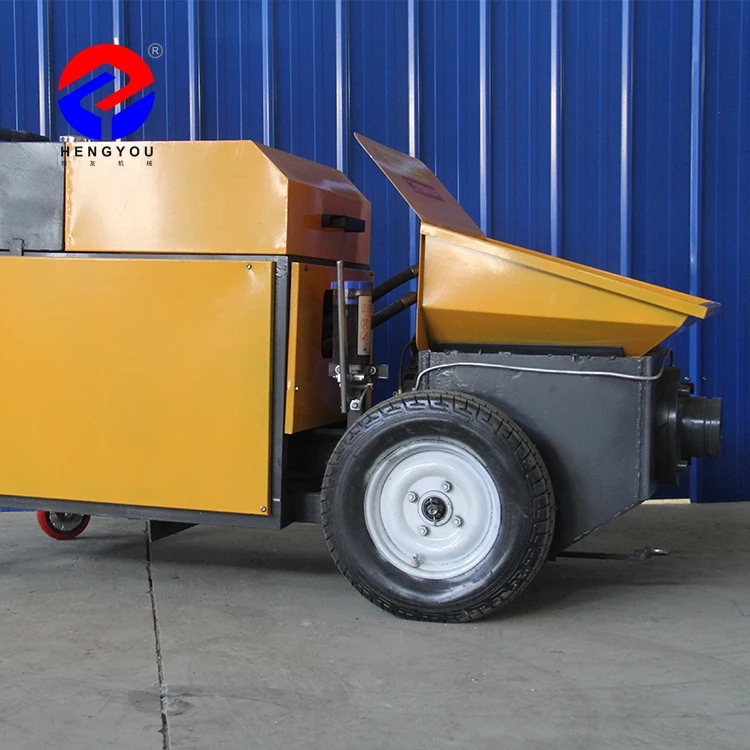

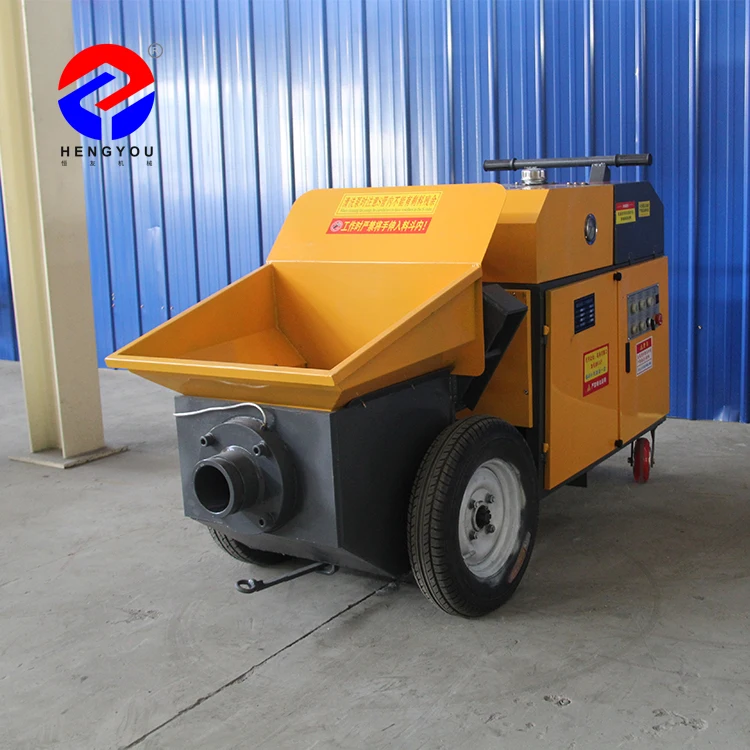

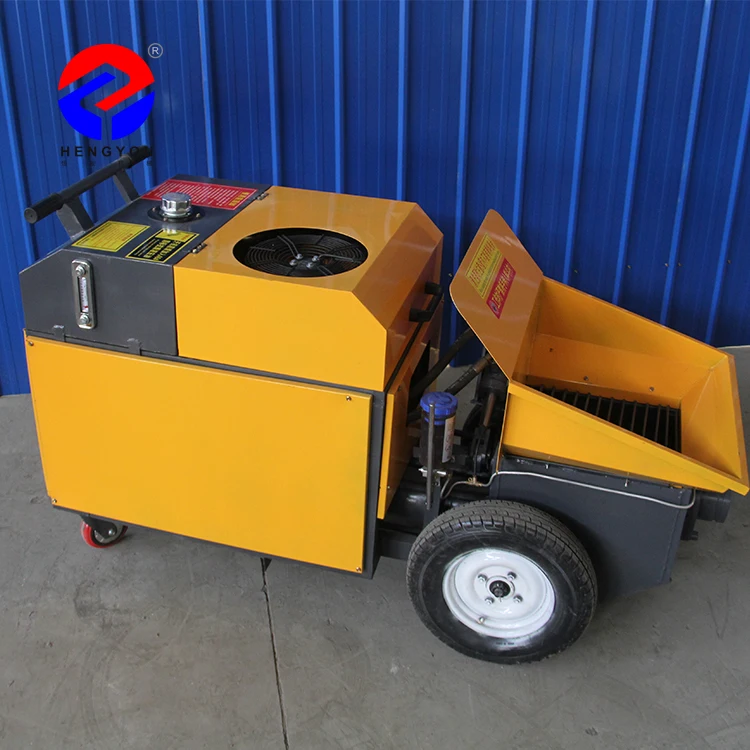

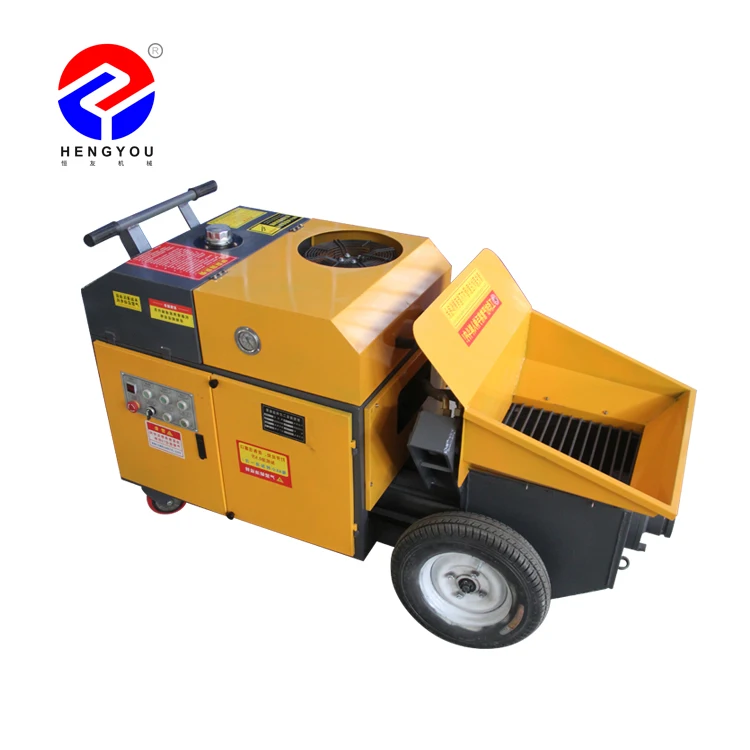

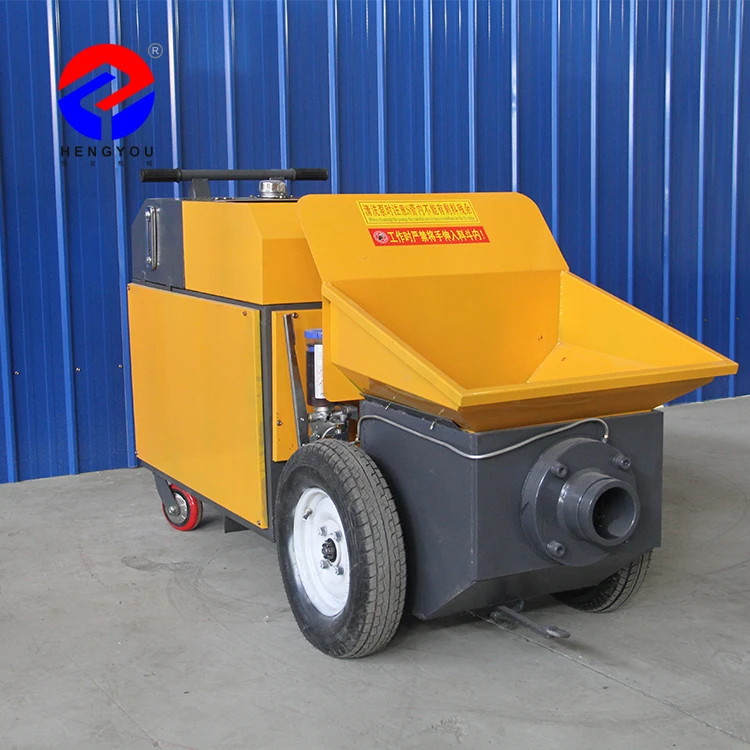

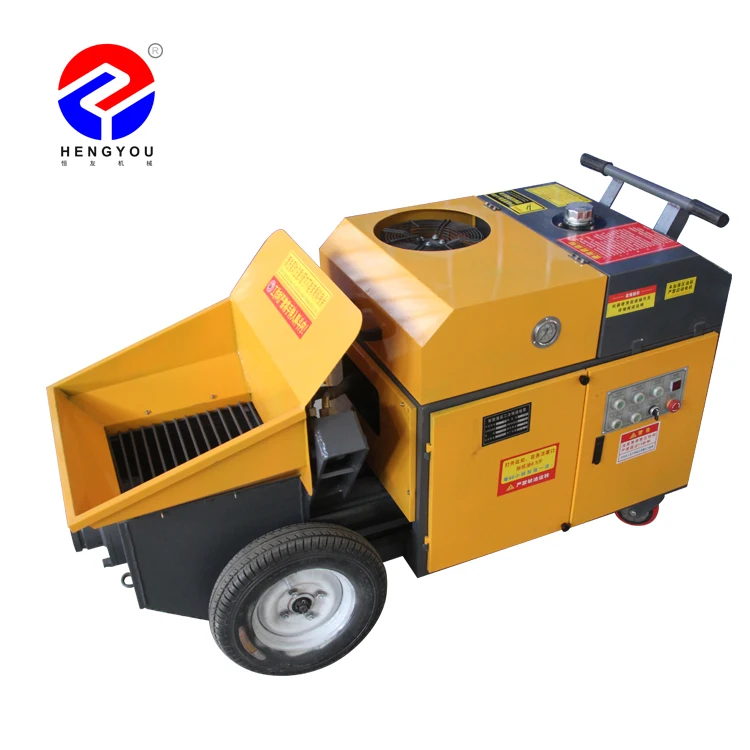

Небольшая система управления бетононасосом, литой Мини Гидравлический бетононасос
- Category: Concrete Pumps >>>
- Supplier: Zhengzhou Hengyou Machinery Manufacturing Co. Ltd.
Share on (1600425001476):
Product Overview
Description
Concrete Pump machine is one of large concrete conveying equipment. It is widely applied in special construction projects, such as railway, highway,tunnel, culvert and so on. Other related projects such as Water Resources and hydro power engineering, slope support projects also will use the concrete pump. Concrete Pump machine is continuous concrete conveying equipment by pressure. The complete Concrete Pump machine is composed of pump and delivery pipes.
model | LL-15 | LL-inclined pump | LL-22-20 | LL-30-25 | LL-37-30 | LL-45-40 | LL-4150 |
theoretical pumping capacity (m³/h) | 5-8 | 6-8 | 6-10 | 10-15 | 15-20 | 18-25 | 15-20 |
gravel size (mm) | ≤10 | ≤30 | ≤10 | ≤30 | ≤30 | ≤30 | ≤30 |
Max. pressure (mpa) | 10 | 10 | 10 | 15 | 18 | 18 | 18 |
cylinder diameter*stroke (mm) | 120*360 | 120*360 | 120*580 | 140*710 | 140*710 | 160-850 | 140*710 |
motor power (kw) | 15 | 15 | 22 | 30 | 37 | 45 | 45 |
delivery pipe diameter (mm) | 76（80） | 76（80） | 76（80） | 100（80） | 100（80） | 100（80） | 100（80） |
theoretical delivery distance (m) | 40-60 | 50-60 | 80-100 | 80-150 | 150-180 | 250 | 150 |
theoretical delivery height (m) | 20 | 25 | 50 | 50-80 | 70-90 | 100 | 60-80 |
dimensions (mm) | 1400*700*1100 | 2000*800*1500 | 3100*900*1260 | 3600*1450*1460 | 3600*1450*1460 | 4200*1450*1500 | 3900*1450*1600 |
Weight (KG) | 600 | 600 | 1200 | 1800 | 2000 | 2200 | 2500 |
Electric control system
The wire remote equipment is convenient for operation far away.Famous brand electronic components are used for our Electric control system.
Cooling system
The radiator equipment makes the working oil temperature of hydraulic system below 70℃ and makes the machine in normal status.
Mechanical system
Make sure the pumping good and decline the phenomenon of pipe jam, spectacles wear plate and cutting ring are made of high wear cemented carbide materials. This concrete pump machine could work in lower abrasion and extend the components’ usage life span. spectacles wear plate could be replaced up 30000cbm.
Double open hydraulic loops
With two pumps, makes the whole hydraulic system much simpler. The reliability of the whole system is also much higher as well as the components’ life is prolonged greatly. This is convenient for judgeing and removing trouble.
Zhengzhou Hengyou Machinery Manufacturing Co., Ltd., located in Zhengzhou, Henan Province, was established on August 28, 2017. It covers an area of about 50 acres, has nearly 30,000 square meters of workshops, office buildings, 2000 square meters, and nearly 300 square meters of products. Showroom.Our company is now specialized in the manufacture and trade of material handling equipment, construction engineering machinery,agricultural machinery, mining machinery and livestock machinery. Our production workshop has a clear division of labor, clear division of responsibilities, and two warehouses. Our company has more than 300 fixed employees, including more than 200 skilled workers, more than 20 core professional R&D teams, and more than 200 sets of large-scale production and processing equipment. Our company insists on striving for survival by quality, creating brand by meticulous, and seeking innovation by research and development, and constantly pushes new products of different grades and different prices to meet the needs of buyers at different levels. As a direct manufacturer that can support self-production and self-sales, we have strong strength to complete the integrated operation of production, sales, delivery and after-sales, and can provide our customers with comprehensive one-stop services.
Our market has covered various regions in China, and is now exported to more than 90 countries and regions such as Europe, the United States, Australia, Japan, and the United States. With rich experience in import and export, we can provide diversified mechanical equipment for international friends in various countries.
Q1:Does the company ship by sea or land? Which port? |
A1: Our shipments are generally shipped by sea, which has strong carrying capacity and cheaper freight, and the seaborne is more tolerant of the category of goods, and the basic requirements can be met. We generally use Tianjin and Qingdao ports within China. |
Q2:How is your concrete injection pump service? |
A2:24 hours on line service,support Chinese,English and French techinical guidance. |
Q3:How you tractor concrete pump Packing&delivery？ |
A3:Standard export wooden box,protect the machine from damage.If your order is big and we have no stock,we promise to delivery within 7 to 12 days. |
Q4:How to choose a suitable concrete pump hopper? |
A4:we could choose suitable model Concrete Pump machine by the following requirements: 1. what is your expected pumping capacity per hour? 2.what is your horizontal distance and delivery height? 3.what is your max. gravel size? |
