Fibocom L860 L860 GL LTE FDD TDD Cat16 1Gbps DL Cellular Module chipset Intel XMM 7560 LTE A Pro for Windows 10 Linux
- Category: Network Cards >>>
- Supplier: Shenzhen Wodaxun Technology Development Co. Ltd.
Share on (1600425246167):
Product Overview
Description
Specification

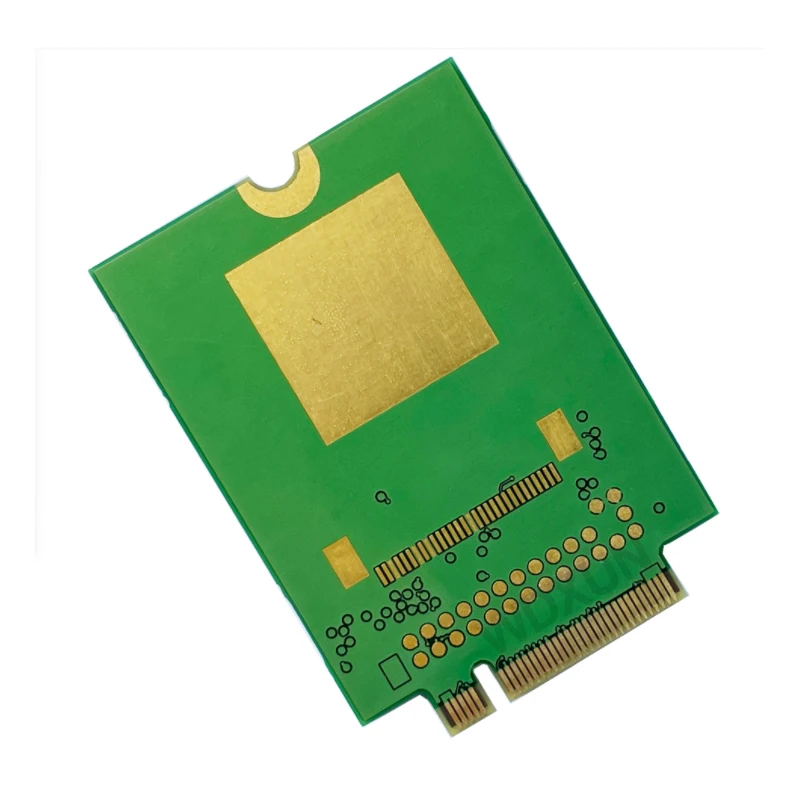

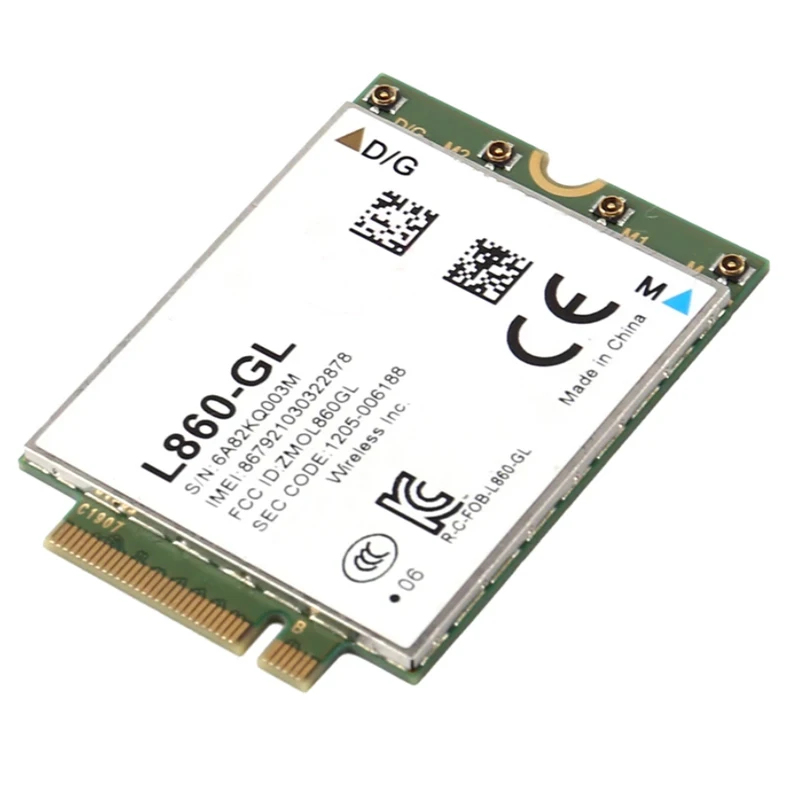

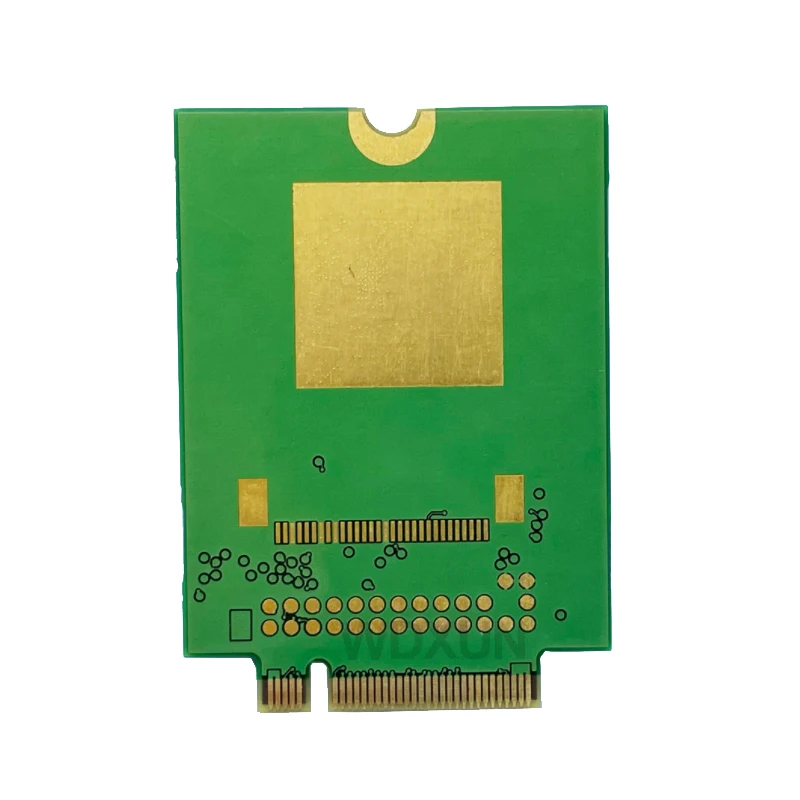

Fibocom L860-GL module Specifications: * Chipset: Intel XMM7560 * LTE FDD：LTE FDD: Band 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 21, 25, 26, 28, 29, 30, 32, 66 * LTE TDD: B38/39/40/41/42 * UMTS: Band 1, 2, 4, 5, 8 * Form factor: M.2 package * Dimensions: 30.0*42.0*2.3 mm * DL 5CA on 4 bands, DL 256QAM support * DL-MIMO: 2*2, 4*2, 4*4 * DL 4x4 MIMO: Band 1,2,3,4,7,30,40,41NB, 66 * LAA(Band 46) * Integrated GNSS * eSIM interface support * Operating Voltage: 3.135V~4.4V, Typical 3.3V * Operating Temperature: -10~+55°C * Storage Temperature: -40~+85°C * AT Command Set: 3GPP TS 27.007 and 27.005, proprietary FIBOCOM AT commands * TX Power: - FDD& TDD LTE: 23dBm - WCDMA: 23.5dBm * RX Sensitivity: FDD& TDD LTE: -98dBm~102dBm * Data - FDD& TDD LTE: 1Gbps DL(Cat 16), 150Mbps - UL(Cat 13, 2CA on intra bands) - UMTS/HSPA+: 42Mbps DL(Cat 24), 11.5Mbps - UL(Cat 7) * Interface - USIM: 3V/1.8V - PCIe - BodySar * Driver: Windows 10 and Linux * Approval: - CE / CCC / FCC / GCF / PTCRB etc. 100+ countries certification - AT&T / Verizon /Sprint / DT / Telefonica / Vodafone /Swisscom / Docomo / KDDI / Softbank / Telstra /Optus | ||
Product Description
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Shenzhen Wodaxun Technology Development Co., Ltd. is a high-tech enterprise integrating research and development, production and sales. Founded in 2011, the company is committed to the development and sales of 3C digital products with peripheral accessories of notebook computers. The company's main computer built-in wireless network card, desktop wireless module, laptop CD-ROM drive, 3G / 4G module. The products sell well at home and abroad and enjoy a higher status among consumers. The company with a number of retailers and agents to establish a stable relationship of cooperation. Own production line, provide from product development, production, sales one-stop service. To provide you with a perfect shopping experience.
Why Choose Us
We have 20 years of experience in the production and sales of notebook peripheral 3 products, focusing on the design and development of wireless network. Efficient office system, perfect supply system and excellent after-sales service enable us to win the trust of our customers.\t
FAQ
Q1. Can the product be customized as our need, such as put on our logo?
A1: Surely our product can be customized as your need, put on your logo is also available.
Q2: What is your warranty about the wifi module?
A2: For all of our wifi module have one year quality warranty.
Q3. Do you support the driver for the wifi module?
A3: Yes, we can offer the full Windows / Linux/ Android driver for the wifi module.
Q4: If your company can support the OEM/ODM service?
A4: Yes, we can do OEM, once you offer your detail requirement to us.
Q5:How do I get technical support about your wifi module?
A5: Generally, you can keep contact with our sales, they will feedback to you within 24 hours.
A2: For all of our wifi module have one year quality warranty.
Q3. Do you support the driver for the wifi module?
A3: Yes, we can offer the full Windows / Linux/ Android driver for the wifi module.
Q4: If your company can support the OEM/ODM service?
A4: Yes, we can do OEM, once you offer your detail requirement to us.
Q5:How do I get technical support about your wifi module?
A5: Generally, you can keep contact with our sales, they will feedback to you within 24 hours.
