Intel X550 Based RJ45 Connector 10G NIC Card PCIe 3.0 x4 Dual Port 10 Gigabit Copper Ethernet Networking Card

Product Overview

Description

LREC9812BT

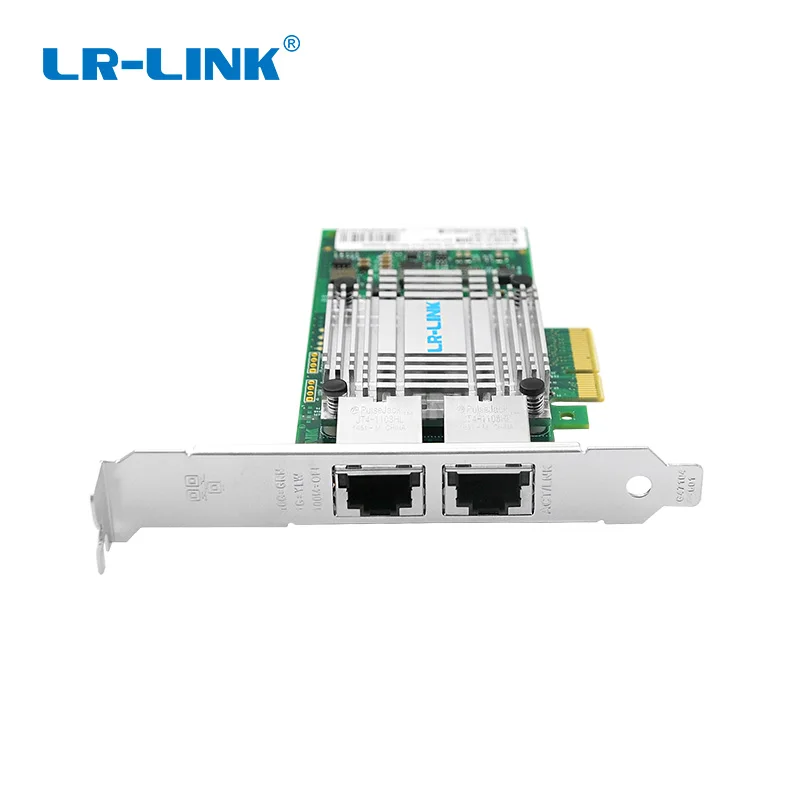

Intel X550 Based PCIe 3.0 x4 Dual Port 10 Gigabit Copper Ethernet Networking Card

RJ45 Connector 10G NIC Card



The LREC9812BT is a new generation of high-performance PCIe 3.0 x4 Lane 10 Gigabit RJ45 10G NIC Card, based on the Intel X550AT controller. The RJ45 10G NIC Card Simplifies Migration to 10 Gigabit Ethernet (GbE), Provides iSCSI FCoE Virtualization and Flexible Port Partitioning (FPP).



Key Features

• Low cost, low power,10 GbE performance for the entire datacenter.

• New generation dual-port 1OGBASE-T controller with integrated MAC and PHY

• Standard CAT 6a cabling with RJ45 connectors.

• Supports NBASE-T* technology (2.5 and 5.0 GbE over CAT 5e)

• Backward  compatibility with existing 1000BASE-T networks simplifies the transition to 10GbE.

• PCI Express* (PCle*) v 3.0 with up to 8.0 GT/s

• Unified networking delivering LAN iSCSI and FCoE in one low-cost CNA.

• Flexible 1/0 virtualization for port partitioining and Quality of Service (QoS) of up to 64 virtual ports

• Reliable, proven 10GbE technology from Intel Corporation.



Simplify the Transition to 10 GbE

With 10GBASE-Tmigration to 10 GbE is dramatically simplified with backward compatibility for your existing GbE network infrastructure. Install an X550 adapter into a server and the auto­ negotiation between 1 GbE and 10 GbE provides the necessary backwards compatibility that most customers require for a smooth transition and easy migration to 10 GbE. When time and budget allows10GBASE-T switches can be added any time to experience the full benefits of 10 GbE.



10 GbE Performance at Low Cost and Low Power

The LREC9812BT RJ45 10G NIC Card is the lowest cost way to deploy 10 GbE in your data center today, using low cost CAT 6 and CAT 6a cabling. Chances are this cabling already exists in the data center.





A Complete Unified Network Solution

Converging data and storage onto one fabric eliminates the need for multiple adapters and cables per server. Furthermore10 GbE provides the bandwidth to converge these multiple fabrics into a single wire. A key capability that makes all this possible is traffic class separation provided by Data Center Bridging (DCB). DCB provides a collection of standards for additional QoS functionality such as lossless delivery congestion notification priority-based flow control and priority groups. This enables to provide a one-wire solution with virtual pipes for the different classes of traffic:

•  Data: best effort delivery of standard LAN traffic.

• Storage :NAS or SAN including lossless FCoE and iSCSI.

• Management: Guaranteed connectivity of data center IP management.



Unified Networking Principles





Best Choice for Server Virtualization





Networking Virtualization

Network virtualization is the next big trend in creating an agile data center. The LREC9812BT network card are ready to help take you to the next level.

• VX LAN and NVGRE offloads: These stateless offloads preserve application performance for over lay networks. With these offloads it is possible to distribute network traffic across a CPU core.

• Preserves application performance in network virtualized environment.



Flexible Port Partitioning (FPP)

Specifications
Controller	Intel Ethernet Controller X550AT2
Baffle Height	Full height and half height
Power Consumption	Typical  Power 11.2W;  Maximum Power 13.0W
System Support	Windows Server* 2012 R2;   Windows Server 2012 R2 Core; Windows Server 2012;   Windows Server 2012 Core; Windows Server 2008 R2;   Windows Server 2008 R2 Core;   Linux* Stable Kernel version 2.6.32/3x;   Linux* RHEL 6.5 and RHEL 7.0; Linux* SLES 11 SP3 and SLES 12;   FreeBSD* 9 and FreeBSD* 10; UEFI* 2.1; UEFI* 2.3;   VMware ESXi 5.1 (Limited Functionality); VMware ESXi 5.5
Ports	Dual 10GBASE-T RJ45 Port
Bus type	PCIe v3.0 (8.0GT/s) (2.0 and 1.1 compatible)
Bus Width	X4 lane PCle operable in x8 and x16 slots
Data rate supported per port	10 GbE/1 GbE/100MbE
LED Indicators	Link(green/orange bright)and ACTIVITY( green flashing) Link Rate(green=10Gbps;orange=1Gbps/100Mbps)
Virtual Machine Device Queues (VMDq)	Offloads data sorting from the hypervisor to silicon, improving data throughput and CPU usage • QoS feature for Tx data by providing round-robin servicing and preventing head-of- line blocking • Sorting based on MAC addresses and VLAN tags
Support for PCI-SIG SR-IOV	Up to 64 VFs per port
IEEE 802.1Q VLAN Support with VLAN Tag	Ability to create multiple VLAN segments
VXLAN Stateless Offloads	A framework for overlaying virtualized layer 2 networks over layer 3 networks. VXLAN enables users to create a logical network for VMs across different networks
NVGRE Stateless Offloads	Network Virtualization using Generic Routing Encapsulation. The encapsulation of an Ethernet Layer 2 Frame in IP that enables the creation of virtualized Layer 2 subnets that can span physical Layer 3 IP networks
Intel® Flow Director	Yes
MSI-X	Yes
FPP - 64 VFs Per Port	Yes
Tx/Rx IP SCTP TCP and UDP Checksum Offloading (lPv4IPv6) Capabilities	Yes
Tx TCP Segmentation Offload	Yes
SNMP and RMON	Yes
Protocol Support	IEEE 802.1Q* VLANs IEEE 802.3 2005* flow control support compatible 10 GbE and 1 GbE Ethernet/ 802.3ap (KX/KX4) Specification compatible the 10 GbE 802.3ap (KR) Specification compatible 1000BASE-BX Specification
PXE	Yes
WoL	No
Jumbo frames	15.5 KB
Ethernet power management	Yes
Storage	iSCSI, NFS,FCoE,SMB
Operating temperature	0 °C to 55 °C (32 °F to 131 °F)
Storage temperature	-40 °C to 70 °C (-40 °F to 158 °F)
Storage humidity	Maximum: 90% non-condensing relative humidity at 35 °C
Air Flow	Minimum of 1 50 LFM required
Certifications	FCC CE RoHS
Size(LxWxH)mm	137*69*1.6 mm



Order Information:

Model	DesDescription
LREC9812BT	PCIe v3.0 x4 Dual Copper Port 10GBase-T RJ45 10G NIC Card (Intel X550AT2 Based)



PS: Above details are only for reference, if there is any change, no prior notice.
