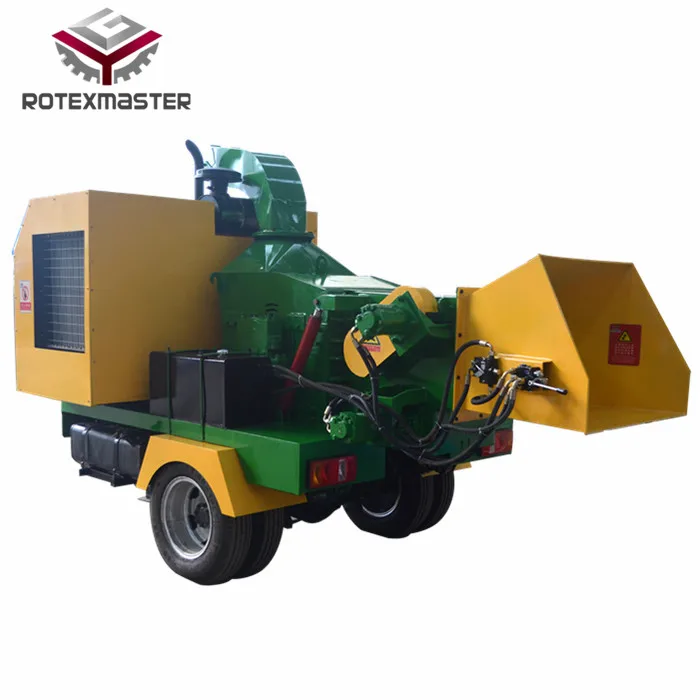

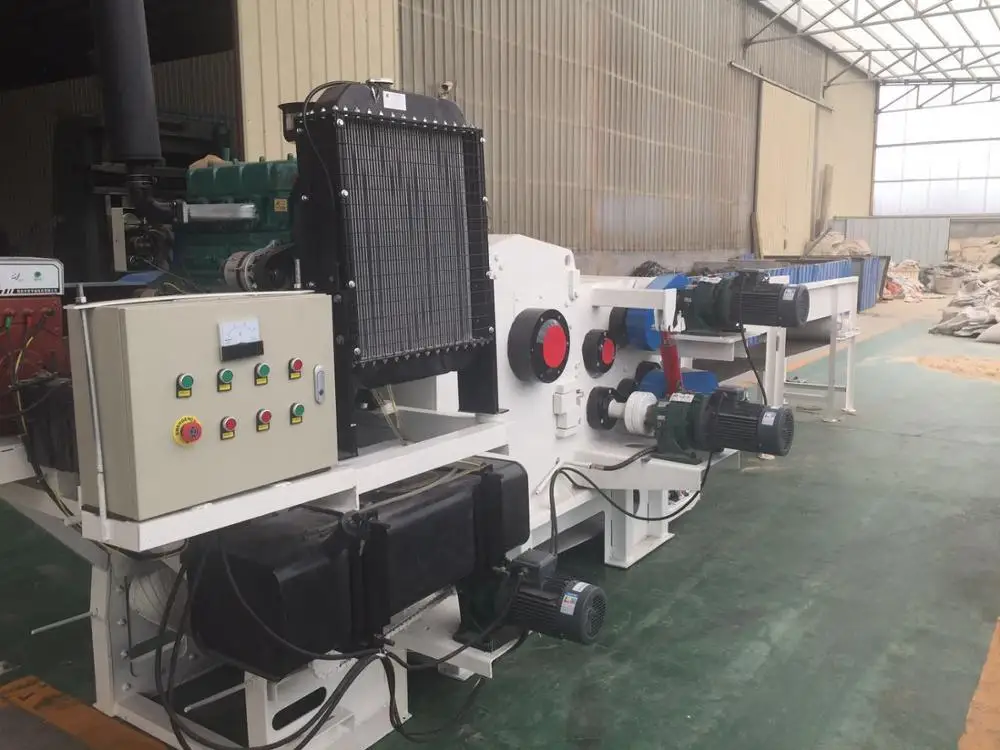

YMPJ216 218 2113 High Quality Drum Chipper Shredder Biomass Diesel Engine Biomass Wood Mobile Chipper

Introduction for Large Capacity Wood Chipper

Drum wood chipper series products are production of special equipment, the product is widely used in particleboard factory, medium and high density fiber board factory, stubble plant, biomass power plant, wood factory and other industries and manufacturers in the production of equipment for preparation before the section. This product structure is advanced, high-quality cutting blade material, the raw material adaptability, convenient operation and maintenance. Cutting path is the main raw material of wood, wood cutting, processing residues, such as branches, branches, slab, slat cores, logs, veneer scrap, etc.), can be used to cutting non-wood raw materials (such as sugar cane, reed, bamboo, etc.).

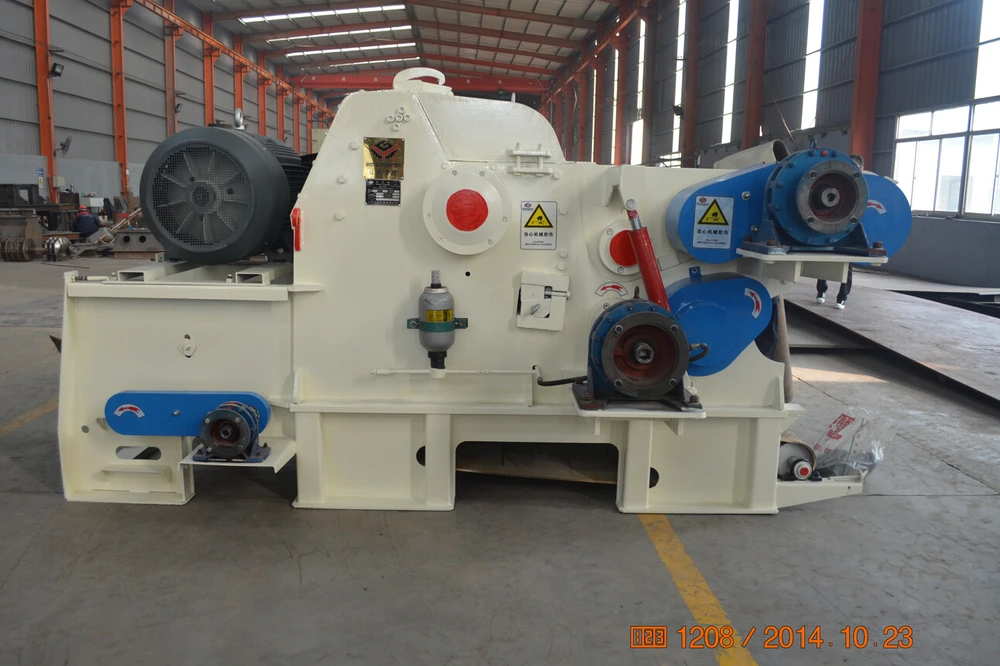

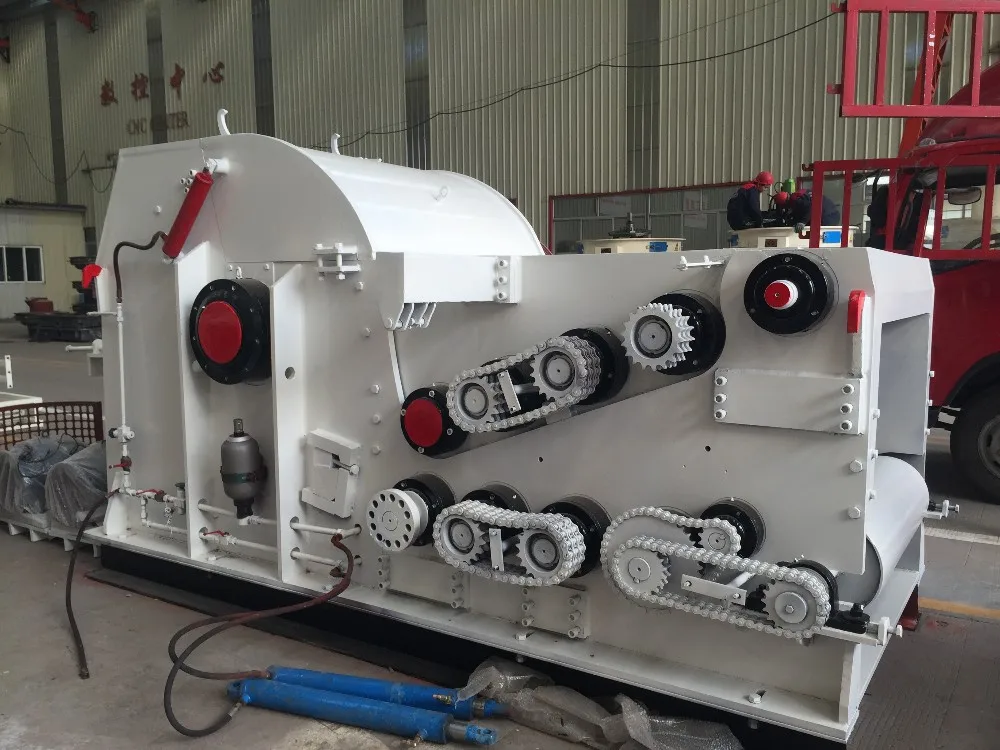

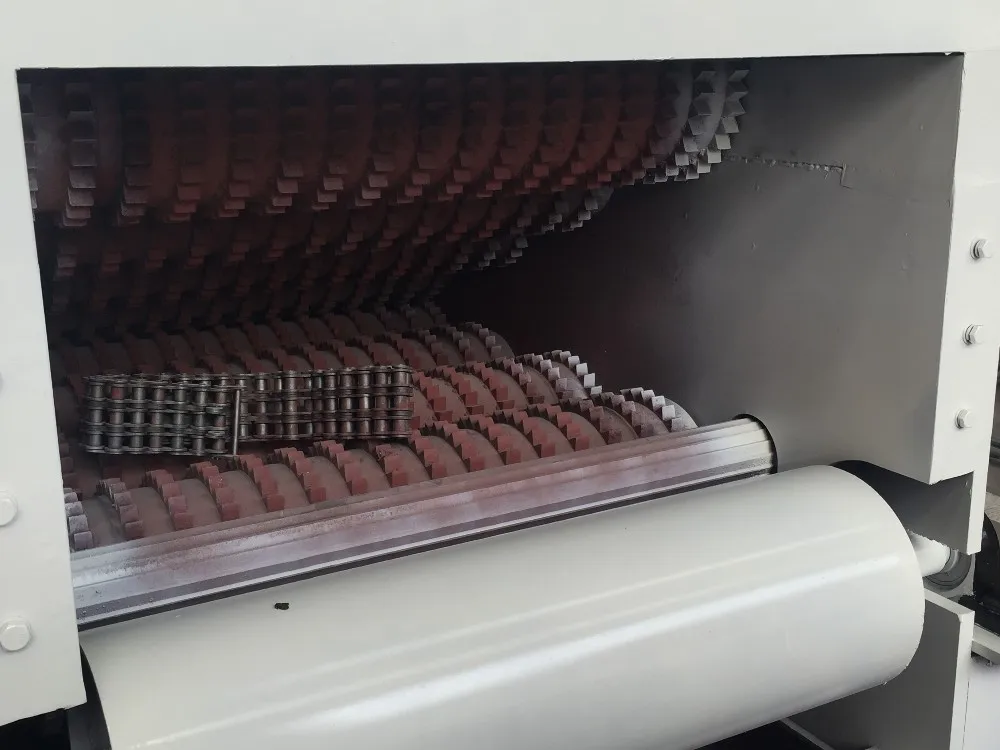

Machine up and down by the body, knife roller, feed roller, conveyor belts, hydraulic system and other parts. The body is made of high strength steel plate welding and become, is the basis of the whole machine is supported. Knife roller is installed on the two or three, four fly knife, made of special bolts, through pressure, fly knife is fixed on the knife roller. According to be cutting raw materials of different thickness, the feeding roller assembly can use hydraulic system in a certain range floating up and down. Cutting down the qualified material drop through sieve pore, from the bottom of the discharge, large pieces of material will be carried out within the machine cutting.

Hydraulic system: by oil pump for to oil cylinder, can start the lid, easy replacement of blade; Can lift on the feeding roller assembly when maintenance, easy to adjust the fly knife, bottom knife gap and comb plate dismantling.
