MDAWB 4NL400 New type Automatic wire bonder Ultrasonic High Speed battery pack wire bonding machine
- Category: >>>
- Supplier: Guangzhou Minder-Hightech Co. Ltd.
Share on (1600426755099):
Product Overview
Description
Product Description

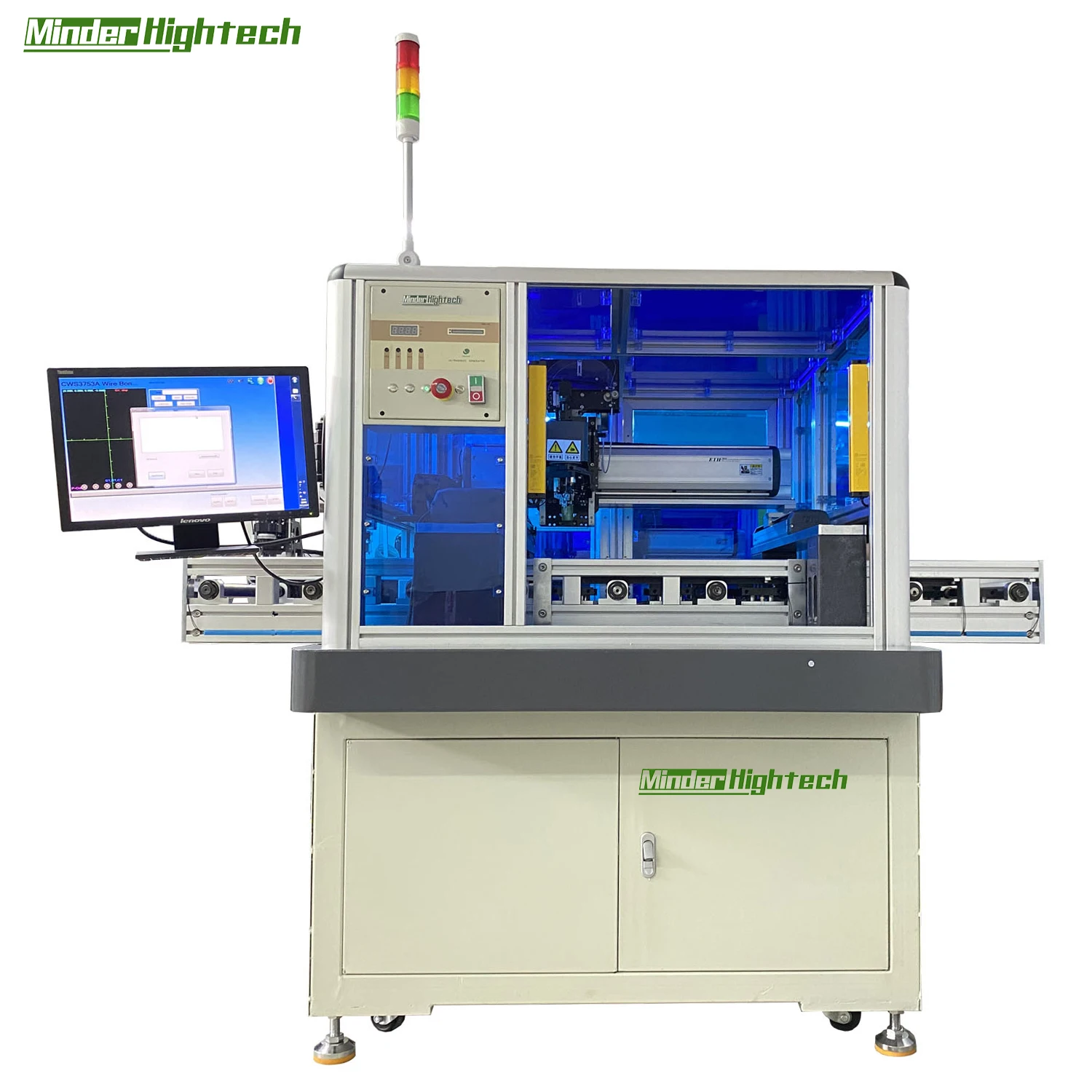

MDAWB-4NL400 New type Automatic wire bonder
Main application:
18650,26800,21700 lithium battery wire bonding.or other connection
18650,26800,21700 lithium battery wire bonding.or other connection
Advantage

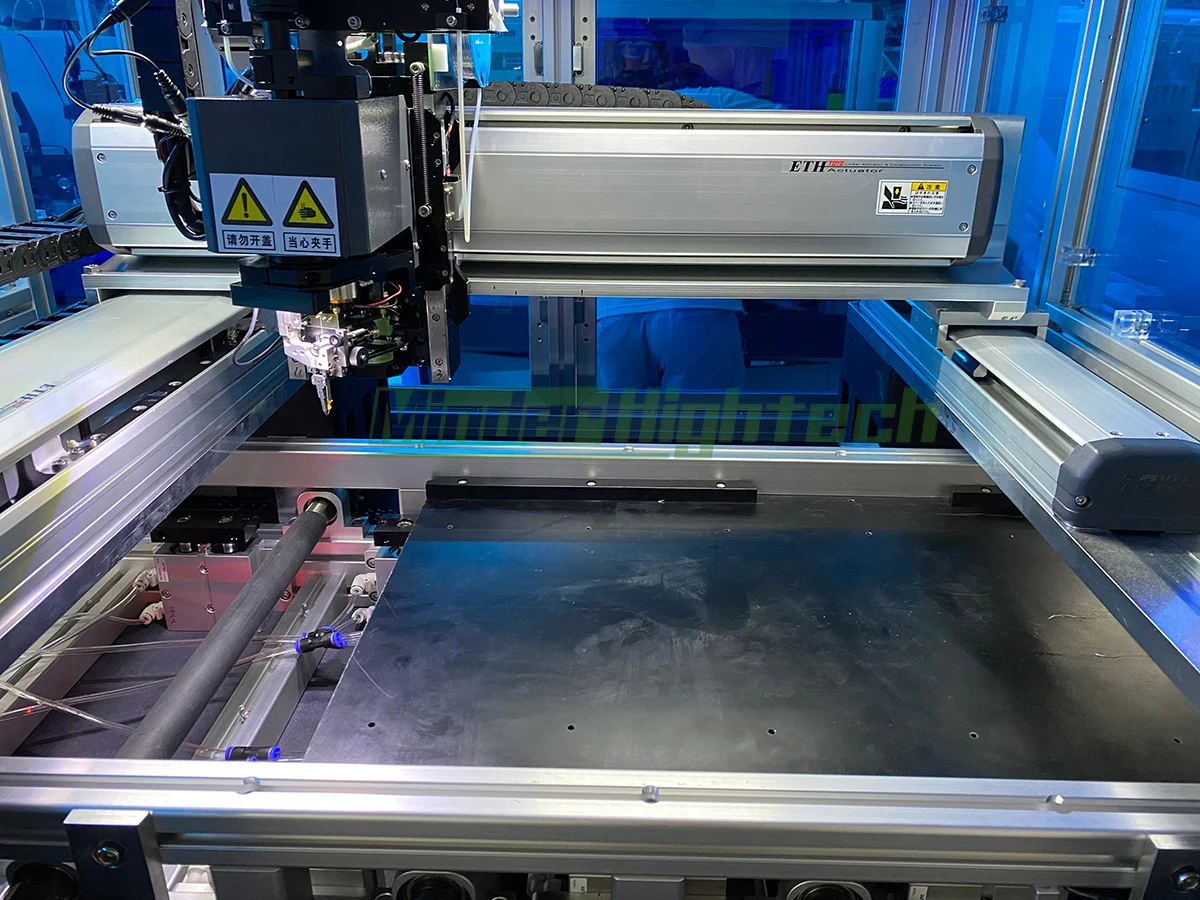

1,First using rotary bonding head.

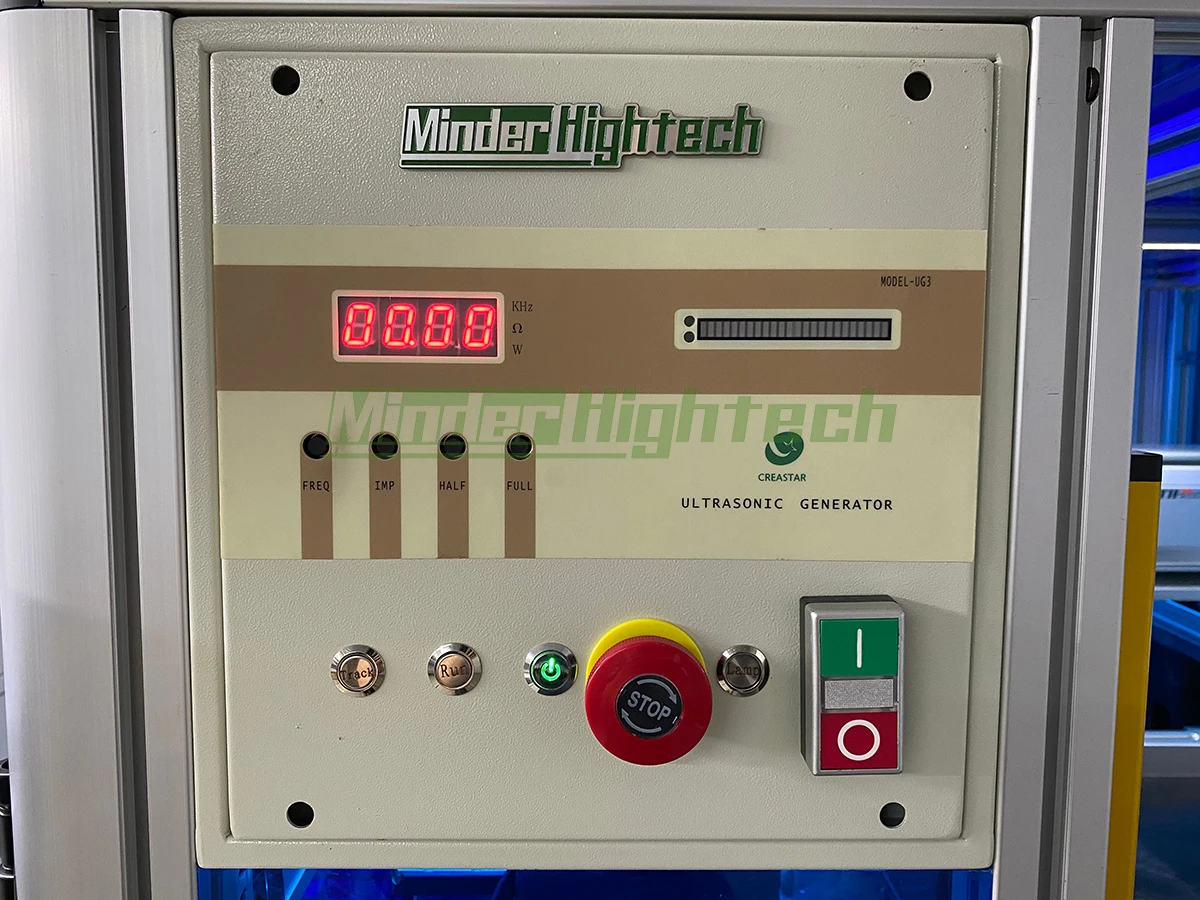

2,Digital & automatic frequency tracking ultrasonic system.
3,Digital pressure adjustment system.
4,With advance pattern recognizing system.
5,Full closed-loop motion control system.
6,With like bad bondingor wire feeding block etc.
full error alarm, ensure bonding quality.
7,Optional automatic bond tester.
8,Manual upload, automatic recognition and bonding,manual download.
2,Digital & automatic frequency tracking ultrasonic system.
3,Digital pressure adjustment system.
4,With advance pattern recognizing system.
5,Full closed-loop motion control system.
6,With like bad bondingor wire feeding block etc.
full error alarm, ensure bonding quality.
7,Optional automatic bond tester.
8,Manual upload, automatic recognition and bonding,manual download.
Detail display
Specification
Power:220v,50Hz,800w.
Suit for aluminum wire:125-500um(5-20mil)
Ultrasonic:
frequency:60kHz.
Power:0-30w. automatic changing between first bonding and second bonding.
X axis accuracy:0.02mm.
Time:10-500ms. (multi channel.)
Bonding pressure:50-1200g(multi channel)
Bonding speed:2s/wire.depending on other situation.
Working area:
XY:400*800mm(with Rail transportation from left to right, can connect to production line).
Z:50mm.
C:+-90degree.
Dimension:1500mm*2200mm*1900mm
Weight:~1220KG
Suit for aluminum wire:125-500um(5-20mil)
Ultrasonic:
frequency:60kHz.
Power:0-30w. automatic changing between first bonding and second bonding.
X axis accuracy:0.02mm.
Time:10-500ms. (multi channel.)
Bonding pressure:50-1200g(multi channel)
Bonding speed:2s/wire.depending on other situation.
Working area:
XY:400*800mm(with Rail transportation from left to right, can connect to production line).
Z:50mm.
C:+-90degree.
Dimension:1500mm*2200mm*1900mm
Weight:~1220KG

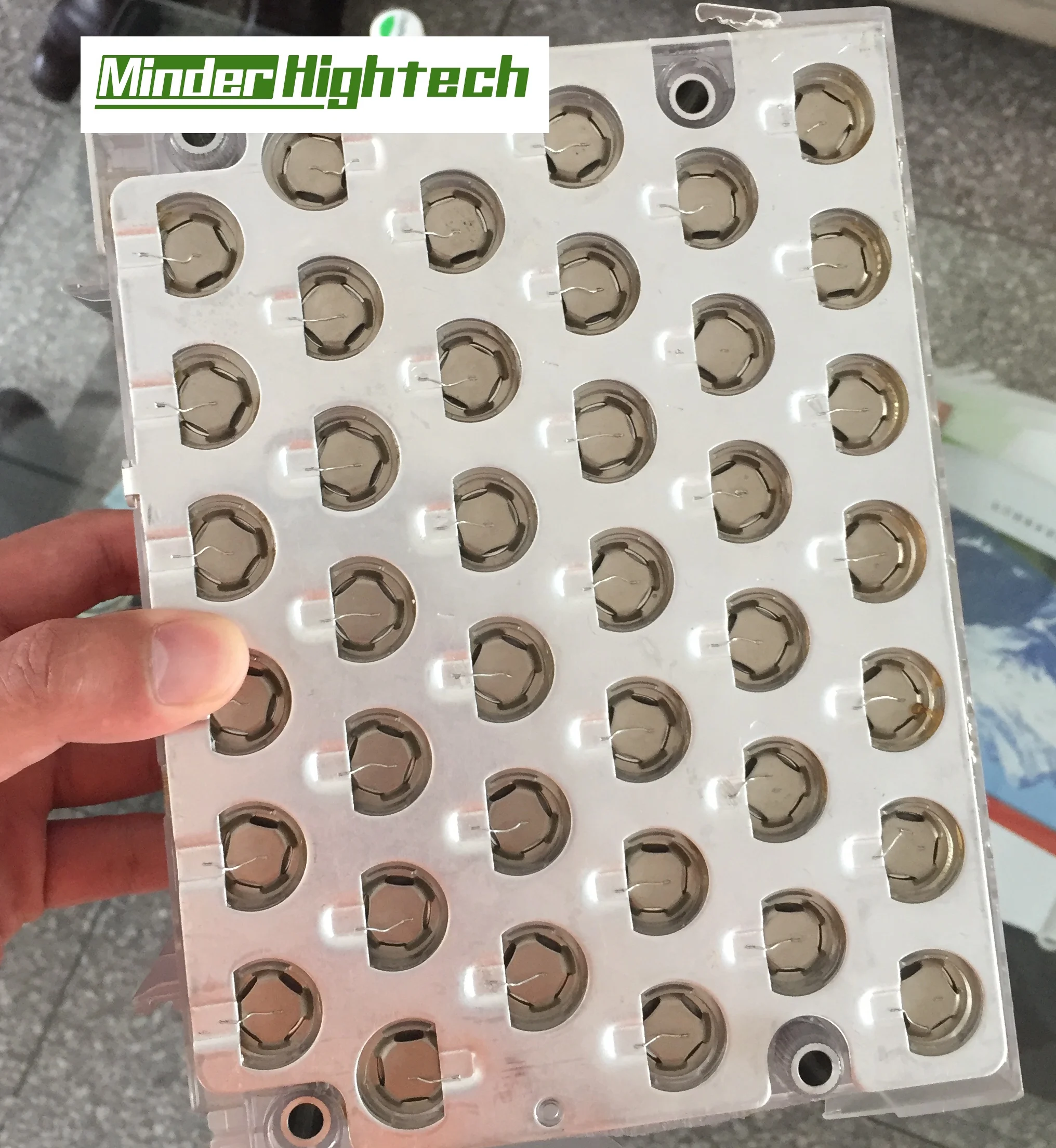

Sample

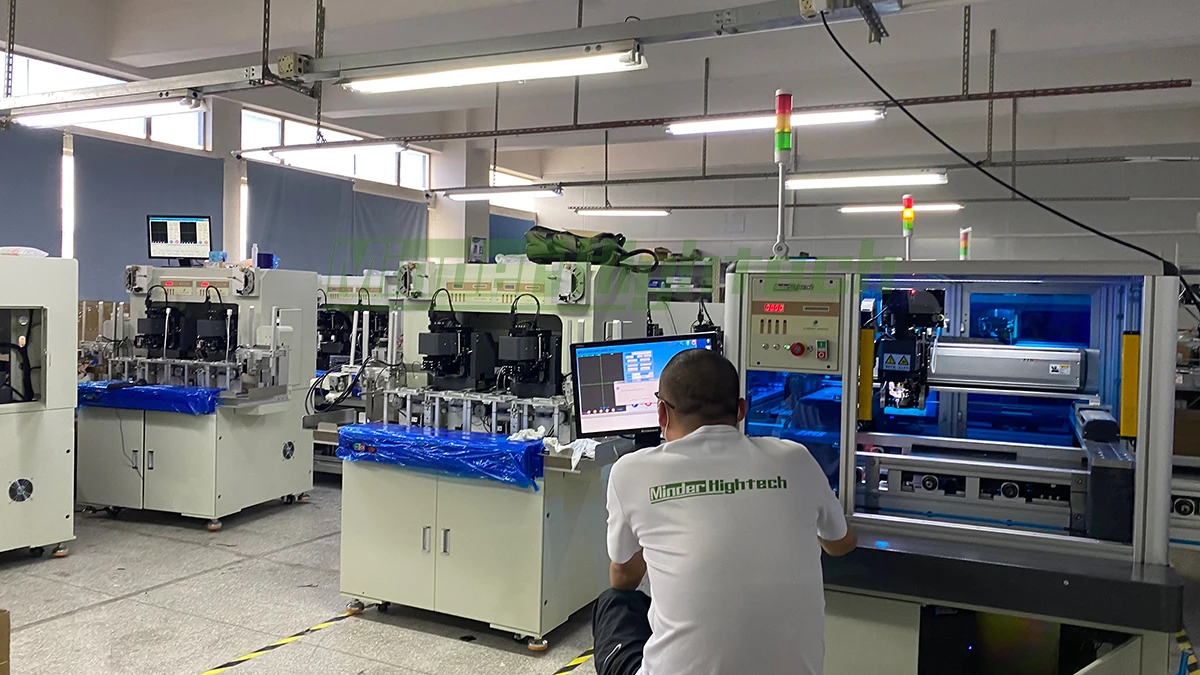

Factory
Packing & Delivery
If you want to konw more,please contact our sales engineer:
