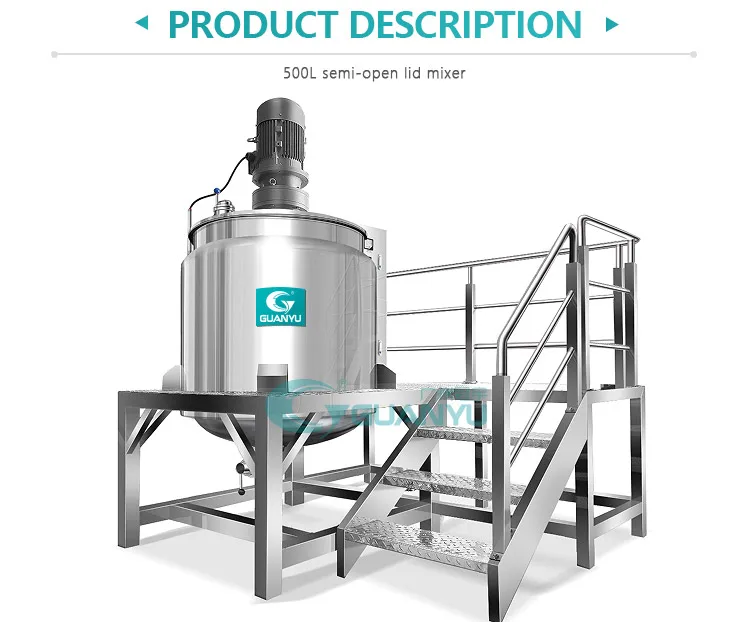

Continuous Stirred Tank Reactor Mixer Homogenizer Paste Liquid Detergent Mixing Tank Cream Lotion Making Machine
- Category: Reactors >>>
- Supplier: Guangzhou Guanyu Machinery Co. Ltd.
Share on (1600427221779):
Product Overview
Description
PERFORMANCES AND FEATURES

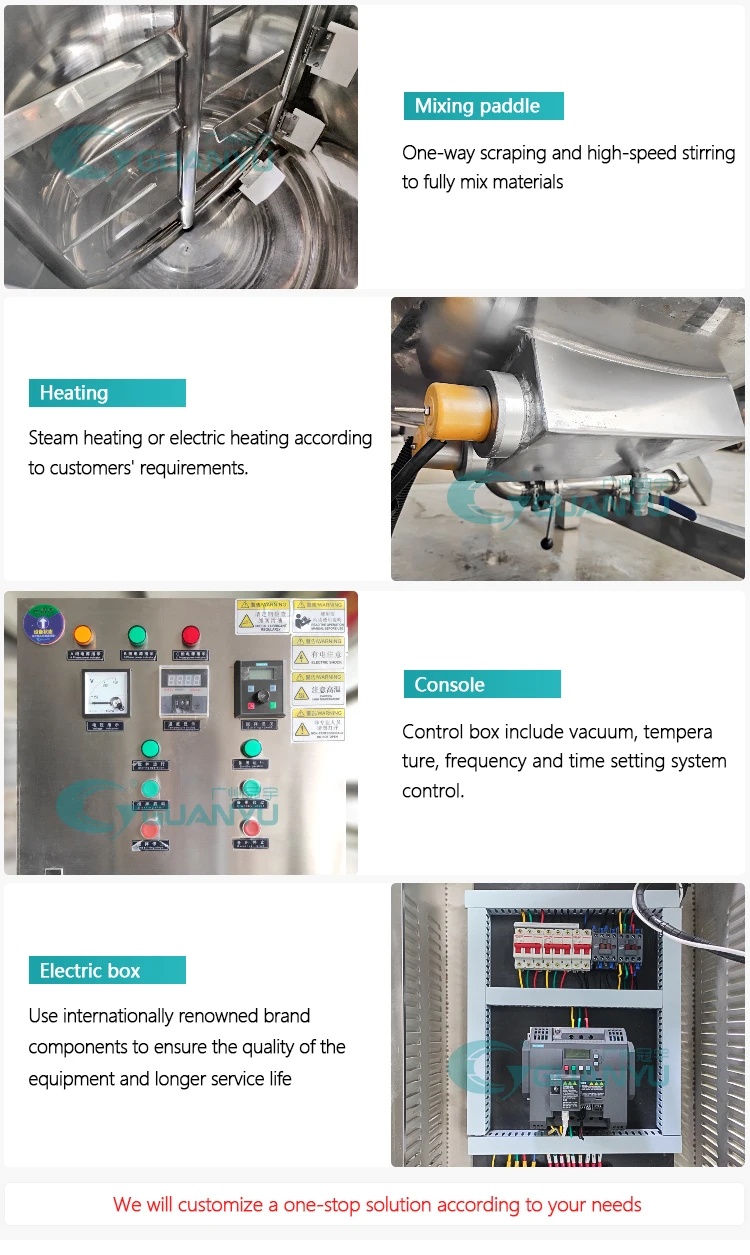

◭The all-round wall scraping mixing adopts the frequency converter for speed adjustment , so that high quality products of different processes according to customer requirements.
◭The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve many soluble materials such as AES , AESA , LSA , etc. during the liquid detergent production process so as to save energy consumpion and shorten production period.
◭The pot body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mirror polishing , which fully conforms to GMP requirements.

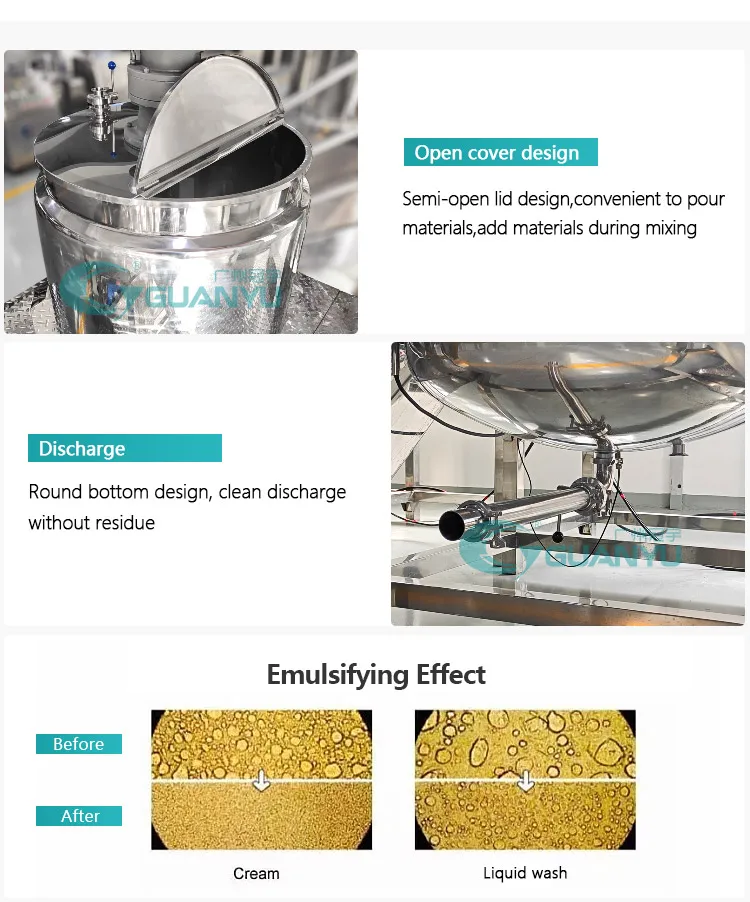

◭According to customer requirement , the tank can heat and cool materials. The heating way including steam heating and electric heating. Easy to discharge , bottom direct discharge or by transfer pump.
◭The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve many soluble materials such as AES , AESA , LSA , etc. during the liquid detergent production process so as to save energy consumpion and shorten production period.
◭The pot body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mirror polishing , which fully conforms to GMP requirements.
◭According to customer requirement , the tank can heat and cool materials. The heating way including steam heating and electric heating. Easy to discharge , bottom direct discharge or by transfer pump.
Product configuration
Specification VMH | Working Volume(L) | Heating method(Optional) | Dimension(L x W x H)(m) | Dimension(L x W x H)(m) |
150 | 150 | Electric heating or Steam heating | 2.6 x 2.4 x 2 | 650 |
250 | 250 | 2.8 x 2.5 x 2.2 | 850 | |
350 | 350 | 3 x 2.8 x 2.3 | 1100 | |
500 | 500 | 3.3 x 3 x 2.5 | 1500 | |
1000 | 1000 | 4.2 x 3.5 x 3.8 | 2500 |
