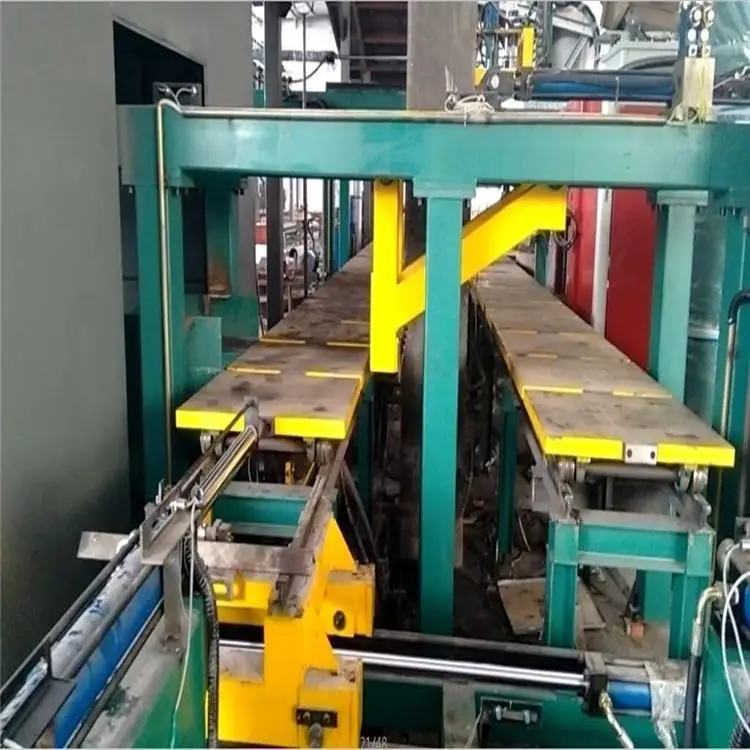

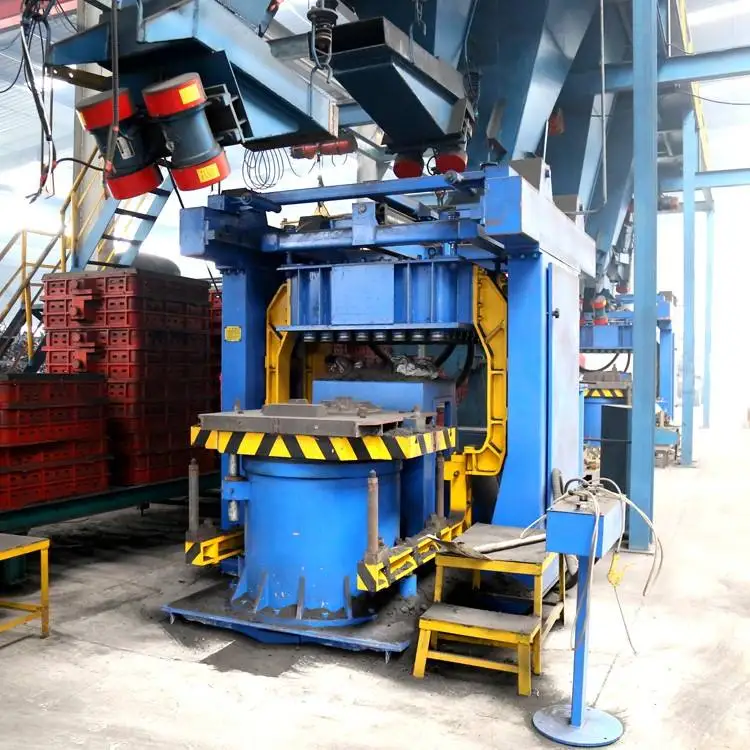

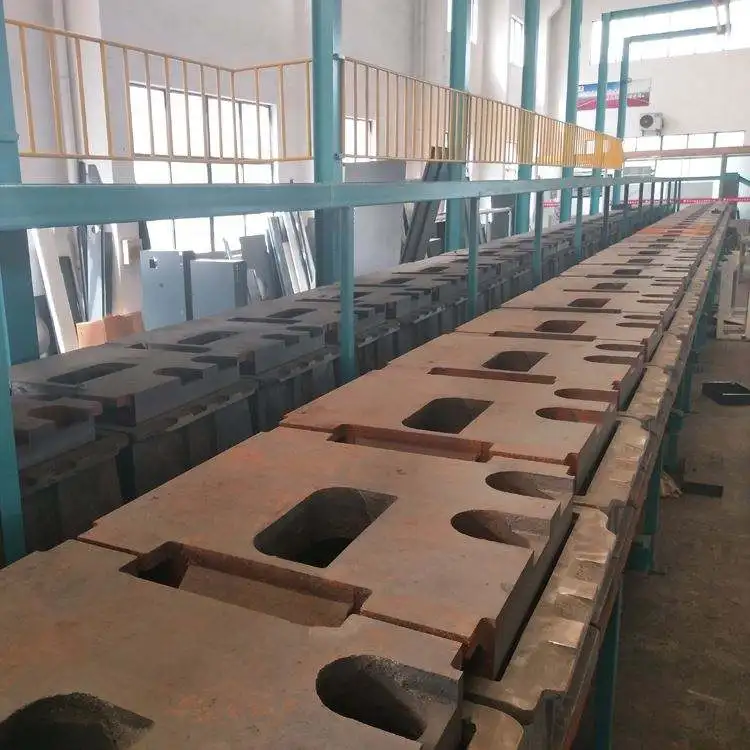

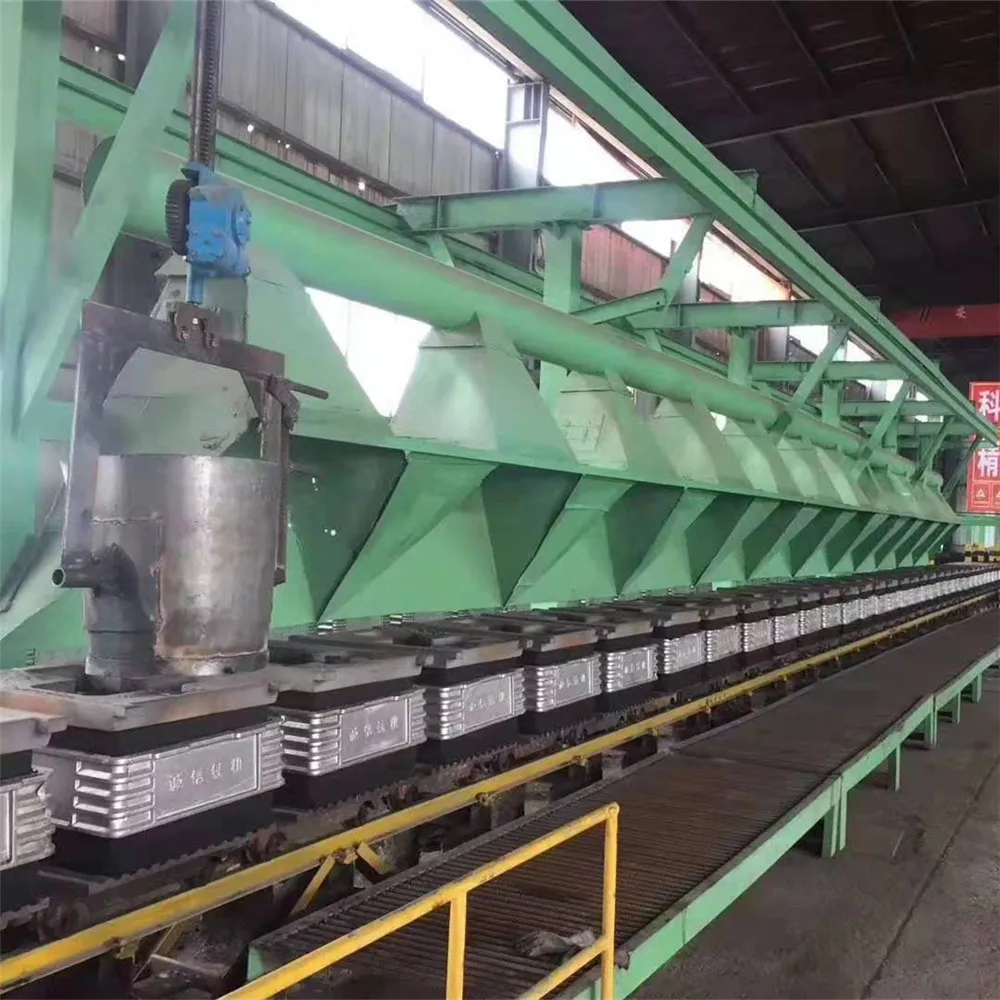

Automatic sand casting molding machine production line for green sand clay sand
- Category: Metal Casting Machinery >>>
- Supplier: Qingdao Tianzhuang Casting Machine Industry And Trade Co. Ltd.
Share on (1600427611867):
Product Overview
Description
Products Description

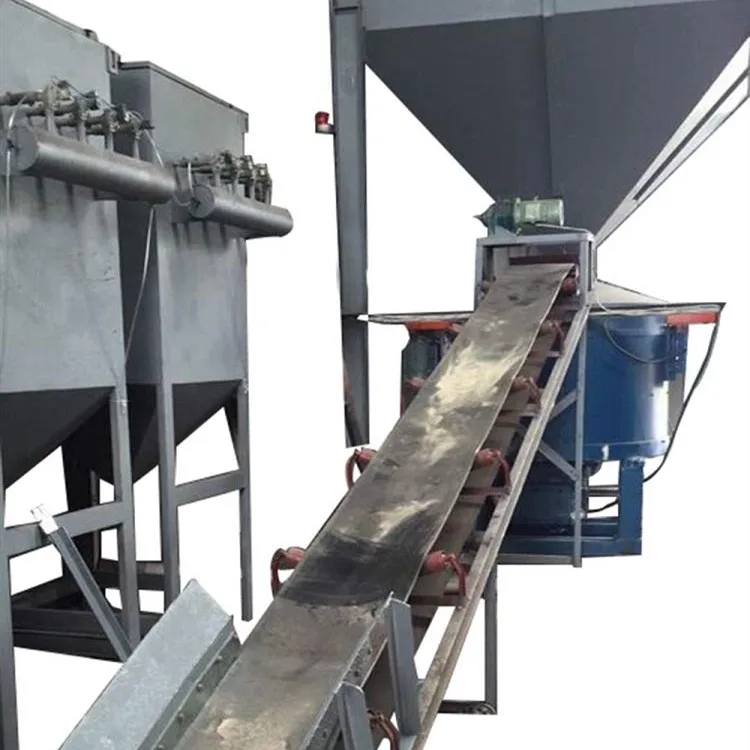

This clay sand foundry molding line/green sand foundry molding line base on Z14series molding machine.This clay sand foundry molding line/green sand foundry molding line include belt conveyor machine,green sand mixer,elevator,green sand conveyor belt,discharging system,sand hopper,Z14 series molding machine,trolley,rail,hydraulic station,sand box,all in all the whole set moulding line.
Until now,we supply successfully 30sets this clay sand foundry molding line/green sand foundry molding line to China domestic foundry workshop;8sets this clay sand foundry molding line/green sand foundry molding line to foreign foundry workshop.So you can fully trust our rich experience on it.
Until now,we supply successfully 30sets this clay sand foundry molding line/green sand foundry molding line to China domestic foundry workshop;8sets this clay sand foundry molding line/green sand foundry molding line to foreign foundry workshop.So you can fully trust our rich experience on it.
Application:

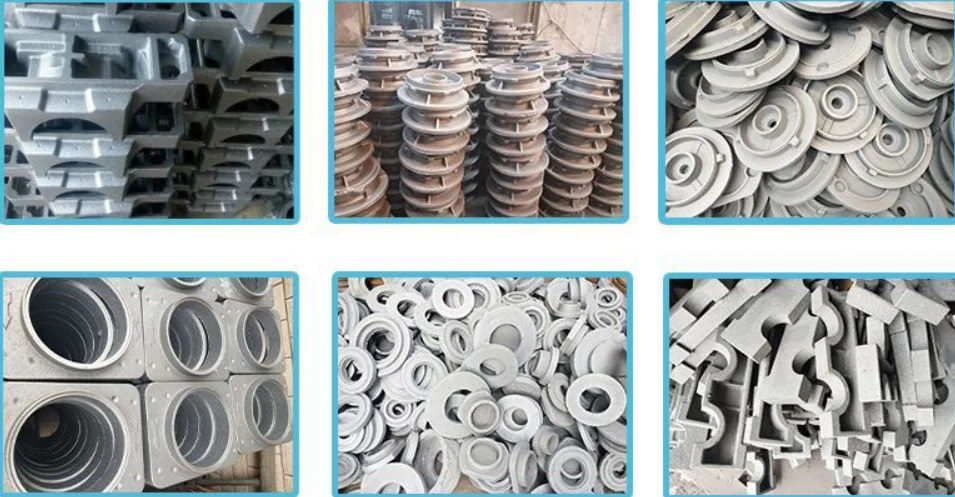

Widely used in castings, machinery parts, auto and motorcycle parts, valves, bearings, cylinder head, flywheel housing and brake caliper, but also pipe fitting, shaft and cover, like T joint, elbow and clampetc . The working process:

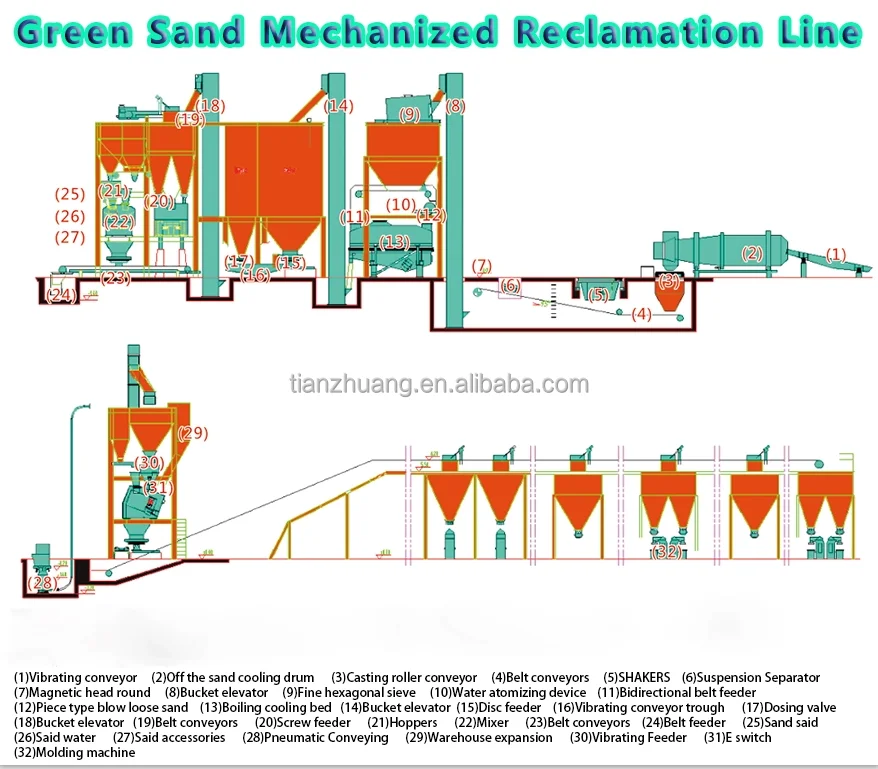

This production line is eddy current centrifugal machinery regeneration device.Sand through quantitative device regeneration of high speed rotation plate, under the action of centrifugal force to the wear ring, all round between sand and the wear ring and sand repeatedly between friction and collision, the sand on the surface of the film adhesive has been removed, regeneration after sand from falling between disc wear ring and regeneration, at the same time, and regenerative disc in a shaft of fan drum wind up, forming strong airflow to the whereabouts of sand boil, air separation, go to the film adhesive and dust, satisfy the technological requirements of reclaimed sand.Old sand treatment after the death of low clay content, less the amount of new sand, sand high wet strength, after mixing liquid permeability is good.
Widely used in castings, machinery parts, auto and motorcycle parts, valves, bearings, cylinder head, flywheel housing and brake caliper, but also pipe fitting, shaft and cover, like T joint, elbow and clampetc . The working process:
This production line is eddy current centrifugal machinery regeneration device.Sand through quantitative device regeneration of high speed rotation plate, under the action of centrifugal force to the wear ring, all round between sand and the wear ring and sand repeatedly between friction and collision, the sand on the surface of the film adhesive has been removed, regeneration after sand from falling between disc wear ring and regeneration, at the same time, and regenerative disc in a shaft of fan drum wind up, forming strong airflow to the whereabouts of sand boil, air separation, go to the film adhesive and dust, satisfy the technological requirements of reclaimed sand.Old sand treatment after the death of low clay content, less the amount of new sand, sand high wet strength, after mixing liquid permeability is good.
Iten No. | Z143W | Z145W | Z146W | Z147W | Z148WB | Z148WK | Z149WK |
working table size (mm) | 560X420 | 600X550 | 700X550 | 800X575 | 900X730 | 1200X730 | 1200X1030 |
Compressed air consumption | 0.25M3 | 0.4M3 | 0.4M3 | 0.4M3 | 0.6M3 | 0.6M3 | 0.6M3 |
Foundry flask maximum dimension (mm) | 500*400*100 | 500*450* 200mm | 600*500*200 | 650*550*250 | 800*600*300 | 850*700*300 | 1000 *800* 320 |
Jolting load (kgf) | 250 | 250 | 300 | 400 | 450 | 600 | 800 |
air consumption（m³/mold） | 1~1.5m³/Mold | 1~1.5m³/Mold | 1~1.5m³/Mold | 1~1.5m³/Mold | 1~2.5m³/Mold | 1~2.5m³/Mold | 1~2.5m³/Mold |
Productivity (box / hour) | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 |
Distance compacting plate with worktable(mm) | 200-370 | 300-450 | 350-450 | 450-600 | 450-600 | 600-700 | 700-800 |
Outline dimension L*W*H (mm) | 950*680*1330mm | 1200*1000*1700mm | 1400*1000*1700mm | 1200*1100*1800mm | 1200*1200*1800mm | 1800*1300*2300 | 1060*1600*2380mm |

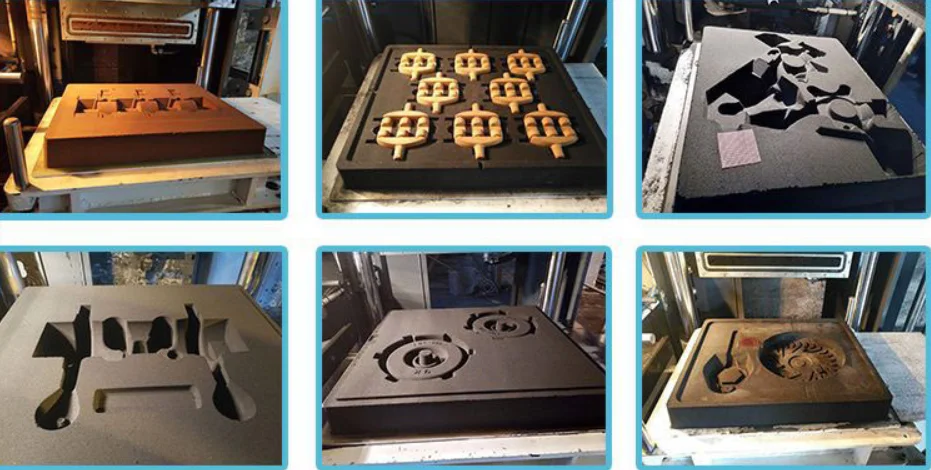

Product Show
Recommend Products
Packing&Shipping
Company Profile
Customer Photos
FAQ
Q1: Can i have your quotation?
A: First, please offer us the information of your material size, without these parameter, we are not able to recommend you the suitable machine.
Q 2: How to operate and maintain the machine?
A : First, we will provide a professional and detailed USER GUIDE to you with the machine; Second, we will debug the machine in the best status for you; At last, we also provide abroad technical training service.
Q 3: Where is your factory located ? How can I visit it ?
A : Our factory is located in Qingdao city,Shandong province,China. You can fly to Qingdao air port, we will pick you up.
Q 4 :What’s dimension of your workpiece ?
A : In order to configure suitable size machine for you. we should get your info. We can professional design as your requirement.
Q 5: Can you guarantee you quality?
A : Of course. We are the ferrous metal and non-ferrous metal foundry production series sand core machine manufacture factory ,more important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
A: First, please offer us the information of your material size, without these parameter, we are not able to recommend you the suitable machine.
Q 2: How to operate and maintain the machine?
A : First, we will provide a professional and detailed USER GUIDE to you with the machine; Second, we will debug the machine in the best status for you; At last, we also provide abroad technical training service.
Q 3: Where is your factory located ? How can I visit it ?
A : Our factory is located in Qingdao city,Shandong province,China. You can fly to Qingdao air port, we will pick you up.
Q 4 :What’s dimension of your workpiece ?
A : In order to configure suitable size machine for you. we should get your info. We can professional design as your requirement.
Q 5: Can you guarantee you quality?
A : Of course. We are the ferrous metal and non-ferrous metal foundry production series sand core machine manufacture factory ,more important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
