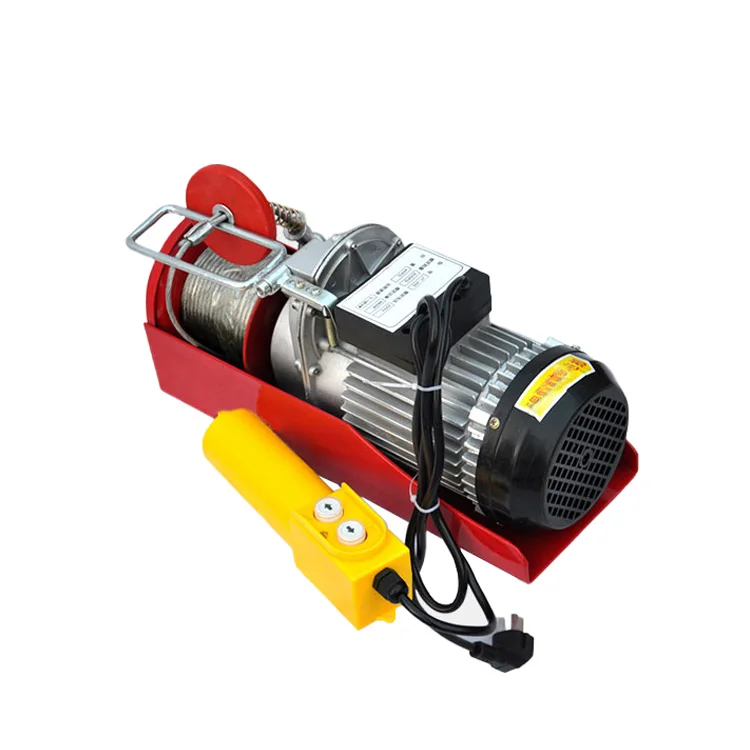

PA type 220V household 0.5T 1t small micro 50kg electric hoist
- Category: Hoists >>>
- Supplier: Henan Tianqiao Heavy Machinery Co. Ltd.
Share on (1600428439466):
Product Overview
Description
Product Description

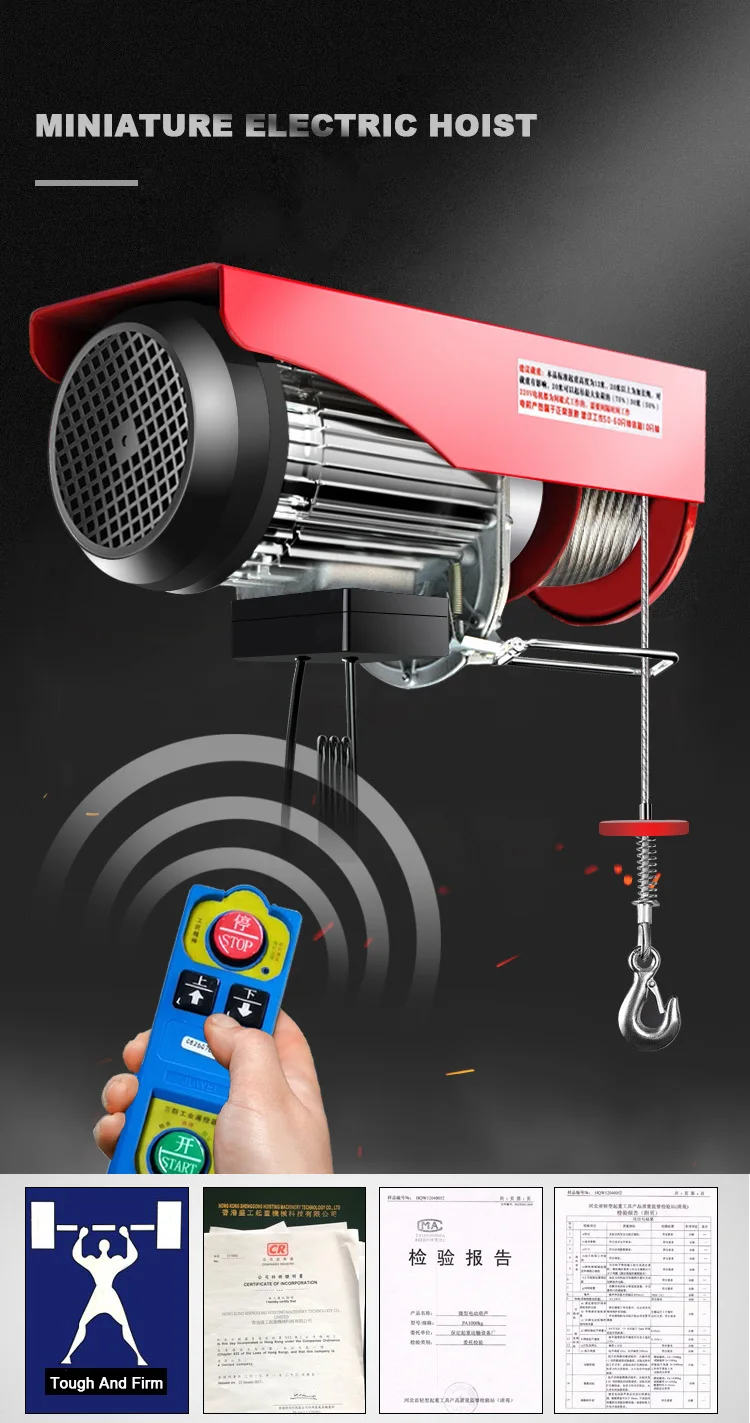

Wireless and wired dual-purpose (wireless needs to be purchased separately)
All button contacts adopt silver dots, which is more durable and safer
All button contacts adopt silver dots, which is more durable and safer

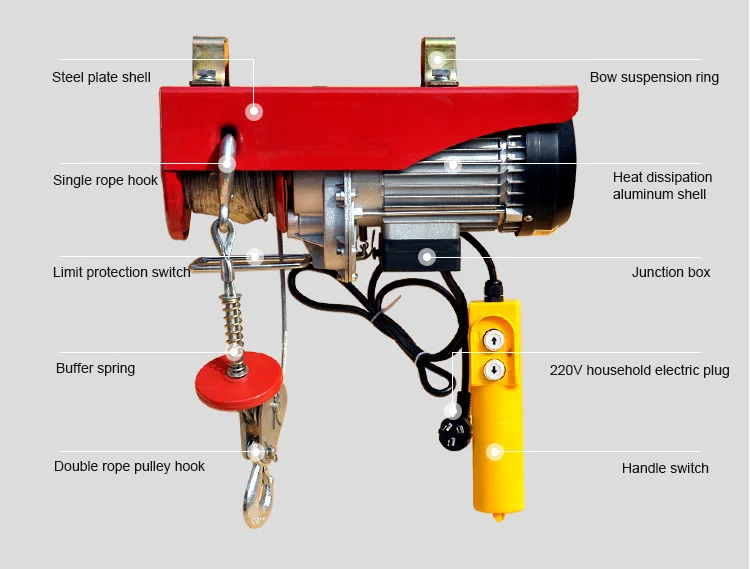

Features:

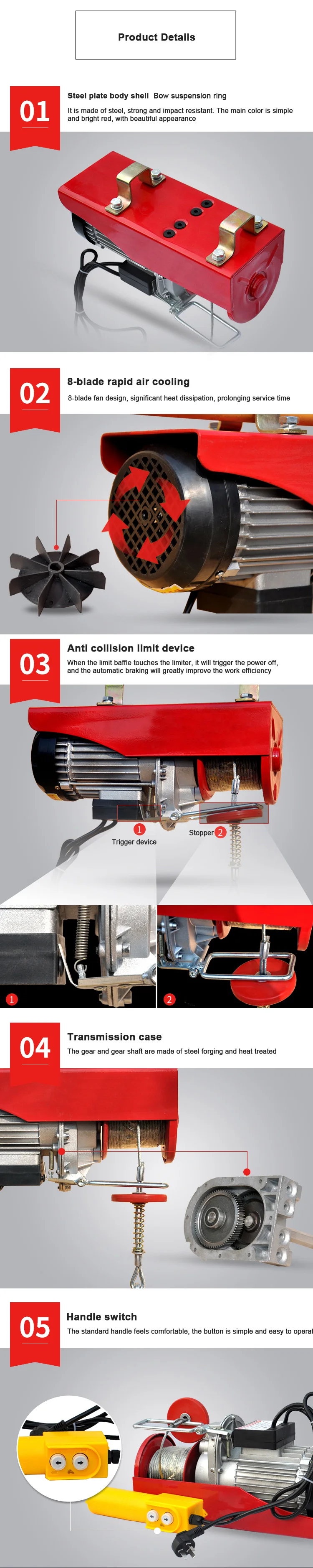

1. Adopt urgent stop switch and reinforced breaking switch with position limit. Protection class up to IP54, with thermal protection device.
2. Lifting hook can rotate 360degree
3. Designed for one-handed operation, small size, and single-phase power as a power source.
4. Drop-forged, heat-treated suspension hook and load hook mounted on swivel steel balls with safety latches.

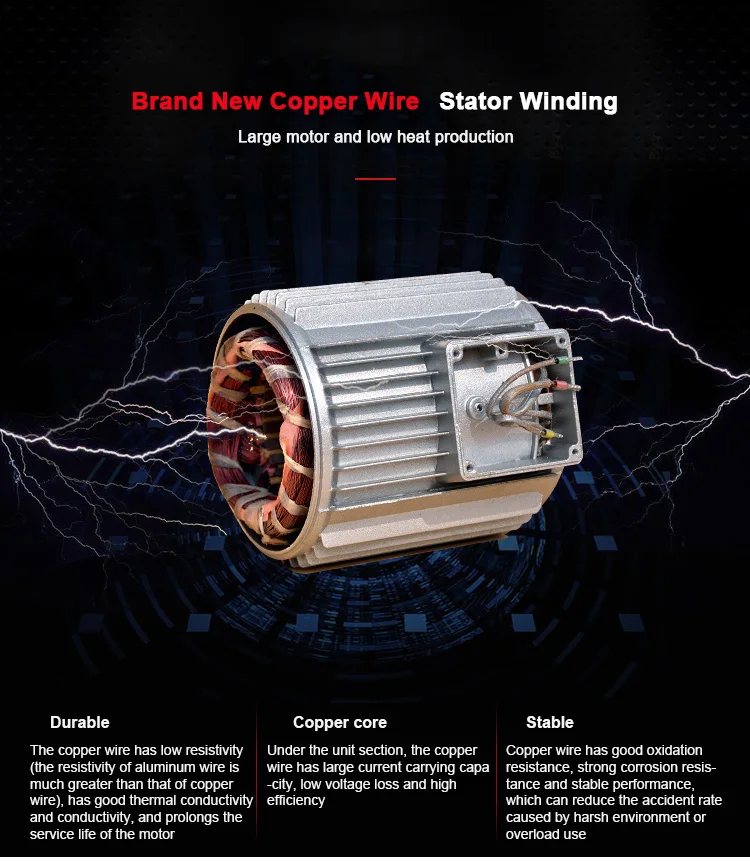

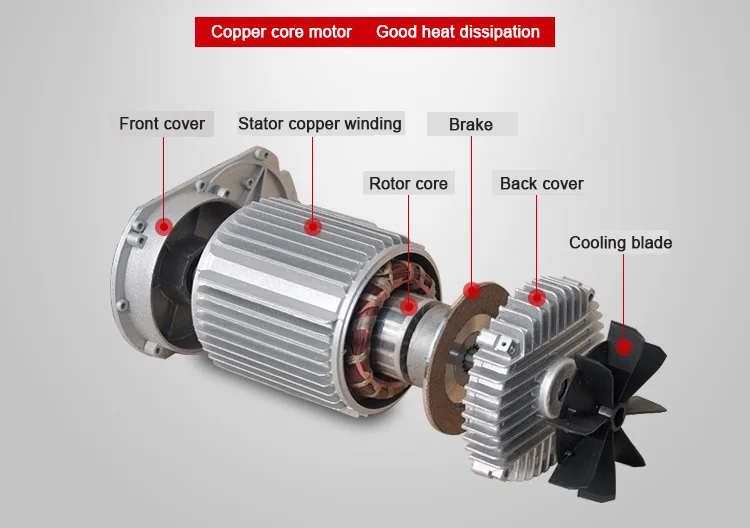

5. Motor insulation is B, magnetic single-phase. Double hook use, single hook use
6. Caged roller bearings on drum center shaft
7. Mini electric hoist speed can reach 10 m/min, the initial design rope length is 12 meters (longer can be customized), greatly increases the lifting weight of the mini electric hoist.
8. It can be applied in all kinds of locations in industry, business, handicraft industry and service industry not only on the overhead rails, but also be used in conjunction with many types of electric or manual cranes such as the single-girder crane, the double-girder crane, the cantilever crane and the gantry crane.
| Model PA200 | Model PA300 | ||||||

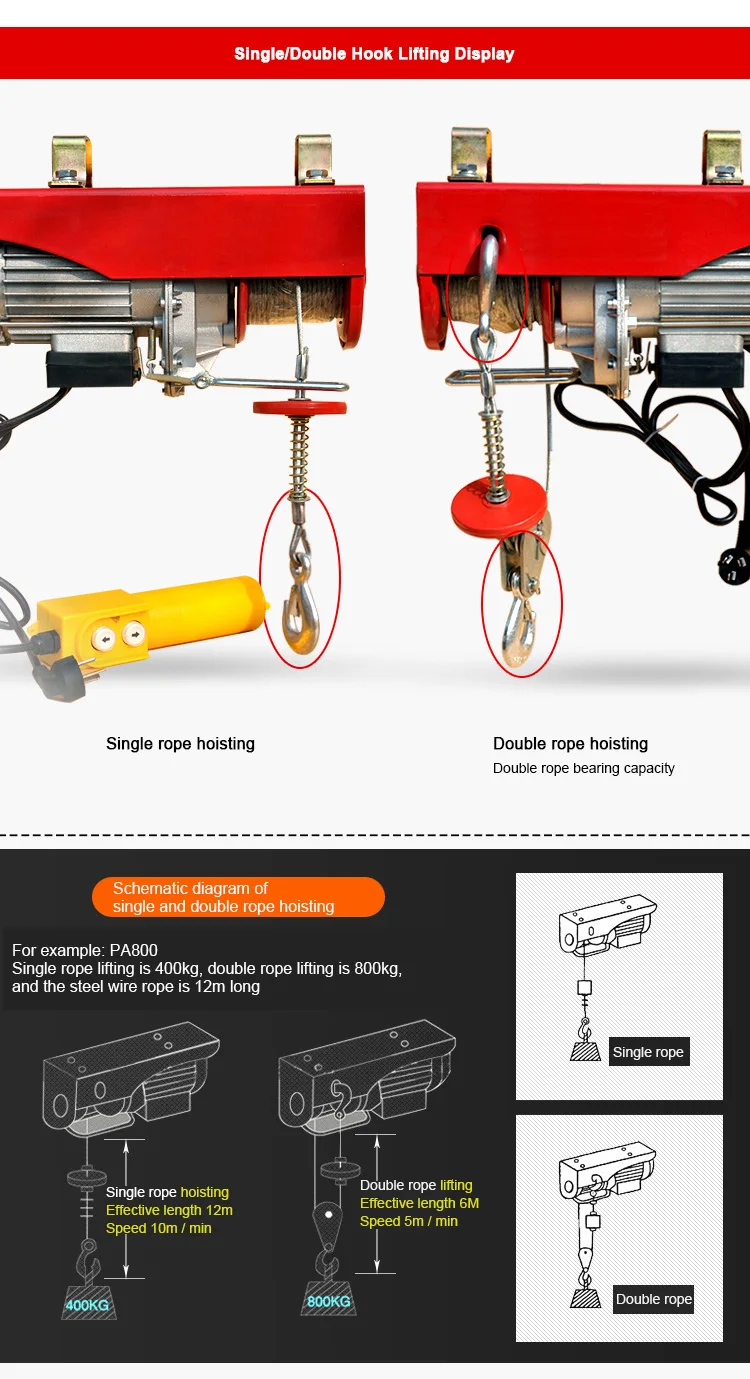

| Rope Type | Single rope | Double rope |  | Rope Type | Single rope | Double rope |
Wire rope length | 12m | 6m | Wire rope length | 12m | 6m | ||
Lifting speed | 12m/min | 6m/min | Lifting speed | 12m/min | 6m/min | ||
Lifting capacity | 100kg | 200kg | Lifting capacity | 150kg | 300kg | ||
Motor power | 510w | Motor power | 600w | ||||
Starting capacitance | 16uf | Starting capacitance | 20uf | ||||
Wire rope diameter | 3mm | Wire rope diameter | 3mm | ||||
Net weight | 10kg | Net weight | 11kg | ||||
Continuous working time | 30 Minutes | Continuous working time | 30 Minutes | ||||
| With sports car specifications | 0.5T (optional) | With sports car specifications | 0.5T (optional) | ||||
| Model PA400 | Model PA600 | ||||||
 | Rope Type | Single rope | Double rope |  | Rope Type | Single rope | Double rope |
| Wire rope length | 12m | 6m | Wire rope length | 12m | 6m | ||
| Lifting speed | 12m/min | 6m/min | Lifting speed | 12m/min | 6m/min | ||
| Lifting capacity | 200kg | 400kg | Lifting capacity | 300kg | 600kg | ||
| Motor power | 980w | Motor power | 1400w | ||||
| Starting capacitance | 30uf | Starting capacitance | 40uf | ||||
| Wire rope diameter | 5mm | Wire rope diameter | 5.2mm | ||||
| Net weight | 15.8kg | Net weight | 17kg | ||||
| Continuous working time | 1-2 hours | Continuous working time | 2-3 hours | ||||
| With sports car specifications | 0.5T (optional) | With sports car specifications | 1 ton 6 wheels | ||||
| Model PA800 | Model PA1000 | ||||||
 | Rope Type | Single rope | Double rope |  | Rope Type | Single rope | Double rope |
| Wire rope length | 12m | 6m | Wire rope length | 12m | 6m | ||
| Lifting speed | 12m/min | 6m/min | Lifting speed | 12m/min | 6m/min | ||
| Lifting capacity | 400kg | 600kg | Lifting capacity | 500kg | 1000kg | ||
| Motor power | 1800w | Motor power | 2200w | ||||
| Starting capacitance | 50uf | Starting capacitance | 70uf | ||||
| Wire rope diameter | 5.2mm | Wire rope diameter | 6.2mm | ||||
| Net weight | 20kg | Net weight | 29.4kg | ||||
| Continuous working time | 3-4 hours | Continuous working time | 3-4 hours | ||||
| With sports car specifications | 1 ton 6 wheels | With sports car specifications | 1 ton 6 wheels | ||||
Application:
It is widely used in production lines, assembly lines, assembly machines, logistics and transportation of modern industries such as machinery manufacturing, electronics, automobile, shipbuilding, workpiece assembly and high-tech industrial zones. Only when working in warehouses, docks, batching, hanging baskets and workplaces with narrow space can its quality be highlighted.

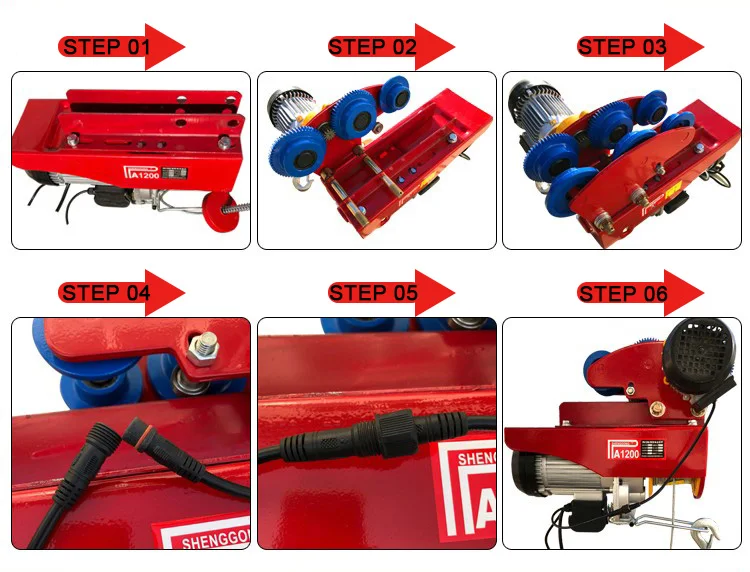

Installation steps:
Related Products
Packaging & Shipping
Main Products
Company Information
With more than 30 years of experience in the crane industry, our company started its activities in 2009 with the power and confidence of our valued customers is one of the leading companies in the sector is moving forward with confident steps.
Tianqiao Heavy Machinery is ISO 9001:2015 certified, and committed to a rigorous, ongoing process of quality control for all our processes. Our 36,000 square meter state-of-the-art manufacturing facility allows us to manufacture our products in the most efficient and cost-effective manner possible.
Customer Feedback
FAQ
Q. Are you manufacturer?
A: Yes, we are professional manufacturer of boiler and pressure vessels in Henan, China.
Q: Do you have any Certificate?
A: Yes. Our boiler have got China GB ISO certificates and CE certificate of EU. We also can provide ASME, GHOST and other necessary certificates if you need.
Q: How can I pay you?
A: T/T, Western Union, Money Gram and Ali Trade Assurance is better.
Q. What about installation?
A: We provide 1 or 2 technicians overseas services for installation, debugging and training.
Q: How can you ensure the quality?
A: Before delivery, every product will be made test. You are also warmly welcomed to come to our factory to make inspection.
Q: How about the delivery time?
A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
Q: What is the MOQ?/What is your MOQ?
A: 1 Set. We can accept sample orders for trial order.
Q: Can I get your crane products with customized personalized service?
A: Yes, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
Q: How about the warranty?
A: All Tianqiao’s products enjoy 2 years’ warranty, and we provide after sales service and technical support, when find any questions in installing, feel free to contact us.
Q: The space of my workshop is limited, can the crane ok for me?
A: For low headroom workshop, we have special products. The details demension our engineer will be design for you.
Q: What’s the Safety device
A: Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
