ANENG PN100 Clamp Meter 1mA Accuracy Mini Digital AC/DC Current Clamp Multimeter Resistance Frequency Tester Meter
- Category: Clamp Meters >>>
- Supplier: Guangdong Jinyuanquan Electronic Technology Co. Ltd.
Share on (1600428505738):
Product Overview
Description

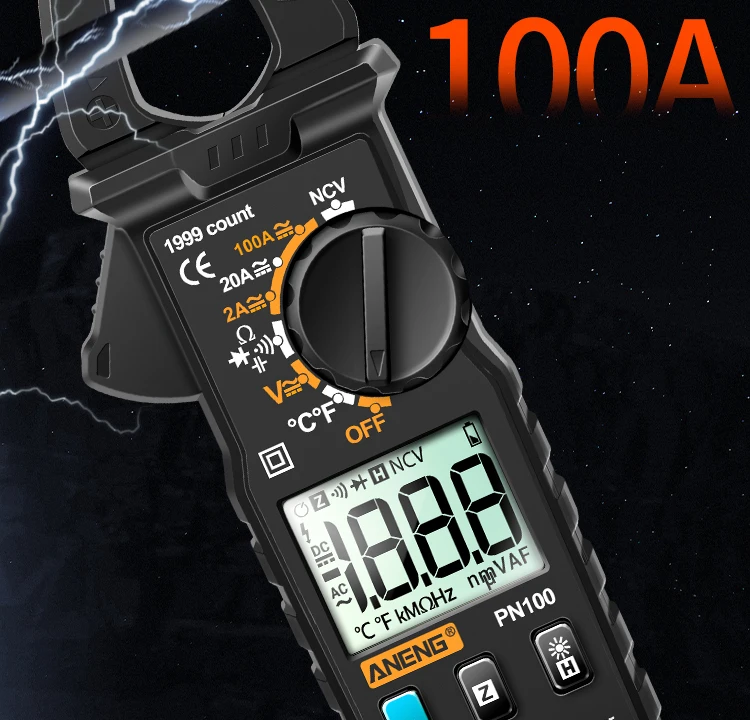

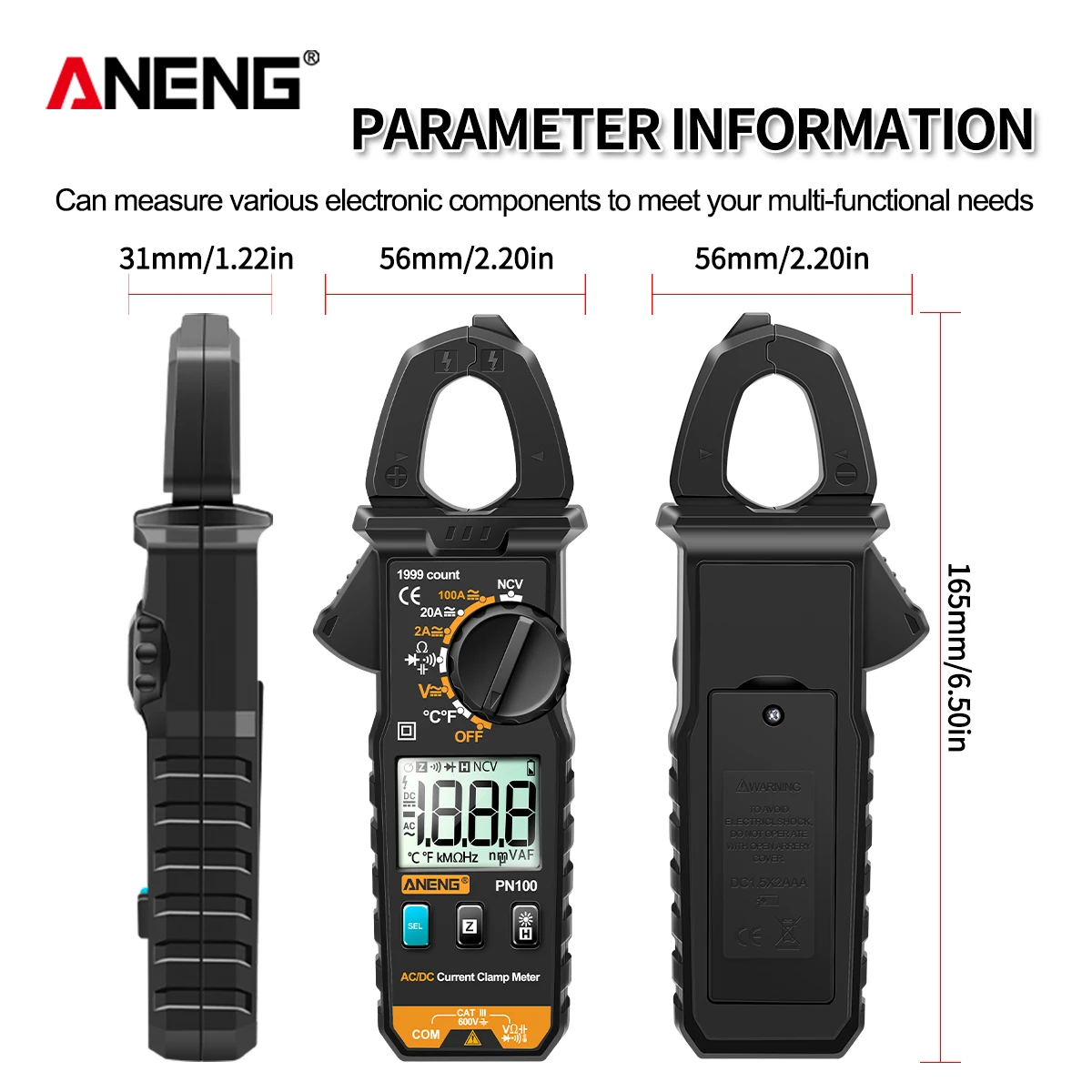

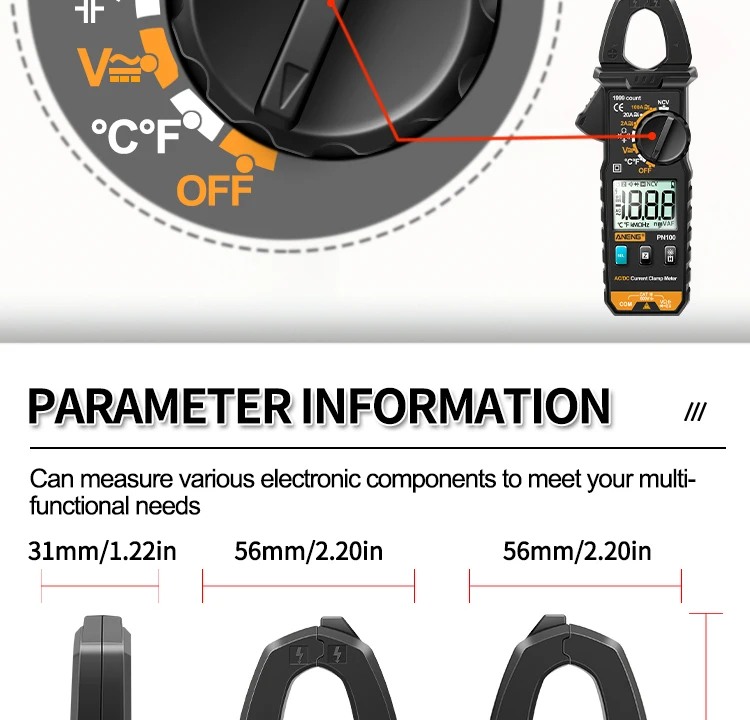

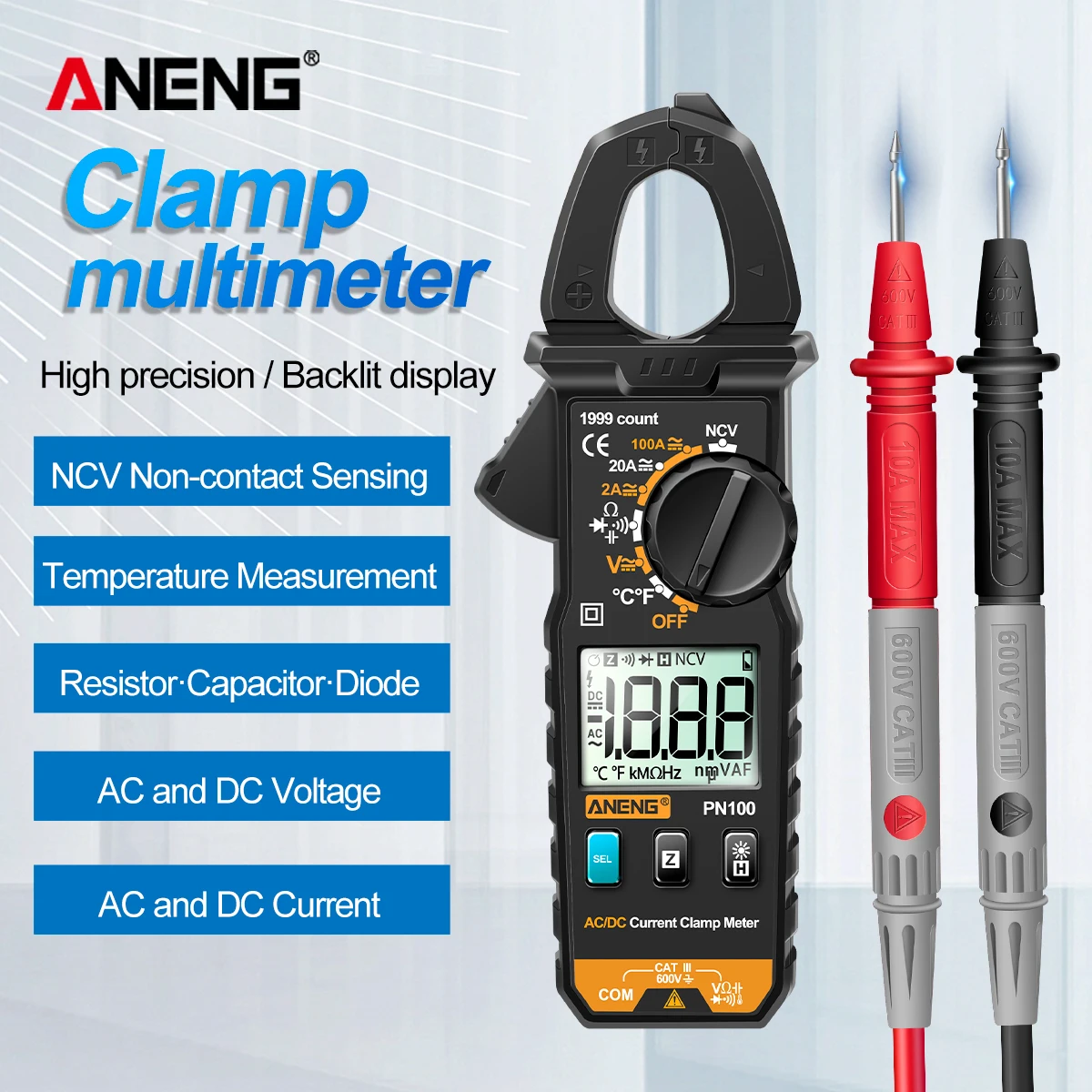

ANENG PN100 Mini Clamp Meter 1mA Accuracy Auto Range 100A 600V NCV High Precision Multimeter Protable Digital Clamp Meter With Temperature Probe
A.Overview:

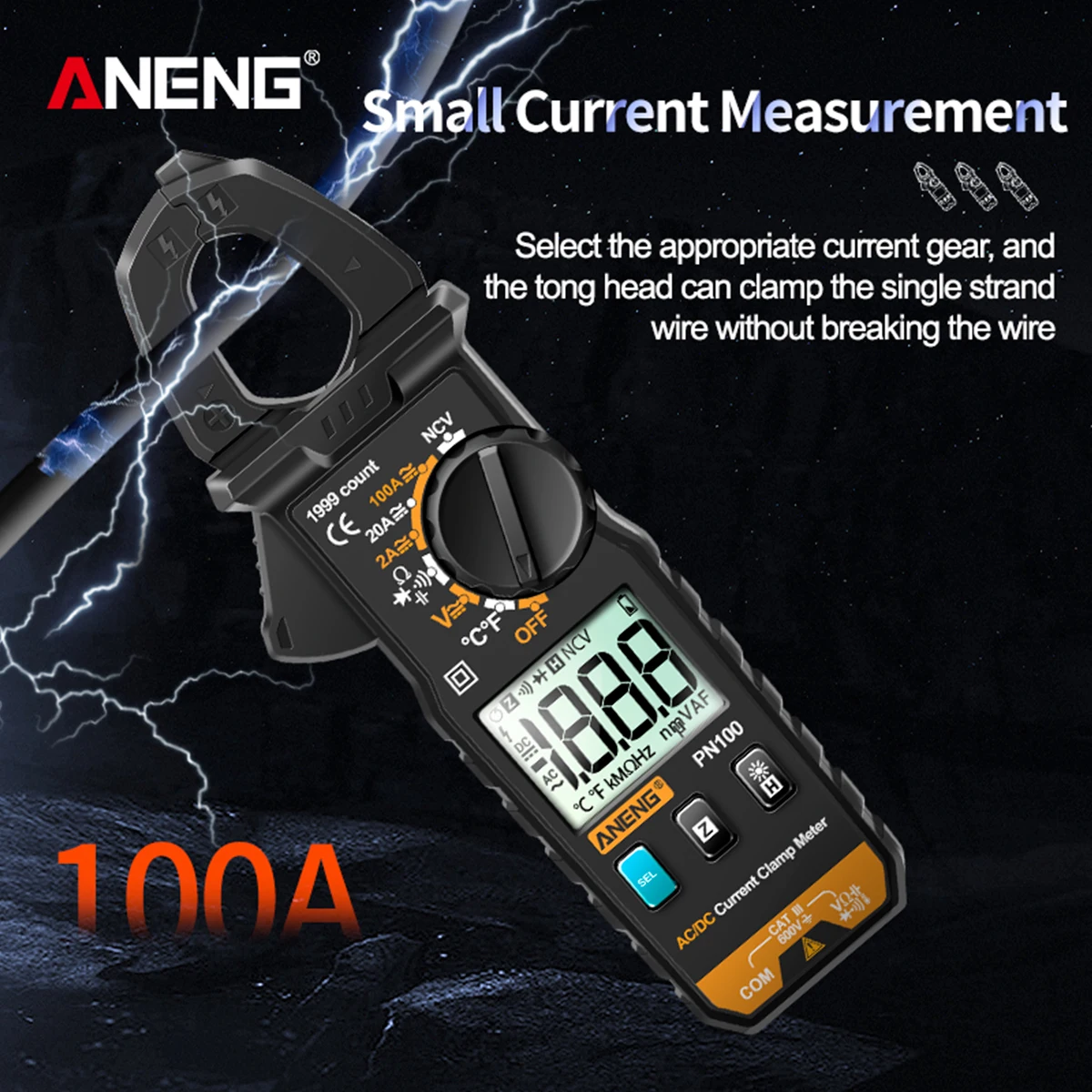

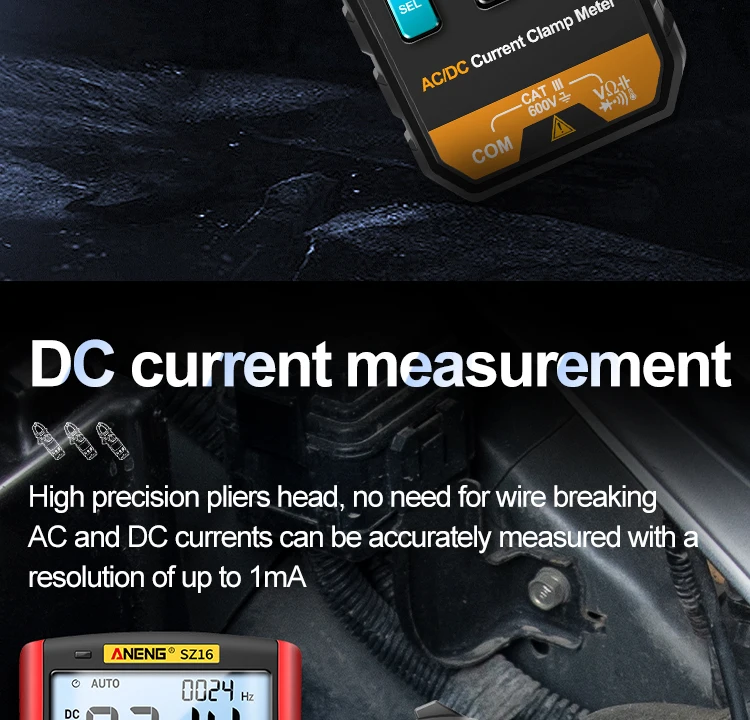

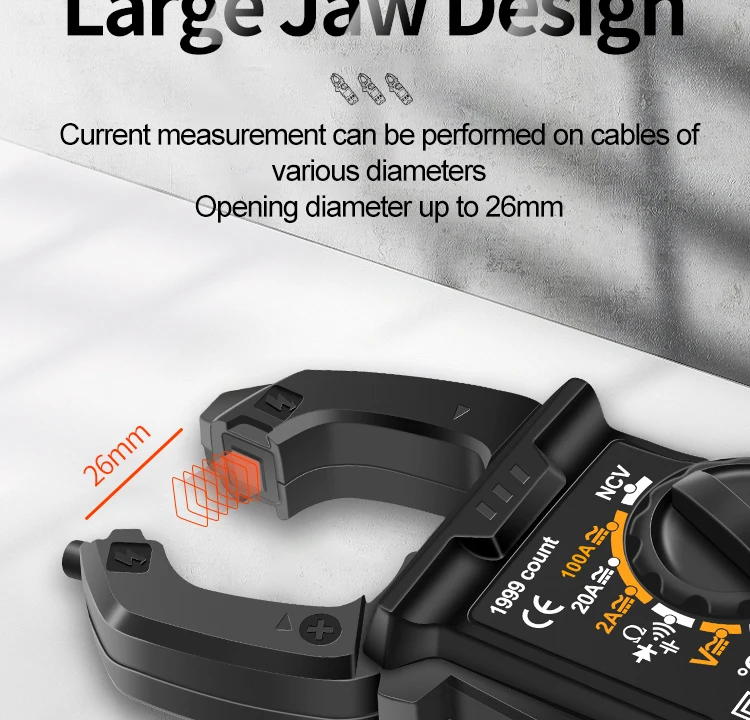

This instrument is a digital AC/DC minature clamp meter, current with a resolution of up to1mA, highly reliable and precise and easy to carry.It has automatic range,reading hold, temperature measure, automatic shutdown, backlight, full range overload protection and battery under-voltage indication. Whether used by professionals, factories, schools, enthusiasts or families, it is an ideal multi-functional instrument.

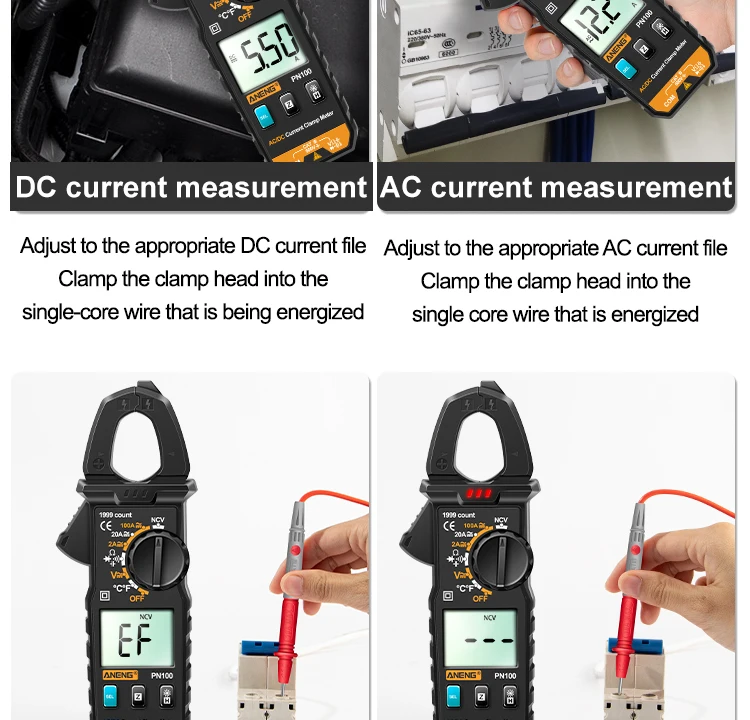

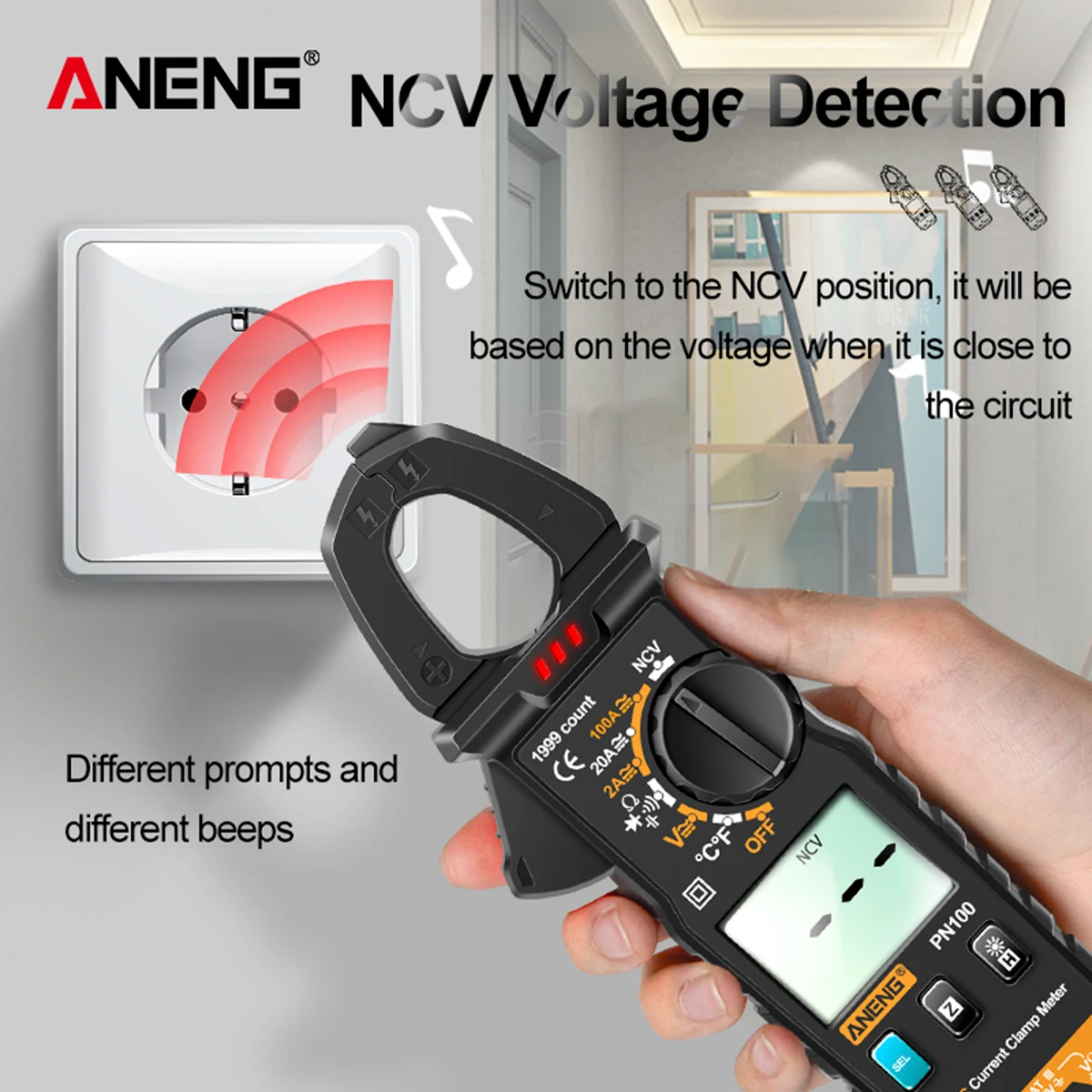

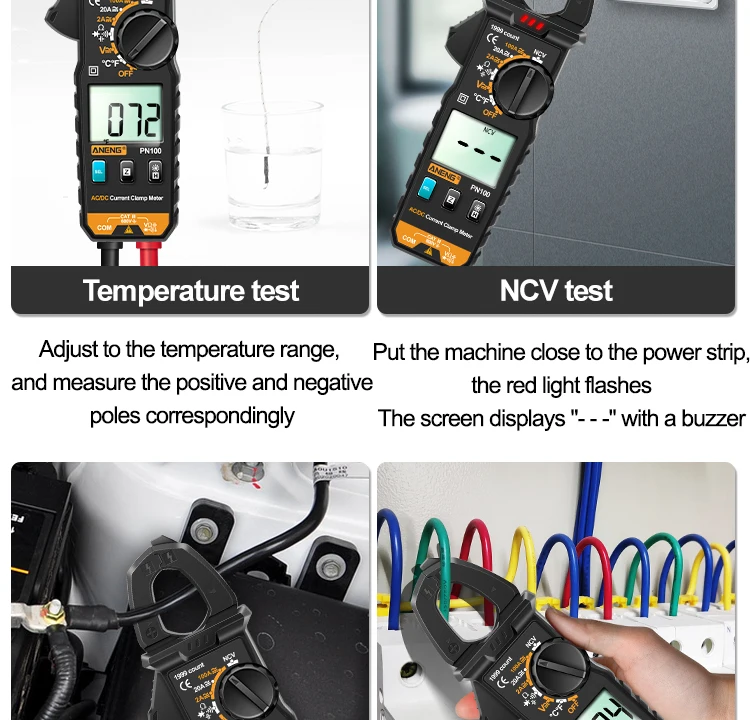

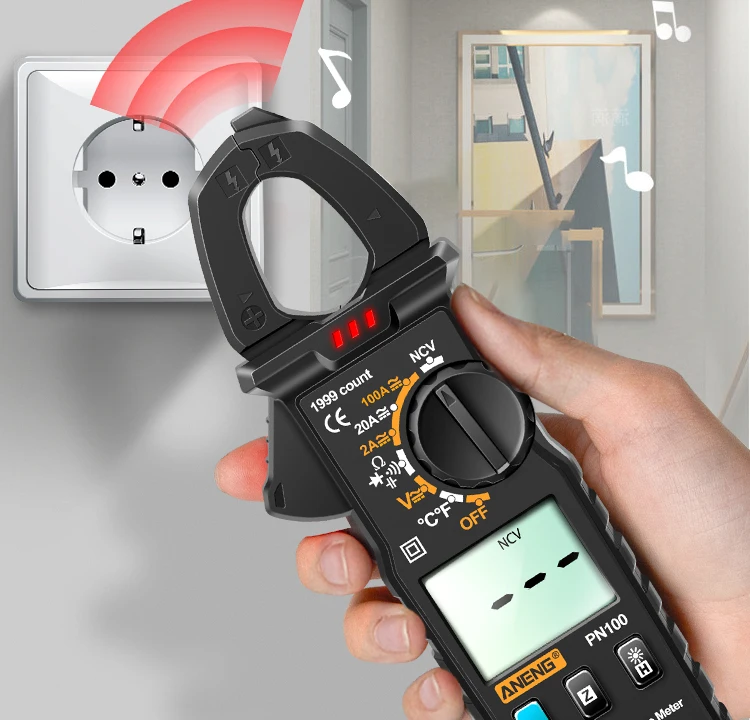

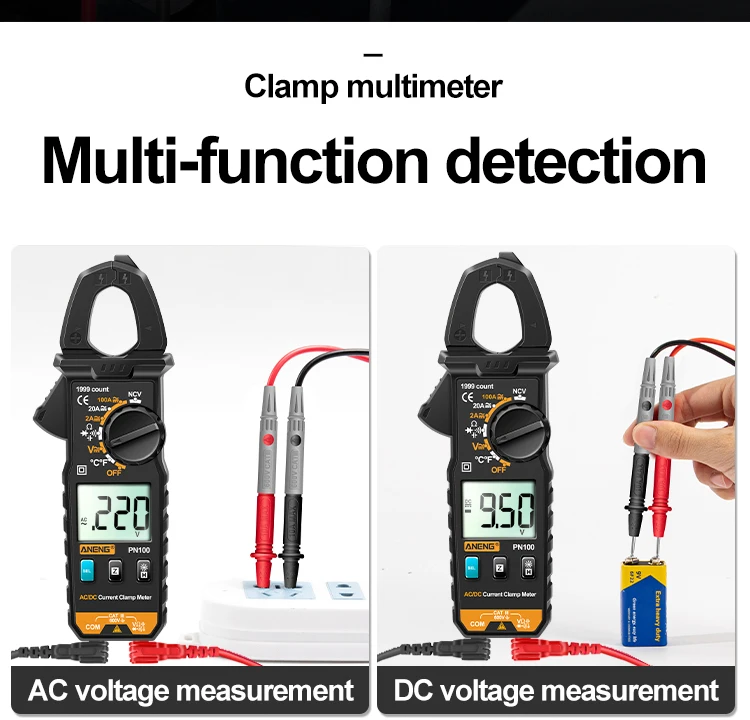

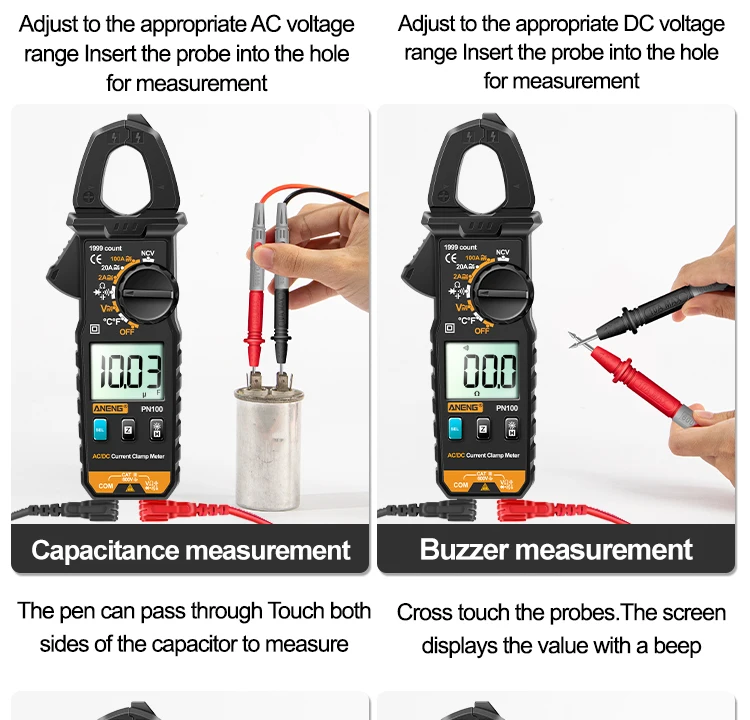

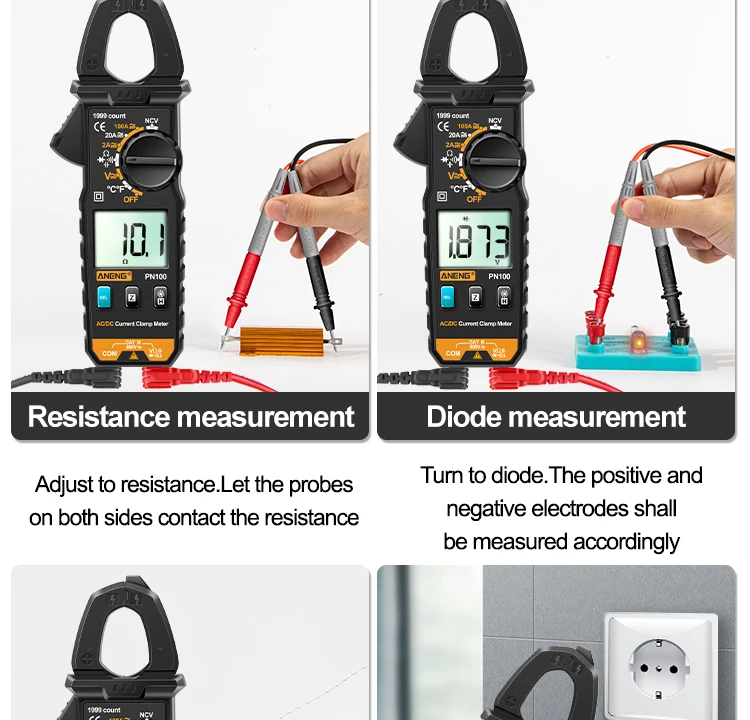

The meter can be used for the test of AC/DC, AC/DC voltage, resistance, capacity, diode, continuity, temperature or NCV test.

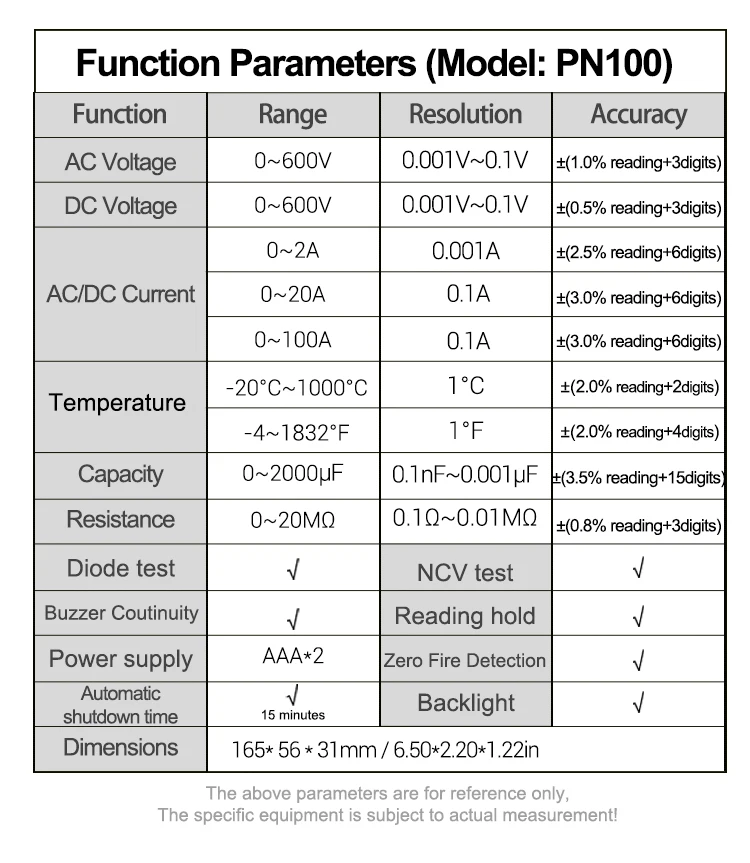

B.Specification:
Range | Accuracy | |
DC Voltage | 2V/20V/200V/600V | ±(0.5%+3) |
AC Voltage | 2V/20V/200V/600V | ±(1.0%+3) |
Resistance | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ±(0.8%+3) |
Capacity | 200nF/2uF/20uF/200uF/2000uF | ±(3.5%+15) |
AC Current | 2A | ±(2.5%+6) |
20A/100A | ±(3.0%+6) | |
DC Current | 2A | ±(2.5%+6) |
20A/100A | ±(3.0%+6) | |
Temperature | -20~1000℃ | ±(2.0%+2) |
-4~1832℉ | ±(2.0%+4) | |
Diode | 0.15V~2.5V | |
Buzzer | yes |

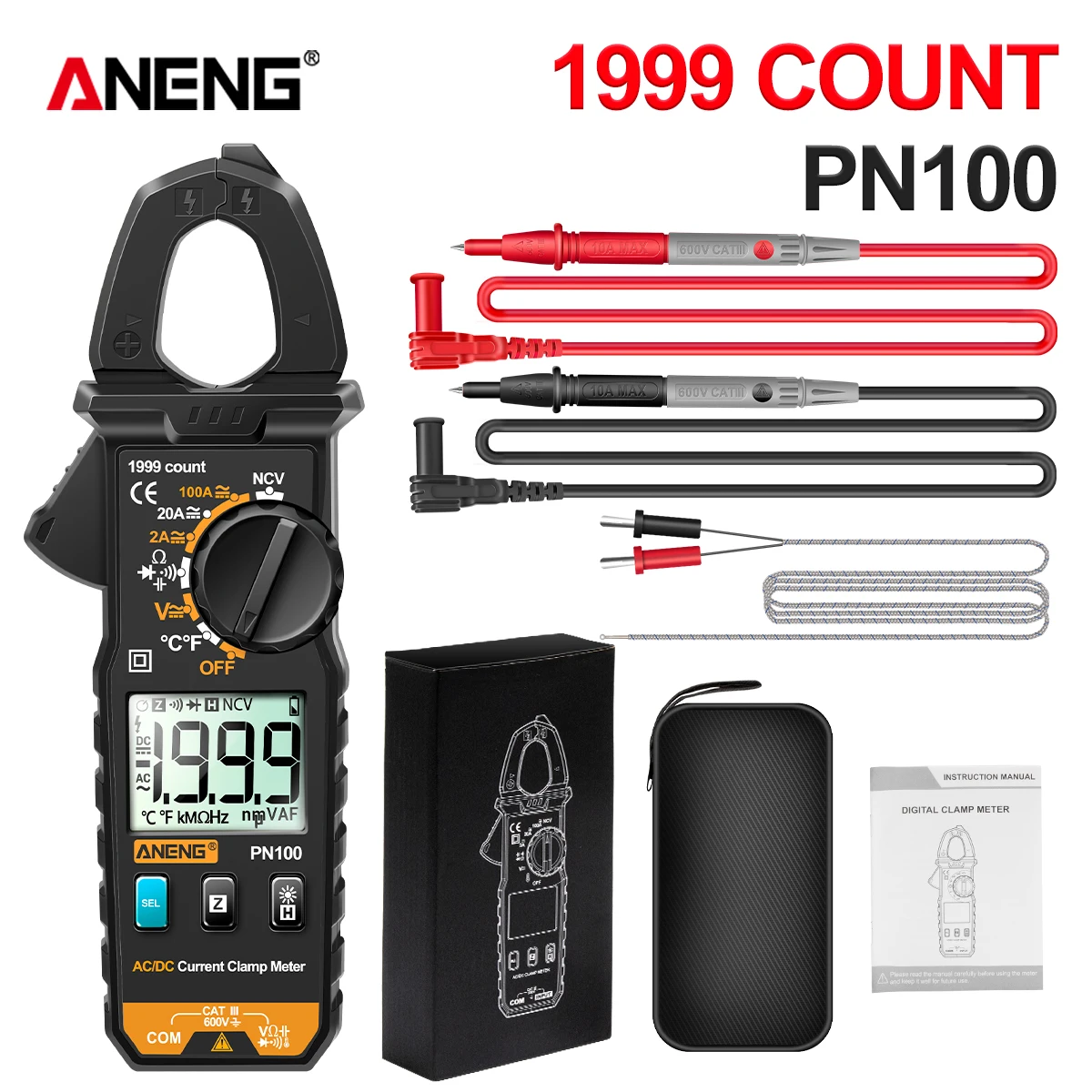

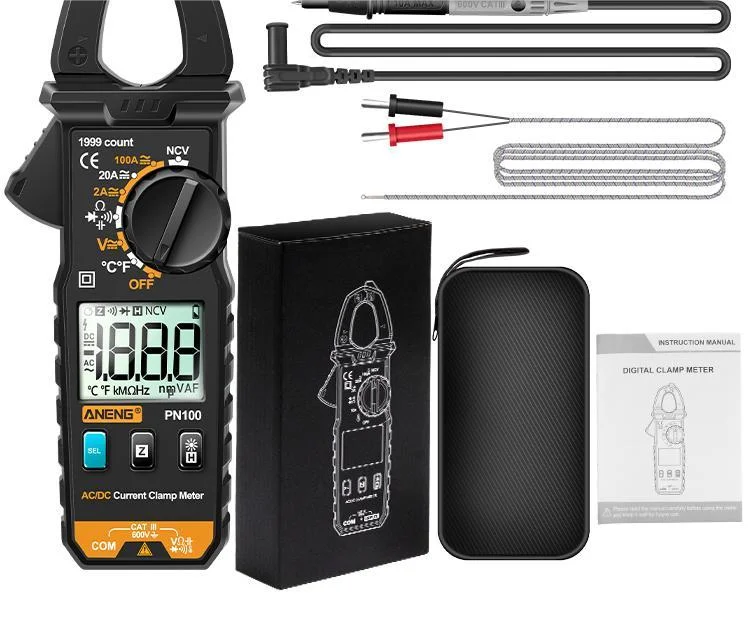

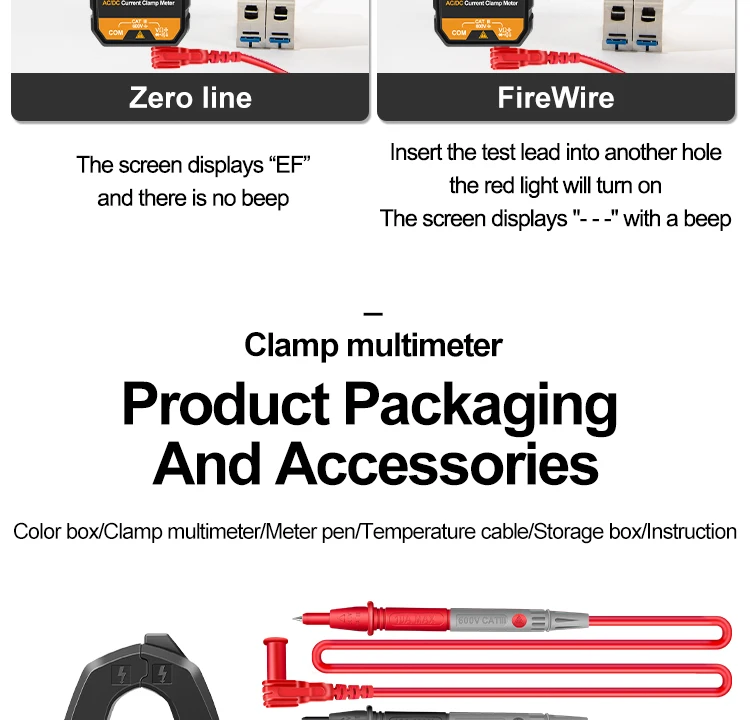

C.Package Include:
1 * ANENG PN100 Clamp Meter
1 * Black Packing Bag

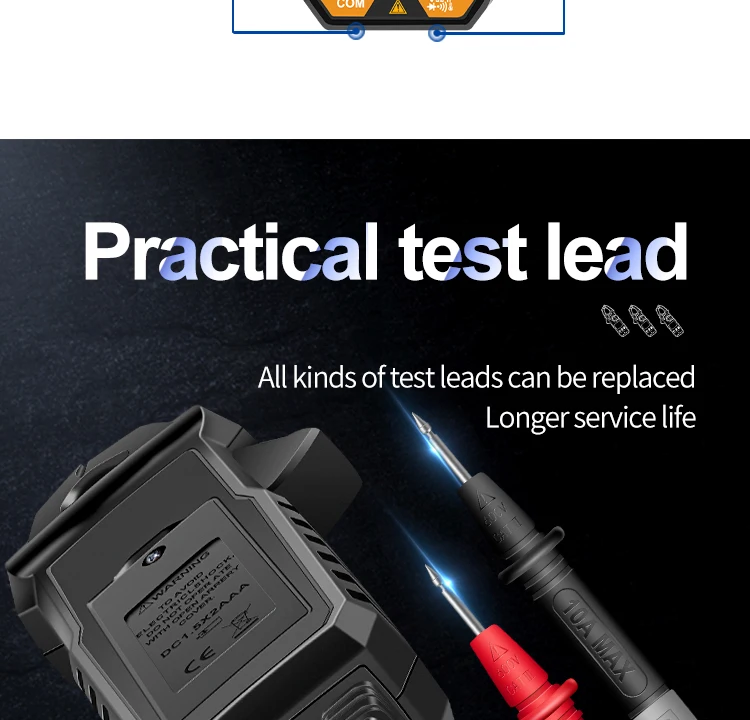

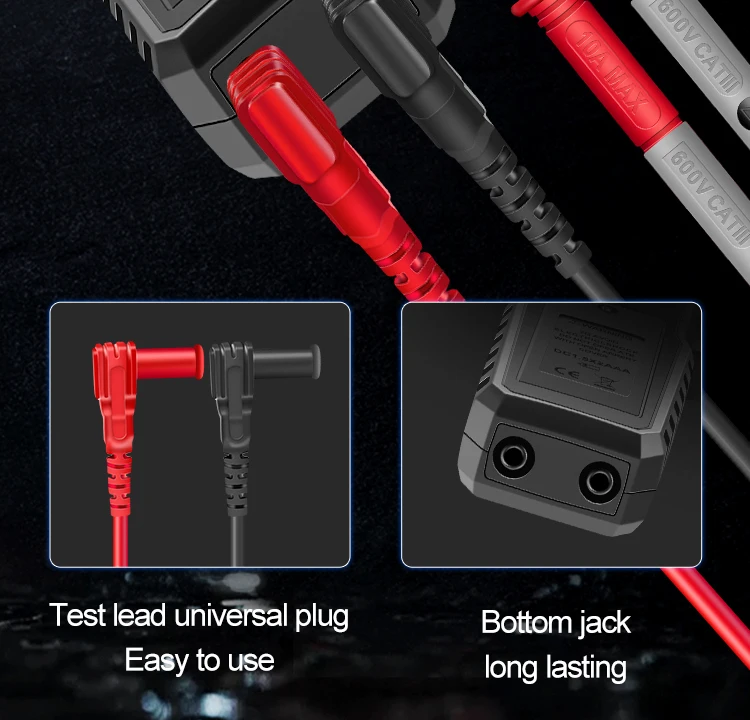

2 * Test Probes
1 * Thermocouple
1 * User Manual
