Product Overview

Description



Product description

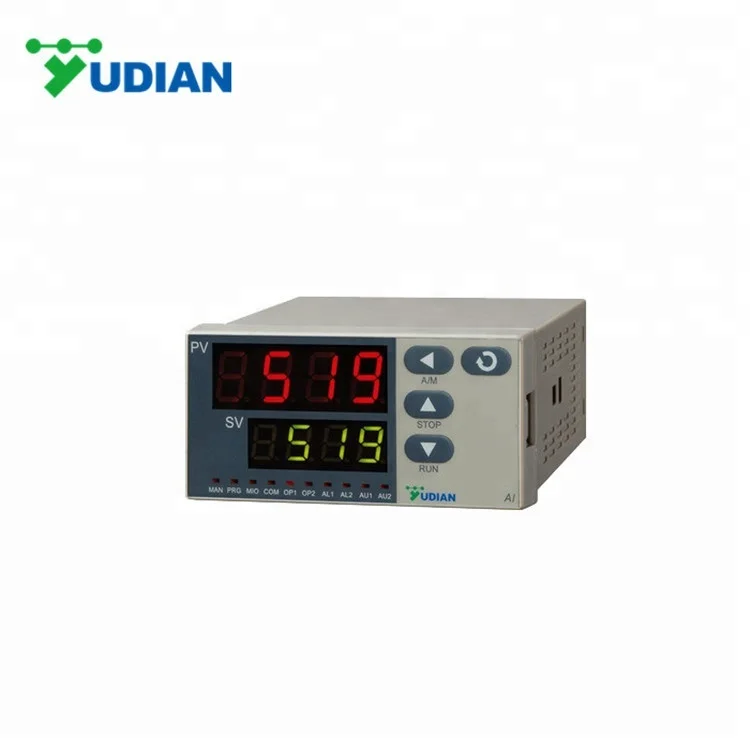

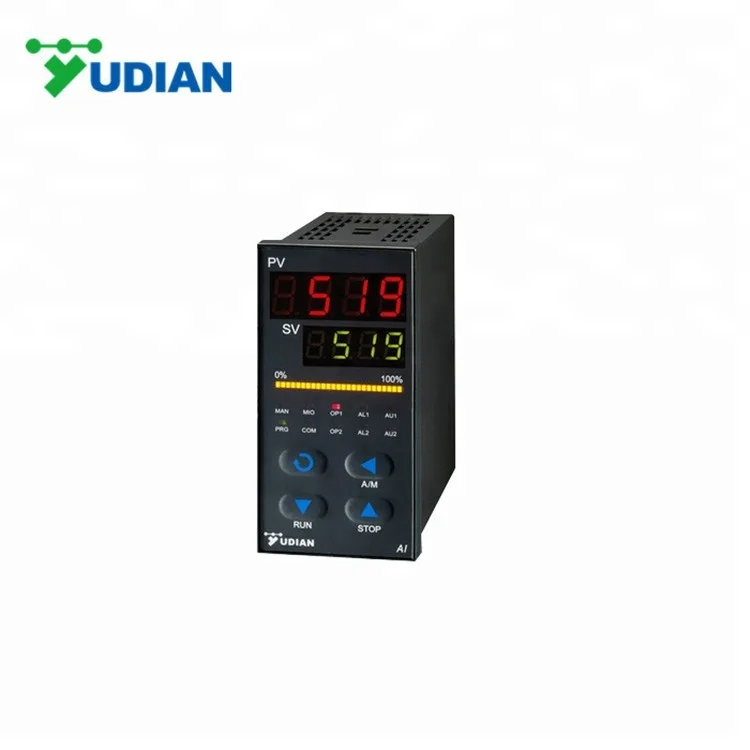

industrial usage pid digital ssr output temperature controller AI-519 paste-pic-dp_uuid_d0tprProduct Details1


519


519


Technical Specifications3519
















































Power Input 100-240VDC, -15%, +10%/50-60Hz;  or 24 VDC/AC, -15%, +10%.
Input type

Thermocouple: K (-100~1300℃), S (0~1700℃), R (0~1700℃), T (-200~+390℃), E (0~1000℃), J (0~1200℃), N (0~1300℃), WRe3-WRe25 (0~2300℃), WRe5-WRe26 (0~2300℃)





Resistance temperature detector: Cu50, Pt100





Linear Voltage: 0-5V, 1-5V, 0-1V, 0-100mV, 0-60mV, 0-20mV, 0-10V, ect.





Linear current: 0-20mA, 4-20mA, etc.





Linear resistance: 0-80ohm, 0-400ohm





Control Outputs

relay 250VAC/2A or 30 VDC/1A





triac 100-240VAC/0.2A (continuous), 2A (20mS intantaneous, repeat period>= 5s)





ssr driver - 12VDC/30mA





thyristor zero crossing trigger output: triac 5-500A, 2 paralleled SCRs or SCR power





Single-phase thyristor zero crossing trigger: one loop of a TRIAC or a pair of inverse parallel SCR with current of 5-500A





Three-phase thyristor zero crossing trigger: 3-phase circuit;





Single-phase thyristor phase-shift trigger: 340~415VAC or 200~240VAC





Linear current: 0-20mA, 4-20mA





Alarm

1 channel relay(big volume & small volume ) : 30VDC/2A, 250VAC/2A





1 channel relay(small volume) 30VDC/1A, 250VAC/1A





2 channels relay: 30VDC/2A, 250VAC/2A





CommunicationsModbus and AIbus RS485
Power consumption≤ 5W
Operating AmbientTemperature -10~60℃; Humidity ≤90%RH

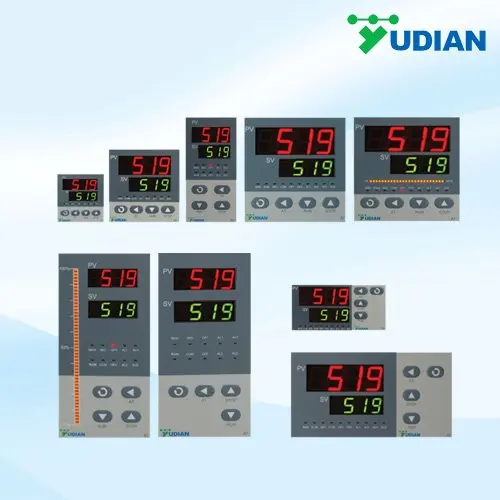

Front Panel size96*96mm, 160*80mm, 80*160mm, 48*96mm, 96*48mm, 48*48mm, 72*72mm
Panel Cutout Dimension92*92mm, 152*76mm, 76*152mm, 45*92mm, 92*45mm, 45*45mm, 68*68mm.
Depth behind Mounting Surface100mm

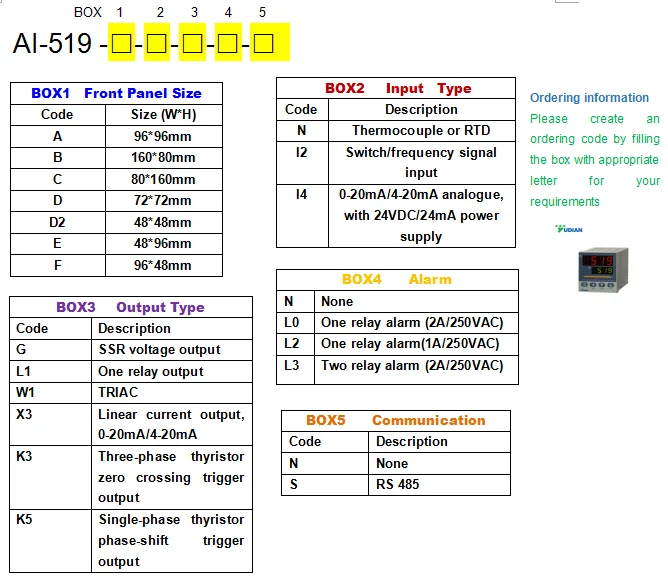

Model Solutions





For Example





AI-519BNX3L0





Temperature controller AI-519, with 160*80mm panel size, support thermocouple and RTD input, 4-20mA analog output and has one alarm output.











Packaging & Shipping


paste-pic-dp_uuid_tr8rv





Company Profile




Other products


paste-pic-dp_uuid_a95wm





FAQ




































1. How to Get in Contact with Us?
Option OneRegister on Alibaba and leave us a message or talk to us on Trading Manager at the BOTTOM of this page
2. Could I get sample of thermocouple controllers?

Yes,we have products in stock ,so you can get the samples quickly.



3. How about the quality of thermocouple controllers?


We have certificate of ISO, CE and ROHS, we could send the testing report to you if needed.
4. Could I visit your factory?
Of course, we warmly welcome you to visit our factory.
5. If we have paid, when will you ship the products?
Delivery will be within 3 working days after payment confirmed.
