Product Overview
Description
pp extruder
pellet production plant/pellet granulator/wood pellet granulator:
Feature and Function of pellet production plant :
This pelletizing line,recycling PP PE film ,bags, flakes, make them into pellets.
Process flow of pellet production plant :
Conveyor→ raw material compactor(feeder)→ Extruding system→ Die-head and High speed Net exchanging system→ water ring pelletizing system/noodle type pelletizing system→ dewatering machine→ vibrating sieve→ Air Blower → Storage hopper
Detailed description of pellet production plant :
1. Conveyor:convey PP PE film or flakes into compactor/feeder.
2. PE film compactor:crushing and compress film,and feed compressed film into extruder forcedly,to make the production capacity high and stable.
3.Extruding system:plasticizing material and exhausting gas.
4.High speed Net exchanging system and Die-head:filter material impurity,to make production more stable.
5.water ring pelletizingsystem : cutting pellets in water.
6. noodle type pelletizing system :cutting cooling pellets after water tank .
7.Dewater machine:make pellets dry.
8.Vibration sieve:remove bad pellet and keep good pellet.
9.Air Blower:convey good pellets into silo.
10:Storage silo:keep pellet.
Main technical data of pellet production plant :
Extruder | SJ90 | SJ120 | SJ150 | SJ180 |
Main Motor Power | 55KW | 75kw | 110kw | 185kw |
Production capacity | 150KG/H | 150-250kg/h | 300-400kg/h | 450-800kg/h |
Photo of pellet production plant :

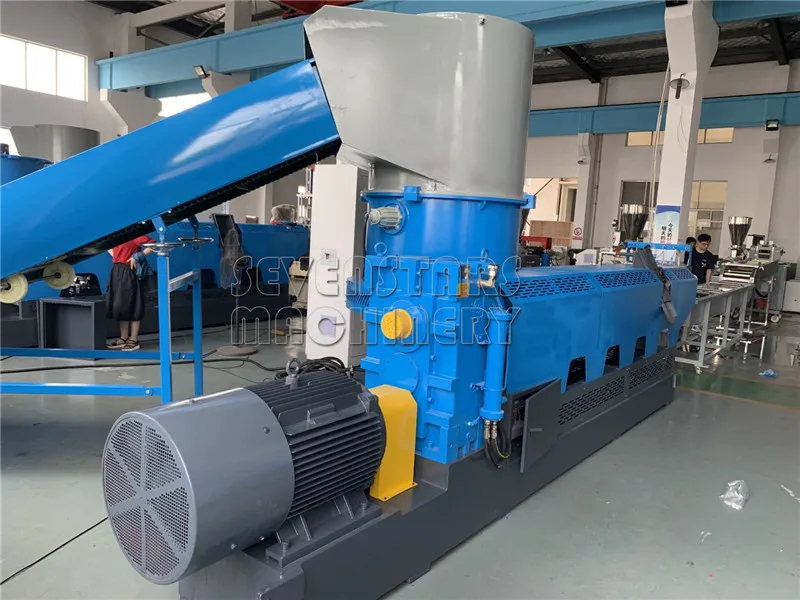

this kind is for pp pe film pelletizing

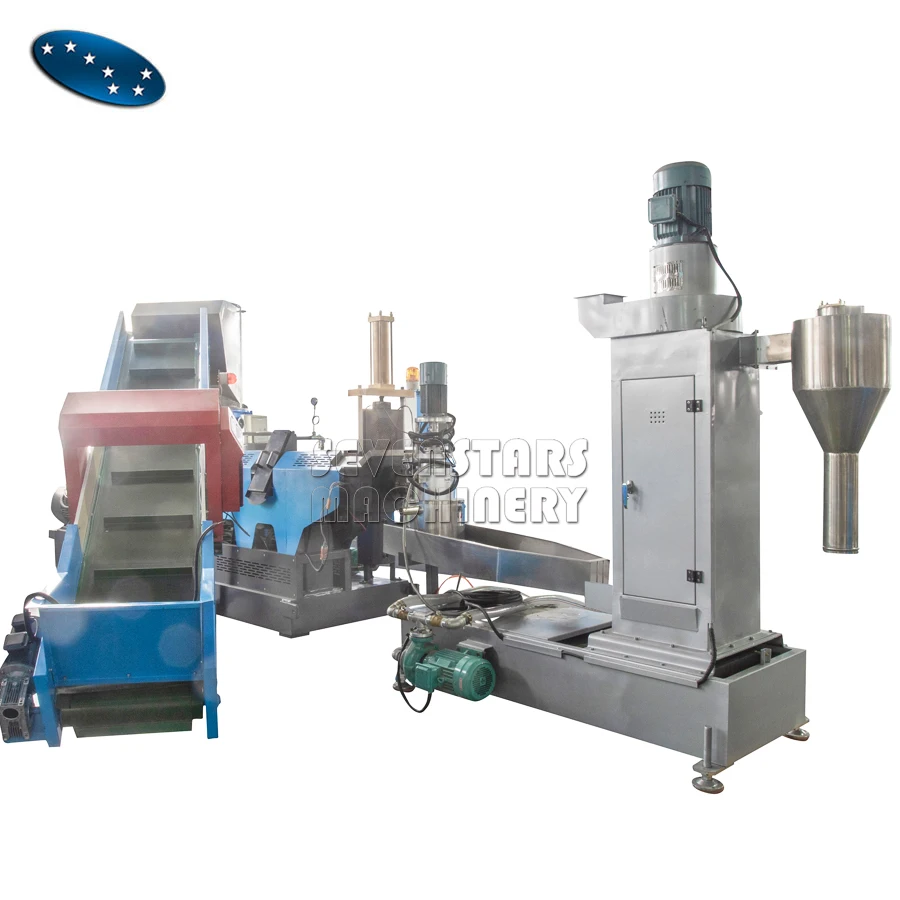

this kind is for pp pe flakes pelletizing:

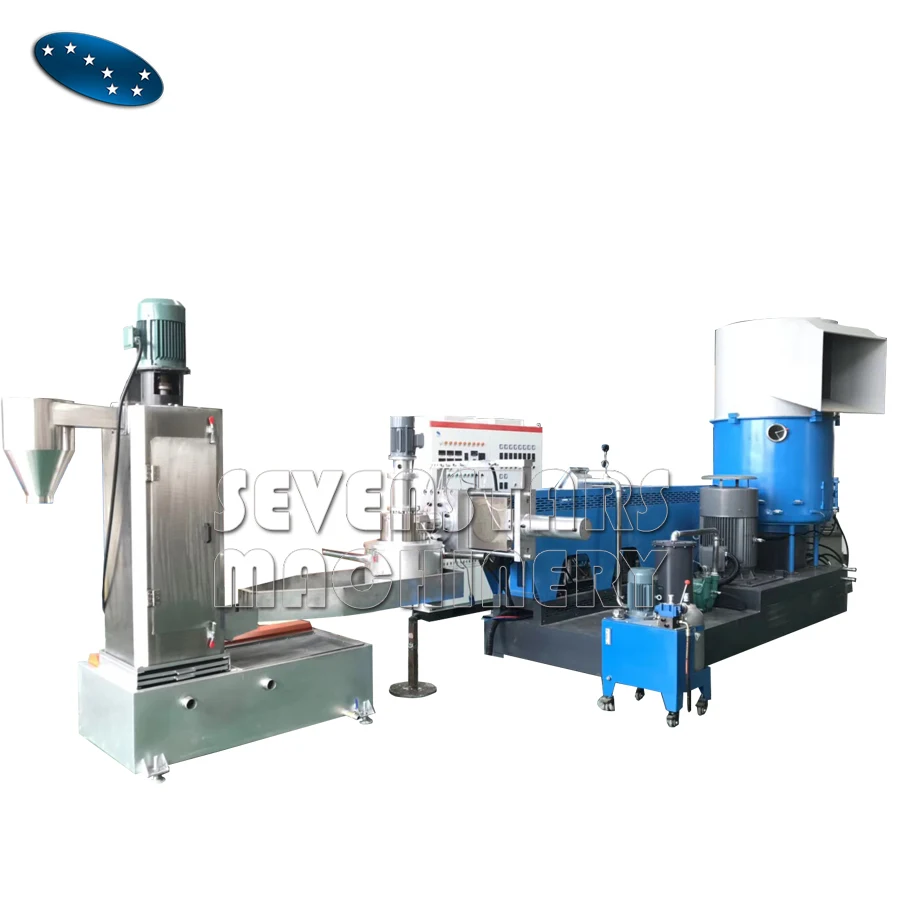

this kind is for pp pe flakes pelletizing:
this kind is for dirty pp pe flakes pelletizing;

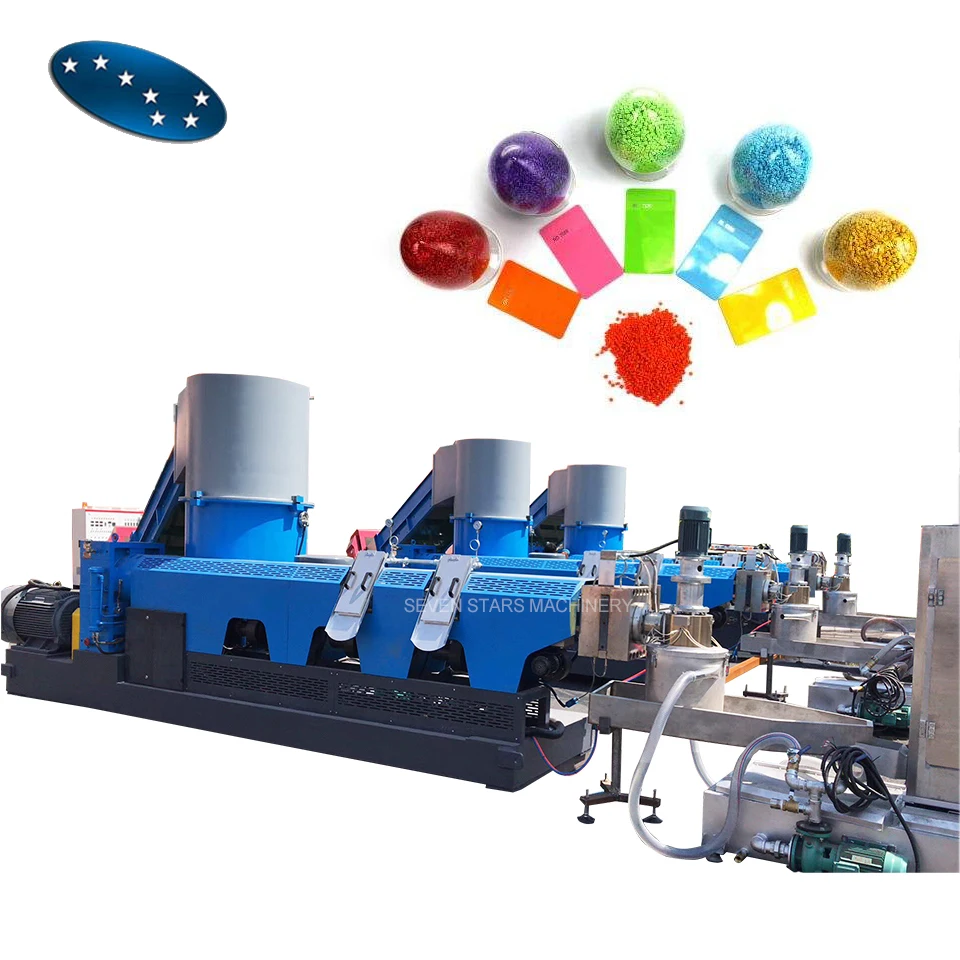

this kind is for pp pe flakes especialy for high viscosity PP pelletizing:
water ring type pelletizing system (good pellet shape):

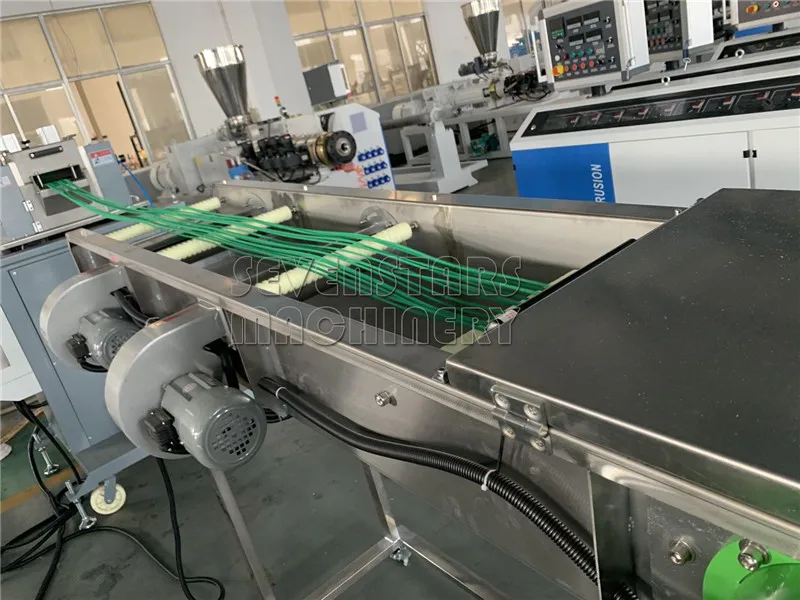

noodle type pelltizing die head(low cost):
wood pellet making machine

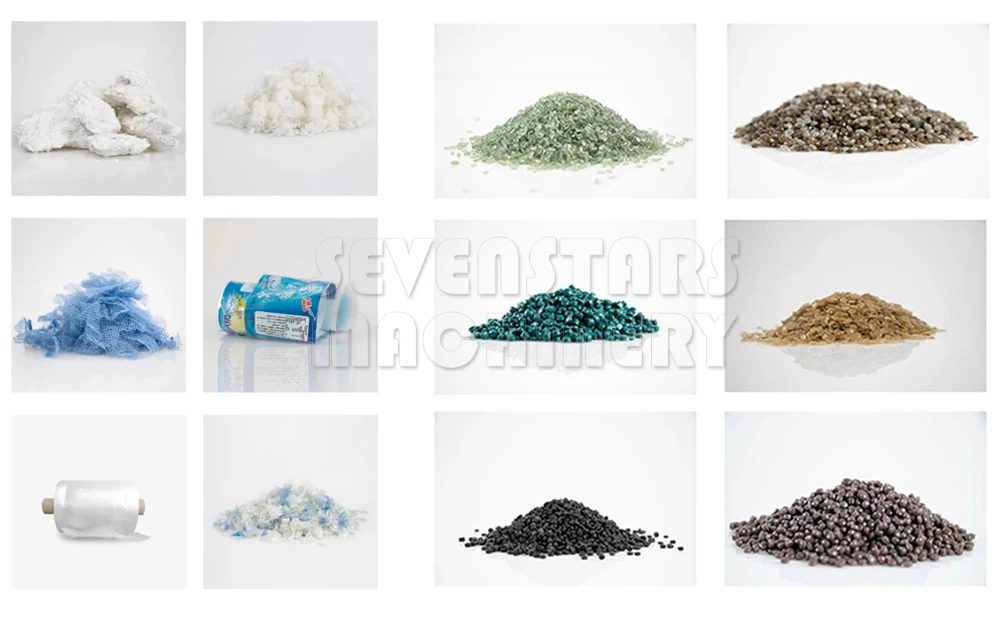

plastic pellet:
