Low Altitude Defense System

Product Overview

Description

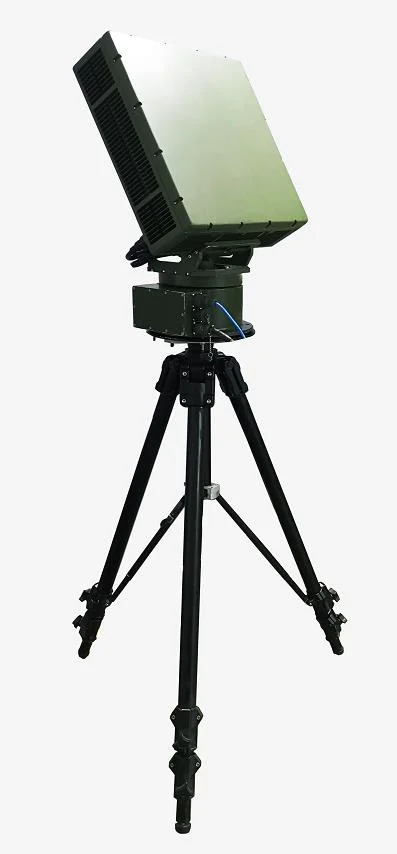

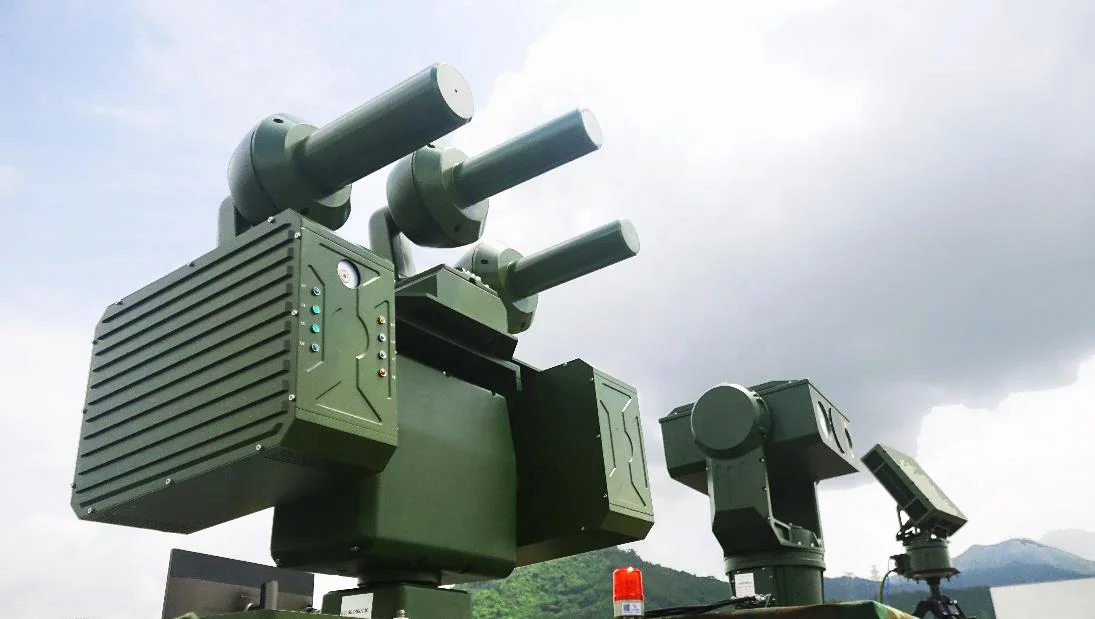

Low-Altitude Defense System (Puma - 3Km)
Low-Altitude Defense System is an advanced modular design system,which is
comprised of security radar, EO camera, radio detector and radio jammer for UAV
threats elimination.
It is quick to deploy, easy to maintain and upgrade. High performance module is
optional for tighter and larger security coverage. Multiple devices can be networked
together.

Radar target data automatically transferred to control system.

Control system sends intruder location to EO camera and Radio jammer.

Alert triggered upon UAV Identified by EO camera and visual tracking initiated
accordingly.

Real-time detection for UAV radio signal,including remote control signal, image
transmission signal & Wi-Fi signal. Alert upon UAV radio signal detected.

Radio jammer Initiates automatic interference with image transmission, control
and GPS signals upon UAV discovery to expel it away from security area or force
it landing.

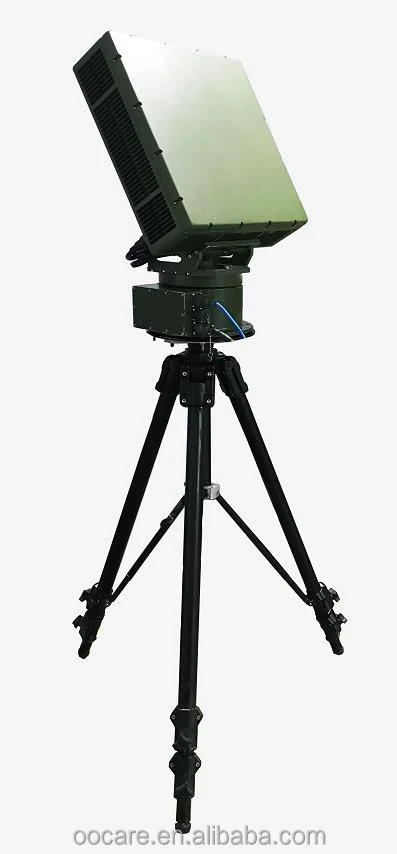

LADS Puma contains all solid-state pulsed Doppler radar, high
speed ball camer radio detector and radio jammer (WD-J-004) for
3km security coverage. The angle of radar antenna is adjustable to adapt different
environments





System features

Radar
a) 3km UAV detection distance (DJI Phantom 4)
b) 360° scan
c) Radiation safety distance requirement compliance
d) Radiation hardening & ECCM compliance
e) 24/7, weather-proof operation

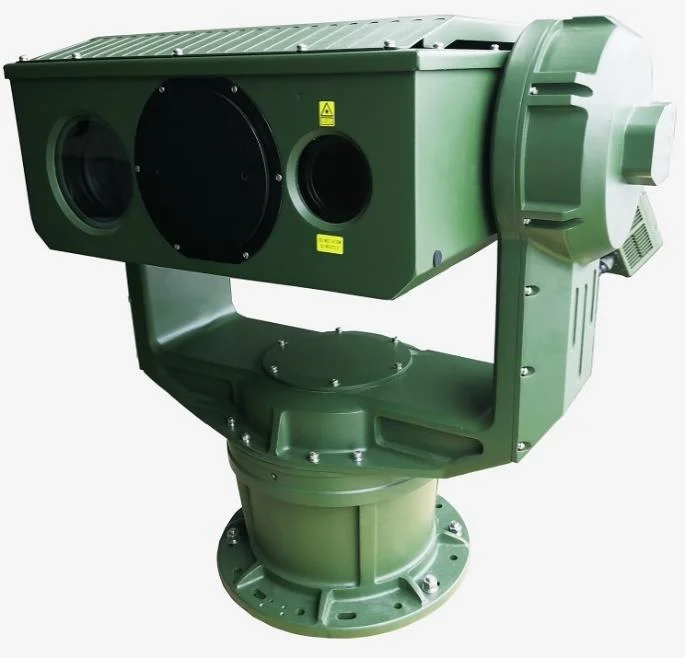

EO camera
a) EO camera responds to radar target data
b) Optimized visual algorithms for UAV identification
c) Automatic UAV identification & tracking
d) High speed, Night Vision & Thermal
e) 24/7, weather-proof operation

Radio detector (Optional)
a) Real-time detection for UAV radio signal
b) Including remote control signal, image transmission signal & Wi-Fi
c) Alert upon UAV radio signal detected
d) Target location transmitted to EO camera & radio jammer

Radio jammer
a) Initiates automatic interference with image transmission, control and GPS
signals upon UAV discovery
b) 3 frequency band (1.5GHz/40MHz, 2.4GHz/100MHz, 5.8GHz/40MHz)
c) Directional antenna
d) 24/7, weather-proof operation

System
a) Target location & movement information displaying based on electronic map
b) Simple operating interface
c) Remote control
d) Alert triggered upon UAV discovery
e) Automatic operation
f) Multiple targets tracking
g) Real-time target information (distance, speed, coordinate, target probability,
etc.) displaying
h) Target historical track replay
i)
Video record (≥90 days)
j)
Log information record of login, operation
k) Devices running status monitoring
l)
Independent local network
m) Lightning protection

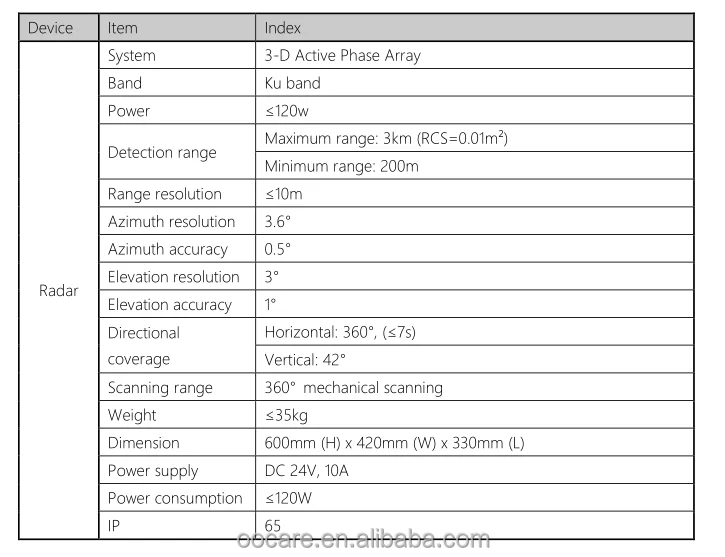

System parameter
