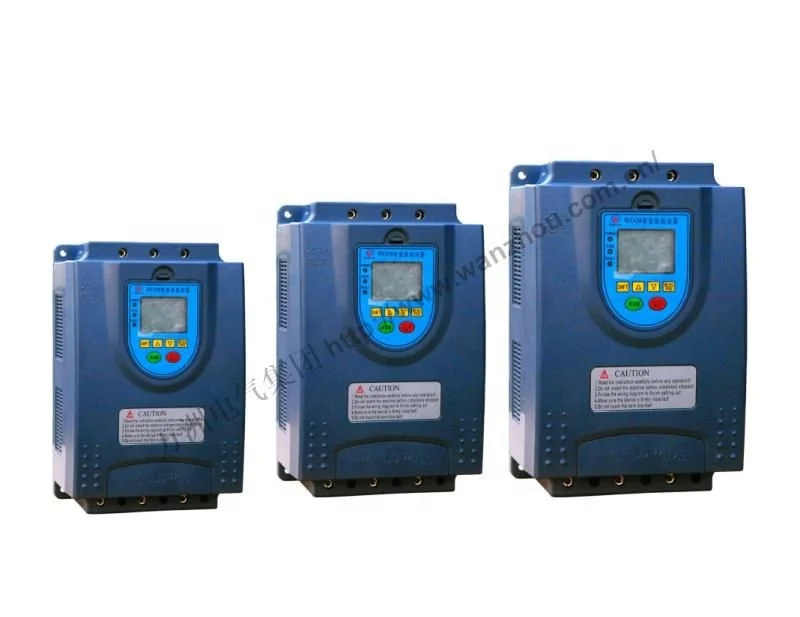

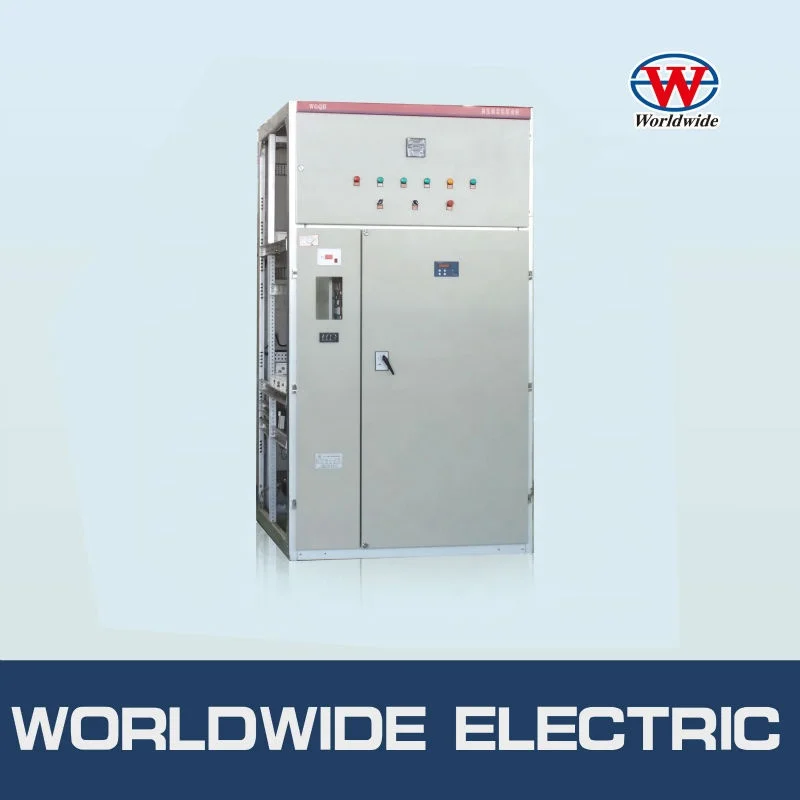

Low voltage caged motor Soft Starter motor control center for pump

Product Overview

Description

Low voltage caged motor Soft Starter motor control center for pumpmp

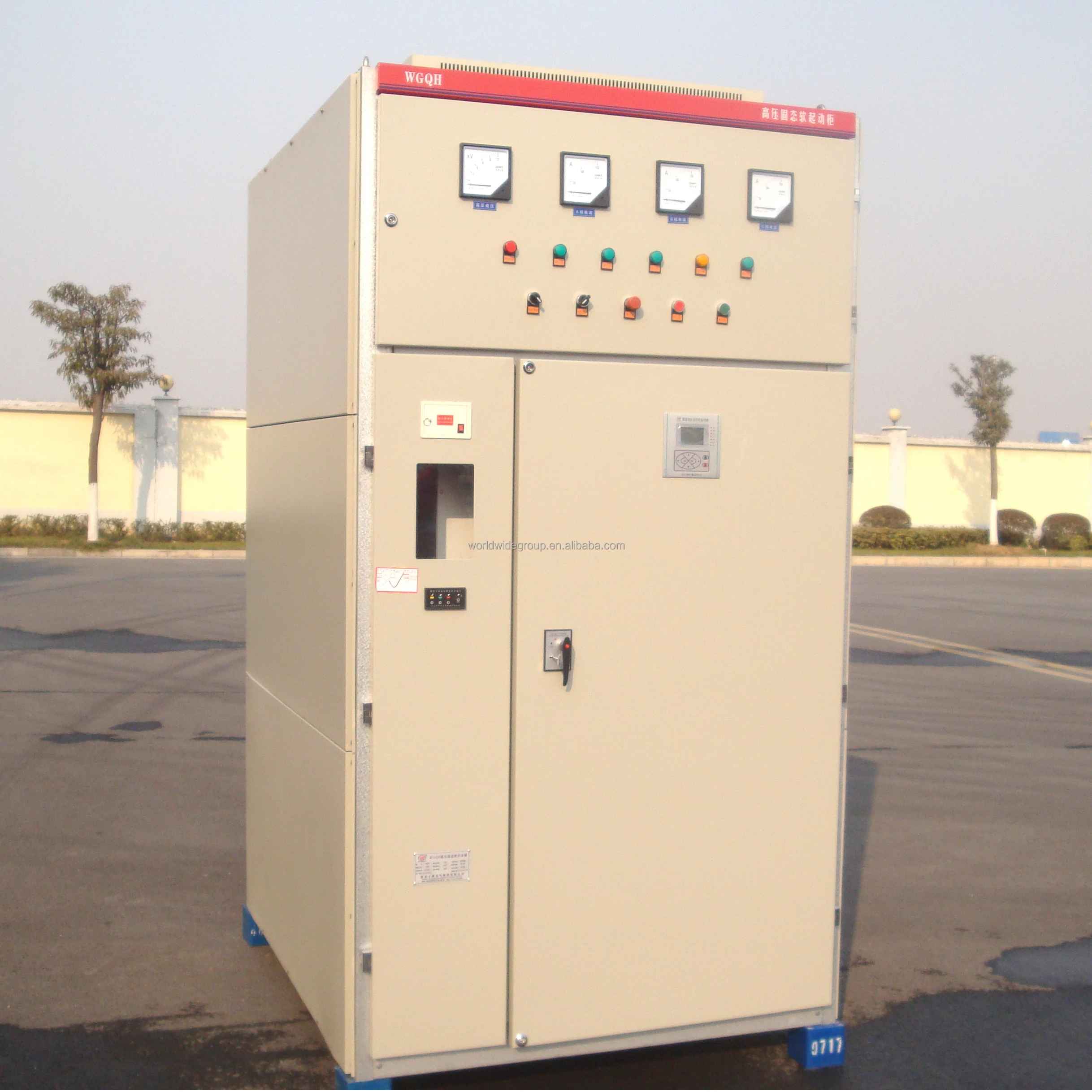

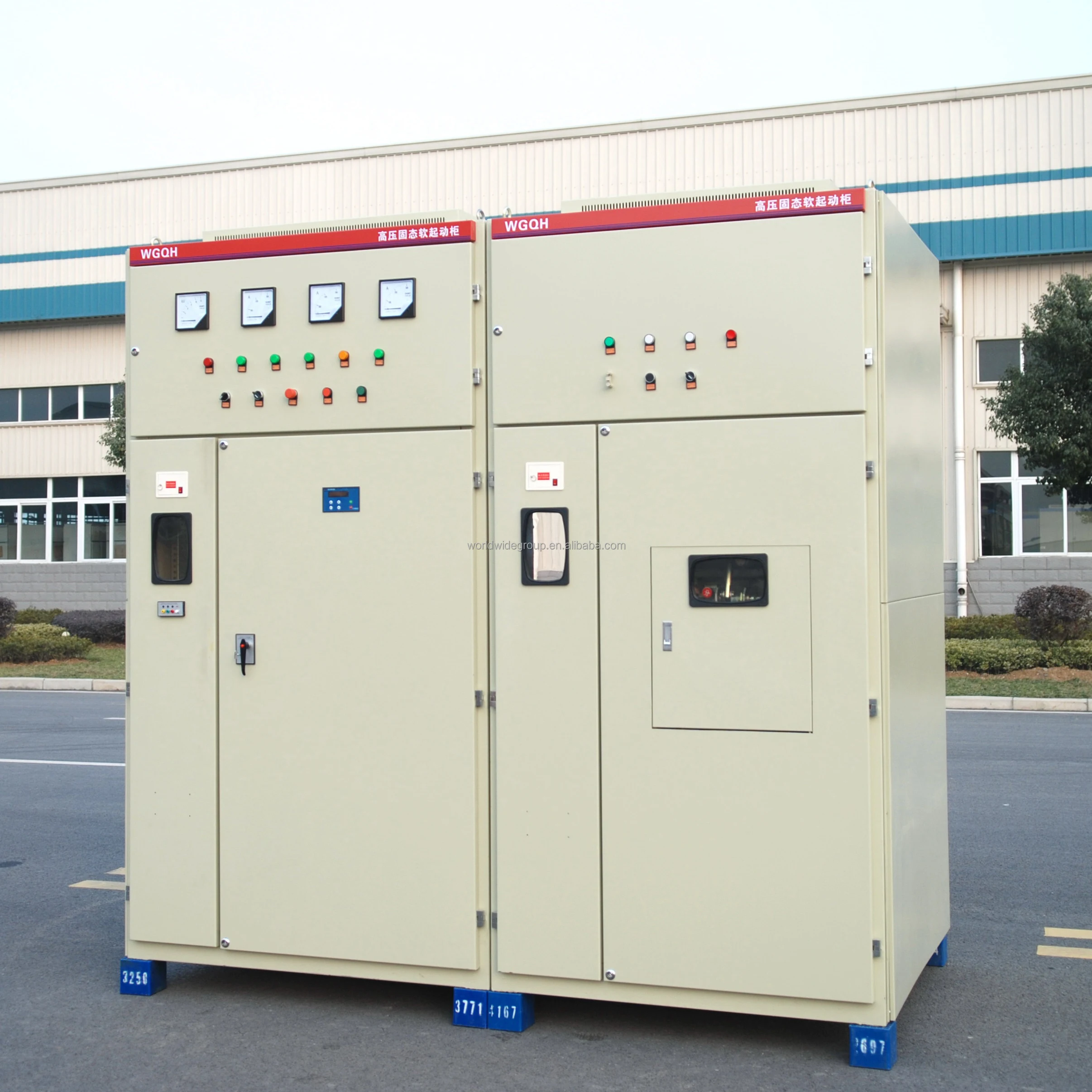

High Voltage Type







*Standards conformity:

    Low voltage switchgear and controlgear GB7521.1-1997 IEC439-1:1992

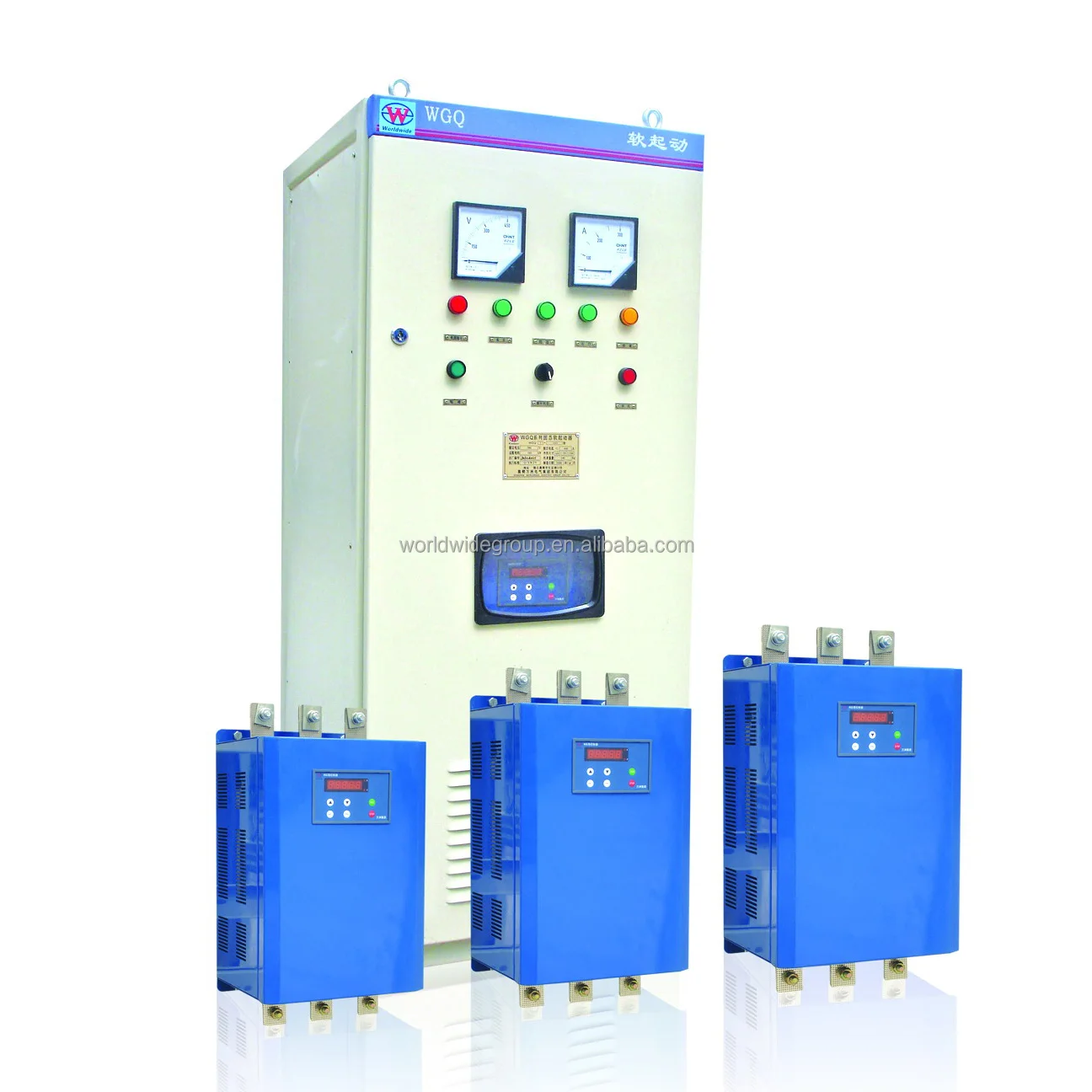

    WGQ Low Voltage Soft Starter  Q/XWZ2-200

*Working conditions:

    Enviromental temperature: -40~50°C;

    Relative humidity: ≤90%;

    Absolute alititude:≤ 200m (when altitude is above 2000m, it shall be specially designed according to the specific working conditions);

   Ground gradient shall not exceed 5°;

   Installation places shall be free of the risks of fire, explosion, chemical erosion and excessive vibration.



manufacture, cement, metallurgy, mining, oil production, chemical industry, water treatment, petrochemical industry, and on loads of pump, blower, pumping unit, air compressor, ball mill, crane, compressor, crusher, conveyer, elevator, centrifuge, rolling mill.



Working Conditions

Rated voltage	Three-phase AC, 6KV-10KV(+10%, -15%) 50HZ
Working voltage	No more than 110% of the rated voltage
Application motor	three-phase asynchronous motor (squirrel-cage), synchronous motor
Startup frequency	Frequent startup, time space is 10 minutes
Power frequency	50 Hz /60Hz±2 Hz
Cooling mode	Natural cooling or forced cooling
Phase sequence	Working in the condition with the completely same input phase sequence and output phase sequence
Protection grade	IP20 (Natural cooling),  IP30 (Wind cooling)
Working environment	Altitude is not more than 2000 meters, no corrosive gas, no conductive dust, no severe shock (less than 0.5G), well-ventilated.
Temperature	-25°C~+40°C
Max relative humidity	RH 5%~95%, without condensate
Note: Please notify us if the product will be used in specialty environments.



Notice for ordering

The following technical materials shall be provided before your ordering:

1. Parameters of the main motor: rated power, voltage/current of the rater, rated rotate speed, etc.


2. The color of the cabinet is based on your requirement.


3. Please notify us if you have any other special requirements.
