Jiabao factory direct sale feed hopper incline screw conveyor for industry
US $180.00-$780.00

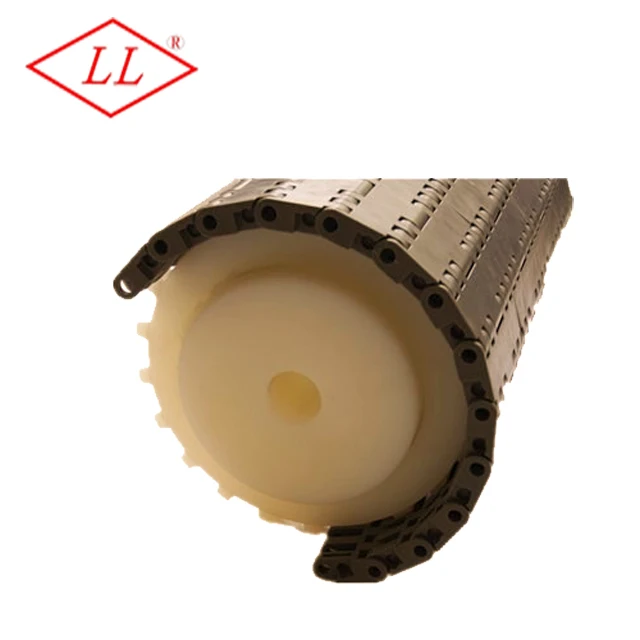

New Product Standard Width Conveyor Machinery Manufacturer Popular T 100 Plastic Modular Belts
- Category: Conveyors >>>
- Supplier: Shanghai Lilai Chain Co. Ltd.
Share on (1600433509110):
Product Overview
Description
Product Name | Flat Top Modular Conveyor Belts | Color | Blue |
Mat | POM | Work Temp | -30°C ~ +90 °C |
Pin Mat | PP | Load | POM 17280N/M |
Material Feature | Heat Resistant | Weight | 12.5kg/m2 |

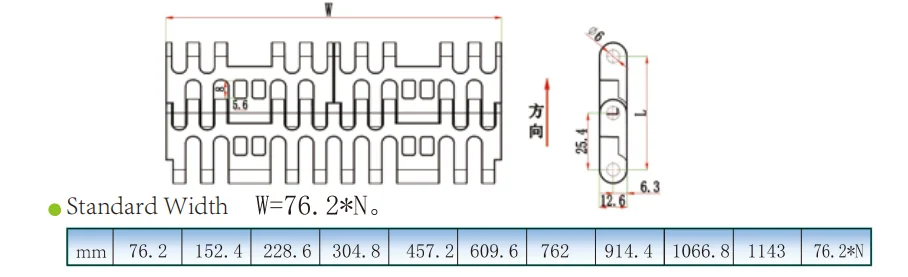

T-100 Flat Top Modular Belt
1. Main application: all kinds of glass bottles and packaging machine.
2.Mat: POM. Work temp: -40℃~+90℃,PP. Work temp: +1°C ~+98 °C, acidproof.
3.Work Load: POM 17280 N/M; PP 9610 N/M.
4.Color: white, grey, blue, coffee.
5.Weight: POM: 12.50 kg/m2; PP: 7.9 kg /m2
2.Mat: POM. Work temp: -40℃~+90℃,PP. Work temp: +1°C ~+98 °C, acidproof.
3.Work Load: POM 17280 N/M; PP 9610 N/M.
4.Color: white, grey, blue, coffee.
5.Weight: POM: 12.50 kg/m2; PP: 7.9 kg /m2

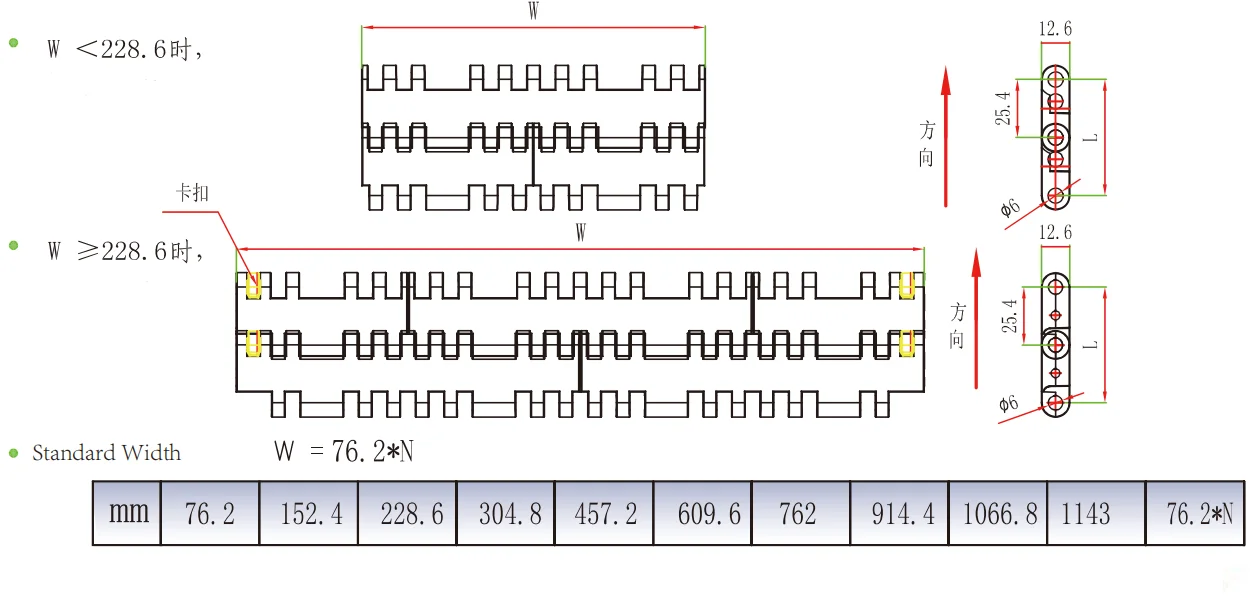

T-100 Flush Grid
1.Work Load: POM 17280N/M;
2.Flush grid ratio: 11%
3.Color: white, grey, blue, coffee.
4.Weight: POM: 11.9kg/m2
3.Color: white, grey, blue, coffee.
4.Weight: POM: 11.9kg/m2

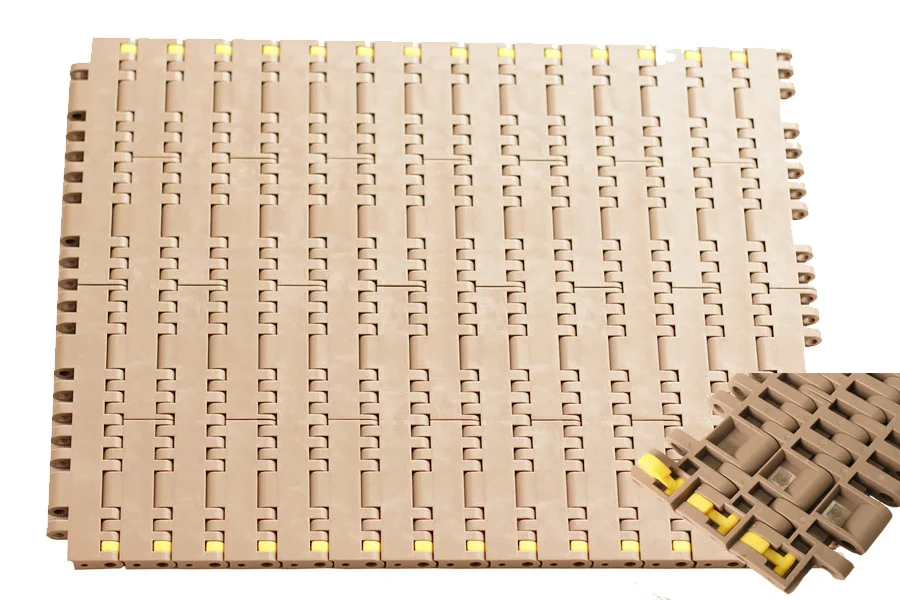

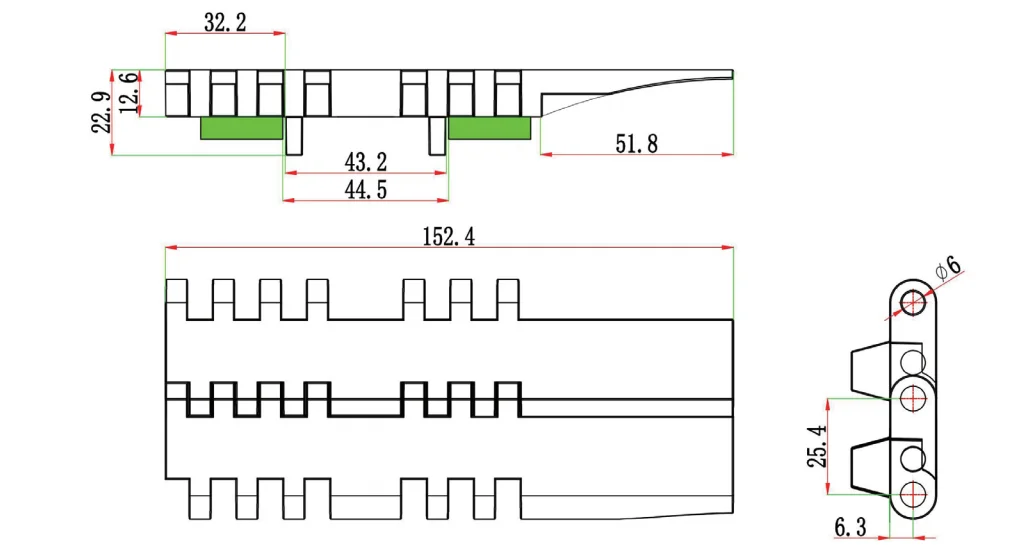

T-100 Dynamic Transfer System
Loading capacity: POM 2630N

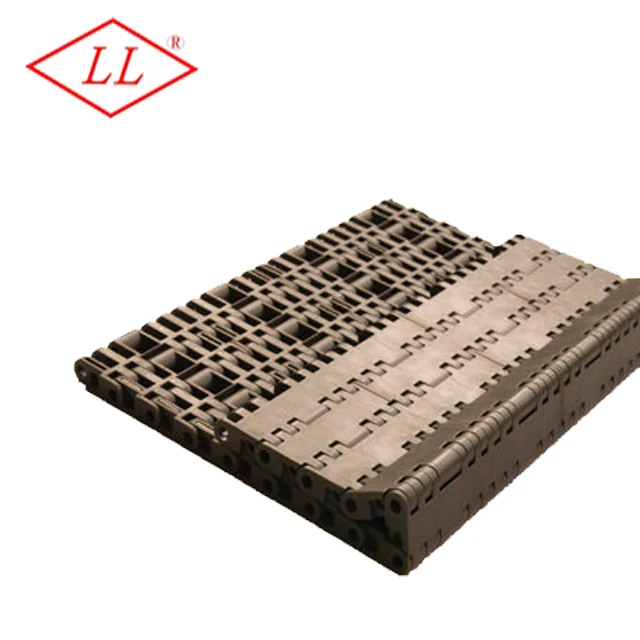

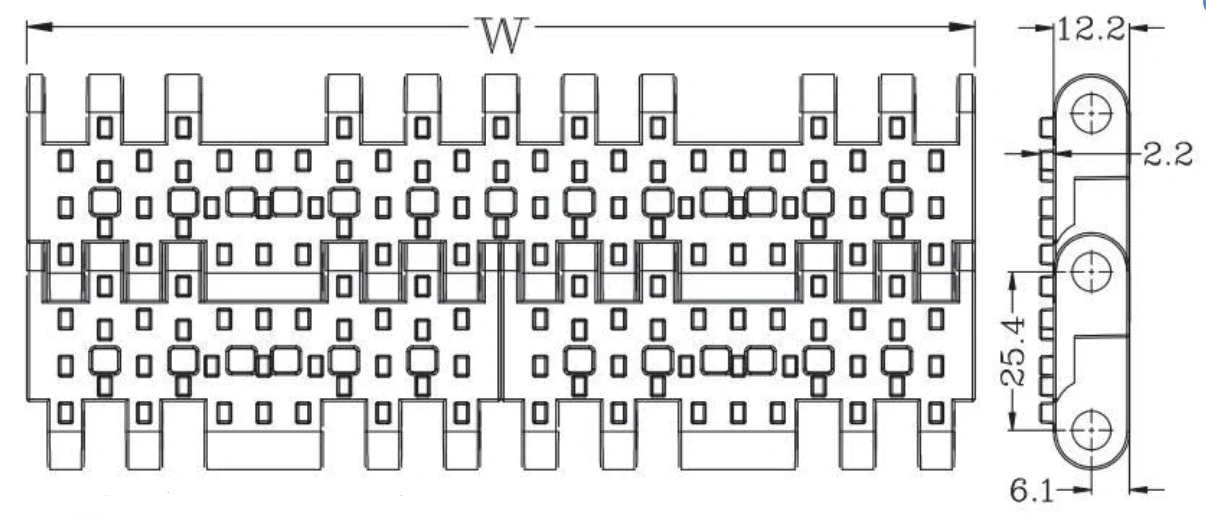

T-100 Perforated with Friction Surface Modular Belt
1.Work Load: POM 17280N/M;
2. Perforated ratio: 8%
3.Color: white, grey, blue, coffee.
4.Weight: POM: 13.3kg/m2
3.Color: white, grey, blue, coffee.
4.Weight: POM: 13.3kg/m2
Q1: Are you a trading company or manufacturer?
A1: We are a manufacturer of modular belt, chains belt and conveyor components located in Shanghai.
Q2: How long is the delivery time?
A2: It depends. Generally 5-7 days for small quantity.
Q3: Do you provide samples?
A3: Yes, we can provide samples for free.
Q4: How can I place an order? What is the whole process?
A4: 1. Firstly, send us your detailed requirements(belt types, sizes, applications)by Email or Alibaba etc.
2. Then we will provide our best solution and quotation as per your requirements. (Samples available for testing if necessary.)
3.Once order confirmed and payment done, we will arrange production immediately.
4. Finally, goods will be send by sea/air/express etc..
A1: We are a manufacturer of modular belt, chains belt and conveyor components located in Shanghai.
Q2: How long is the delivery time?
A2: It depends. Generally 5-7 days for small quantity.
Q3: Do you provide samples?
A3: Yes, we can provide samples for free.
Q4: How can I place an order? What is the whole process?
A4: 1. Firstly, send us your detailed requirements(belt types, sizes, applications)by Email or Alibaba etc.
2. Then we will provide our best solution and quotation as per your requirements. (Samples available for testing if necessary.)
3.Once order confirmed and payment done, we will arrange production immediately.
4. Finally, goods will be send by sea/air/express etc..
