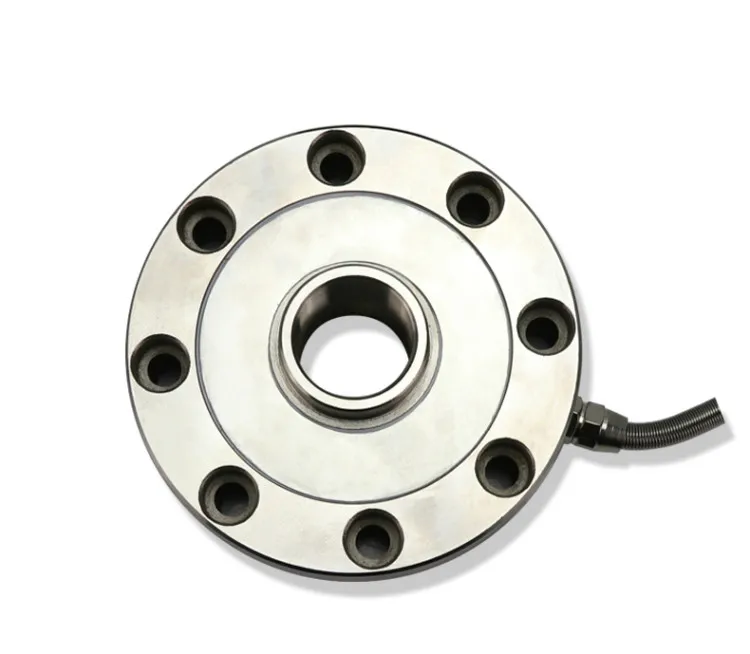

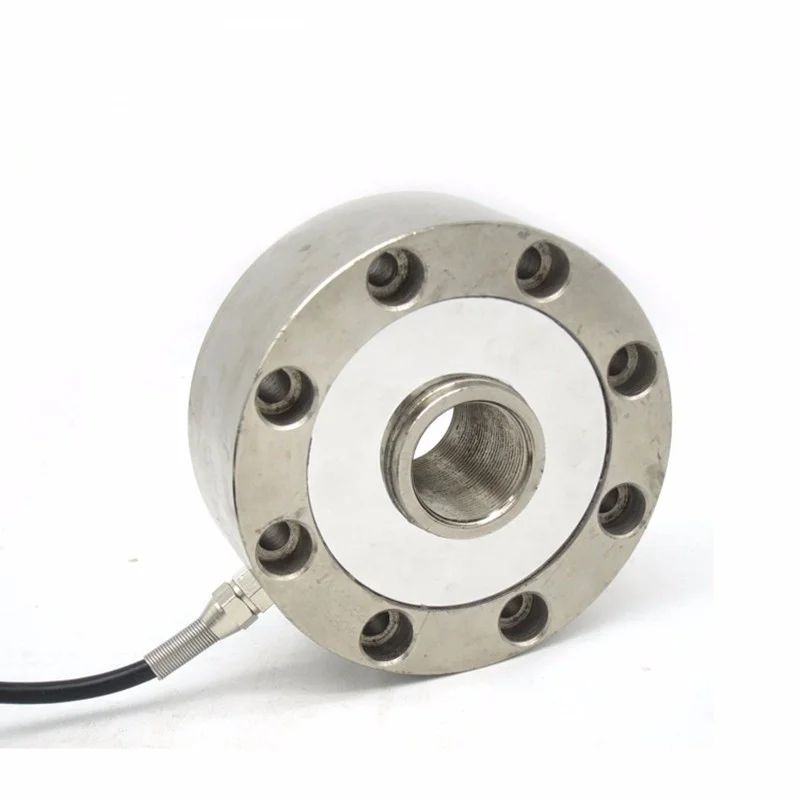

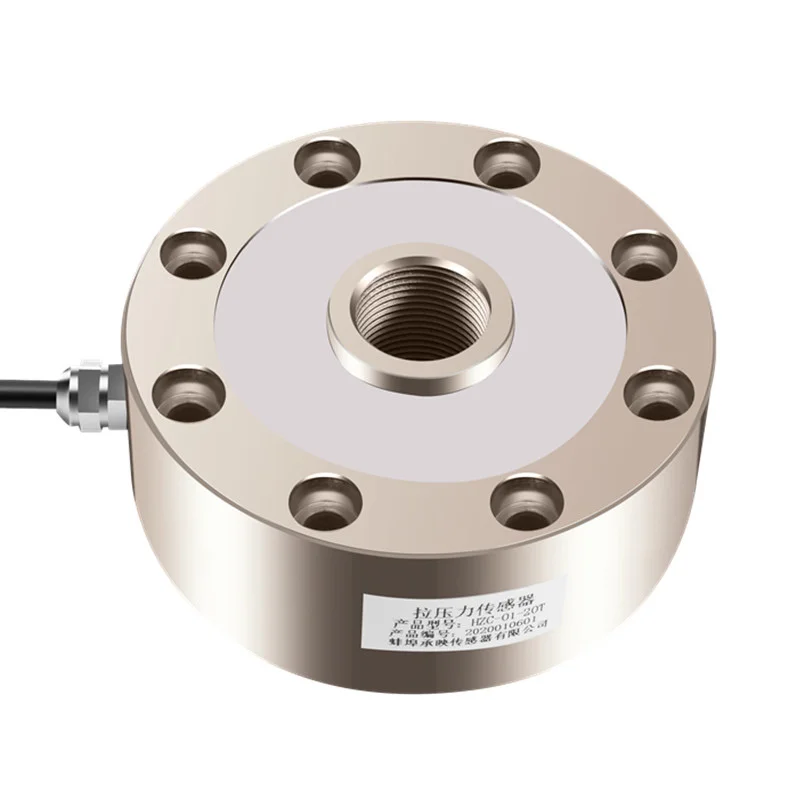

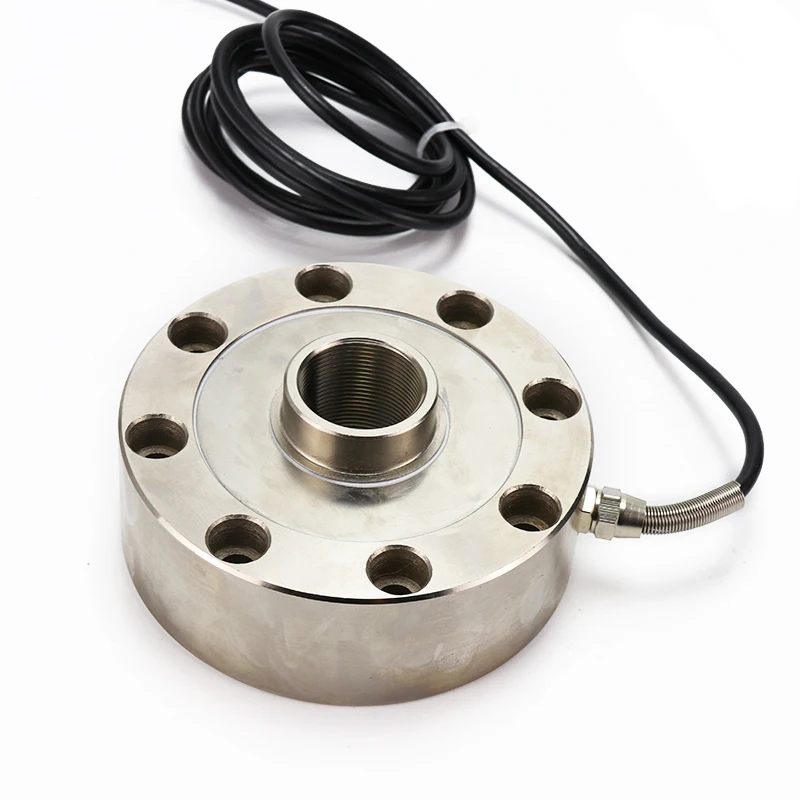

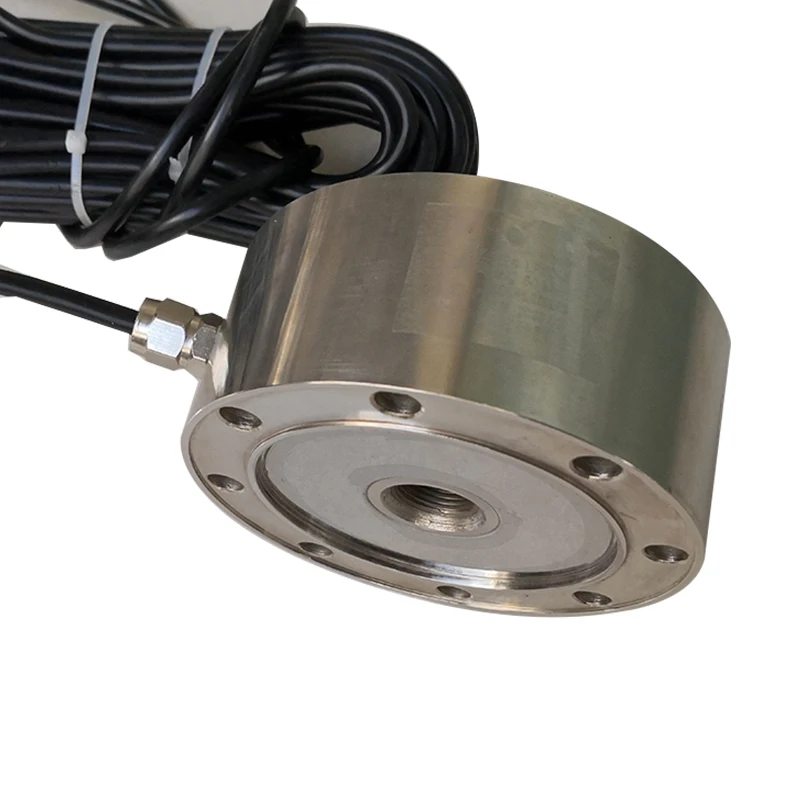

Wheel Shape Load Cell Spoke Compression Tension force Sensor 500 kg 1/5/10/100/500 ton
- Category: Sensors >>>
- Supplier: Taian Zhonghang Weighing Apparatus Co. Ltd.
Share on (1600433696161):
Product Overview
Description
Wheel Shape Load Cell Spoke Compression Tension force Sensor 500 kg 1/5/10/100/500 ton
Product Description
Product Application
Can be used in car weighter, orbit weighter, batching weighing,measurement system.
Rated Load | 0.5t,1t,2t,3t,5t,10t,20t,30t,40t,50t,60t |
Rated output | 2.0000±0.001mv/v |
Total Error | ±0.02%F.S. |
Creep(30 minutes) | ±0.02%F.S. |
Recommended Excitation Voltage | 5V~18V(AC or DC) |
Maximum Excitation Voltage | 24V(AC or DC) |
Zero balance | ±1%F.S. |
Input resistance | 775±5Ω |
Output resistance | 700±2Ω |
Insulation resistance | ≥5000MΩ |
Safe overload | 150%F.S. |
Ultimate Overload | 200%F.S. |
Operating Temperature Range | -30~+70℃ |
Temperature Effect On Load | ±0.02%F.S./10℃ |
Temperature Effect On Zero | ±0.02%F.S./10℃ |
Construction | Alloy Steel |
Protection Class | IP67 &IP68 |
Citation | GB/T7551-2008/OIML R60 |
Mode of Connection | Input+:Red |
Input-:Black |

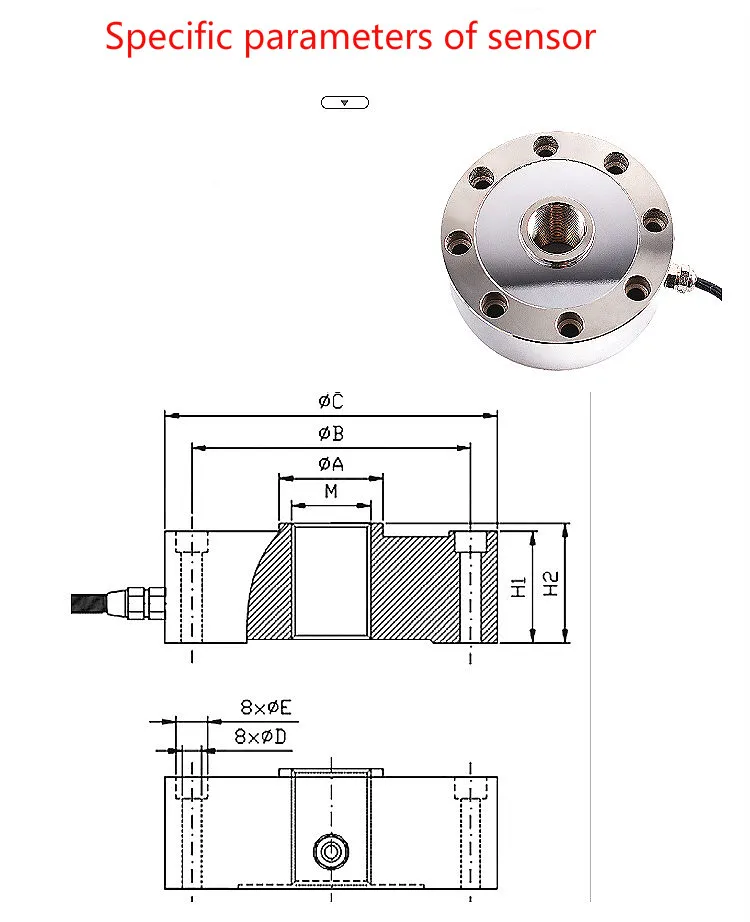

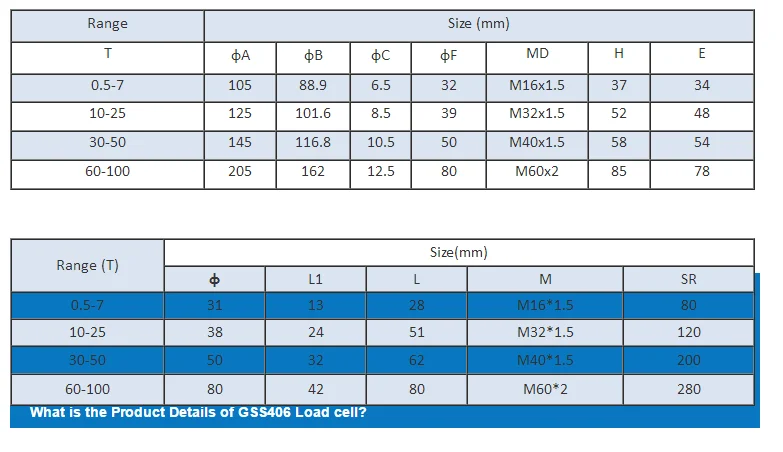

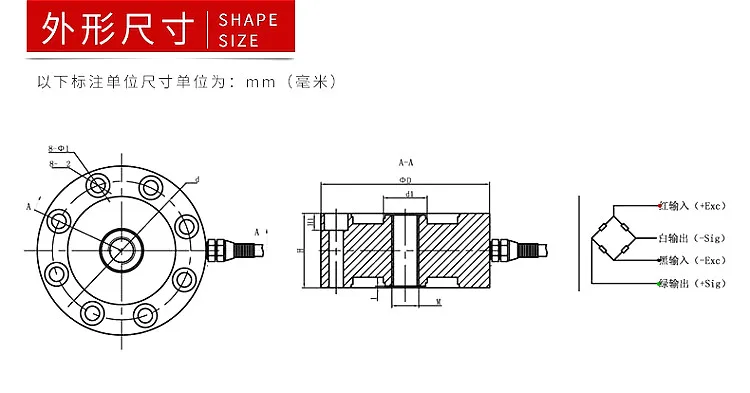

Appearance picture size(mm)

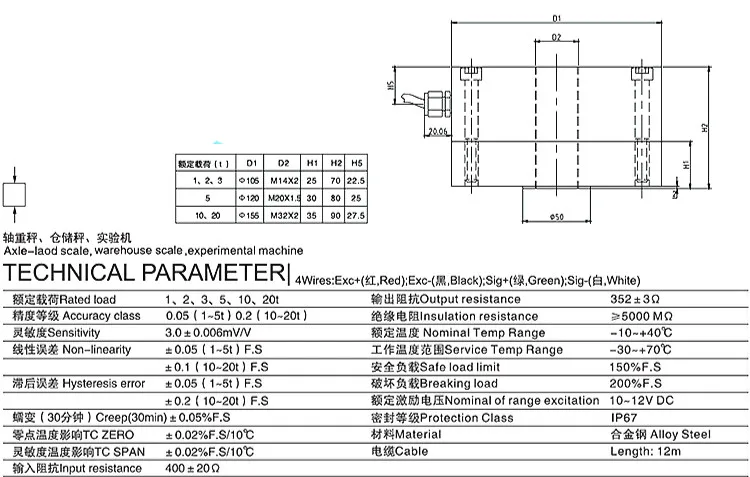

Specification

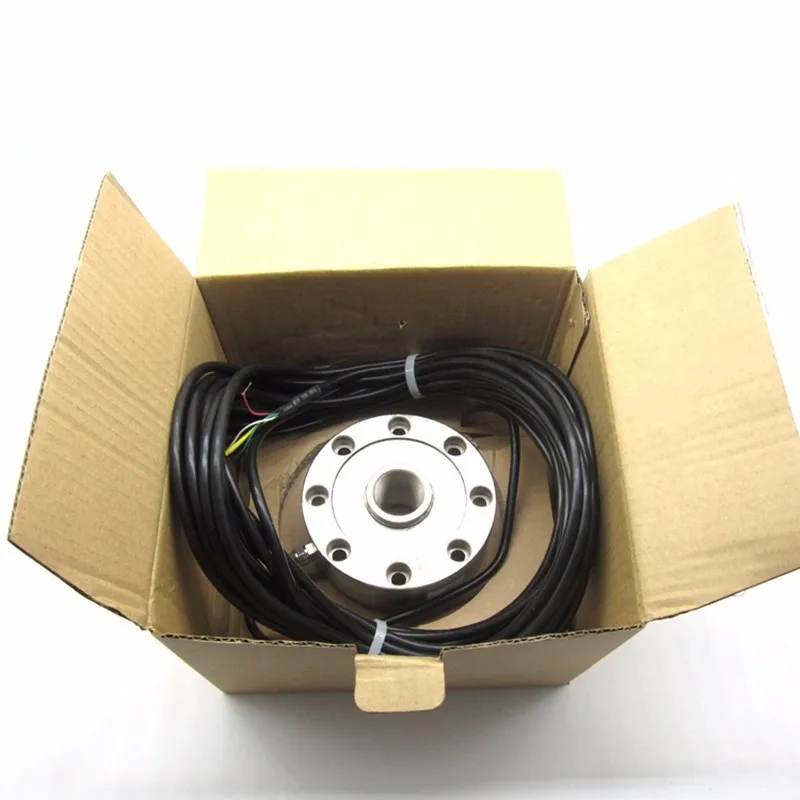

Packaging
Company Introduction
Taian Zhonghang weighing Apparatus Co., Ltd is a professional large-scale manufacturer of industrial weighing equipment in China. We started as a truck scale and load cell manufacturer and now 0ur products are extended to OCS electronic hanging scales and electronic platform scales,electronic floor scale,crane scale,load cell ,etc.
