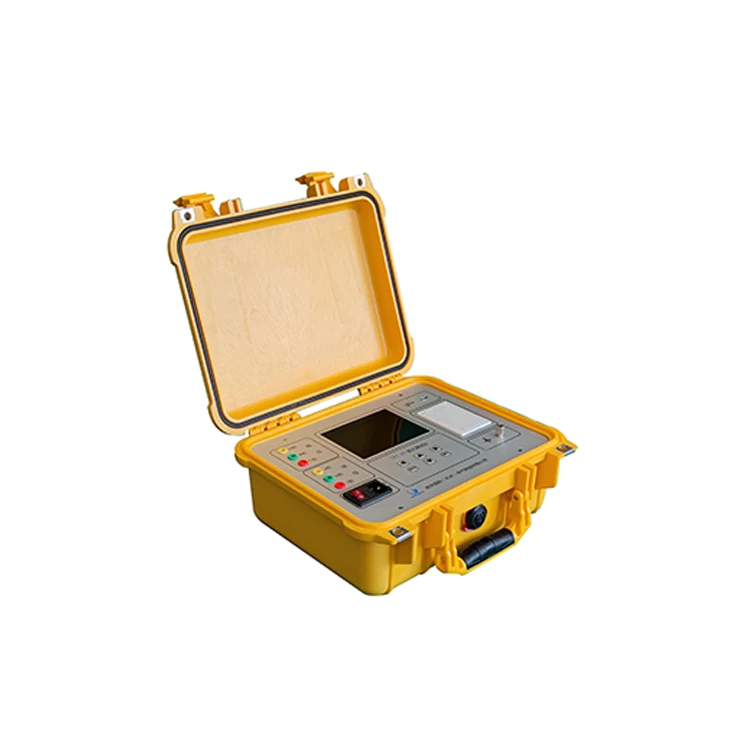

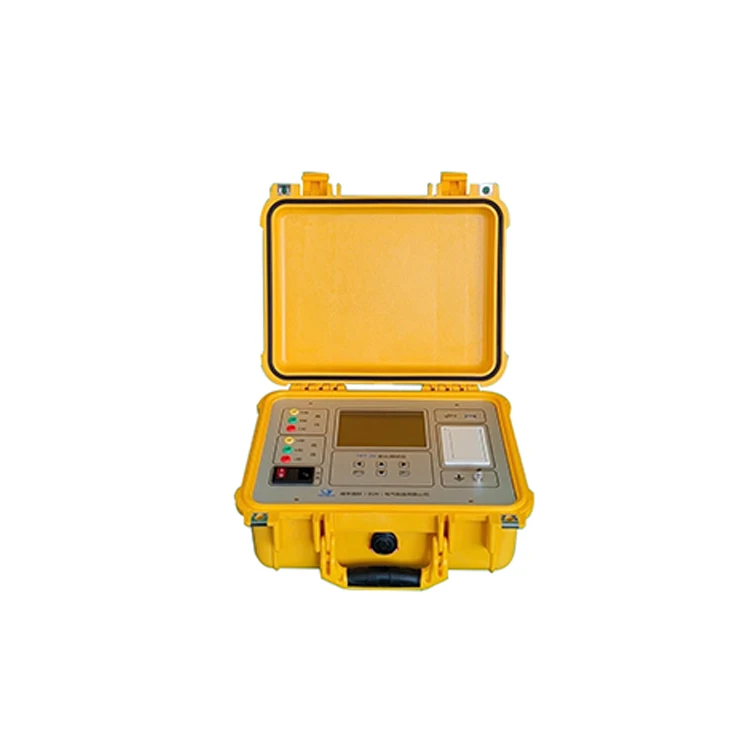

TRT-20 Transformer Turns Ratio Tester, adopts American IP67 Pelican case, light and portable. It is mainly used in transformer ratio group test, PT, CT transformer polarity test, which overcomes the shortcomings of traditional transformer bridge test. Test speed is fast, high accuracy. An essential tool for power system and transformer manufacturers.


Appearance Design

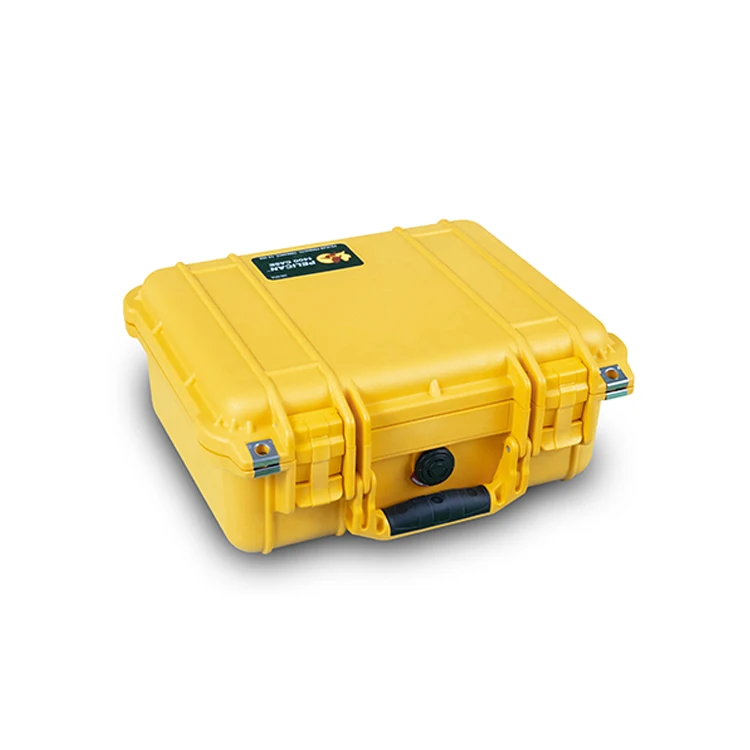

PELICAN Protector Case IP67
Processing Design
Imported materials, brushed metal panels, ultra-light, high-strength, ultra-corrosive titanium alloy screws, highlighting the
quality
Screen Display
Large high-brightness color LCD screen, intuitive display, still clearly visible in strong sunlight
Range
0.9-10000


Accuracy
±(reading×0.1%+2 words)(≤500)
±(reading×0.2%+2 words)(＞500, ≤3000)
±(reading×0.3%+2 words)(＞3000)


Resolution
0.9-9.9999（0.0001）
100-999.99（0.01）
10-99.999（0.001）
1000-9999.9（0.1）
≥10000（1）
Store and Print
Built-in printer for easy data printing and real-time data storage
Power Supply
AC220V
Dimension
340*295*152mm
Weight
4kg


Features
1. Appearance design: American PELICAN Protect Case, IP67
2. Processing design: metal drawing panel, ultra-light, ultra-anticorrosive titanium alloy screw to highlight quality
3. Color screen with high brightness: still visible under strong sunlight
4. Customized accessory housing, greatly reducing wear and tear on core accessories


Four innovative technologies
1. Wide range, high precision, up to 0.1%
2. The first transformer ratio tester in history with blind test function
3. Application field is wider and an added function of CT turns ratio polarity test
4. With functions of reverse connection protection, output short circuit protection and other protection
