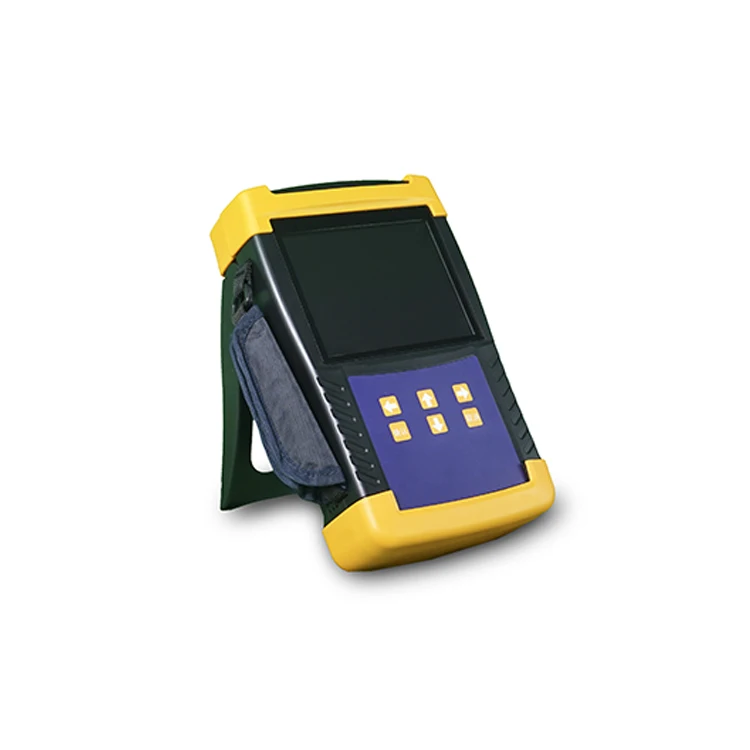

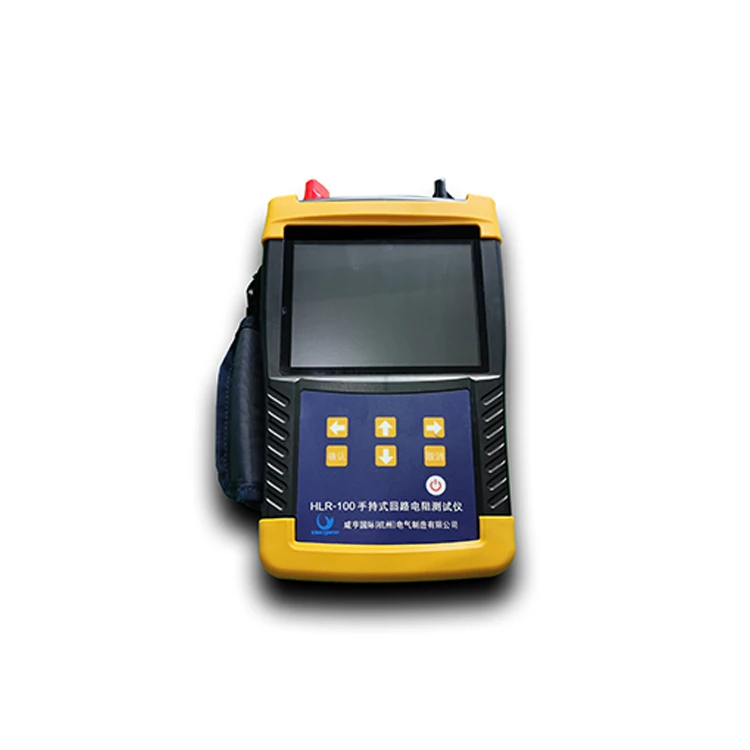

HLR-100 is a brand new generation of hand-held loop resistance tester. It is small in size and light in weight, only 1.5kg, which can be operated by one person, and the field test is simple and fast. The integrated and user-friendly design of the wire box is easy to carry, and the test accessories are no longer easy to be lost. It is an ideal device for the power supply department to measure the contact resistance of the switch contacts and other resistive test products.


Appearance Design
Imported high-strength materials, handheld, light and portable

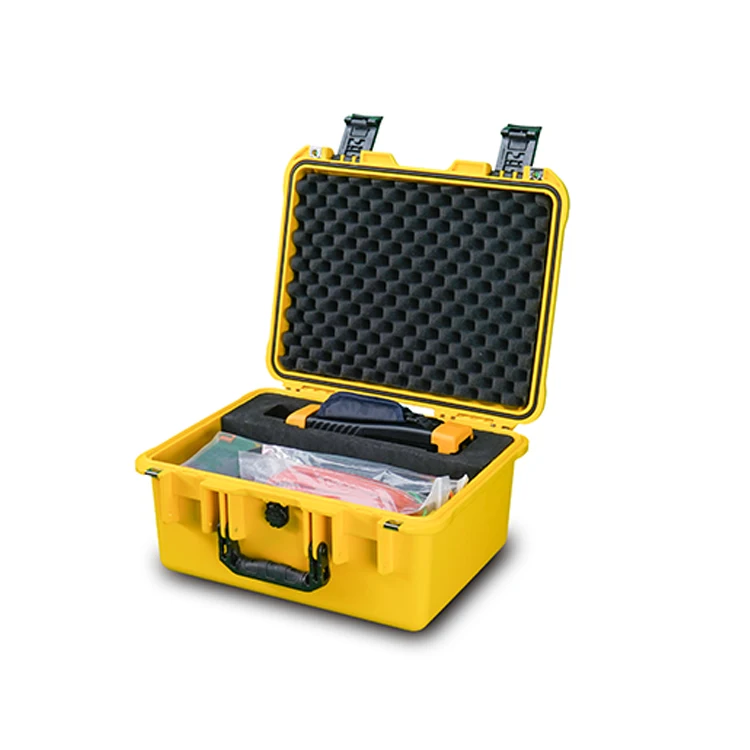

Tester and wires in one case
The main unit and the wire box are integrated, easy to carry, and the test accessories are not easy to lost
Screen Display
Large high-brightness color LCD screen, intuitive display, still clearly visible in strong sunlight
Output Current
100A
80A
50A
30A
Measuring Range
0-5mΩ
0-8mΩ
0-10mΩ
0-20mΩ
Accuracy
±（0.005+1uΩ）
Resolution
0.1uΩ
Display Digits
4 1/2
Input Voltage
Max 5V
Measure Time
High-speed OR 10-60seconds optional
Store and Print
Equipped with an external printer for easy data printing, data can be stored in real time
Power Supply
Built-in large-capacity lithium battery, one charge, can continuously test more than 800 times
Dimension
246*156*62mm
Weight
1.5kg


Features
1. Appearance design: handheld, light and portable
2. Lightweight: The weight of the host is 1.5kg
3. Portable: handheld design
4. Tester and wire in one case: test accessories and wires are not easy to be lost


Five innovative technologies
1. Large-capacity lithium battery, long-lasting work
2. High-precision large color screen
3. Output 100A current for continuous 60s
4. High precision, wide range
5. Real-time data printing
