Product Overview
Description

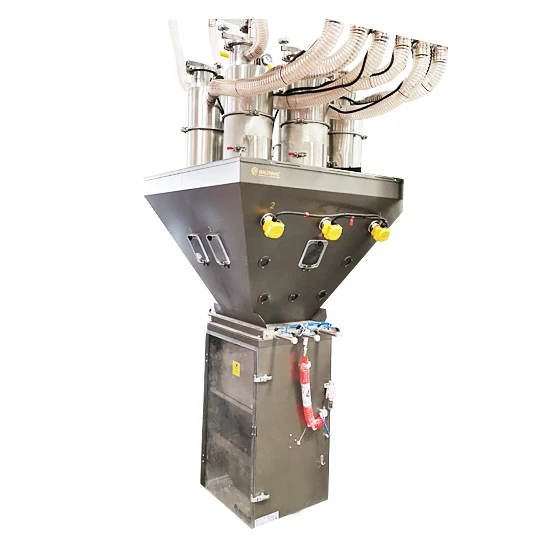

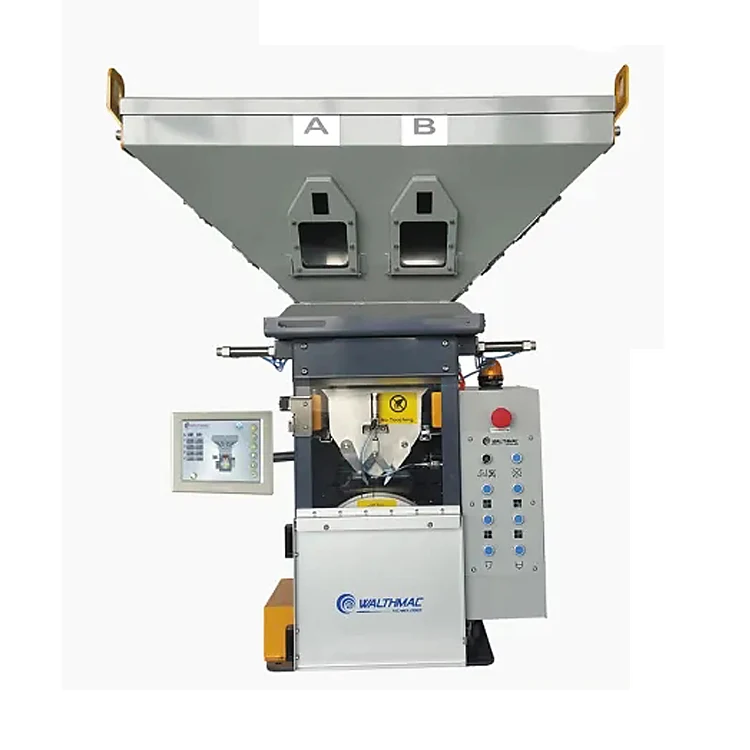

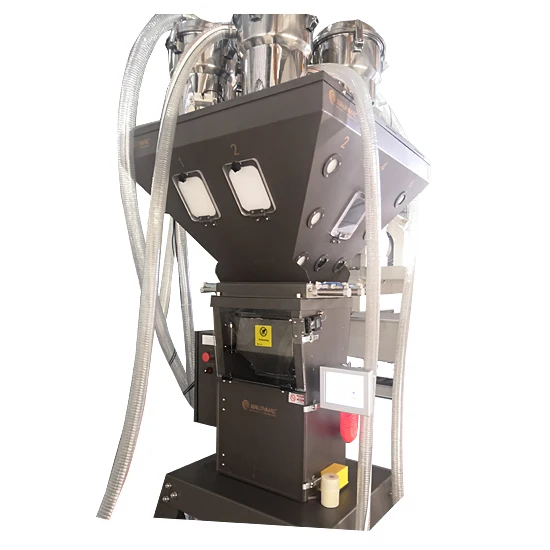

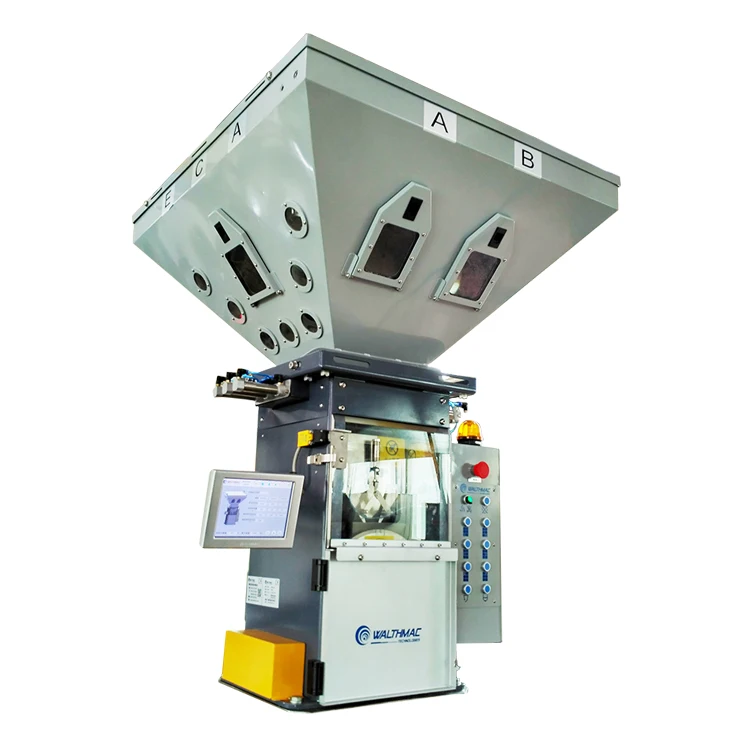

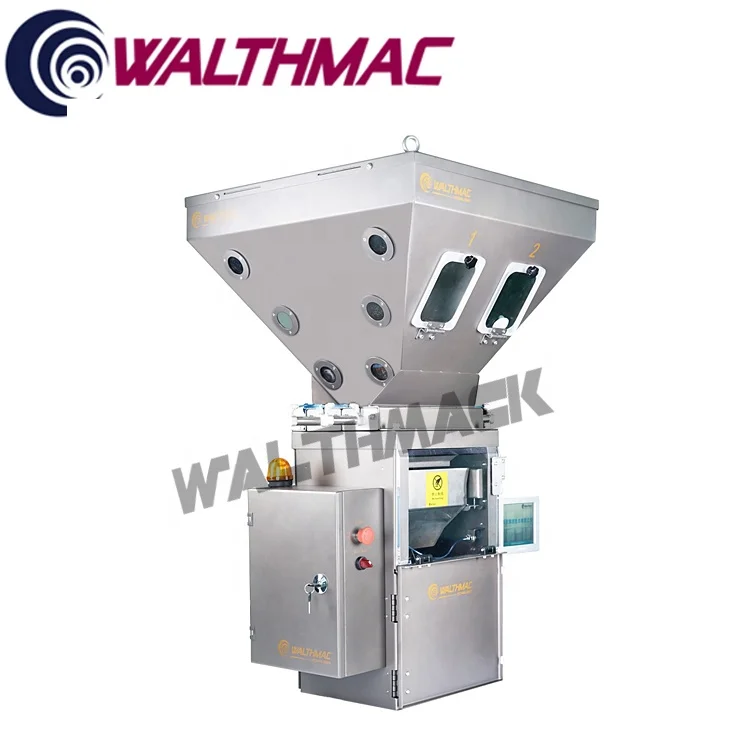

Customized Plastic Raw Material Mixer 0.3% Precision Granule Pellet Dosing And Mixing Gravimetric
Dosing And Mixing Gravimetric Blender for Plastic Granule Material
-----Online& offline material blending solution----
WBB Series plastic raw material mixer

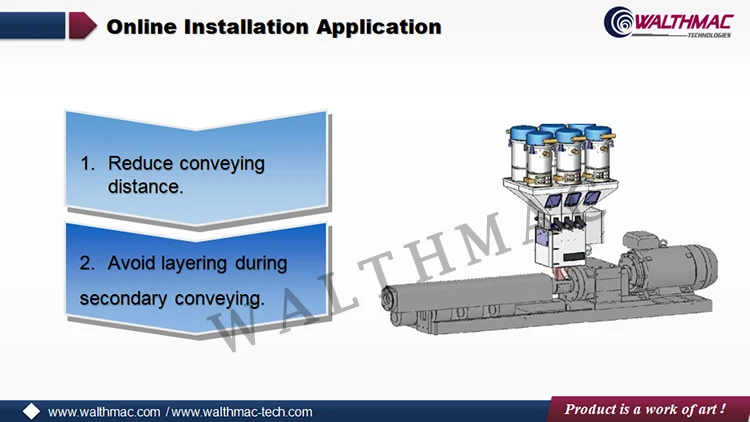

A Our batch & continuous gravimetric blenders are aiming at the requirements of online and
offline auto-blending work.
B Our blenders can work with raw materials such as particle, powder and liquid, etc.

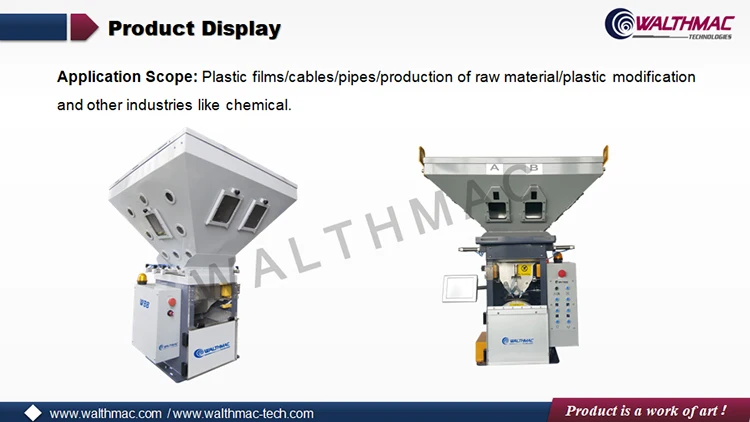

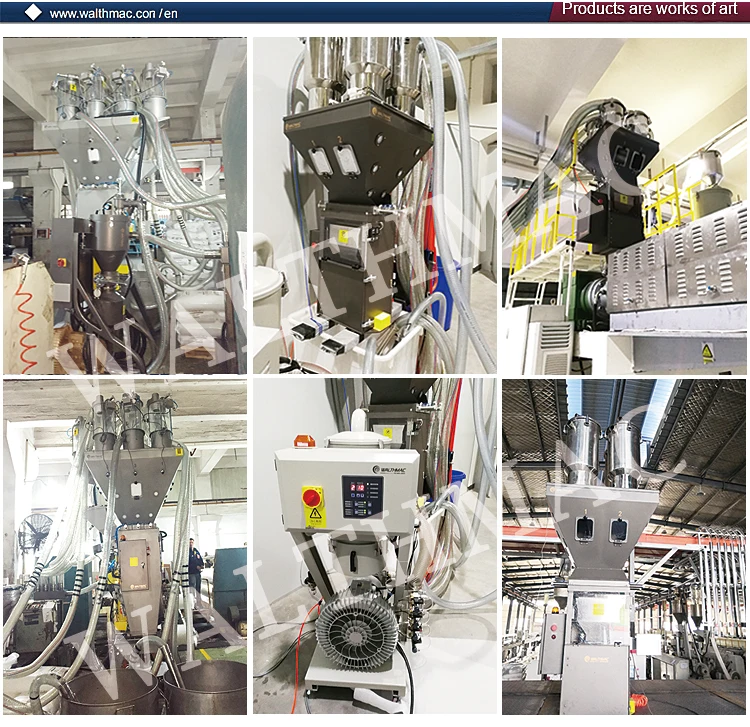

C Application Field: plastic films/ cables/ pipes/ production of raw materials/ plastics modification
and other industries such as Chemicals.
Gravimetric plastic raw material mixer function features:
1. Max components: 2,4,6,8,12(can be customized)
2. Precision error: 0.1%.-0.3% (Varied from material and component)
3. Weighing sensor brand: HBM, SMC pneumatic elements
4. Resolution of weigh signal is as high as 4,000,000:1
5. Part of material contact is Made of stainless steel, carbon steel frame, surface treatment: plastic spaying, standard color: light gray(customized)
6. Modular design, detachable structure, free-tool maintenance, easy operation
7. 7” true color of touch screen with multi-language choices, dynamic display of mixing process .Centralized screen with 10’’,can start and stop,monitor and input recipe of the 3 blenders.
8. Special designed agitator structure with dual direction to guarantee full blending
9. Interior of hopper is smooth without any blind side. Quick cleaning window and high/low level window
10. Choices of multiple dosing mode, applicable for different applications, accurate proportion is guaranteed.
11. Position of level sensor is mixing chamber is adjustable
12. Imported energy conservation motor
13. Advanced self-adaptation control algorithm, error self-correcting to each single batch, dosing precision can be optimized even under vibration based on unique anti-vibrating structure and algorithm.
14. USB access
15. Throughout statistics function.
16. Grading password control, alarm records and save function for max.100 group of formula saving.
17. Equipped with alertor, records output is available.
18. Remote controlling function. (option)
19.Walthmac application software with self patent
OEM Service
The both types of online and offline accept OEM & ODM order.
Based on our strong techinical strength, orders of customerized model or special application
model are acceptable. Our R&D dept can work for every customer's special auto-manufacturing
requirement if needed.

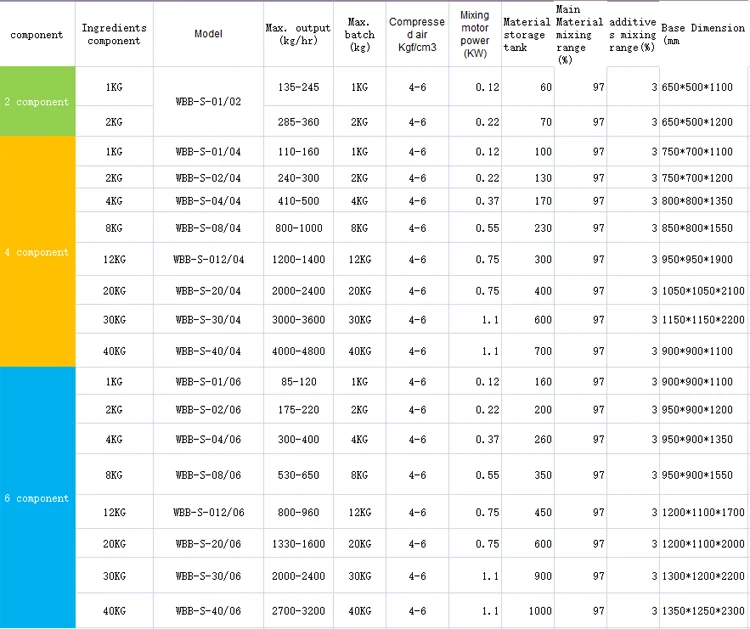

Gravimetric plastic raw material mixer key specifications:
Note: the practical output is relevant with the precision setting and the number of components.
Product Uses
Company Information
Trade Shows
Associated Brands
FAQ
Q1:How do you control the quality?
A:We start the quality control beginning from design optimizing. We keep screening out the qualified supplier list to cooperate with our strict manufacturing standard. The last chain of quality control comes to our testing and QC. Quality control in Walthmac forms a whole closed loop and help us to present much better qualified products to market than the average ones on the market.
Q2:Why should I choose your company?
We've strong technical strength to solve customers different production requriments and can offer products with higher precision rate above 3-6 times than those of average products can offer on the market. The full chain of intellectual property developed independently by Walthmac company can help our clients produce better qualified products and run in a more economic way.
Q3:How about the lead time and after sales service?
We have a effecient system enable us to strictly stick to the delivery time for every contracted order. Our clients never need to worry about it.
Q3:How about after sales service?
Worry-free after sales service from we Walthmac can not only respond instantly 7-24, but also ensure it goes in a more economic way to help our clients release cost burden through online or on site techinical support.
