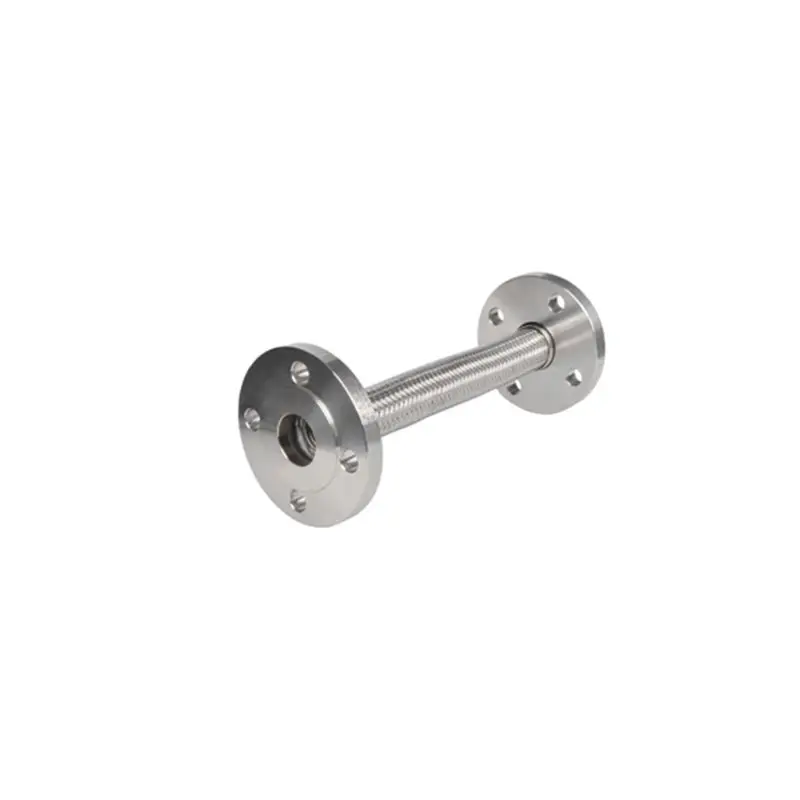

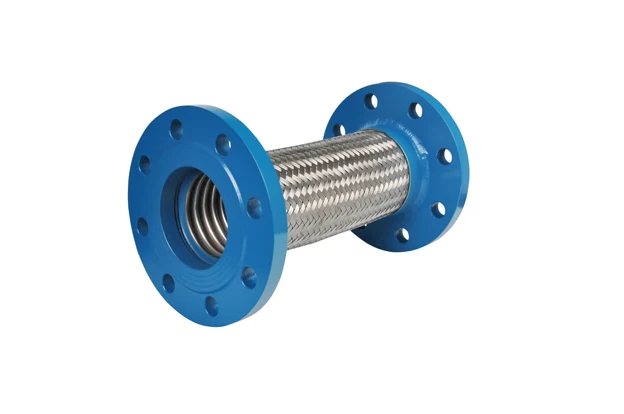

Stainless Steel Wire Braided Corrugated Flexible Metal Hose Pipes, Quick Convoluted Metal Hose for Heated Exchanger
- Category: >>>
- Supplier: Jiangsu Daming Corrugated Pipe Co. Ltd.
Share on (1600434403556):
Product Overview
Description

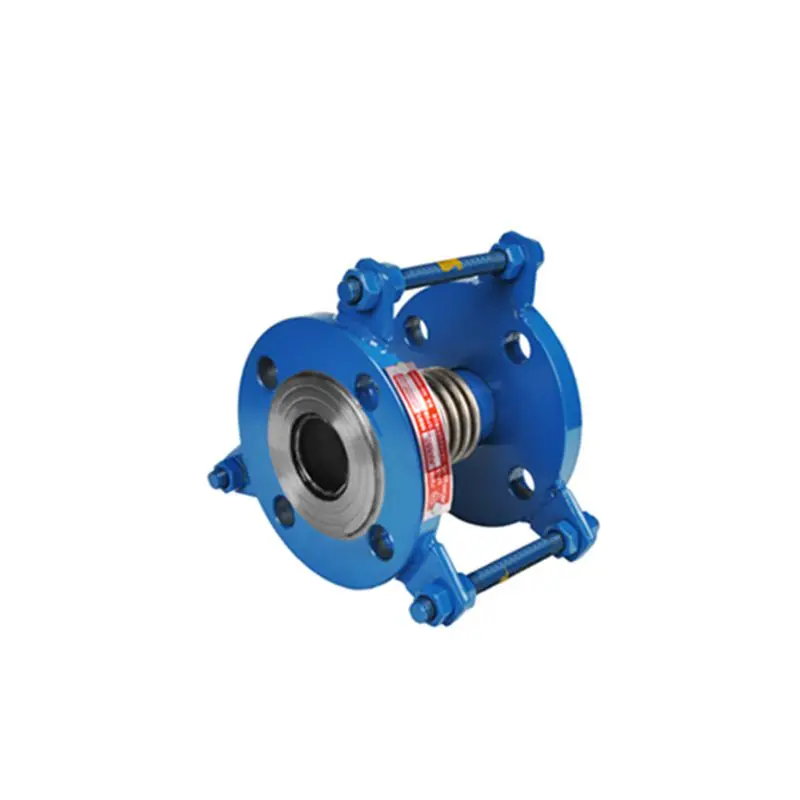

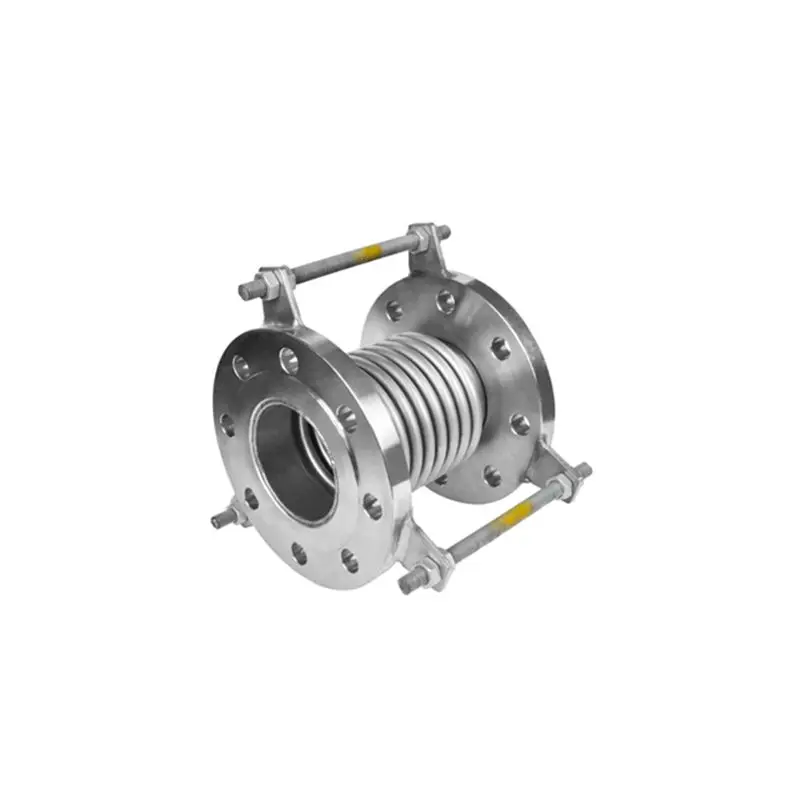

Stainless Steel Flexible Corrugated Metallic Expansion Joint Ss Industrial Metal Hose Welding Pipe Clamps Tube Connection Hose
Hose manufacturer 30mm plastic PVC steel spiral flexible vacuum extension corrugated stretch expandable hose
Specifications
The Thread type connect stainless steel braided tube temperature is from -196 to 700 deg.C, pressure can be 0.6~10Mpa, the material of the flexible metal bellow is made
OF SS304,SS321,SS316 or SS316L as your requirement, we produce stainless steel metal bellow in accordance with the ISO9001:2008 GB/T14525-2010 standard.
| Pipe Diameter | DN1/2-32inch |
| Pipe Material | SS304,316L,etc |
| Pipe thickness | 0.18-2.0mm |
| Braided mesh material | SS304 etc |
| Braided mesh layer | single layer or double layers |
| Max. woking pressure | 10Mpa |
| Working temperature | (-196)~(+700) °c |
| Connect type | flange,thread,welded.etc |
| Standard | ANSI,JIS,DIN,GOST,etc |
| Flange material | stainless steel or carbon steel |
| Pipe assembly length | according to clients' requirements |
Features:
1.To absorb effectively vibration, noise,thermal expansion from pipeline system;
2.To resolve minor deviation because of piping connecting and eliminate the pipeline residual stress;
3.Applied to repeated motion in high temperature areas,good anti-fatigue performance;
4.Good flexibility,resistant to high temperature, resistant to corrosion.
5.Applied in the fields of petroleum,chemical industry,aerospace,metallurgy,electricity, gas,building,mechanical, construction,iron and steel,paper making,fabric,medicine,food and vessels ect.
Technique parameter:
Customizable size is available.
FAQ
Q : Are you trading company or manufacturer?
A: We are manufacturer of stainless steel corrugated pipe , bellow expansion joint,metal expansion joint ,flexible metal gas hose, flange adapter and flange with more than 20-year experience.
Q: Do you have products catalog?
A: Yes, we have. Please tell me your email or instant messager, we will send our catalog.
Q: Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and technical data.
Q: Do you provide samples? Is it free or charged?
A: Yes, we can offer sample free available in stocks but shipping charges covered by customer.
Q: Can the products be manufactuered by customer's requirement?
A: Yes, the specifications stated above are the standard ones, we can customized upon your specification data.
Q: Where is your factory ?
A: We located in taizhou city,Jiangsu province ,China,which is 2 hours by fast Train from shanghai .welcome to visit our factory .
