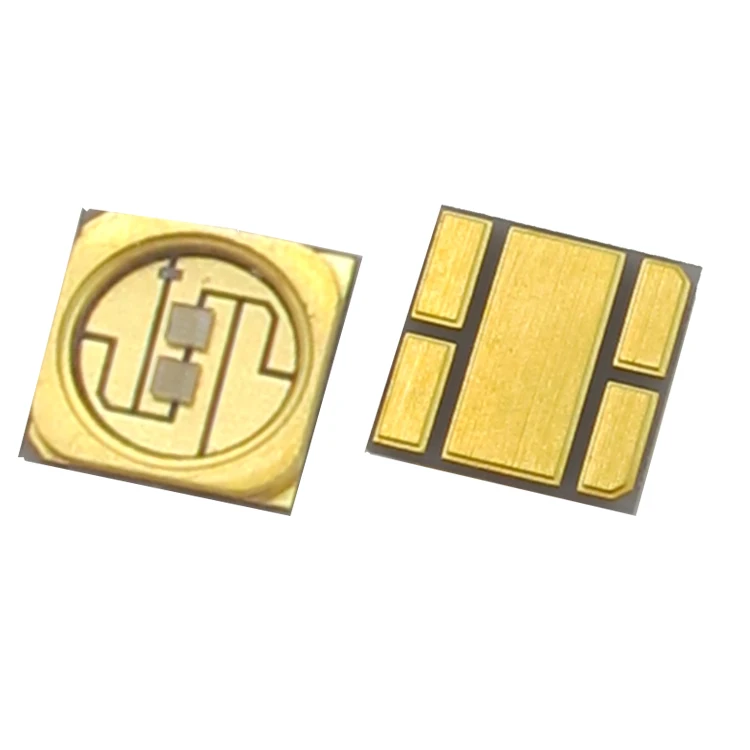

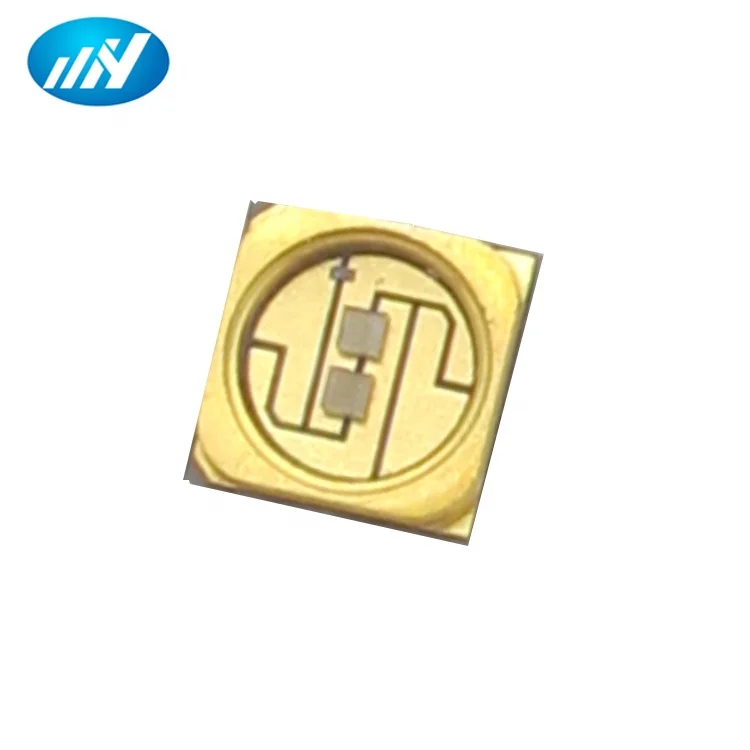

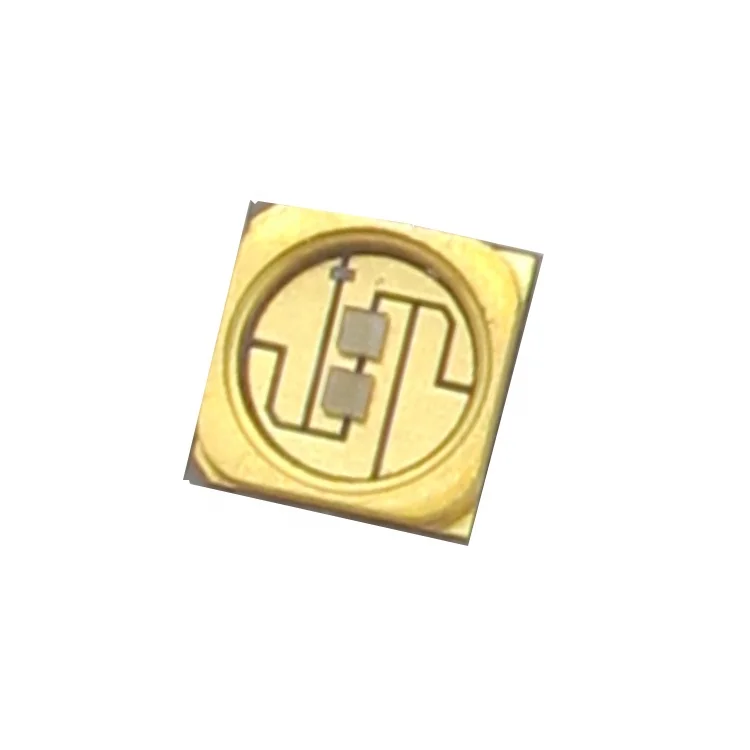

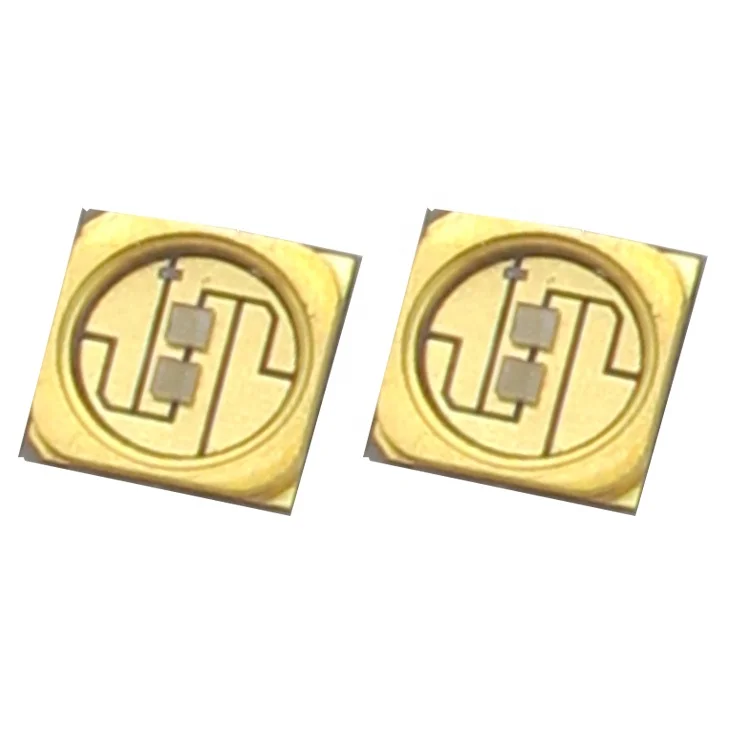

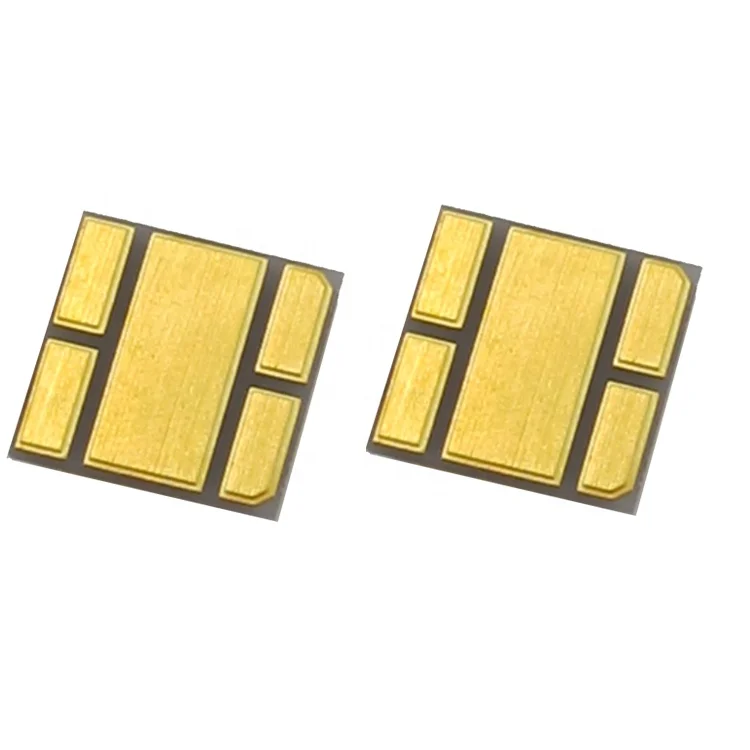

5050 uvc led 254nm 270nm 265nm 280nm uv led disinfection device
- Category: >>>
- Supplier: Shenzhen Yingfeng Opto-Electronic Co. Ltd.
Share on (1600435240490):
Product Overview
Description
| Product model | Wavelength (nm) | Radiant power (mW) | Circuit | Current (mA) | Voltage (V) | (0°) | Half Width (nm) |
| HYF50P30F250AG-X2E | 250-260 | 100-120 | 2P | 700 | 5-7 | 60 | 11 |
| HYE50P30F260AG-X2E | 260-280 | 100--120 | 2P | 700 | 5-7 | 60 | 11 |
| HYF50P30F270AG-X2E | 270-280 | 100-120 | 2P | 700 | 5-7 | 60 | 11 |
| HYF50P30F310AG-X2E | 305-315 | 150-180 | 2P | 700 | 5-7 | 60 | 13 |
| HYE50P30F250AG-D2E | 250-260 | 100-120 | 2P | 700 | 5-7 | 120 | 11 |
| HYE50P30F260AG-D2E | 260-280 | 100-120 | 2P | 700 | 5-7 | 120 | 11 |
| HYE50P30F270AG-D2E | 260-280 | 100-120 | 2P | 700 | 5-7 | 120 | 13 |
| HYE50P30F310AG-D2E | 305-315 | 150-180 | 2P | 700 | 5-7 | 120 | 13 |
Warmth Hint: The company is willing to personalize your customized products.
How to calculate the total light intensity
UV dose refers to the amount of ultraviolet light of a specific wavelength required to reach a certain rate of bacterial inactivation:
Total Lightin Intensity(J/m2) = irradiation time (s) X UVC intensity (W/m2)
The greater the irradiation dose, the higher the disinfection efficiency. The higher the UVC light power, the shorter the time required to kill bacteria and viruses, and vice versa, the lower the light power,The longer it takes to sterilize.
The above parameters are for reference. Wavelength Angle, PCB can be customized according to requirements
