A ONE Ланг большие само центрирующий тиски для 5 стерженией для 3A 110185 (1600435695404)

Share on:


Price:745,00 $ - 769,00 $
Price in USD:Details

Quantity:


Product Overview

Description



Product Description

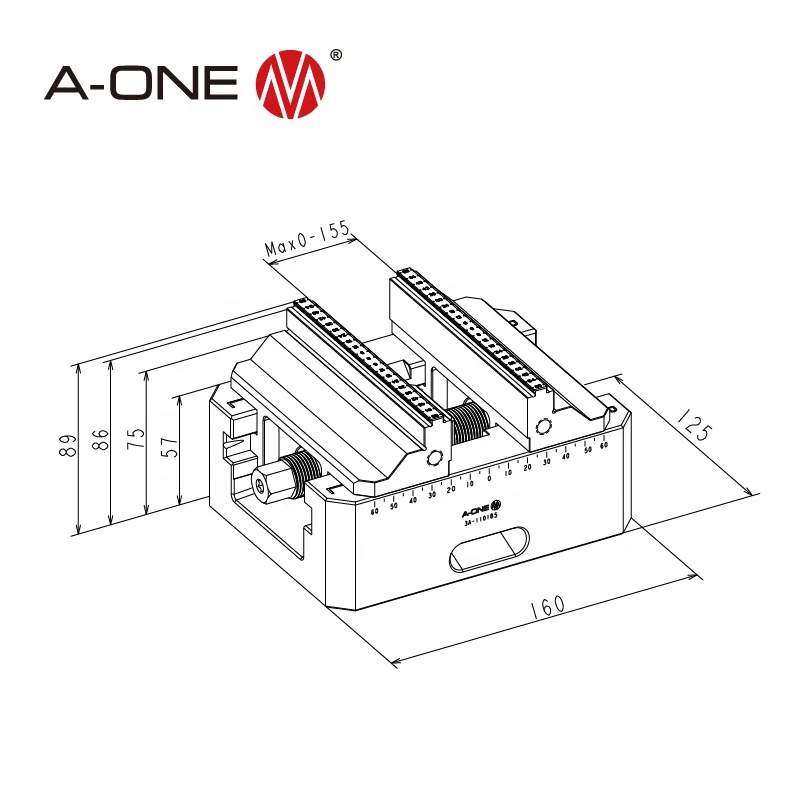

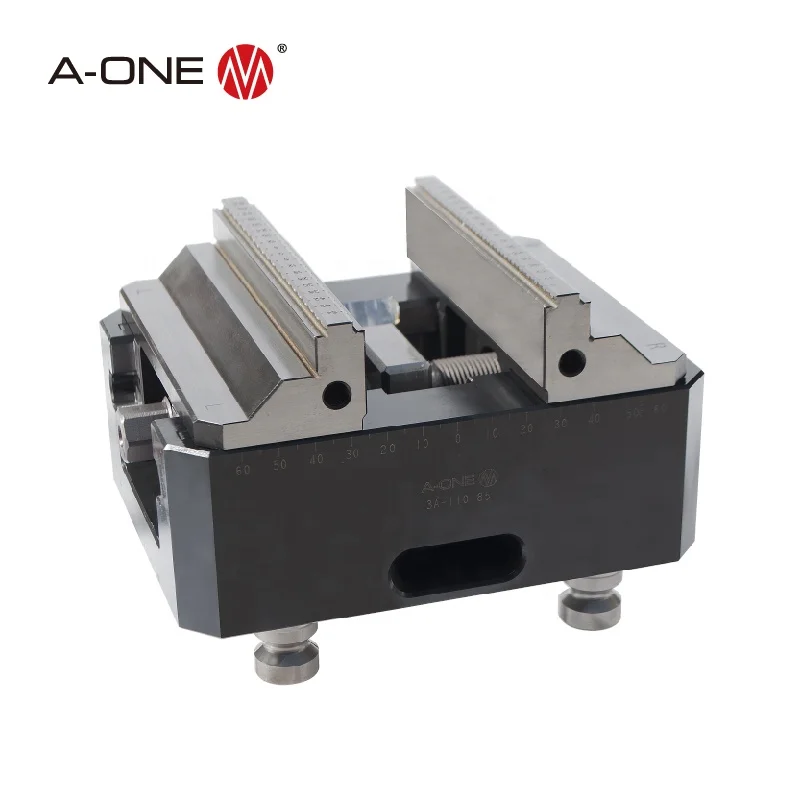

A-ONE Lang big self centering vise for 5 axis CNC machining 3A-110185

Repeatability:0.02 mm!


Detail description




Version
Double self centered with repeating accuracy of 0.02 mm.
Fixed center distance is 96 mm.
To be fixed on the machine table or pallet with D20 spigots.
Clamping force
Max 20000 N
Driving torque
100Nm
Application
Suitable for vartical and horizontal precision processing machine, for 5 axis machining per time .Special jaws can be customized.
Note
Hexagonal wrench is supplied separately;
Use with quick manual zero point plate.


Detailed Images






Hot Products






Product Application












Our Company


Company profile

Shenzhen Jingzuan Intelligent Manufacturing Co., Ltd. was established in 2000 and is dedicated to manufacture 3A fast positioning fixture system, zero-point fast positioning clamping system, ball lock fast-installation fixture system, numerical control machine clamping chuck, guide sleeve and tooling and fixture. Shenzhen company covers an area of 3,000 square meters. Jiangxi Indusrial Park covers an area of 26,000 square meters, with the factory area of 18,000 square meters.

our company advantage

Our company has the advanced production facility introduced from Germany, Switzerland, the USA and Japan, such as JUNG form grinding machine and ELB high-precision surface grinding machine of Germany, MOORE jig grinding machine of USA, internal and external grinding machine and thread grinding machine of Switzerland, and OKUMA machining center and TSUGAMI numerical control machine of Japan. The company established constant-temperature grinding room of 20 C and high-precision constant temperature measuring center, and introduced high-precision measuring equipment, such as German ZEISS coordinate measuring machine, ZEISS tool microscope and TESA MIVRO-HITE altimeter. The stable quality and high cost performance ratio are highly appreciated by domestic and overseas customers.





Production workshop






Certifications




Packing & Delivery






FAQ


How To Order?

Step 1 please tell us what model and quantity you need;

Step 2 then we will make a PI for you to confirm the order deta

Step 3 when we confirmed everything,  arrange the  payment;

Step 4finally we deliver the goods within the stipulated time.

DeliveryTime


small Order:in stock normally,deilver goods once payment received

large Order: 5-7 days

OEM Order: 7-15days

OEM logo Service

we supply service of marked logo and wipe off logo,please note wipe logo is a little expensive.

After-sales Service

If you find any defective accessories in the first order, we will give you the new parts for free to replace in the next orr, the fact is that our products fraction defective is lower than 1%.

Welcome to choose A-ONE company as your long-term  relationship supplier!

If you are interested in our products,Please contact us !
