HVS 2MDT AXY Computer Control Semi Automatic Micro Vickers Hardness Tester

Product Overview

Description

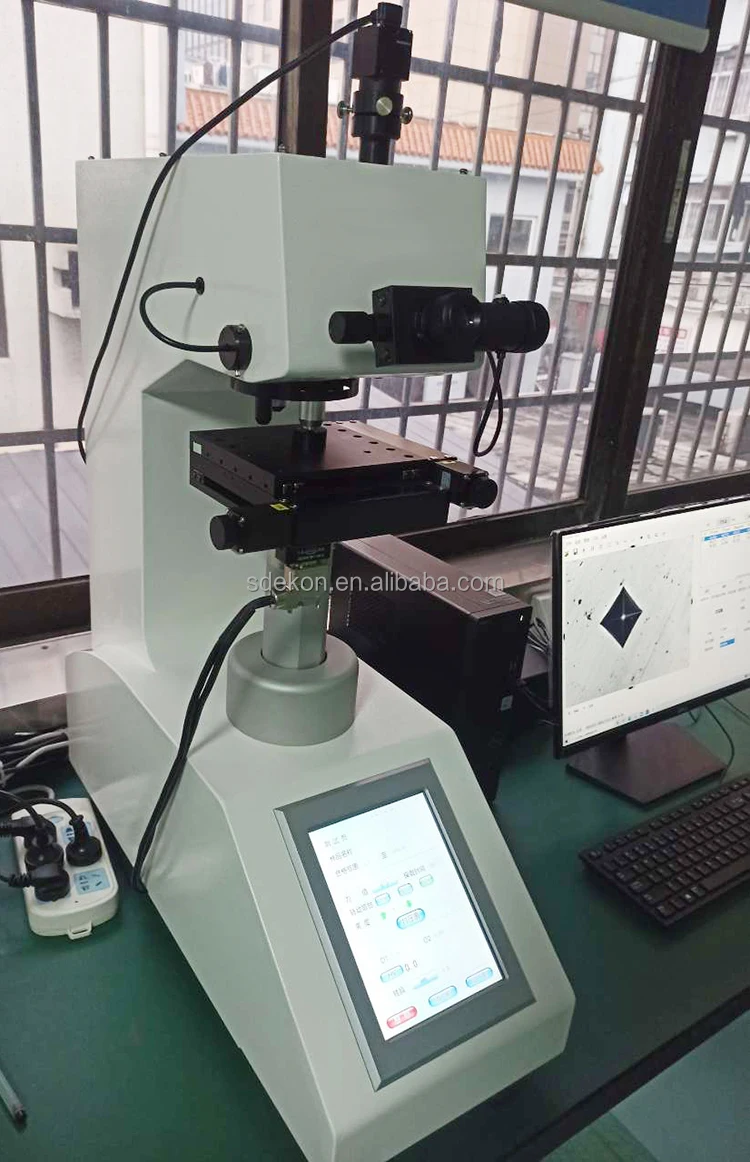

HVS-2MDT-AXY Computer Control

Semi-Automatic Micro Vickers Hardness Tester



HVS-2MDT-AXY Computer Control Semi-Automatic Micro Vickers Hardness Tester,

consists of two parts:
(1).HV-2MDT Touch Screen Digital Display Automatic Turret Micro Vickers Hardness Tester
(2).HVS-AXY Automatic (Micro) Vickers Hardness Measurement and Control System



Introduction:

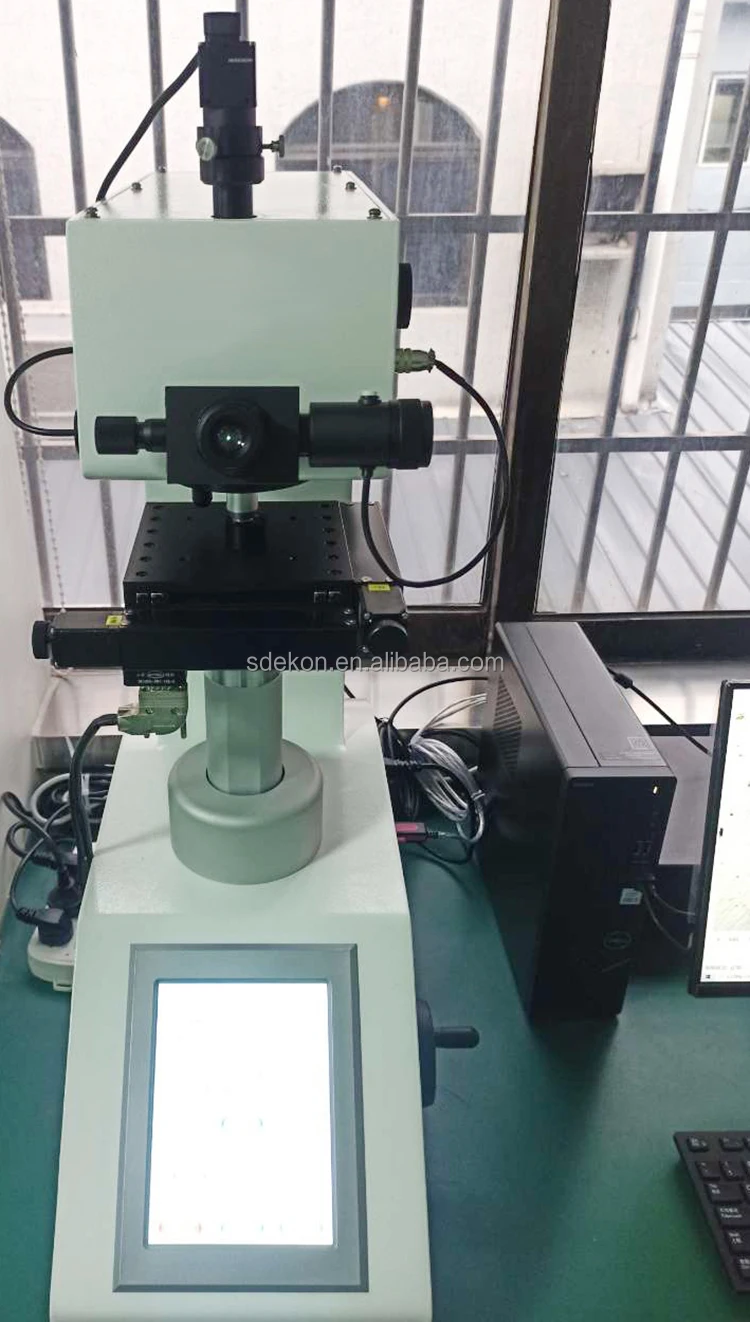

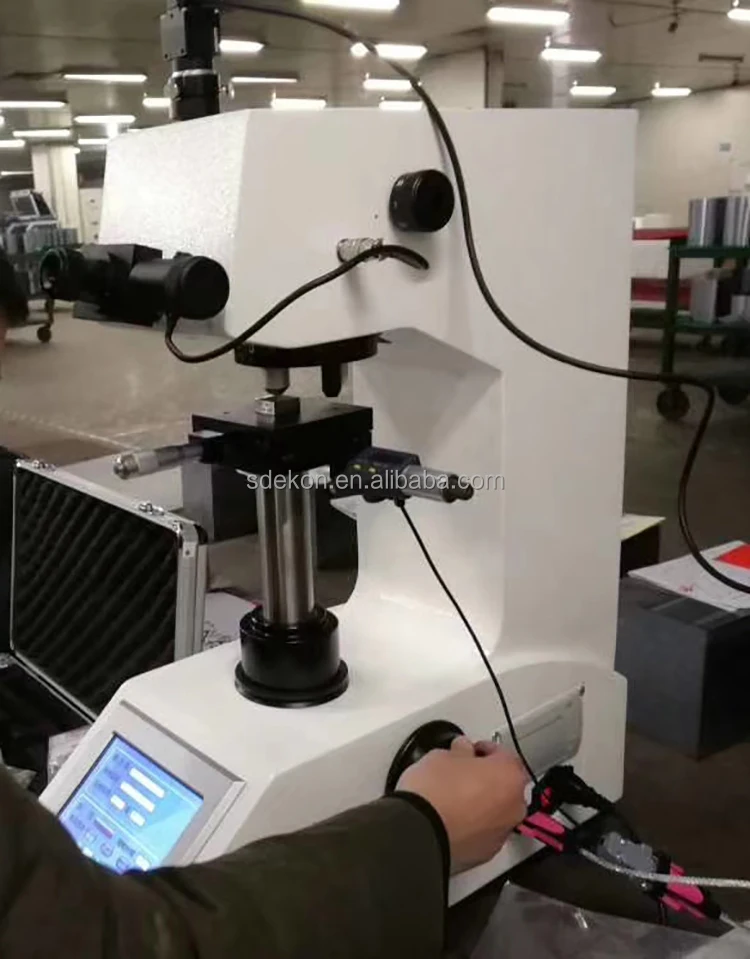

HV-2MDT Touch Screen Digital Display Automatic Turret Micro Vickers Hardness Tester is 8-inch touch

screen digital display, dual language setting, convenience for users to choose, menu structure interface,

can choose hardness scale HV or HK on the interface.

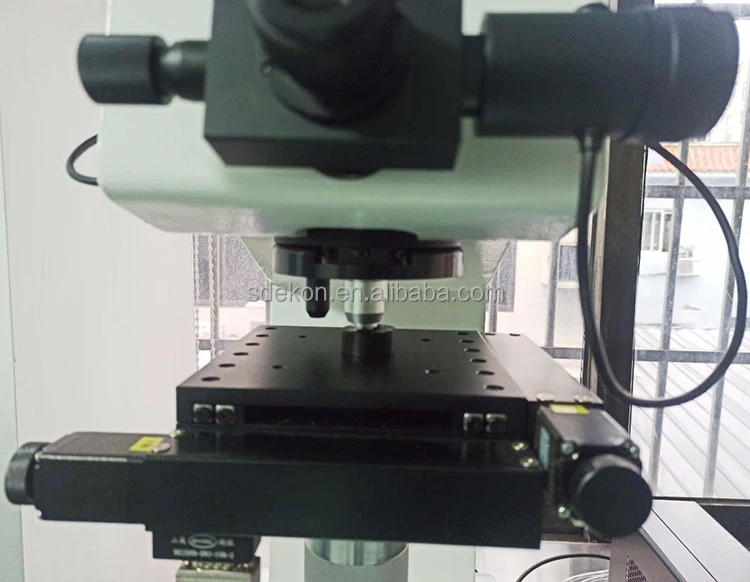

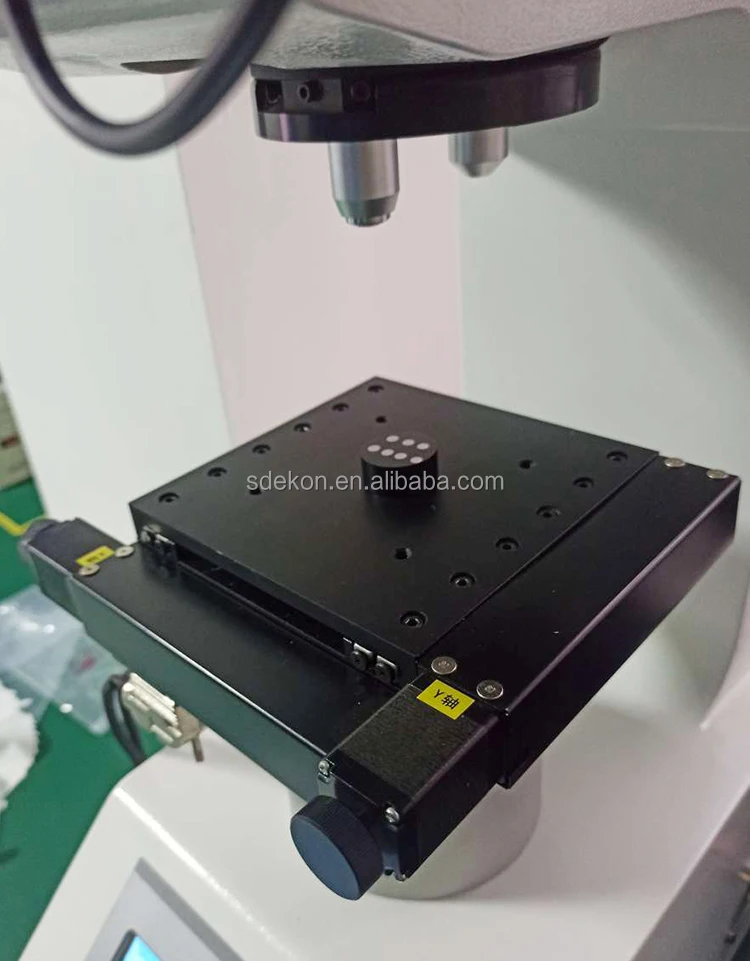

With automatic turret structure, the indenter and objective can switch automatically.
Automatic positioning accuracy of the test point. Test hardness value, automatic calculation, automatic

display, automatic storage, automatic data processing and printing.
Conversion between different hardness value, stepless adjustment of light source.
It use the external camera, image will be more clear.
Calibrate according to standard block or length scale, the result will be more accurate.



Technical Parameter:

Model	HV-2MDT
Test Force	10gf(0.098N);  25gf(0.245N);  50gf(0.49N); 100gf(0.98N);  200gf(1.96N);  300gf(2.94N); 500gf(4.9N);  1Kgf(9.8N);  2Kgf (19.6N)
Measurement Resolution	0.01 um
Hardness Measurement Range	8~2900 HV
Test Force Loading Method	Automatic (Loading, Dwell, Unloading)
Conversion Scale	Rockwell, Brinell
Dwell Time	1~99 s
Max. Height Of Sample	160 mm
Distance From Indenter To The Wall	160 mm
Microscope Magnification	100X (Testing, Observation), 400X (Testing)
Data Display Output	8 Inch Touch Screen Display Readout, Can Store 20 Test Results, USB Drive
Standards Compliant	GB/T4340.2, ASTM E92



Software Introduction:

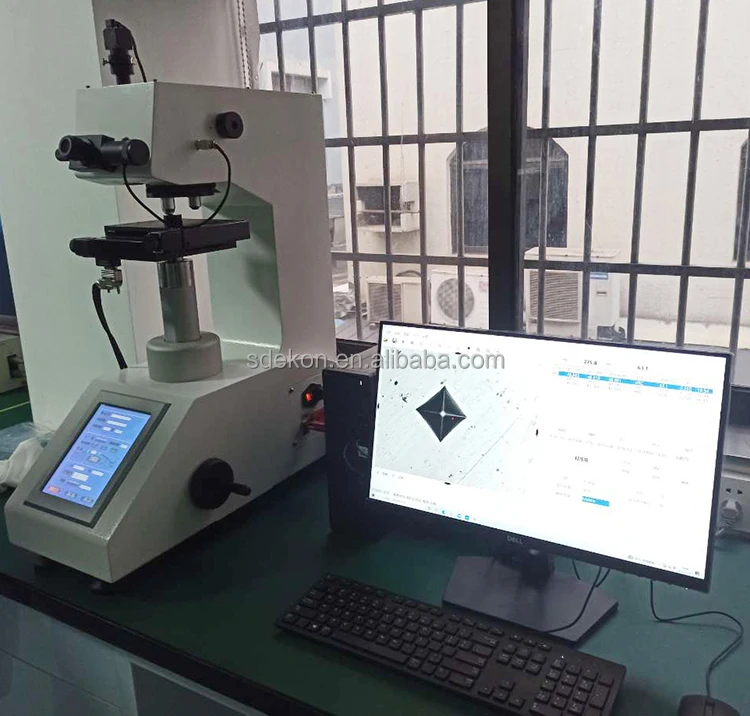

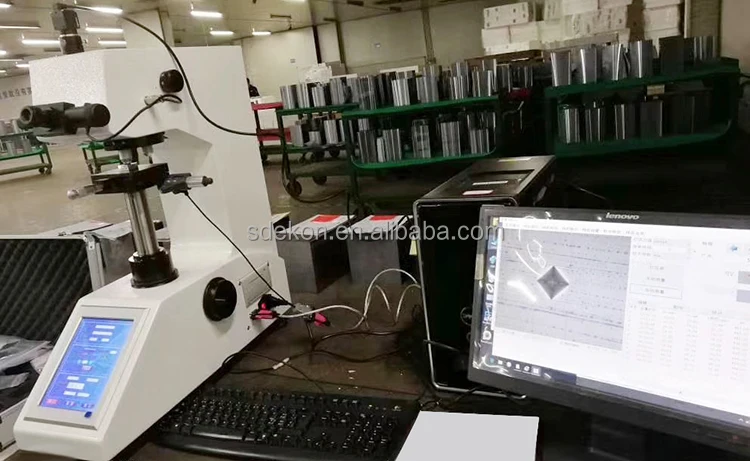

HVS-AXY Automatic (Micro) Vickers Hardness Measurement and Control System is a computer automatic

measurement and control system independently.
It is seamlessly connected with various vickers hardness tester (including micro Vickers) to form a perfect

automatic measurement system of vickers hardness tester.
The automatic hardness measurement is mainly used for vickers hardness measurement of various metals

and some non-metallic materials, and can be used for hardness measurement of various metal parts and

parts after thermal treatment.
It’s suitable for determination of effective hardening depth, coating and heat affected parts of welding parts.
It can also be used to observe the metallographic structure of various metal parts and collect, display and

print the image.
The system is especially suitable for measuring the surface hardness, hardness gradient distribution curve

and effective hardening depth of heat-treated workpiece.
