DTEC DHV 10D Digital Large Screen Vickers Hardness Tester Desktop Type for Metal Hardness Test in Laboratory
- Category: Hardness Testers >>>
- Supplier: Deity Testing Equipment Co. Ltd.
Share on (60441349349):
Product Overview
Description
Product Description

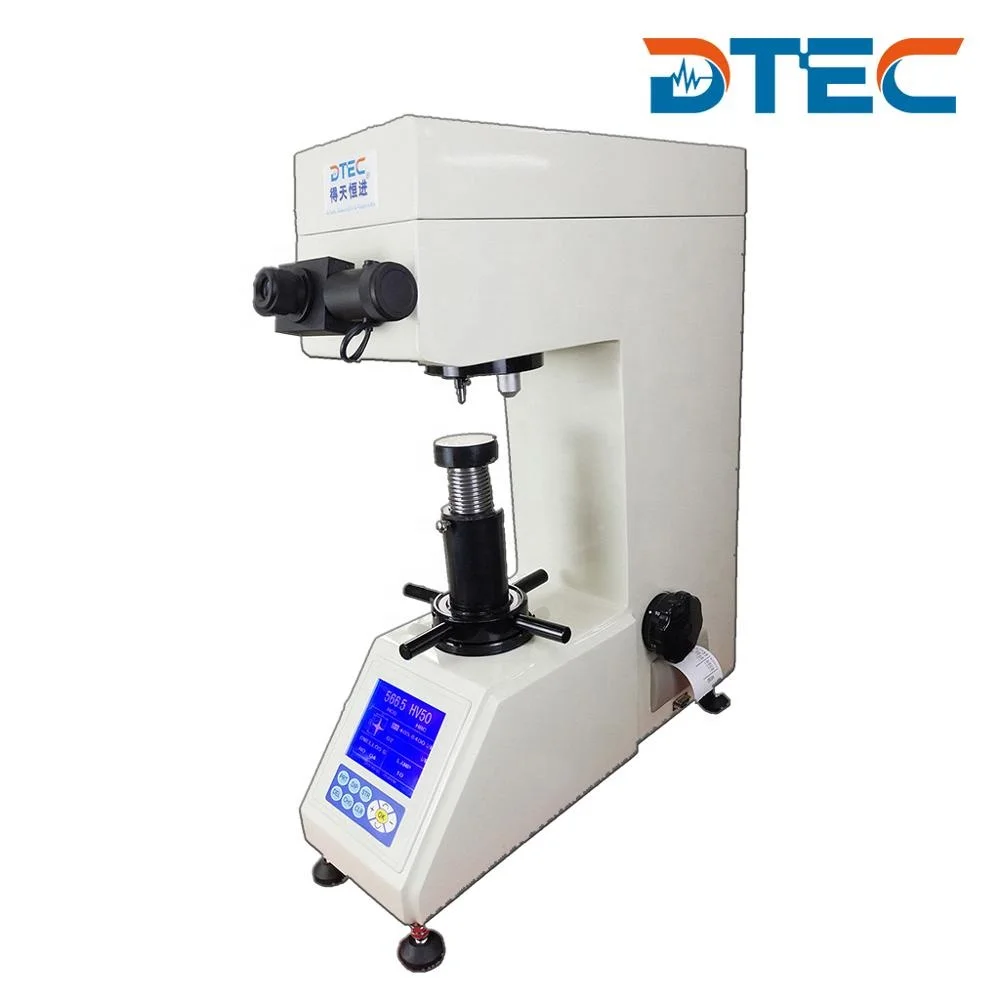

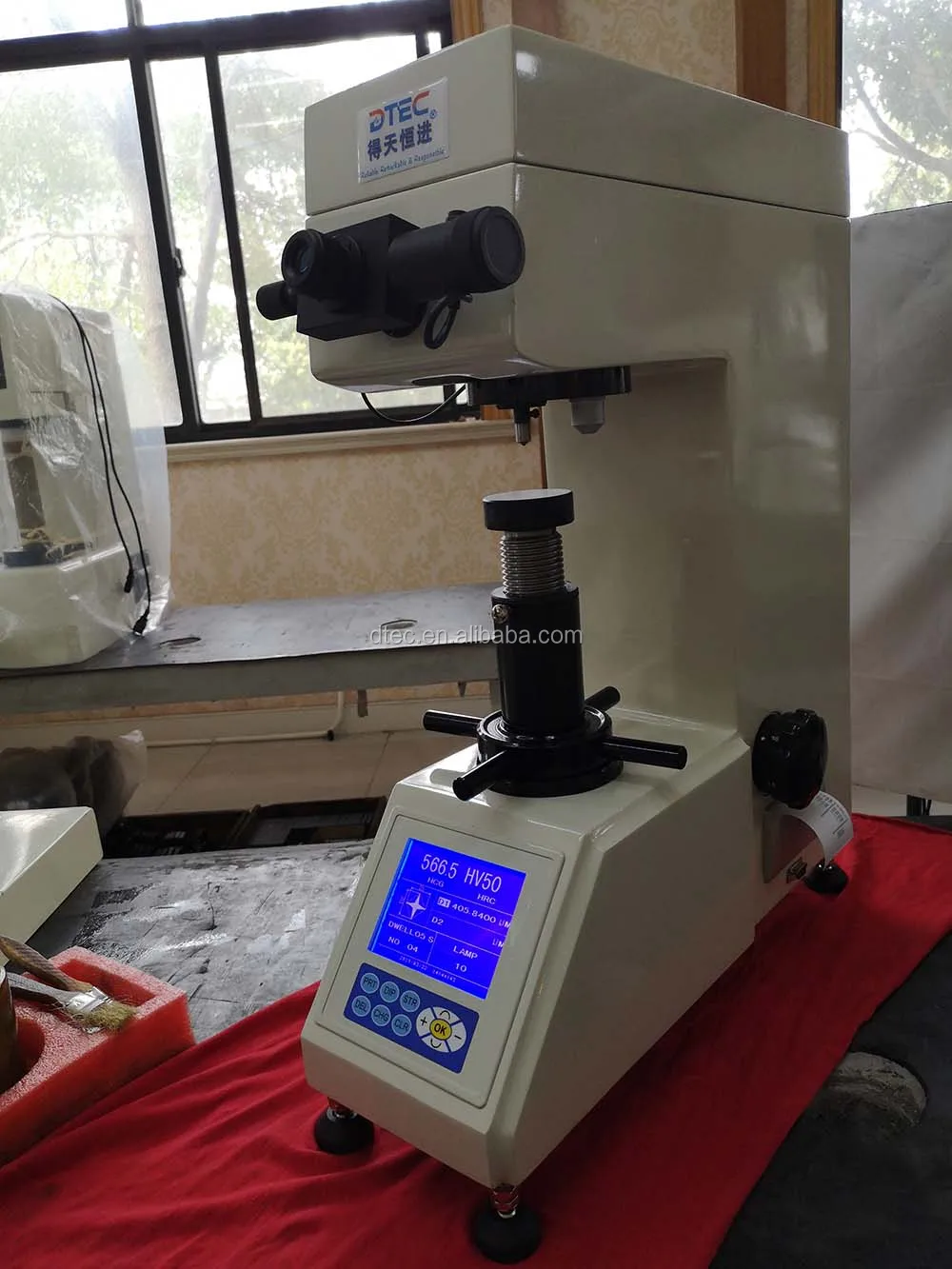

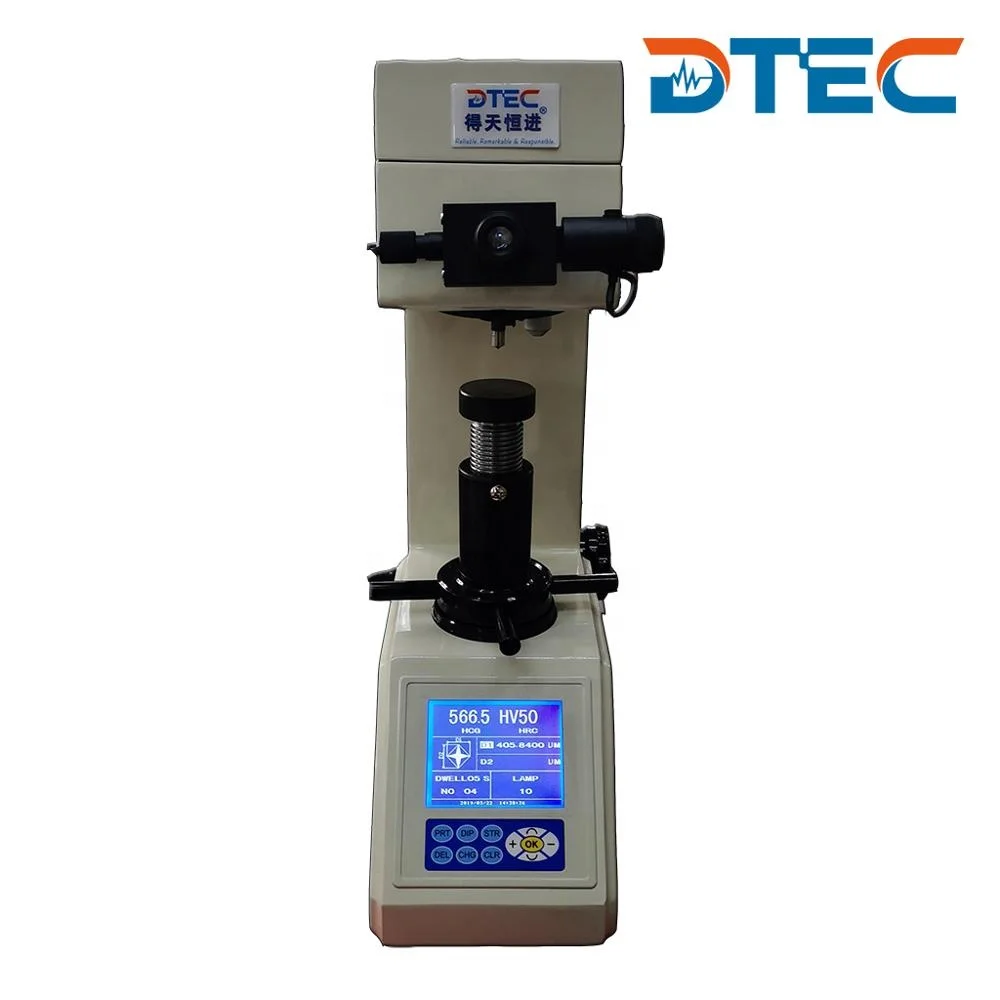

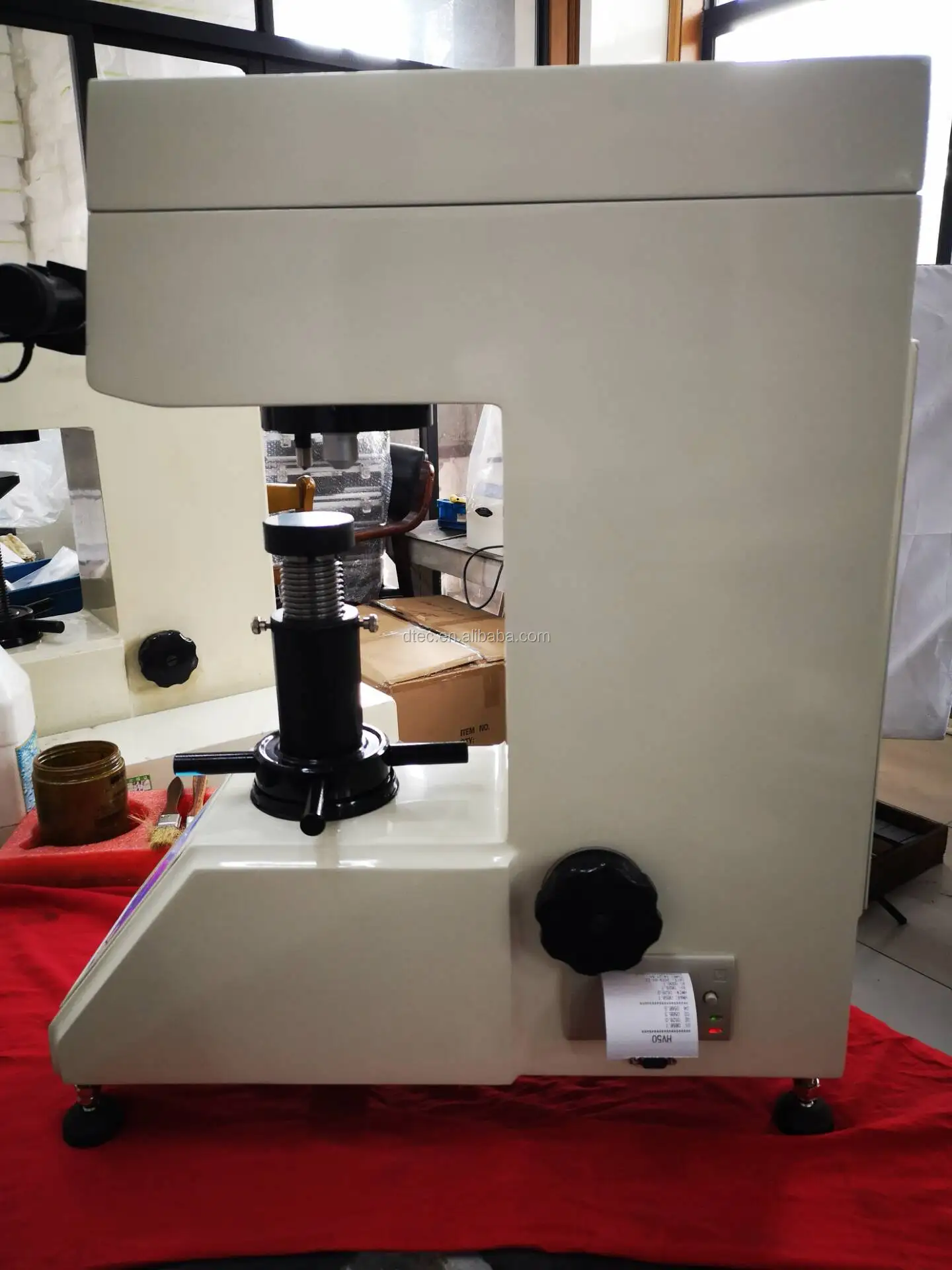

DHV-10D Digital Vickers Hardness Tester equips with large LCD displaying screen, similarly as DHV-5D Vickers Hardness Tester,it is also a new and high-tech product combining optical, mechanical and electronic techniques. With novel appearance, good reliability, operational functions and direct viewing, it is a new type Vickers and Knoop hardness measuring equipment, which adopts precise mechanical, optical and electronic techniques.
Additionally, this equipment is suitable for data processing software and optional measuring system. Through handing menu keys, the equipment perform complete functions such as selecting Vickers or knoop hardness testing mode, adjusting the intensity of black light,setting dwell time;besides, the length of indentation diagonal line can be keyed on operating board, then directly readout the hardness value from the screen,which is free from checking the tables.
The instrument is suitable for testing Vickers hardness value of thin pieces, the parts after surface treating with permeating and coating, and it is also fit for measuring Knoop hardness value for crisp and hard material such as glass, ceramics, agate, man-made precious stone;therefore, it is an ideal hardness measuring Equipment for the scientific research institutes, industrial enterprises and the metrological institutes using for studying and measuring.
DTEC Advantages

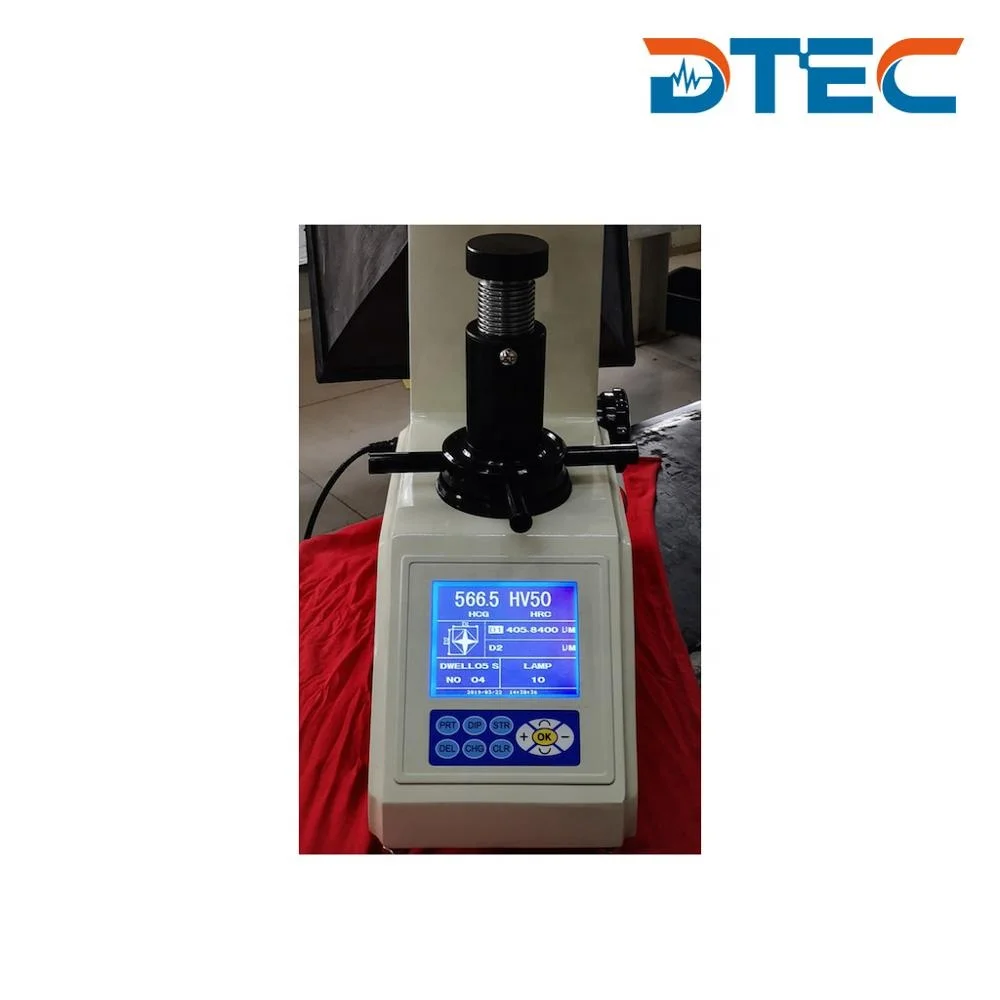

- Large LCD digital displaying screen, menu-driven operation structure,easy setting and operation;
- Equip with inside printer; connect to PC for further data processing with RS-232 interface;
- Selectable for scales HV,HK, testing force, and dwell time;
- Automatically calculate and display testing hardness value, exchangeable among different hardness values;
- Modify hardness value error by software input, make it more accuracy for requirement;
- Automatically save testing result, and then deal with and print it out.
Specification
Model | DHV-10D |
Min.Testing Unit | 0.0625µm |
Testing Force | 0.3Kgf(2.94N),0.5Kgf(4.9N),1.0Kgf(9.8N),3.0Kgf(29.4N),5Kgf(49.0N),10Kgf(98.0N) |
Testing Range | 8~2900HV |
Force Control Mode | Automatically Loading & Unloading |
Magnification of Microscope |
100X,200X(both support digital testing) |
Dwell Time | 0~60s(1S/unit, enter with any key) |
Data Output | Large LCD Digital Display,Inside Printer & RS-232 Port |
Specimens Max.Height | 160mm |
Specimens Max.Depth | 135mm |
Power Supply | AC220V+5%,50-60Hz |
Dimension | 58*37*84cm |
Packing Weight | 60Kg |

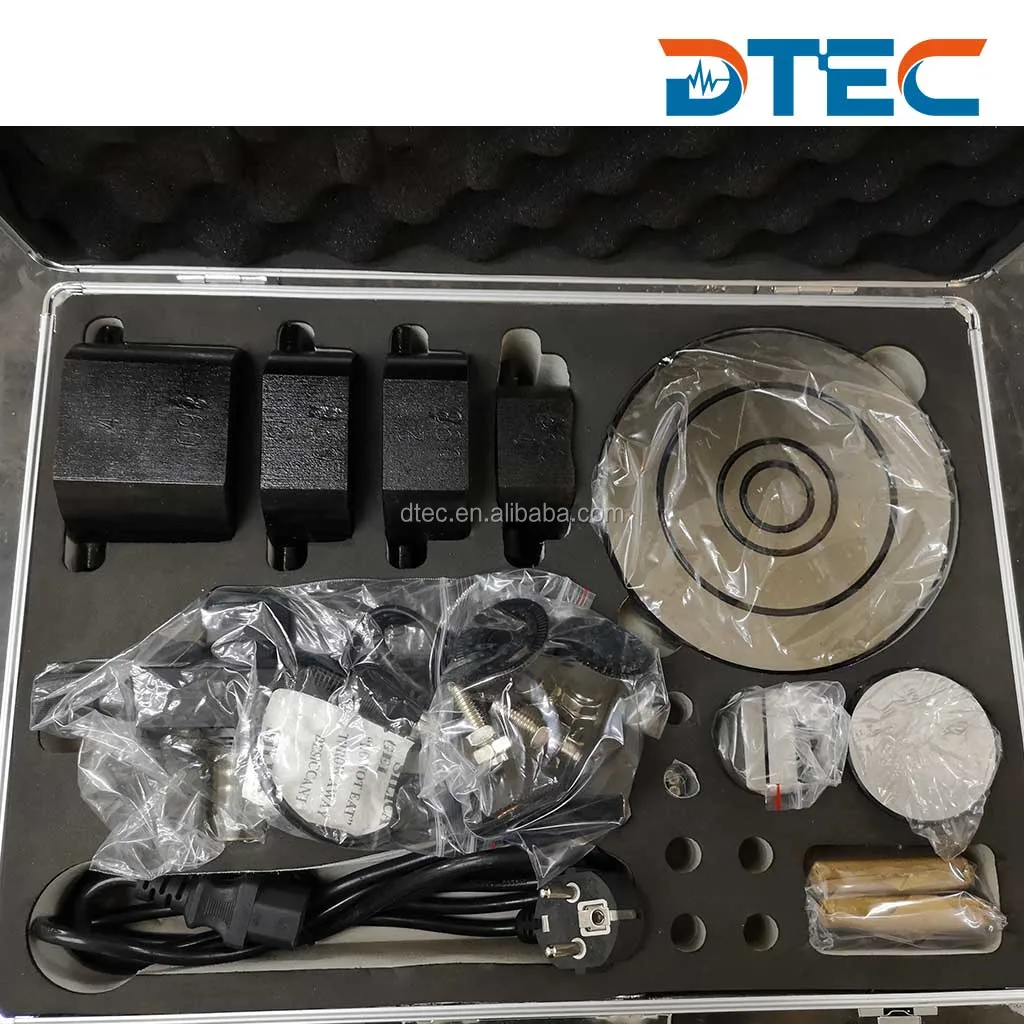

Packing List & Accs
Standard Packing List:
Items | Qty. | Items | Qty. |

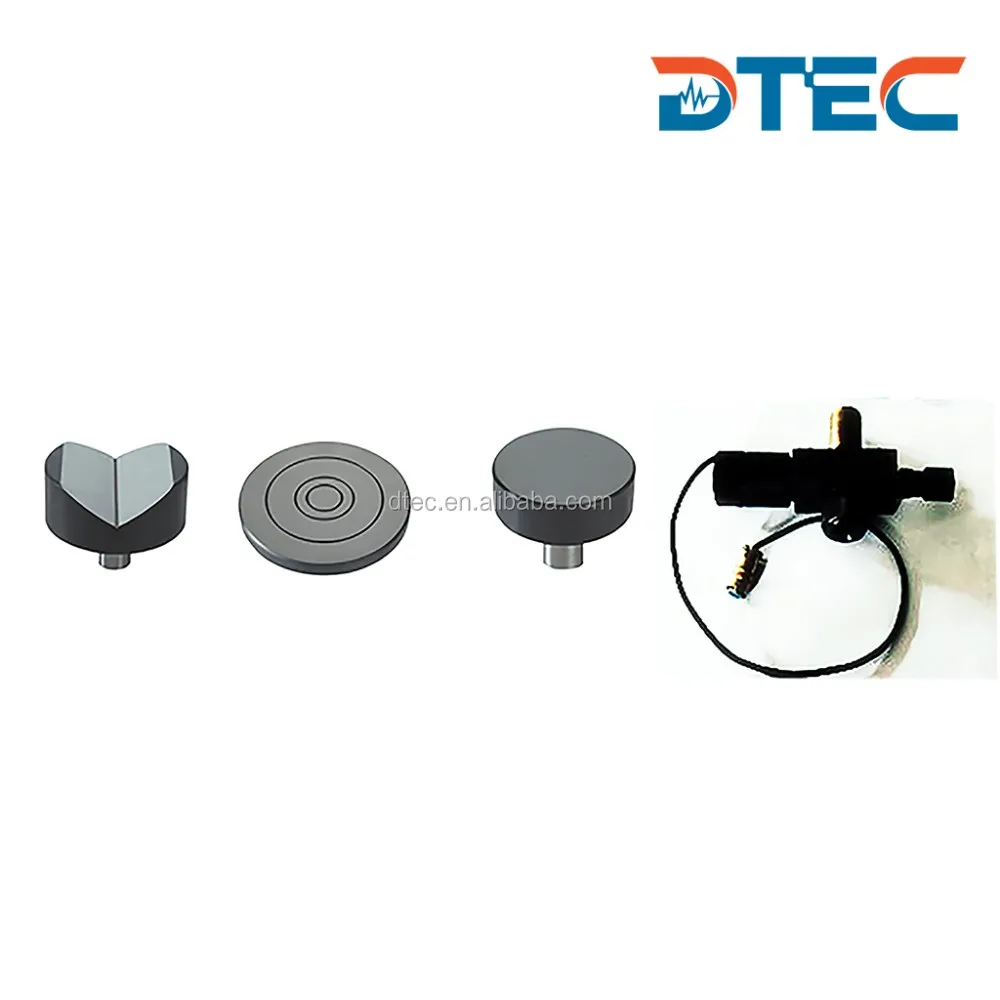

Weights | 3 | Standard Block | 2 |
V Type Testing Platform | 1 | Fuse(2A) | 2 |
Round Testing Platform | 1 | Power Supply | 1 |
Big Testing Platform | 1 | Quality Certificate,Printer Roller Paper | 1 |
10X Testing Eyepiece | 1 | Machine Manual Book,Printer Manual Book | 1 |
Optional Accessories:

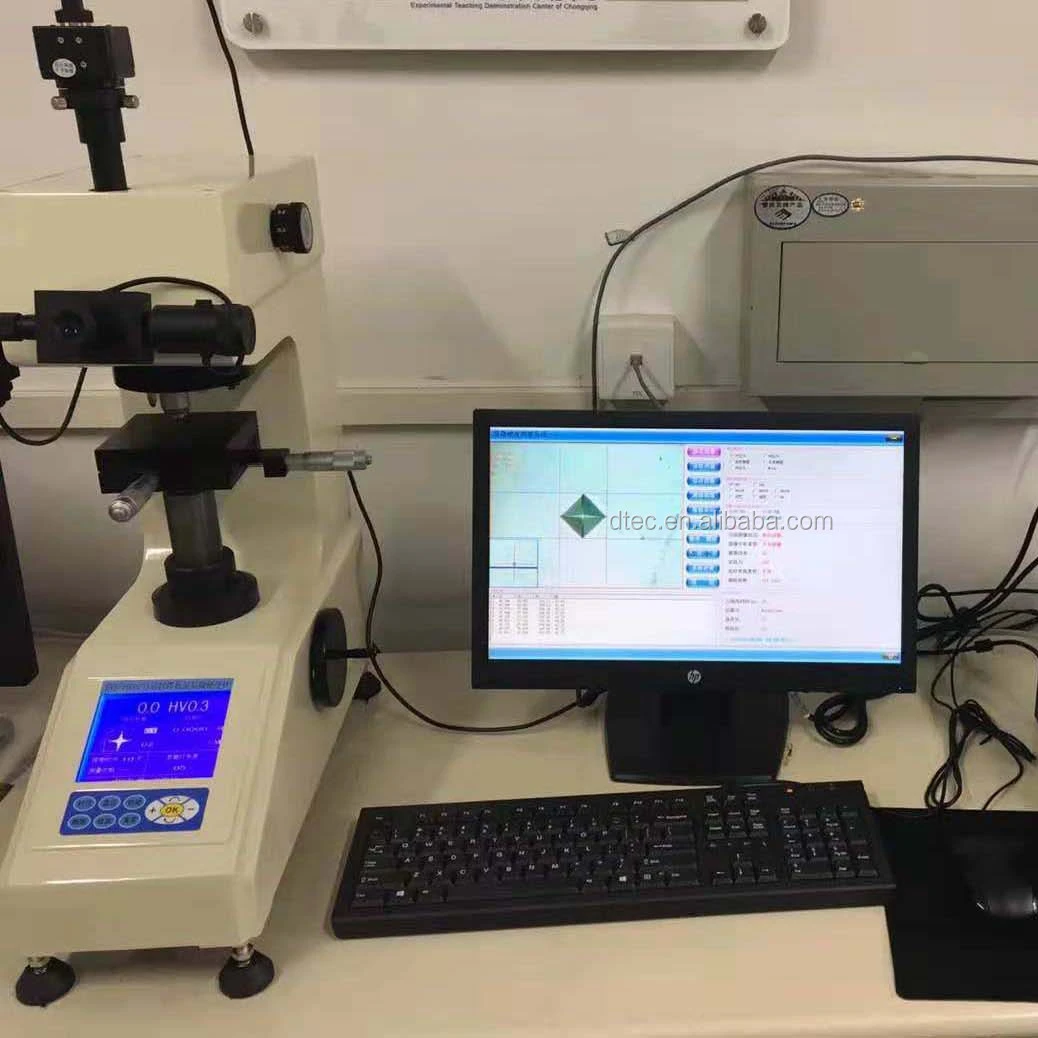

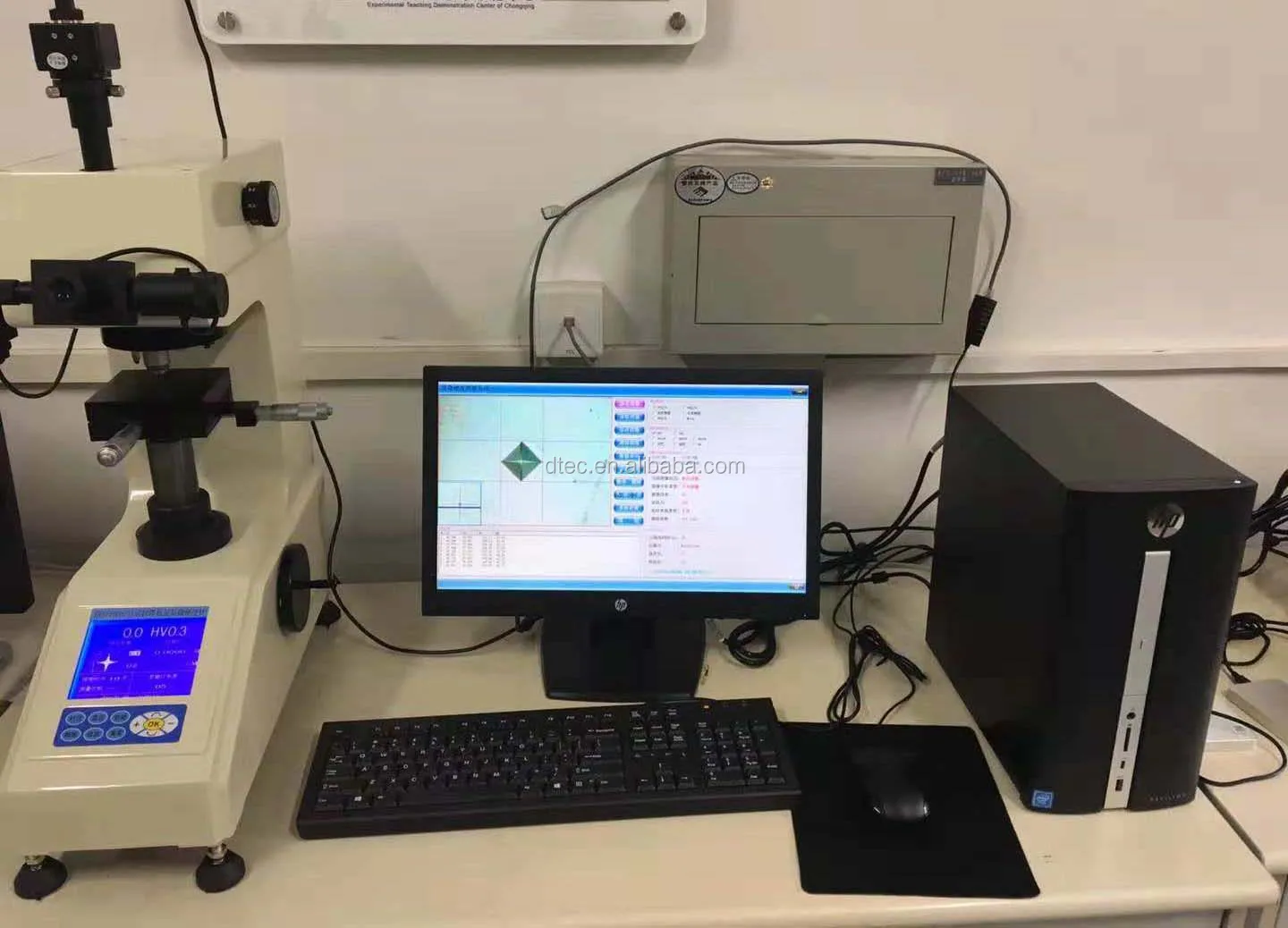

CCD Indentation Image Measuring System(Including PC):
Features:
1. This system can match a variety of Vickers hardness tester to upgrade stand-alone hardness tester or computer measuring system;
2. This measuring system can be integrated with DTEC hardness tester HVS-1000A; computer-controlled for auto turret and brightness adjustment etc;
3. Suitable for both micro and Vickers hardness tester, the maximum test force can be 1, 5, 10, 30, 50Kg;
4. With high indentation image resolution and indentation measurement by auto or manual;
5. Digital X-axis value, and automatically enter the program automatically generates the deep layer of hardness distribution curve (option);
6. Calibration by means of micrometer or hardness block, support automatical calibration;
7. Hardness scales can be converted freely according to ASTM standard;
8. Statistics for hardness values and alarm for hardness values out of range;
9. Easy to install, use laptops instead of desktop computers;
10. Interface is simple and easy to use without training;
11. Test reports can be customized; all testing data can be saved for long time and easy for historical inquiry;
12. Digital camera with 1280*1080 pixels, 1/2-inch, USB 2.0.
Standard Configuration:
| Items | Quality |
| 1.3M pixel Camera | 1Pcs. |
| Interfacing for hardness and camera | 1Pcs. |
| CD-ROM containing the software and manual book | 1Pcs. |
| Dongle | 1Pcs. |
| Lenovo Brand computer | 1Pcs. |

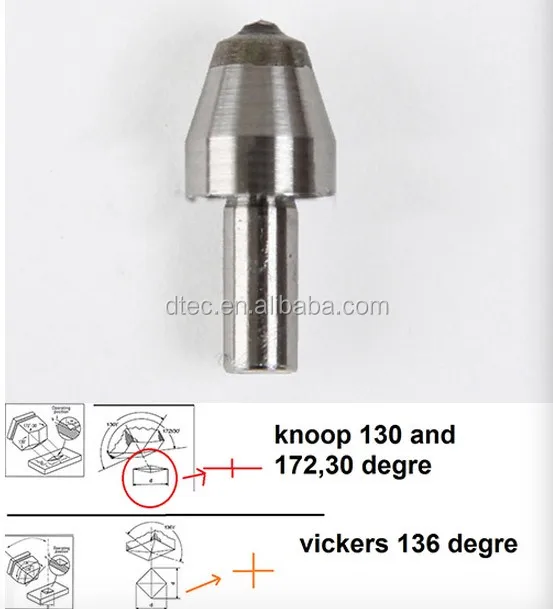

Standard Vickers Indenter:

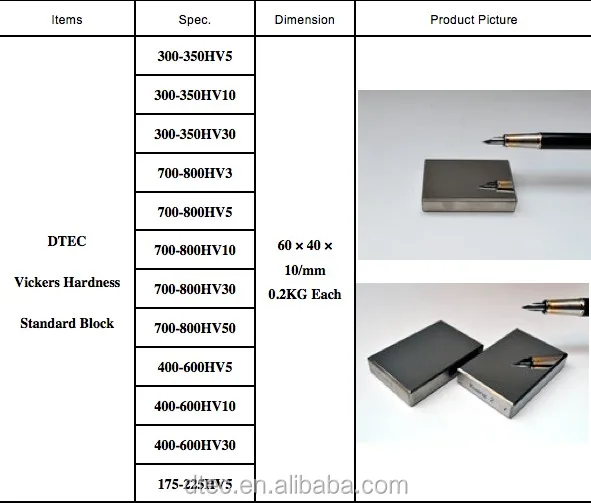

Vickers Hardness Testing Block:

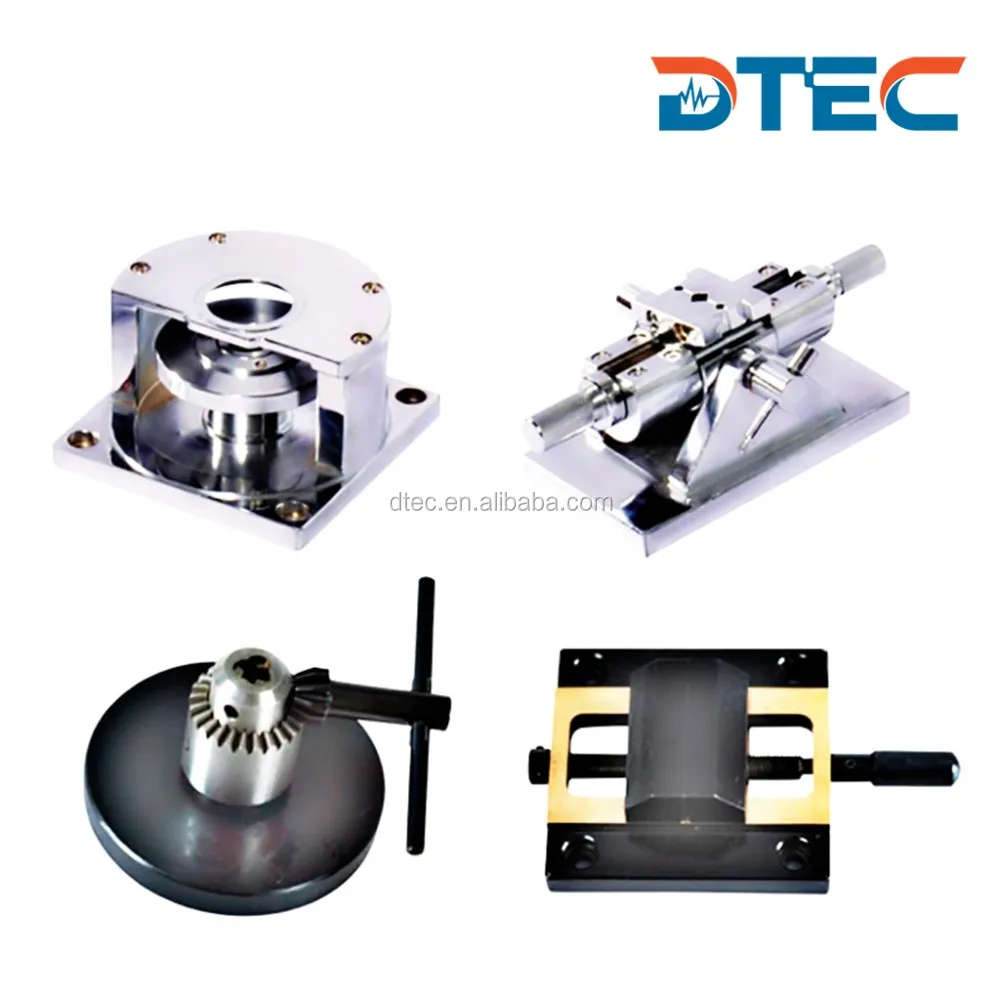

Other Accessories for Vickers Hardness Tester:
Knoop Indentor:Used to test material with high hardness.
Manufacturing Line

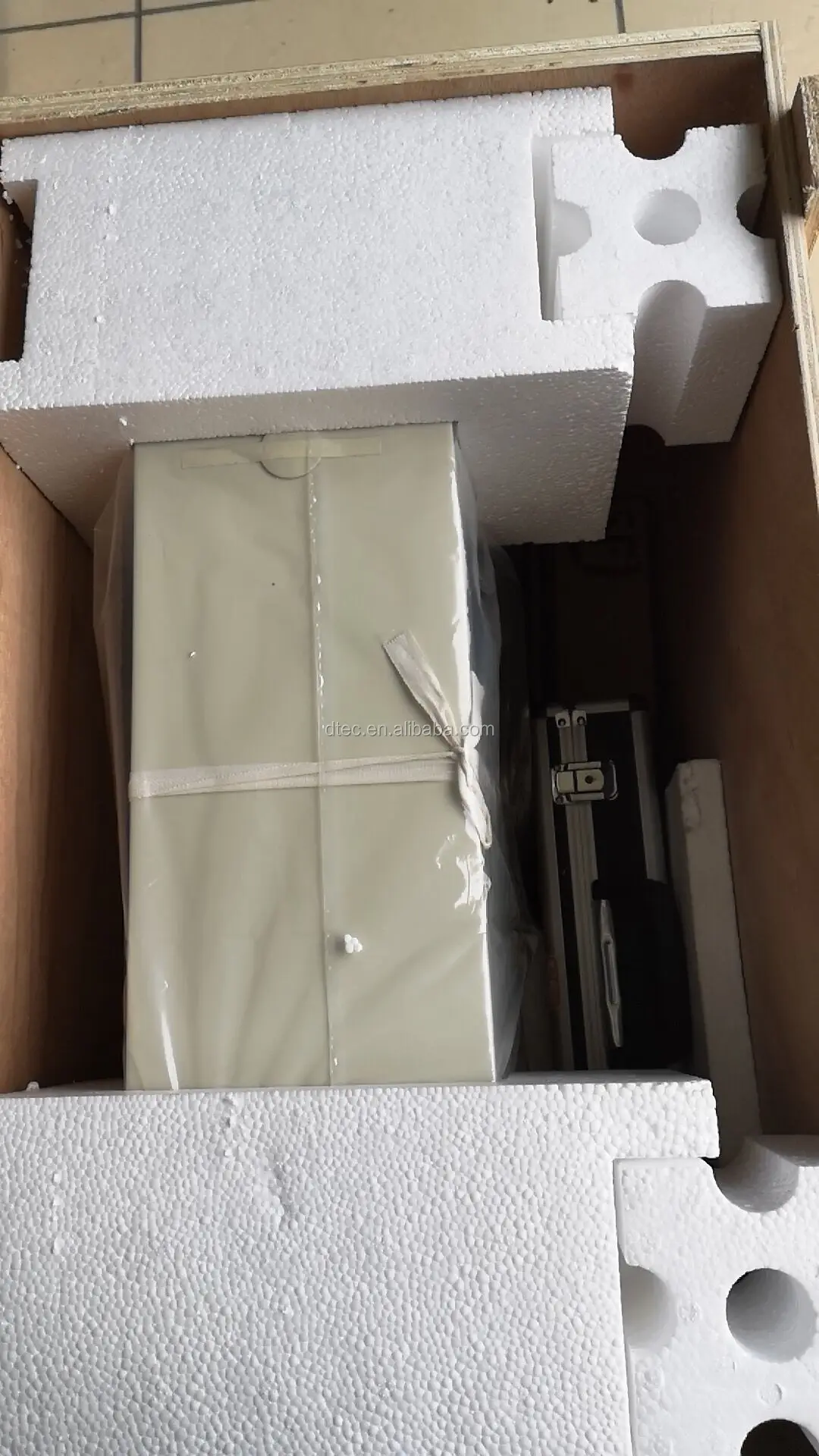

Packaging & Shipping
Every set of our equipement will be carefully tested and double checked steps by steps before being packed and delivery abroard,as we all know that among such fierce international competition market,only 100% good quality and stable performance can finally attain our customer's trust.Hence,we will always put machine calibraton and checking job in the first place while manufacturing.
