High Output 1 ton ice cube maker /big cube ice machine
US $1050-$3150
Icemedal, 1000 кг, большая производственная машина для производства промышленного льда для кубиков льда
- Category: Refrigeration & Heat Exchange Equipment >>>
- Supplier: Hunan Icemedal Refrigeration Equipment Co. Ltd.
Share on (1600437397057):
Product Overview
Description
Icemedal 1000KG Big Capacity Industrial Ice Making Machine For Ice Cubes
Our cube ice machine advantage:
1. Cube ice is crystal, clean, sanitary, and with best melting resistance, which suitable for drinks modulation, food decoration, food preservation, and so on. So cube ice is mainly used as edible ice.
2. Size of cube ice: 22x22x22mm, 29x29x22mm.
3. The daily capacity of cube ice machine ranges from 1-20 tons. the non-standard cube ice machine can be customized according to clients requirement.

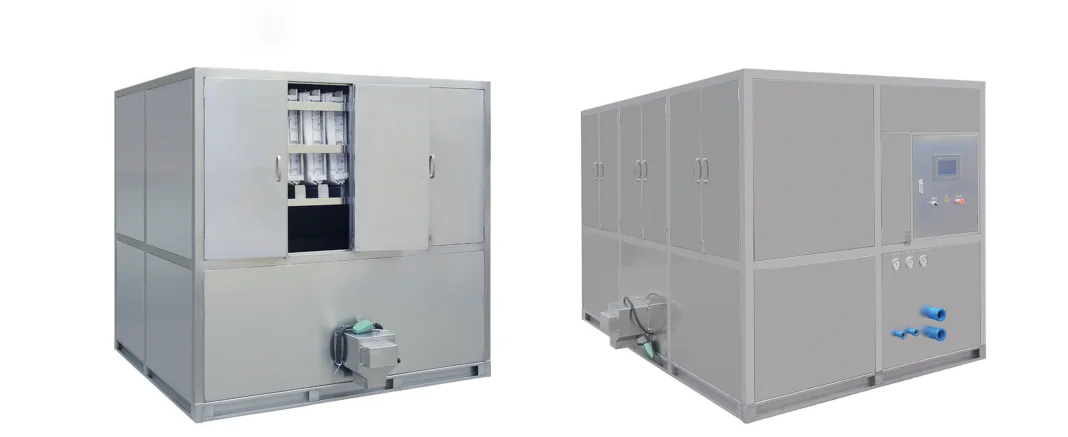

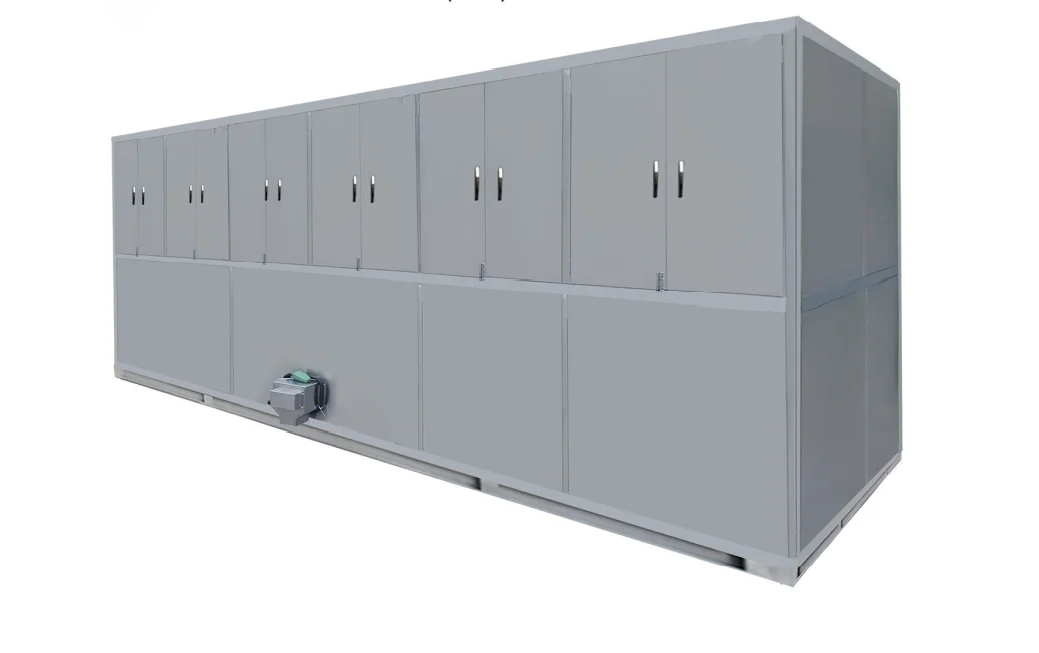

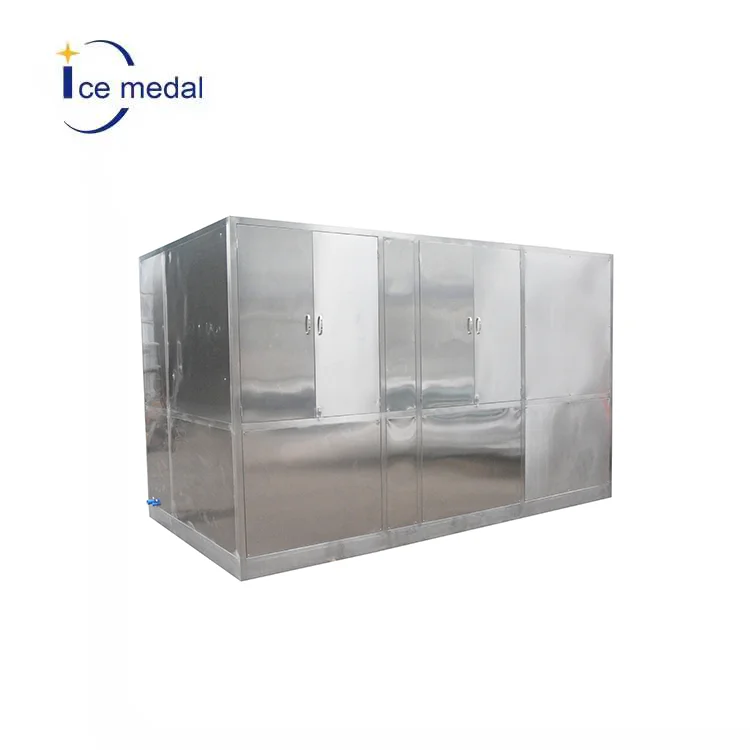

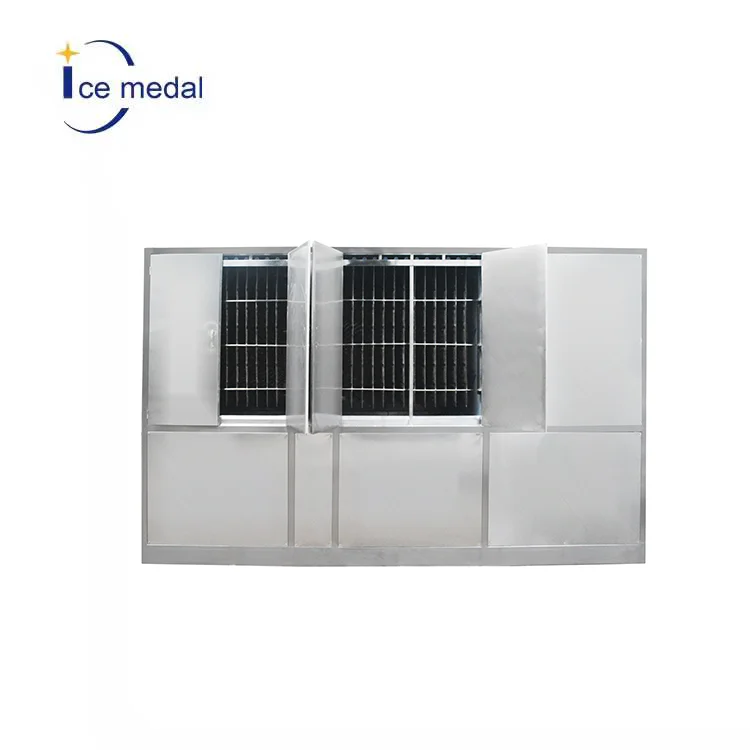

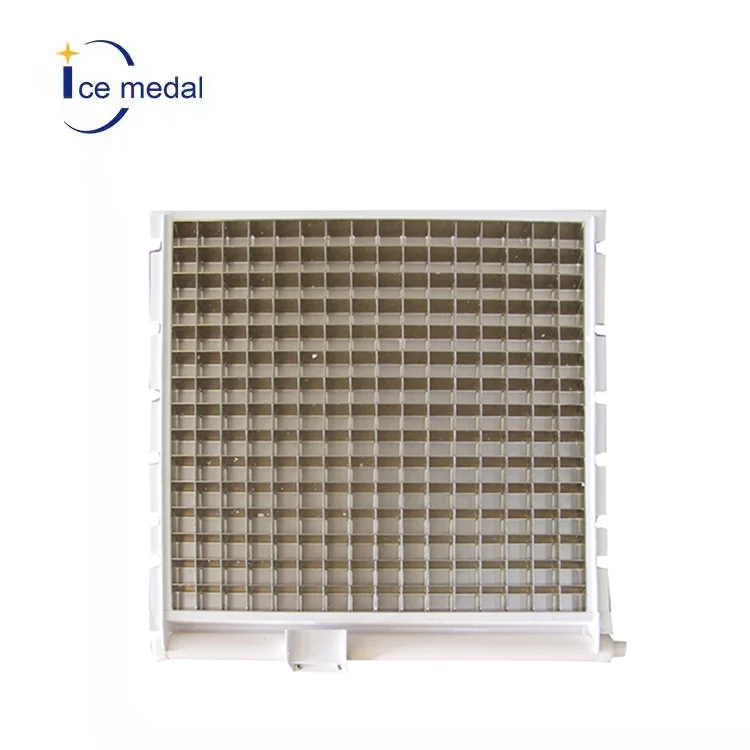

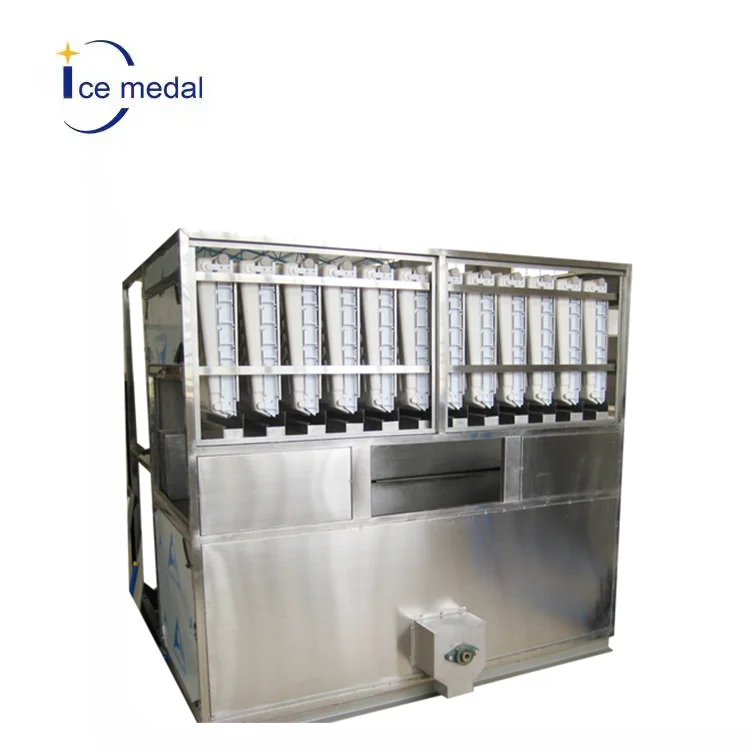

Detailed Images
Product Parameters
3 tons per day large capacity cube ice machine for hotels & restaurants paremeters |
| |||||||
Model Parameters | CV 1000 | CV 2000 | CV 3000 | CV 5000 | CV 10000 | CV 20000 |
| |
Daily output (T/24 h) | 1 | 2 | 3 | 5 | 10 | 20 |
| |
Compressor Power | 4.34 kw | 7.88 kw | 10.58 kw | 21 kw | 42 kw | 73.5 kw |
| |
Fan Power of Cooling Tower | 0.18 kw | 0.37 kw | 0.56 kw | 0.75 kw | 1.5 kw | 2.2 kw |
| |
Cooling Pump Power | 1.1 kw | 1.5 kw | 1.5 kw | 2.2 kw | 4 kw | 5.5 kw |
| |
Unit Size | L (mm) | 1800 | 1630 | 1980 | 2890 | 5730 | 7100 |
|
W (mm) | 1000 | 1600 | 1630 | 1780 | 1780 | 2250 |
| |
H (mm) | 1700 | 1706 | 1860 | 1860 | 2130 | 2300 |
| |
Unit N.W. (kg) | 800 | 1000 | 1200 | 1600 | 3000 | 5000 |
| |
1. Size of cube ice: 22*22*22 mm ; 29*29*22 mm ; 38*38*22 mm. 2. Compressor brand: Bizter / Frascold; refrigerant: R22/ R404A; Cooling Method: Water Cooling / Air Cooling. 3. Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately). 4. Operating Conditions: T(water supply):20 ℃, T(ambient):32 ℃, T(condensing): 40 ℃, T(evaporating):-10 ℃. 5. Note: The actual ice production varies due to the influence of the water supply temperature and ambient temperature. 6. The final interpretation of the above mentioned parameter is in Icemedal, there will be further notice, if there any technical change. |
| |||||||

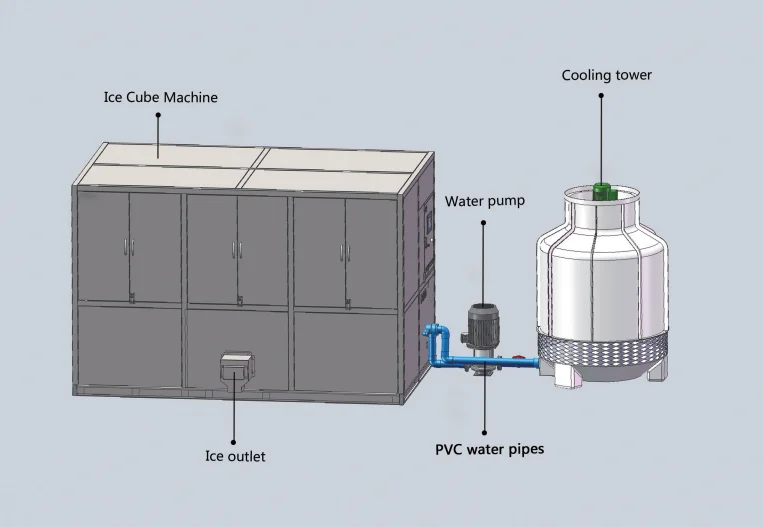

Drawing display:
Our company
Packaging
Product Application
Cube ice is widely used in hotels, bars, hotels, canteens, banquet hall, western restaurant, fast food restaurant, convenience store, restaurants, convenience stores, cold drinks shops and other places where ice is needed. The size of the ice can be adjusted to meet the different needs of customers for ice. and so on.
