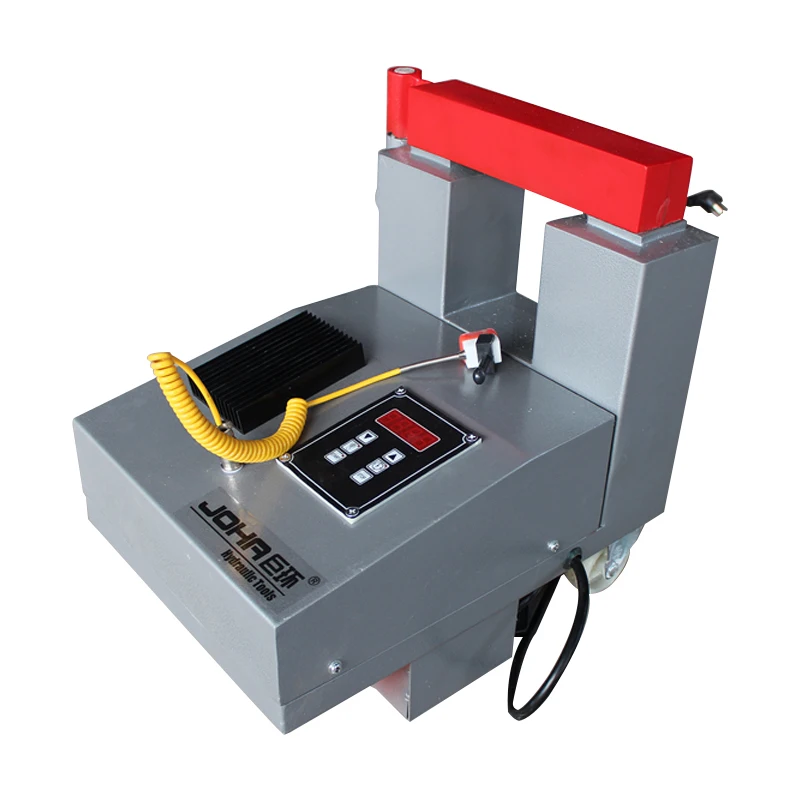

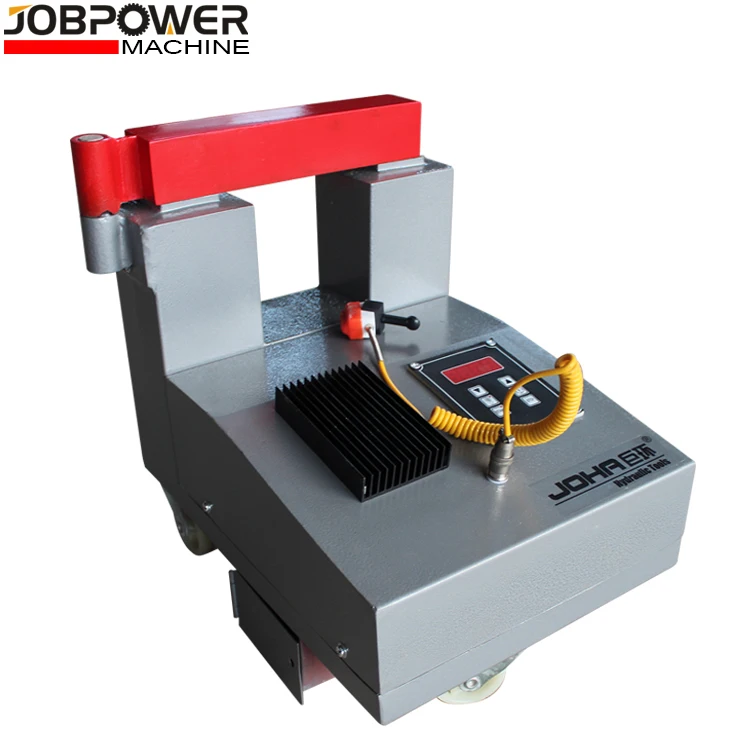

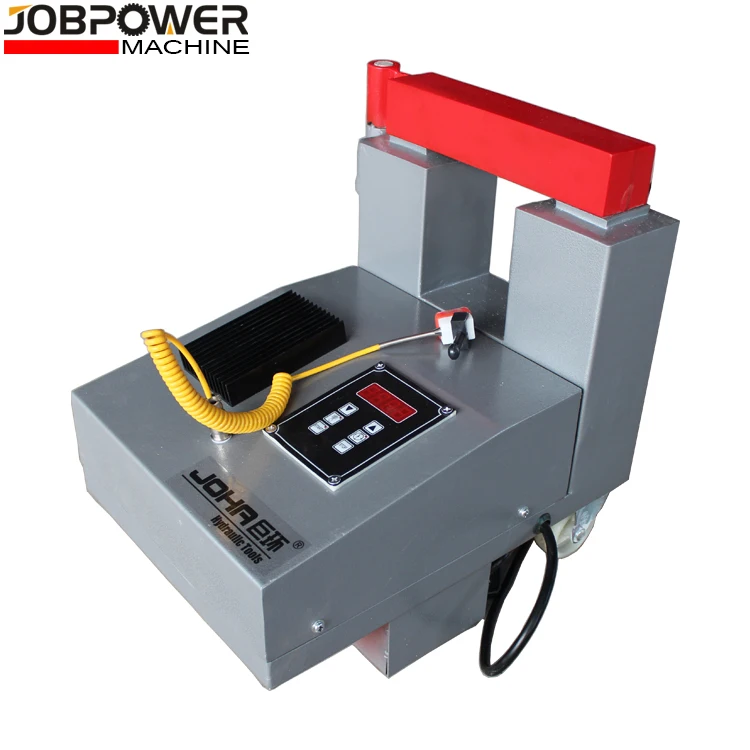

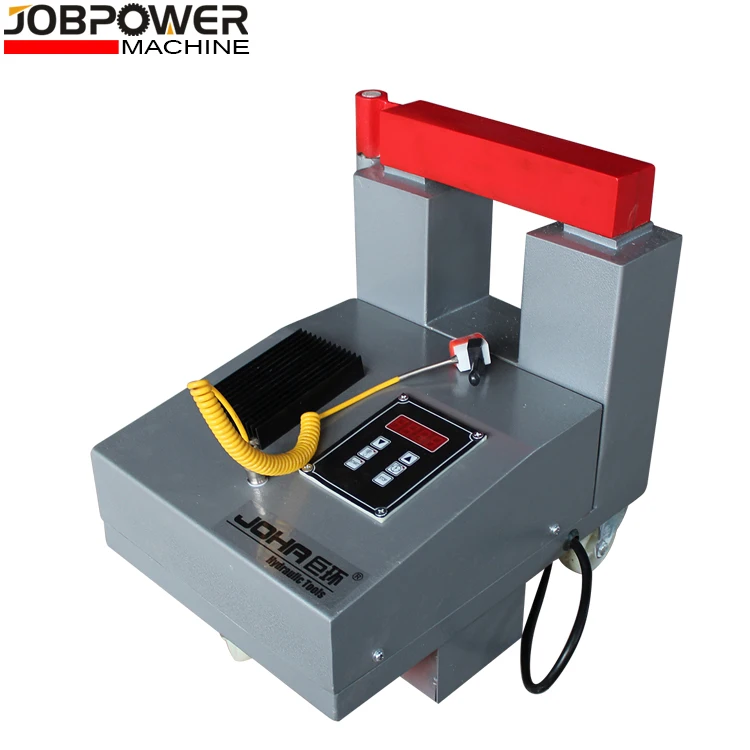

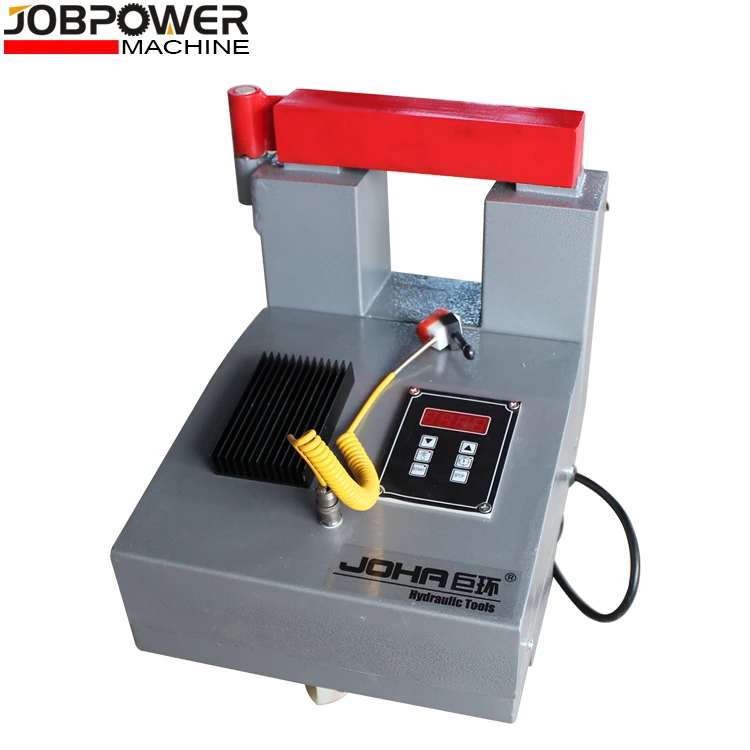

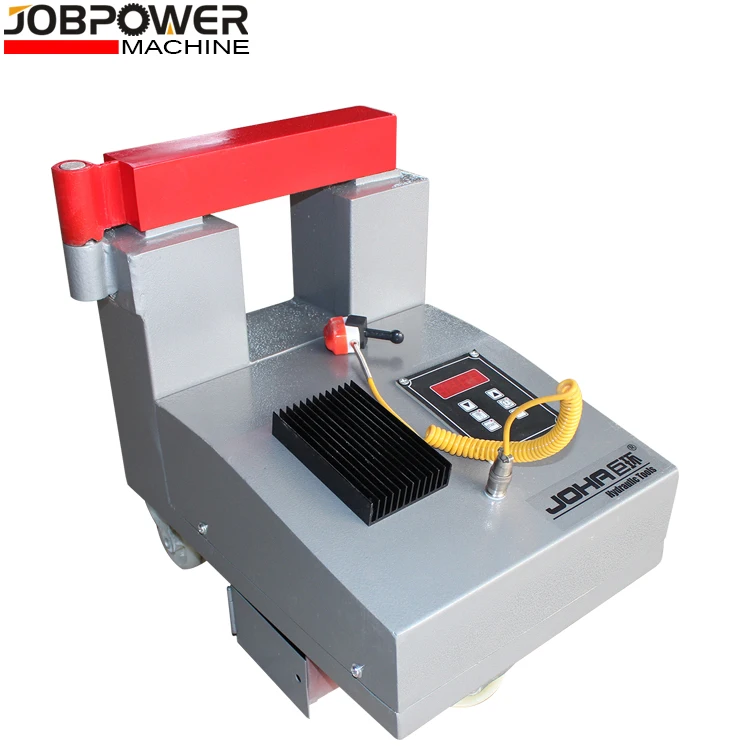

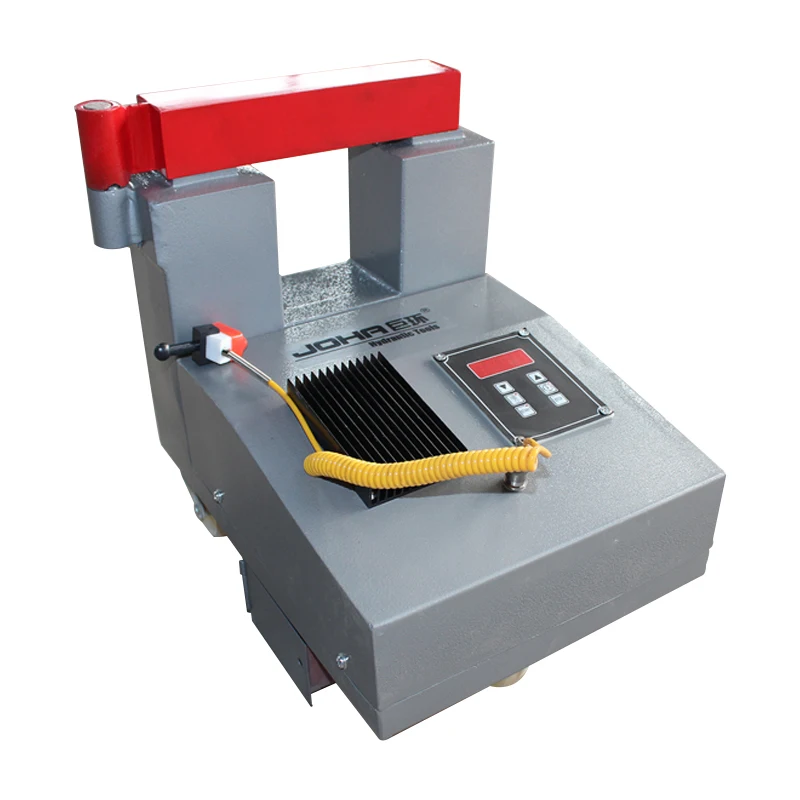

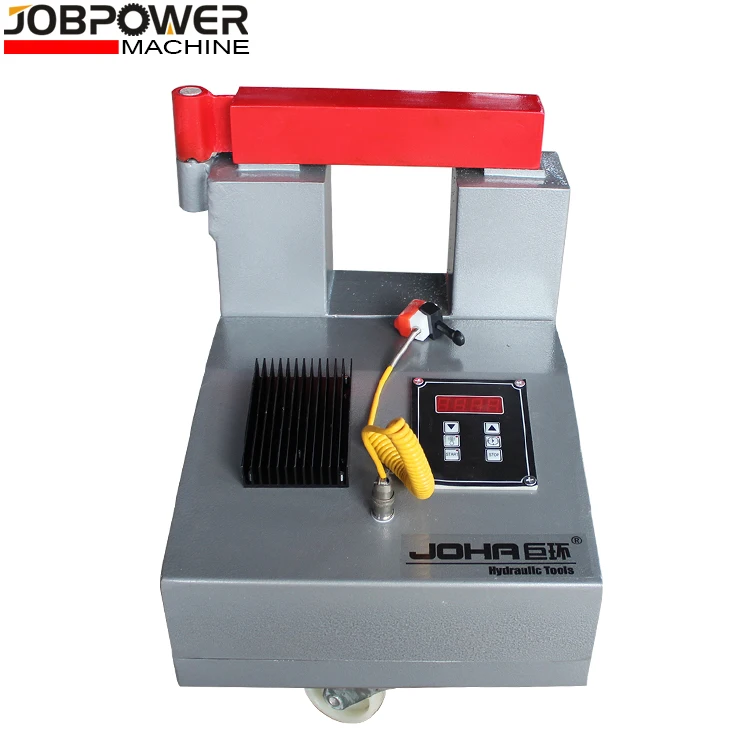

CE/ISO9001 approved low price industrial high quality induction bearing heater
- Category: Refrigeration & Heat Exchange Equipment >>>
- Supplier: Jiangsu JOBA Mechanical Manufacture Co. Ltd.
Share on (62317039780):
Product Overview
Description
Products Description
Model | ZJ20X-1 | ZJ20X-2 | ZJ20X-3 | ZJ20X-4 | ZJ20X-5 | ||
Rated power(KVA) | 3.2 | 5.5 | 7.5 | 11 | 13 | ||
Rated voltage(V) | 220 | 380 | 380 | 380 | 380 | ||
Rated current(A) | 12 | 14.5 | 19.7 | 28.9 | 34.2 | ||
Heating | Internal diameter(mm) | 30-100 | 85-200 | 120-250 | 150-360 | 180-400 | |
External diameter(mm) | 280 | 360 | 400 | 450 | 500 | ||
Wide(mm) | 115 | 150 | 180 | 200 | 220 | ||
Weight(kg) | 55 | 105 | 120 | 135 | 150 | ||
Operation procedure

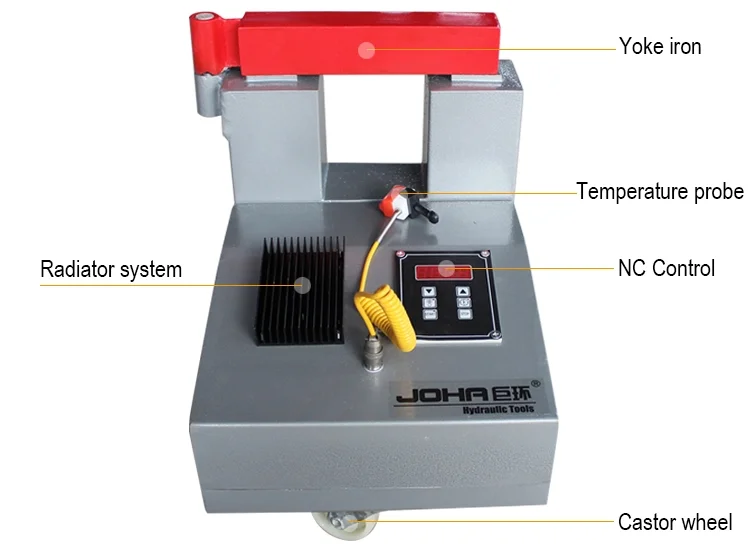

1.The first step is to place the yoke iron on the end face of the main engine.
2.The second step is to insert the plug into the power socket with the control switch.
3.The third part is to check whether the grounding wire is good or not and test it with a pen after power is turned on.
4.The fourth step is to switch on the power supply according to the requirement. At this time, the host automatically detects the probe and the ambient temperature, and displays the ambient temperature at the same time.
5.The fifth step is to check that the yoke iron should have no voltage to the ground.
6.Choose yoke sleeve according to different specifications of bearings or other workpieces. Place the yoke iron on the top surface of the main engine, and it should be smooth and smooth.
7.Press the button to select the temperature or time control. If you need to adjust the temperature or time, please press the "up" or "down" button to select the appropriate parameters.
8.Press the start button. The main engine starts to heat the workpiece. When the set time is reached, the main engine automatically stops heating and automatically demagnetizes the workpiece. When the temperature is controlled, when the set temperature is reached and the workpiece is in a constant temperature state, when it needs to be installed, press the stop button.
9.When the bearing is heated to the required temperature, will automatically turn off the power supply or press the stop switch.
10.After stopping heating, the yoke iron moves left or right. After removing the bearing, the yoke iron is put back to the top of the main engine.
11.If the machine is reused and the bearing is heated continuously, it is only necessary to insert the processed bearing into the yoke iron and press the start button.
2.The second step is to insert the plug into the power socket with the control switch.
3.The third part is to check whether the grounding wire is good or not and test it with a pen after power is turned on.
4.The fourth step is to switch on the power supply according to the requirement. At this time, the host automatically detects the probe and the ambient temperature, and displays the ambient temperature at the same time.
5.The fifth step is to check that the yoke iron should have no voltage to the ground.
6.Choose yoke sleeve according to different specifications of bearings or other workpieces. Place the yoke iron on the top surface of the main engine, and it should be smooth and smooth.
7.Press the button to select the temperature or time control. If you need to adjust the temperature or time, please press the "up" or "down" button to select the appropriate parameters.
8.Press the start button. The main engine starts to heat the workpiece. When the set time is reached, the main engine automatically stops heating and automatically demagnetizes the workpiece. When the temperature is controlled, when the set temperature is reached and the workpiece is in a constant temperature state, when it needs to be installed, press the stop button.
9.When the bearing is heated to the required temperature, will automatically turn off the power supply or press the stop switch.
10.After stopping heating, the yoke iron moves left or right. After removing the bearing, the yoke iron is put back to the top of the main engine.
11.If the machine is reused and the bearing is heated continuously, it is only necessary to insert the processed bearing into the yoke iron and press the start button.
Related Products
Product Application
Company Profile
Customer Photos
FAQ
Q1:How is quality ensured?
— All our processes strictly adhere to ISO-9001 procedures.And we have one year's quality warranty against B/L issue date.
Q2:Can I buy 1 piece of each item to test the quality?
— Yes, we are pleased to send you 1 piece to test the quality if we have stock for the item you need.
Q3: How to order and make payment?
— We will send proforma invoice to you and you can pay via T/T bank transfer , L/C , WESTION UNION , ESCROW , PAYPAL and aliexpress ETC.
Q4: What is your Minimum Order Quantity?
— Different products have different MOQ,but we can sell you even one piece if we have stock of the model you need.
Q5:What about delivery time?
— If we have stock we can send goods to you within 7 working days. If we don't have stock,generally, it needs 10 to 40 working days.
— All our processes strictly adhere to ISO-9001 procedures.And we have one year's quality warranty against B/L issue date.
Q2:Can I buy 1 piece of each item to test the quality?
— Yes, we are pleased to send you 1 piece to test the quality if we have stock for the item you need.
Q3: How to order and make payment?
— We will send proforma invoice to you and you can pay via T/T bank transfer , L/C , WESTION UNION , ESCROW , PAYPAL and aliexpress ETC.
Q4: What is your Minimum Order Quantity?
— Different products have different MOQ,but we can sell you even one piece if we have stock of the model you need.
Q5:What about delivery time?
— If we have stock we can send goods to you within 7 working days. If we don't have stock,generally, it needs 10 to 40 working days.
