18 Meter Excavator Extended Arm 25 Meters Long Boom Long Arm of Excavator
- Category: Engineering & Construction Machinery >>>
- Supplier: Changzhou,Raymond,International,Trading,Co.,Ltd.
Share on:
Product Overview
Description
Products Description

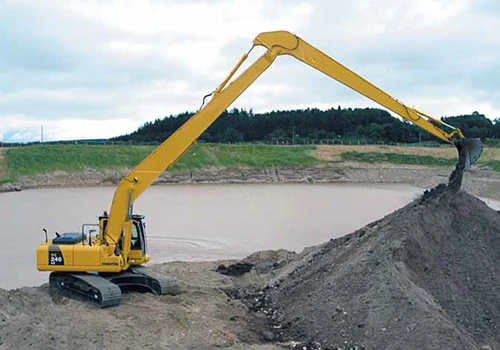

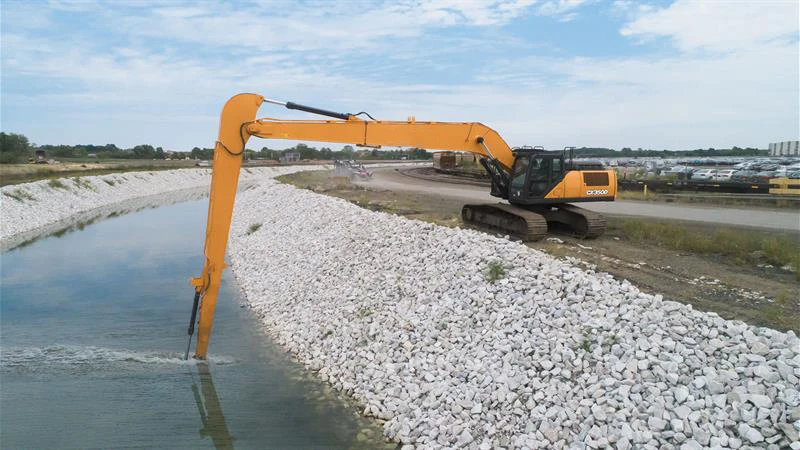

RAY Long reach boom and arm is one of the attachments for excavators. It is a set of excavator front-end working devices specially designed and manufactured according to the requirements of the working conditions to expand the working range of the excavator. It is suitable for cleaning river channels and fish. Special operation projects and uses such as ponds, subway excavation, water conservancy and hydropower projects, and port and wharf construction. The boom length can be modified according to the customer's specific length, and the available range is 10-36 meters.

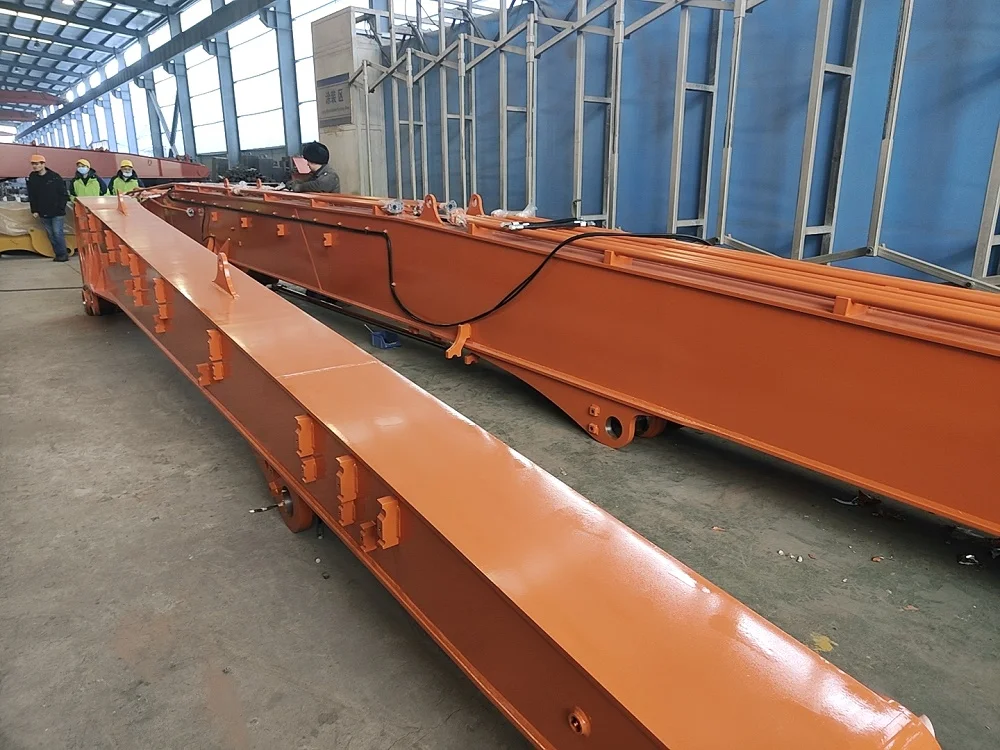

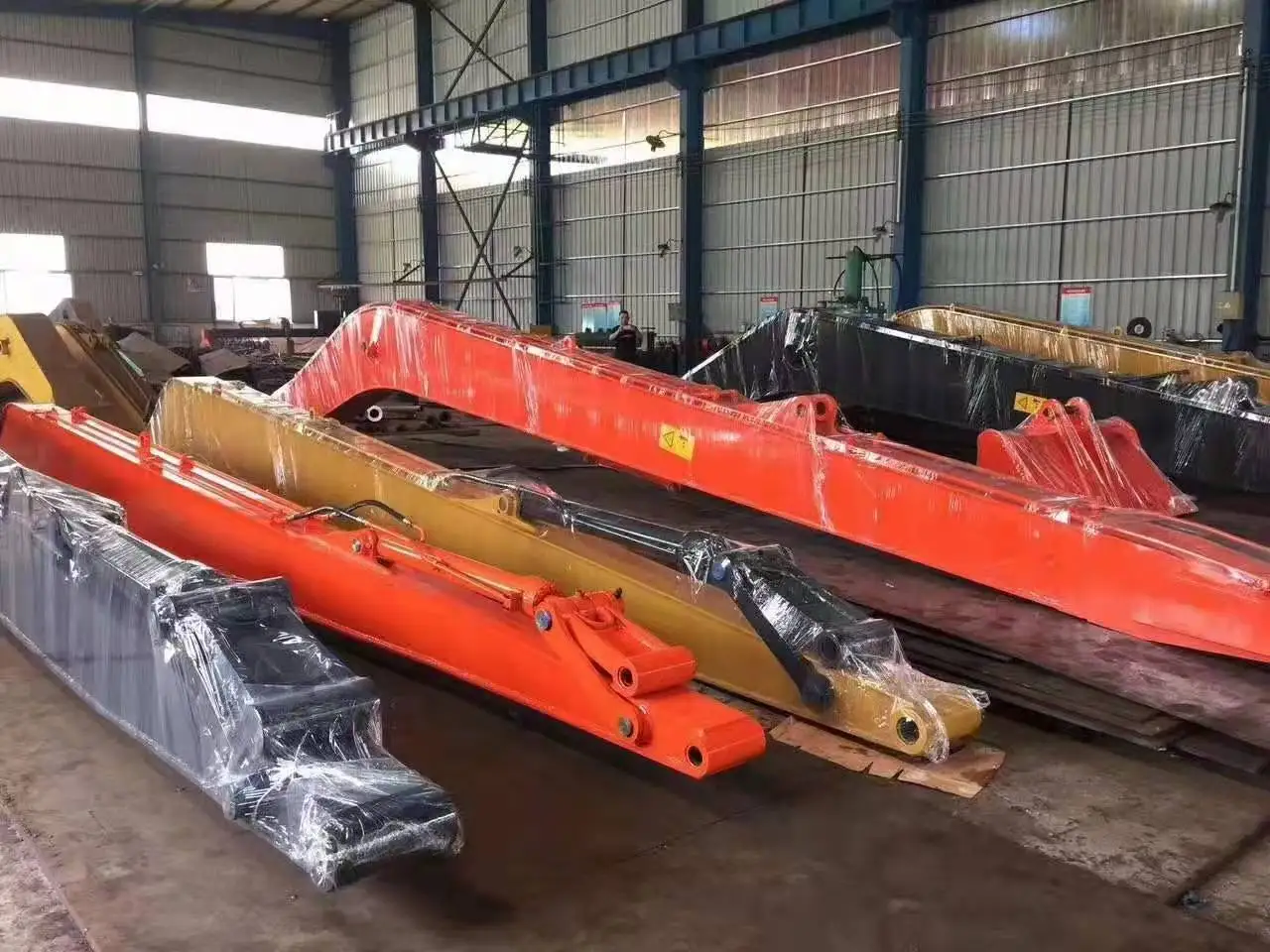

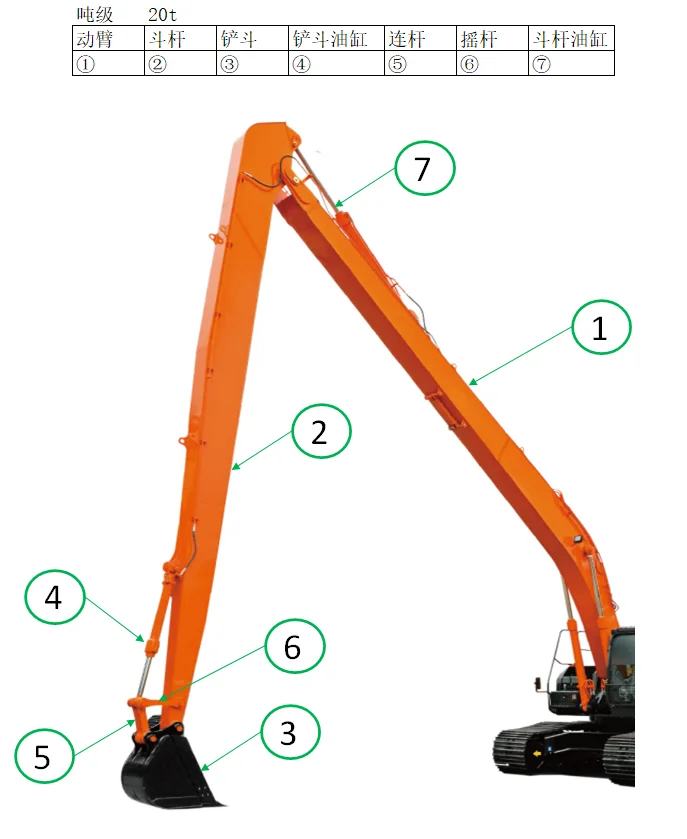

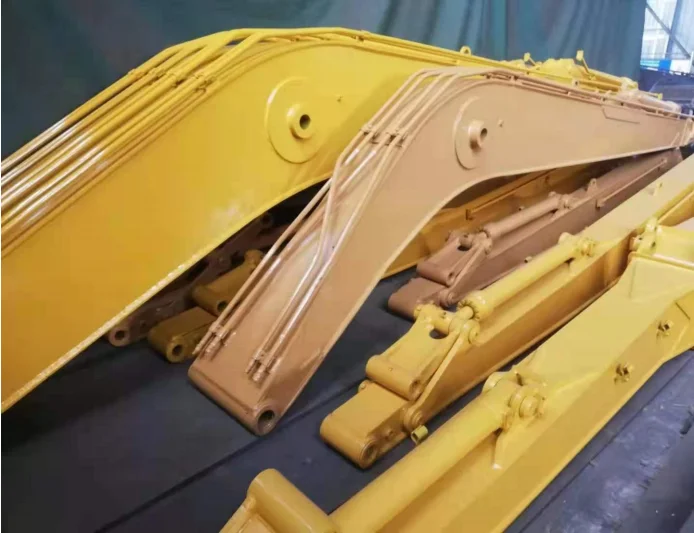

Details Images
2--Arm boom
3--Bucket
4--Bucket cylinder
5--Lingkages
6--Pins
7--Arm cylinder
Advantage:
1. The conventional material is Q345, and the enhanced version is Q460. The plate is thin, high in strength, light in weight, and reduces the load of the excavator.2. The bushing in the boom seat cover is made of copper (with self-lubricating carbon powder inside).

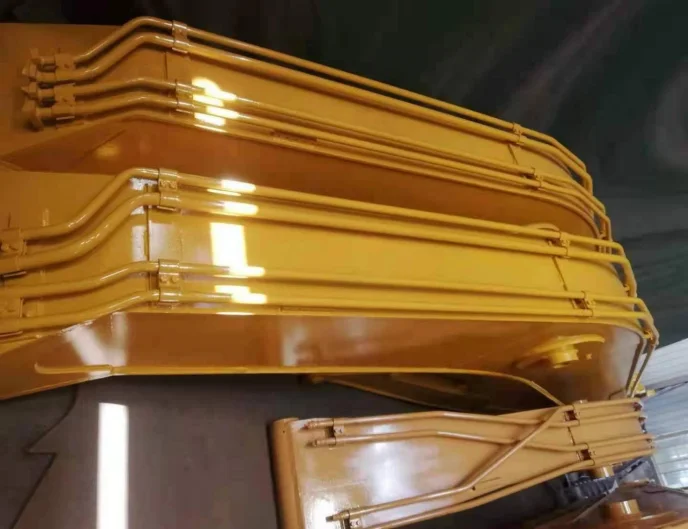

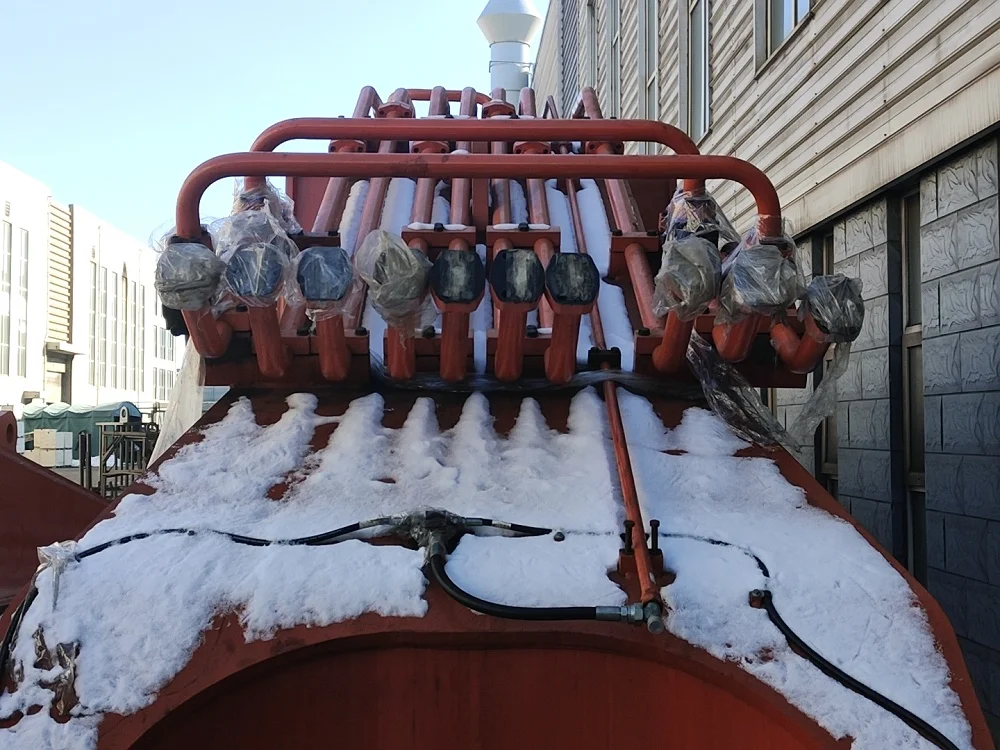

3. The oil pipes are all made of high-precision cold-drawn seamless steel pipes, which have undergone pickling and phosphating treatment, with good material and high strength.
4. All the long arms are integrally bored after welding to ensure the concentricity between the pins and the quality.
Specification
Excavator | 12T | 20T | 22T | 30T | 35T | 40T | 45T |
Length of the boom arm(mm) | 13000 | 15380 | 15380 | 18000 | 20000 | 22000 | 24000 |
Working weight(kg) | 3000 | 4000 | 4200 | 5200 | 6000 | 6500 | 7000 |
Bucket capacity(m3) | 0.3 | 0.4 | 0.4 | 0.4 | 0.5 | 0.6 | 0.6 |
Max digging height(mm) | 11300 | 12510 | 12610 | 13720 | 14920 | 16100 | 17300 |
Max reaching depth(mm) | 12500 | 15100 | 15100 | 17600 | 19600 | 21600 | 23600 |
Max digging depth(mm) | 9000 | 11340 | 11370 | 13000 | 15000 | 16500 | 18000 |
Total height（mm) | 2900 | 2980 | 3040 | 3210 | 3210 | 3400 | 3400 |
Counter weight(kg) | / | / | / | / | 2000 | 2500 | 3000 |

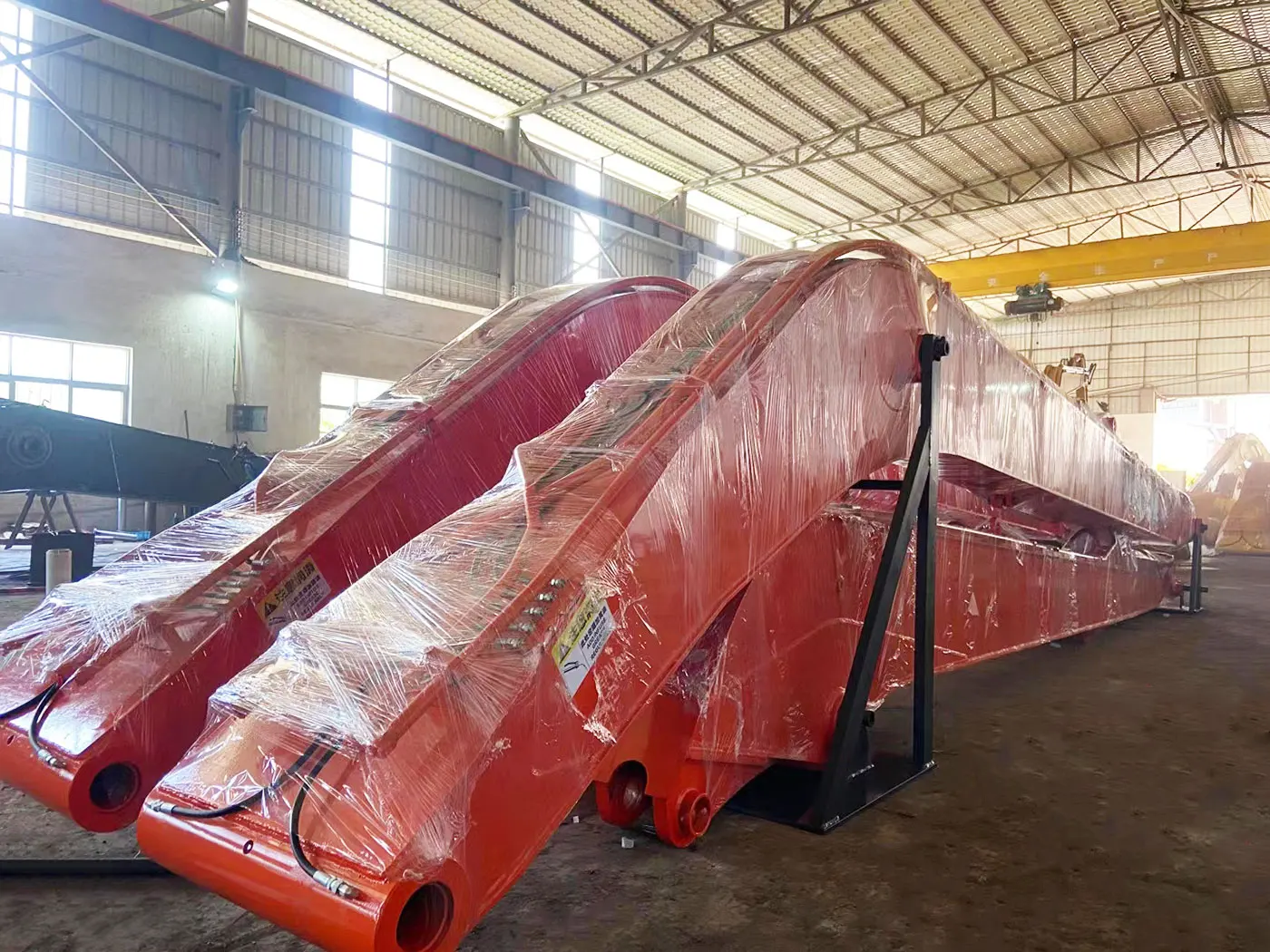

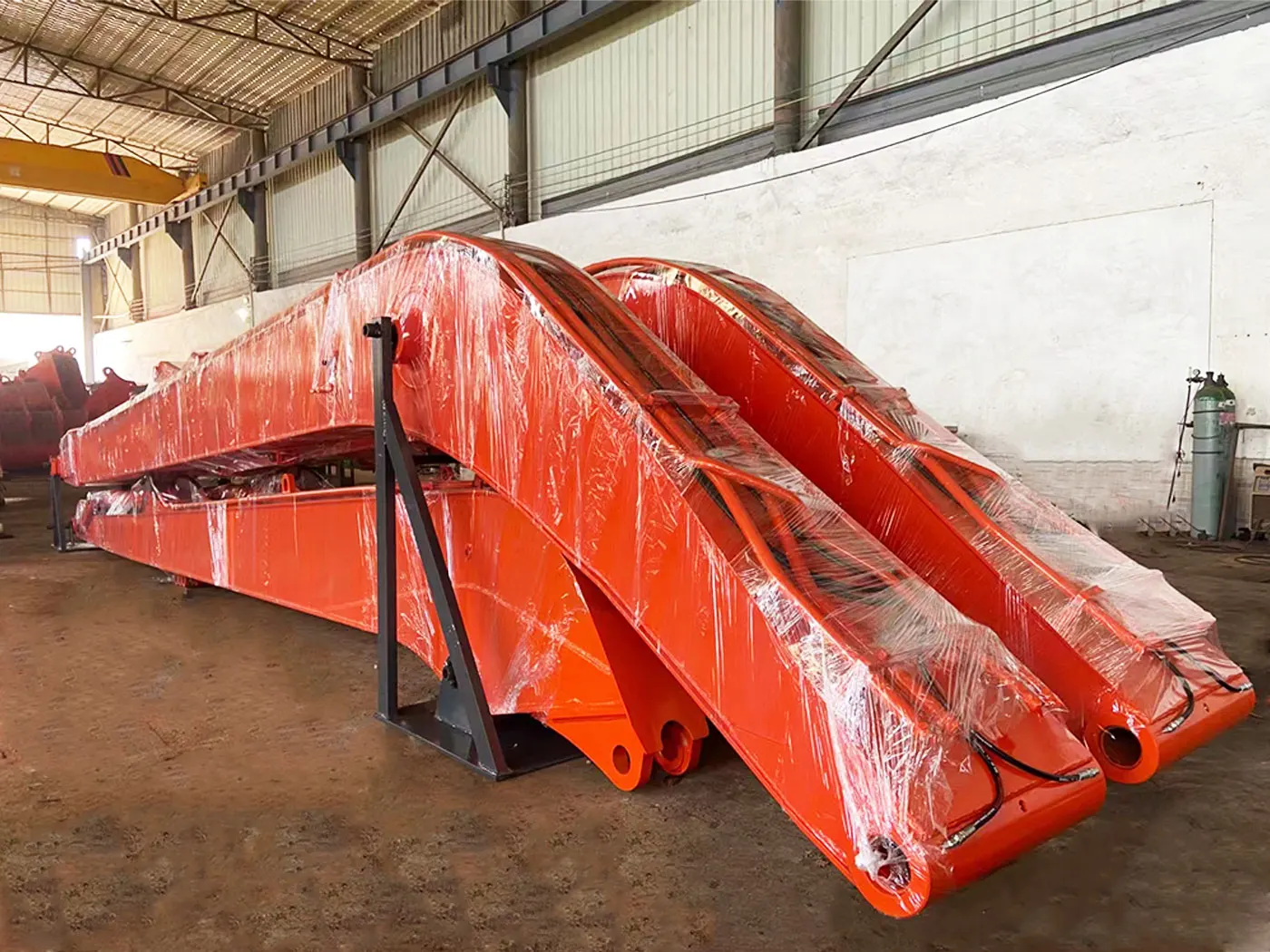

Product packaging
Iron shelf packaging + wrapping film
Company Profile

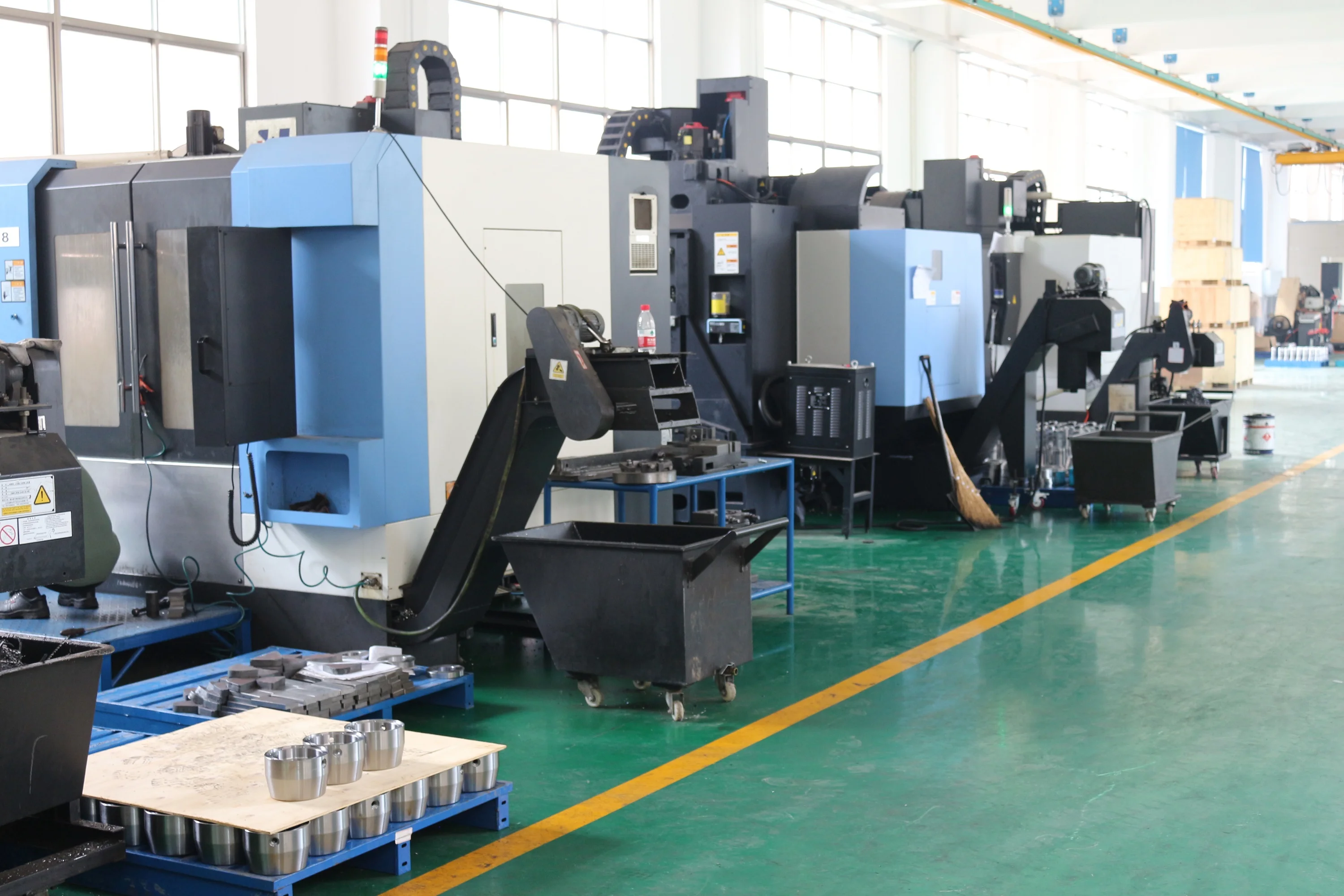

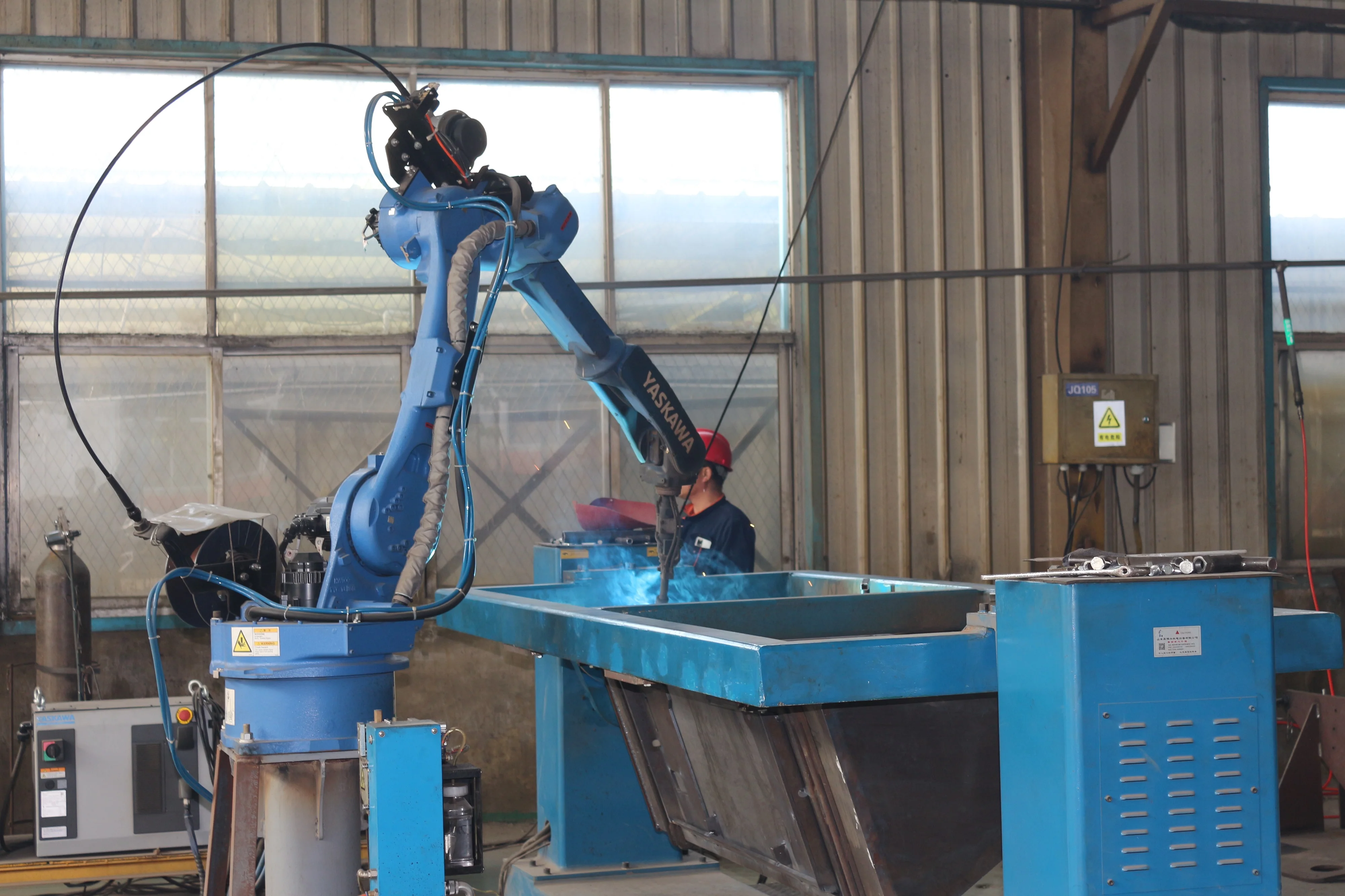

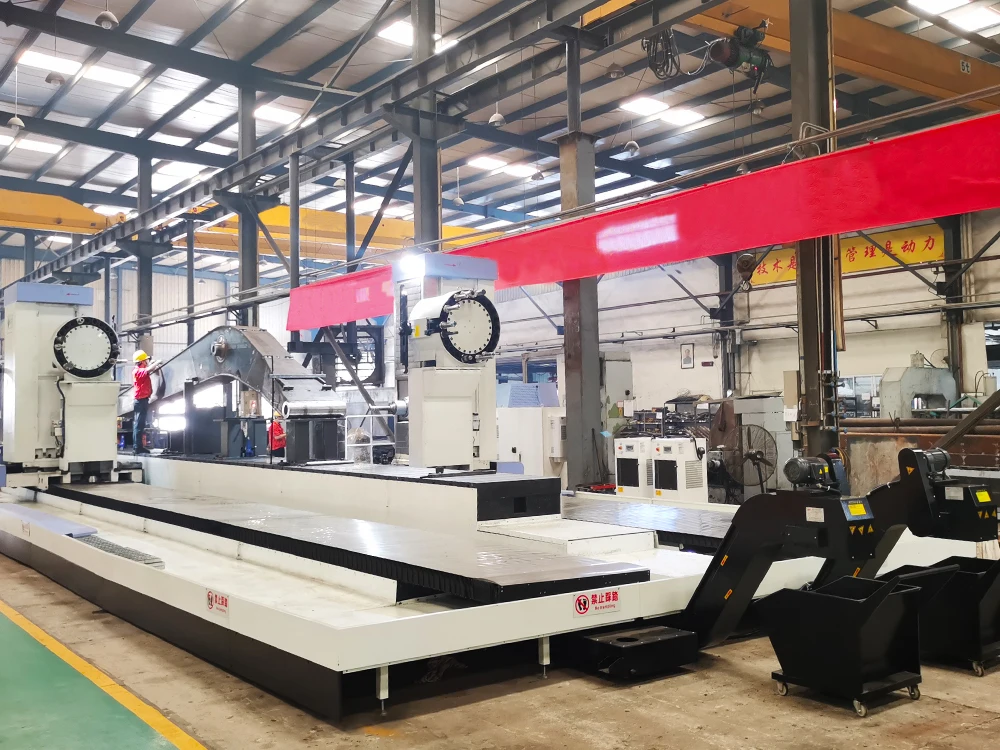

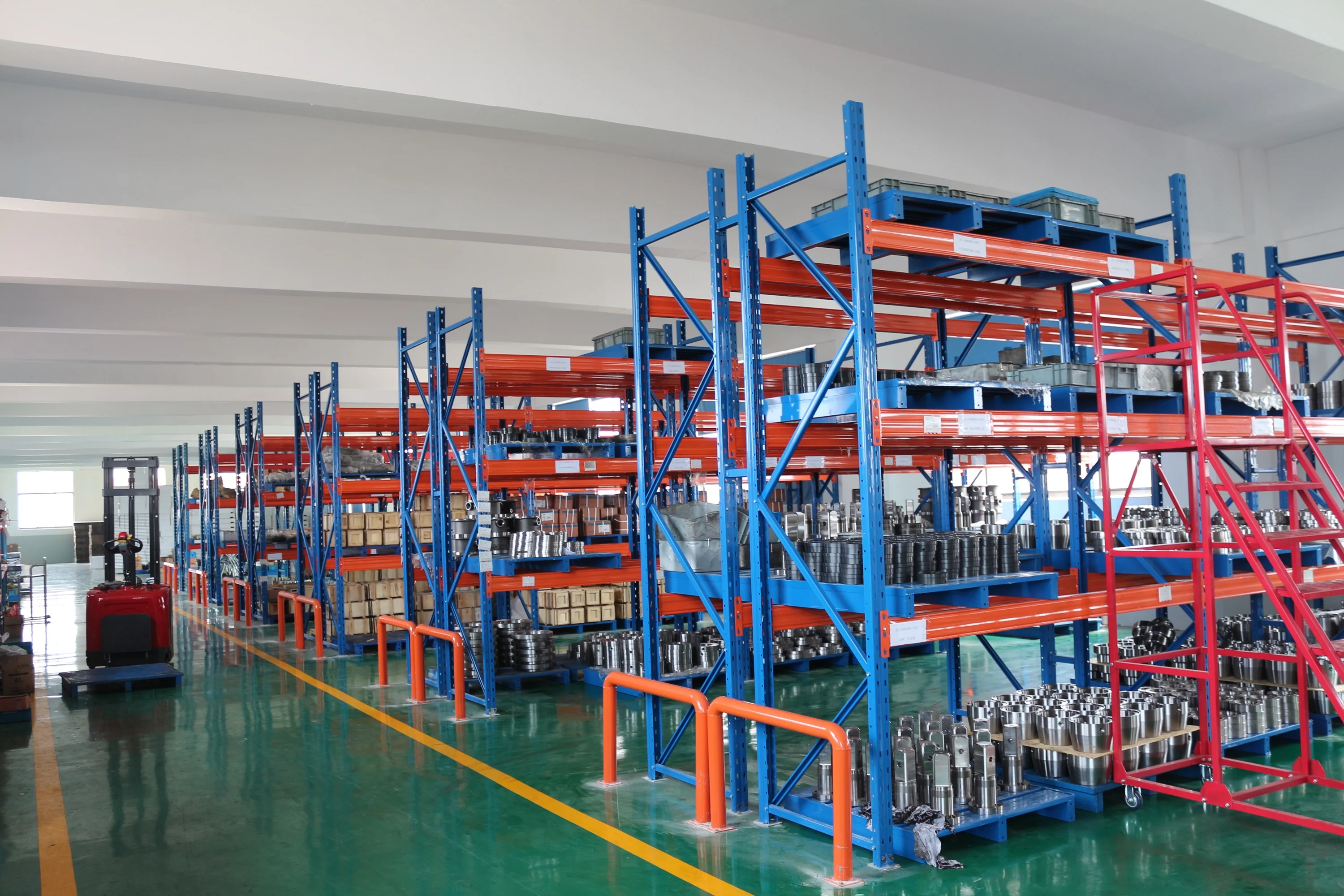

RAY ATTACHMENTS includes Changzhou Raymond International Trading Company and Changzhou Raymond Precision Machinery Co.,Ltd. It is a Integrated Company dedicated to production, research and development and sales of construction machinery attachments.with 17 years experience. The main products include earth auger, quick hitch, hydraulic breaker, vibro ripper and other heavy duty equipment. Our company covers an area of more than 20000 square meters and has more than 150 employees, including professional R & D teams and Sales Department. Welcome to visit!
Everybody loves raymond
Exhibition
2014 BAUMA China
2015 CTT in Moscow
2016 CTT in Moscow
2016 BAUMA China
2017 CTT in Moscow
2018 CTT in Moscow
2018 BAUMA China
2019 CTT in Moscow
2019 Mining Indonesia
2020 BAUMA China
2020 BAUMA China
2020 BAUMA China
FAQ
1. Are you manufacturer?
Yes.
We are factory in Changzhou city, Jiangsu province, near Shanghai port.
2. Do you have warranty?
Yes. RAY Long Boom and Arm has 6 months warranty.
Warranty starts from the time you receive the machines, not include production and shipping time.
Exceed warranty, all parts are offered at cost prices.
3. Do you have after-sale service?
Yes.
After order, we will start production quickly and keep updated.
After shipment, we will track the shipping and keep updated.
After you receive machines, we will instruct the usages and maintenance.
During usage, if any problems, we will offer timely and complete solutions.
We offer servicing for the whole lifetime of machines, no worry for personal use or resell.
