Railway Equipment Sleeper Changer Ballast Tamping machine Railroad Machinery ballast cutter
- Category: Excavators >>>
- Supplier: Yantai Hemei Hydraulic Machinery Equipment Co. Ltd.
Share on (1600437851387):
Product Overview
Description
Product Description

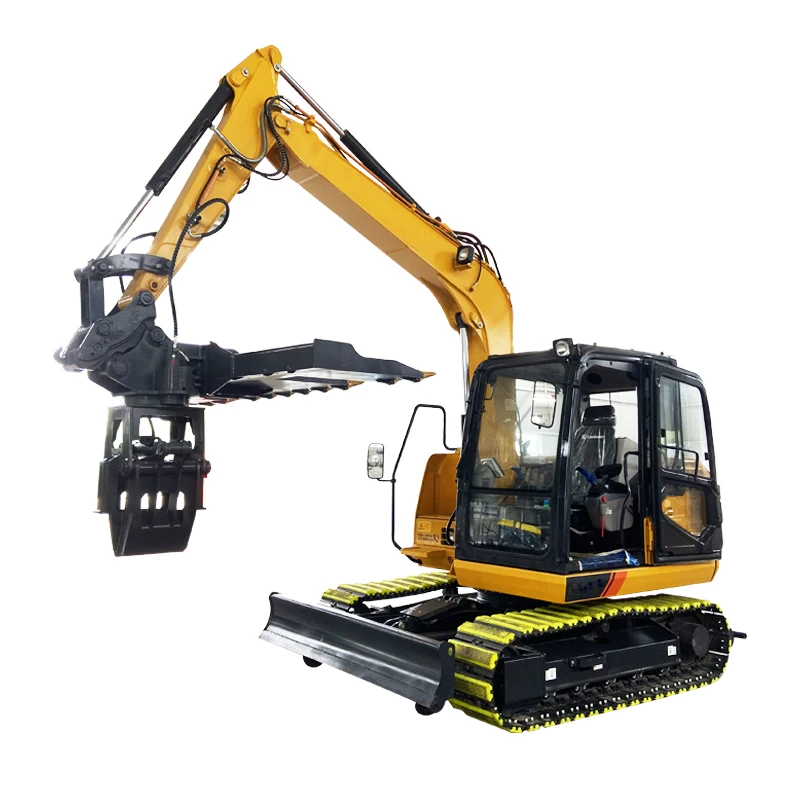

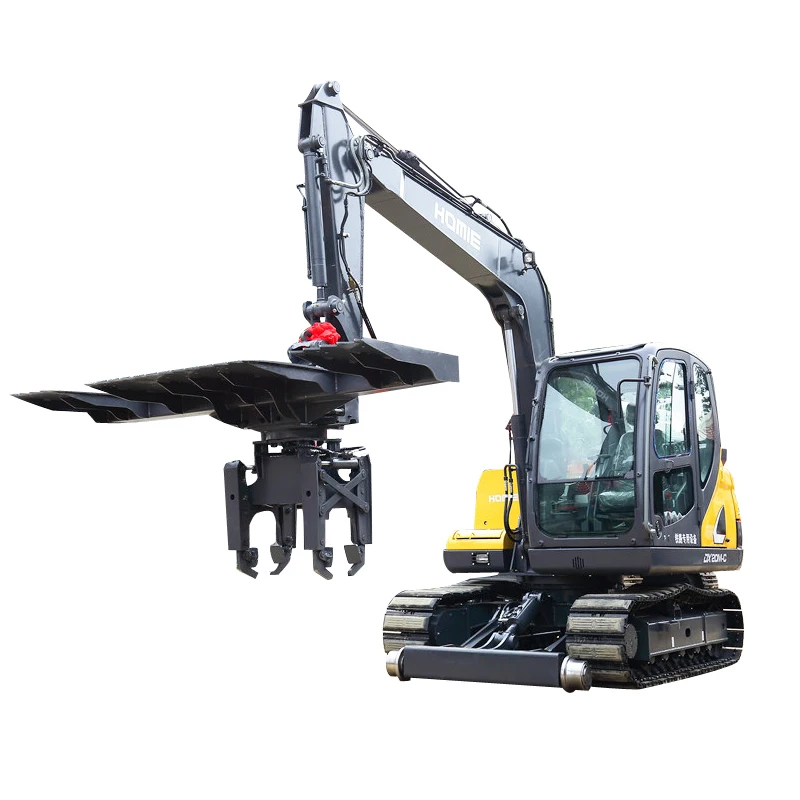

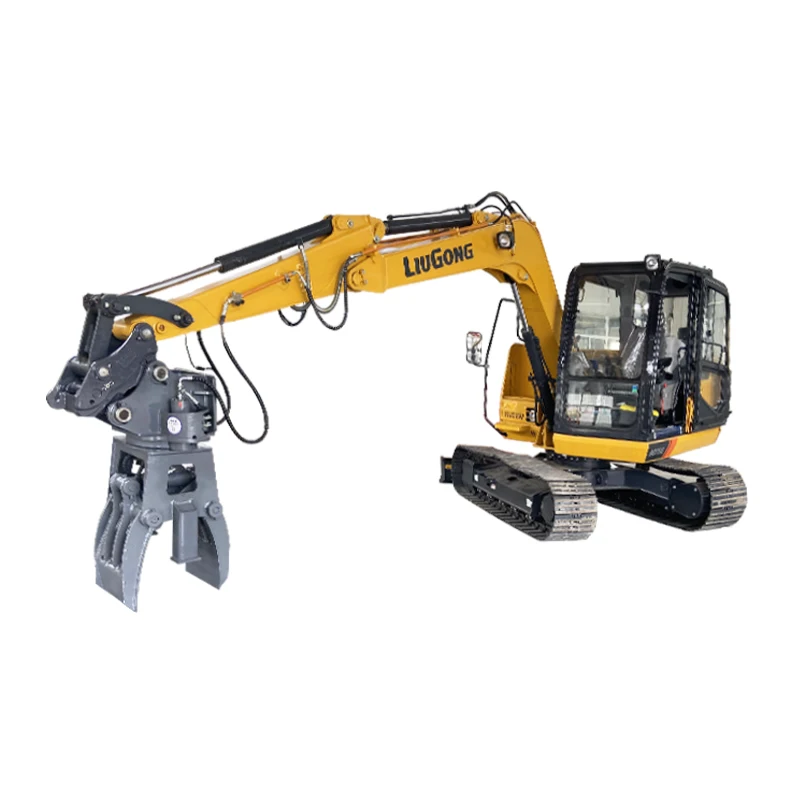

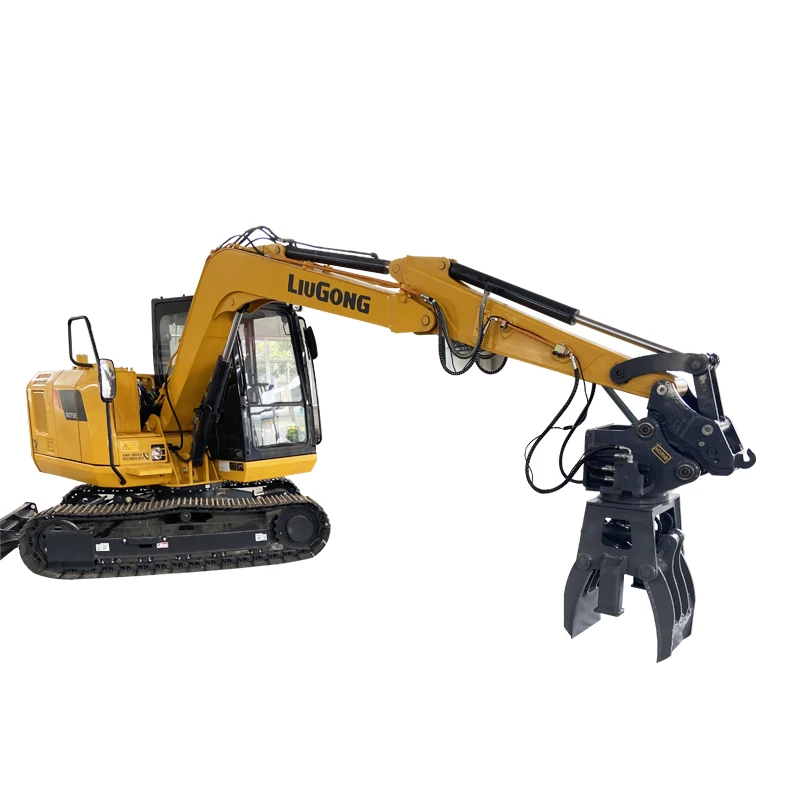

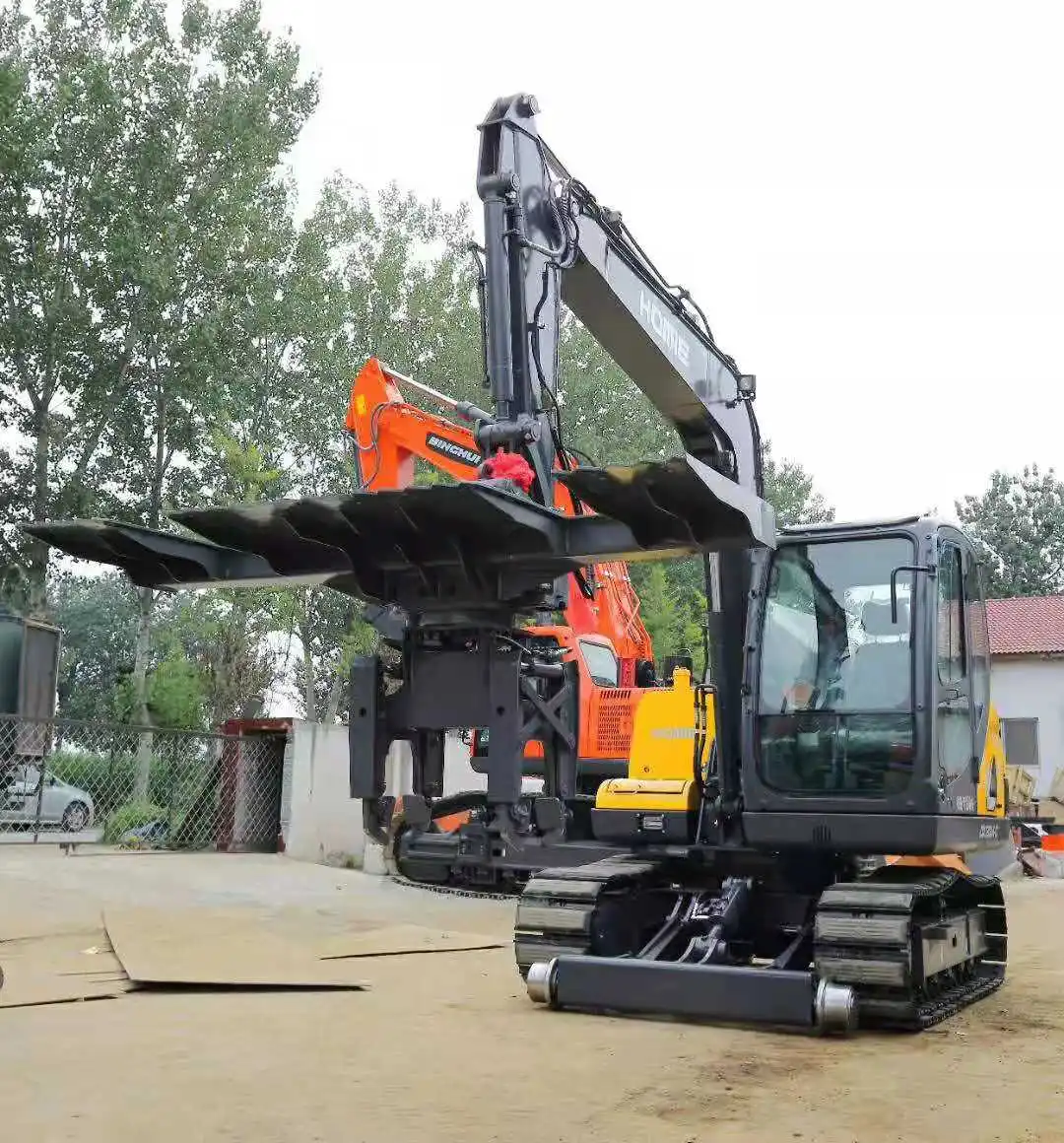

Railway maintenance equipment sleeper changer with ballast undercutter
HOMIE patented excavator attachment Sleeper Changer is a multifunctional device to filling and removal of covering as well as replacement of railway sleepers. The attachment will be mounted on a railroad excavator or on a track machine which can supply the hydraulic power required.The hydraulically operated sleeper tongs as weel as a rotator which can 360 degree rotation allow for safe and careful removing and laying of concrete sleepers B55/58,B70, wooden sleepers as well as concrete blocks and steel T- bars.
Specification

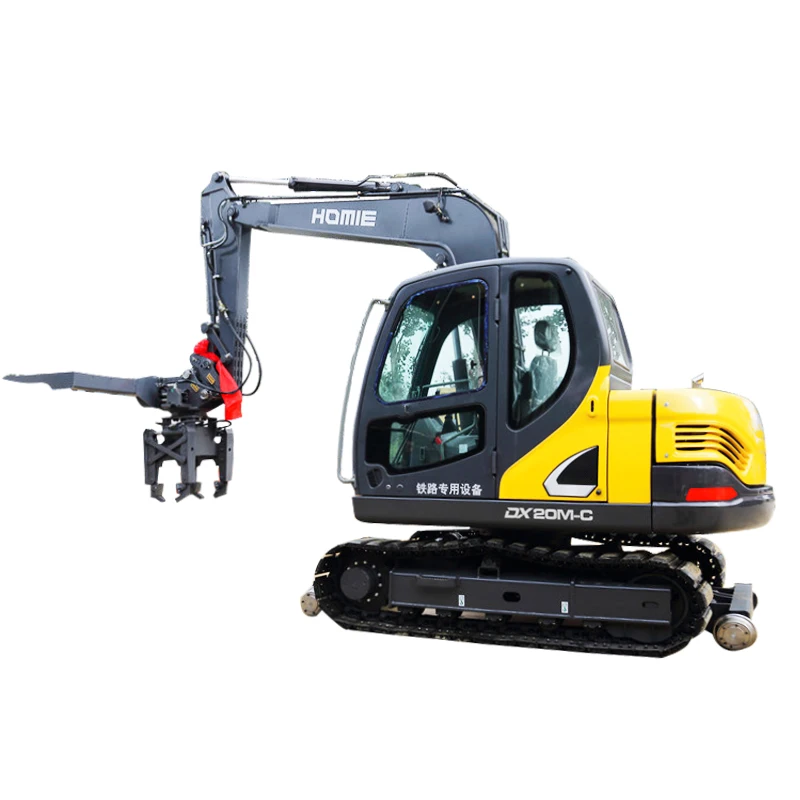

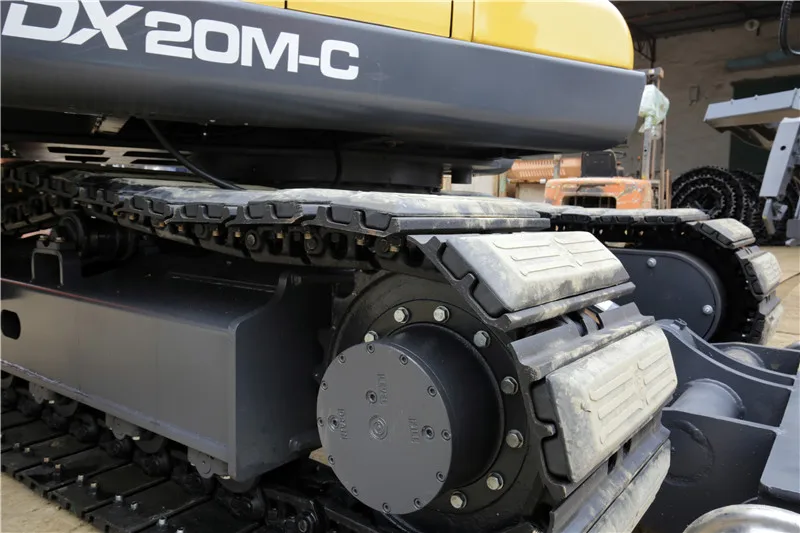

Category | Unit | DX20M-C |
Operating weight | kg | 7970 |
Attachment Weight | kg | 580 |
Motor | Yanmar | |
Rated Power | KW(HP) | 45.8/2100 |
Rated Output | RPM | 56.2PS/2100 |
Voltage | V | 12 |
Tank Volume | L | 114 |
Oil Consumption (Depending on work condition) | L/H | 8-9 |
Whole Dimension | mm | 6300*2340*2670 |
Turning Radius | mm | 6500 |
Boom Length | mm | 3720 |
Track Width | mm | 450 |
Track Gauge | mm | 1750 |
Walking Speed | KM/H | 4.9/3.1 |

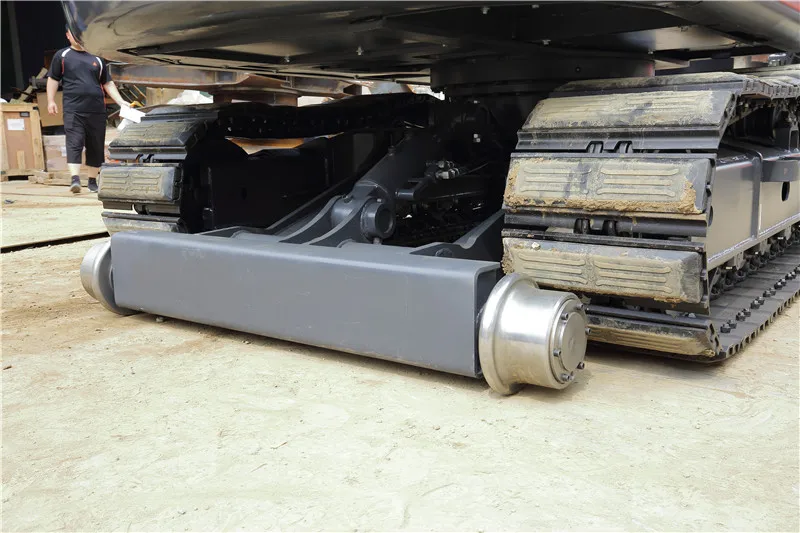

Driving Speed On Track | KM/H | 23 |
Application Track | mm | 1000 |

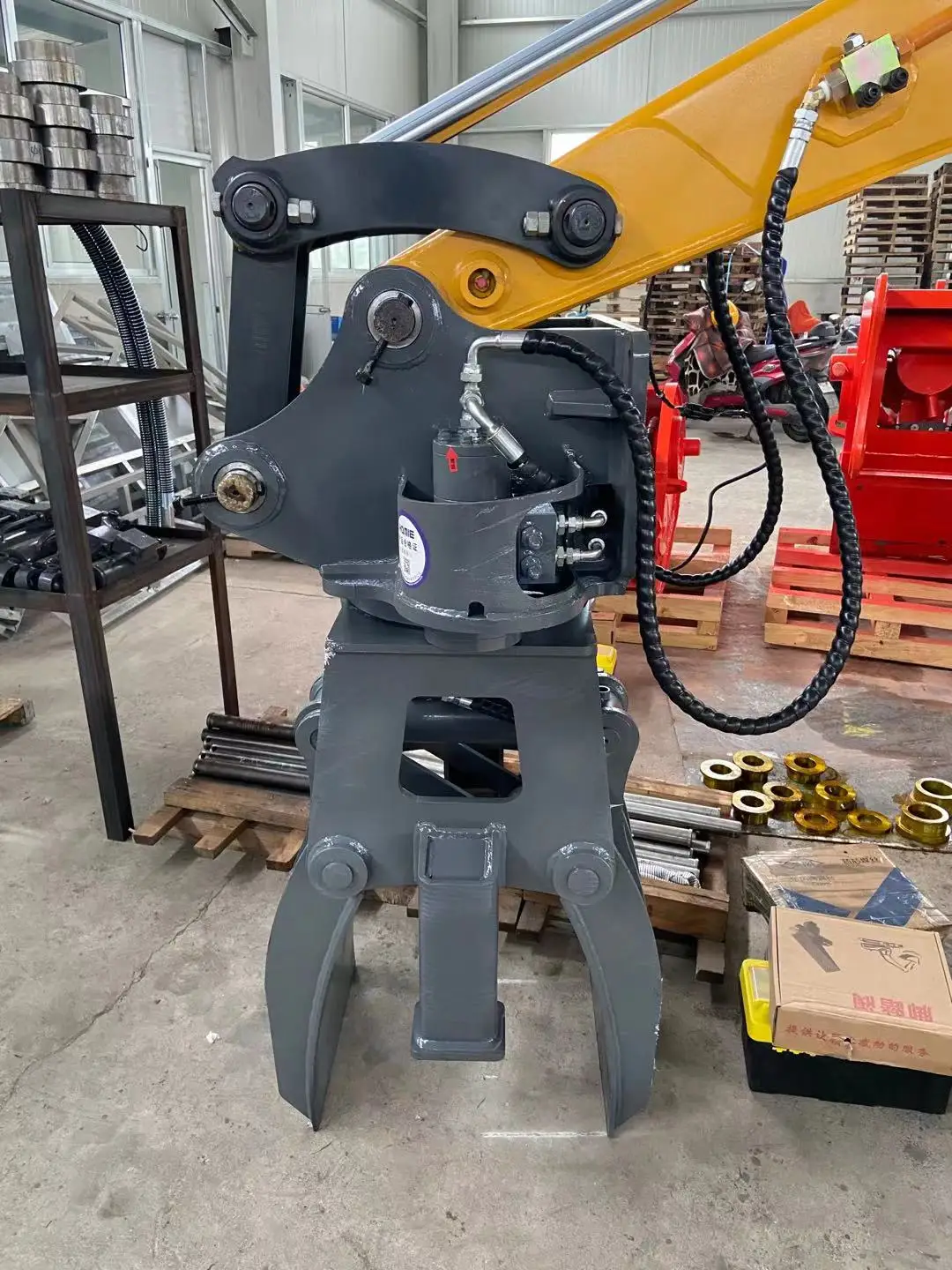

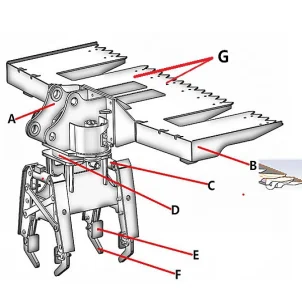

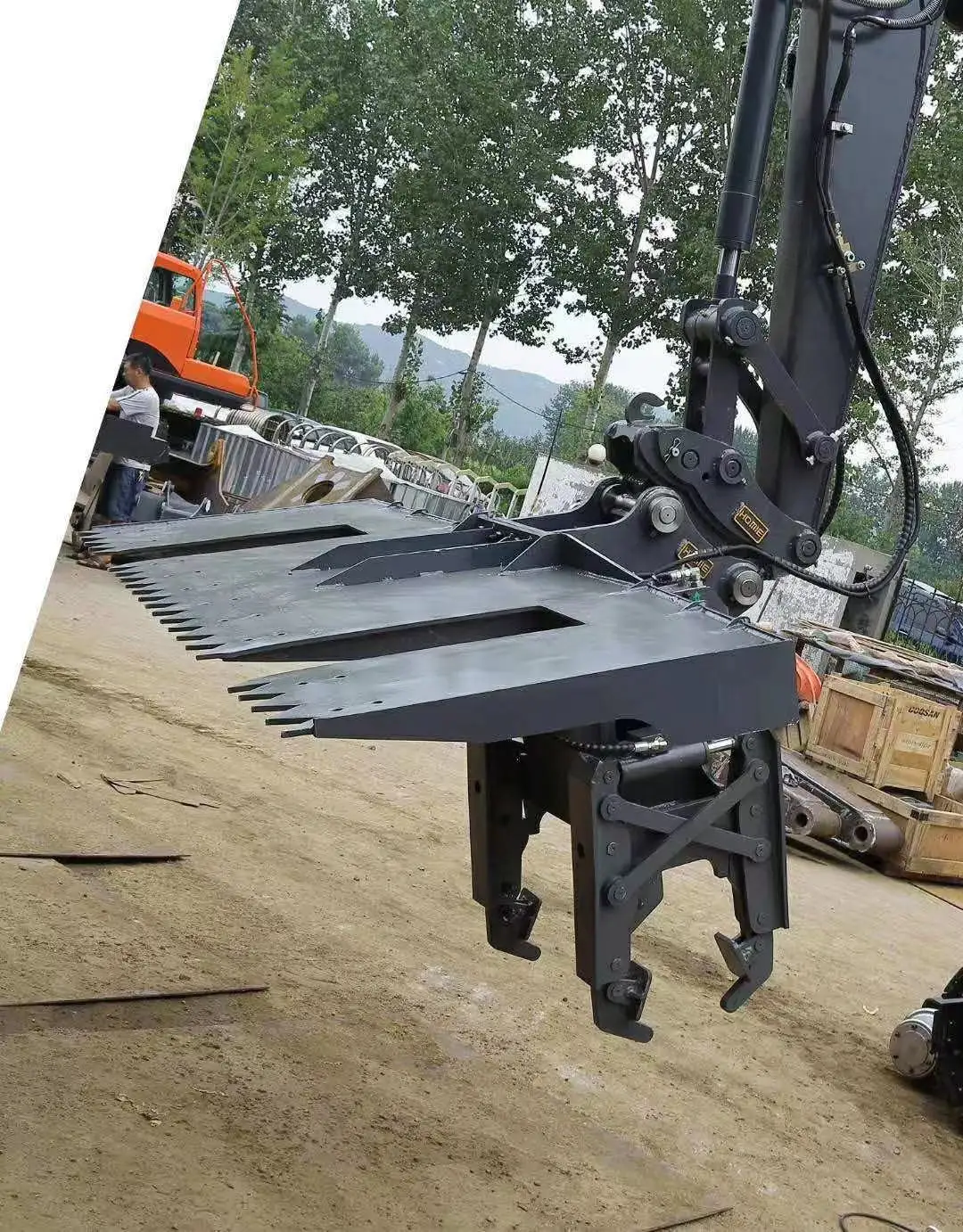

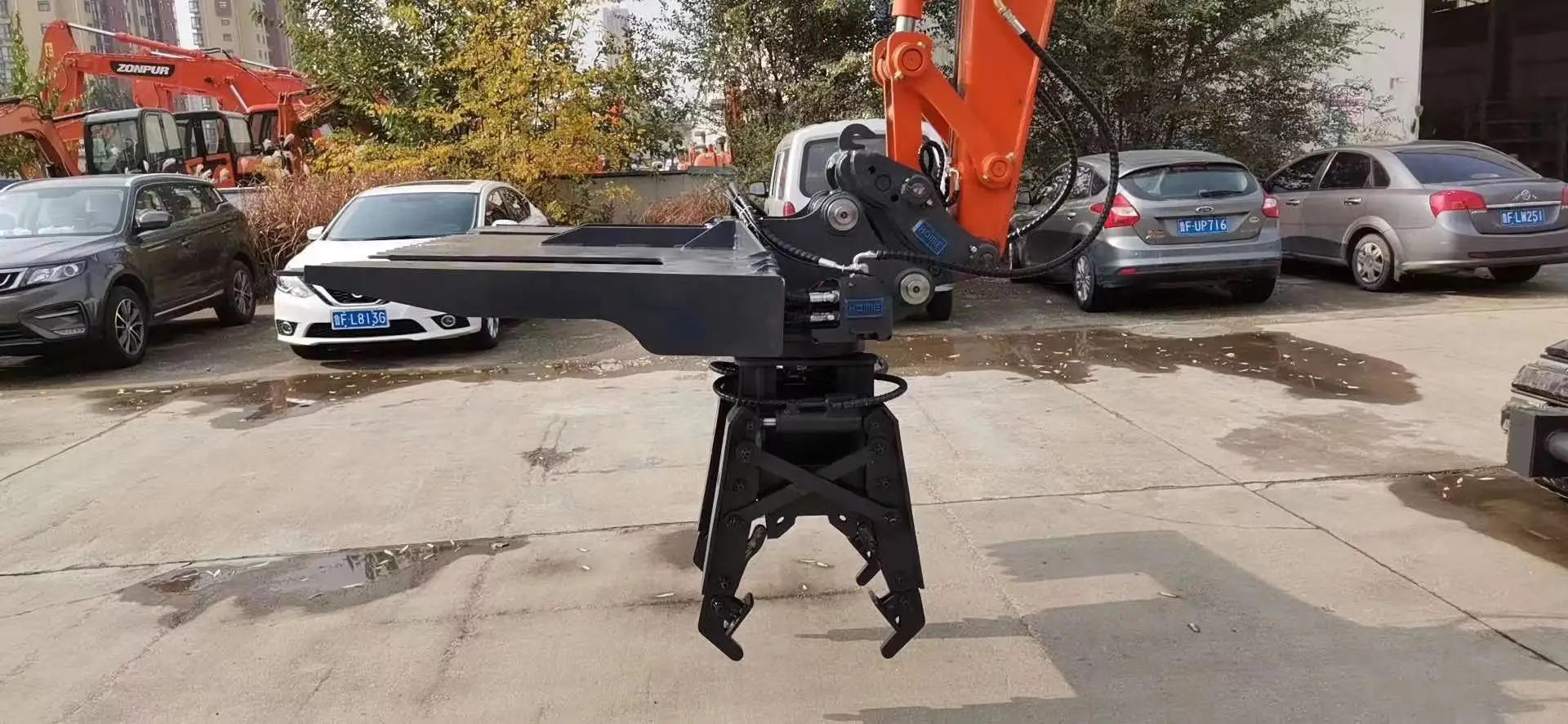

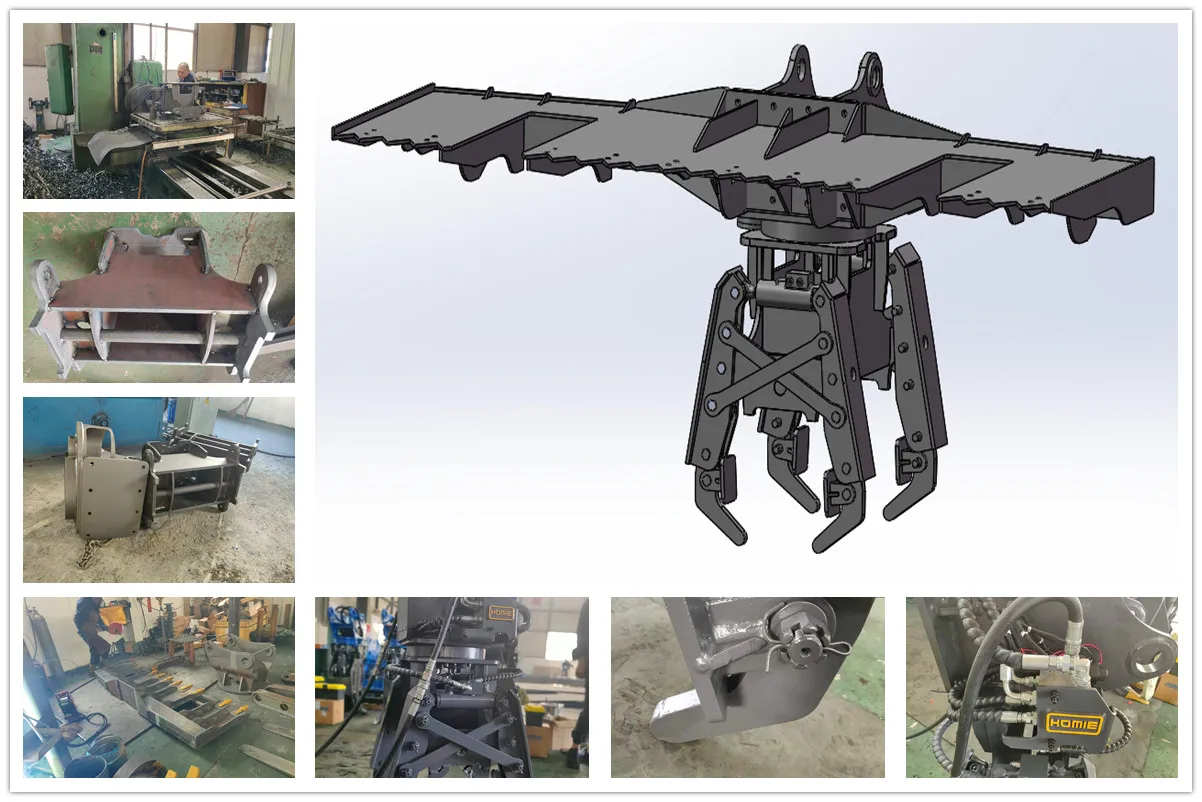

Sleeper Changing Attachment
A. Universal bracket for quick hitch mounting.
B. Box type design , back side strengthening structure,not easily bent.
C. Two cylinders stable power output.
D.Rotator- 360 degree endless turning.
E.Protection rubber pad-tightly grab the sleeper and not demange the sleeper.
F. L style anti-skid hook.
G. Wear plate- HARDOX in body(Hardox 600).
C. Two cylinders stable power output.
D.Rotator- 360 degree endless turning.
E.Protection rubber pad-tightly grab the sleeper and not demange the sleeper.
F. L style anti-skid hook.
G. Wear plate- HARDOX in body(Hardox 600).
Sleeper Changer Specification:
Weight | kg | 580 |
Max Jaw Opening | mm | 320 |
Oil Pressure | Kg/cm2 | 120-160 |
Set-up Pressure | Kg/cm2 | 180 |
Operating Flux | L/Min | 50-100 |
Cylinder Power | Ton | 4.5*2 |
Features
1, The DX20M-C Sleeper Changer is our patented products,unique design.

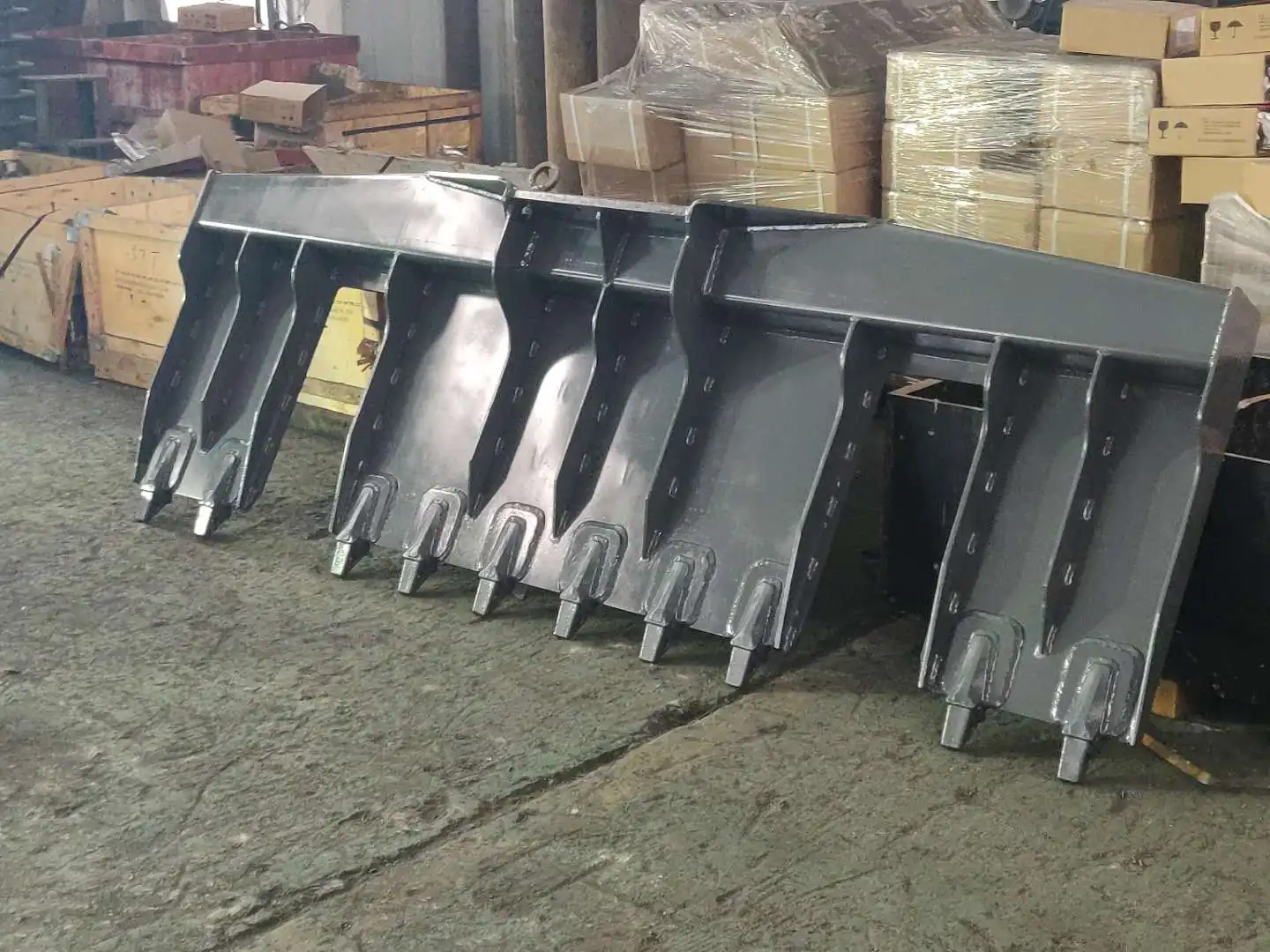

2, Our attachment design - Ballast Clearance Plate can be adjusted for different width track as 1435mm track,1520mm track and 1067mm track. We can customized for other sizes.
3, Our attachment design- The grab double cylinder and L hook design can tightly and stably grip the sleeper without sliding. Make sure the job site safe.
4, We produce excavator by ourselves - BINGHUI is our brand. we can provide a full solution on one stop ,saving your time and cost.
5, We have professional design team and after service team, you can reply on us. Our sleeper changer has been widely use in China Railway Construction, already recognized by various regions' Railway Bureau for its good quality,economic price and higher efficiency.
Details:

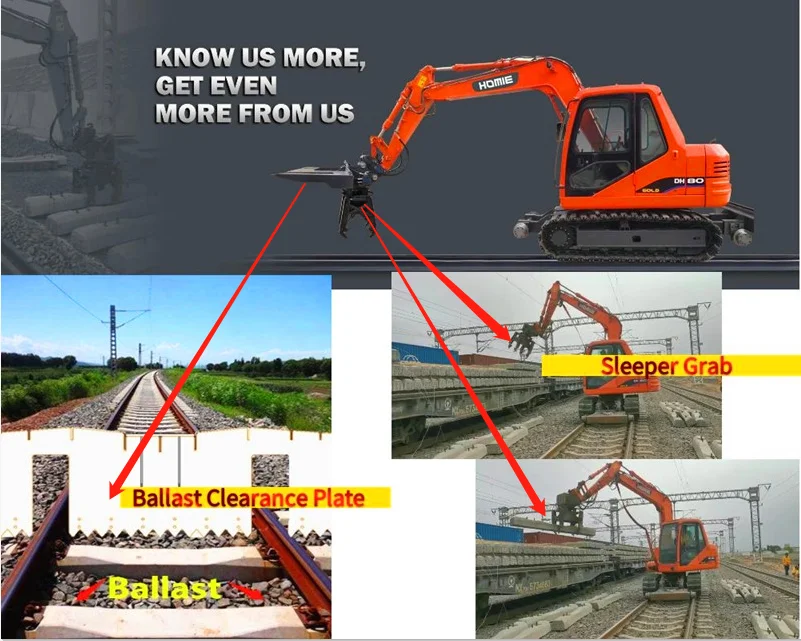

How does the sleeper changer work?

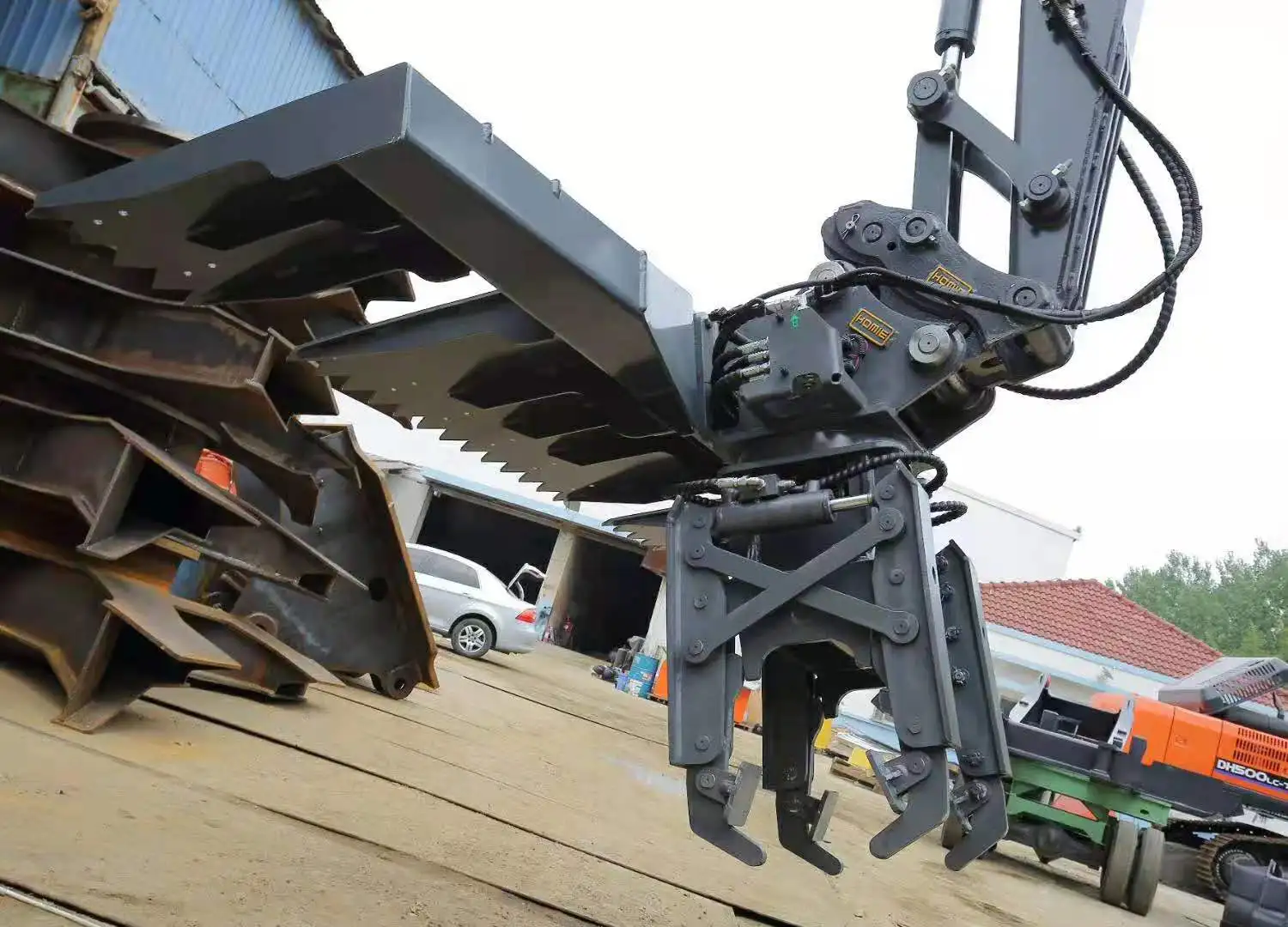

1, Ballast Clearance Plate- remove the ballast for grab to pull out the sleeper, after the new sleeper layed down,use the plate filling the ballast on the sleepers.
2, Sleeper grab- replace manpower to lift ,lay down sleepers and replace new sleepers.
