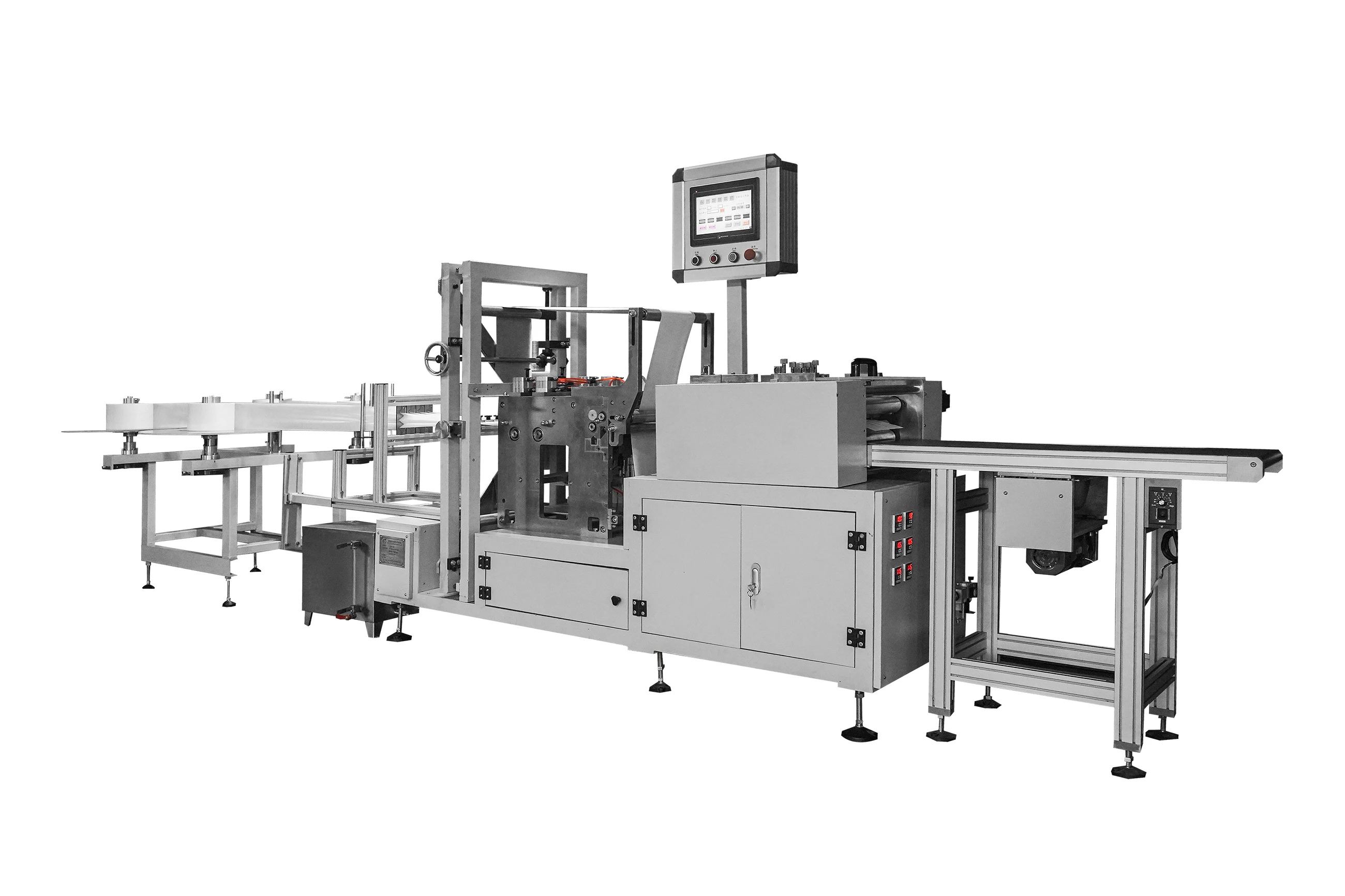

Single Piece Packaging Daily Cleaning Wipes Packaging Machine in Packing Production Line
Single Piece Packaging Daily Cleaning Wipes Packaging Machine in Packing Production Line
Single Piece Packaging Daily Cleaning Wipes Packaging Machine in Packing Production Line
Single Piece Packaging Daily Cleaning Wipes Packaging Machine in Packing Production Line
Single Piece Packaging Daily Cleaning Wipes Packaging Machine in Packing Production Line
Single Piece Packaging Daily Cleaning Wipes Packaging Machine in Packing Production Line
Single Piece Packaging Daily Cleaning Wipes Packaging Machine in Packing Production Line

Single Piece Packaging Daily Cleaning Wipes Packaging Machine in Packing Production Line

Share on (1600438928340):


Price:

Quantity:


Product Overview

Description







Products Description




SJX01-60A overview of disinfectant wipes packers

SJX01-60A disinfection wipes packaging machine is jinzhou large machinery and equipment co., LTD. Independent development, design and production of automatic wipes packaging production equipment, in 2020 new coronavirus outbreak in 2020, in the case of disinfection product production equipment shortage, according to customer needs, jinzhou large borrowed from drug packaging machine four edge sealing technology, and automatic packing machine above mature experience, independently research and production of the single packaging four side sealing disinfection wipes machine.

The wipes packaging machine is suitable for the production of all kinds of four-sided sealing wipes: alcohol wipes, makeup wipes, individual packaging personal care wipes, shoe wipes, catering wipes, etc. So on, a machine can produce a variety of different packaging sizes and specifications.

SJX01-60A wipes adopts photogas-bulk design, PLC + HMI HMI Centralized Control, The main power of equipment adopts frequency converter, And install the rotary encoder on the host shaft to monitor and collect the host position, The three key cluster shafts are powered by high-end servomotors, Accurate operation around the spindle according to the encoder feedback signal, Complete machine closed-loop control performance is stable, Multiple control interfaces and various parameter adjustment interfaces are designed on the touch screen, Equipment operation function is powerful and convenient, Beautiful and finished packaging products, Continuous roller hot seal closes firmly, Ensure the tightness of the wet wipes products.

The complete machine is combined by multiple functional mechanisms:
Raw material loading, tensioning- -packaging folding molding- -fixed length feed cut-off- -packaging pair fold into the film- -liquid wetting- -double longitudinal thermal seal- -transverse thermal seal- -finished product cut-off.And this product has the following characteristics:
1. four column parallel production, independent packaging four-sided sealed wipes single pack, make the product more high-end.
2. adopts brand spraying pump, the adjustable spraying density is controlled by PWM pulse signal, and the filling volume is uniform and accurate.
3. touch screen + PLC can freely adjust the speed, wipes length and length of finished bag.
4. Key parts of the machine are well-known brands to ensure the stability and service life of the machine.
5. The wipes of the machine cut off the feed shaft axis, longitudinal sealing shaft, the finished cutting shaft are accurately controlled by servo motor to improve the accuracy and stability of the machine.
6. Photoelectric gas integrated design, human-computer interface adopts touch screen interface, the data of the equipment is clear at a glance, and convenient input parameters. When the equipment occurs from a fault, you can check the fault information in the alarm interface in the first time.
The 7. longitudinal seal and horizontal seal are temperature controlled by six independent PID temperature control meters, and the thermal seal temperature can be accurately controlled.
8. optional color label photoelectric dynamic tracking correction function to ensure the consistent pattern of each finished bag.

Main parameters of the equipment:

Equipment power supply: three-phase 380V
Equipment power: 8.5KW
Production speed: 40-60 cut / min
Material Size: less than or equal to 300m m

Annex: Main electrical parts of the equipment are as follows:



No ial

Name

Model and specification

Quantity

Location

1

Programmable controller

FX 3GA-60MT.

1

Mitsubishi, Japan

2

Human-machine interface

MT6100I.

1

Verlontong

3

Converconverter

VFD015B21A.

1

Delta City
4

Servo motor

ECMA.

3 sets

Delta City
5

Rotate the encoder

E50S-8-3600-3-2-24.

1

Otonicus
6
Temperature control table
TCN4S.
6

Otonicus
