Автоматический Карманный пружинный матрас и Поролоновый матрас производственная линия машина для изготовления матраса (1600890315845)

Share on:


Price:50 000,00 $
Price in USD:Details

Quantity:


Product Overview

Description



Product Description




Specification

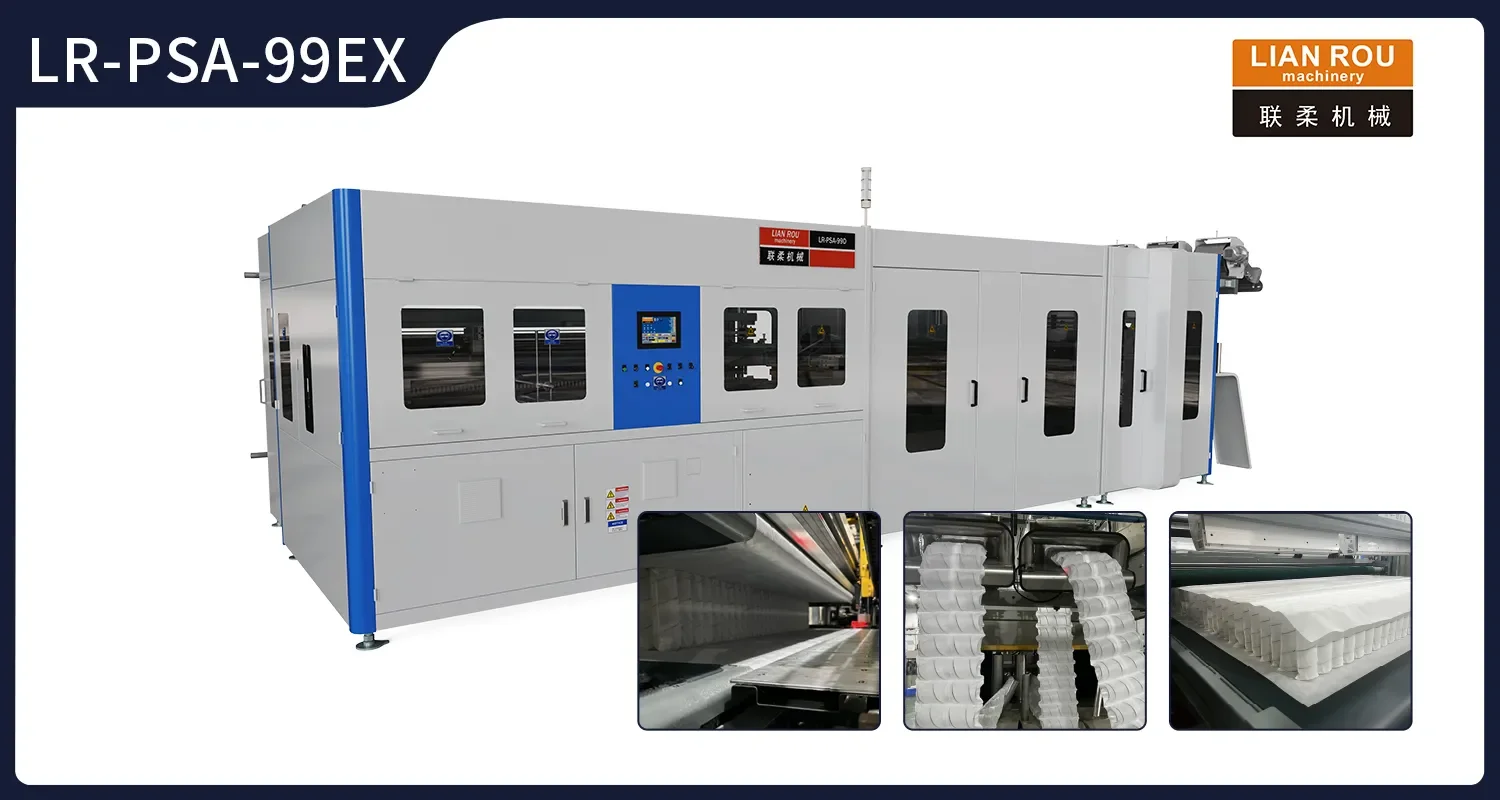

Model
LR-PSA-99EXP
Production capacity
1050 Springs/min
Hot melt application system
Nordson(USA)or Robatech(Switzerland)
Capacity of glue tank
15kg/18kg/30kg
Gluing method
Continuous gluing mode /
Interrupted gluing mode
Possibility of assembling zoned tape
Available
Possibility of assembling zoing mattress
Available
Air consumption
Approx 0.15m³/min
Air pressure
0.6 ~ 0.7 mpa
Power consumption in total
17KW
Power requirements
Voltage
3AC 380V
Frequency
50/60Hz
Input current
30A
Cable section
3*10m㎡+2*6m㎡
Working temperature
+5℃~ +35ºC
Weight
Approx.4900Kg


Consumption Material Data
Non-woven fabric
Fabric density
65~80g/㎡
Fabric width
450~2200mm
Inner diameter
Max.60mm
Outer diameter
Max.600mm
Hot melt glue
Shape
Pellet or pieces
Viscosity
125℃---6100cps
150℃--2300cps
175℃--1100cps
Softening point
85±5℃


Packing & Delivery




Double input ,higher efficiency ,over 30 rows per min

1. 1050 springs/min.
2.Patented system for double input
3.Thermostat of electric cabinet optional


Company Profile




Guangzhou Lianrou Machinery and Equipment Co.,Ltd, as the first manufacturer of pocket spring production machines in China, has always keep in mind a brief of Technological Innovation, Quality First and Top Class Service, and has continually researched and developed a series of upholstered furniture manufacturing equipments,Pocket Spring Machine,Pocket Spring Assembly Machine,Automatic Mattress Packing Machine,Mattress Roll-packing Machine,Foam-roll Compressing Machine,ect.


FAQ


1. Can you make your products with our colors?

Our products have fixed colors and specifications, if you can meet our MOQ, you can customize the color of the product.

2. How to ensure the quality of your machines?

(1) We have perfect quality standards and strict quality inspection procedures, and each process strictly abides by the standards.
(2) Strictly inspect, test and test run the finished machine according to the factory standard before leaving the factory to
ensure the quality of the machine
(3) The machine has a quality assurance policy, which is guaranteed for 1 year.
