Multi layer stainless steel filter press for honey and oil filtration
- Category: Filtration Equipment >>>
- Supplier: Henan Lucky Machinery Co. Ltd.
Share on (1600439067520):
Product Overview
Description
Product Description

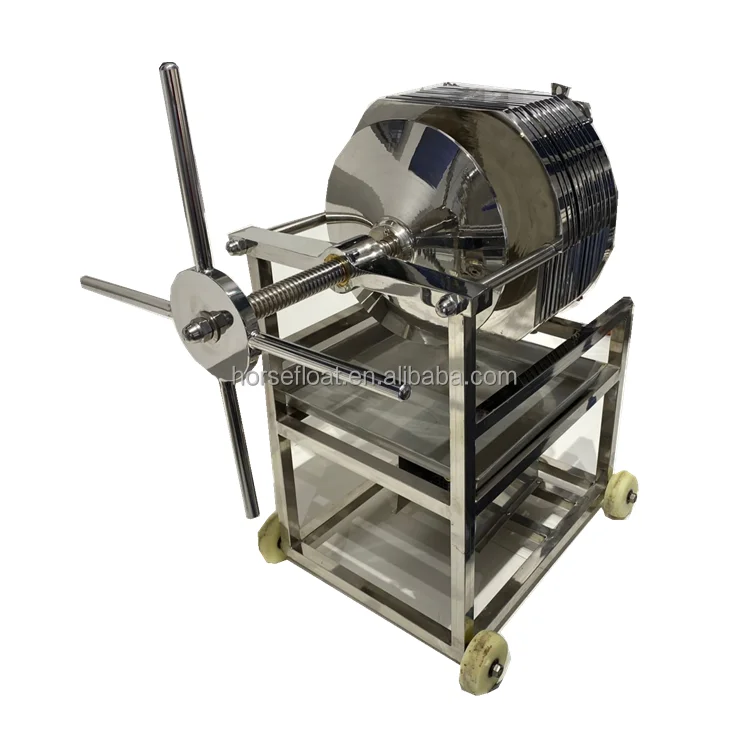

Multi-layer stainless steel filter press for honey and oil filtration
It is stainless steel plate and frame filter press, used for fine filtration, filtering precision is 0.22~100um.
It is with motor, and you can use it directly when receve it.
| Model | Layer No. | Filter Area (m2) | Plate Size (mm) | Precision (um) | Water Flow (t/h) | Filtration Pressure (Mpa) | Feed Pump (KW) | Dimension (L*W*H)mm |
| DZDC-100 | 10 | 0.078 | φ 100 | 0.22~100 | 0.8 | 0.3 | 0.37 | 600*300*600 |
| DZDC-150 | 10 | 0.17 | φ 150 | 1.5 | 0.55 | 650*380*650 | ||
| DZDC-200 | 10 | 0.34 | φ 200 | 2.0 | 0.75 | 650*400*700 | ||
| DZDC-300 | 10 | 0.70 | φ 300 | 4.0 | 0.75 | 700*500*800 | ||
| DZDC-400 | 10 | 1.25 | φ 400 | 6.0 | 1.10 | 900*600*1000 | ||
| DZDC-400 | 16 | 2.00 | φ 400 | 9.0 | 1.50 | 1000*600*1000 | ||
| DZDC-400 | 20 | 2.50 | φ 400 | 10.0 | 1.50 | 1100*600*1000 | ||
| DZDC-400 | 32 | 4.00 | φ 400 | 13.0 | 1.50 | 1320*600*1000 | ||
| DZDC-200 | 10 | 0.40 | 200*200 | 0.22~100 | 3.0 | 0.3 | 0.55 | 650*380*650 |
| DZDC-300 | 10 | 0.90 | 300*300 | 6.0 | 0.75 | 700*500*800 | ||
| DZDC-400 | 10 | 2.00 | 400*400 | 10.0 | 1.10 | 900*600*1000 | ||
| DZDC-300 | 20 | 3.00 | 400*400 | 12.0 | 1.10 | 1100*600*1000 | ||
| DZDC-400 | 26 | 4.00 | 400*400 | 15.0 | 1.10 | 1150*600*1000 | ||
| DZDC-400 | 32 | 5.00 | 400*400 | 18.0 | 1.50 | 1200*600*1000 | ||
| DZDC-400 | 38 | 6.00 | 400*400 | 21.0 | 1.50 | 1300*600*1000 | ||
| DZDC-400 | 44 | 7.00 | 400*400 | 23.0 | 1.50 | 1350*600*1000 |

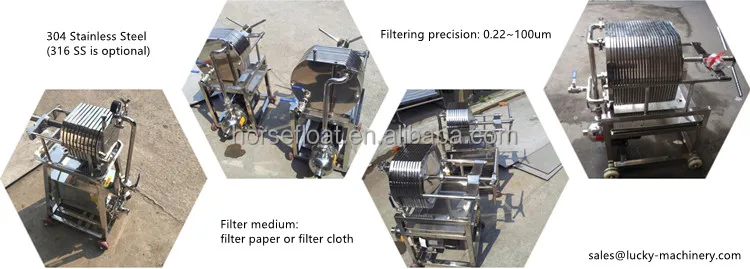

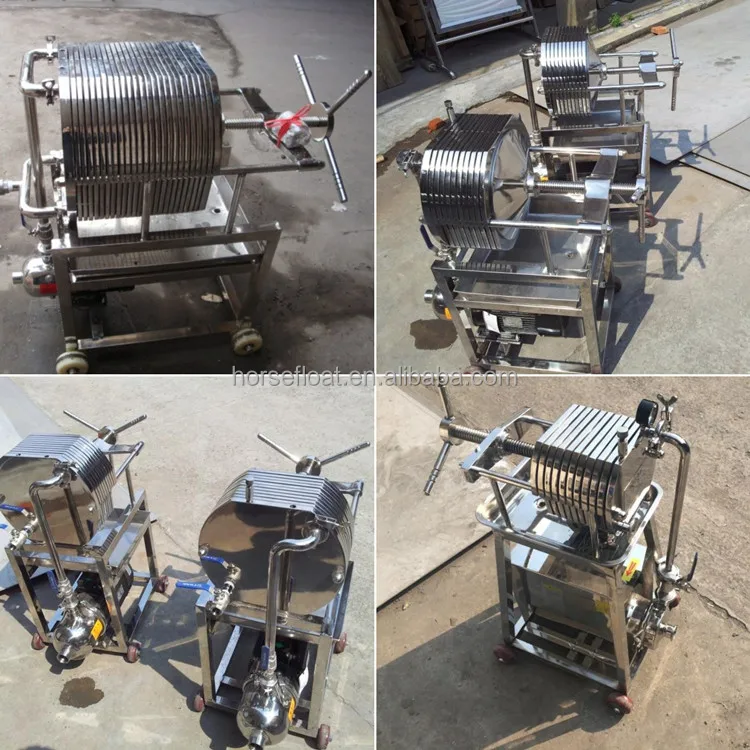

Filter Press Pictures
Multi-layer stainless steel filter press for honey and oil filtration pictures

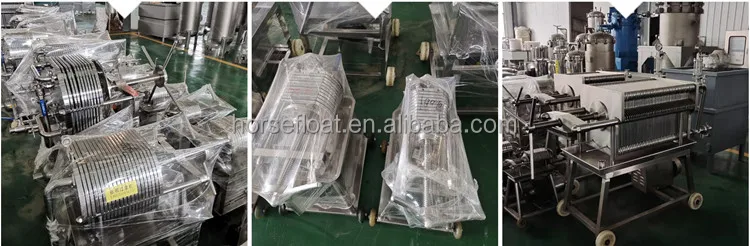

Packaging & Shipping
Delivery time: 10-30days
Payment terms: 30% T/T down payment, 70% T/T before delivery
Warranty: 12 months

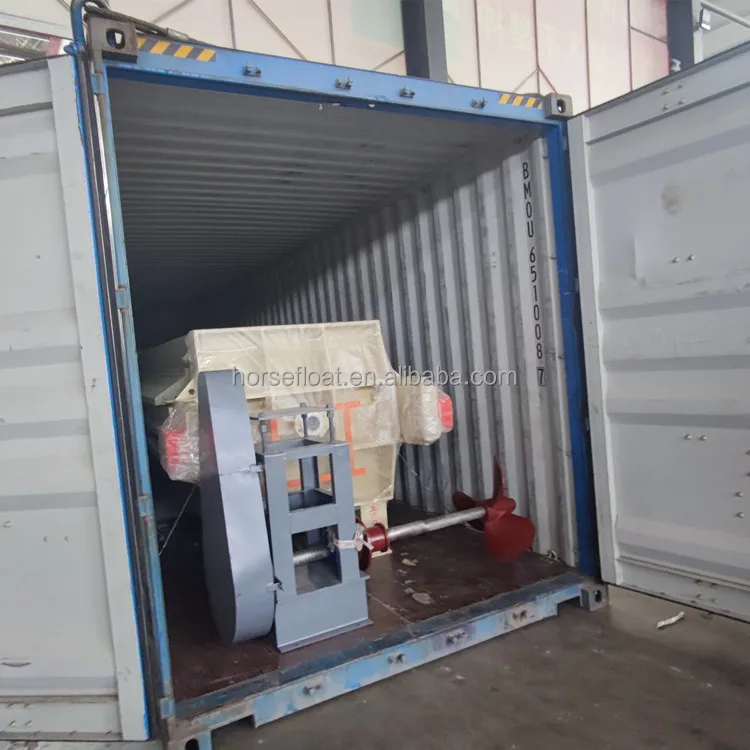

Packing: Machine naked, spare parts in wooden case, by 20ft or 40ft container based on filter press size.
