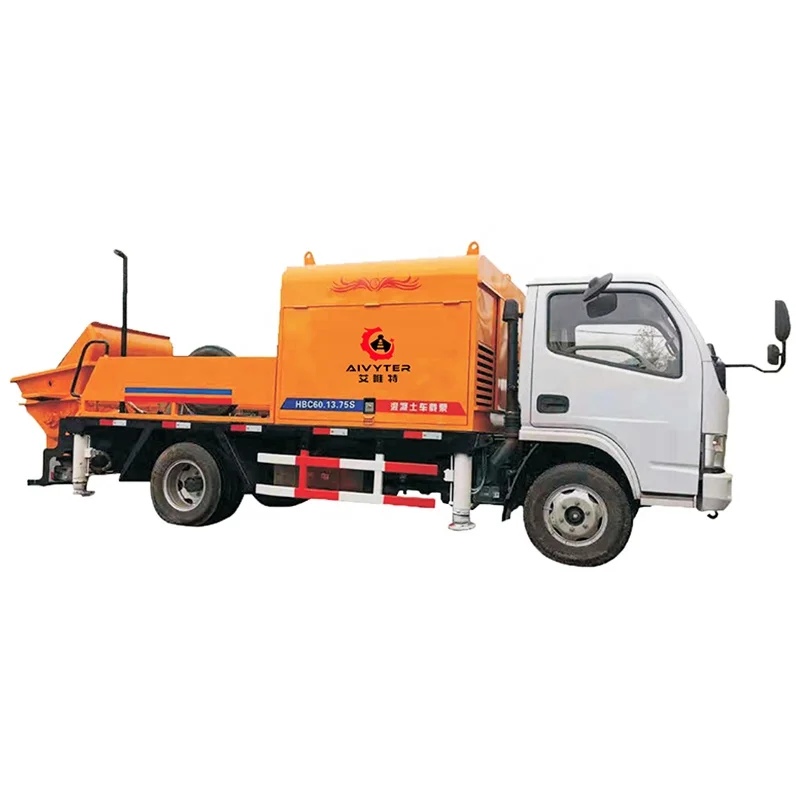

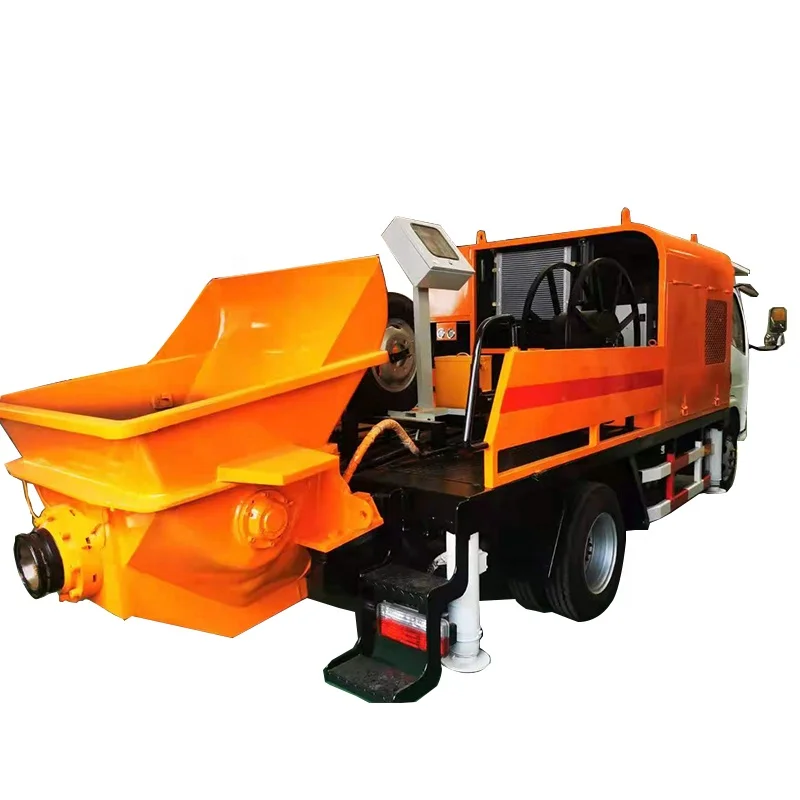

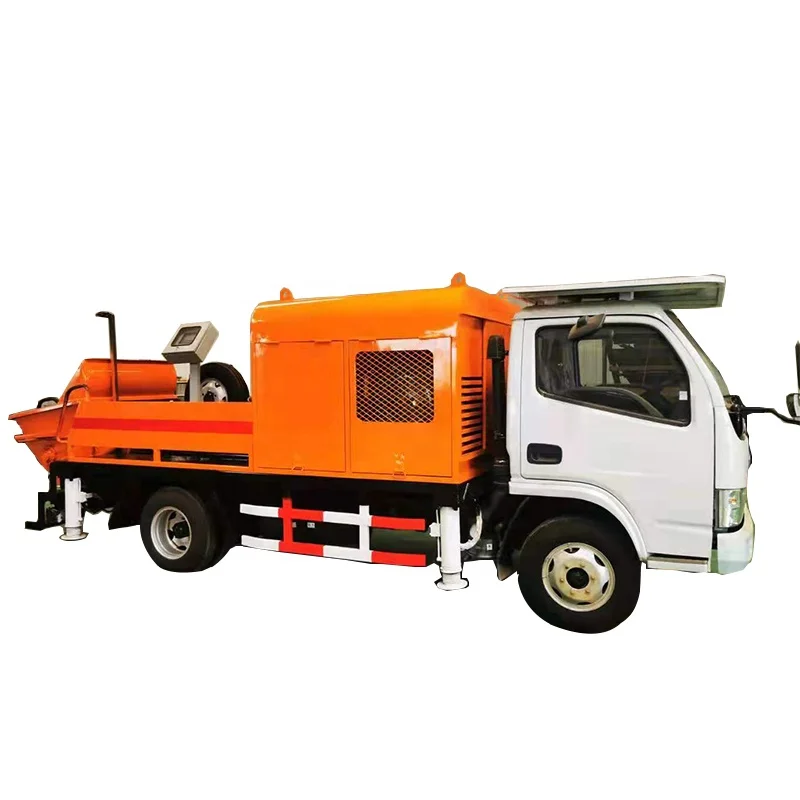

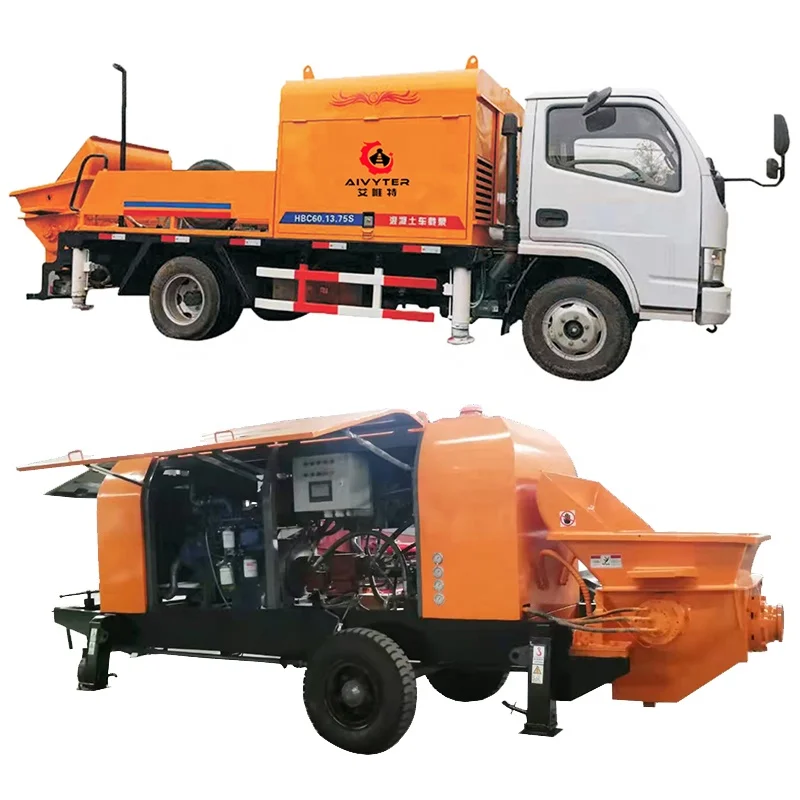

60m3/h Low Fuel Consumptior Diesel Concrete Pump
- Category: >>>
- Supplier: Fujian Aivyter Compressor Co. Ltd.
Share on (1600439874653):
Product Overview
Description
Product Overview
Features of AIVYTER concrete pump
1.Simple structure and convenient maintenance (Classic Zhonglian Open System)
2.Good material suction and strong adaptability(material suction is comparable to ram pump)
3.Good portable, multi-hole slope modification with one machine (self-contained chassis, free walking, high efficiency, reducing damage caused by forklift towing)
4.The accessories are cheap and the consumables are less. (Including S valve pump wearing parts and lubricating oil) Cost-effective reference
Displacement of tunnel concrete pump 224/Displacement of" three one" Ram pump 190
Tunnel concrete pump cylinder diameter 230mm/" three one"Ram pump 200mm
Tunnel concrete pump cylinder diameter 125mm/" three one " Ram pump 100mm
Tunnel concrete pump outlet pressure 13MP/ "three one" Ram pump 8MP
8 places of lubricating oil loss in the tunnel concrete pump / 16 places of "three one " Ram pump
Full hydraulic outrigger for tunnel concrete pump/Ordinary outrigger of "three one" Ram pump
The maximum speed of tunnel concrete pump is 80km, and the "three one" is towed for 8 km, which is convenient, fast and labor-saving
Product Configuration
Parameter name | HBC60.13-75S | Unit |
Maximum theoretical concrete delivery volume | 60 | m3/h |
Maximum pumping concrete pressure | 13 | Mpa |
Hydraulic system | Double pump double circuit open system | |
Hydraulic system pressure | 32 | Mpa |
Motor Power | 75 | kW |
Distribution valve form | S valve | |
Concrete conveying cylinder diameter piece stroke | Φ200/1800 | mm |
Hopper volume | 0.68 | m2 |
Loading height | 1450 | mm |
Maximum theoretical vertical conveying distance | 80 | m |
Maximum theoretical horizontal conveying distance | 300 | m |
Dimensions | 7100*2000*2400 | mm |
Total Weight | 8000 | kg |
No. | Name | Quantity | Country |
1 | Main pump | 1 | Kawasaki |
2 | Gear pump | 1 | Anhui Wanye |
3 | 25E Valve | 1 | America HEE |
4 | 16E Valve | 1 | America HEE |
5 | DB20 | 1 | America HEE |
6 | Manual reversing valve | 1 | America HEE |
7 | Cylinder | 2 | Changsha Three Doctors(125*80*1400) |
8 | Delivery cylinder | 2 | Changsha(230*1662) |
9 | Motor 75kw | 1 | Nanjing Laiyi |
10 | Cooling the motor | 1 | Henan Xinxiang |
11 | Accumulator | 1 | Zhejiang |
12 | Filter assembly | 1 | Zhejiang |
13 | Oil motor | 1 | Zhejiang |
14 | Proximity switch | 1 | Omron |
15 | Hose | 1 | Italy,Manuli |
16 | Cooler | 1 | Made in China |
17 | PLC | 1 | Siemens |
18 | Open | 1 | Made in China |
19 | Hydraulic oil | 1 | Great Wall 46# |
20 | Car base | 1 | Dongfeng/Futian |

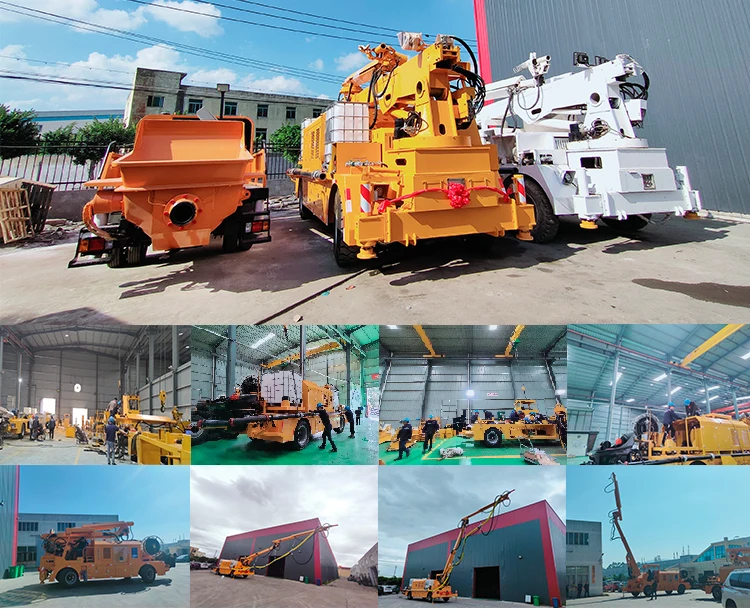

Company Profile
Fujian Aivit Compressor Co., Ltd. was established in 2010. It is an enterprise specializing in the research and development, sales and service of screw air compressors, Gas Generation Equipment, and construction machinery.
Committed to strict quality control and thoughtful customer service, our experienced staff can discuss your requirements at any time and ensure complete customer satisfaction by supplying air and gas. Topway not only has its own import and export rights and stable global distributors, but also has a professional after-sales service team. In addition, we have obtained CE, TUV, SGS, ISO certificates.
In the Chinese domestic market, our Aivyter brand screw air compressors and wet spray manipulators enjoy a high reputation in the tunnel industry. Cooperated with China Railway Administration Group Co., Ltd., and formed a long-term strategic partnership with China Railway Administration (1) Bureau Group Co., Ltd. and China Railway (10) Bureau Group Co., Ltd.
The products sell well in all provinces and cities across the country, and the products are exported to Russia, Thailand, Vietnam, Indonesia, South Africa, Tunisia, Saudi Arabia, Uzbekistan, Denmark, Poland, Mexico, Chile, Peru, India, Pakistan, Malaysia, etc.
Our products have been widely praised at home and abroad. We also welcome OEM and ODM orders. As a supplier, Topway has its own factory, covering an area of 10,000 square meters, with a monthly output of 500 screw air compressors, 100 oxygen generators, 5 technical engineers and more than 100 workers.
Committed to strict quality control and thoughtful customer service, our experienced staff can discuss your requirements at any time and ensure complete customer satisfaction by supplying air and gas. Topway not only has its own import and export rights and stable global distributors, but also has a professional after-sales service team. In addition, we have obtained CE, TUV, SGS, ISO certificates.
In the Chinese domestic market, our Aivyter brand screw air compressors and wet spray manipulators enjoy a high reputation in the tunnel industry. Cooperated with China Railway Administration Group Co., Ltd., and formed a long-term strategic partnership with China Railway Administration (1) Bureau Group Co., Ltd. and China Railway (10) Bureau Group Co., Ltd.
The products sell well in all provinces and cities across the country, and the products are exported to Russia, Thailand, Vietnam, Indonesia, South Africa, Tunisia, Saudi Arabia, Uzbekistan, Denmark, Poland, Mexico, Chile, Peru, India, Pakistan, Malaysia, etc.
Our products have been widely praised at home and abroad. We also welcome OEM and ODM orders. As a supplier, Topway has its own factory, covering an area of 10,000 square meters, with a monthly output of 500 screw air compressors, 100 oxygen generators, 5 technical engineers and more than 100 workers.
FAQ
Q1: What's the payment term?
A1: T/T, L/C, Western Union, etc. Also we could accept USD, RMB, and other currency.
Q2: Can you accept OEM orders?
A2: Yes, OEM orders are warmly welcome.
Q3: How about your customer service and after-sales service?
A3: 24hrs on-line support.
Q4: Do you have spare parts in stock?
A4: Yes, we do.
